Understanding Magnetic Field Patterns and Forces in GCSE Physics

The fundamental concepts of magnetism and electromagnetism form a crucial part of GCSE Physics studies. This comprehensive exploration covers magnetic closure systems, field patterns, and experimental investigations of magnetic forces.

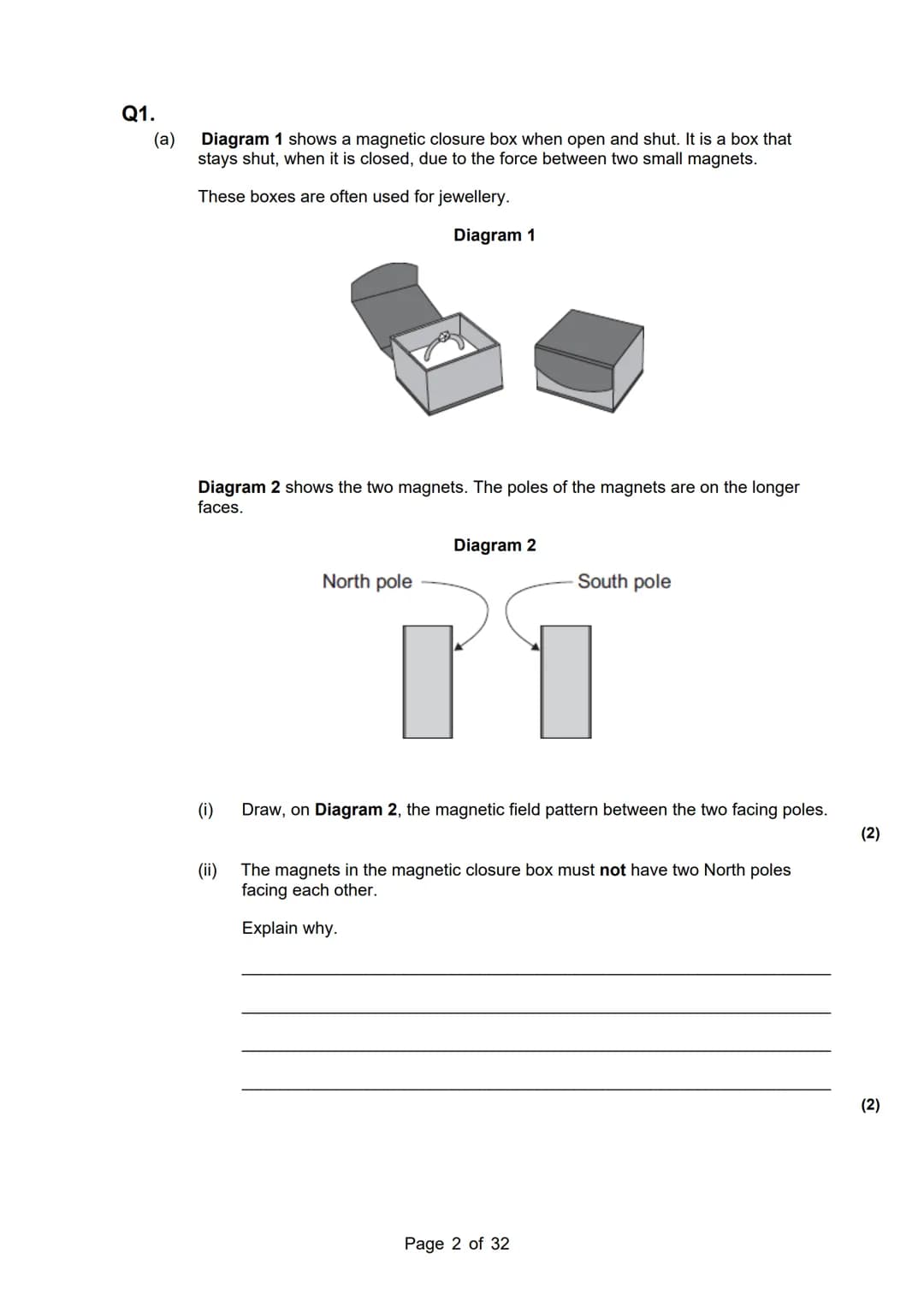

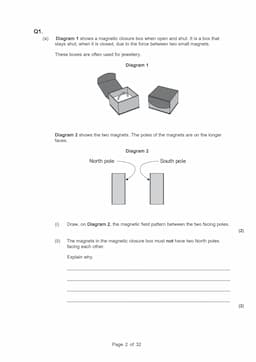

A magnetic closure box, commonly used in jewelry storage, demonstrates practical applications of magnetic forces. These boxes utilize two magnets with poles positioned on their longer faces to create a secure closure mechanism. When examining the magnetic field lines between opposing poles, they follow a distinctive pattern - flowing from North to South pole in curved lines. This pattern is essential for understanding magnetic interactions in GCSE Physics electromagnetism questions.

Definition: Magnetic field lines are invisible lines showing the direction of magnetic force around a magnet. The closer the lines, the stronger the magnetic field.

Understanding why two North poles cannot face each other is crucial for magnetic closure systems. When like poles face each other, they create repulsive forces that prevent the box from closing properly. This principle aligns with fundamental magnetic theory covered in Magnetism and Electromagnetism notes.

Investigating Magnetic Forces and Separation Distance

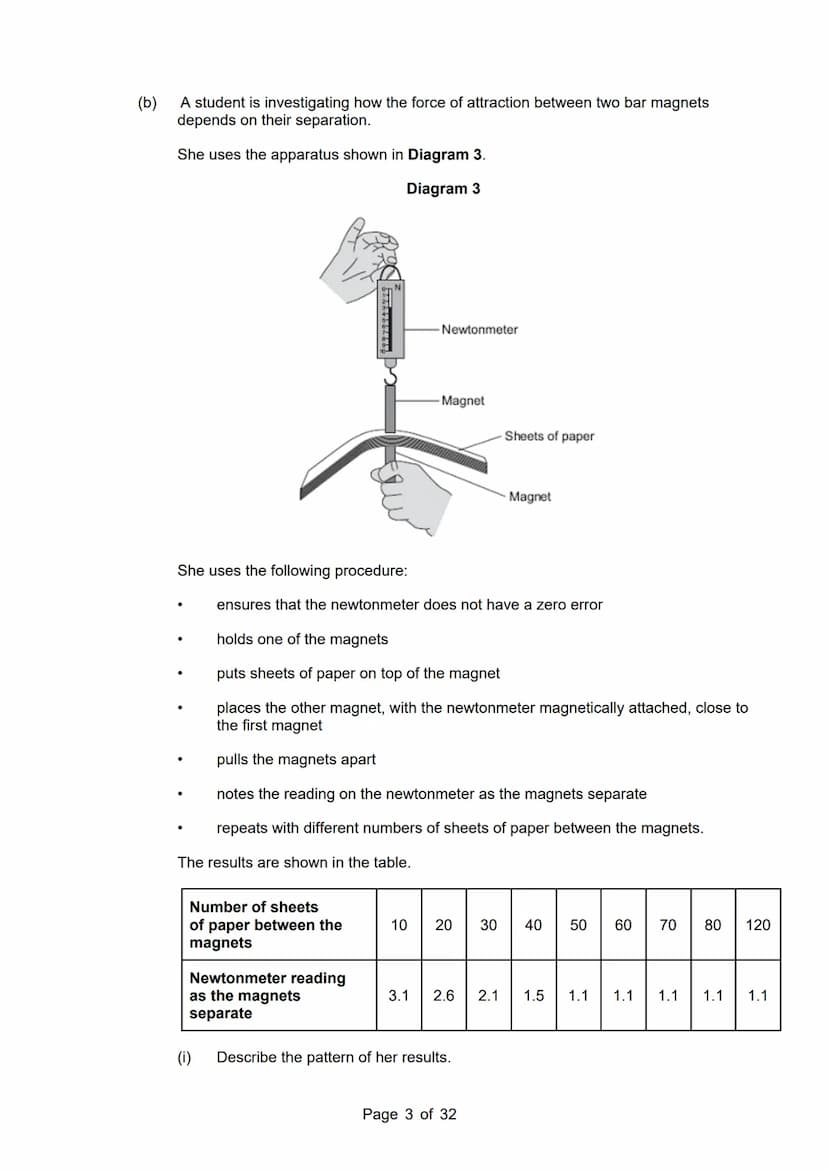

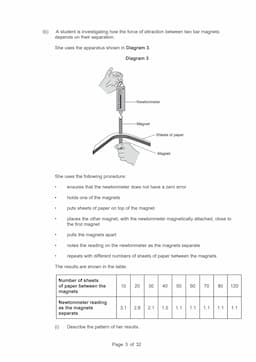

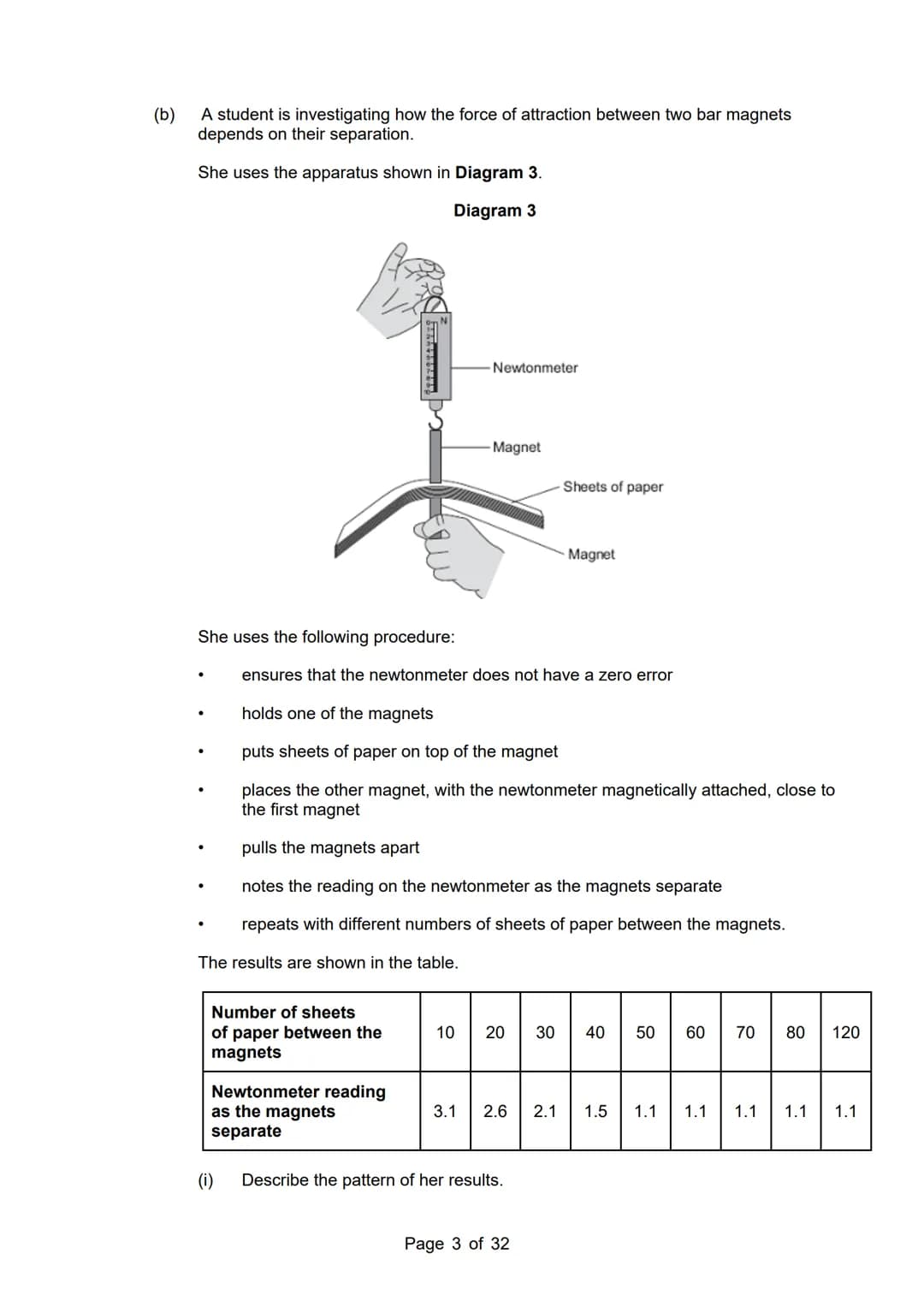

Practical investigations of magnetic forces form a key component of AQA GCSE Physics required practicals. A systematic approach using a newtonmeter and varying distances between magnets helps students understand the relationship between separation and magnetic force.

The experimental setup involves precise measurements using:

• A calibrated newtonmeter
• Two bar magnets
• Paper sheets for controlled separation
• Careful observation of force readings

Example: When increasing separation from 10 to 120 sheets of paper, force readings typically decrease from 3.1N to 1.1N, demonstrating the inverse relationship between distance and magnetic force.

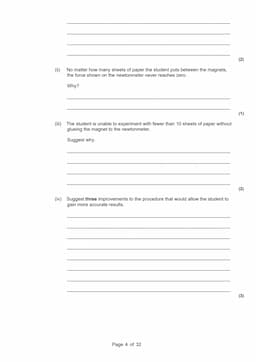

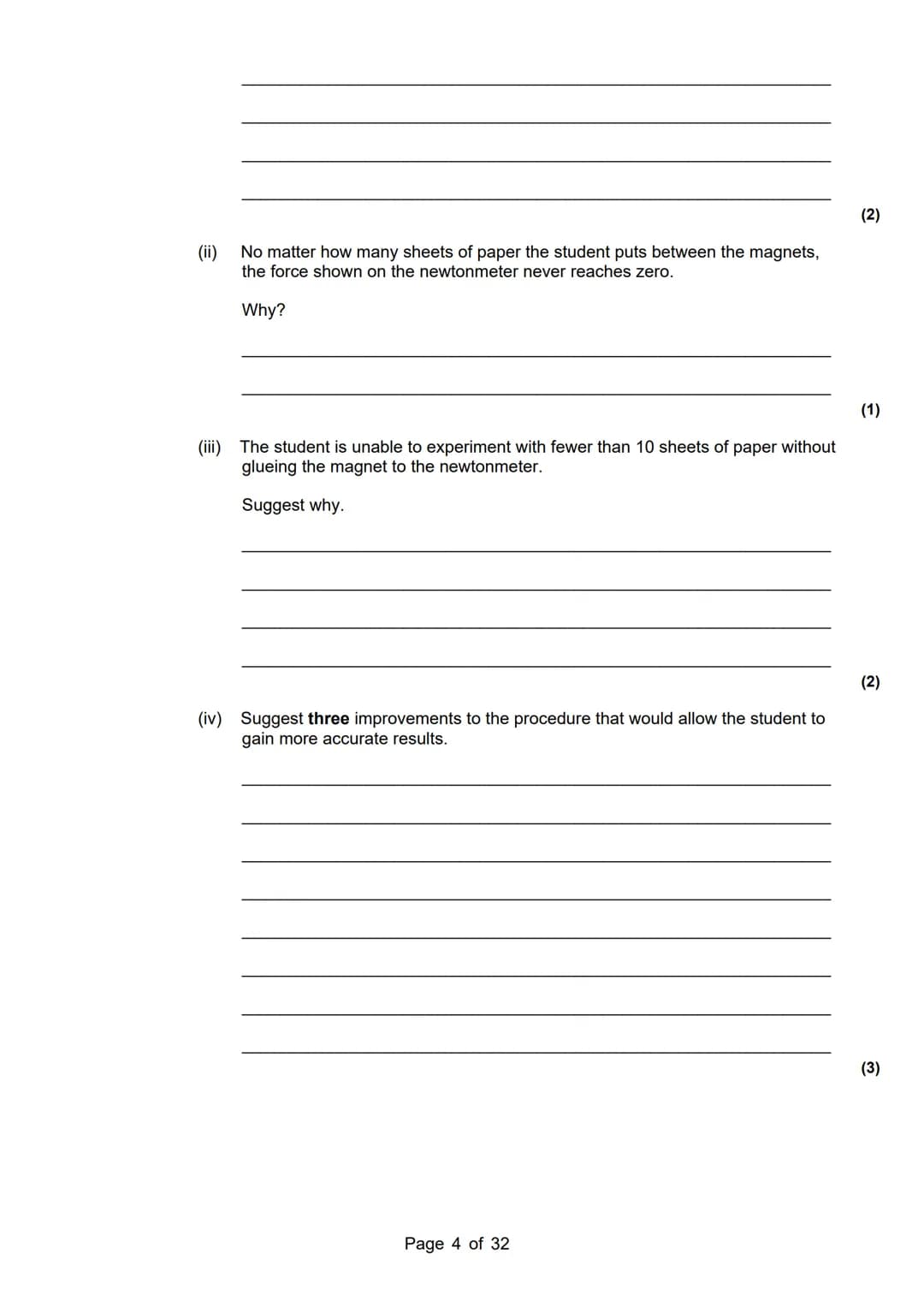

Highlight: Magnetic forces never completely disappear, even with significant separation, due to the infinite extent of magnetic fields, though they become extremely weak at large distances.

Experimental Techniques and Accuracy in Magnetic Force Measurements

Proper experimental technique is essential for accurate results in Physics paper 2 required practicals. When conducting magnetic force investigations, several factors must be considered to ensure reliable data collection.

The challenge of measuring forces with very small separations highlights the strong attractive forces between magnets at close range. This demonstrates why gluing the magnet to the newtonmeter becomes necessary for measurements with fewer than 10 sheets of paper.

Vocabulary: Zero error - a measurement error where an instrument shows a non-zero reading when it should read zero.

To improve experimental accuracy, consider:

• Using digital force meters for more precise readings
• Maintaining consistent orientation of magnets
• Controlling environmental factors like nearby magnetic materials
• Ensuring repeated measurements for reliability

Advanced Considerations in Magnetic Field Studies

Understanding magnetic field patterns and forces is crucial for mastering AQA GCSE Physics Magnetism and electromagnetism exam questions. The relationship between magnetic force and distance follows an inverse square law, though this becomes complex at very close distances.

Students should focus on:

• Visualizing field patterns using iron filings or compasses
• Understanding the significance of field strength variations
• Recognizing practical applications in everyday devices
• Mastering experimental techniques for accurate measurements

Quote: "The strength of magnetic fields decreases rapidly with distance, but never quite reaches zero - a fundamental principle in electromagnetic theory."

Understanding Magnetic Fields and Forces in GCSE Physics

Magnetic Field Patterns and Non-Contact Forces

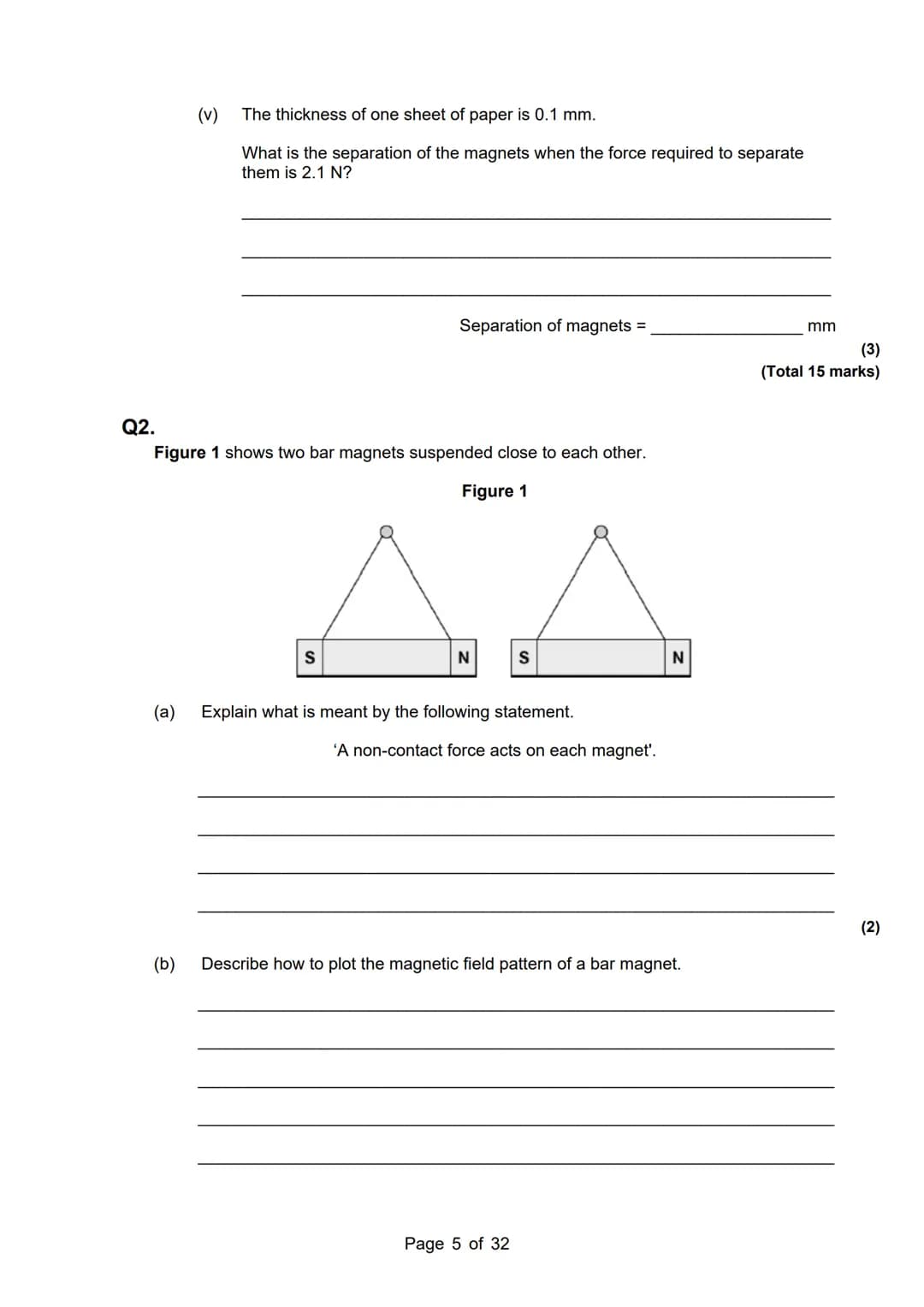

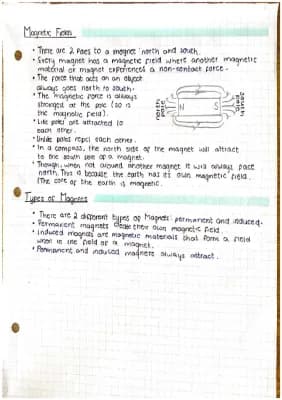

When studying magnetic field patterns for GCSE physics AQA, it's essential to understand that magnets exert forces without physical contact. These non-contact forces act through the magnetic field that surrounds every magnet. The magnetic field extends invisibly through space, allowing magnets to attract or repel each other without touching.

To plot magnetic field lines GCSE, scientists use iron filings or small compass needles. The pattern formed shows the direction and strength of the magnetic field around the magnet. When plotting these patterns, the field lines always emerge from the North pole and enter the South pole, creating distinctive curved patterns that never cross.

Definition: A uniform magnetic field is a region where the magnetic field strength and direction remain constant throughout the space. This is shown by parallel, equally-spaced field lines.

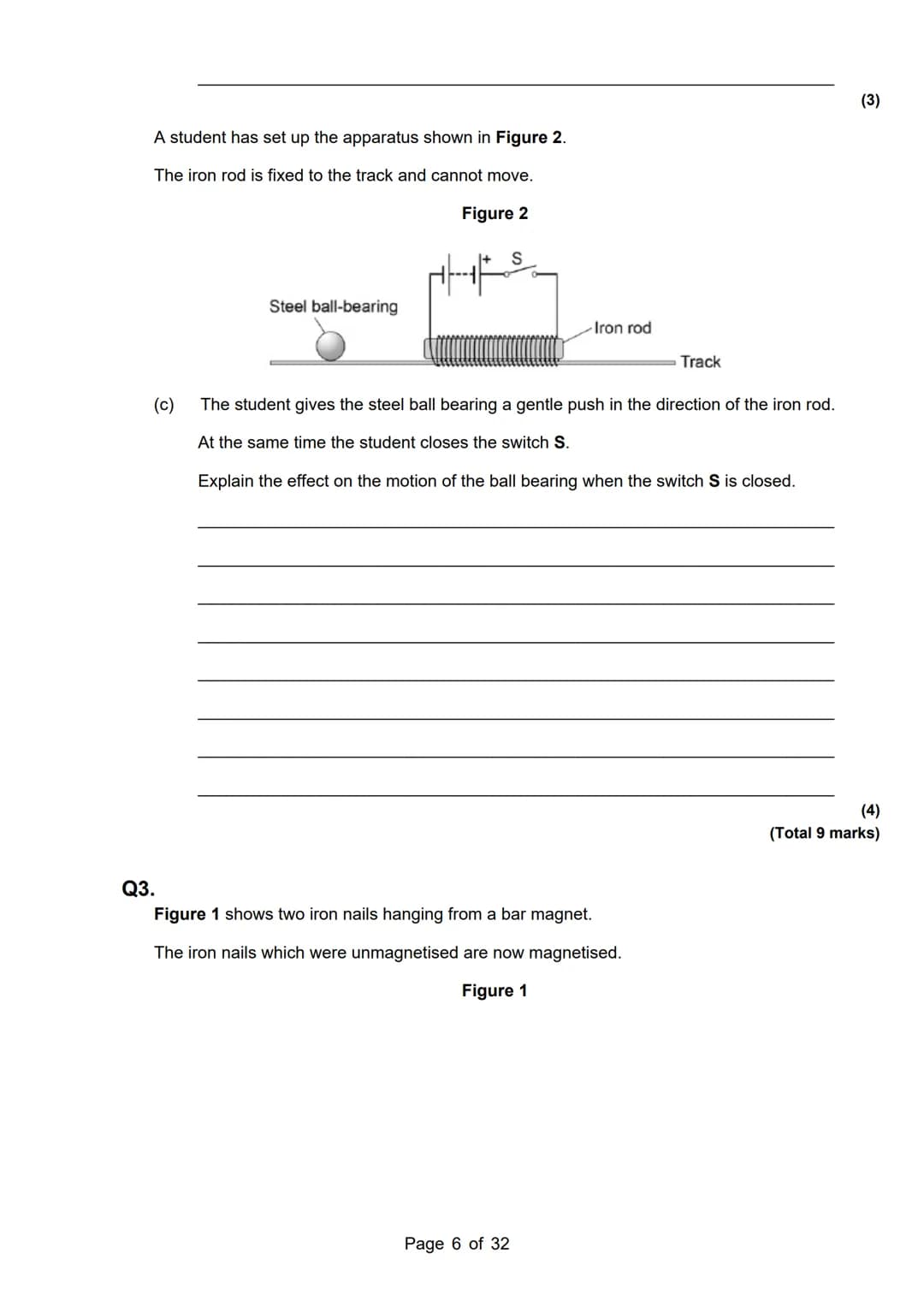

Electromagnetic Interactions and Induced Magnetism

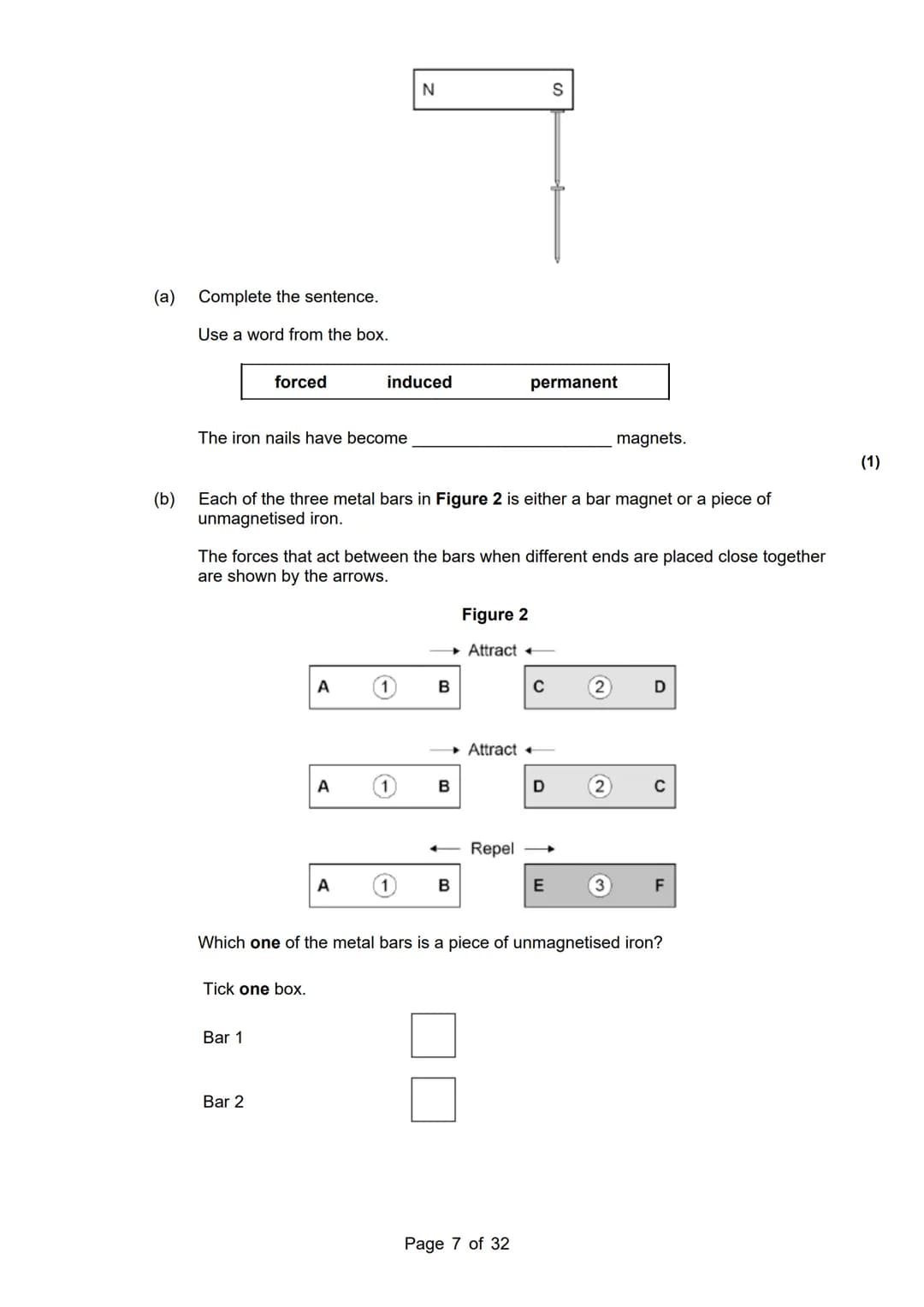

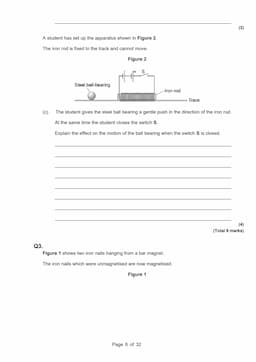

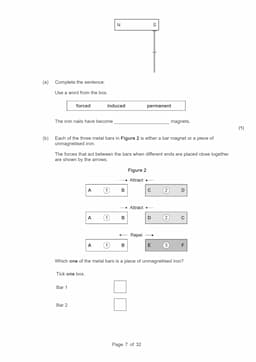

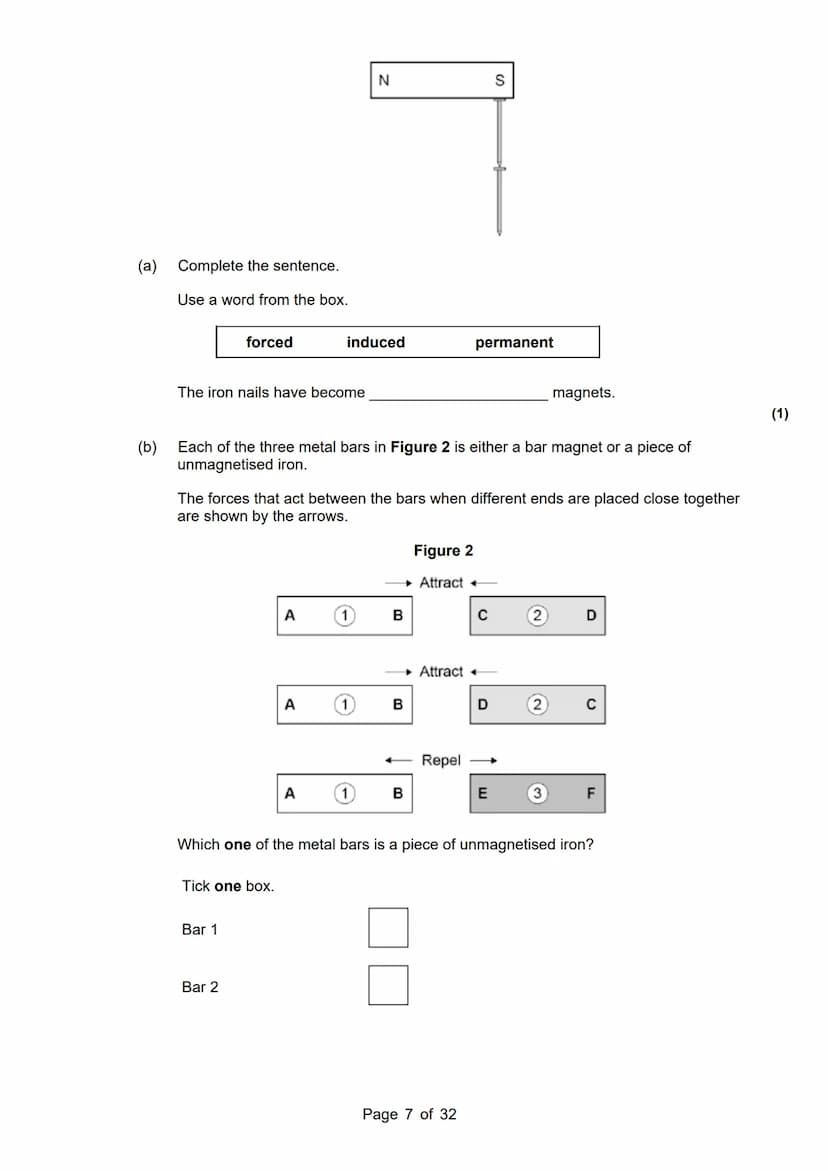

When working with electromagnets and magnetic materials, induced magnetism plays a crucial role. This phenomenon occurs when ferromagnetic materials like iron become temporary magnets when placed in a magnetic field. The strength of induced magnetism depends on factors including the strength of the original magnetic field and the material's magnetic permeability.

Example: In practical experiments with bar magnets, iron nails become temporarily magnetized when brought near a permanent magnet. This induced magnetism allows the nails to act as temporary magnets themselves, creating a chain effect.

Electromagnetic Experiments and Measurements

Investigating Magnetic Field Strength

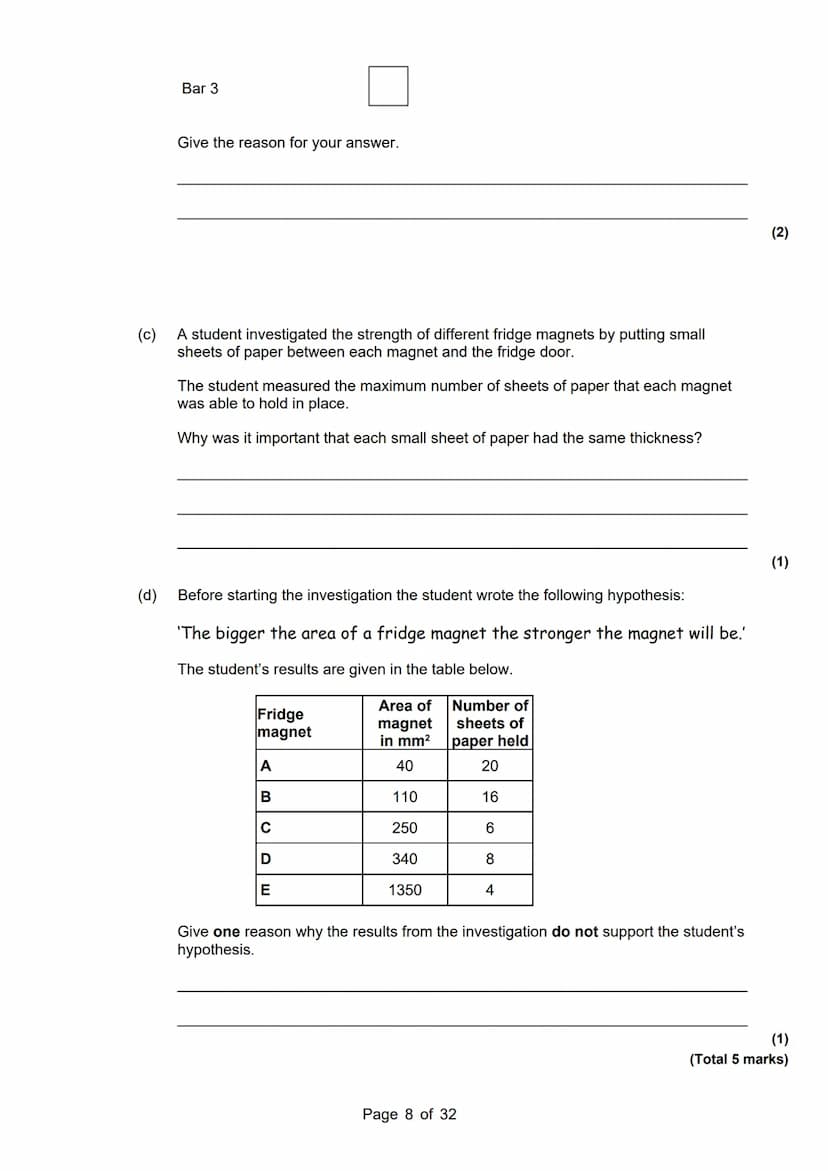

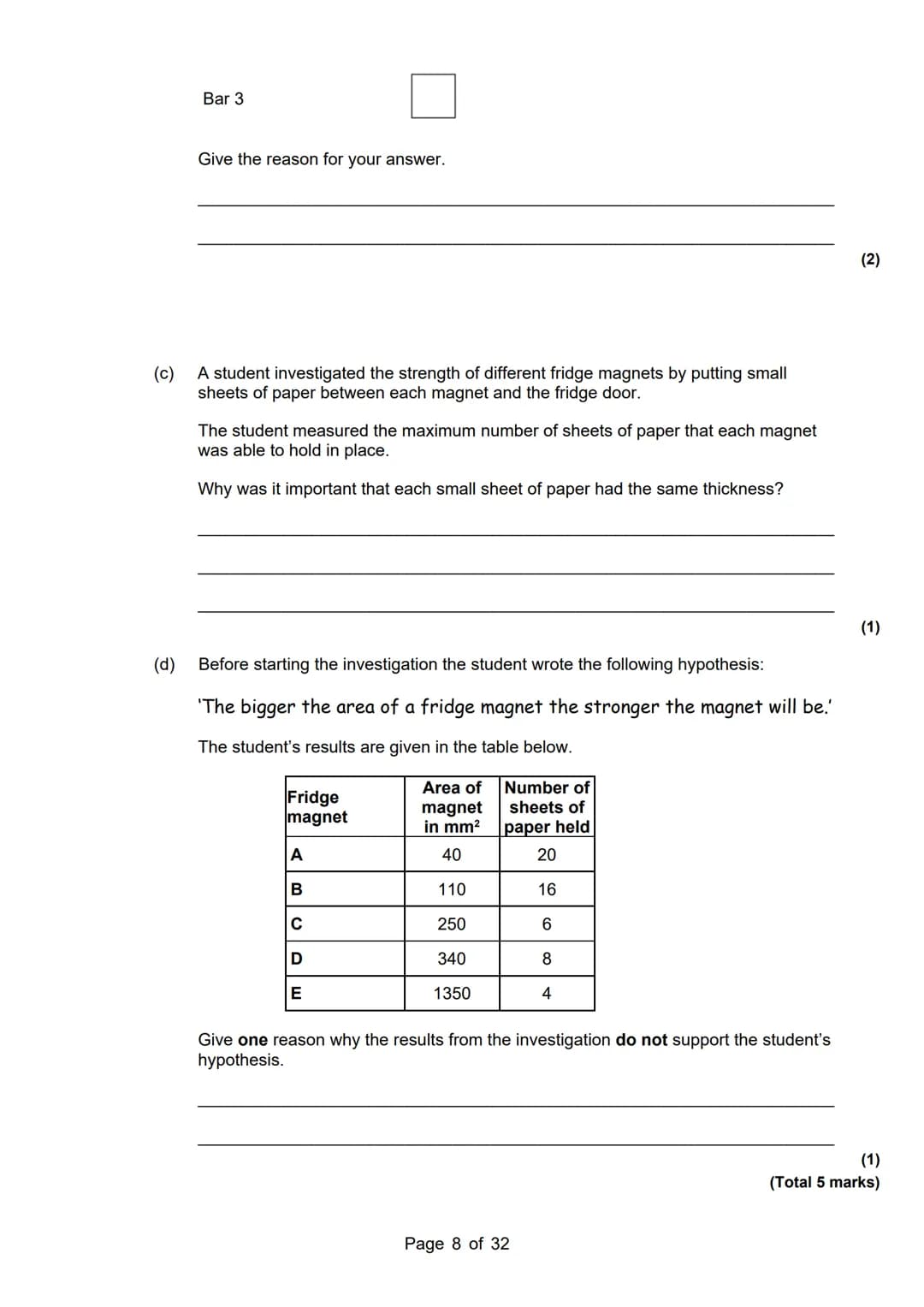

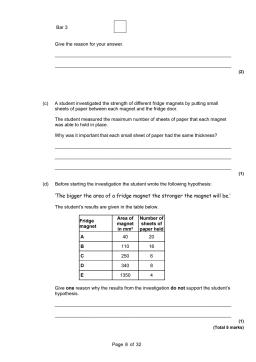

Understanding how to measure magnetic field strength is crucial for AQA GCSE Physics required practicals Paper 2. One common method involves measuring the force required to separate two magnets or counting the number of paper sheets that can be held between a magnet and a magnetic surface.

Highlight: When conducting magnetic field experiments, controlling variables is essential. For example, when testing magnet strength with paper sheets, all sheets must have identical thickness to ensure valid results.

The relationship between magnetic field strength and distance follows an inverse square law, meaning the force decreases rapidly as separation increases. This principle is fundamental in many practical applications, from magnetic levitation to electromagnetic braking systems.

Vocabulary: Magnetic flux density is measured in tesla $T$ and represents the strength of a magnetic field in a given area.

Electromagnet Design and Variables

Factors Affecting Electromagnet Strength

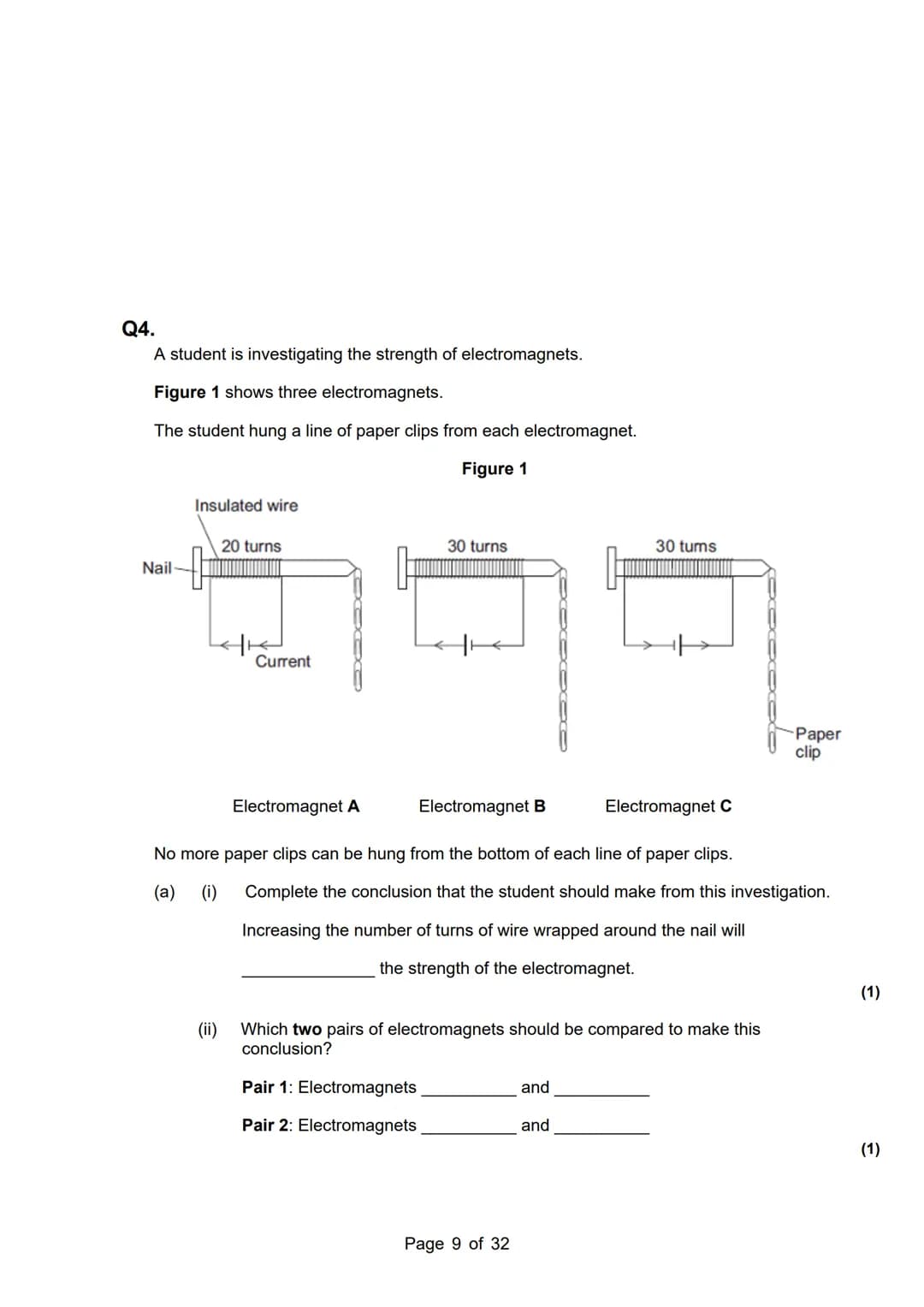

When studying electromagnets for Magnetism and electromagnetism GCSE exam questions, several key variables affect their strength. The number of wire turns around the core, the current flowing through the wire, and the core material all influence the electromagnetic field strength.

Example: Increasing the number of wire turns from 20 to 30 while keeping current constant will strengthen the electromagnetic field. This is demonstrated through practical experiments where more paper clips can be suspended from electromagnets with more turns.

The core material choice significantly impacts electromagnet effectiveness. Soft iron cores are commonly used because they become strongly magnetized when current flows but quickly lose their magnetism when the current stops. This makes them ideal for applications requiring rapid switching.

Definition: An electromagnet is a temporary magnet created by passing electric current through a coil of wire, usually wrapped around a ferromagnetic core.

Practical Applications and Experimental Design

Scientific Investigation Methods

When conducting practical experiments with bar magnets AQA past papers pdf, proper experimental design is crucial. This includes controlling variables, making accurate measurements, and drawing valid conclusions from data.

Highlight: In magnetic field investigations, one variable should be changed while keeping others constant. For example, when testing the relationship between magnet size and strength, the material and shape should remain consistent.

The relationship between magnetic field strength and various factors often shows non-linear patterns. For instance, doubling the current doesn't necessarily double the magnetic field strength due to core saturation effects. Understanding these relationships helps in designing effective electromagnetic devices and solving practical problems.

Vocabulary: Magnetic saturation occurs when increasing the magnetizing force no longer increases the magnetization of the material.

Understanding Electromagnetic Variables and Effects in GCSE Physics Experiments

When conducting AQA GCSE Physics required practicals involving electromagnets, understanding how different variables affect magnetic strength is crucial. In electromagnetic experiments, controlling specific variables ensures reliable and reproducible results. The key variables that need careful control include the voltage of the power supply, the type and size of the iron core $typically a nail$, and the thickness of the wire used for the coils.

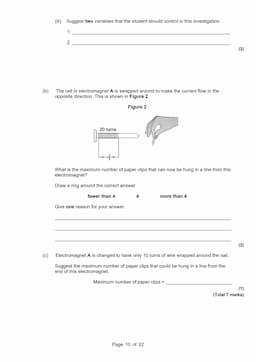

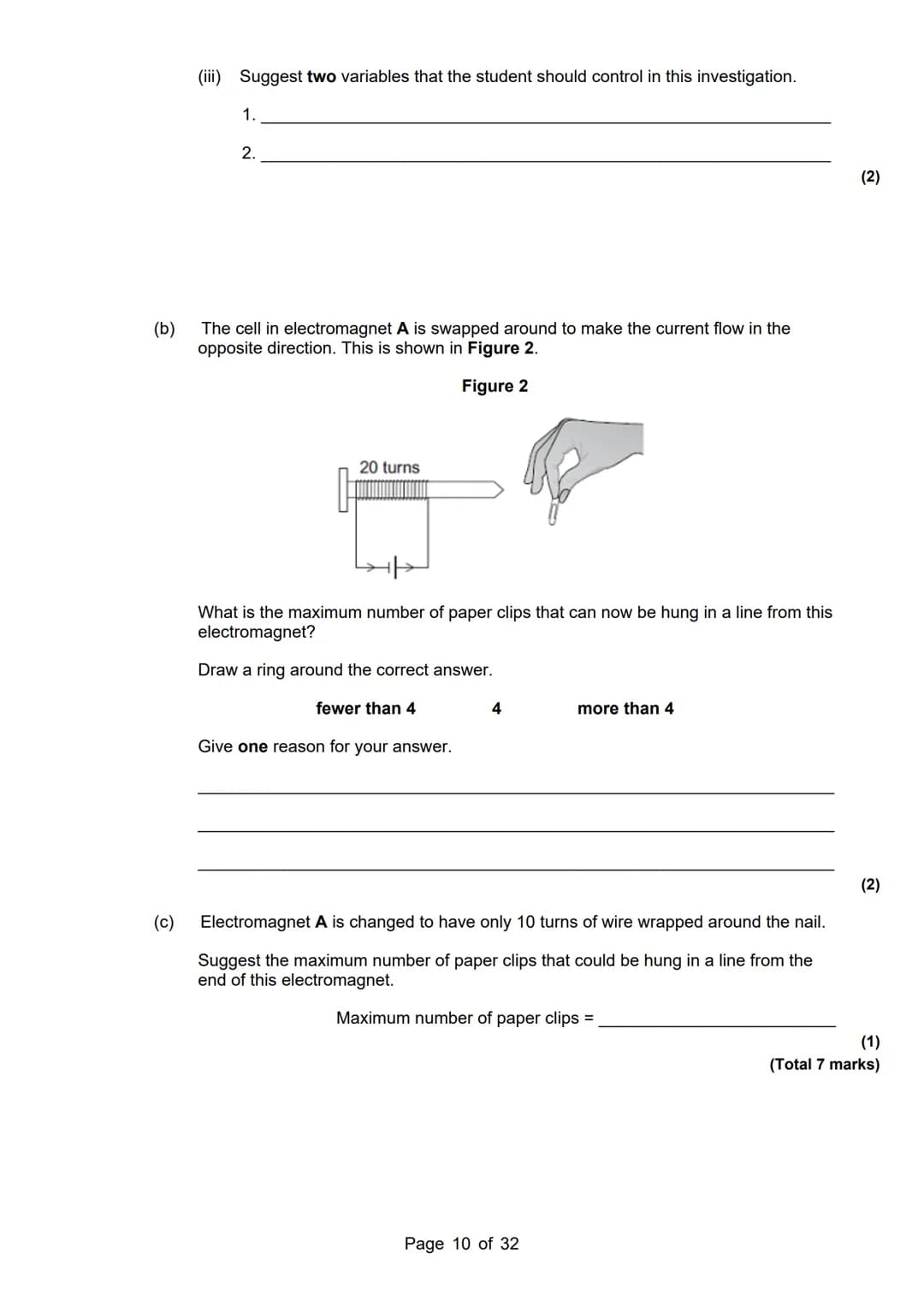

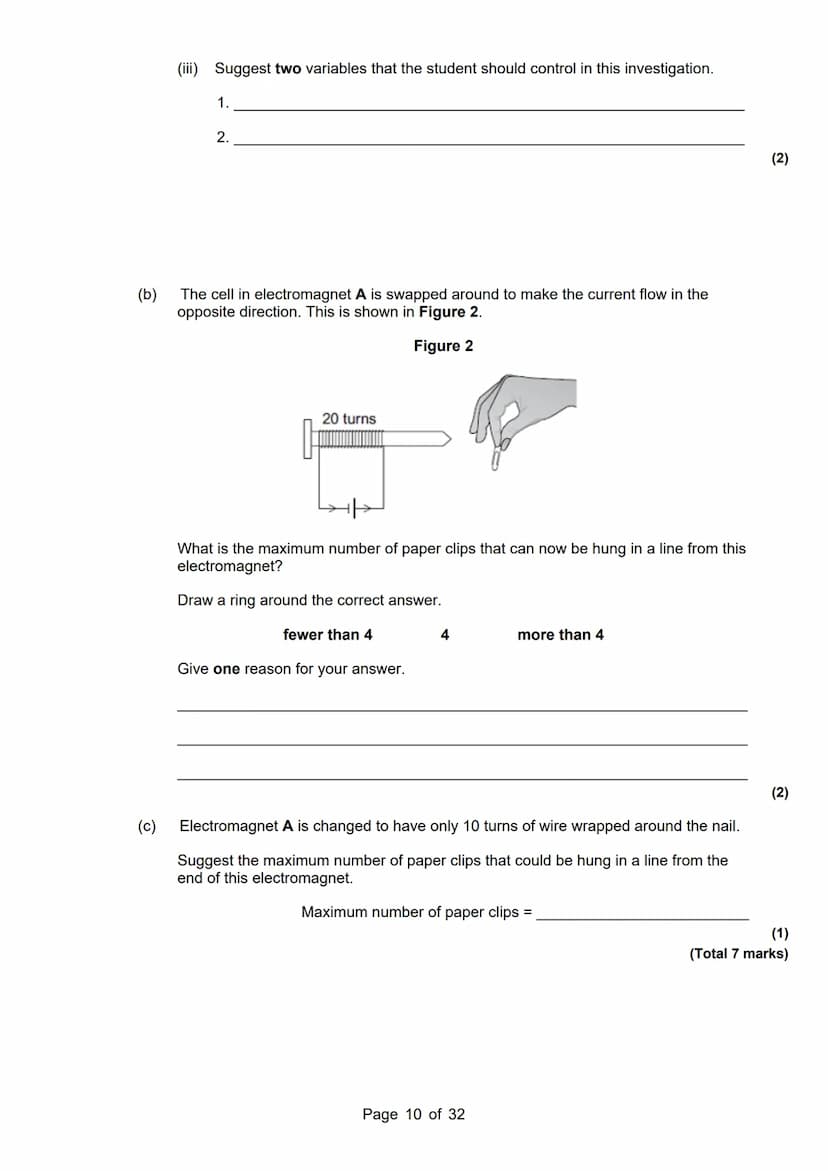

The direction of current flow through an electromagnet significantly impacts its behavior and strength. When the cell connections are reversed, changing the current direction, the magnetic field direction also reverses. However, the magnitude of the magnetic field strength remains constant if all other variables stay the same. This means that in an experiment with paper clips, the maximum number that can be suspended would remain at 4 regardless of current direction, assuming identical conditions.

The number of coil turns directly affects electromagnetic strength, demonstrating a proportional relationship. When reducing the number of turns from 20 to 10, the magnetic field strength approximately halves, resulting in a corresponding decrease in the number of paper clips that can be suspended. This relationship exemplifies the fundamental principle that magnetic field strength is proportional to the number of turns in the coil, a key concept in Magnetism and electromagnetism GCSE exam questions.

Definition: An electromagnet's strength depends on three main factors: current magnitude, number of coil turns, and core material properties.

Practical Applications of Electromagnetic Principles in Physics Experiments

Understanding electromagnetic principles through practical experiments helps students grasp complex concepts in Magnetism and Electromagnetism notes pdf materials. The paper clip experiment serves as an excellent demonstration of how magnetic field strength can be quantitatively measured through a simple, observable outcome. This type of investigation allows students to explore electromagnetic principles hands-on while collecting measurable data.

When conducting electromagnetic experiments, precise control of variables is essential for obtaining accurate results. Temperature of the wire, consistency in paper clip size and mass, and maintaining constant spacing between turns are all critical factors that can affect experimental outcomes. These considerations are frequently addressed in AQA GCSE Physics Paper 1 required practicals and form the foundation for more advanced studies.

The relationship between coil configuration and magnetic field strength demonstrates the practical application of electromagnetic principles. By manipulating variables like the number of turns or current direction, students can observe and measure the direct effects on magnetic field strength. This hands-on approach helps reinforce theoretical concepts covered in Magnetism and electromagnetism questions and answers pdf resources.

Example: If an electromagnet with 20 turns can hold 4 paper clips, reducing to 10 turns would theoretically allow it to hold 2 paper clips, demonstrating the linear relationship between turns and magnetic field strength.
