Energy Stores and Transfers

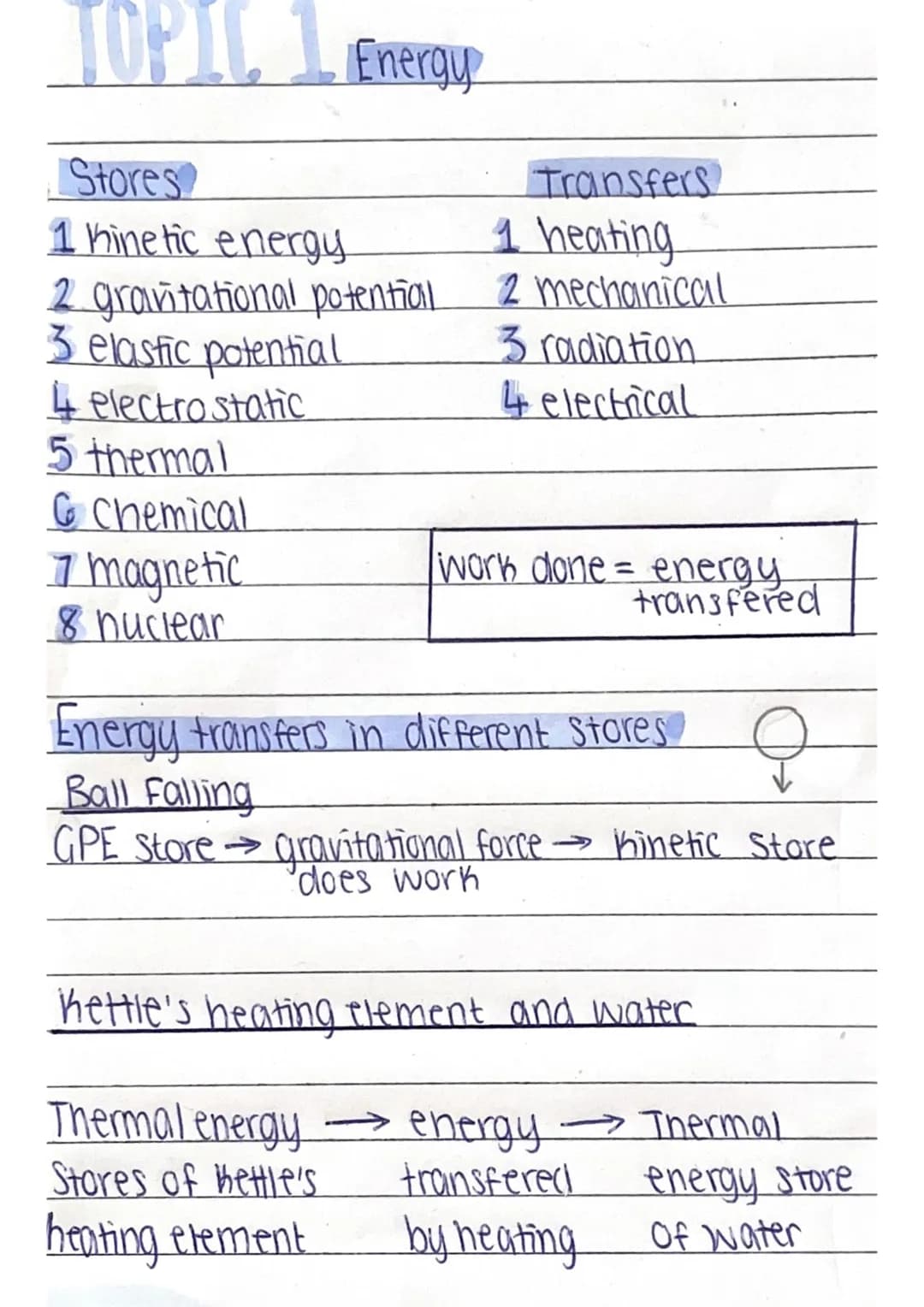

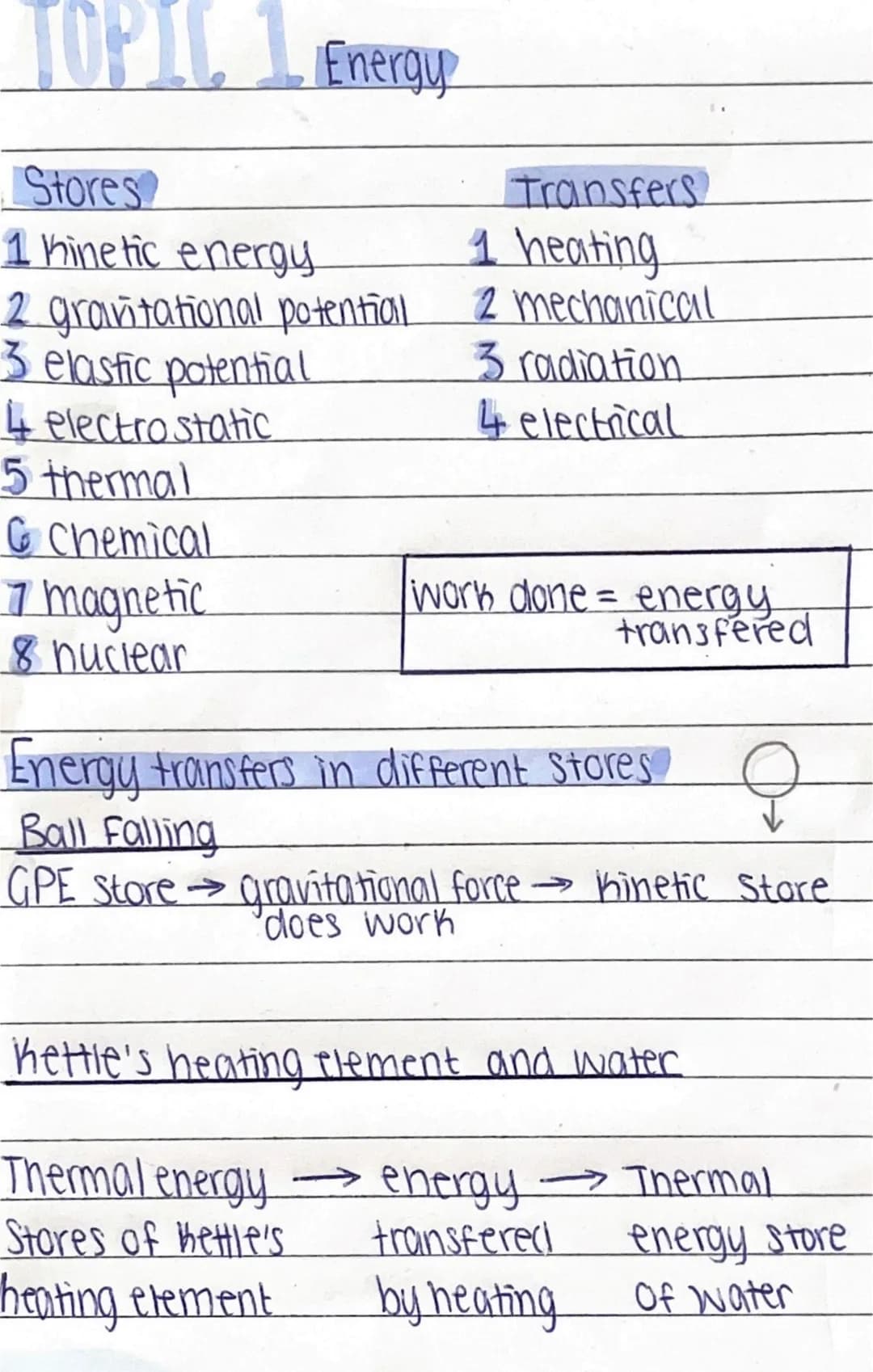

Think of energy like money in different bank accounts - it can't be created or destroyed, just moved around between different energy stores. There are eight main types: kinetic (moving objects), gravitational potential (height), elastic potential (stretched springs), electrostatic, thermal (heat), chemical, magnetic, and nuclear.

Energy moves between these stores through four main transfer methods: heating, mechanical work, radiation, and electrical work. The key thing to remember is that work done equals energy transferred - this simple equation pops up everywhere in physics.

When a ball falls, gravitational potential energy gets transferred into kinetic energy through mechanical work. Similarly, when you boil water in a kettle, thermal energy transfers from the heating element to the water through heating.

Quick Tip: Energy never disappears - it just moves from one store to another, though some usually gets "lost" as heat to the surroundings.

Energy Transfer in Action: The Bouncing Ball

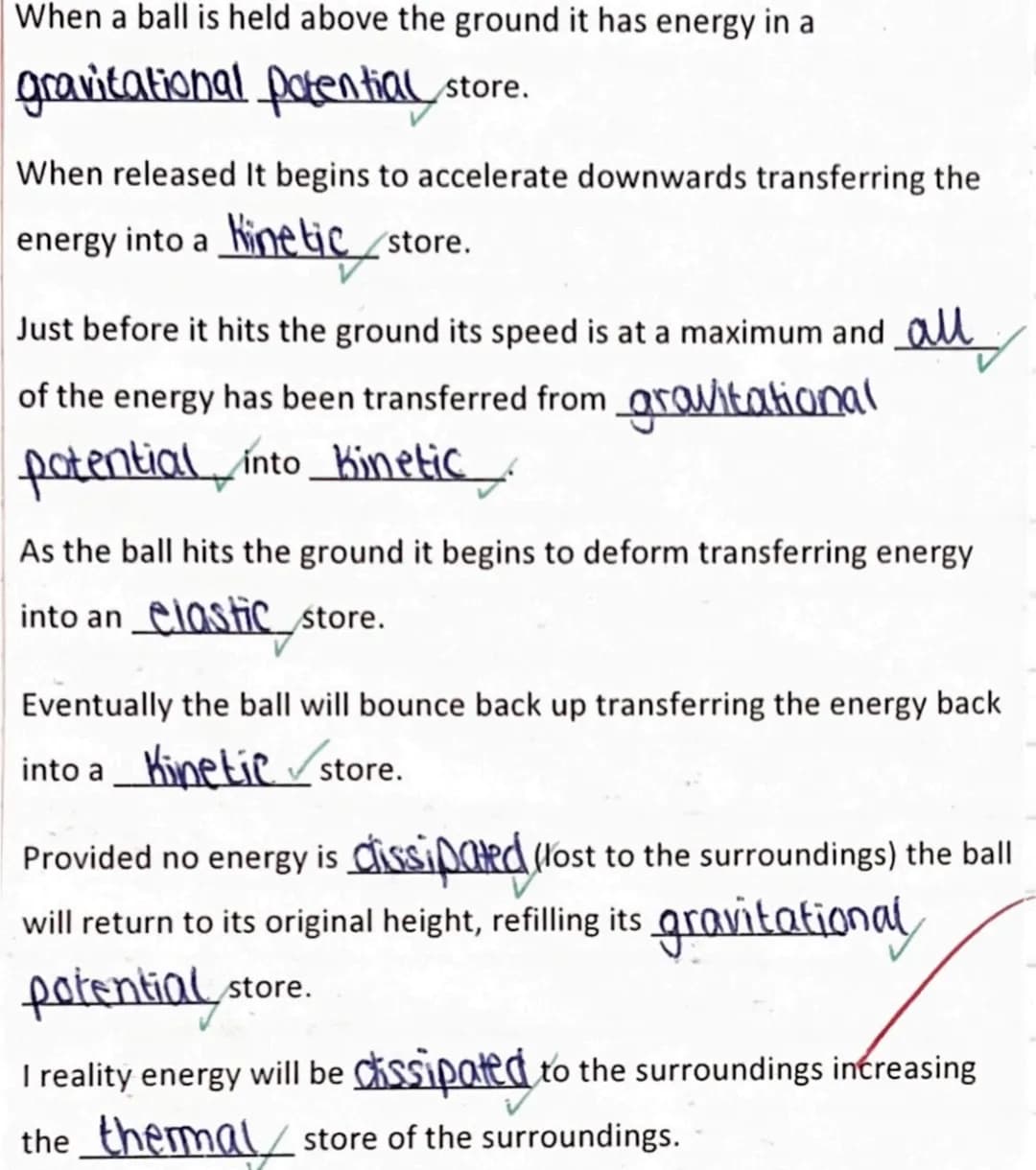

Here's a perfect example that shows energy transfer in action. When you hold a ball above your head, all its energy sits in the gravitational potential store. Release it, and gravity does work to transfer this energy into the kinetic store as the ball speeds up.

Just before impact, the ball's moving at maximum speed - all that gravitational potential energy has become kinetic energy. When it hits the ground and squashes slightly, energy transfers into the elastic potential store.

The ball then springs back, converting elastic energy back to kinetic, then to gravitational potential as it rises. In a perfect world, it'd bounce back to exactly the same height. But in reality, some energy always gets dissipated (lost) to the surroundings as heat and sound.

Exam Focus: Questions often ask you to describe energy changes step-by-step, so practice identifying which stores are filling up and which are emptying at each stage.

Heat Transfer Methods

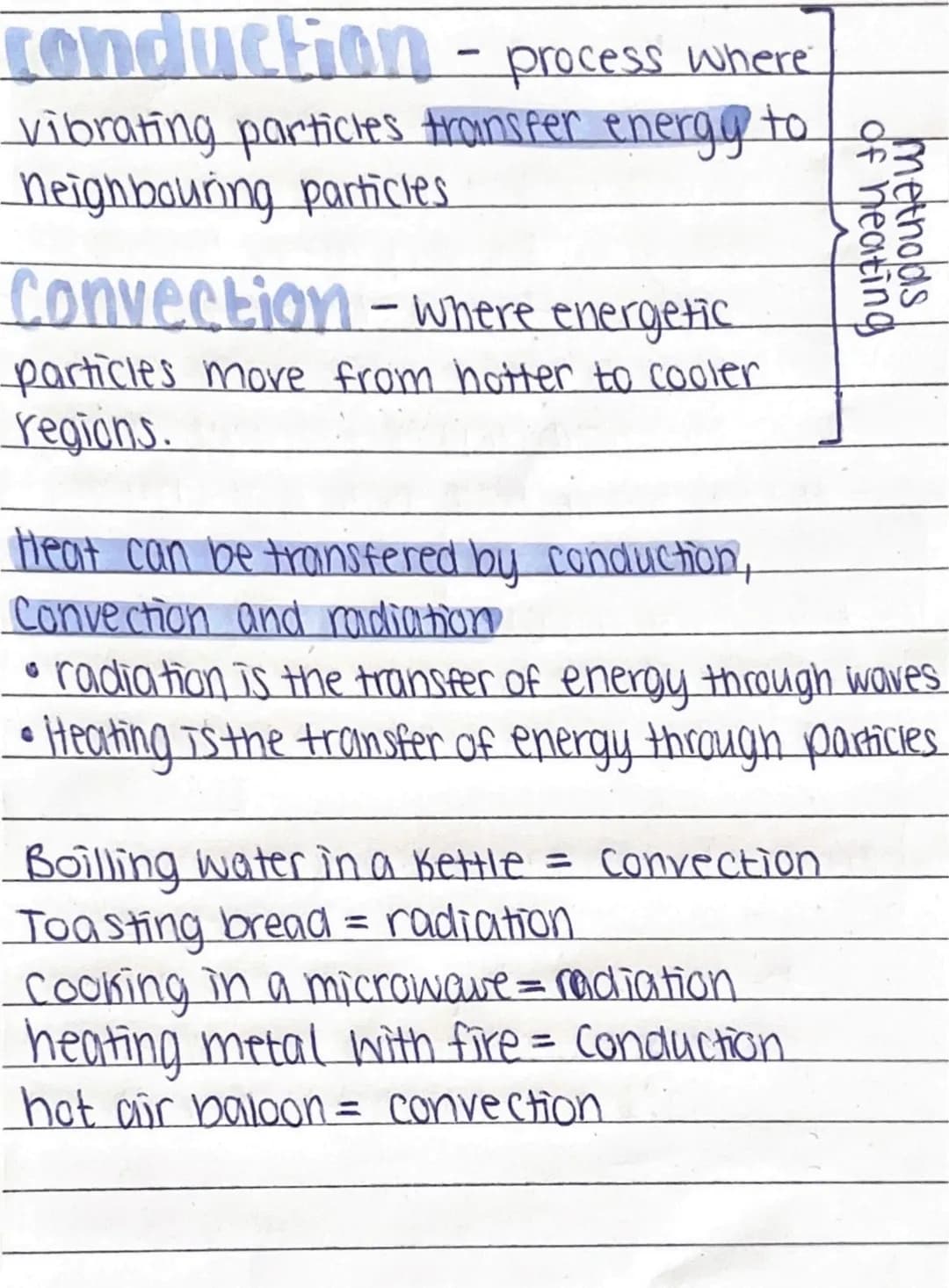

Heat moves around through three main methods, and you encounter all of them daily. Conduction happens when vibrating particles bash into their neighbours, passing energy along - like when a metal spoon gets hot in your tea.

Convection occurs in liquids and gases when energetic particles physically move from hot areas to cooler ones. Think hot air rising from a radiator or water circulating in a kettle as it boils.

Radiation transfers energy through infrared waves and doesn't need particles at all - that's how the sun heats Earth through empty space. Your toaster uses radiation to brown bread, whilst microwaves also use radiation (just different wavelengths).

Memory Trick: Conduction needs contact, convection needs currents (moving fluids), and radiation travels through empty space.

Reducing Heat Loss at Home

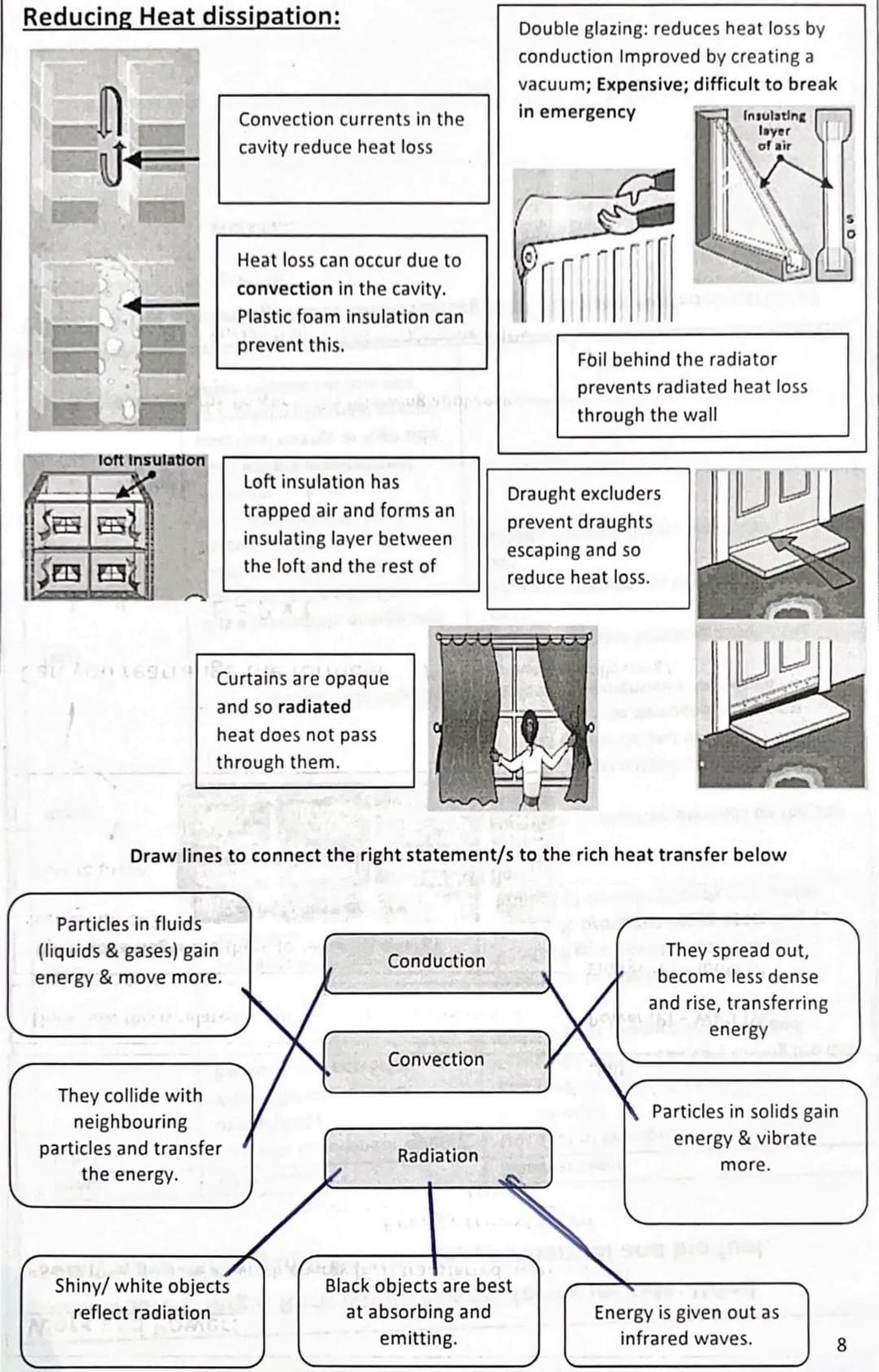

Your house loses heat through all three transfer methods, but clever thermal insulation can dramatically reduce this. Double glazing tackles conduction by trapping air between glass panes - air's a rubbish conductor, so less heat escapes.

Loft insulation works similarly, creating a barrier of trapped air above your ceiling. Cavity wall insulation fills the gap between brick layers to stop convection currents that would otherwise carry heat away.

To combat radiation, foil behind radiators reflects heat back into rooms instead of letting it disappear through external walls. Curtains and draught excluders also help by blocking radiated heat and preventing warm air from escaping.

The key principle? Thicker walls and materials with lower thermal conductivity both slow down heat loss, keeping your house warmer for longer.

Real-world Connection: These insulation methods can cut heating bills by hundreds of pounds annually - physics that pays for itself!

Improving Energy Efficiency

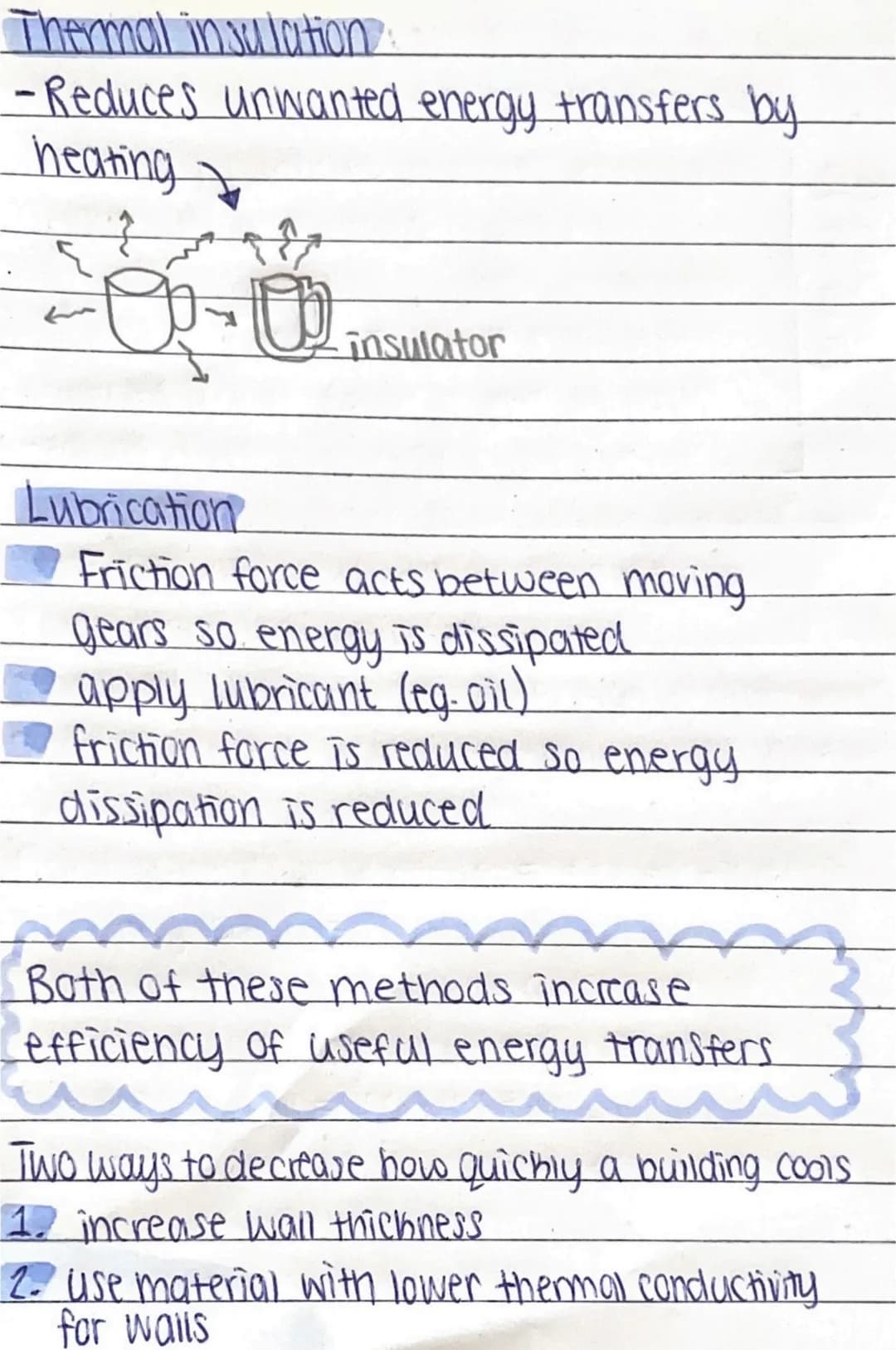

Two simple strategies can massively improve how efficiently energy gets used. Thermal insulation reduces unwanted energy transfers through heating - basically stopping useful energy from leaking away where you don't want it.

Lubrication tackles energy loss through friction. When gears rub together, friction forces cause energy to dissipate as heat and sound. Apply oil or another lubricant, and you reduce friction, meaning less energy gets wasted.

Both methods increase the efficiency of useful energy transfers. Instead of energy disappearing as waste heat, more of it does the job you actually want - whether that's keeping your house warm or making machinery work smoothly.

Exam Tip: Questions often ask how to reduce energy waste - thermal insulation and lubrication are your go-to answers for most scenarios.

Conservation of Energy and Specific Heat Capacity

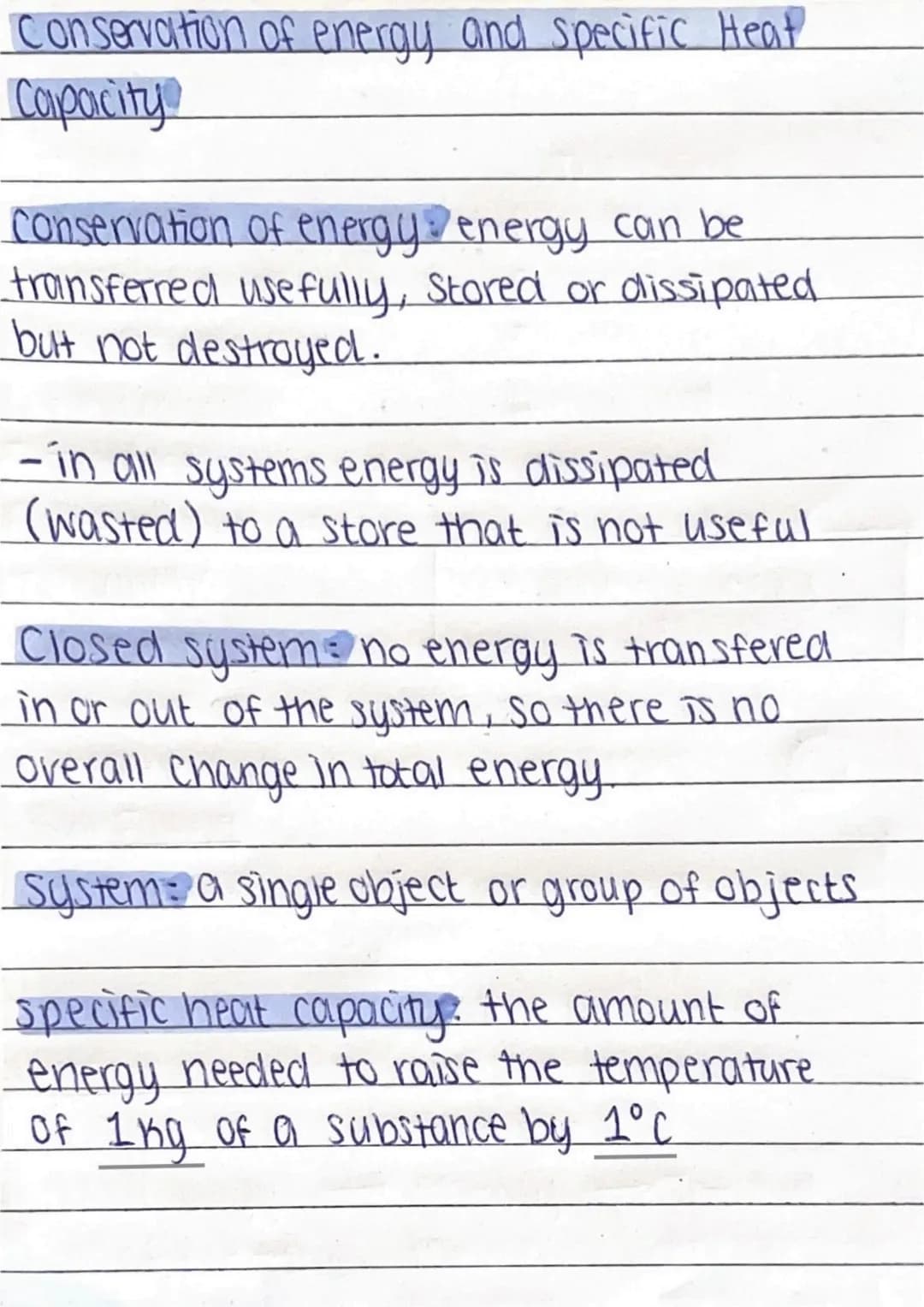

Here's physics' most fundamental rule: energy can never be created or destroyed. It can transfer between stores, get dissipated as waste, or be stored for later use, but the total amount stays constant. This is conservation of energy.

In real systems, energy always gets dissipated to stores that aren't useful - usually as waste heat. However, in a closed system (where no energy enters or leaves), the total energy never changes.

Specific heat capacity tells you how much energy you need to raise 1kg of a substance by 1°C. Water has a high specific heat capacity, which is why it takes ages to boil a full kettle but also why radiators filled with water stay warm for so long.

Definition Focus: Learn the specific heat capacity definition word-for-word - it's a guaranteed mark in exams and helps you understand why different materials heat up at different rates.

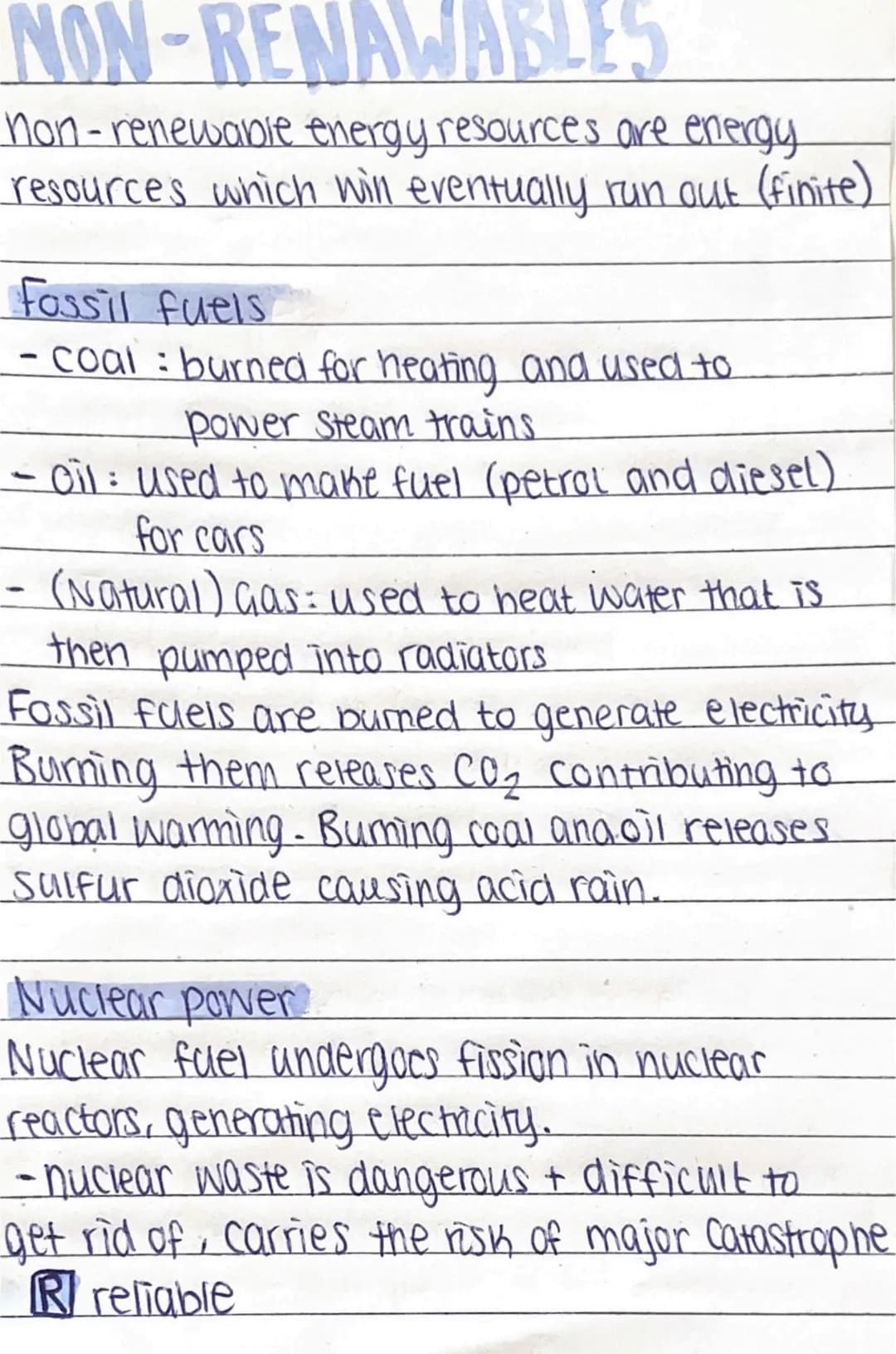

Non-renewable Energy Resources

Non-renewable resources will eventually run out because there's only a finite amount available. The main culprits are fossil fuels: coal (burned for heating and electricity), oil (refined into petrol and diesel), and natural gas (used in home heating and power stations).

Burning fossil fuels releases carbon dioxide, contributing to global warming. Coal and oil also produce sulfur dioxide, causing acid rain that damages buildings and ecosystems.

Nuclear power uses uranium fuel in nuclear fission reactions to generate electricity. Whilst it doesn't produce greenhouse gases during operation, nuclear waste stays dangerous for thousands of years and carries the risk of major accidents.

The big advantage? Non-renewables are reliable - you can generate electricity whenever you need it, regardless of weather conditions.

Balance Point: Non-renewables provide reliable energy but cause environmental problems - this trade-off appears in many exam questions.

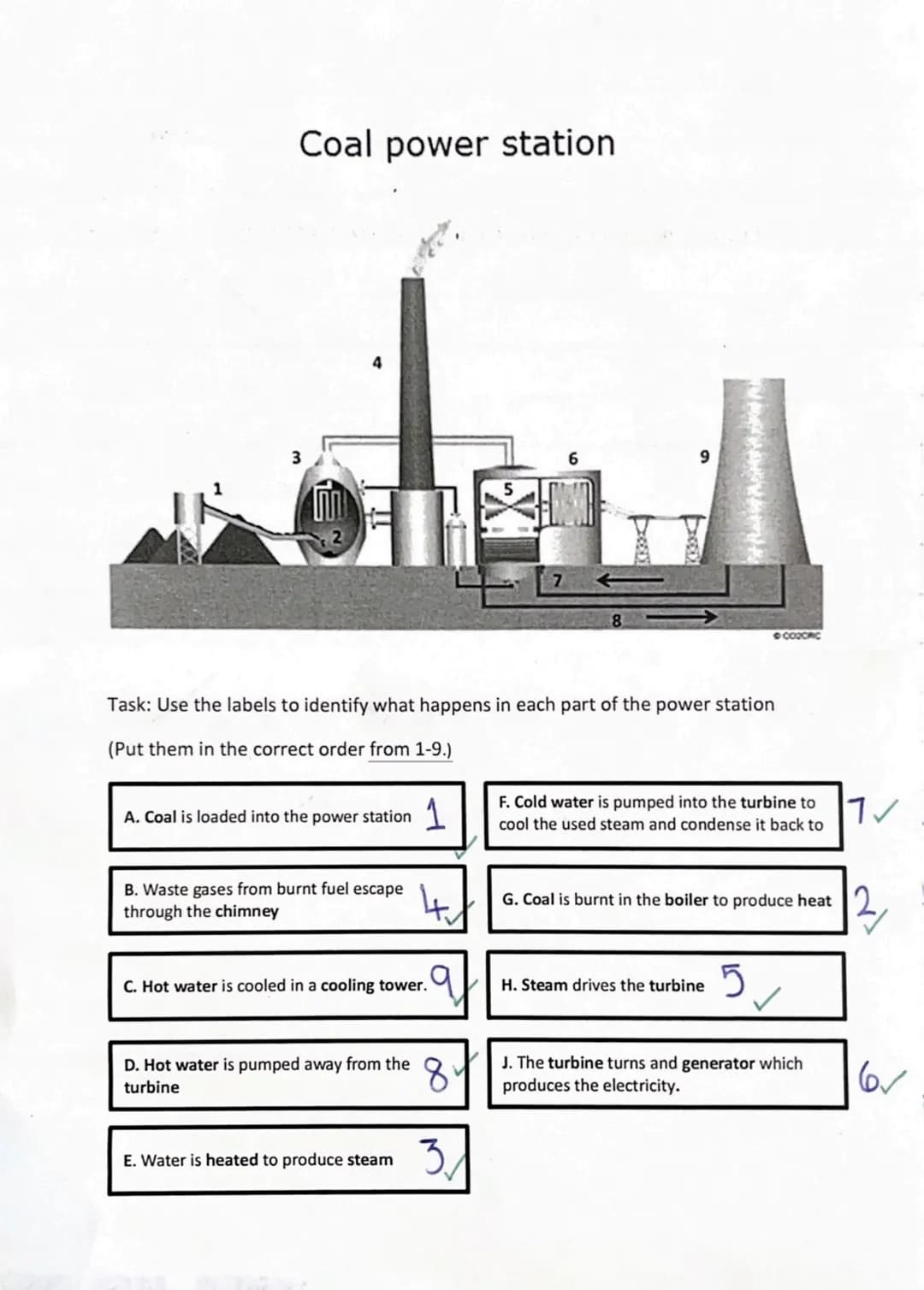

How Coal Power Stations Work

Coal power stations follow a straightforward sequence that converts chemical energy into electricity. Coal gets loaded in and burned in the boiler, producing heat that turns water into steam. This high-pressure steam drives massive turbines.

The spinning turbines turn generators, which produce electricity that gets distributed through the National Grid. Meanwhile, waste gases escape through tall chimneys, and the used steam gets cooled back into water using cooling towers.

The whole process demonstrates energy transfer: chemical energy in coal → thermal energy → kinetic energy in steam and turbines → electrical energy. Cold water circulation condenses the steam back to liquid, ready to be heated again.

Sequence Tip: Learn the order - coal loaded, coal burned, water heated to steam, steam drives turbine, turbine turns generator, electricity produced, steam cooled and recycled.

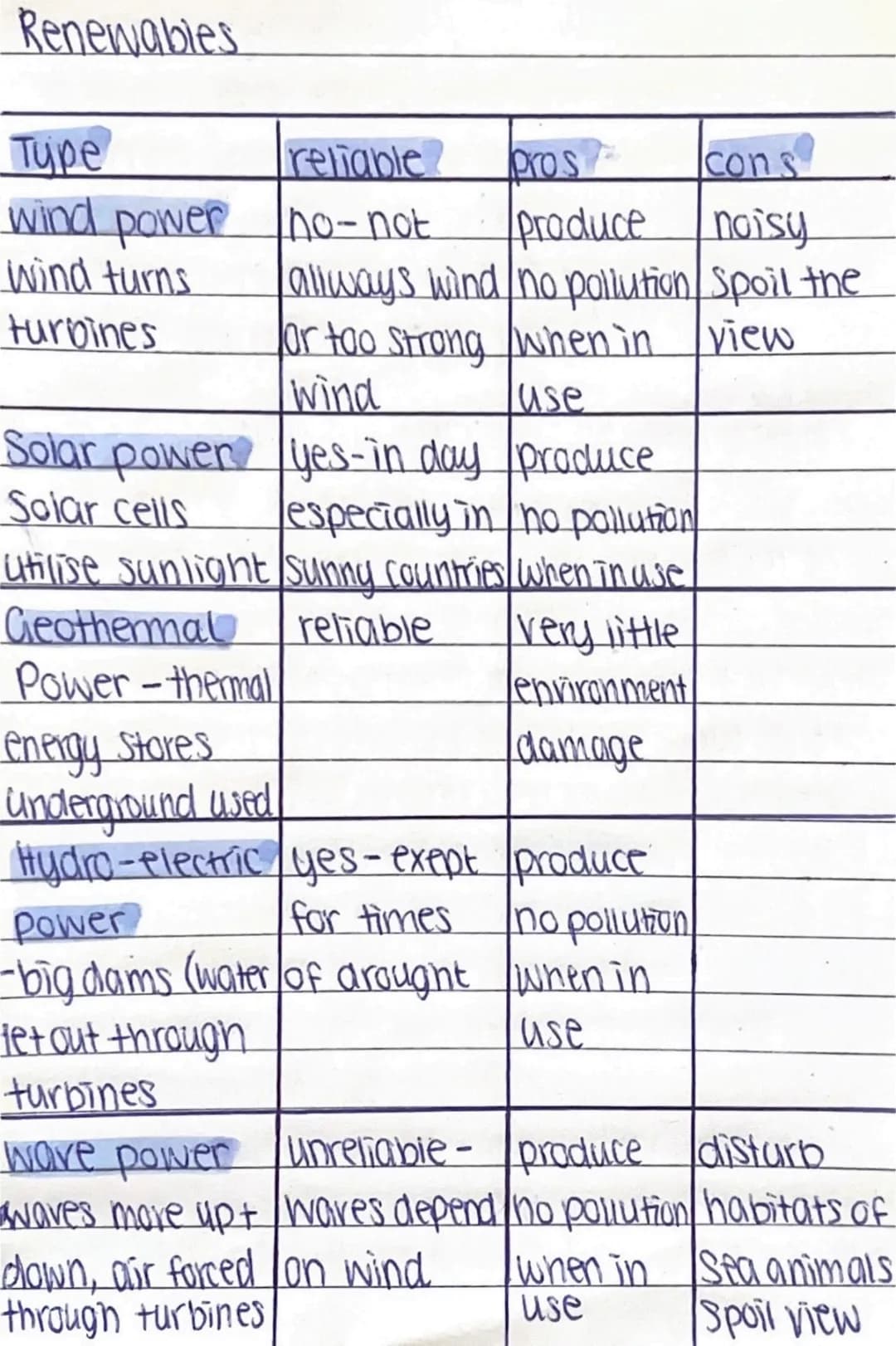

Renewable Energy Sources - Part 1

Renewable energy sources won't run out and produce no pollution when generating electricity. Wind power uses turbines turned by moving air, but it's unreliable because wind strength varies and sometimes stops completely.

Solar power converts sunlight directly into electricity through solar panels. It works brilliantly in sunny countries but obviously can't generate power at night or during cloudy weather.

Geothermal power taps into thermal energy stored underground. It's incredibly reliable and causes minimal environmental damage, but only works in areas with suitable geology.

Hydroelectric power uses water flowing through dams to spin turbines. It's reliable except during droughts and produces clean electricity, though building large dams can disrupt local ecosystems.

Reliability Check: Notice how reliability varies hugely - geothermal and hydroelectric are consistent, while wind and solar depend entirely on weather conditions.

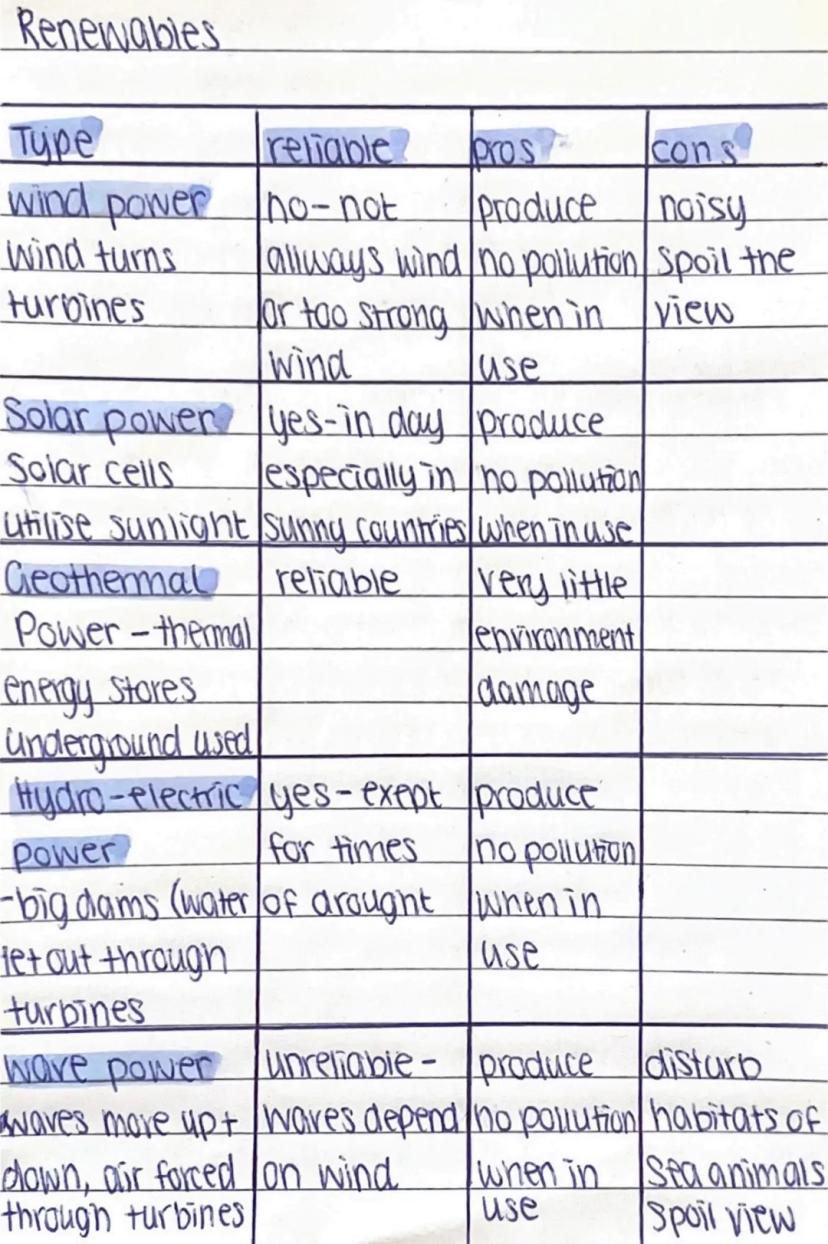

Renewable Energy Sources - Part 2

Wave power harnesses the up-and-down motion of waves to force air through turbines. Unfortunately, it's unreliable since waves depend on wind conditions, and the equipment can disturb marine animal habitats.

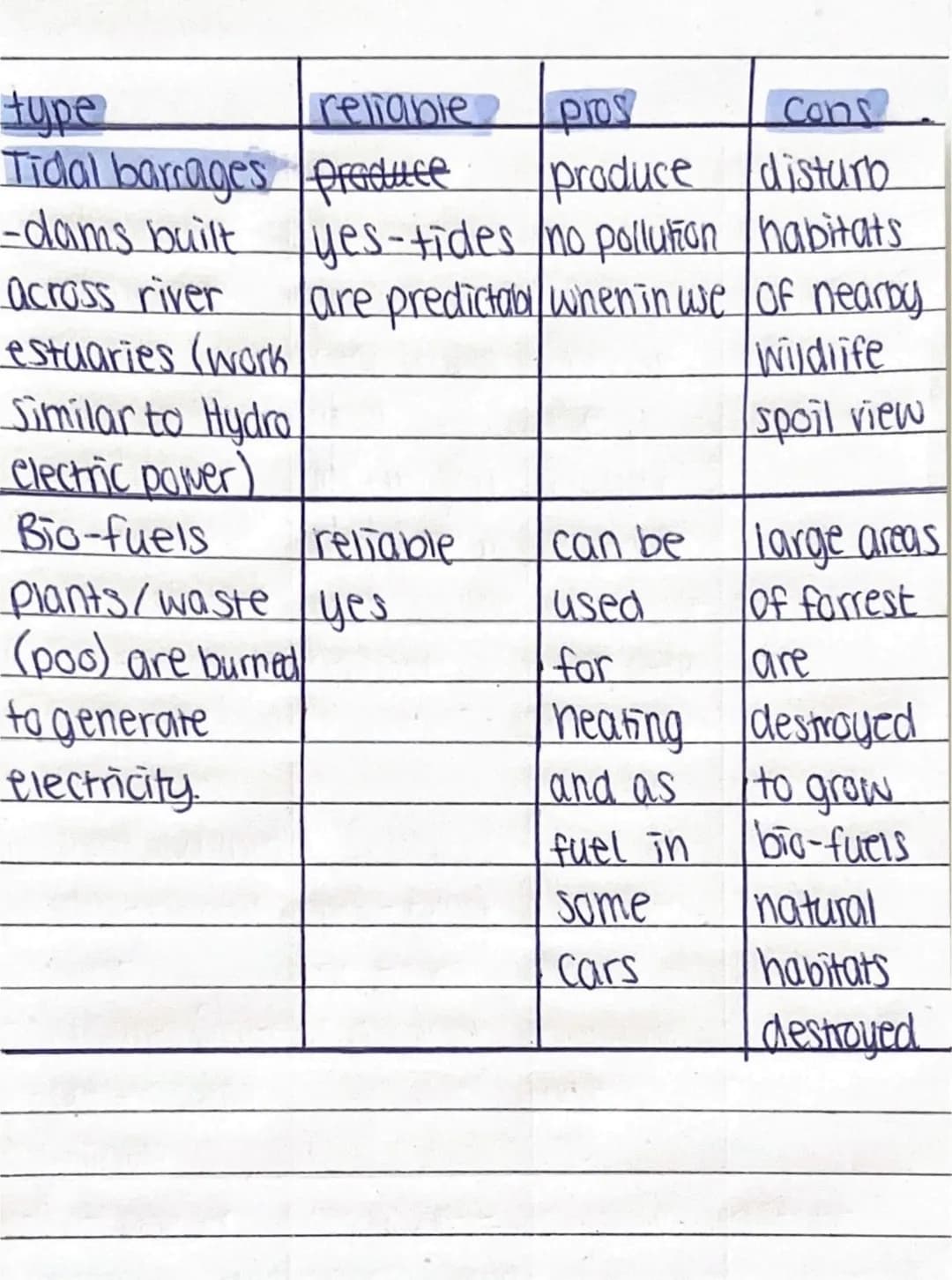

Tidal barrages work like hydroelectric dams but use predictable tidal movements instead of river flow. They're extremely reliable because tides follow consistent patterns, but building them across estuaries can seriously disrupt local wildlife.

Biofuels come from burning plant matter or waste materials. They're reliable and can replace fossil fuels in cars and heating, but growing crops for fuel requires massive land areas that often come from destroying natural forests.

Each renewable source involves trade-offs between reliability, environmental impact, and visual pollution. Tidal power offers the best reliability, whilst solar and wind work best in suitable climates and locations.

Exam Strategy: Questions often ask you to compare renewables - focus on reliability, environmental impact, and location-specific advantages or disadvantages.
