Free AQA GCSE Physics Required Practicals and Experiments

Physics Required Practicals Guide: A Comprehensive Overview of AQA GCSE Physics Experiments

This detailed guide covers ten essential physics practicals required for GCSE, focusing on measurement techniques, experimental procedures, and methods to improve experimental validity. The guide encompasses thermal physics, electricity, waves, and radiation investigations, providing step-by-step procedures for each practical.

• Detailed coverage of experimental accuracy, precision, validity, and reliability improvements
• Comprehensive procedures for temperature, resistance, waves, and force measurements
• Step-by-step instructions for aqa required practicals physics experiments
• Essential guidance on controlling variables and collecting accurate data
• Practical applications of physics paper 1 required practicals concepts

...

14/03/2023

9813

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

View

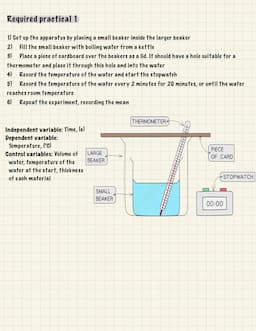

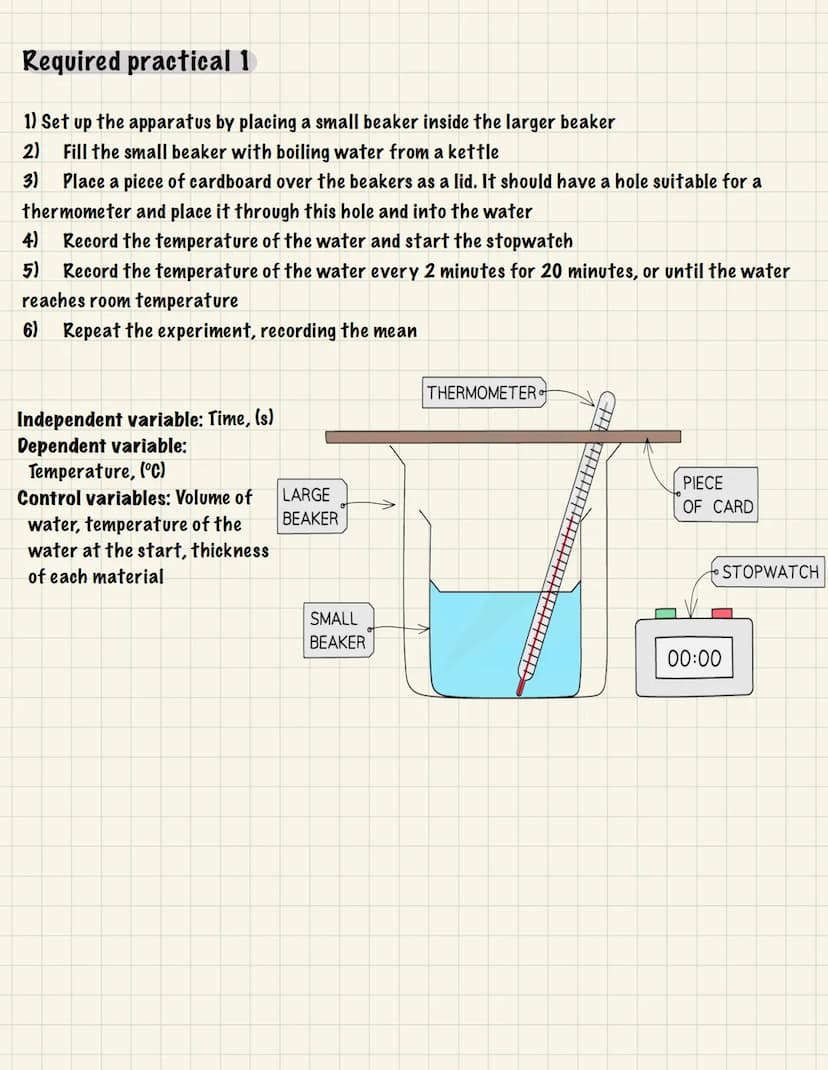

Page 2: Temperature Measurement Practical

This page outlines the first required practical focusing on temperature measurement using a double-beaker setup. The experiment demonstrates heat transfer and temperature recording techniques.

Highlight: The setup involves nested beakers with careful temperature monitoring over time.

Definition: Independent variable timetime and dependent variable temperaturetemperature are clearly identified.

Example: Temperature readings are taken every 2 minutes for 20 minutes using a thermometer through a cardboard lid.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

View

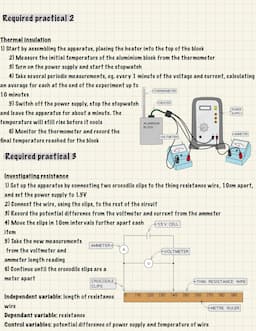

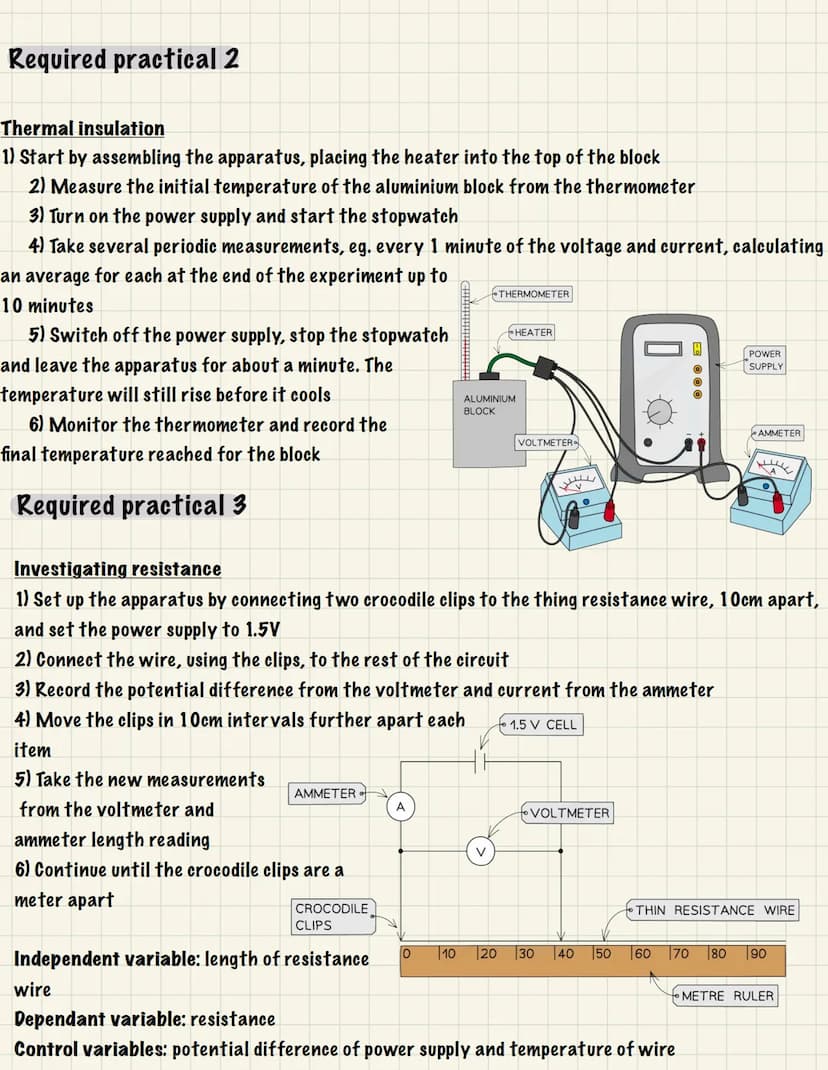

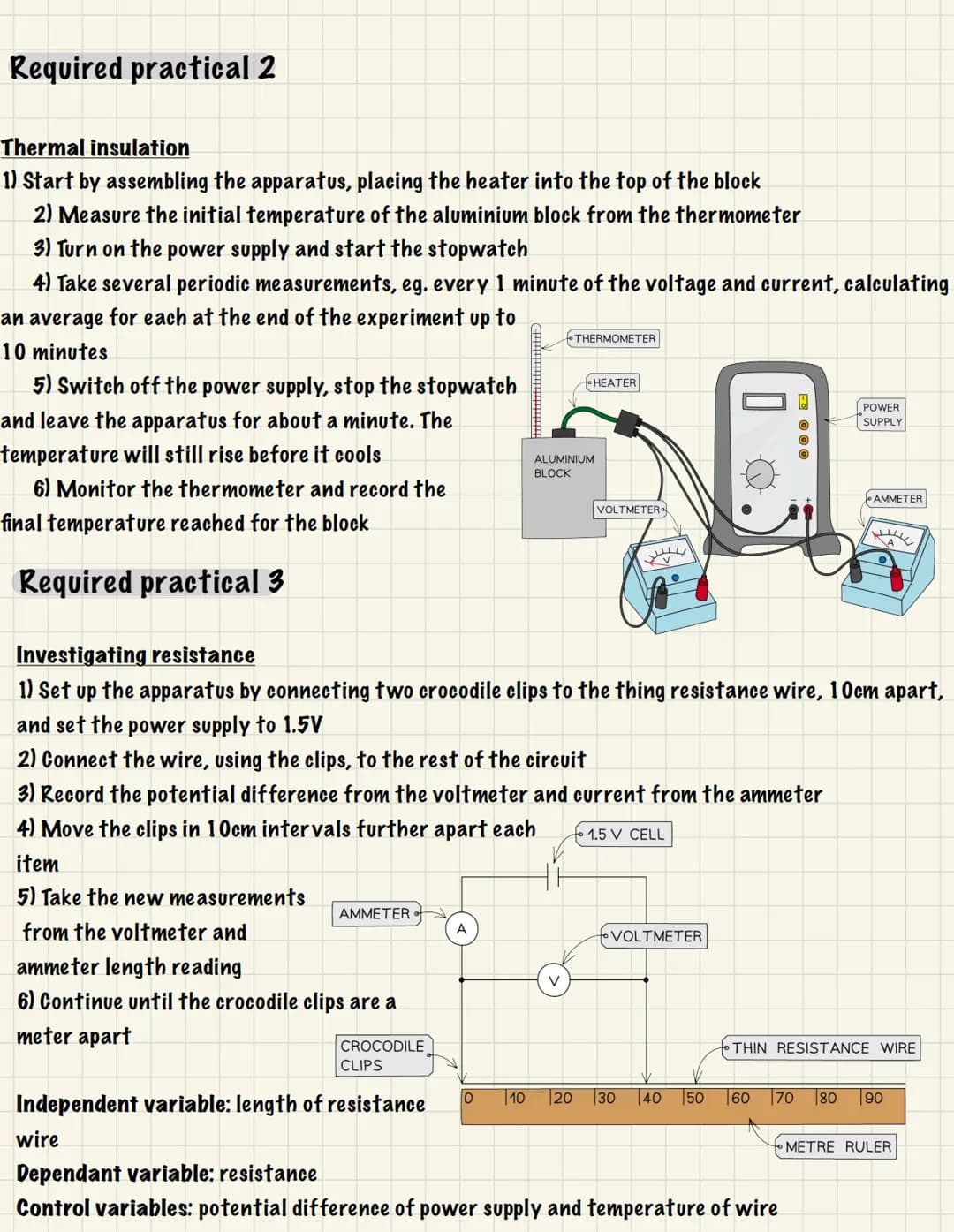

Page 3: Thermal Insulation and Resistance Investigation

This section covers two key physics required practicals: thermal insulation and resistance measurement. Both experiments demonstrate fundamental physics principles with precise measurement techniques.

Vocabulary: Thermal insulation involves heat transfer through different materials.

Example: For resistance investigation, measurements are taken at 10cm intervals along a thin wire.

Highlight: Control variables include power supply voltage and wire temperature.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

View

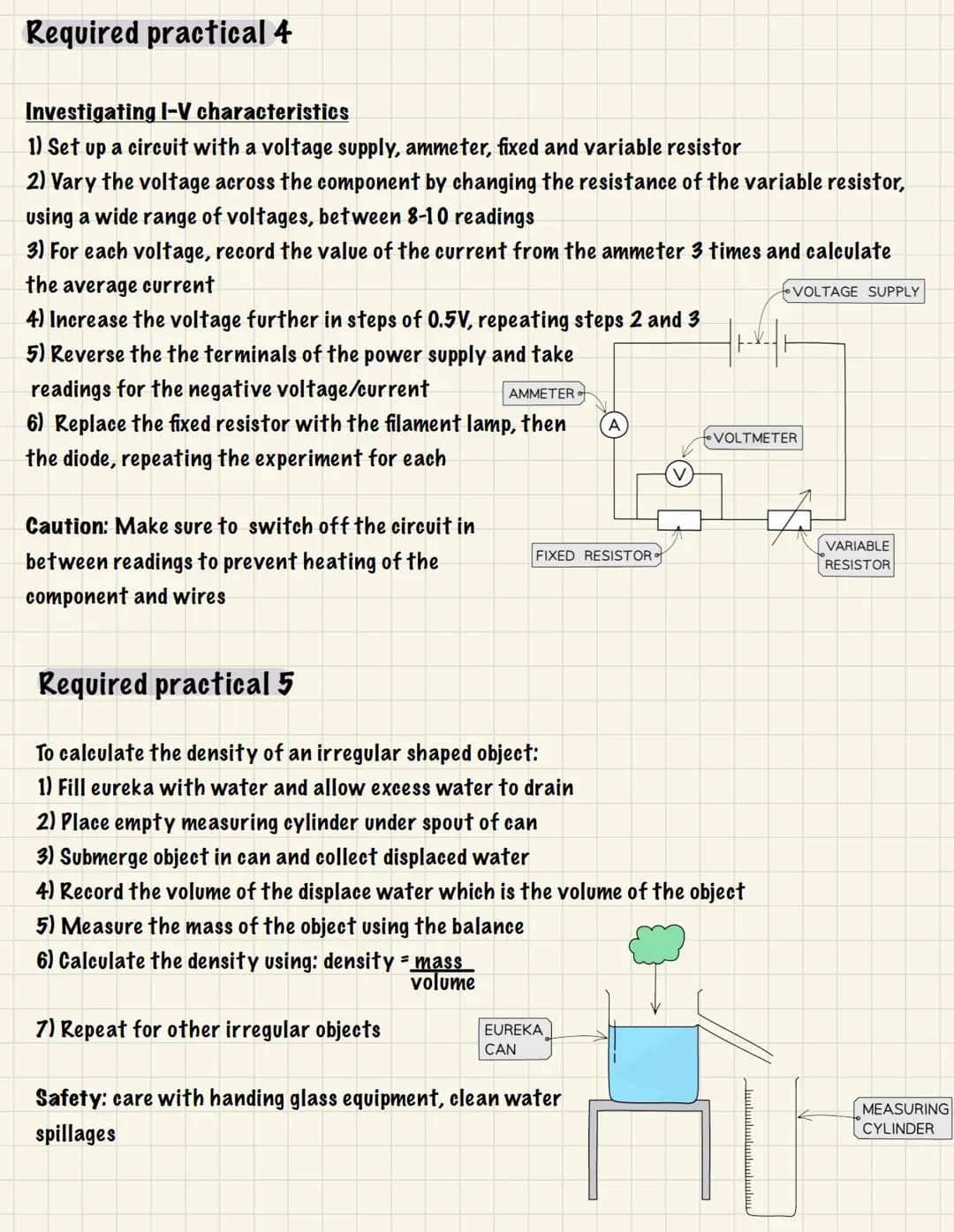

Page 4: I-V Characteristics and Density Measurement

This page details procedures for investigating current-voltage relationships and density calculations, essential components of aqa gcse physics required practicals.

Definition: I-V characteristics show the relationship between current and voltage in electrical components.

Highlight: Safety precautions include switching off circuits between readings to prevent overheating.

Example: Density calculation involves measuring displaced water volume and object mass.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

View

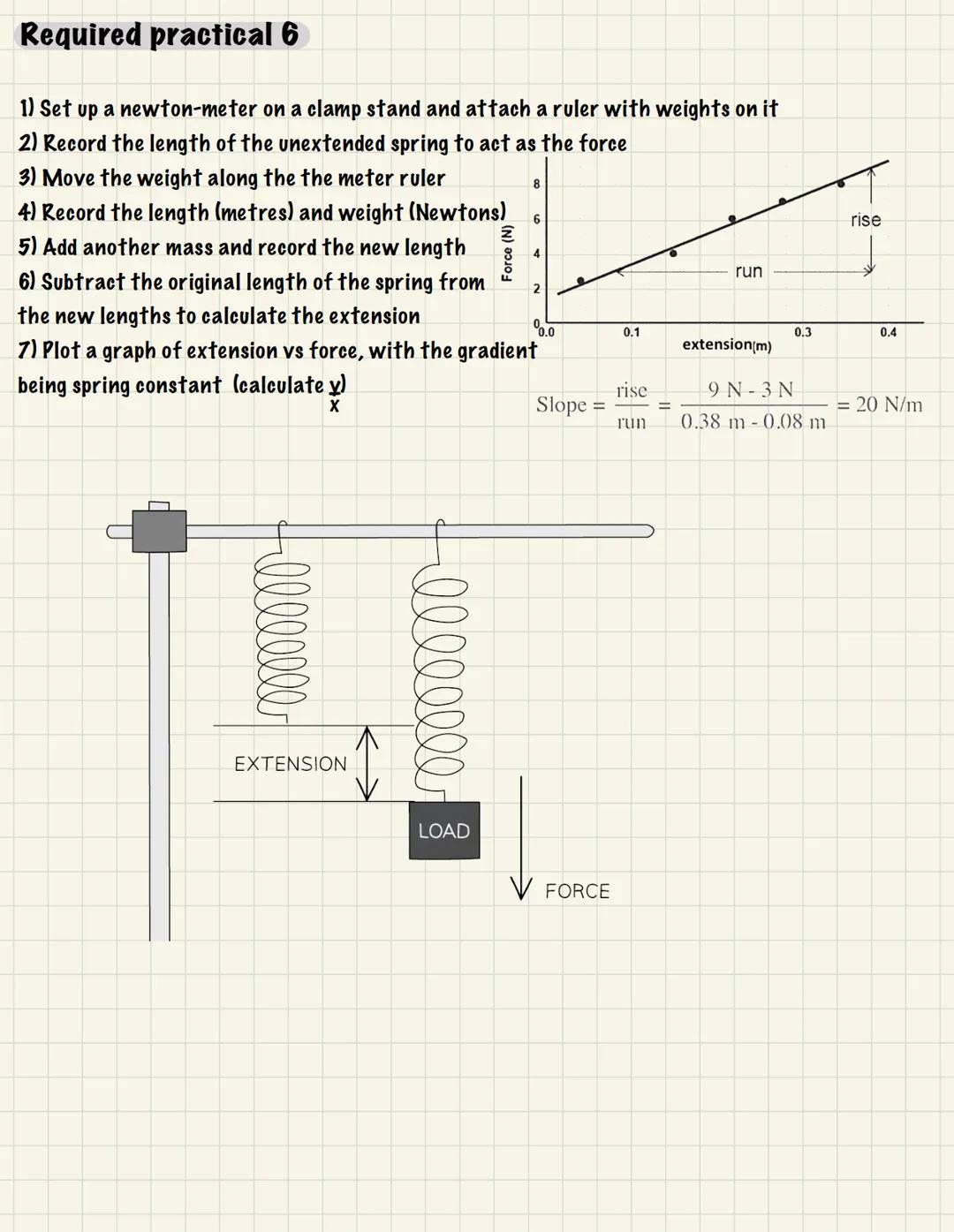

Page 5: Force and Extension Investigation

The final practical demonstrates spring extension principles, a key concept in physics paper 1 required practicals.

Highlight: The experiment uses a newton-meter and ruler setup to measure force and extension.

Example: Measurements include both unextended and extended spring lengths under various loads.

Definition: The relationship between force and extension helps understand elastic properties of materials.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

View

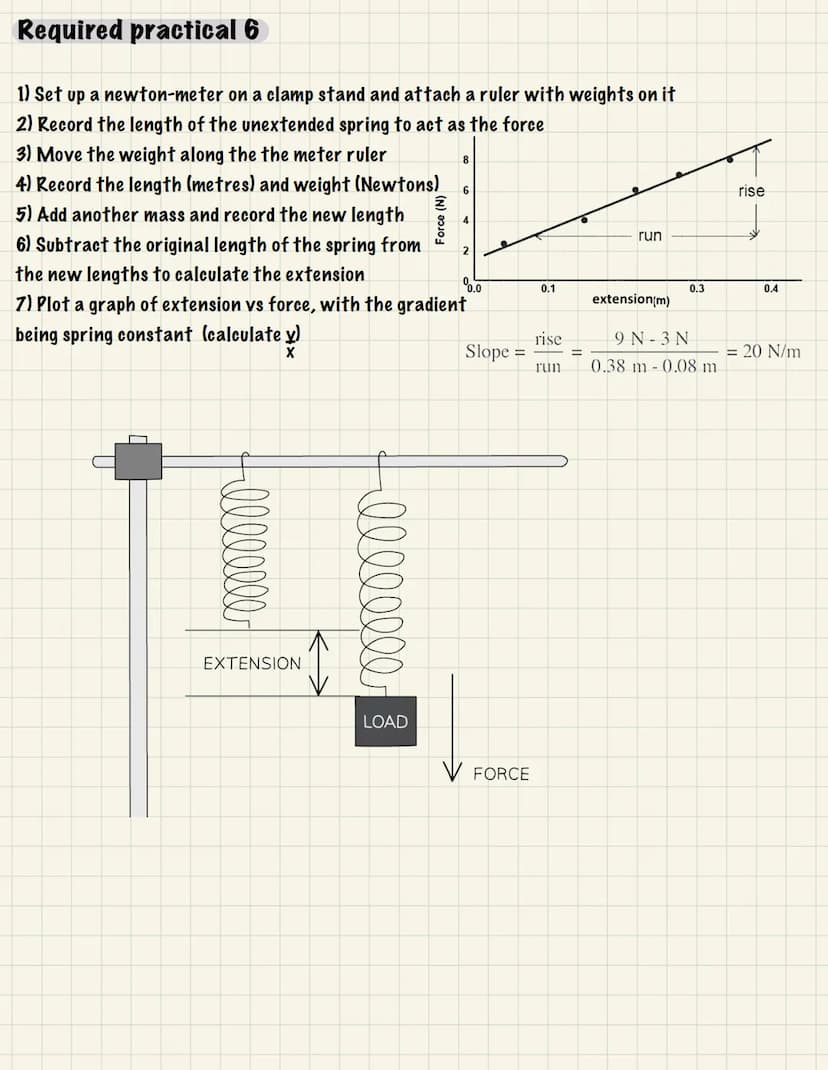

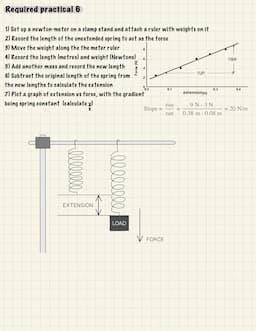

Page 5: Spring Constant Investigation

This practical demonstrates Hooke's Law and spring behavior, essential for understanding forces in gcse physics required practicals.

Definition: Spring constant kk represents the force needed to extend a spring by unit length.

Highlight: The gradient of the force-extension graph gives the spring constant.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

View

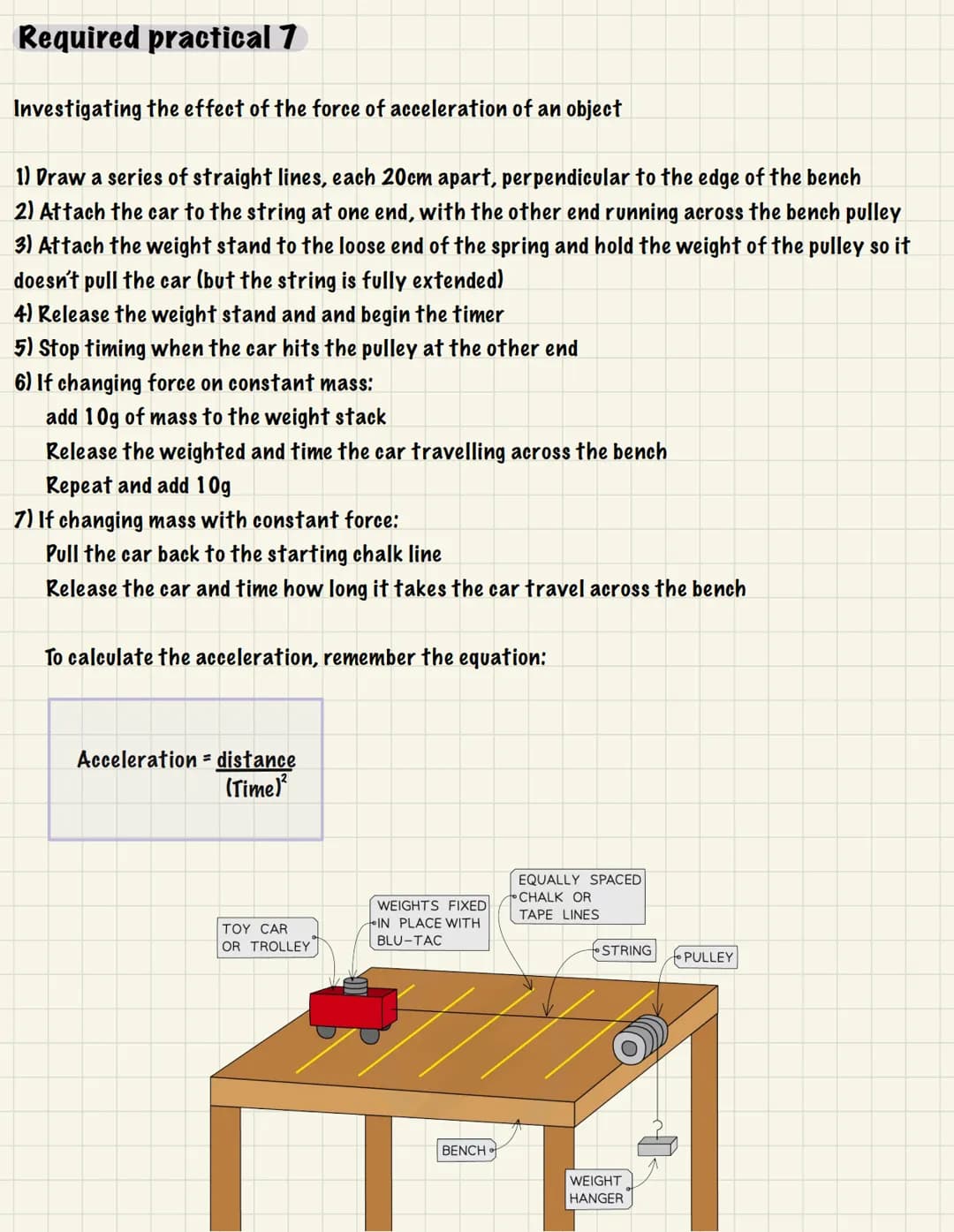

Page 6: Force and Acceleration

The practical investigates Newton's Second Law, demonstrating the relationship between force and acceleration in physics paper 1 required practicals.

Example: Using a pulley system with weights to investigate force and acceleration relationships.

Highlight: Systematic measurement of time and distance enables accurate acceleration calculations.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

View

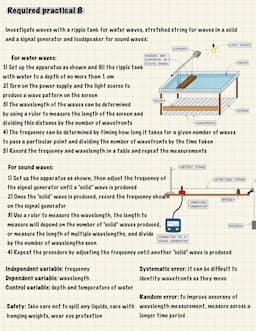

Page 7: Wave Properties Investigation

This section covers wave behavior investigation using various mediums, essential for understanding wave phenomena in aqa gcse physics required practicals.

Definition: Wavelength is the distance between two consecutive peaks or troughs in a wave.

Vocabulary: Ripple tank - apparatus used to demonstrate water wave properties.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

View

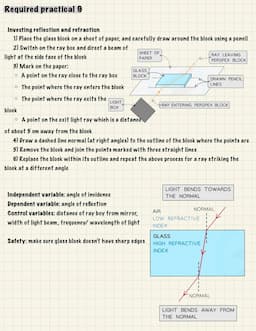

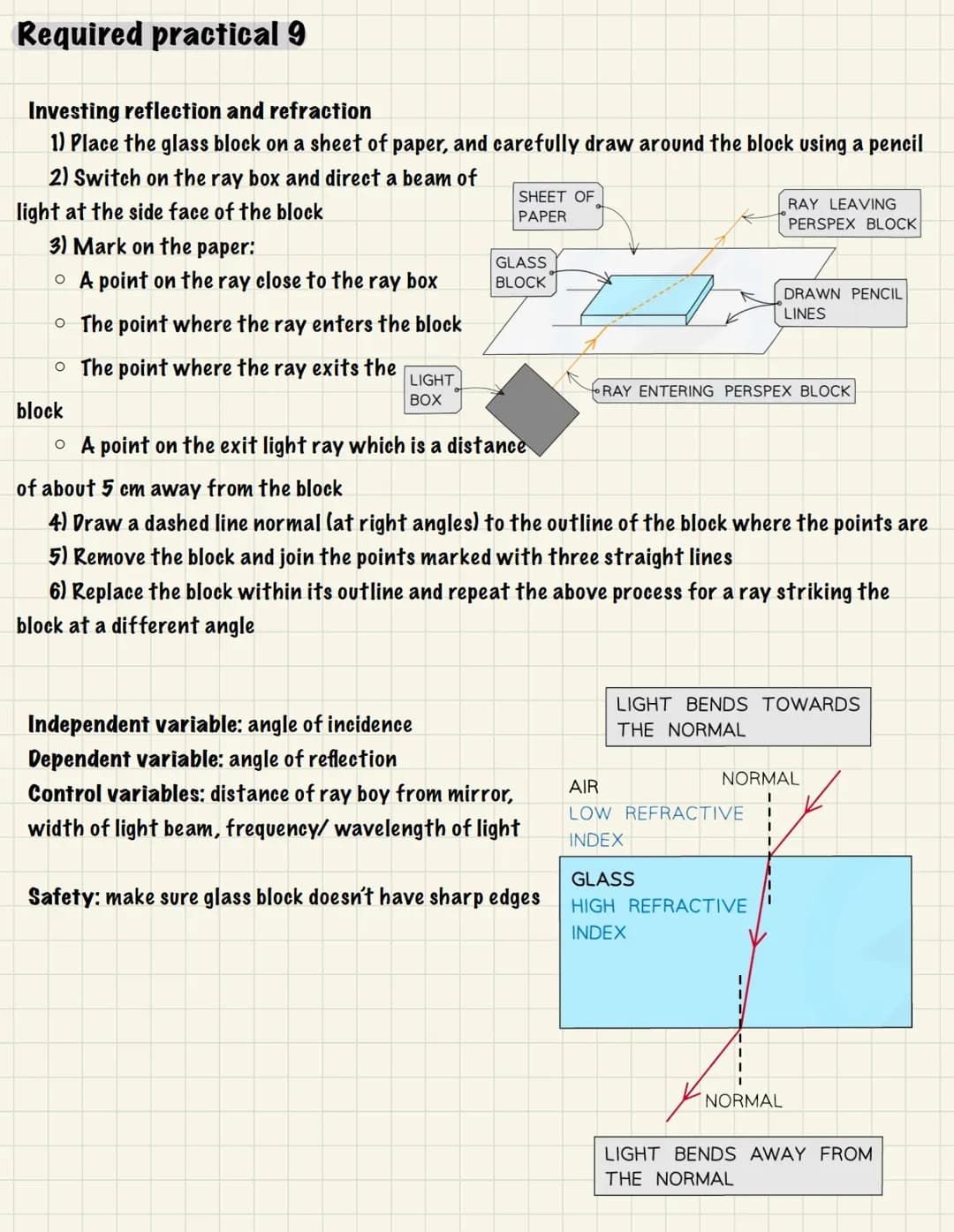

Page 8: Light Reflection and Refraction

The practical explores fundamental properties of light behavior, crucial for understanding optics in physics required practicals.

Example: Using a glass block and ray box to investigate light reflection and refraction angles.

Highlight: Careful measurement of angles is essential for accurate results.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

21 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Subjects

Physics



Physics

•

9,813

•

14 Mar 2023

•

9 pages

Free AQA GCSE Physics Required Practicals and Experiments

user profile picture

Lorena

@lor3na66

Physics Required Practicals Guide: A Comprehensive Overview of AQA GCSE Physics Experiments

This detailed guide covers ten essential physics practicalsrequired for GCSE, focusing on measurement techniques, experimental procedures, and methods to improve experimental validity. The guide encompasses thermal physics,... Show more

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

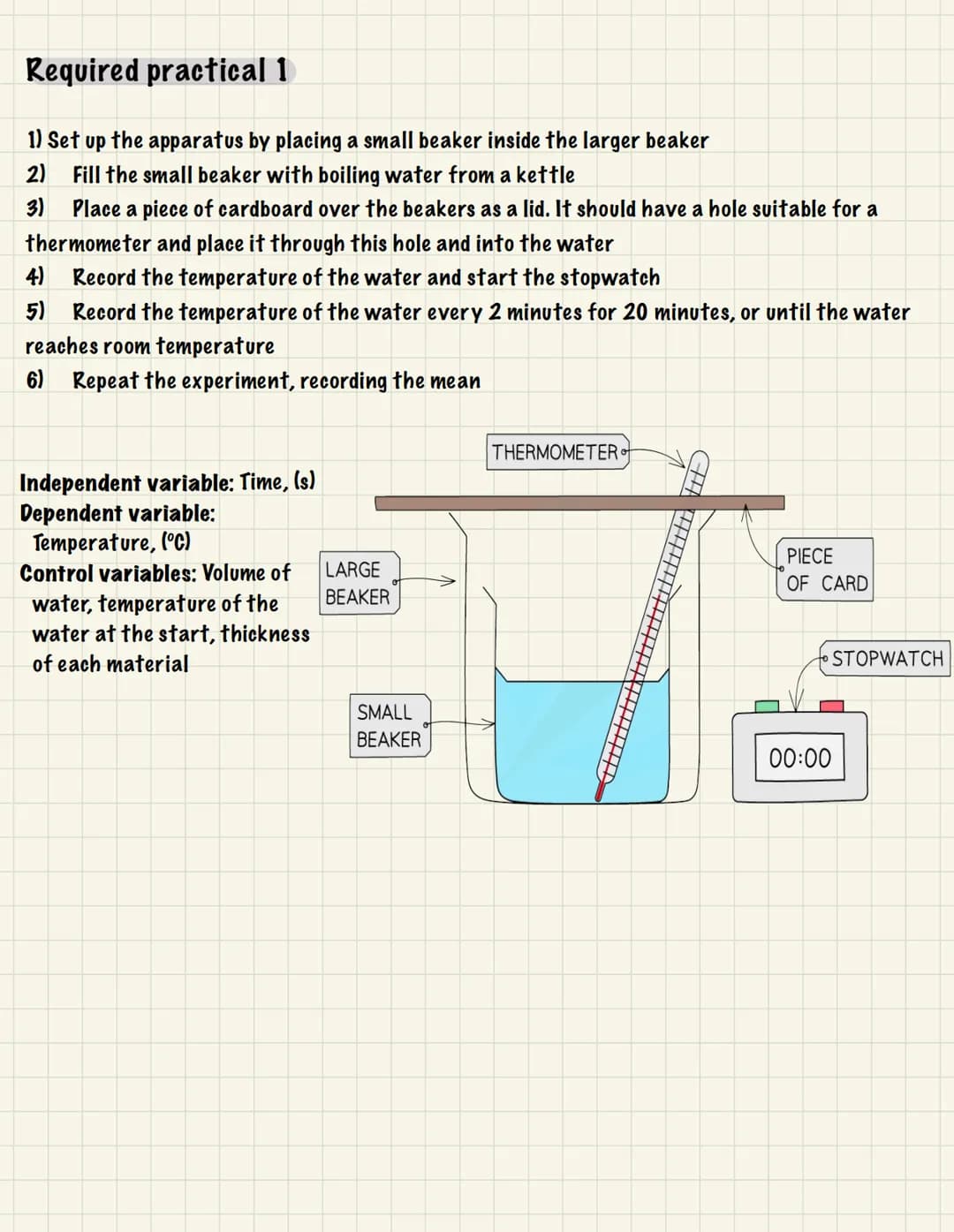

Page 2: Temperature Measurement Practical

This page outlines the first required practical focusing on temperature measurement using a double-beaker setup. The experiment demonstrates heat transfer and temperature recording techniques.

Highlight: The setup involves nested beakers with careful temperature monitoring over time.

Definition: Independent variable timetime and dependent variable temperaturetemperature are clearly identified.

Example: Temperature readings are taken every 2 minutes for 20 minutes using a thermometer through a cardboard lid.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 3: Thermal Insulation and Resistance Investigation

This section covers two key physics required practicals: thermal insulation and resistance measurement. Both experiments demonstrate fundamental physics principles with precise measurement techniques.

Vocabulary: Thermal insulation involves heat transfer through different materials.

Example: For resistance investigation, measurements are taken at 10cm intervals along a thin wire.

Highlight: Control variables include power supply voltage and wire temperature.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 4: I-V Characteristics and Density Measurement

This page details procedures for investigating current-voltage relationships and density calculations, essential components of aqa gcse physics required practicals.

Definition: I-V characteristics show the relationship between current and voltage in electrical components.

Highlight: Safety precautions include switching off circuits between readings to prevent overheating.

Example: Density calculation involves measuring displaced water volume and object mass.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 5: Force and Extension Investigation

The final practical demonstrates spring extension principles, a key concept in physics paper 1 required practicals.

Highlight: The experiment uses a newton-meter and ruler setup to measure force and extension.

Example: Measurements include both unextended and extended spring lengths under various loads.

Definition: The relationship between force and extension helps understand elastic properties of materials.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 5: Spring Constant Investigation

This practical demonstrates Hooke's Law and spring behavior, essential for understanding forces in gcse physics required practicals.

Definition: Spring constant kk represents the force needed to extend a spring by unit length.

Highlight: The gradient of the force-extension graph gives the spring constant.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 6: Force and Acceleration

The practical investigates Newton's Second Law, demonstrating the relationship between force and acceleration in physics paper 1 required practicals.

Example: Using a pulley system with weights to investigate force and acceleration relationships.

Highlight: Systematic measurement of time and distance enables accurate acceleration calculations.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

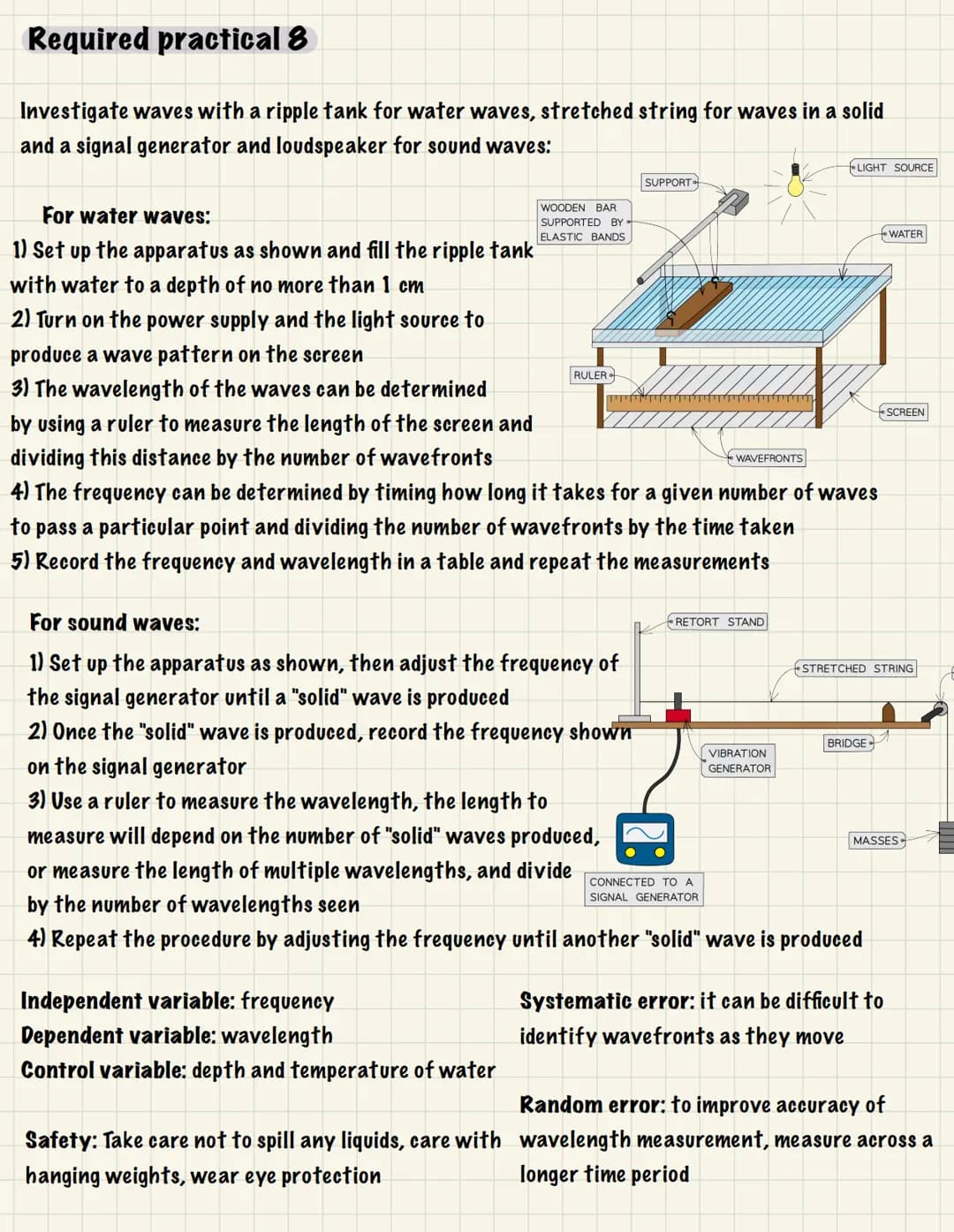

Page 7: Wave Properties Investigation

This section covers wave behavior investigation using various mediums, essential for understanding wave phenomena in aqa gcse physics required practicals.

Definition: Wavelength is the distance between two consecutive peaks or troughs in a wave.

Vocabulary: Ripple tank - apparatus used to demonstrate water wave properties.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 8: Light Reflection and Refraction

The practical explores fundamental properties of light behavior, crucial for understanding optics in physics required practicals.

Example: Using a glass block and ray box to investigate light reflection and refraction angles.

Highlight: Careful measurement of angles is essential for accurate results.

<p>To ensure the accuracy and reliability of an experiment, it is crucial to consider ways to increase the validity and reliability of the

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

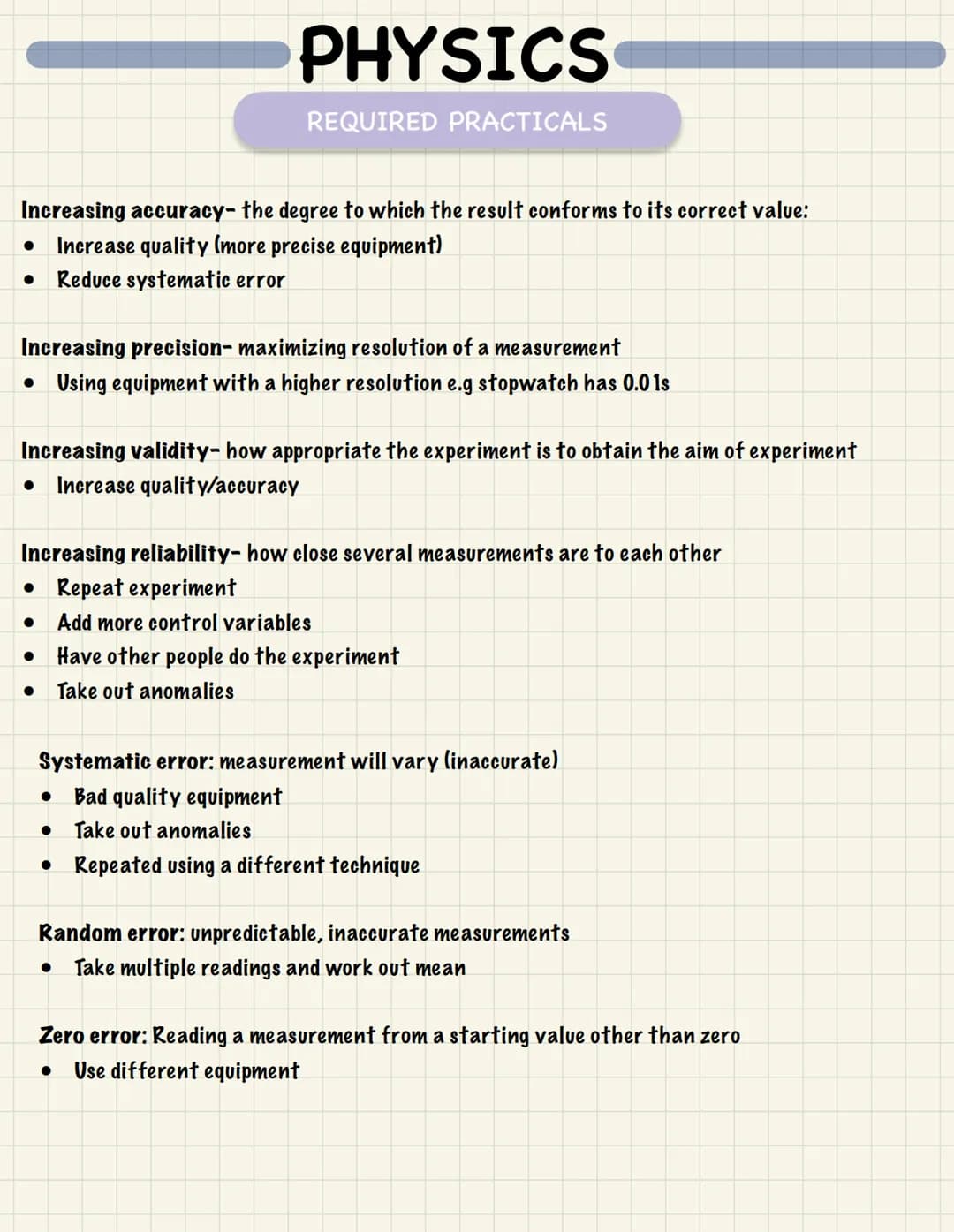

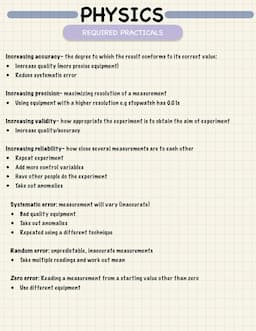

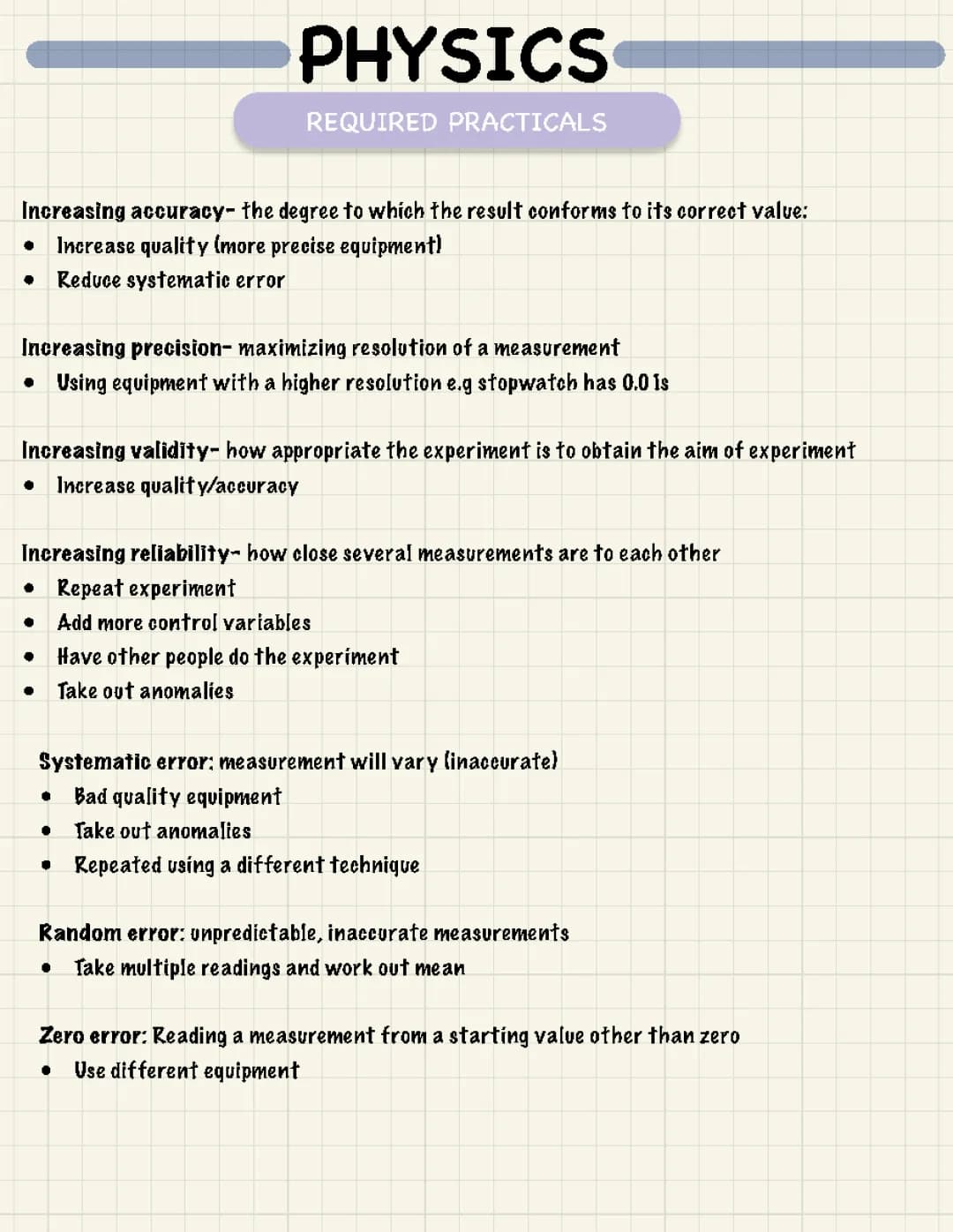

Page 1: Understanding Experimental Accuracy and Reliability
