Understanding Electrical Plugs and Wires
This page provides a comprehensive overview of electrical plugs and their components, essential for understanding electrical plugs and wires GCSE pdf. It covers the structure of a plug, the function of different wires, and key concepts related to mains electricity, which is crucial for Physics students studying electricity in the home GCSE questions.
The document begins by explaining the purpose of a plug, which is to allow electrical appliances to be safely connected to a power socket. It then delves into the components of a three-core electrical cable, which provides a safe passage for electricity.
Definition: A conductor is a material that allows charge to move easily through it, such as copper wire.
Definition: An insulator is a material that doesn't allow heat or charge to easily move through it, such as rubber.

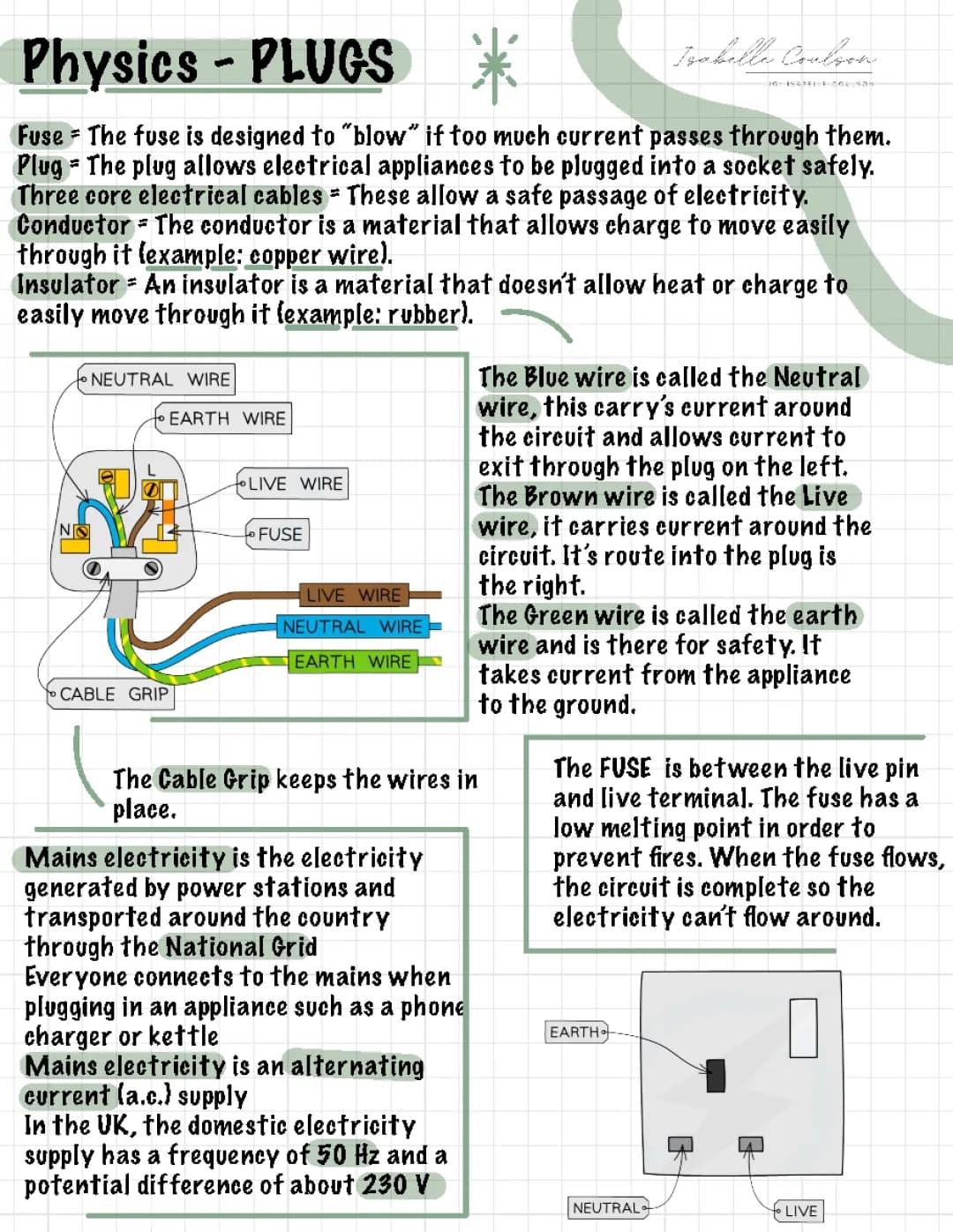

The page includes a detailed diagram of a plug, labeling its key components:
- Live wire: The brown wire that carries current into the circuit.
- Neutral wire: The blue wire that completes the circuit by allowing current to exit.
- Earth wire: The green wire that provides a safety mechanism by directing current to the ground if there's a fault.
- Fuse: Located between the live pin and live terminal, designed to "blow" if too much current passes through.
- Cable grip: Keeps the wires securely in place.
Highlight: The fuse is a crucial safety component, with a low melting point to prevent fires by breaking the circuit when excessive current flows.
The document also explains the concept of mains electricity:
Definition: Mains electricity is the electricity generated by power stations and transported around the country through the National Grid.
It notes that mains electricity in the UK is an alternating current (a.c.) supply with a frequency of 50 Hz and a potential difference of about 230 V. This information is particularly relevant for AQA GCSE Physics students studying domestic electricity supply.
Example: Common appliances that connect to mains electricity include phone chargers and kettles.
The page concludes with a reminder of the color coding for wires:
- Brown: Live wire
- Blue: Neutral wire
- Green and Yellow: Earth wire
This comprehensive overview provides students with essential knowledge for Physics revision on plug wiring and safety GCSE pdf, covering both the practical aspects of wiring a plug and the theoretical understanding of electrical systems in homes.
