GCSE Physics Paper 1 Required Practicals Guide

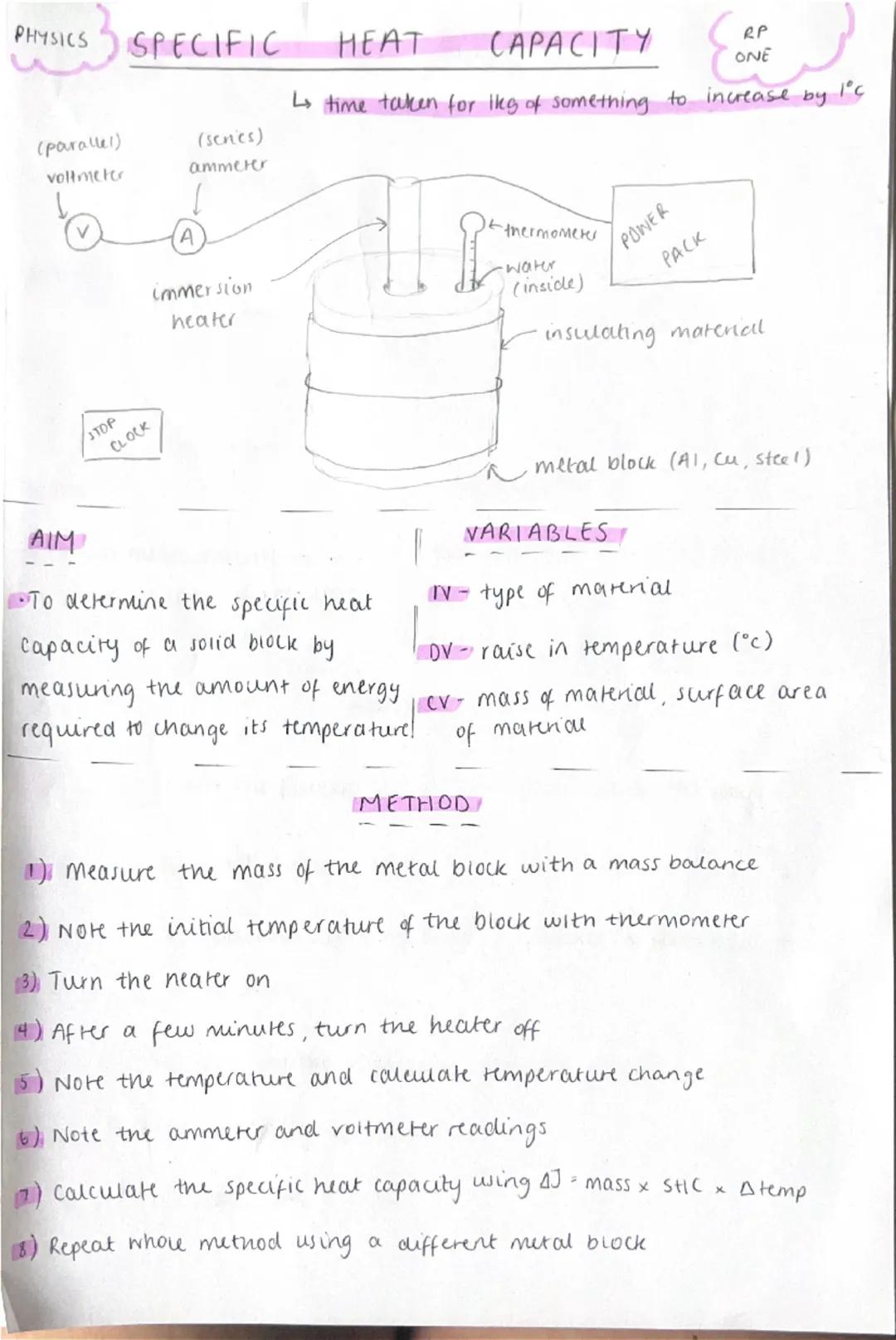

Specific Heat Capacity Investigation

Ever wondered why metal feels colder than wood at the same temperature? This experiment reveals how different materials store thermal energy by measuring specific heat capacity - the energy needed to heat 1kg of material by 1°C.

You'll set up a simple circuit with an immersion heater connected to a power pack, using an ammeter (in series) and voltmeter (in parallel) to measure electrical energy. The metal block sits in insulating material to prevent heat loss, with a thermometer monitoring temperature changes.

The method is straightforward: measure the block's mass, record initial temperature, heat it for a few minutes, then calculate using ΔE = mass × SHC × Δtemp. Different metals like aluminium, copper, and steel will show dramatically different results.

Top Tip: Keep the current low and steady - high currents can damage your equipment and give inaccurate readings due to rapid temperature changes.

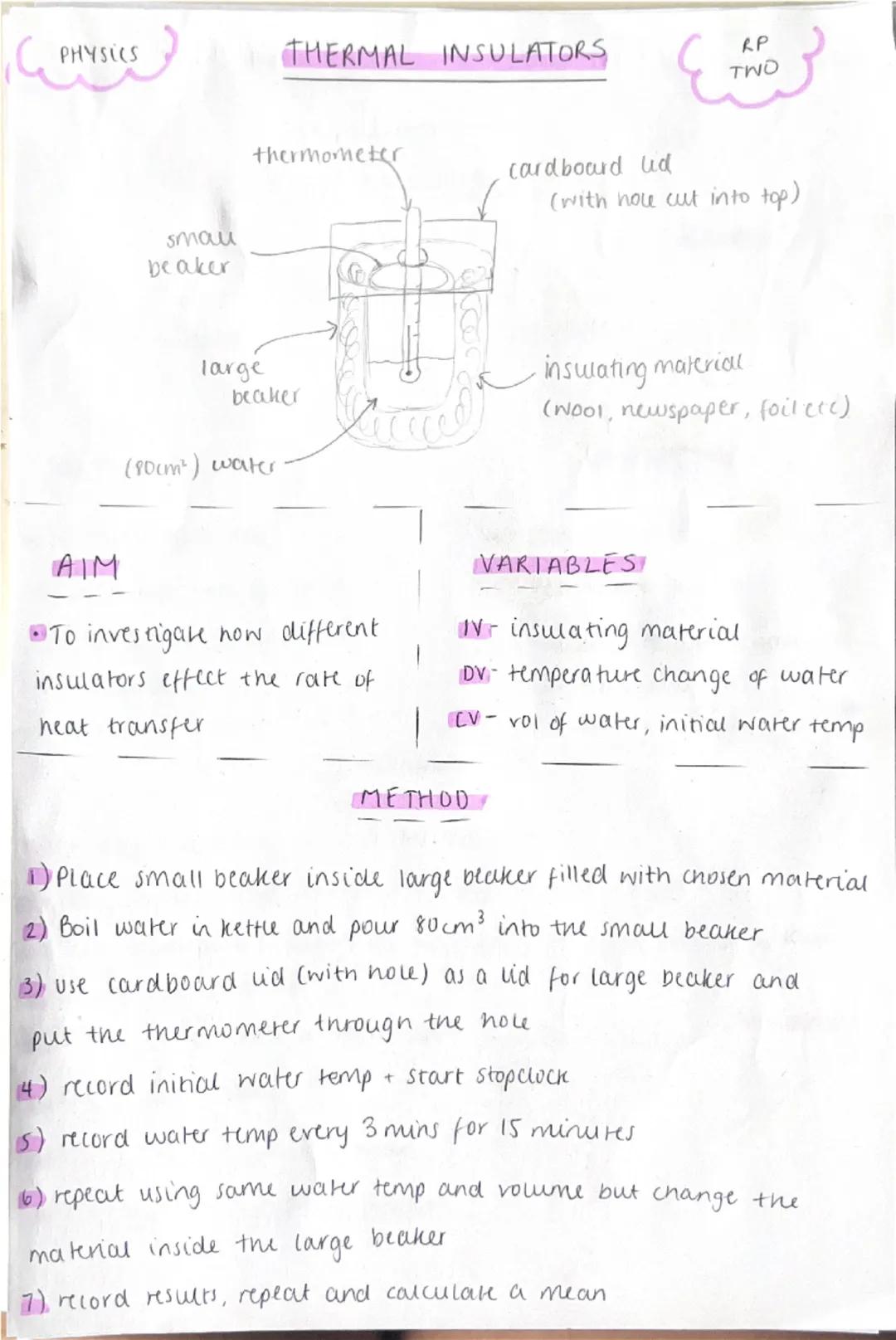

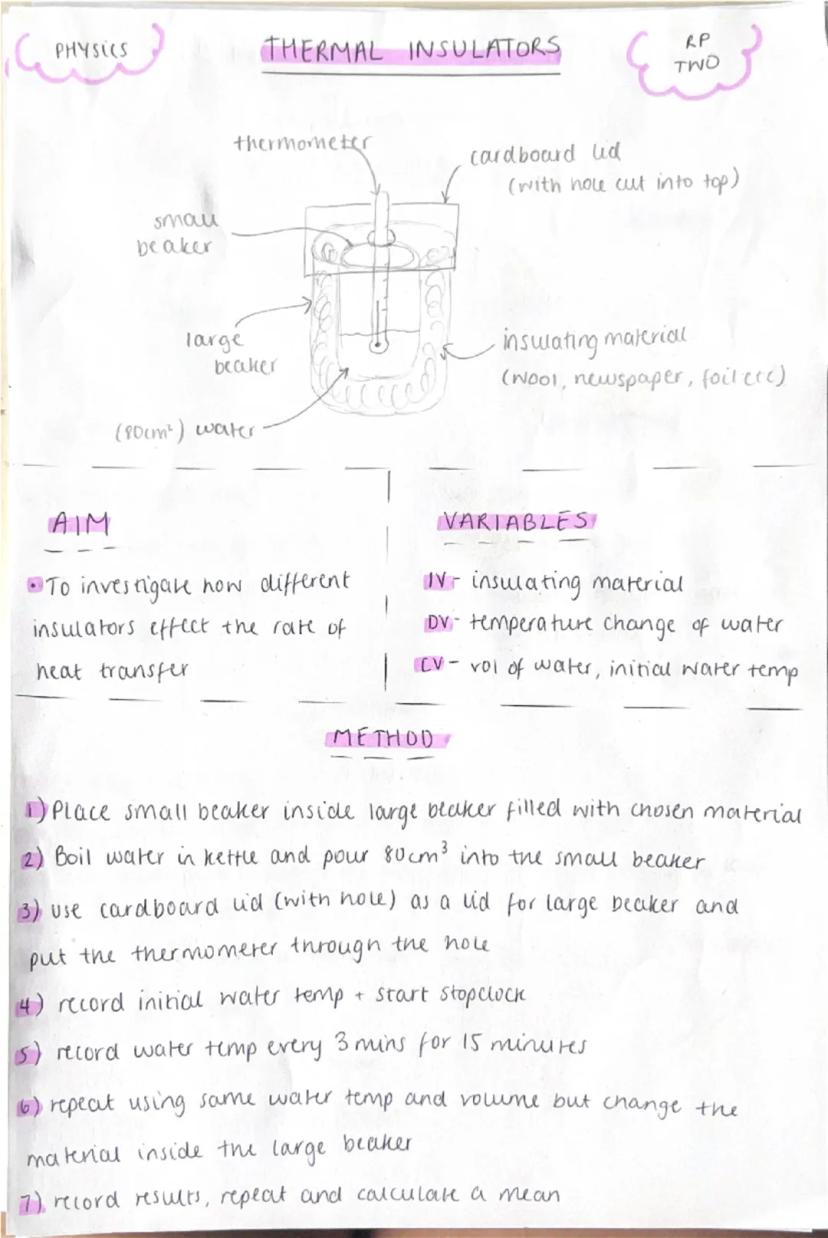

Thermal Insulation Experiment

Which material keeps your tea hottest longest? This practical investigates how different thermal insulators affect heat transfer rates - knowledge that's crucial for understanding energy efficiency in homes.

The setup uses a clever double-beaker system: hot water goes in a small beaker, which sits inside a larger beaker filled with your chosen insulating material. A cardboard lid with a thermometer maintains controlled conditions whilst allowing temperature monitoring.

You'll test materials like wool, newspaper, and foil by recording temperature changes every three minutes for 15 minutes. The best insulators show the smallest temperature drops over time.

This experiment directly connects to real-world applications like cavity wall insulation and thermal clothing. Plot your results on a graph to clearly see which materials are most effective at reducing heat transfer.

Remember: Start each test with identical water temperatures and volumes - inconsistent starting conditions will ruin your results.

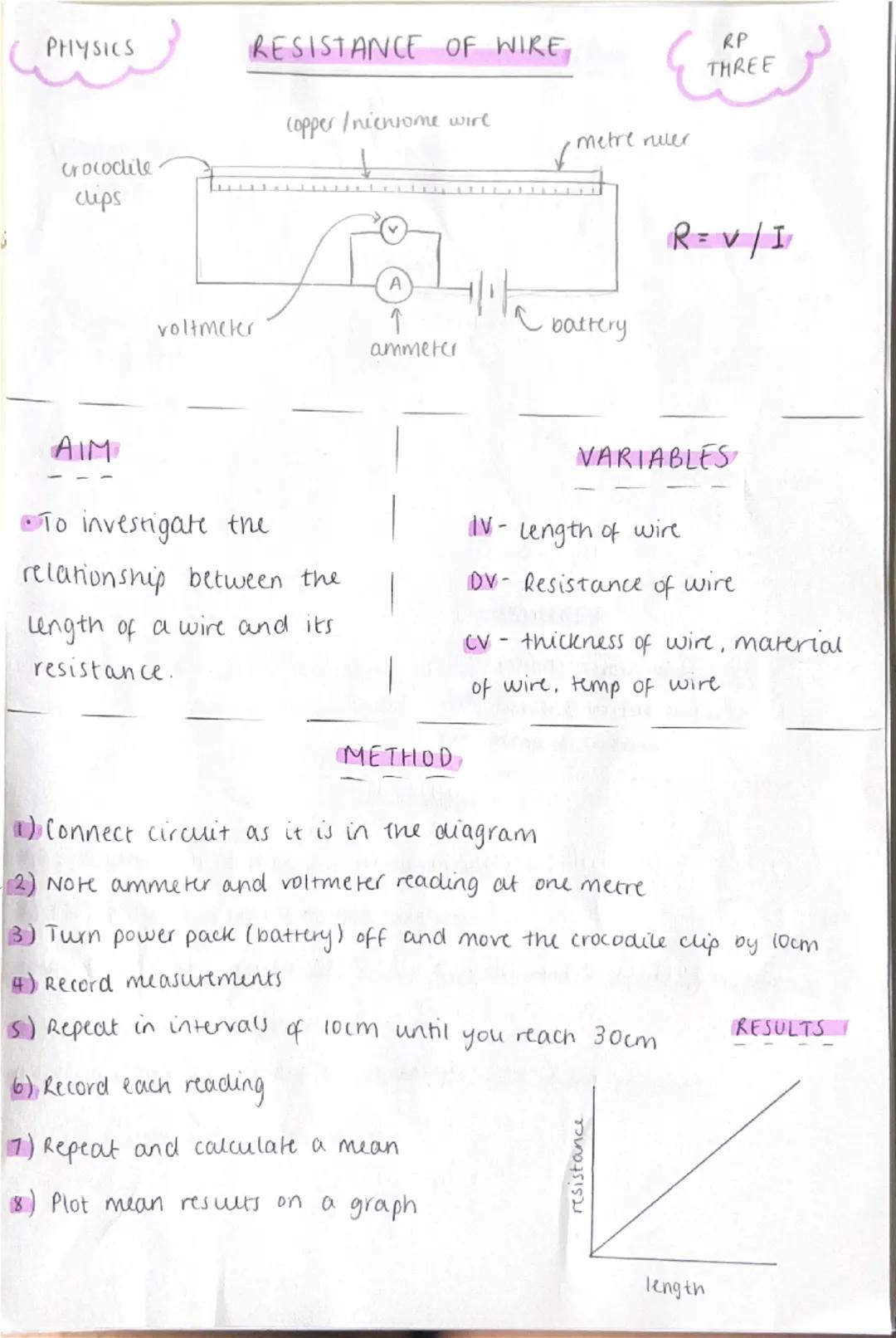

Wire Resistance Investigation

Your phone charger gets warm when it's working - that's electrical resistance converting energy to heat. This experiment reveals the relationship between wire length and resistance, a fundamental concept in electrical circuit design.

Using a simple circuit with copper or nichrome wire, you'll measure voltage and current at different lengths using crocodile clips moved in 10cm intervals. Ohm's law $R = V/I$ calculates resistance from your ammeter and voltmeter readings.

Starting at one metre and working down to 30cm, you'll discover that resistance increases proportionally with length. This relationship appears as a straight line when you plot your results, making it easy to predict resistance for any wire length.

This practical explains why extension leads heat up and why electrical engineers choose specific wire thicknesses for different applications.

Safety First: Always turn off the power pack before moving crocodile clips - live circuits can give nasty shocks and damage components.

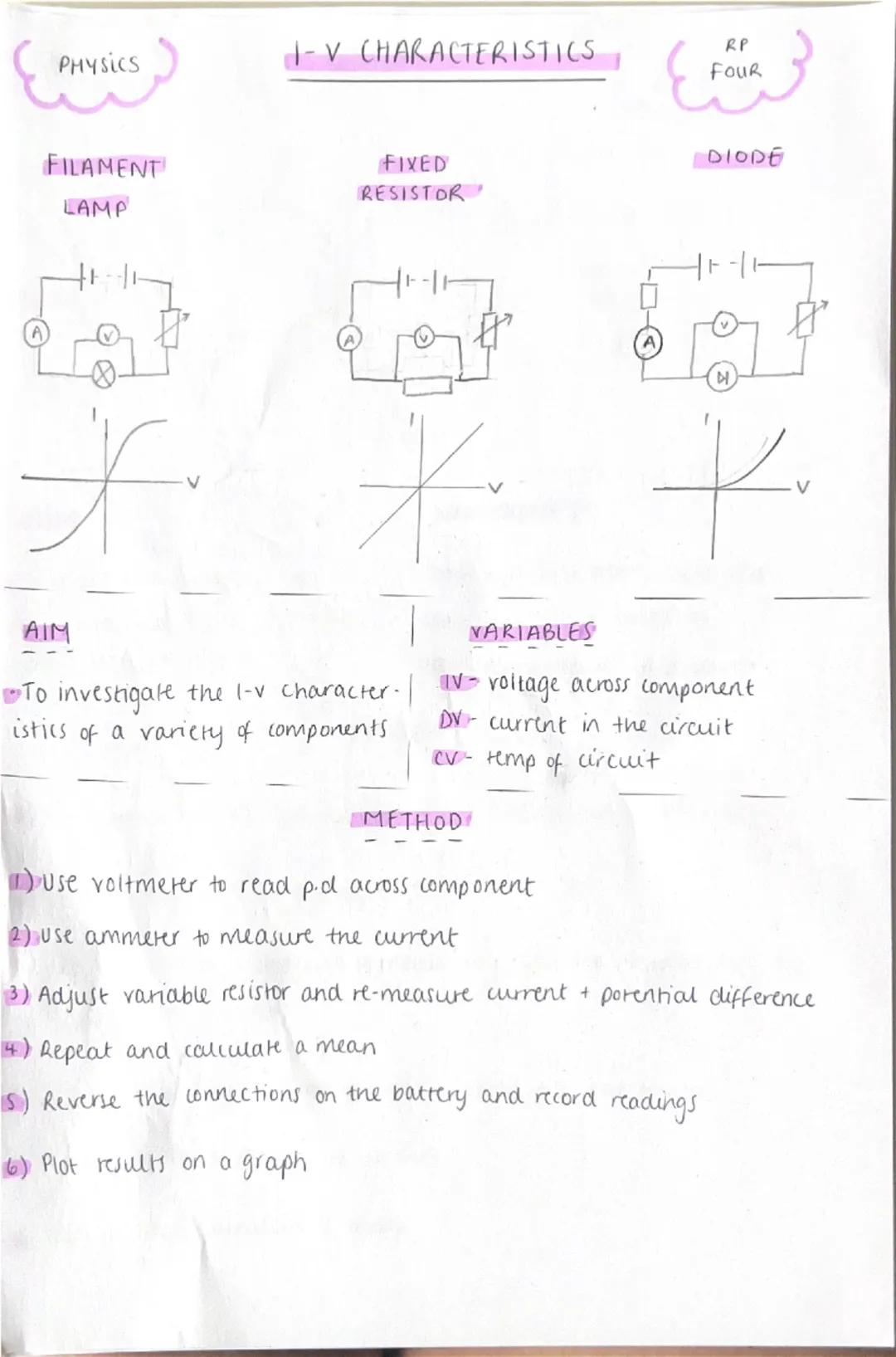

Current-Voltage Characteristics

Not all electrical components behave the same way when voltage changes. This experiment investigates I-V characteristics of three key components: filament lamps, fixed resistors, and diodes - each showing distinctive patterns you need to recognise.

The method involves systematically varying voltage using a variable resistor whilst measuring current and potential difference. You'll then reverse the battery connections to see how each component responds to current flowing in opposite directions.

Fixed resistors produce straight-line graphs (following Ohm's law), whilst filament lamps create curved lines as resistance increases with temperature. Diodes show the most dramatic behaviour - conducting in one direction only.

These characteristic curves help engineers design circuits and troubleshoot electrical problems. Understanding why each component behaves differently connects to atomic-level physics and practical electronics.

Key Insight: The shape of each I-V graph tells you instantly what type of component you're testing - this pattern recognition is essential for exam success.

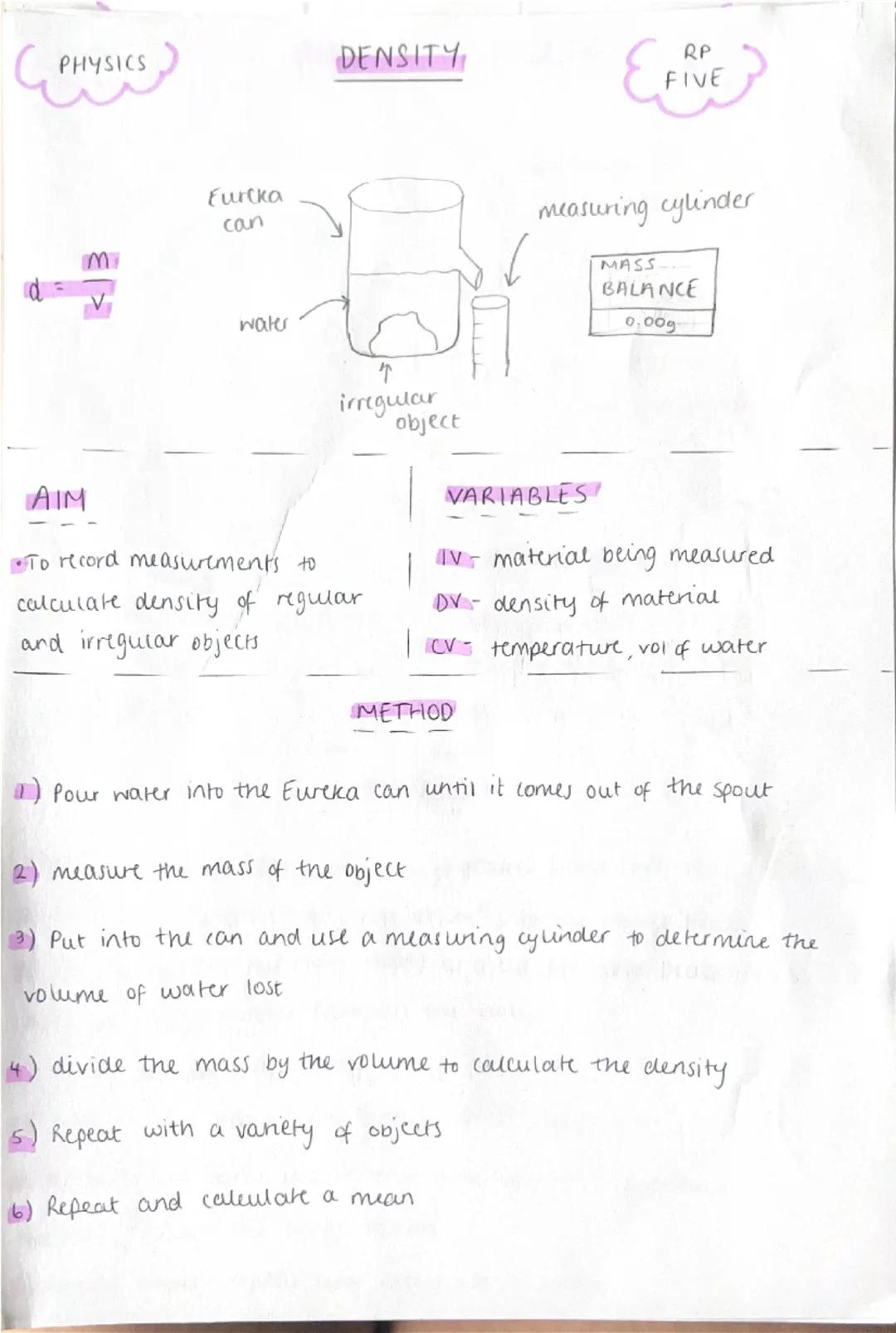

Density Determination Practical

Why do some materials float whilst others sink? Density - mass per unit volume - determines this behaviour and helps identify unknown substances using the formula d = M/V.

The Eureka can method cleverly measures irregular object volumes through water displacement. Fill the can until water overflows, then drop in your object and collect the displaced water in a measuring cylinder - this volume equals your object's volume.

After measuring the object's mass with a balance, simply divide mass by volume to calculate density. Different materials show characteristic density values that can identify substances or reveal if they're pure.

This technique works for any irregularly shaped object, from rocks to complex metal pieces. Comparing your results to known density values tests the accuracy of your experimental method.

Pro Tip: Ensure the Eureka can is completely full before starting - any air gaps will give you incorrect volume measurements and throw off your density calculations.
