Matter exists in three states - solid, liquid, and gas... Show more
Physics62 views·Updated May 16, 2026·7 pagesGCSE Physics Paper 1 and 3 Notes
grace @ramagcrkse
1 / 7
1
of 7

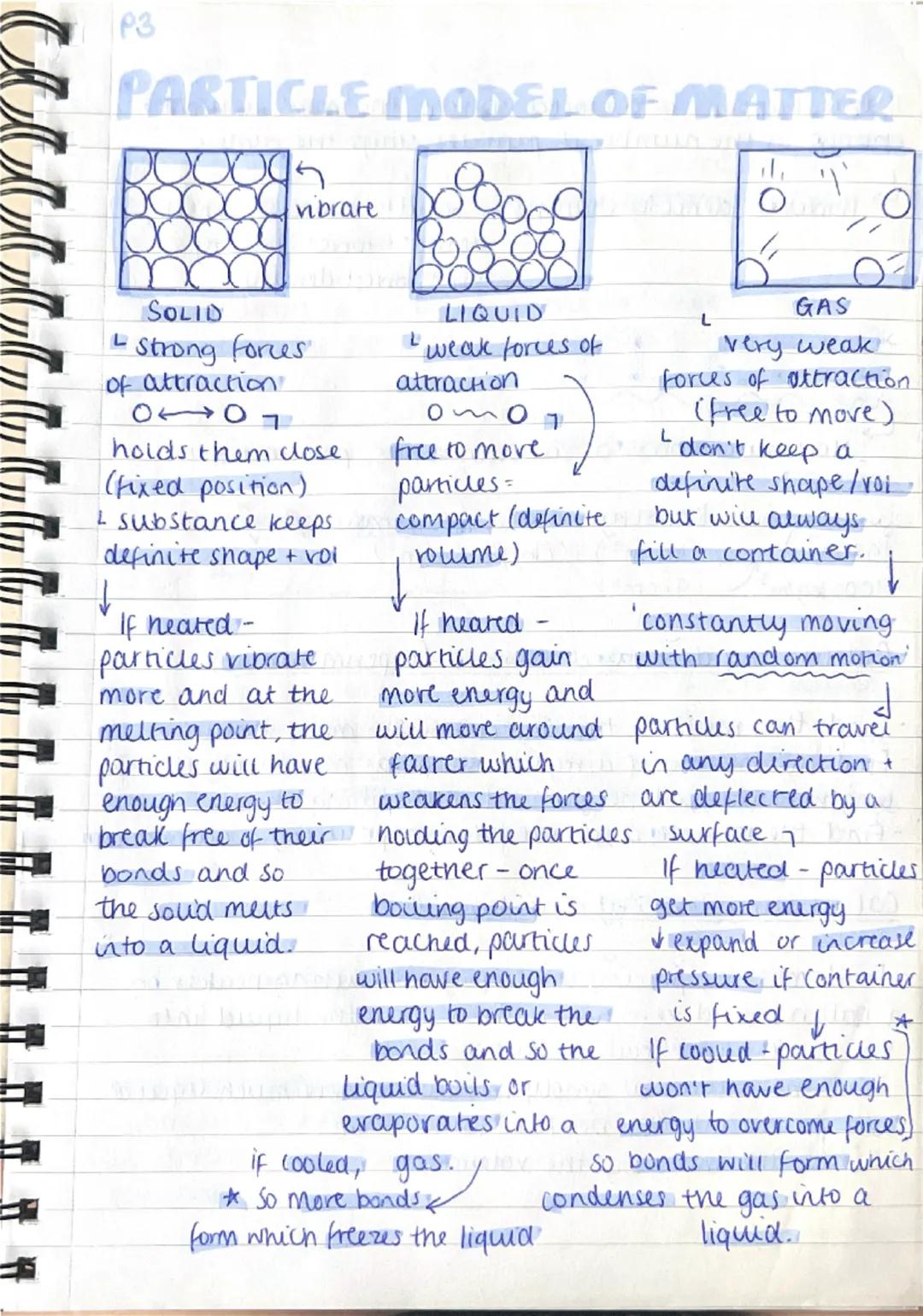

The Three States of Matter
Ever wondered why ice keeps its shape but steam fills an entire room? It's all about how particles are arranged and how strongly they attract each other.
In solids, particles are packed tightly together with strong forces holding them in fixed positions. This is why your phone doesn't suddenly change shape! When you heat a solid, particles vibrate more until they reach the melting point - then they break free and become a liquid.
Liquids have weaker forces between particles, so they can move around whilst staying close together. Heat them up enough and you reach the boiling point, where particles gain enough energy to escape completely and become a gas. Gas particles zoom about freely with very weak attractions, which is why they fill any container you put them in.
Quick Tip: Remember the pattern - heating gives particles more energy to break bonds, cooling takes energy away so bonds can form again.
2
of 7

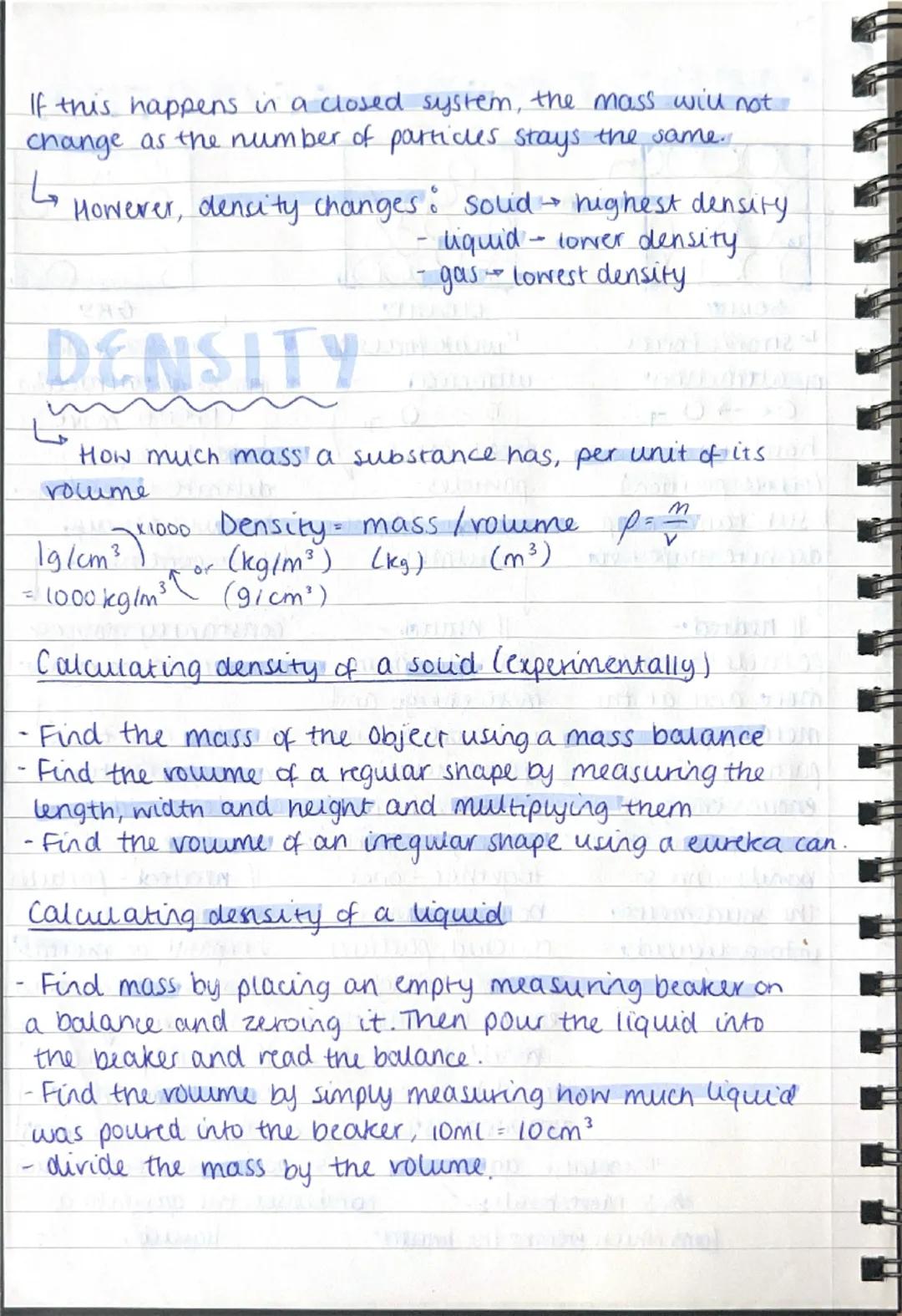

Density and How to Calculate It
Here's something that might surprise you - when ice melts into water, the mass stays exactly the same, but the density changes dramatically. Solids have the highest density, then liquids, then gases have the lowest.
Density tells you how much stuff is packed into a given space, calculated using: density = mass ÷ volume. You'll see this written as ρ = m/V in exams, where ρ (rho) is density.
For experiments, measuring density is straightforward but requires different techniques. Regular solids? Measure length, width, and height, then multiply for volume. Irregular shapes need a eureka can - the displaced water equals the object's volume. For liquids, zero your balance with an empty beaker, pour in the liquid, then divide the mass by the volume.
Exam Hack: Remember that 1 g/cm³ = 1000 kg/m³ - you'll often need to convert between these units!
3
of 7

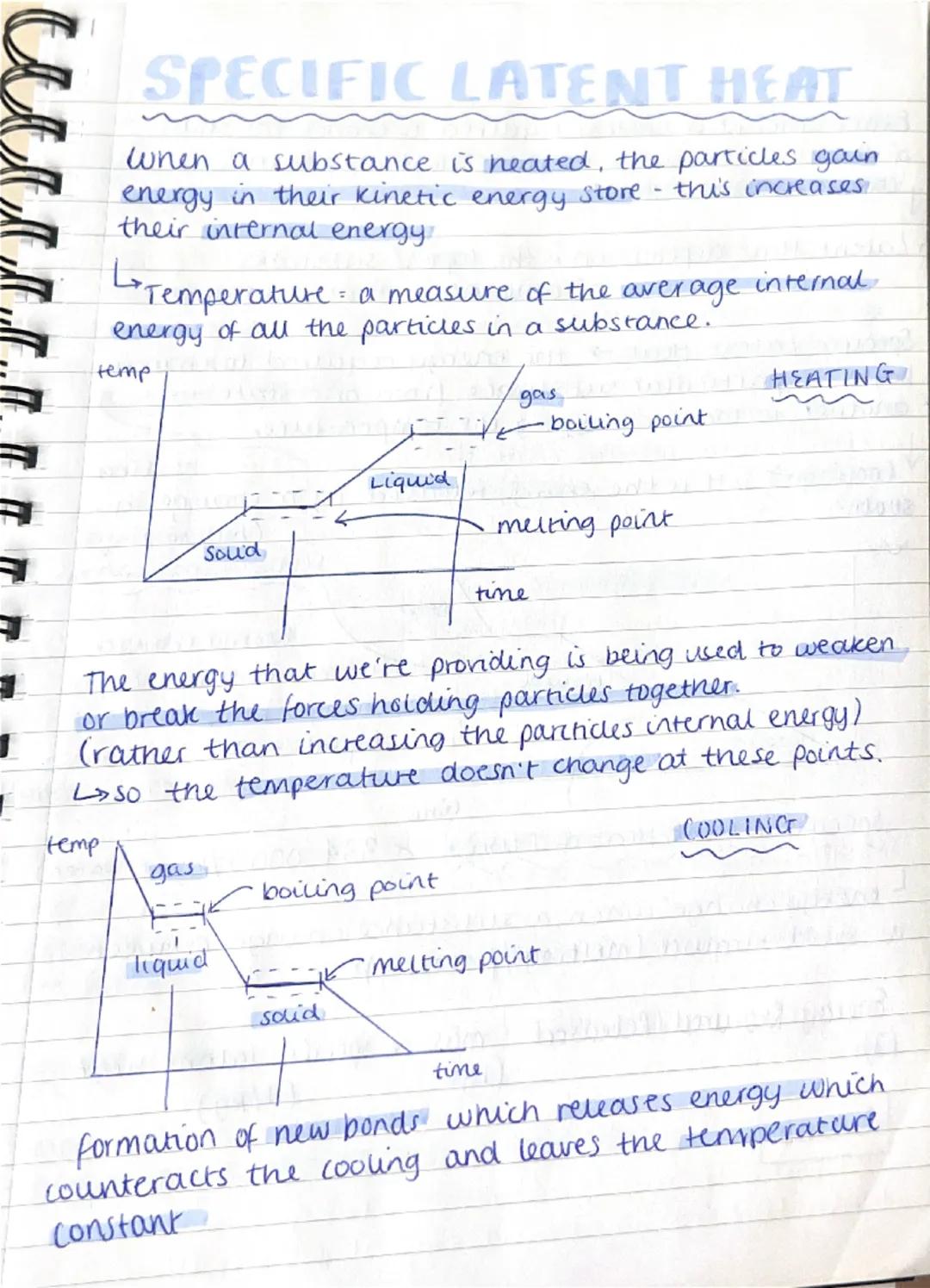

Specific Latent Heat Explained
You might think that heating something always makes it hotter, but that's not quite true! When substances change state (like ice melting), temperature actually stays constant even though you're adding energy.
This happens because the energy you're providing isn't increasing the particles' movement - instead, it's breaking the bonds holding particles together. That's why ice sits at exactly 0°C whilst melting, even though you're pumping heat into it.
The same thing happens in reverse when cooling. As a gas condenses into liquid, new bonds form and release energy, which counteracts the cooling effect. This is why steam at 100°C is far more dangerous than boiling water at 100°C - that steam contains loads of latent heat ready to be released.
Real-world Connection: This is exactly how your freezer works - it removes latent heat to change water vapour back into ice!
4
of 7

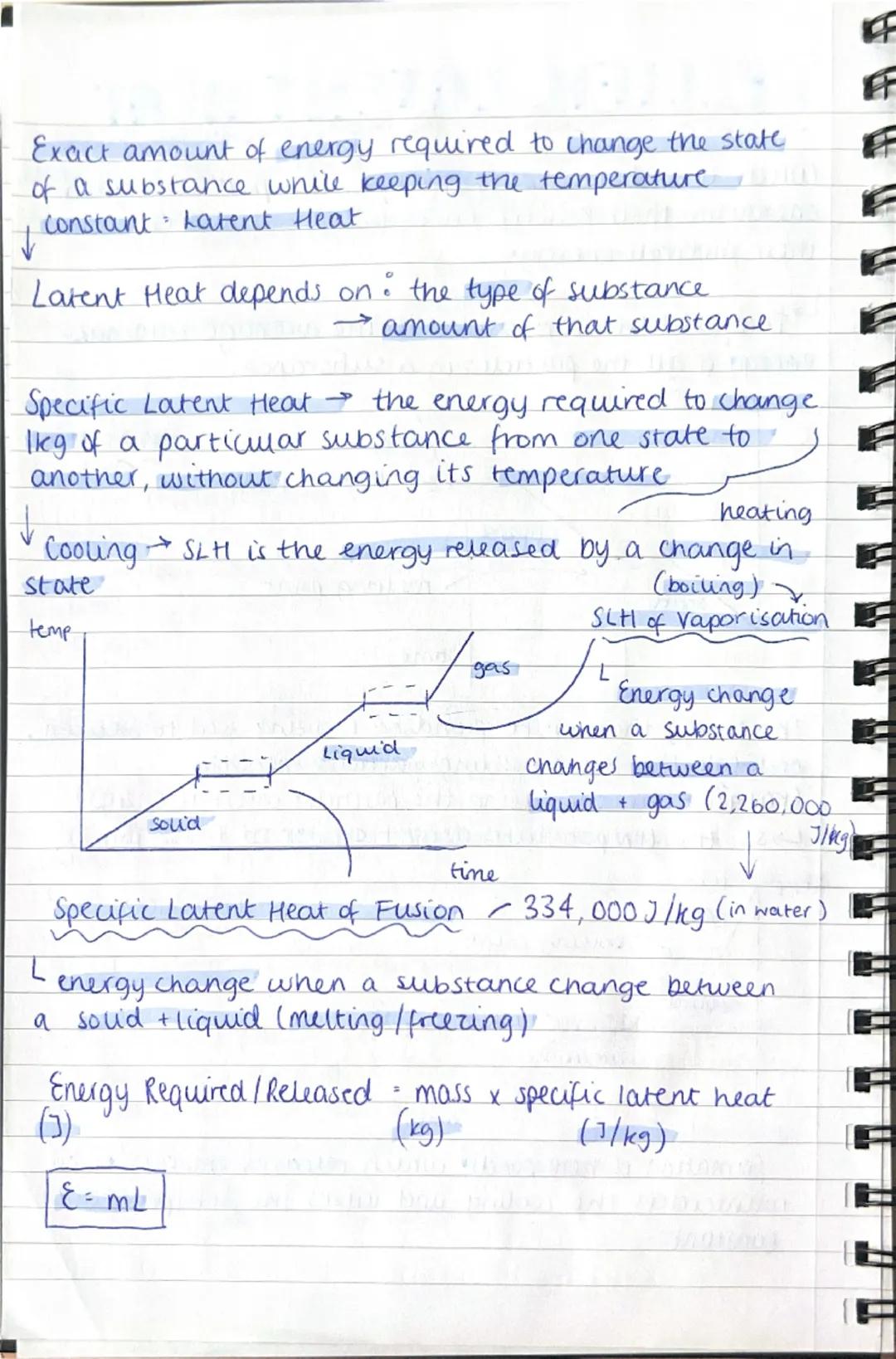

Calculating Energy Changes
Specific latent heat is the energy needed to change exactly 1kg of a substance from one state to another without changing temperature. Think of it as the "entry fee" particles pay to change state.
There are two types you need to know: specific latent heat of fusion (solid ↔ liquid) is about 334,000 J/kg for water, whilst specific latent heat of vaporisation (liquid ↔ gas) is much higher at 2,260,000 J/kg. Vaporisation needs more energy because you're completely separating particles.
The calculation is beautifully simple: Energy = mass × specific latent heat, or E = mL. Whether energy is required (heating) or released (cooling) depends on the direction of change.
Memory Trick: Vaporisation has a much higher value because gas particles need loads more energy to break completely free!
5
of 7

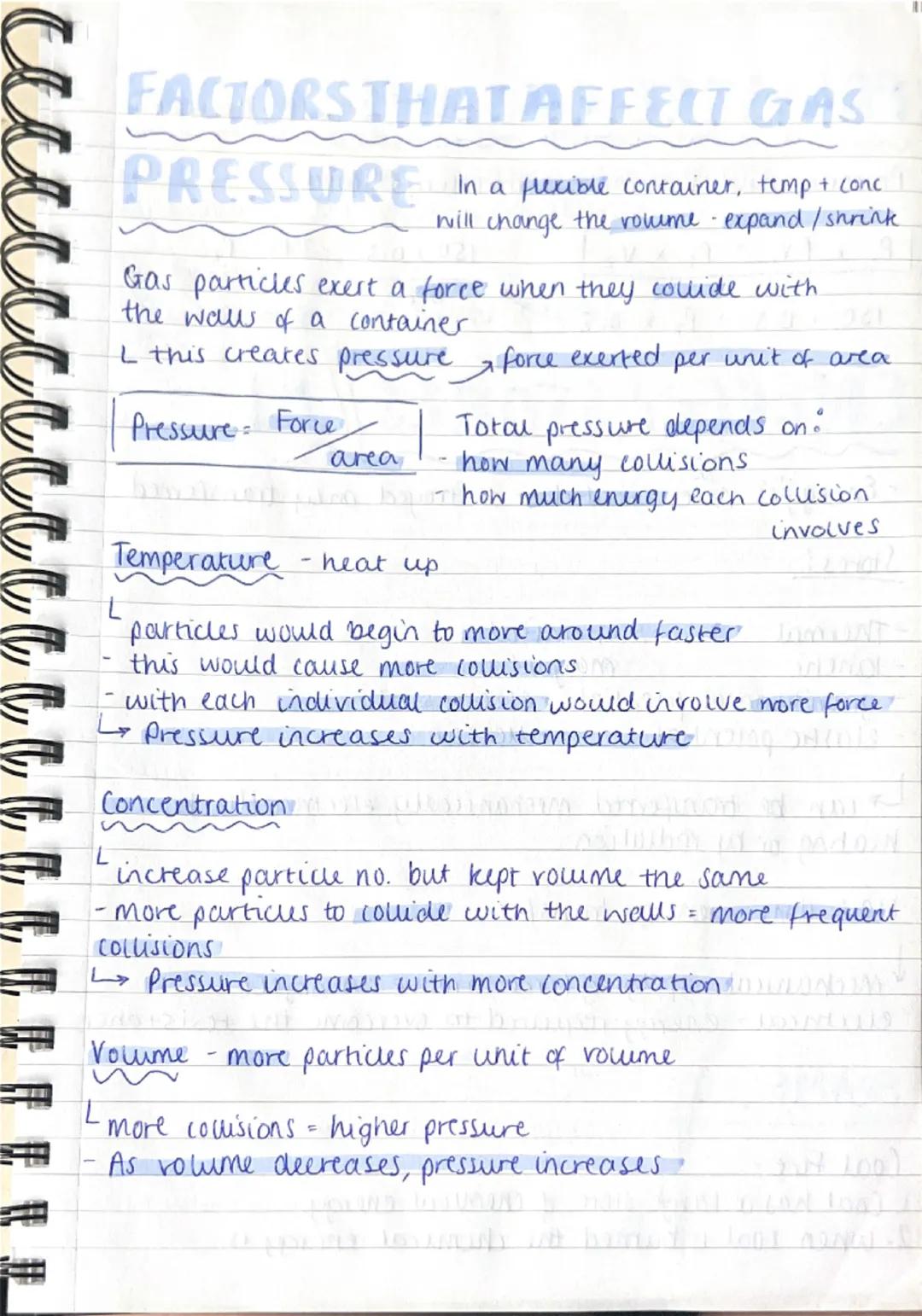

Gas Pressure Factors
Gas pressure happens when particles smash into container walls - more collisions or harder impacts mean higher pressure. It's like being in a busy corridor where everyone's rushing about!
Temperature is a major factor: heat up a gas and particles move faster, creating more frequent and forceful collisions. This is why aerosol cans explode if overheated - the pressure becomes too much for the container.
Concentration matters too - pack more particles into the same space and you get more collisions per second. Finally, volume plays a crucial role: squeeze gas into a smaller space and particles hit the walls more often, dramatically increasing pressure.
Safety Note: This explains why you should never heat pressurised containers - temperature and pressure are directly linked!
6
of 7

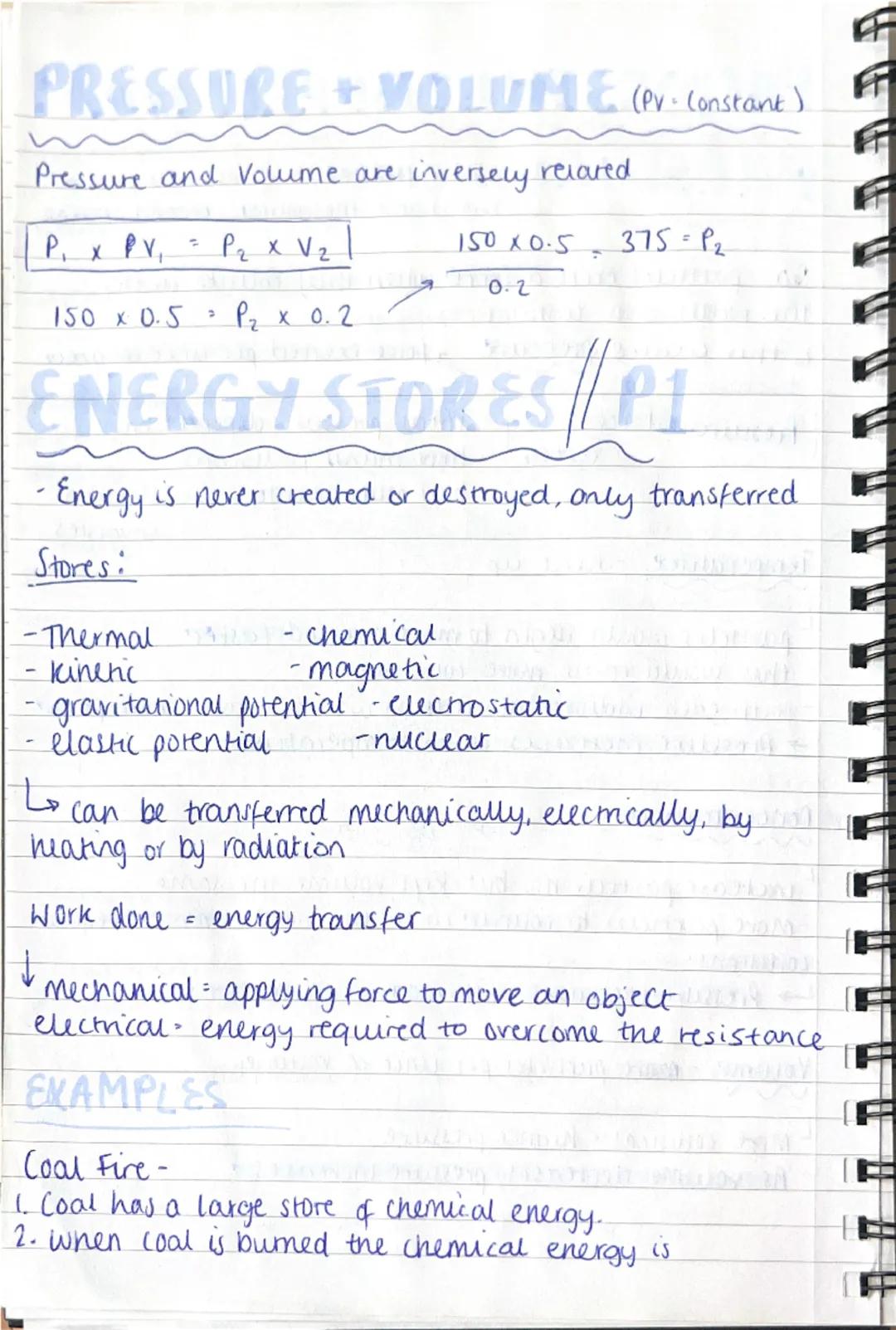

Pressure-Volume Relationships and Energy Stores
Here's a fundamental rule: pressure and volume are inversely related. Double the pressure and you'll halve the volume, following the equation P₁V₁ = P₂V₂. This relationship is essential for understanding everything from bicycle pumps to car engines.
Energy exists in multiple stores: thermal, kinetic, gravitational potential, elastic potential, chemical, magnetic, electrostatic, and nuclear. The golden rule is that energy is never created or destroyed - it just transfers between stores.
Work done equals energy transfer, whether that's mechanical (applying force), electrical (overcoming resistance), heating, or radiation. A coal fire demonstrates this perfectly: chemical energy in coal transfers by heating to thermal energy, then radiates out to warm your surroundings.
Key Concept: Every energy transfer follows the same rule - energy moves from one store to another, but the total amount never changes!
7
of 7

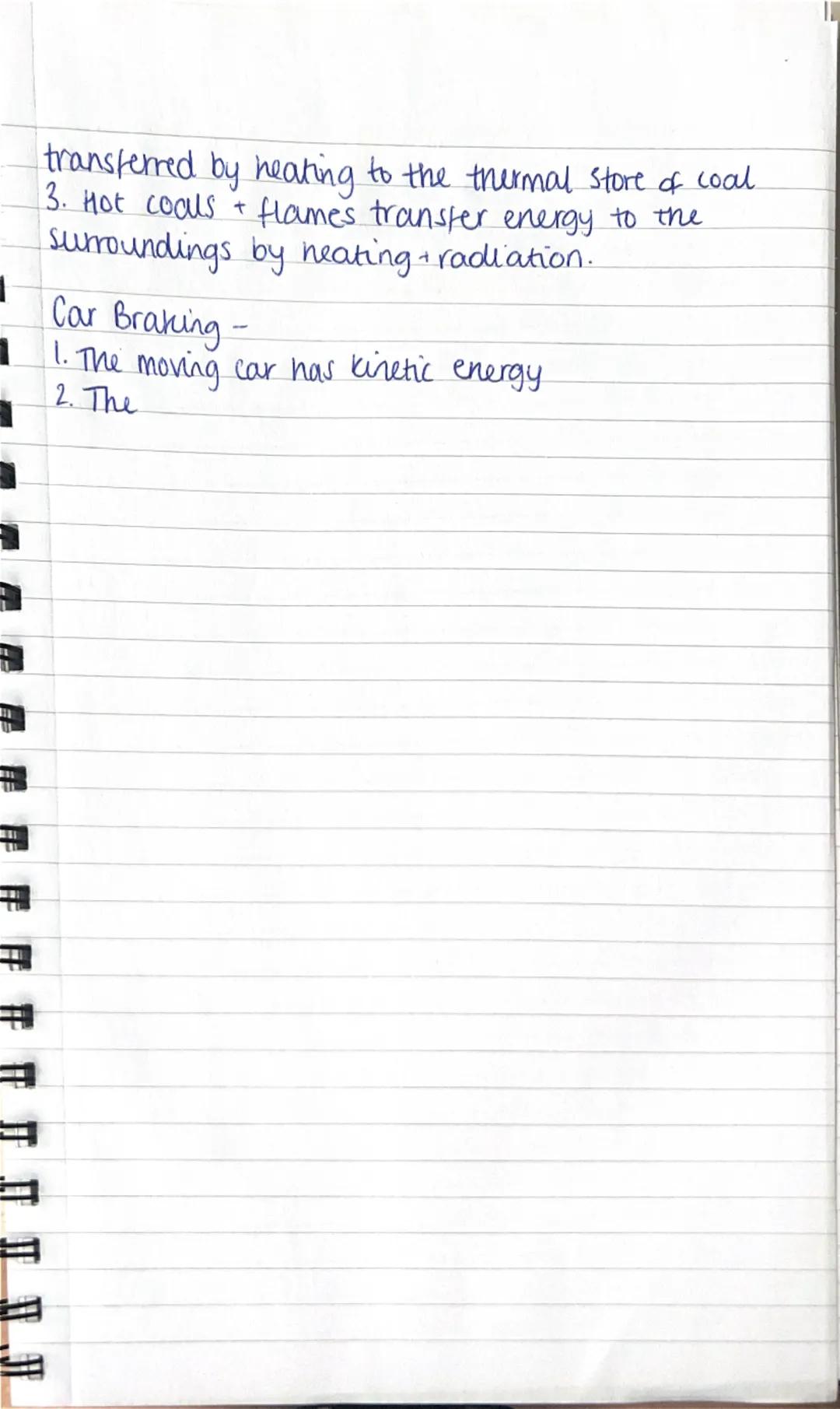

Energy Transfer Examples
Car braking shows energy transfer in action beautifully. Your moving car has kinetic energy in its motion, but when you brake, this energy must go somewhere - it transfers to thermal energy in the brake pads and discs through friction.
This is why brakes get incredibly hot during heavy use and why racing cars sometimes have glowing brake discs! The energy hasn't disappeared; it's simply changed from the energy of motion into heat energy that gets released to the surroundings.
Understanding these transfers helps you predict what happens in countless real situations, from why your hands warm up when you rub them together to how regenerative braking in electric cars works.
Think About It: Every time you stop moving, that kinetic energy has to go somewhere - usually heat!
