Understanding Electric Circuits: Series vs Parallel and Energy Transfer
Components and Circuit Fundamentals

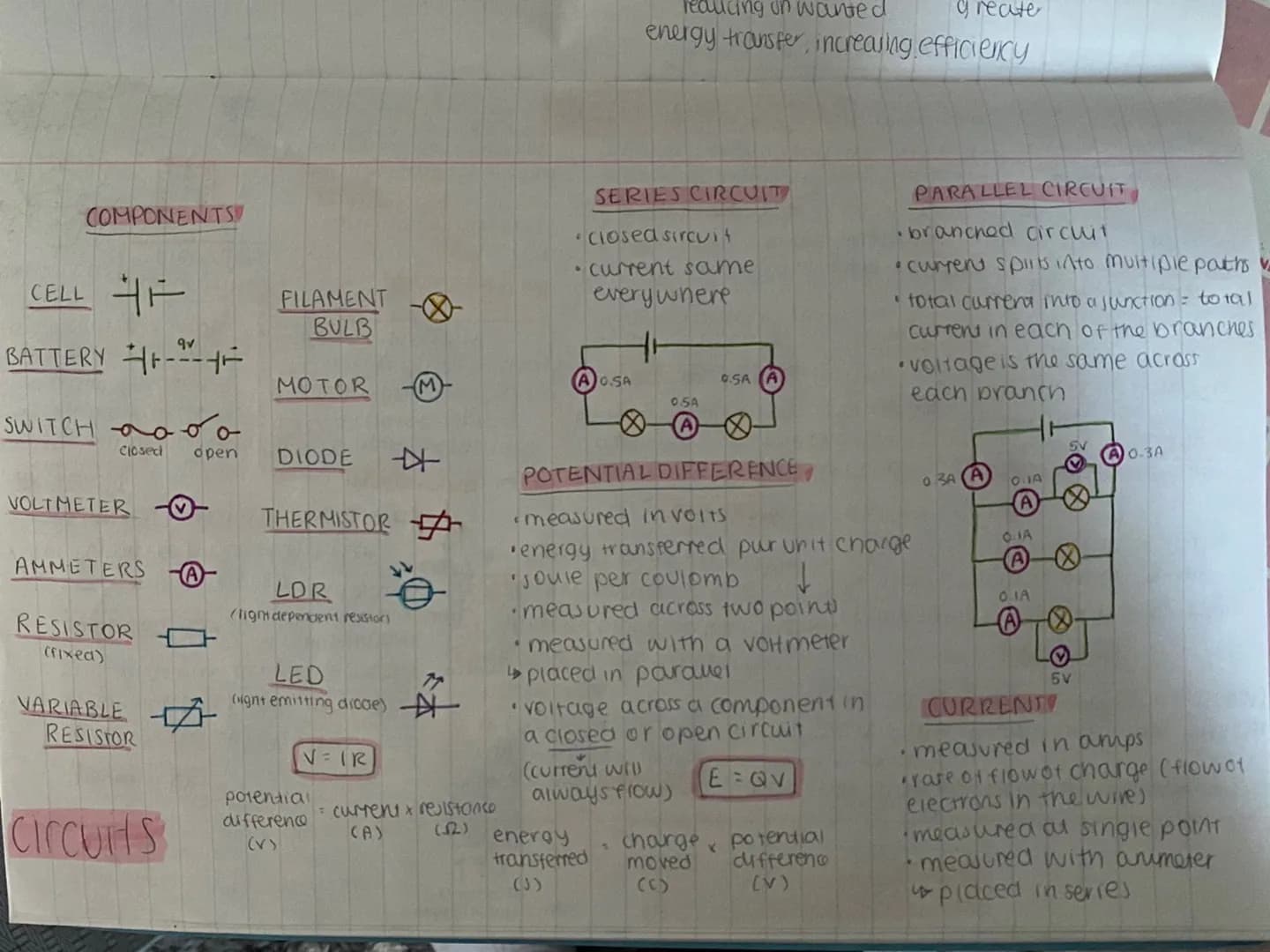

This page provides a comprehensive overview of electrical components and circuit concepts, essential for Understanding series and parallel circuits for edexcel physics questions. The content is particularly relevant for Edexcel physics paper 2 circuits notes pdf and GCSE Physics circuits questions and answers pdf.
The page begins with a detailed list of electrical components and their corresponding symbols, which is crucial for interpreting circuit diagrams. These components include:
- Cell and battery
- Switch (open and closed)
- Voltmeter
- Ammeter
- Resistor (fixed and variable)
- Diode
- Filament bulb
- Motor
- Thermistor
- LDR (Light Dependent Resistor)
- LED (Light Emitting Diode)
Vocabulary: LDR stands for Light Dependent Resistor, a component whose resistance changes based on the amount of light it receives.
The document then introduces Ohm's law, represented by the equation V=IR, which is fundamental to understanding the relationship between voltage, current, and resistance in electrical circuits.
Definition: Ohm's law states that the current through a conductor between two points is directly proportional to the voltage across the two points.
The page further elaborates on series and parallel circuits, providing clear explanations and diagrams for each:
-
Series Circuit:
- Characterized by a closed circuit where the current is the same everywhere
- Components are connected end-to-end
- The voltage is divided across the components
-
Parallel Circuit:
- Features a branched circuit where the current splits into multiple paths
- The total current into a junction equals the sum of currents in each branch
- Voltage is the same across each parallel branch
Highlight: In a parallel circuit, the voltage remains constant across each branch, while the current divides among the branches.
The document also provides detailed explanations of key electrical concepts:
Potential Difference (Voltage):
- Measured in volts
- Represents energy transferred per unit charge (Joules per Coulomb)
- Measured across two points using a voltmeter placed in parallel
- Can be measured in both closed and open circuits
Example: The equation E=QV relates energy transferred (E) to charge moved (Q) and potential difference (V).
Current:
- Measured in amperes (amps)
- Represents the rate of flow of charge (electrons in wires)
- Measured at a single point using an ammeter placed in series
Quote: "Current is the rate of flow of charge (flow of electrons in the wires)"
This comprehensive overview provides a solid foundation for understanding electrical circuits, making it an invaluable resource for Edexcel IGCSE Physics Electricity questions and answers pdf and Combined Science Physics Paper 2 Edexcel preparation.
