Physics Paper 1: Key Required Practicals Overview

L

lola @lola_3dks5

Physics practicals are essential skills you'll need to master for your exams, and they're actually quite straightforward once... Show more

--- OCR Start ---
Physics paperl
•Specific heat capacity:
required pract.cals
4 the amount of energy required to raise the temp
Of ing of su

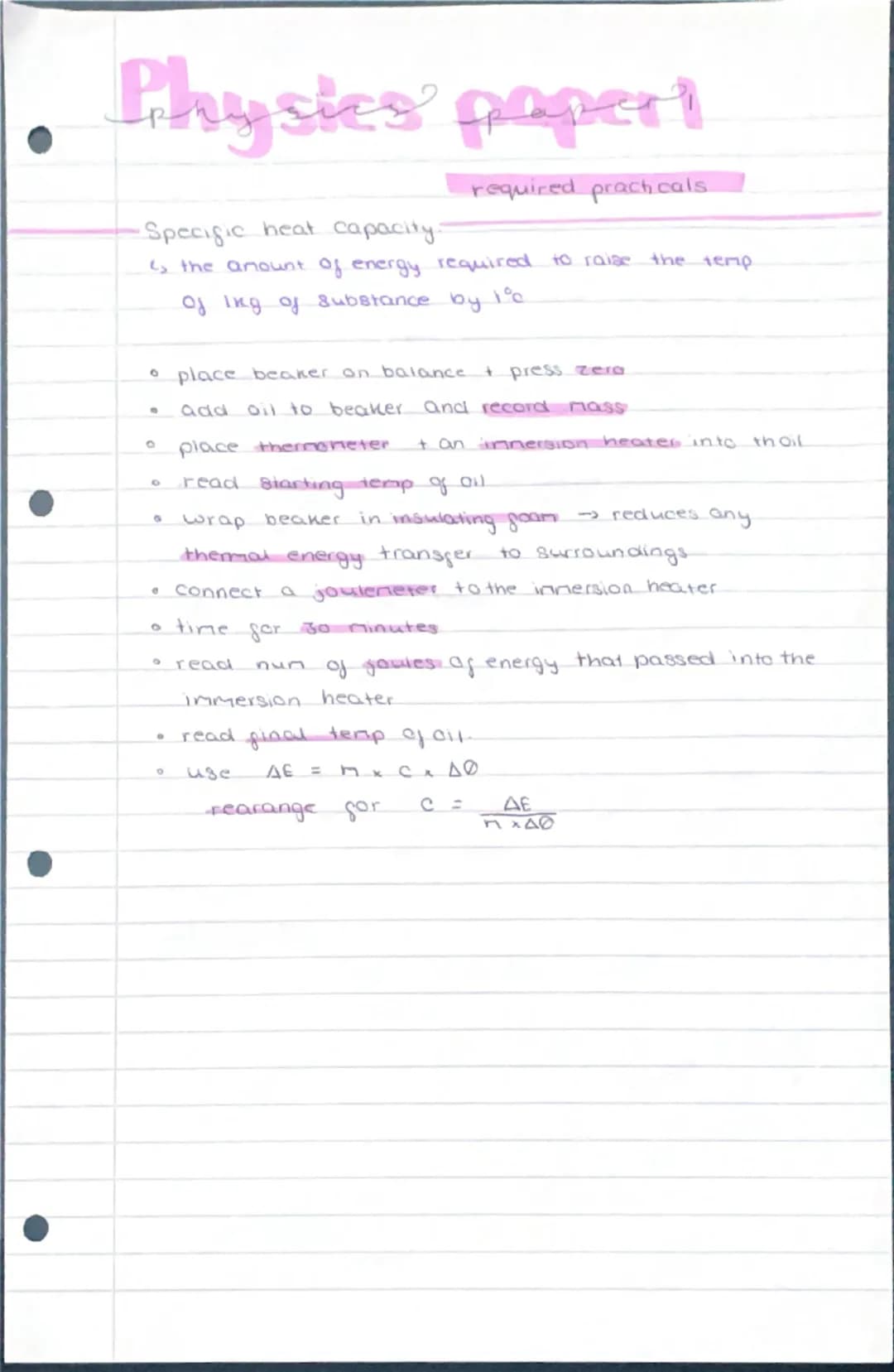

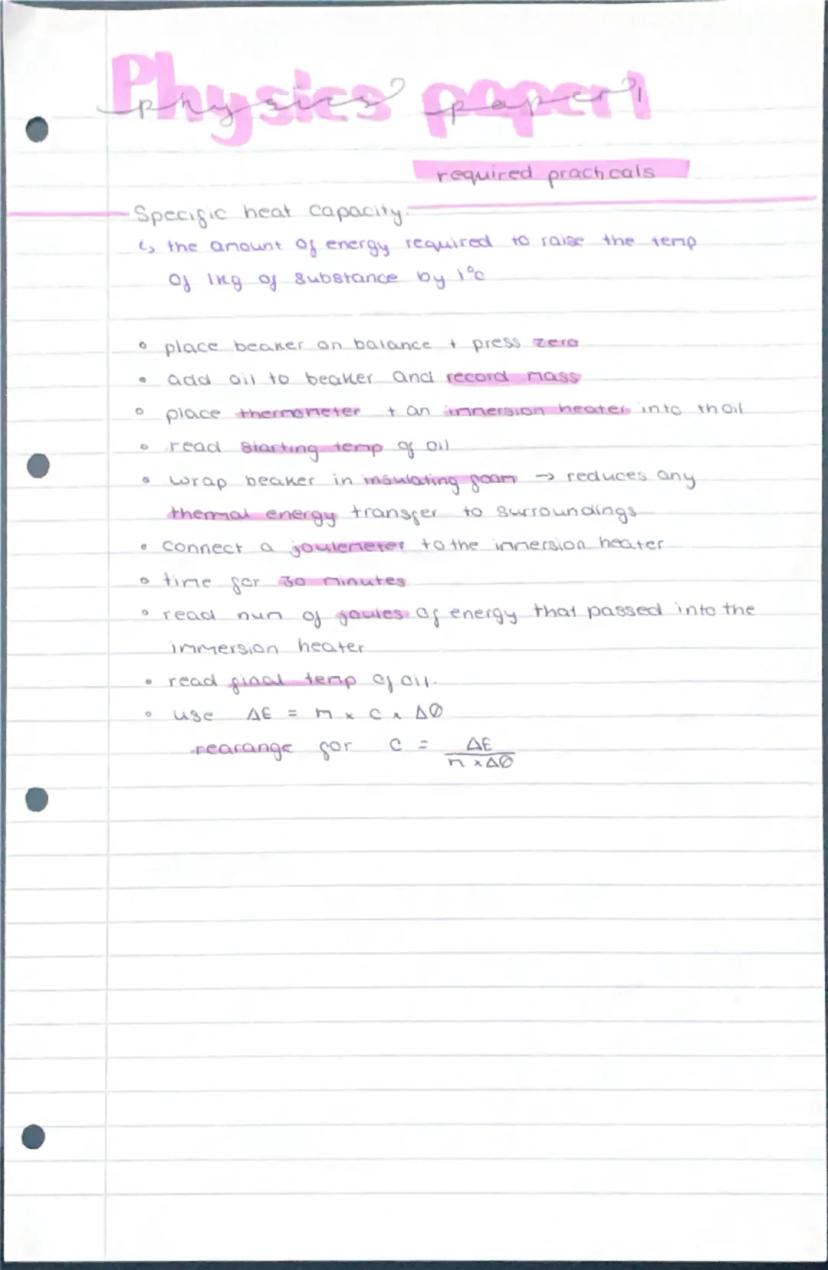

Specific Heat Capacity Practical

Ever wondered why some materials heat up faster than others? Specific heat capacity measures how much energy you need to raise 1g of a substance by 1°C - and you can measure this yourself with a simple experiment.

Start by placing a beaker on a balance, press zero, then add oil and record its mass. Pop a thermometer and immersion heater into the oil, then note the starting temperature. Here's the clever bit wrap the beaker in insulating foam to stop heat escaping to the surroundings.

Connect a joulemeter to the immersion heater and run it for exactly 30 minutes. Record how many joules of energy went in and the final temperature of the oil. Use the formula C = ΔE ÷ (m × Δθ) to calculate the specific heat capacity.

Top Tip The insulating foam is crucial - without it, your results will be completely off because heat will escape!

--- OCR Start ---
Physics paperl
•Specific heat capacity:
required pract.cals
4 the amount of energy required to raise the temp
Of ing of su

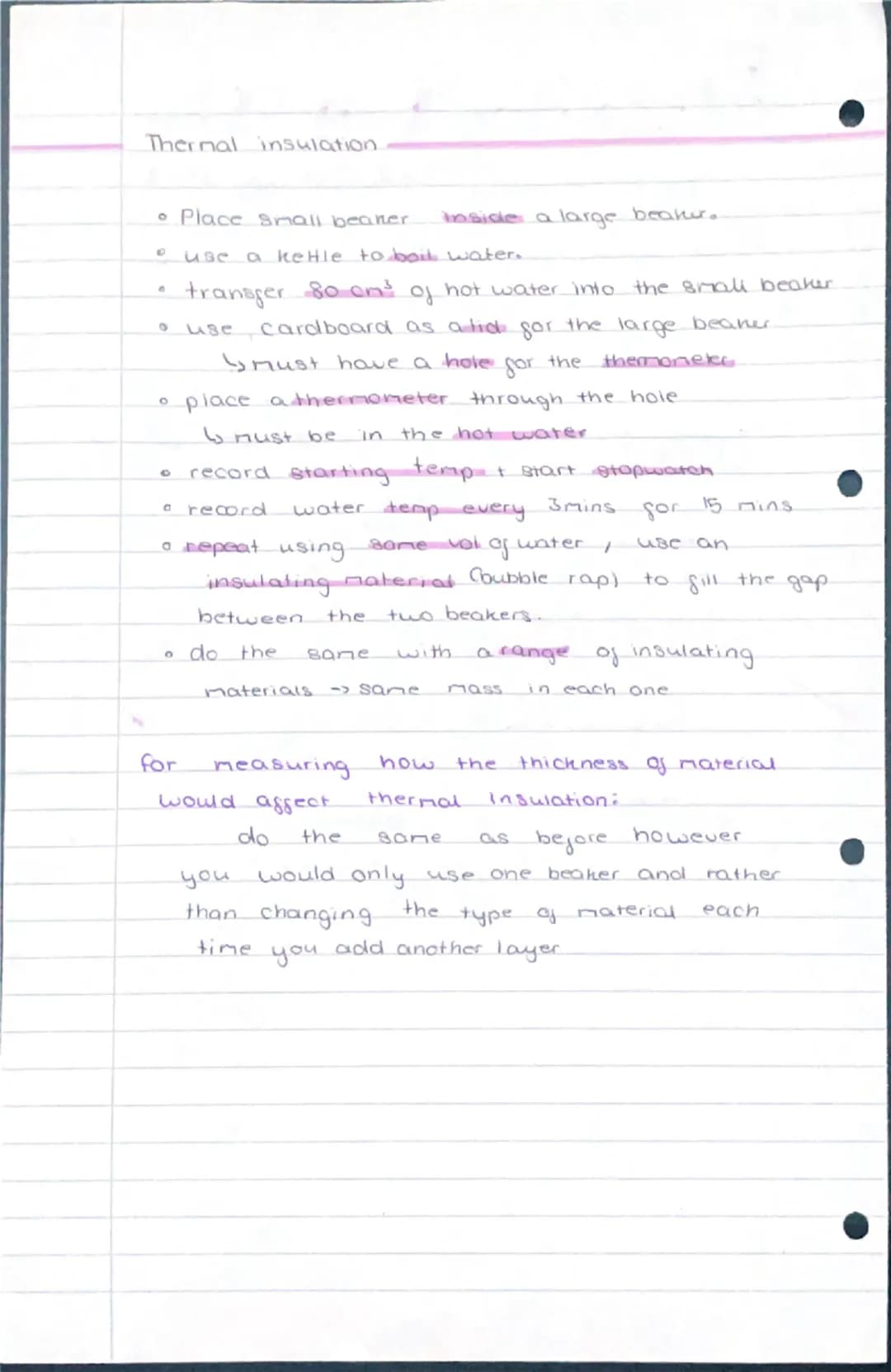

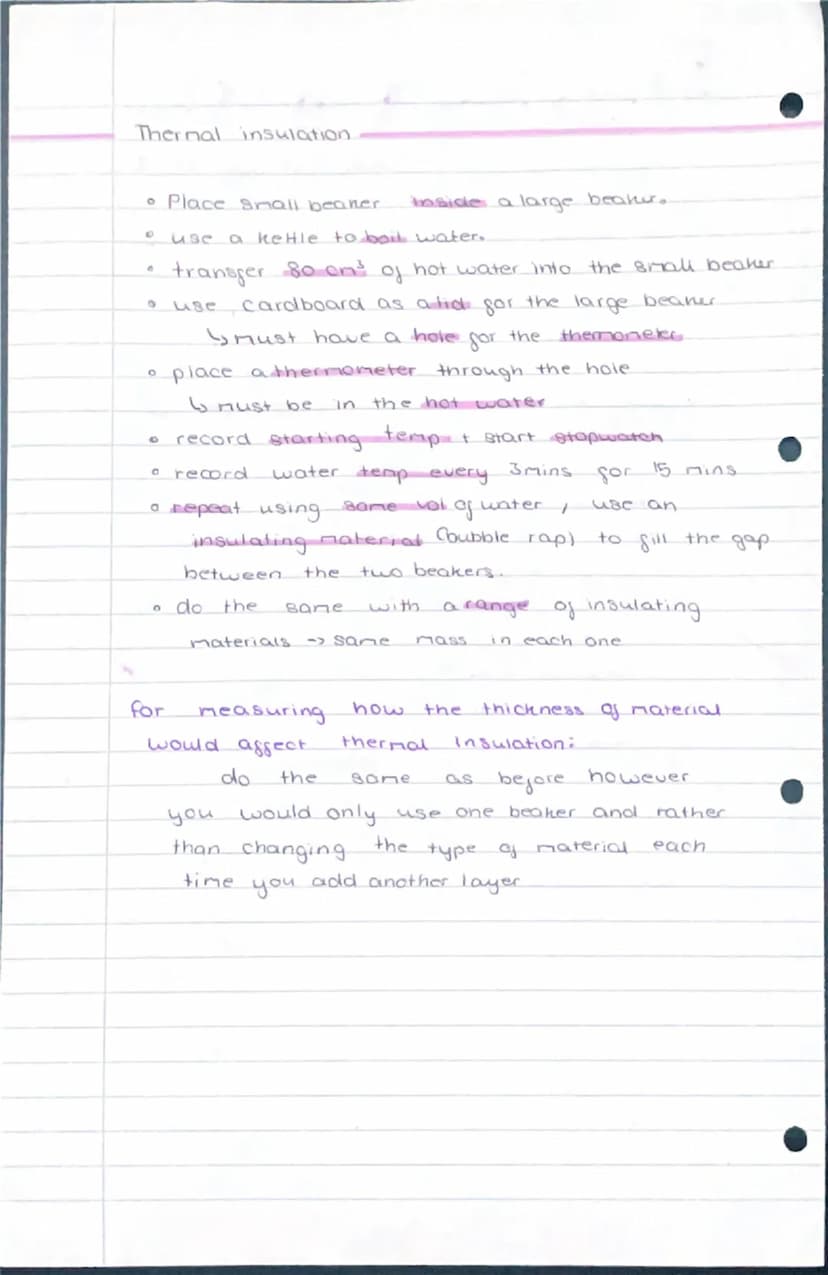

Thermal Insulation Investigation

Want to find out which materials are best at keeping your tea hot? This practical shows you how different insulating materials affect heat loss - perfect knowledge for understanding energy efficiency in homes.

Set up a small beaker inside a larger one, then pour 80cm³ of hot water into the small beaker. Use cardboard as a lid with a hole for the thermometer, making sure it sits in the hot water. Record the starting temperature and then take readings every 3 minutes for 15 minutes.

Repeat the experiment, but this time fill the gap between beakers with insulating material like bubble wrap. Try different materials, keeping the mass the same each time. You'll see how much difference good insulation makes to heat retention.

For testing thickness effects, use just one beaker and add layers of the same material rather than changing the type. The thicker the insulation, the slower the cooling - just like wearing multiple jumpers!

Remember Use the same volume of water each time, or your results won't be comparable.

--- OCR Start ---
Physics paperl
•Specific heat capacity:
required pract.cals
4 the amount of energy required to raise the temp
Of ing of su

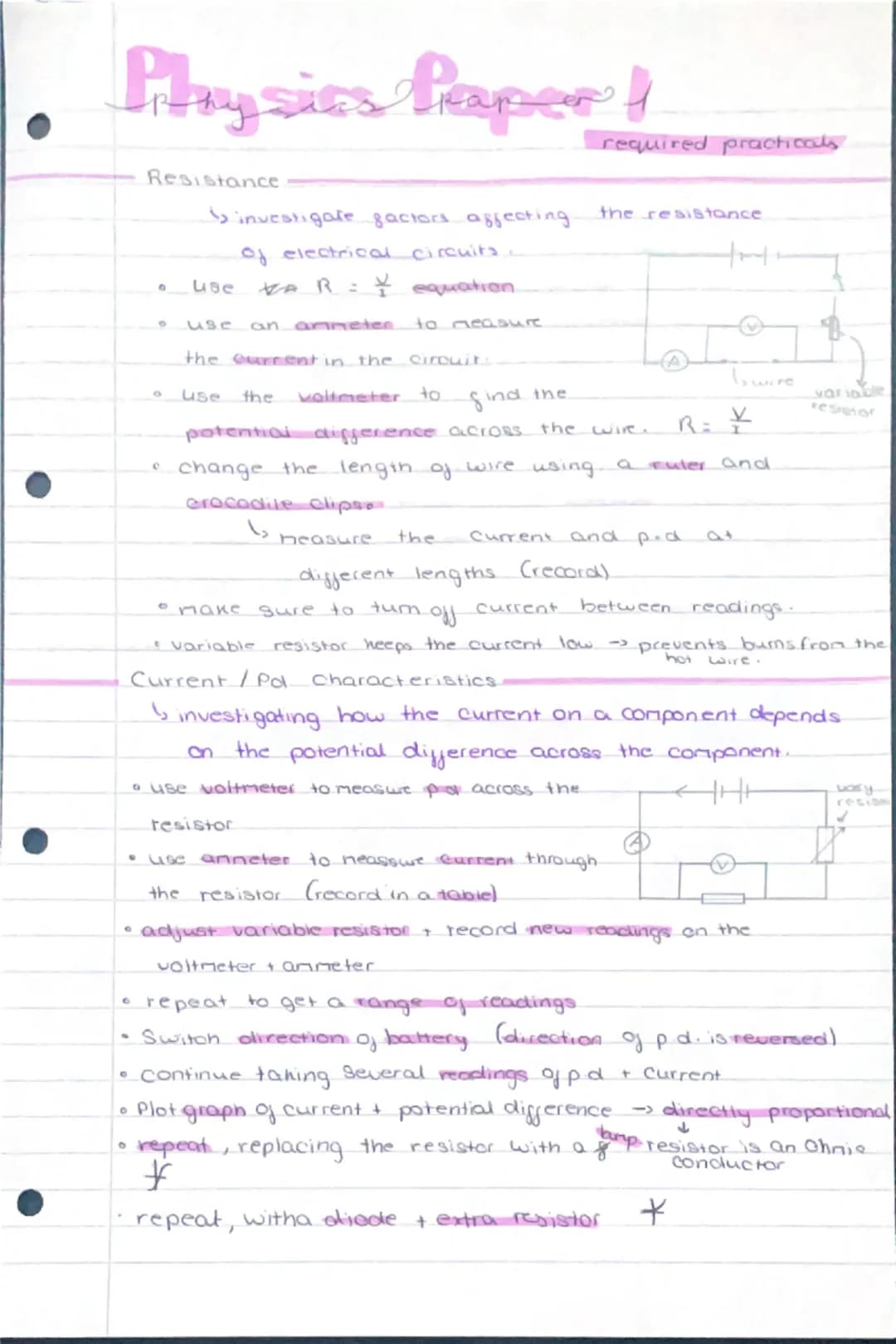

Resistance Investigations

Understanding electrical resistance is crucial for electronics, and these practicals show you exactly how current and voltage behave in different components. You'll use Ohm's law V=IRV = IR to make sense of your measurements.

For the wire length investigation, use an ammeter to measure current and a voltmeter for potential difference across the wire. Change the wire length using a ruler and crocodile clips, recording current and voltage at each length. Always turn off the current between readings to prevent overheating.

The current-voltage characteristics practical involves adjusting a variable resistor whilst recording ammeter and voltmeter readings. Switch the battery direction to reverse the potential difference and take more readings. You'll discover that resistors show a directly proportional relationship on your graph.

Try replacing the resistor with a lamp, then a diode with an extra resistor. Each component behaves differently - resistors are ohmic conductors, but lamps and diodes aren't!

Safety First Keep current low with the variable resistor to prevent burns from hot wires.

--- OCR Start ---
Physics paperl
•Specific heat capacity:
required pract.cals
4 the amount of energy required to raise the temp
Of ing of su

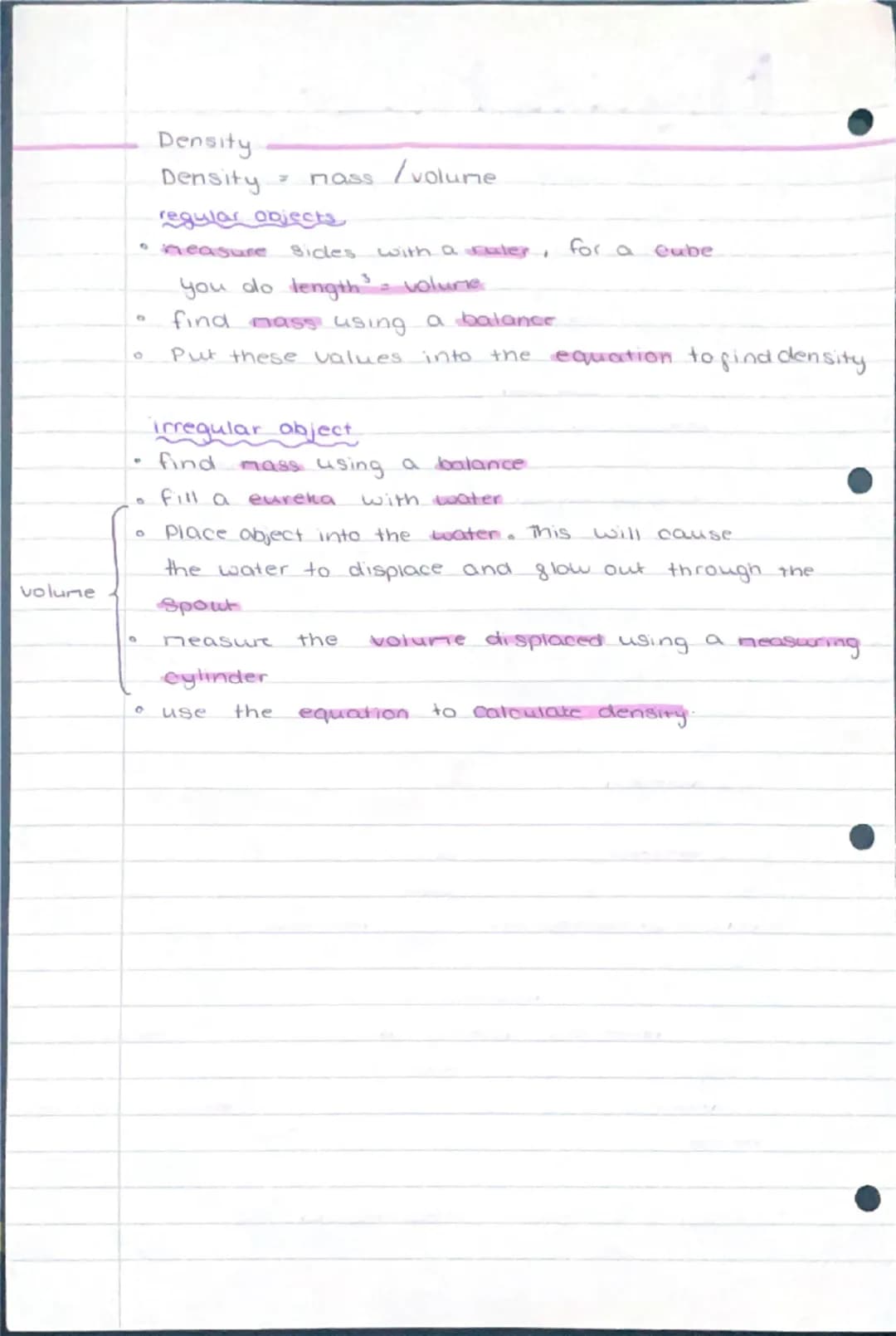

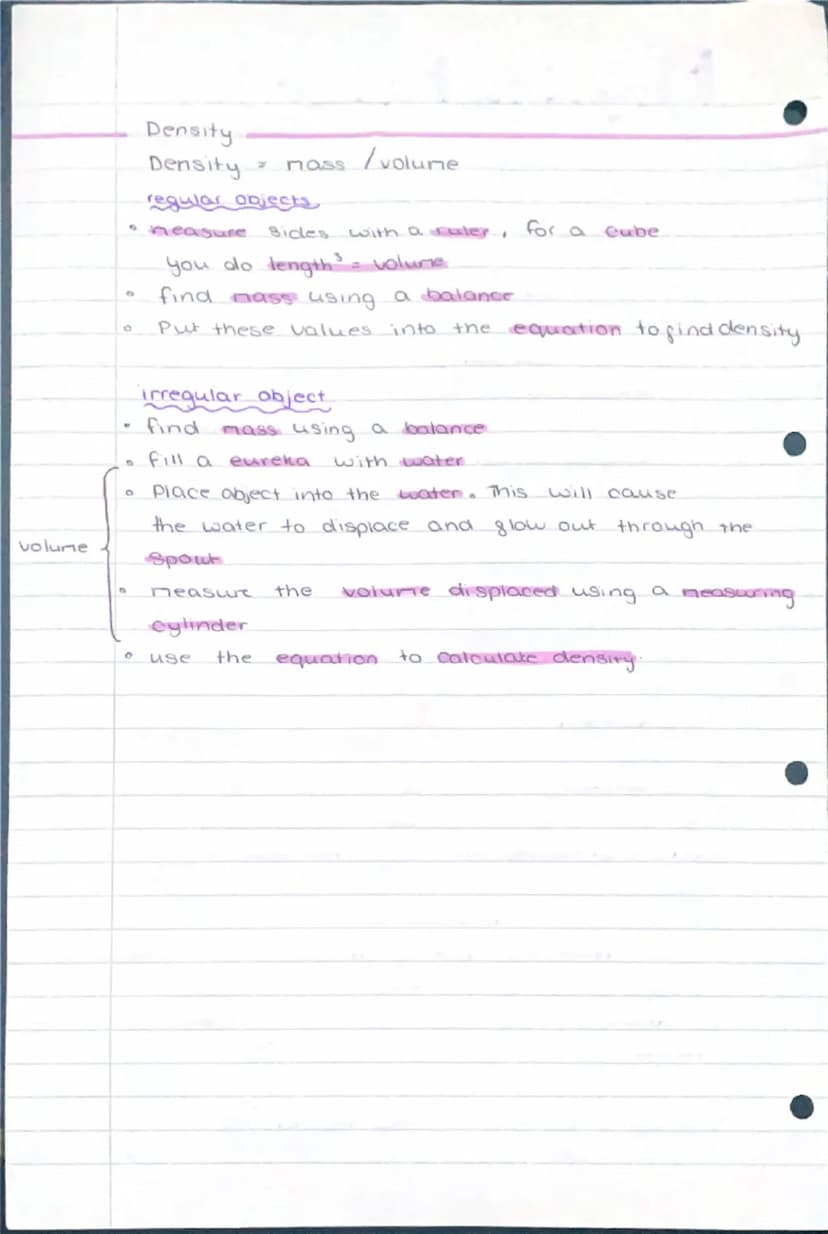

Density Measurements

Density calculations (mass ÷ volume) are dead simple once you know how to measure volume properly. The method depends entirely on whether your object has a regular or irregular shape.

For regular objects like cubes, measure the sides with a ruler - for a cube, just cube the length to get volume. Find the mass using a balance, then pop both values into the density equation. Job done!

Irregular objects need a different approach because you can't measure their volume with a ruler. Find the mass first, then fill a eureka can with water. When you place the object in, it displaces water equal to its own volume.

Catch the displaced water in a measuring cylinder to find the volume, then use your density equation. This method works for any oddly-shaped object, from rocks to toy cars.

Pro Tip Make sure the eureka can is completely full before adding your object, or the displacement method won't work properly.
