Comprehensive GCSE Physics Paper 1 Notes

Series vs Parallel Circuits and Mains Electricity

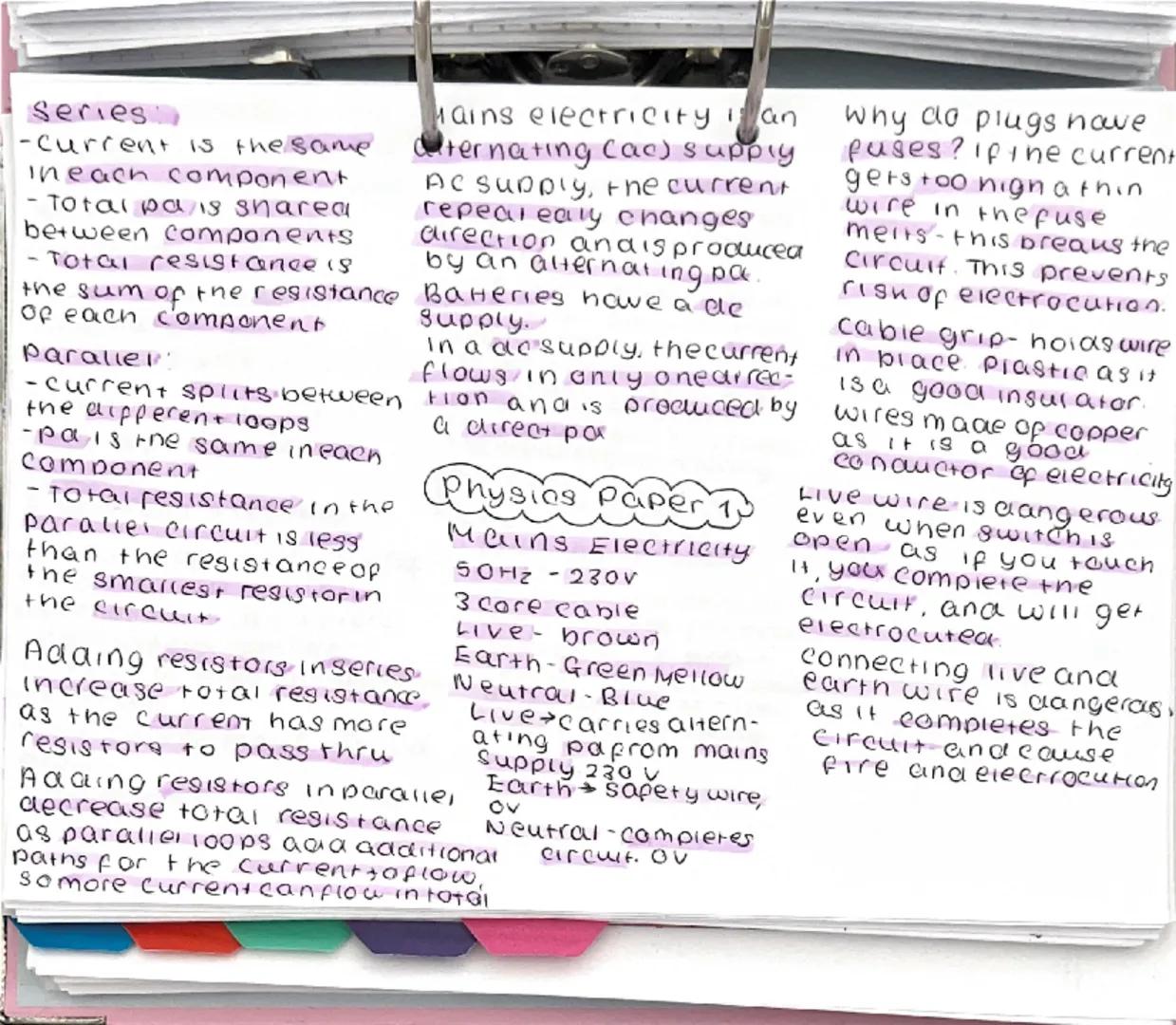

Understanding how electricity flows in your home starts with knowing two basic circuit types. In series circuits, current flows through components one after another - like Christmas lights that all go out when one bulb breaks. The current stays the same everywhere, but voltage splits between components, and total resistance adds up.

Parallel circuits work differently - current splits into separate paths, like lanes on a motorway. Voltage stays the same across each component, but total resistance actually decreases because you're giving current more routes to flow. This is why adding more parallel paths makes circuits more efficient.

Your home uses mains electricity - an AC (alternating current) supply at 230V and 50Hz. The three-core cable has a brown live wire (carries 230V), blue neutral wire (completes the circuit at 0V), and green/yellow earth wire (safety, 0V). Plugs have fuses that melt when current gets too high, breaking the circuit to prevent fires and electrocution.

Quick Safety Tip: The live wire is dangerous even when switches are off - touching it completes a circuit through your body to earth!

Electrical Power and the National Grid

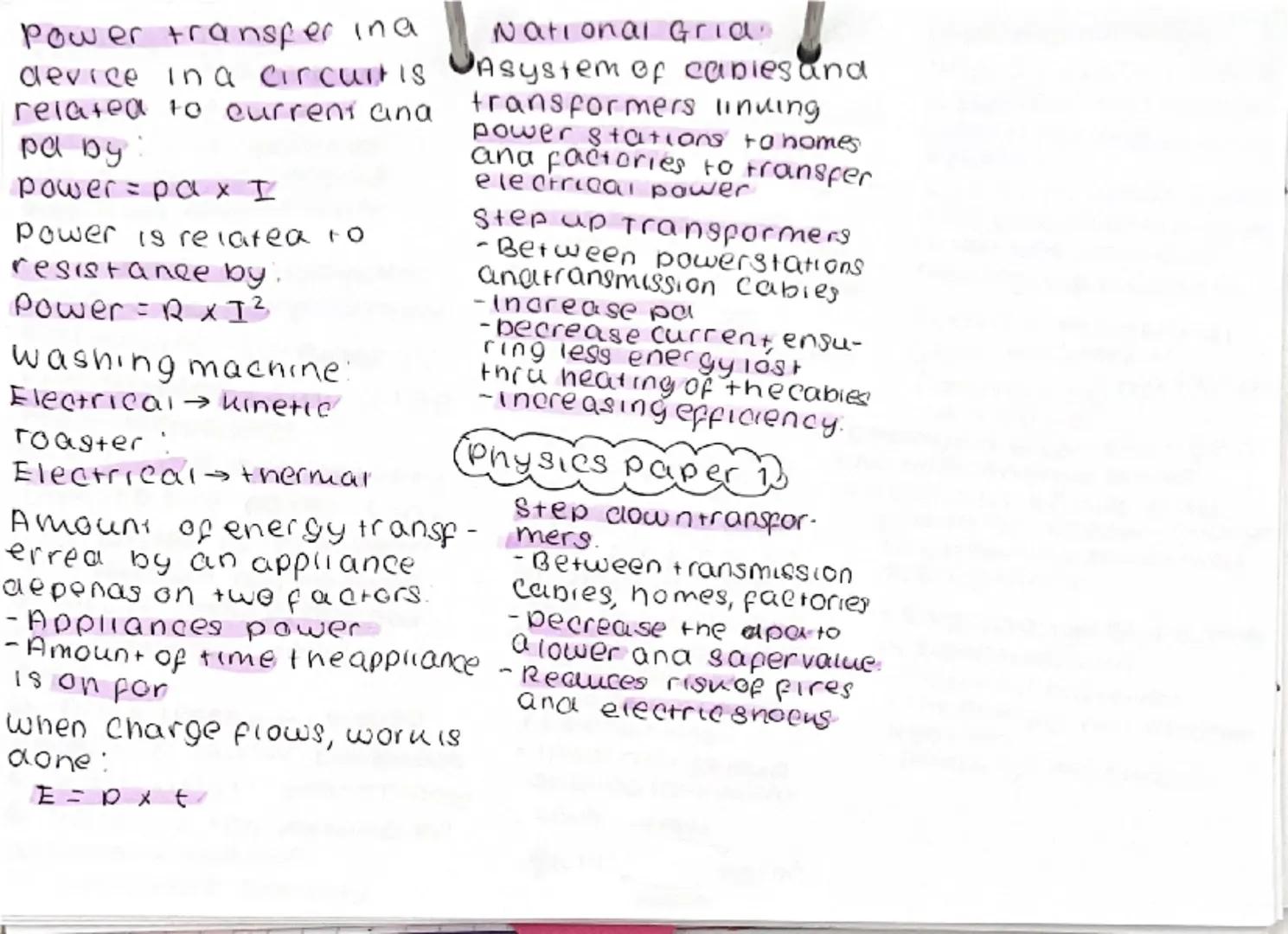

Electrical power measures how quickly energy transfers in circuits. You'll need two key equations: Power = Voltage × Current $P = VI$ and Power = Resistance × Current² $P = RI²$. Different appliances convert electrical energy into other forms - washing machines create kinetic energy, toasters produce thermal energy.

Energy transferred depends on the appliance's power rating and how long it runs, calculated using E = P × t. This determines your electricity bills!

The National Grid is Britain's massive network of cables and transformers connecting power stations to homes and factories. Step-up transformers increase voltage and decrease current between power stations and transmission lines - this reduces energy lost as heat, making the system more efficient.

Step-down transformers do the opposite near homes and factories, reducing voltage to safer levels (like 230V) to prevent fires and electric shocks. This clever system means electricity can travel hundreds of miles efficiently from power stations to your home.

Remember: High voltage = low current = less energy lost as heat during transmission!

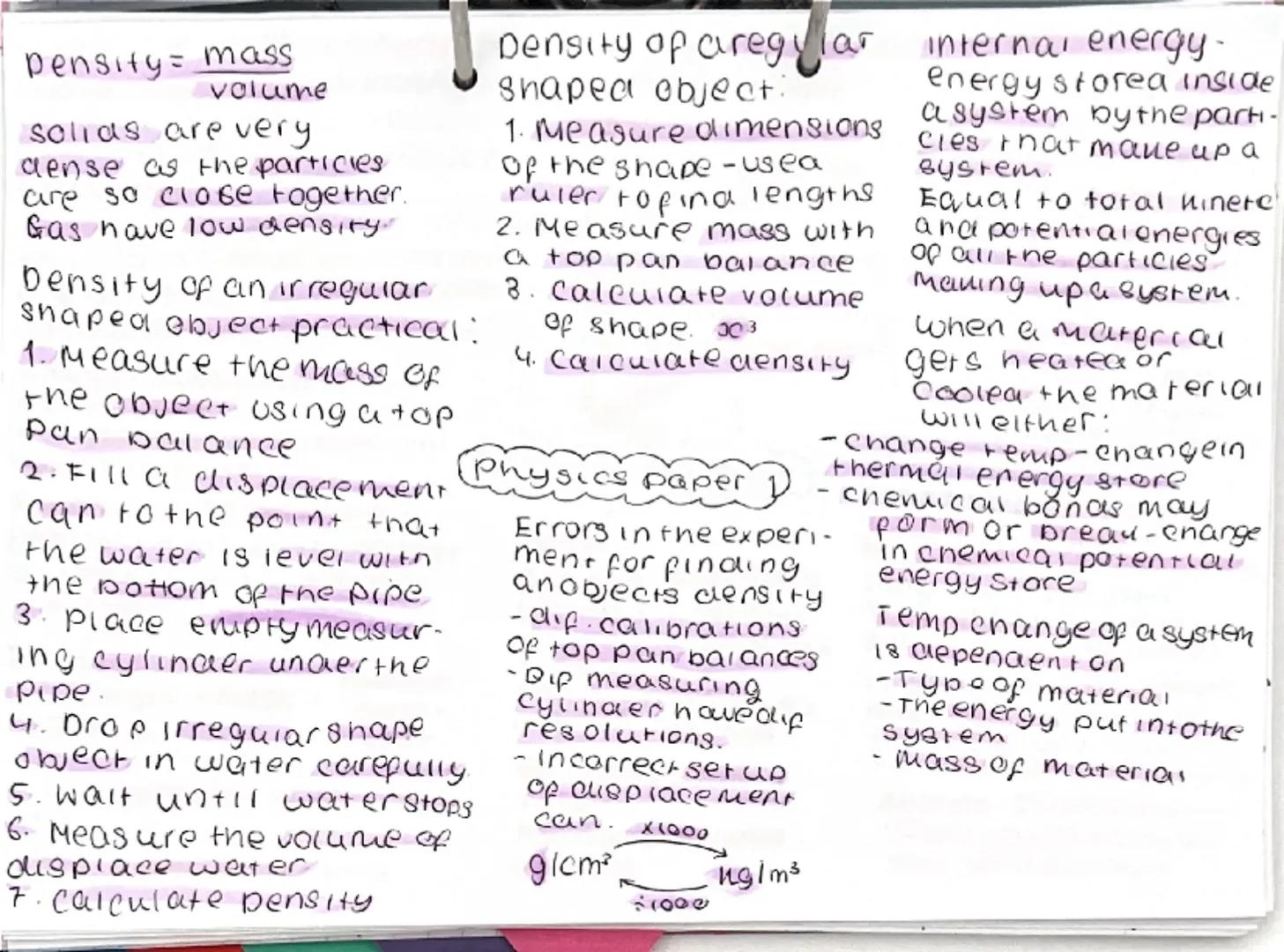

Density and Internal Energy

Density tells you how much mass fits in a given space - solids are very dense because particles pack tightly together, whilst gases have low density. For regular shapes, measure dimensions with a ruler, find mass with a balance, calculate volume, then use density = mass ÷ volume.

Irregular objects need the displacement method - fill a displacement can to the spout, place a measuring cylinder underneath, drop in your object carefully, then measure the displaced water volume. This gives you the object's volume for your density calculation.

Internal energy is all the kinetic and potential energy stored by particles in a system. When you heat or cool materials, either temperature changes (affecting thermal energy) or state changes occur (affecting chemical bonds). Temperature change depends on the material type, energy input, and mass.

Common experimental errors include different balance calibrations, measuring cylinder resolution differences, and incorrect displacement can setup. Always convert between g/cm³ and kg/m³ by multiplying or dividing by 1000.

Top Tip: Water displacement works because the object pushes out exactly its own volume of water!

Changes of State and Atomic Structure

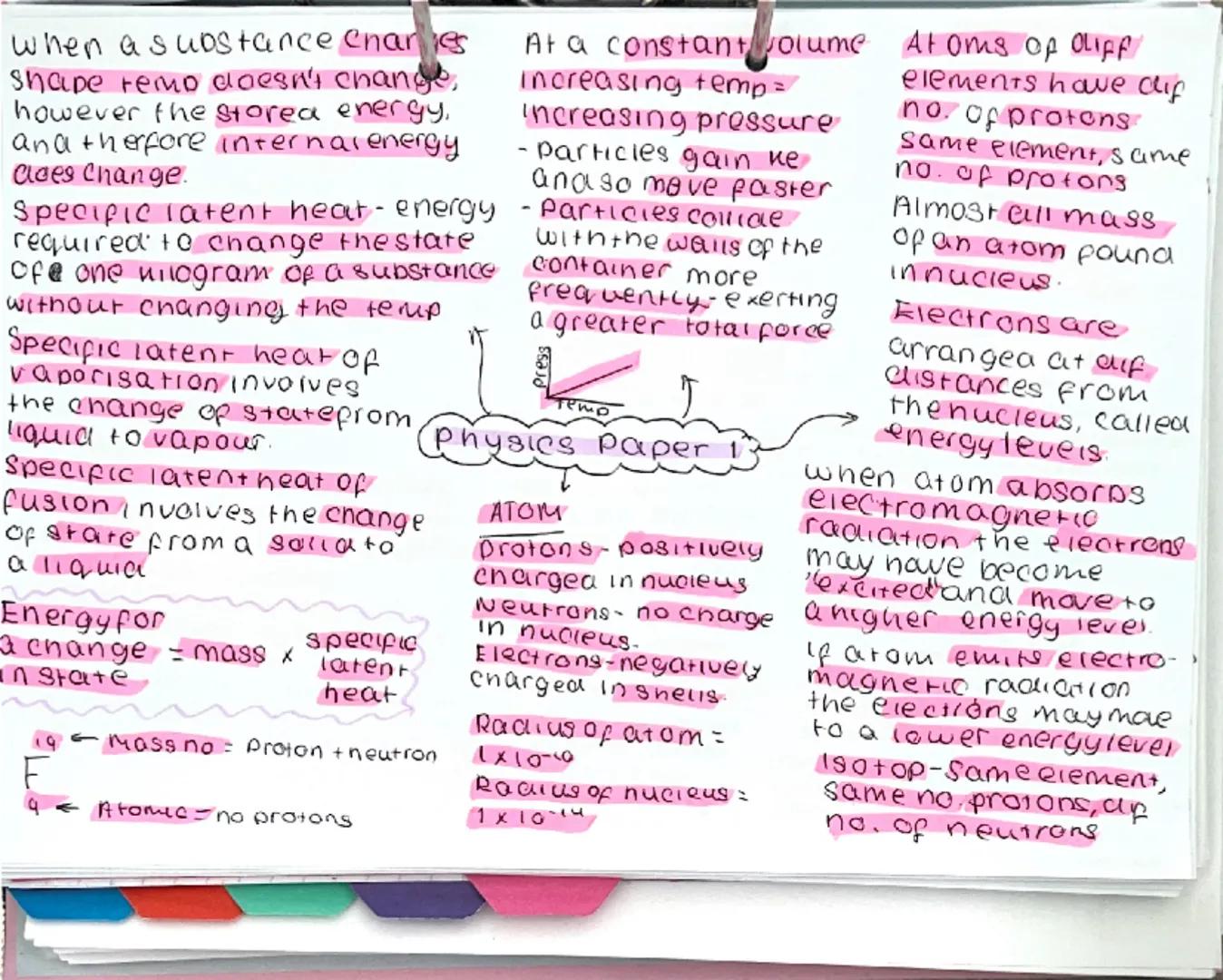

During state changes, temperature stays constant even though energy transfers continue. This energy breaks or forms bonds between particles. Specific latent heat is the energy needed to change 1kg of substance without changing temperature - fusion for solid to liquid, vaporisation for liquid to gas.

At constant volume, increasing temperature increases pressure because particles gain kinetic energy, move faster, and collide with container walls more frequently, creating greater force.

Atoms contain protons (positive, in nucleus), neutrons (neutral, in nucleus), and electrons (negative, in shells around nucleus). The atom's radius is 1×10⁻¹⁰m, whilst the nucleus is much smaller at 1×10⁻¹⁴m. Almost all atomic mass concentrates in the nucleus.

Electrons occupy different energy levels around the nucleus. When atoms absorb electromagnetic radiation, electrons get "excited" and jump to higher levels. When atoms emit radiation, electrons drop to lower levels. Isotopes are atoms with the same number of protons but different numbers of neutrons.

Key Point: Atomic number = number of protons, Mass number = protons + neutrons!

Atomic Models and Radioactivity

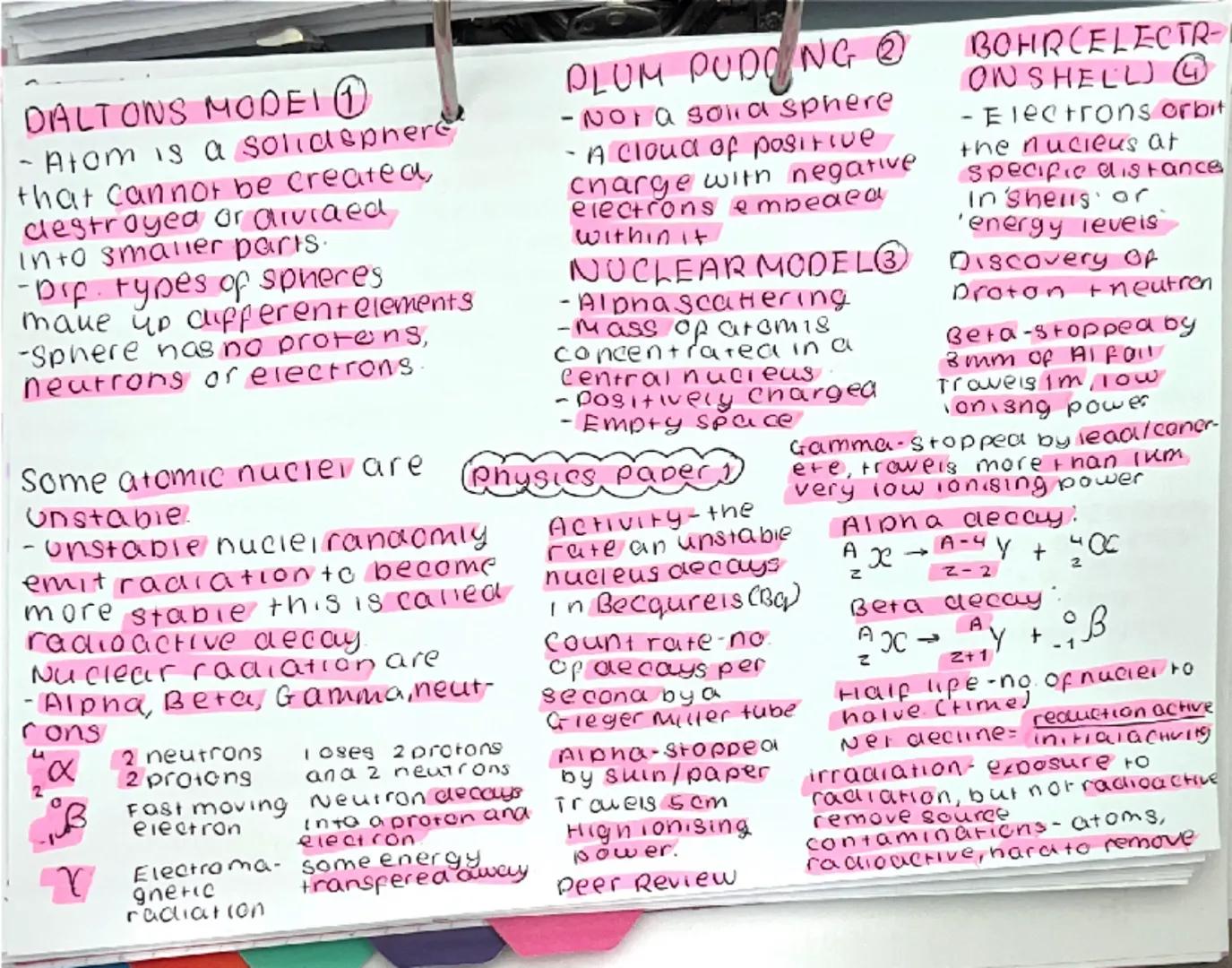

Scientists developed atomic models over time. Dalton's model pictured solid spheres that couldn't be divided. Thomson's plum pudding model showed negative electrons embedded in positive charge. Rutherford's nuclear model (from alpha scattering) revealed concentrated mass in a central, positively charged nucleus with mostly empty space.

Bohr's model placed electrons in specific shells or energy levels around the nucleus. Further discoveries identified individual protons and neutrons.

Some atomic nuclei are unstable and undergo radioactive decay, randomly emitting radiation to become more stable. Alpha particles (2 protons + 2 neutrons) travel 5cm in air and are stopped by skin or paper. Beta particles (fast electrons) travel 1m in air and are stopped by 3mm aluminium. Gamma rays (electromagnetic radiation) travel over 1km and need lead or concrete to stop them.

Activity measures decay rate in becquerels (Bq). Half-life is the time for half the nuclei to decay. Irradiation means exposure to radiation, whilst contamination means radioactive atoms get inside you.

Safety Note: Alpha has high ionising power but low penetration - dangerous if inhaled but safe externally!

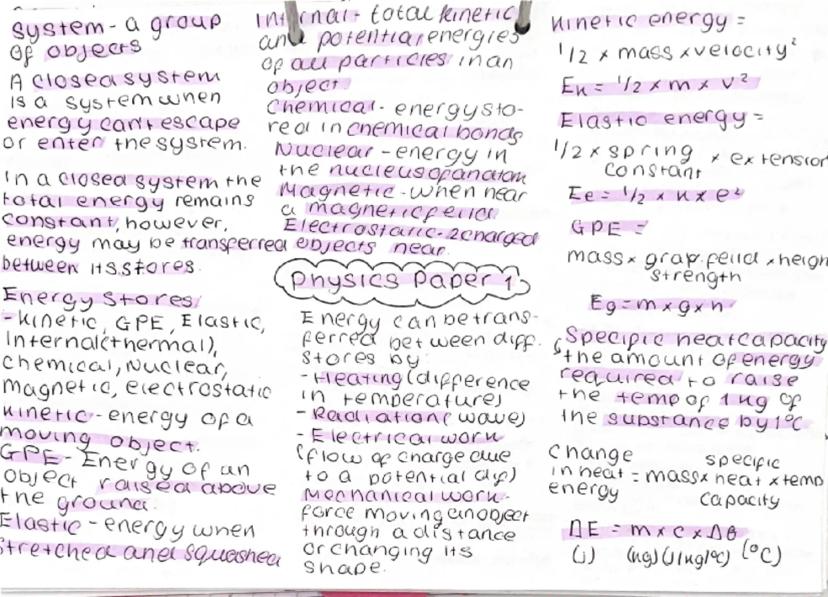

Energy Stores and Transfers

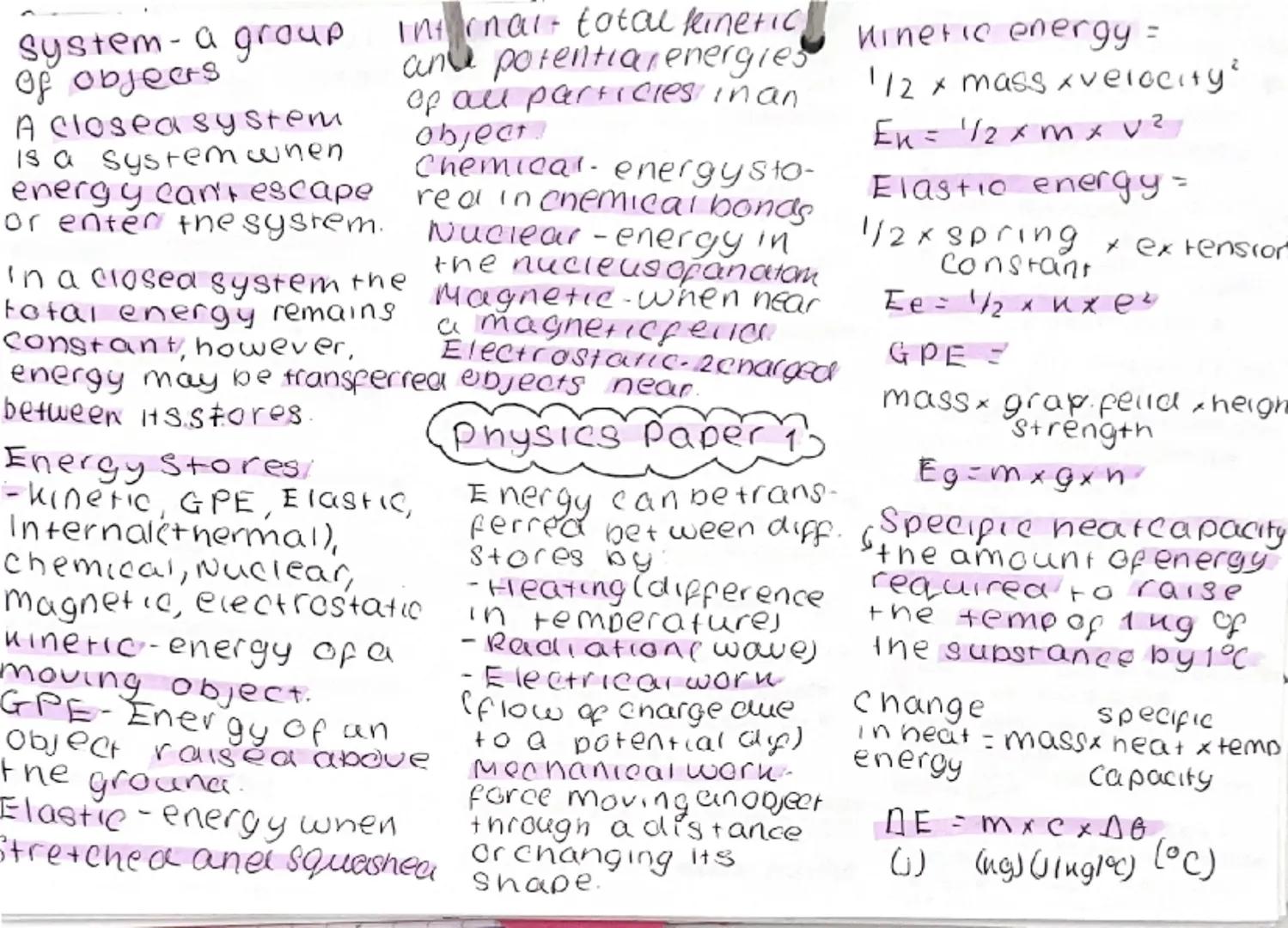

A closed system can't exchange energy with surroundings, so total energy stays constant - this is the law of conservation of energy. Energy can transfer between different stores but never disappears.

The main energy stores include: kinetic (moving objects), gravitational potential (raised objects), elastic (stretched/compressed objects), thermal (hot objects), chemical (fuels/food), nuclear (atomic nuclei), magnetic, and electrostatic. Key equations: KE = ½mv², GPE = mgh, Elastic = ½ke².

Energy transfers happen through heating (temperature differences), radiation (waves), electrical work (moving charges), and mechanical work (forces moving objects). When energy dissipates, it spreads to less useful stores - this is "wasted" energy.

Specific heat capacity is energy needed to raise 1kg of substance by 1°C, calculated using ΔE = mcΔθ. This explains why water takes ages to heat up but stays warm for hours.

Remember: Energy can't be created or destroyed, only transferred between stores!

Power, Efficiency and Energy Resources

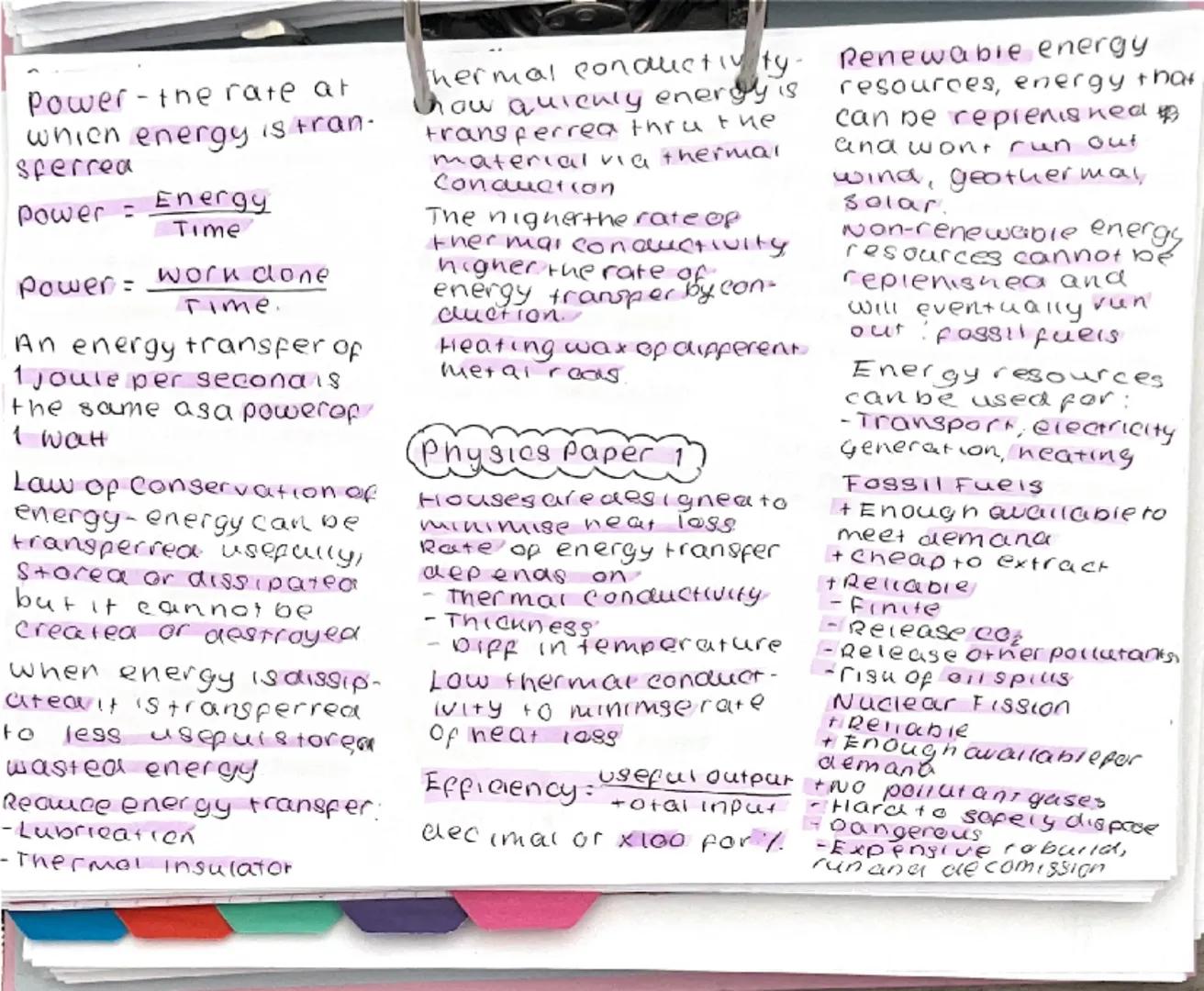

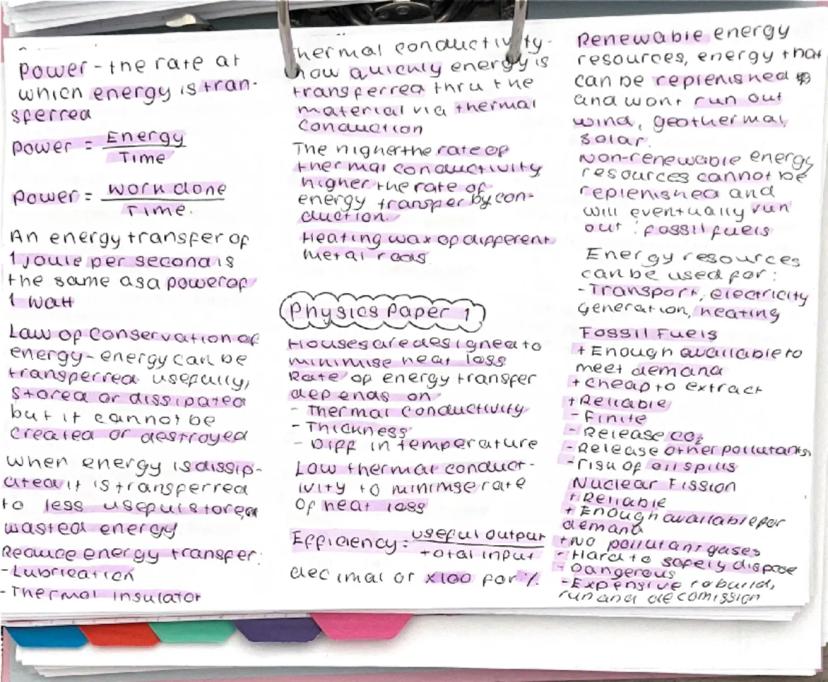

Power measures energy transfer rate using P = Energy ÷ Time or P = Work ÷ Time. One joule per second equals one watt - this helps you understand appliance energy consumption and electricity bills.

Efficiency compares useful output to total input: Efficiency = Useful Output ÷ Total Input. You can express this as a decimal or percentage. Reduce energy waste through lubrication (reduces friction) and thermal insulation.

Thermal conductivity determines how quickly energy transfers through materials. Lower thermal conductivity means better insulation. Heat transfer rate depends on thermal conductivity, material thickness, and temperature difference.

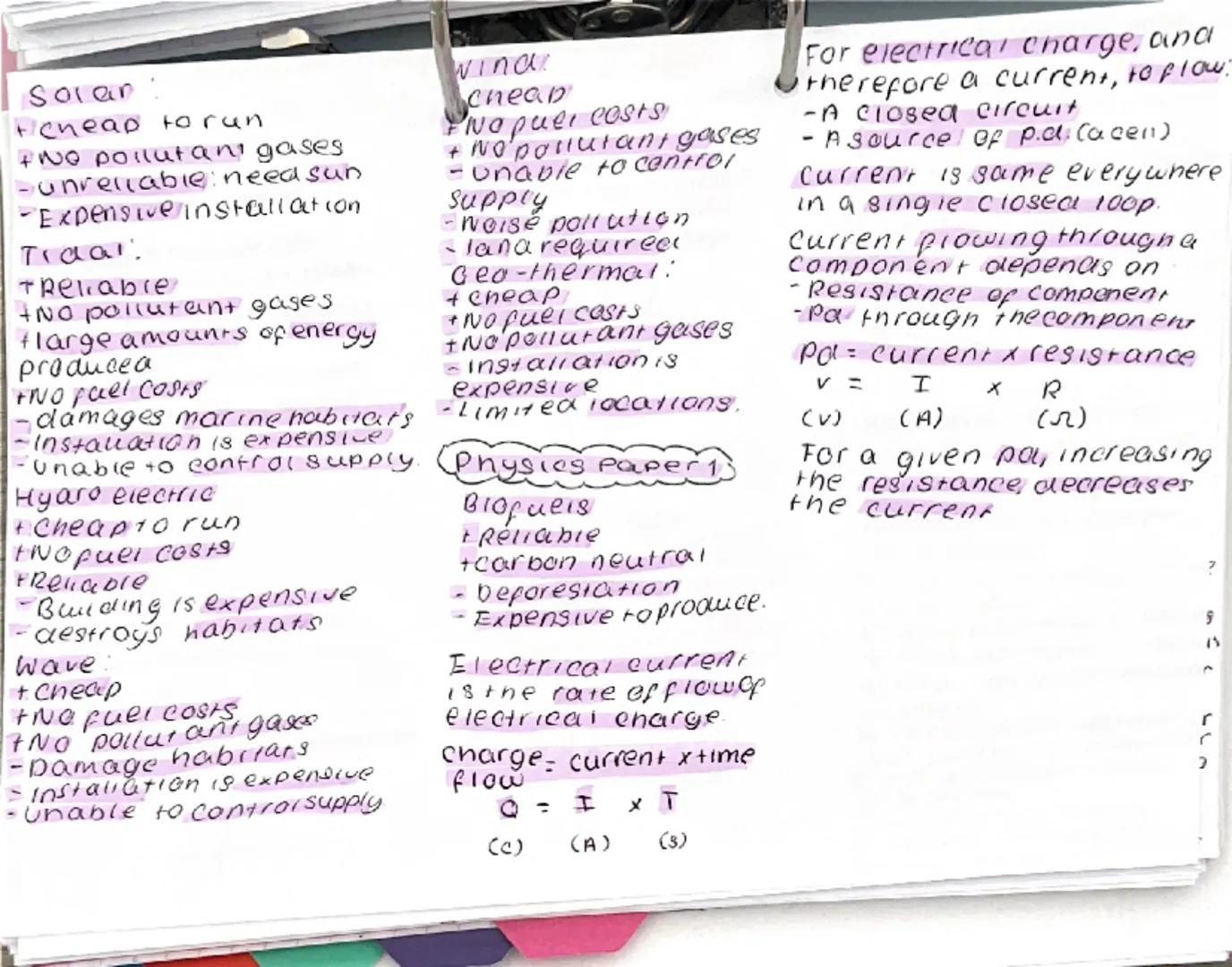

Renewable resources like wind, solar, and geothermal won't run out and can be replenished. Non-renewable resources like fossil fuels will eventually be exhausted. Each has advantages and disadvantages - fossil fuels are reliable and cheap but pollute and cause climate change.

Nuclear fission provides reliable, clean electricity but creates dangerous radioactive waste. Renewables produce no pollution but can be unreliable and expensive to install.

Think About It: Every energy choice involves trade-offs between cost, reliability, and environmental impact!

Current, Voltage and Resistance

Electric current measures the rate of charge flow using Q = I × t. For current to flow, you need a closed circuit and a potential difference (voltage) source. Current stays the same everywhere in a single loop.

The relationship between voltage, current and resistance follows Ohm's law: V = I × R. For a given voltage, increasing resistance decreases current. This fundamental relationship helps you analyse any circuit.

Current flowing through components depends on their resistance and the voltage across them. Higher resistance means lower current for the same voltage - like a narrow pipe restricting water flow.

Charge flow links directly to current and time. If you know current and time, you can calculate total charge that flowed. This connects the particle model of electricity (moving electrons) to the practical measurements you make with meters.

Understanding these relationships helps you predict circuit behaviour and solve problems involving electrical devices from phone chargers to electric cars.

Circuit Rule: Current is like water flow - it takes the path of least resistance and must have somewhere to go!

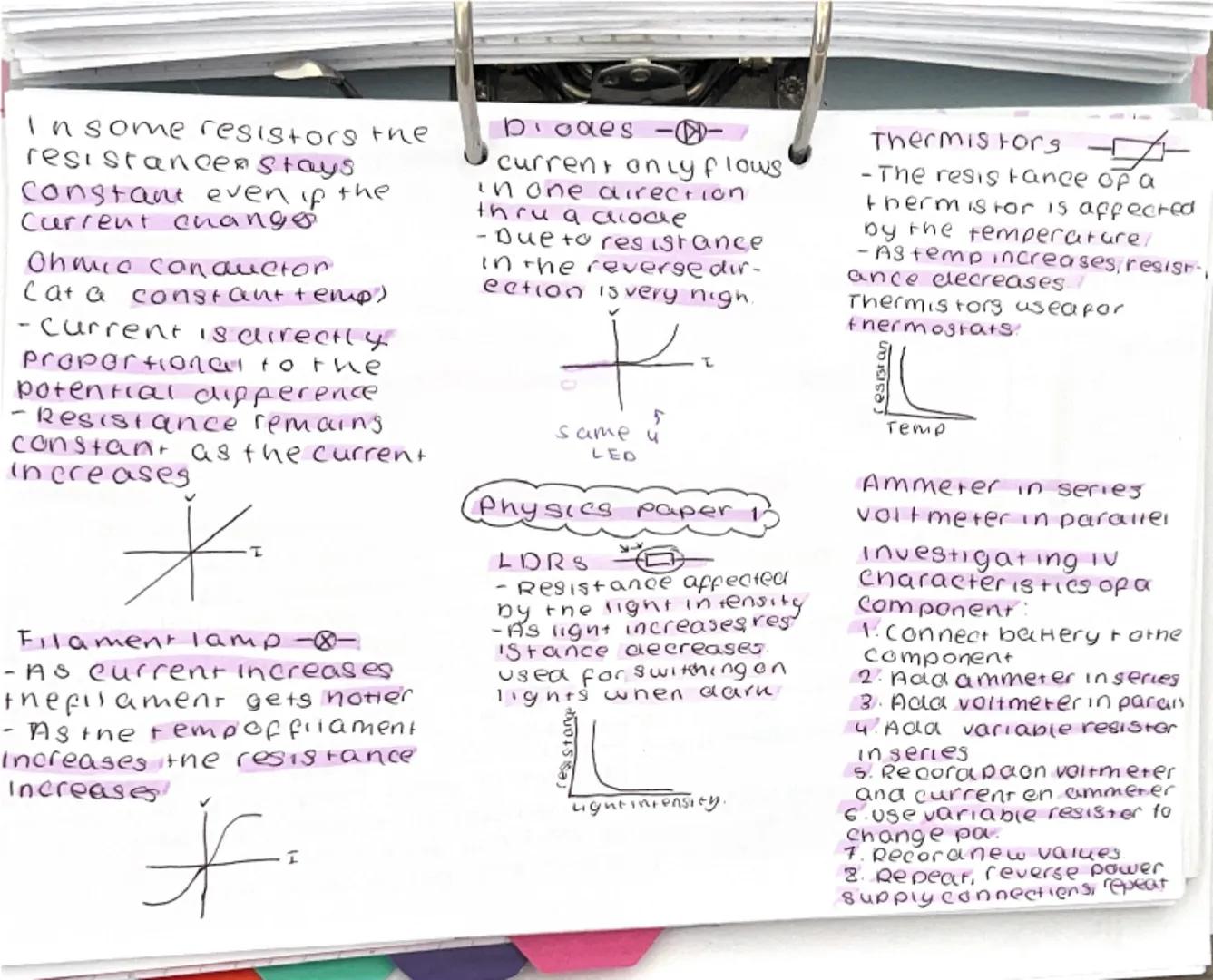

Resistance in Different Components

Ohmic conductors maintain constant resistance even when current changes (at constant temperature). Current stays directly proportional to voltage - double the voltage, double the current. This creates a straight line on an I-V graph.

Filament lamps behave differently - as current increases, the filament heats up, increasing resistance. This creates a curved I-V graph because higher temperature means more resistance to electron flow.

Diodes only allow current in one direction, like electrical one-way valves. Resistance is extremely high in reverse direction, virtually zero in forward direction. LEDs (Light Emitting Diodes) work similarly but produce light.

Light Dependent Resistors (LDRs) change resistance based on light intensity - brighter light means lower resistance. They're used in automatic streetlights and security systems. Thermistors change resistance with temperature - higher temperature usually means lower resistance, making them perfect for thermostats.

To investigate component characteristics, connect ammeters in series and voltmeters in parallel, use variable resistors to change voltage, and record I-V values. Reverse connections to test both directions.

Investigation Tip: Always start with low voltages to avoid damaging sensitive components like LEDs!
