Physics paper 1 Mindmap!

GCSE Physics Paper 1 Mind Map and More Science Shorts!

Physics Paper 1 covers key concepts in energy, electricity, and density. This mind map explores renewable and non-renewable energy sources, electrical circuits, and the properties of matter. Students will learn about energy transfers, power calculations, and the behavior of electrical components in various circuit configurations.

...

01/07/2023

2738

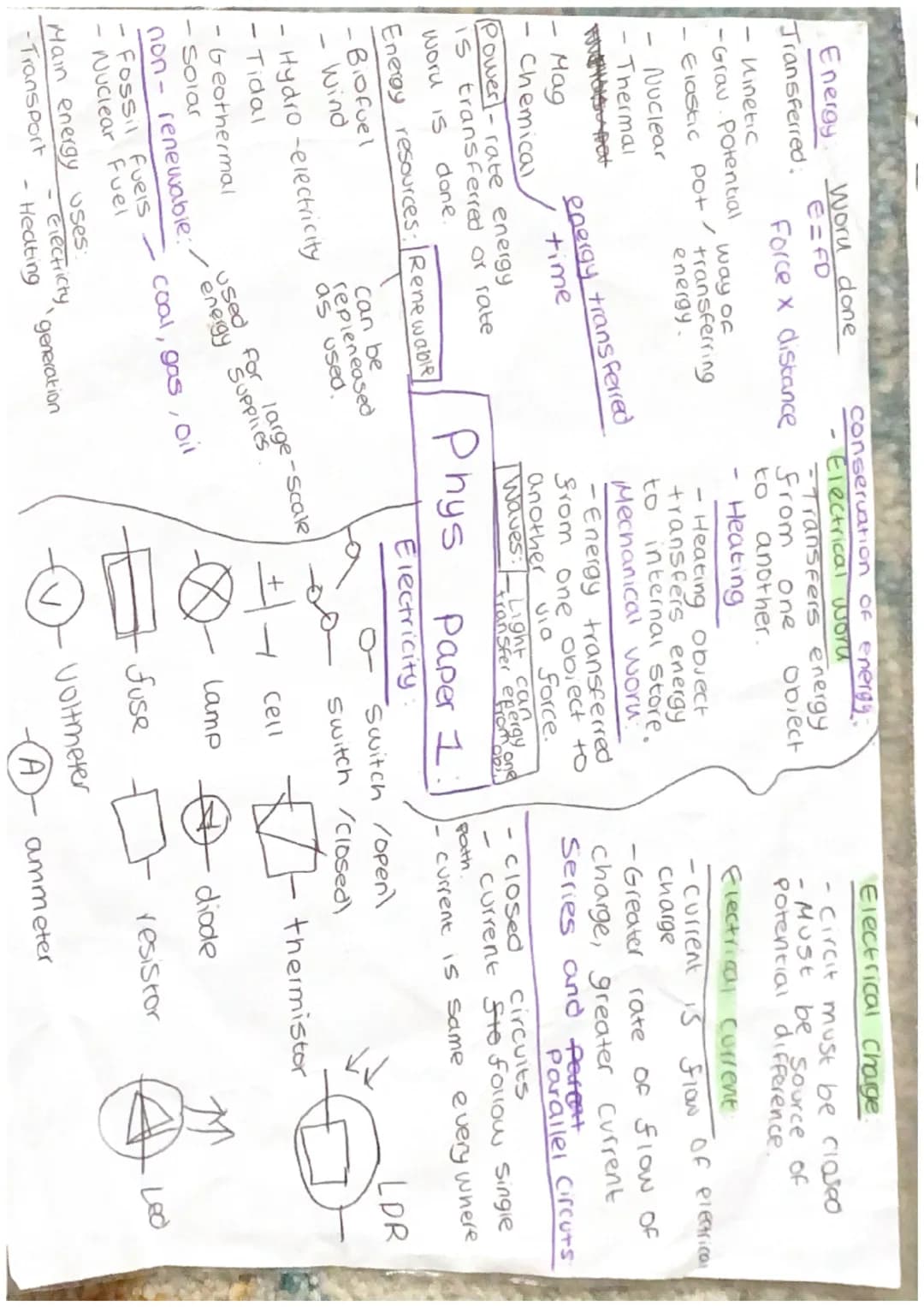

Energy:
Transferred:
Kinetic
-Grau Potential
Elastic
- Biofuel
Wind
Woru done
E = FD
1
Nuclear
- Thermal
HUJProt
Mag
Chemical
Power-rate ene

View

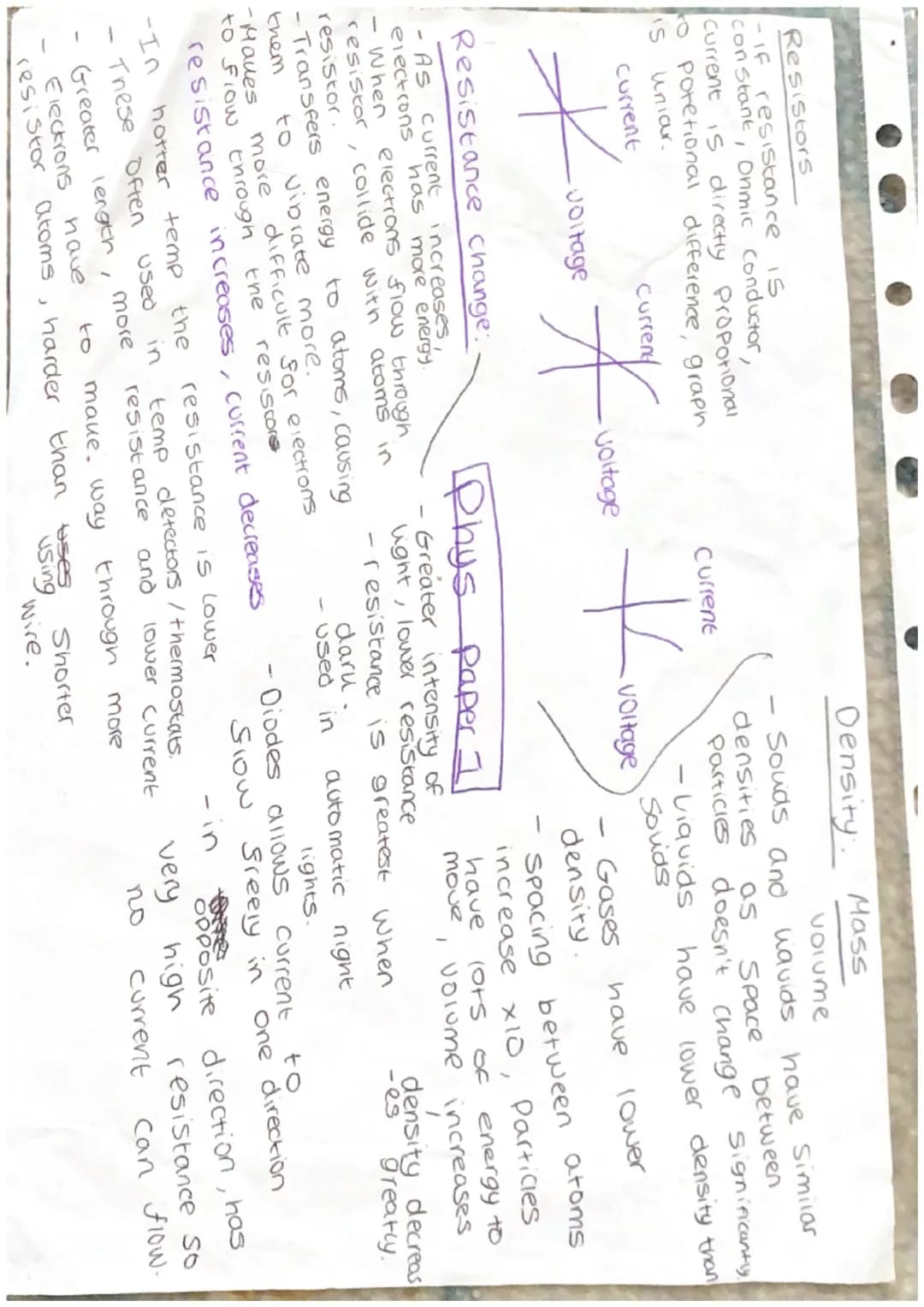

Resistors and Circuit Behavior

This section of the Physics Mind map GCSE delves deeper into the behavior of resistors and their effects on electrical circuits. It explores the relationship between current, voltage, and resistance, as well as factors that influence resistance in conductors.

Ohm's Law and Resistor Behavior

Ohm's Law states that for an ohmic conductor, the current is directly proportional to the potential difference across it, provided the temperature remains constant. This relationship is represented by a linear graph.

Definition: An ohmic conductor is a material that obeys Ohm's Law, maintaining a constant resistance over a range of voltages.

As current increases through a resistor:

  • Electrons gain more energy
  • Electrons collide more frequently with atoms in the resistor
  • Energy is transferred to the atoms, causing them to vibrate more
  • The resistor heats up, making it more difficult for electrons to flow

Example: A light bulb filament is an example of a non-ohmic conductor, as its resistance increases significantly as it heats up.

Factors Affecting Resistance

Several factors can influence the resistance of a conductor:

  1. Length: Greater length increases resistance as electrons have more atoms to collide with.
  2. Temperature: Higher temperatures generally increase resistance in metals.
  3. Cross-sectional area: A larger area decreases resistance by providing more paths for electrons.

Highlight: Understanding these factors is crucial for designing efficient electrical systems and solving GCSE Physics electricity exam questions and answers.

Special Resistors

The Science Shorts Physics Paper 1 guide also covers special types of resistors:

  1. Light-Dependent Resistors (LDRs):

    • Resistance decreases with increasing light intensity
    • Used in automatic night lights and light sensors
  2. Thermistors:

    • Resistance changes with temperature
    • Used in temperature detectors and thermostats

Vocabulary: A thermistor is a temperature-sensitive resistor used for precise temperature measurements in electronic circuits.

Diodes in Circuits

Diodes are unique components that allow current to flow easily in one direction but have very high resistance in the opposite direction. This property makes them useful in various applications, such as:

  • Rectifying AC to DC current
  • Protecting sensitive components from reverse current

Example: LED (Light Emitting Diode) indicators in electronic devices use the diode's unidirectional current flow to produce light efficiently.

Density and States of Matter

The final section of this Science mind maps GCSE covers the concept of density and its relationship to the states of matter.

Definition: Density is the mass of a substance per unit volume, typically measured in kg/m³.

Key points about density in different states of matter:

  • Solids generally have the highest density due to tightly packed particles
  • Liquids have lower density than solids but higher than gases
  • Gases have the lowest density due to widely spaced particles

Highlight: Understanding density is crucial for explaining phenomena like buoyancy and the behavior of materials under different conditions.

The relationship between volume and density is inverse:

  • As volume increases (e.g., when a substance is heated), density typically decreases
  • This principle explains why hot air rises and why ice floats on water

Example: When water freezes to ice, its volume increases, causing a decrease in density. This is why ice floats on liquid water.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

20 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.



Physics

2,738

1 Jul 2023

2 pages

GCSE Physics Paper 1 Mind Map and More Science Shorts!

A

Aran Kamal

@arankamal_bqkx

Physics Paper 1covers key concepts in energy, electricity, and density. This mind map explores renewable and non-renewable energy sources, electrical circuits, and the properties of matter. Students will learn about energy transfers, power calculations, and the behavior of electrical

... Show more
Energy:
Transferred:
Kinetic
-Grau Potential
Elastic
- Biofuel
Wind
Woru done
E = FD
1
Nuclear
- Thermal
HUJProt
Mag
Chemical
Power-rate ene

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Resistors and Circuit Behavior

This section of the Physics Mind map GCSE delves deeper into the behavior of resistors and their effects on electrical circuits. It explores the relationship between current, voltage, and resistance, as well as factors that influence resistance in conductors.

Ohm's Law and Resistor Behavior

Ohm's Law states that for an ohmic conductor, the current is directly proportional to the potential difference across it, provided the temperature remains constant. This relationship is represented by a linear graph.

Definition: An ohmic conductor is a material that obeys Ohm's Law, maintaining a constant resistance over a range of voltages.

As current increases through a resistor:

  • Electrons gain more energy
  • Electrons collide more frequently with atoms in the resistor
  • Energy is transferred to the atoms, causing them to vibrate more
  • The resistor heats up, making it more difficult for electrons to flow

Example: A light bulb filament is an example of a non-ohmic conductor, as its resistance increases significantly as it heats up.

Factors Affecting Resistance

Several factors can influence the resistance of a conductor:

  1. Length: Greater length increases resistance as electrons have more atoms to collide with.
  2. Temperature: Higher temperatures generally increase resistance in metals.
  3. Cross-sectional area: A larger area decreases resistance by providing more paths for electrons.

Highlight: Understanding these factors is crucial for designing efficient electrical systems and solving GCSE Physics electricity exam questions and answers.

Special Resistors

The Science Shorts Physics Paper 1 guide also covers special types of resistors:

  1. Light-Dependent Resistors (LDRs):

    • Resistance decreases with increasing light intensity
    • Used in automatic night lights and light sensors
  2. Thermistors:

    • Resistance changes with temperature
    • Used in temperature detectors and thermostats

Vocabulary: A thermistor is a temperature-sensitive resistor used for precise temperature measurements in electronic circuits.

Diodes in Circuits

Diodes are unique components that allow current to flow easily in one direction but have very high resistance in the opposite direction. This property makes them useful in various applications, such as:

  • Rectifying AC to DC current
  • Protecting sensitive components from reverse current

Example: LED (Light Emitting Diode) indicators in electronic devices use the diode's unidirectional current flow to produce light efficiently.

Density and States of Matter

The final section of this Science mind maps GCSE covers the concept of density and its relationship to the states of matter.

Definition: Density is the mass of a substance per unit volume, typically measured in kg/m³.

Key points about density in different states of matter:

  • Solids generally have the highest density due to tightly packed particles
  • Liquids have lower density than solids but higher than gases
  • Gases have the lowest density due to widely spaced particles

Highlight: Understanding density is crucial for explaining phenomena like buoyancy and the behavior of materials under different conditions.

The relationship between volume and density is inverse:

  • As volume increases (e.g., when a substance is heated), density typically decreases
  • This principle explains why hot air rises and why ice floats on water

Example: When water freezes to ice, its volume increases, causing a decrease in density. This is why ice floats on liquid water.

Energy:
Transferred:
Kinetic
-Grau Potential
Elastic
- Biofuel
Wind
Woru done
E = FD
1
Nuclear
- Thermal
HUJProt
Mag
Chemical
Power-rate ene

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Energy and Electricity: Key Concepts in Physics Paper 1

Physics PAPER 1 mind map provides a comprehensive overview of energy and electricity concepts. This guide is essential for students preparing for their GCSE Physics exams, covering topics from energy resources to electrical circuits.

  • Energy transfers and conservation
  • Renewable and non-renewable energy sources
  • Electrical circuits and components
  • Power calculations and energy efficiency

Highlight: Understanding energy transfers and electrical concepts is crucial for success in GCSE Physics Paper 1.

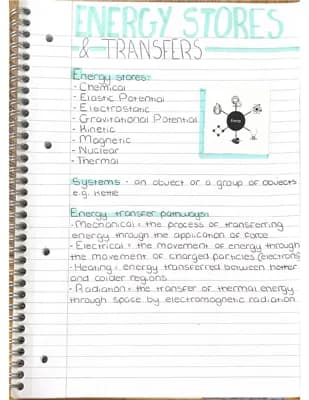

Energy Transfers and Resources
