Understanding Evidence for the Big Bang Theory

The Evidence supporting the big bang theory primarily comes from two major scientific observations: redshift and cosmic microwave background radiation. These pieces of evidence provide compelling support for the universe's explosive origins.

Red shift in light from galaxies is a crucial indicator of universal expansion. When observing distant galaxies, scientists notice their light appears redder than expected - a phenomenon called redshift. This occurs because galaxies are moving away from Earth, stretching the wavelength of their emitted light toward the red end of the spectrum. The further away a galaxy is, the greater its redshift, demonstrating that the universe is expanding in all directions.

Definition: Redshift occurs when light waves from moving objects are stretched, making them appear redder than they actually are. This effect is similar to how a sound becomes lower-pitched as its source moves away from you.

The Cosmic Microwave Background (CMB) radiation provides another powerful piece of evidence. This faint radiation permeates all of space and represents the afterglow of the Big Bang. When the universe was young and hot, it emitted high-energy radiation. As the universe expanded and cooled over billions of years, this radiation stretched into microwave wavelengths that we can detect today.

Highlight: The presence of CMB radiation everywhere we look in space supports the idea that the entire universe was once compressed into a hot, dense state - exactly what the Big Bang theory predicts.

Understanding Lenses and Image Formation

Effects of different types of lens on images vary depending on the lens shape and properties. Convex and concave lenses interact with light differently to produce distinct types of images.

Real images form when light rays actually converge at a point after passing through a lens. These images can be projected onto a screen and appear on the opposite side of the lens from the object. Virtual images, however, appear to come from the same side as the object and cannot be projected - they're what you see when looking through a magnifying glass.

Example: When using a camera, the lens system creates a real image on the digital sensor or film. This is why camera lens quality affects picture quality - better lenses focus light more precisely for sharper images.

Light behaves differently when passing through various materials. In a vacuum, all electromagnetic waves travel at the same speed. However, when light enters a lens, it slows down and changes direction (refracts). This property allows lenses to focus light and create images.

Electromagnetic Radiation and Its Effects

Electromagnetic waves transfer energy across space, ranging from low-energy radio waves to high-energy gamma rays. Each type of radiation has distinct properties and applications, though they all travel at the same speed in a vacuum.

The human eye can only detect a narrow band of electromagnetic radiation - visible light. However, we can observe and utilize other types of radiation through specialized equipment. Different materials interact uniquely with electromagnetic waves - some absorb certain wavelengths while reflecting or transmitting others.

Vocabulary: Electromagnetic spectrum - the complete range of electromagnetic radiation, from longest wavelength (radio waves) to shortest wavelength (gamma rays).

Temperature significantly affects radiation emission. Hotter objects emit more intense radiation across a broader range of wavelengths. This principle helps maintain Earth's temperature through a balance of incoming solar radiation and outgoing thermal radiation.

Star Life Cycles and Evolution

Stars begin their lives in nebulae - vast clouds of gas and dust in space. Gravitational forces pull these particles together, increasing pressure and temperature until nuclear fusion begins, marking the birth of a star.

During their main sequence phase, stars maintain equilibrium between gravitational collapse and fusion energy. When smaller stars like our Sun exhaust their hydrogen fuel, they expand into red giants before eventually cooling into white dwarfs. Massive stars follow a different path, ending their lives in spectacular supernovae that may leave behind neutron stars or black holes.

Example: Our Sun is currently in its main sequence phase, fusing hydrogen into helium in its core. In about 5 billion years, it will expand into a red giant before becoming a white dwarf.

The balance between gravity and thermal pressure determines a star's fate. More massive stars experience stronger gravitational forces, leading to more intense fusion reactions and dramatically different end stages compared to smaller stars.

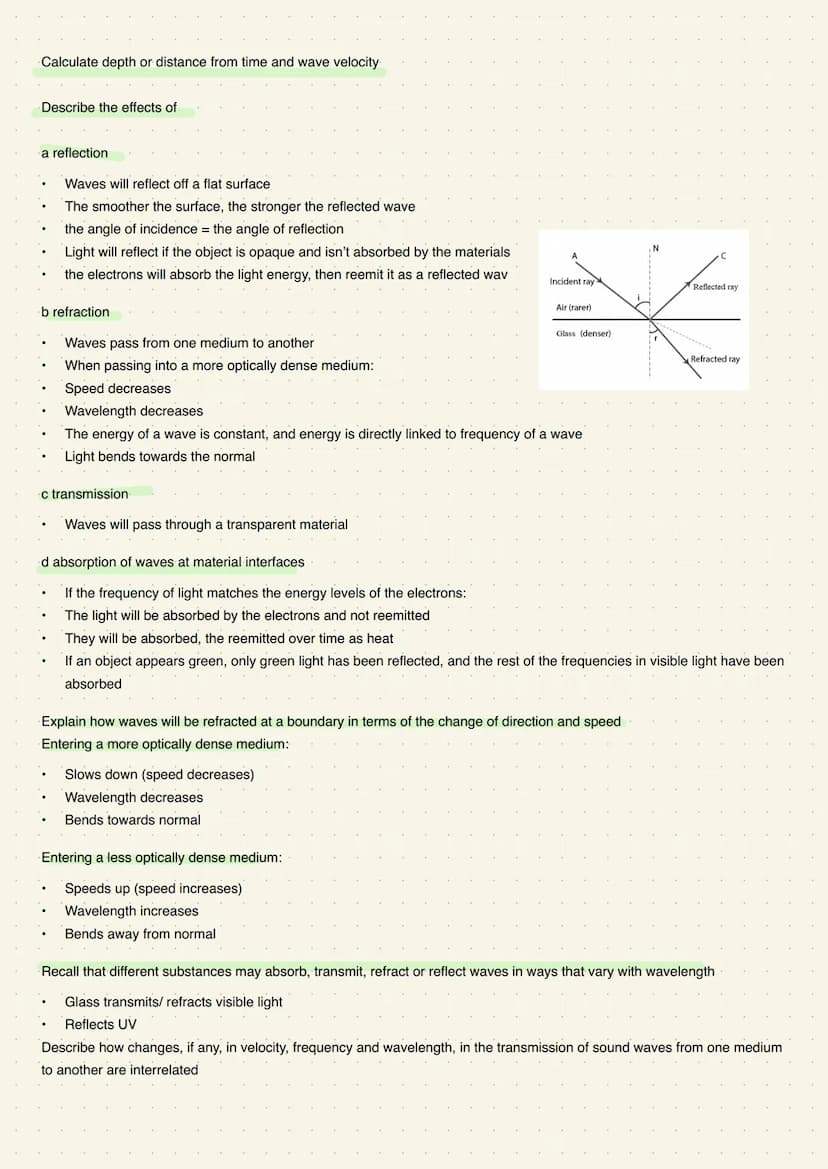

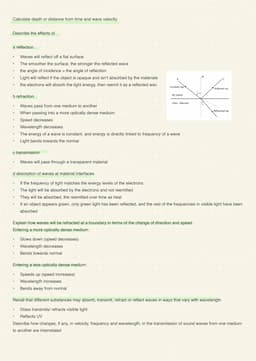

Understanding Wave Behavior and Properties in Physics

When waves travel through different mediums, they exhibit various behaviors that help us understand their fundamental properties. These behaviors include reflection, refraction, transmission, and absorption, each playing a crucial role in how waves interact with matter.

Definition: Reflection occurs when waves bounce off a surface, following the principle that the angle of incidence equals the angle of reflection. For light waves, reflection happens when the material is opaque and electrons absorb and reemit the light energy.

In the case of refraction, waves change direction when passing between different mediums. When light enters a denser medium like glass from air, several changes occur: the wave speed decreases, wavelength becomes shorter, and the light beam bends toward the normal line. Conversely, when light moves from a denser to a rarer medium, it speeds up, wavelength increases, and the beam bends away from the normal.

Transmission and absorption are equally important wave behaviors. Transparent materials allow waves to pass through (transmission), while absorption occurs when the wave's frequency matches the energy levels of the material's electrons. This absorbed energy typically converts to heat rather than being reemitted as light. For instance, when an object appears green, it's reflecting only green light while absorbing all other visible light frequencies.

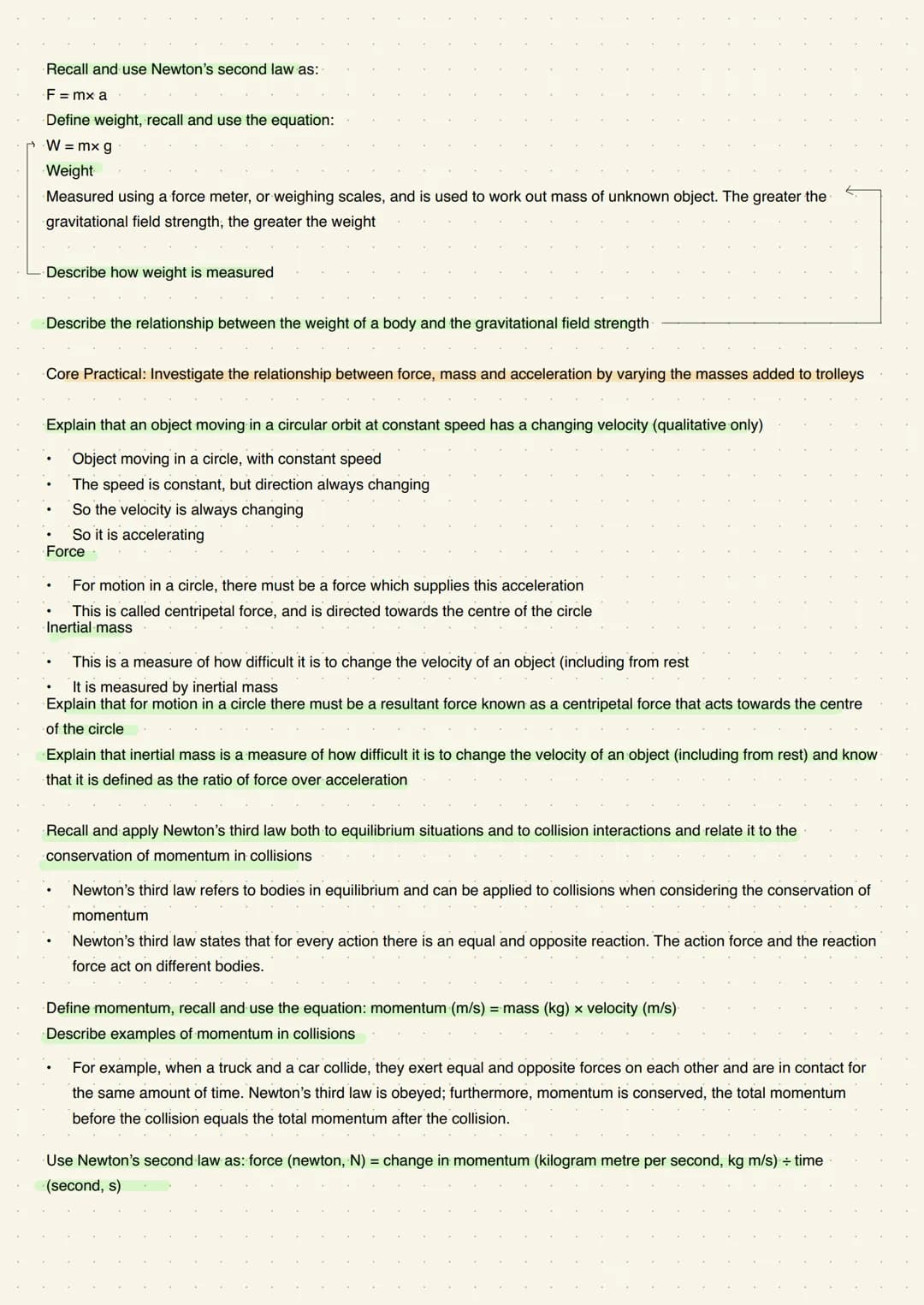

Forces and Motion: Newton's Laws and Their Applications

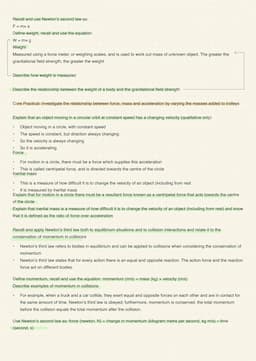

Newton's Second Law forms a cornerstone of classical mechanics, expressed as F = ma (Force equals mass times acceleration). This fundamental relationship helps us understand how forces affect motion and leads to important concepts like weight and circular motion.

Highlight: Weight is a force resulting from gravitational attraction, calculated using W = mg, where 'g' is the gravitational field strength. The stronger the gravitational field, the greater the weight of an object.

Objects moving in circular paths demonstrate unique properties. Even at constant speed, they experience continuous acceleration because their velocity vector constantly changes direction. This acceleration requires a centripetal force directed toward the circle's center. The concept of inertial mass becomes crucial here, as it measures an object's resistance to changes in velocity.

Newton's Third Law states that for every action force, there's an equal and opposite reaction force. This principle applies to both equilibrium situations and collisions, connecting directly to momentum conservation. In collisions, the forces between objects are equal and opposite, acting for the same duration, though the resulting motion changes may differ due to different masses.

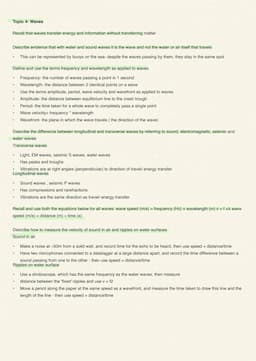

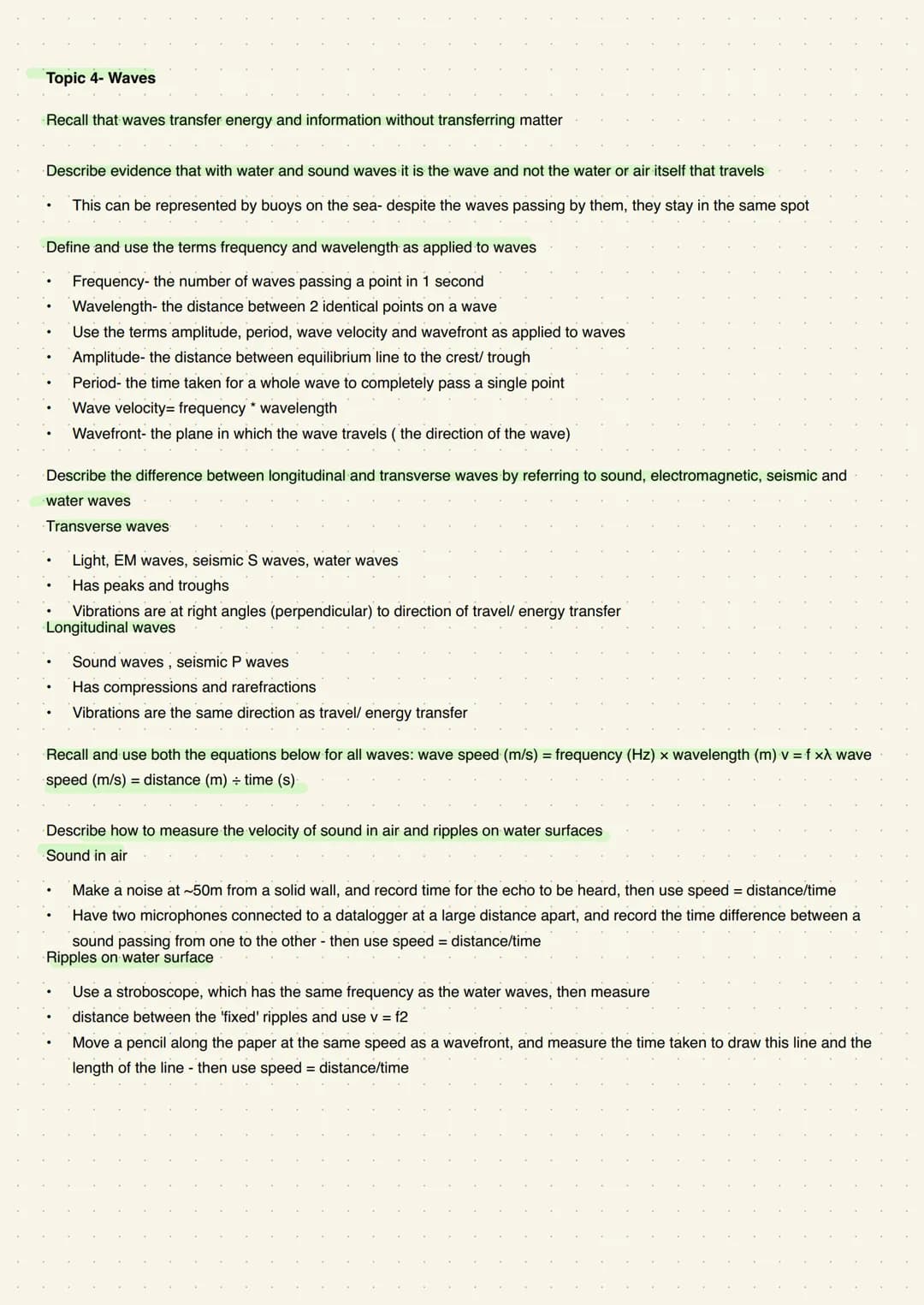

Wave Types and Characteristics in Physics

Wave motion represents a fundamental method of energy transfer in nature. Unlike matter transport, waves carry energy and information through a medium without moving the medium itself. This principle is observable in water waves, where floating objects bob up and down but don't travel with the wave.

Vocabulary: Key wave properties include:

• Frequency: Waves passing a point per second
• Wavelength: Distance between identical wave points
• Amplitude: Maximum displacement from equilibrium
• Period: Time for one complete wave cycle
• Wave velocity: Speed of wave propagation

Waves can be classified into two main types: transverse and longitudinal. Transverse waves, like electromagnetic radiation and water waves, oscillate perpendicular to their direction of travel. Longitudinal waves, such as sound waves, create compressions and rarefactions parallel to their propagation direction. Both types follow the fundamental wave equation: wave speed = frequency × wavelength.

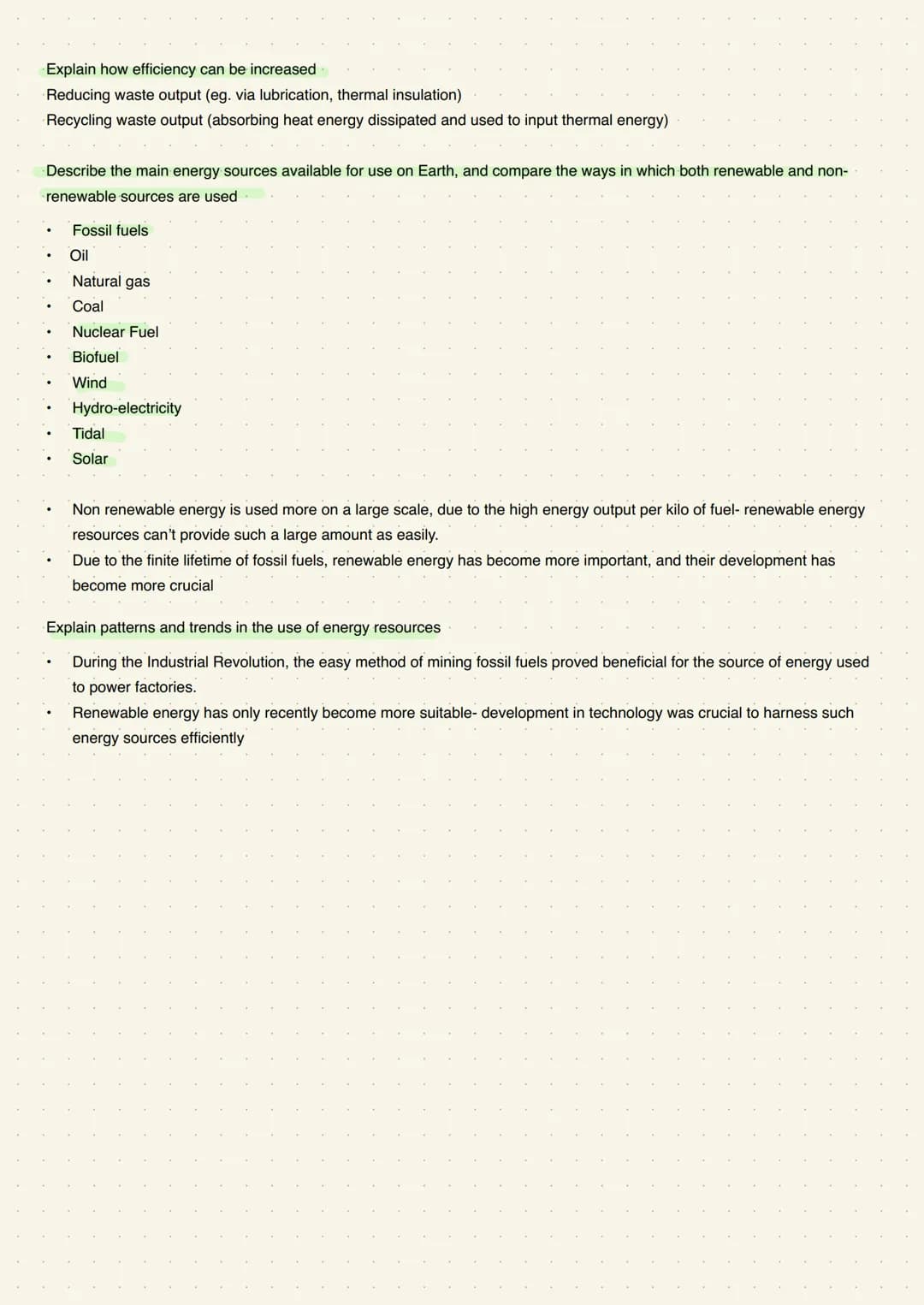

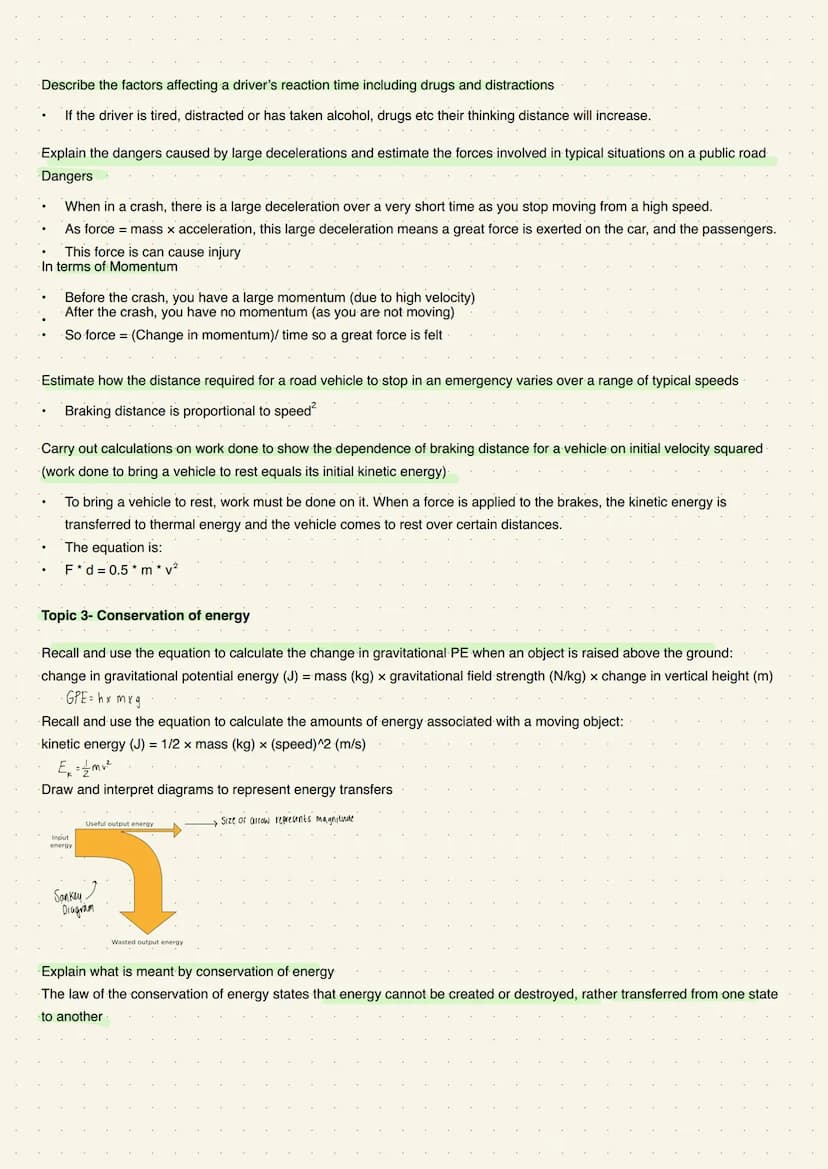

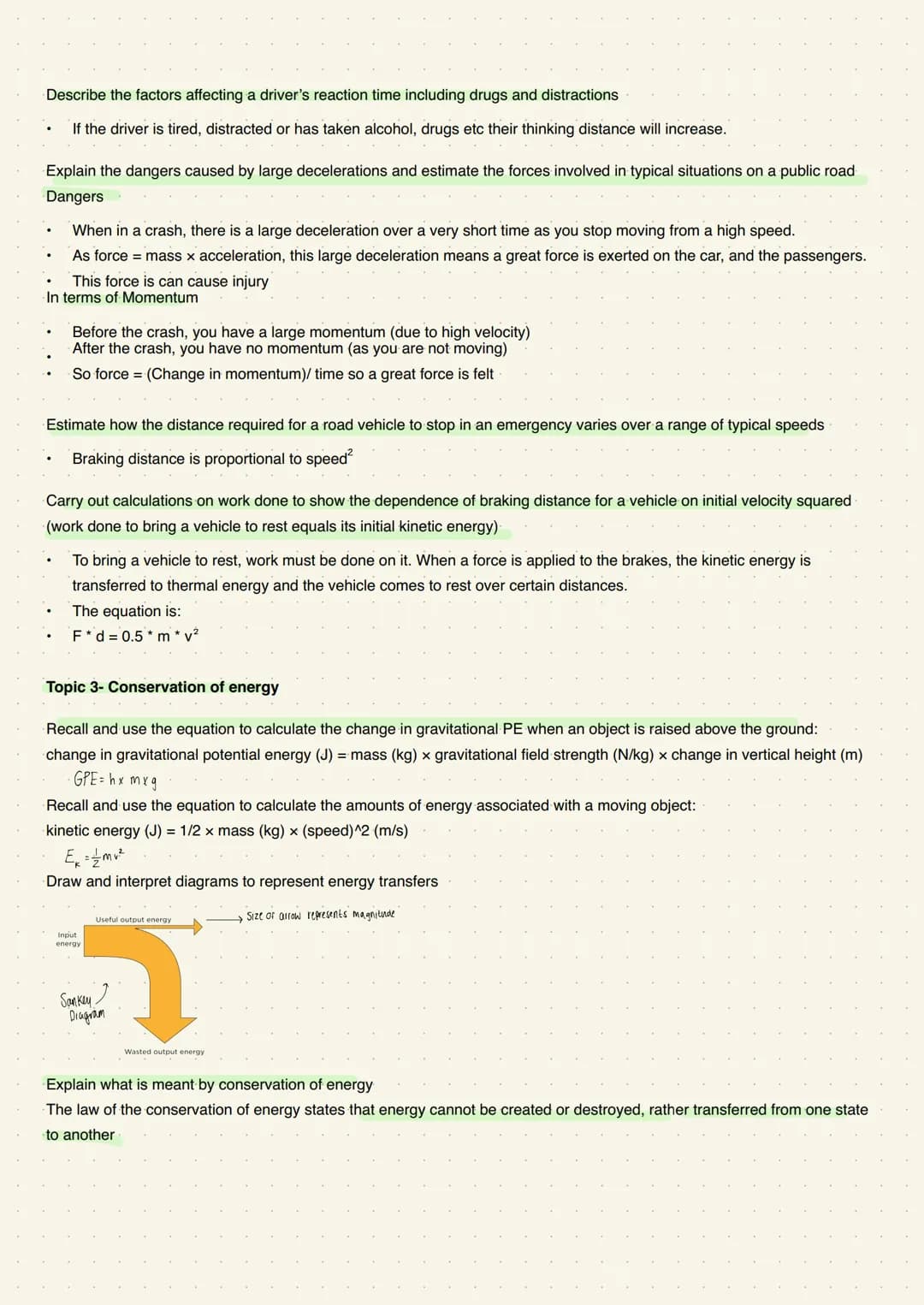

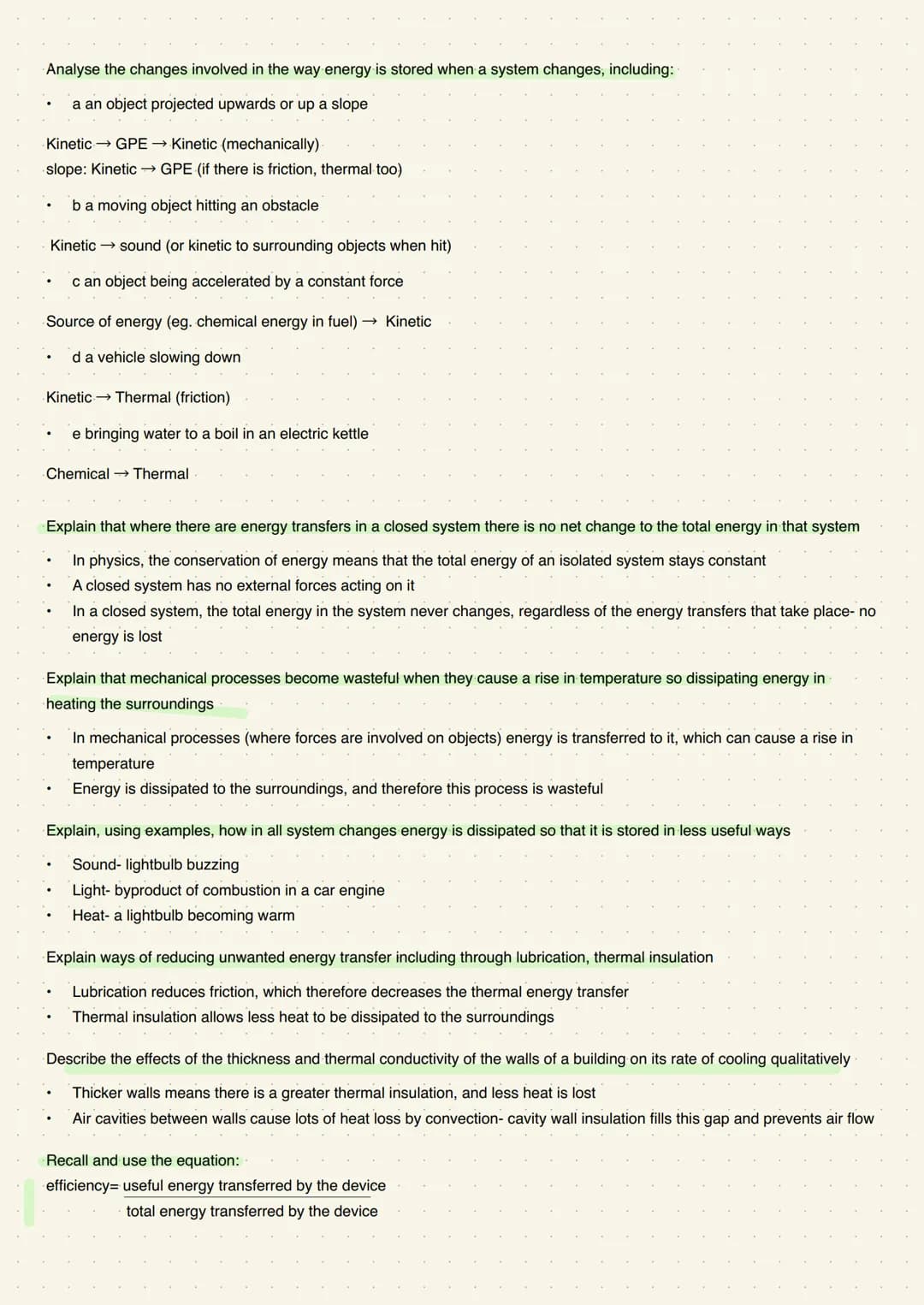

Energy Transformations and Conservation

Energy transformations occur constantly in physical systems, following strict conservation principles. In closed systems, while energy can change forms, the total energy remains constant, demonstrating the fundamental law of energy conservation.

Example: Common energy transformations include:

• Projectile motion: Kinetic energy converts to gravitational potential energy and back
• Collision: Kinetic energy transforms into sound and thermal energy
• Electric kettle: Electrical energy converts to thermal energy
• Vehicle braking: Kinetic energy converts to thermal energy through friction

Mechanical processes often involve energy dissipation through heat generation, making them less than 100% efficient. This waste energy typically disperses into the surroundings as thermal energy. Engineers work to minimize these losses through various methods, such as lubrication to reduce friction and thermal insulation to retain heat.

Building design demonstrates practical applications of energy conservation principles. Thicker walls and proper insulation reduce heat transfer rates, improving energy efficiency. The effectiveness of these measures depends on factors like material thermal conductivity and wall construction techniques, including the use of cavity wall insulation to prevent convective heat losses.

Understanding Sound Waves and Their Applications in Nature and Technology

Sound waves play a crucial role in how we perceive our environment and have numerous practical applications in modern technology. The human ear's intricate mechanism for processing sound waves demonstrates nature's sophisticated engineering, while technologies like ultrasound and infrasound showcase how we've harnessed these waves for various purposes.

Definition: Sound waves are pressure disturbances that travel through matter, whether it's air, liquid, or solid. The frequency of these waves determines whether they're audible to humans, ultrasound (above human hearing range), or infrasound (below human hearing range).

The human ear processes sound through a remarkable sequence of energy transformations. When sound waves enter the outer ear, they travel down the ear canal as pressure waves until they reach the eardrum. This tightly stretched membrane vibrates at the same frequency as the incoming sound waves, transferring these vibrations to three small bones in the middle ear. The stirrup bone, the last in this chain, acts as a natural amplifier before transmitting these vibrations to the fluid-filled cochlea in the inner ear.

Inside the cochlea, thousands of microscopic hair cells respond to different frequencies, converting mechanical energy into electrical signals that the brain interprets as sound. These hair cells are frequency-specific, with each responding most strongly to particular sound frequencies. This selective response explains why humans can distinguish between different pitches and tones. However, our hearing range is limited to frequencies between 20 Hz and 20,000 Hz, an evolutionary adaptation that protects our hearing organs while providing the range most crucial for survival.

Highlight: Applications of sound waves beyond human hearing range:

• Sonar systems use ultrasound pulses to map ocean depths and locate fish schools
• Medical ultrasound enables non-invasive fetal scanning and tissue imaging
• Infrasound analysis helps scientists study Earth's internal structure through seismic waves

Advanced Applications of Sound Waves in Scientific Research and Technology

The practical applications of sound waves, particularly ultrasound and infrasound, have revolutionized various fields from medicine to geological exploration. These applications demonstrate how understanding wave properties can lead to powerful technological tools.

Sonar technology exemplifies the practical use of ultrasound in marine navigation and exploration. Ships emit ultrasonic pulses that bounce off underwater objects or the seafloor. By measuring the time taken for these echoes to return, precise depth measurements can be calculated. This technology has transformed maritime navigation and fishing industries by providing detailed underwater mapping and fish detection capabilities.

In medical applications, ultrasound scanning has become an invaluable diagnostic tool, particularly in prenatal care. The technology works by sending high-frequency sound waves through body tissue, which reflect differently at tissue boundaries. These reflections create detailed images of internal structures without using harmful radiation, making it especially suitable for monitoring fetal development and checking for abnormalities during pregnancy.

Example: Earth's core exploration using seismic waves demonstrates how infrasound helps us understand our planet's internal structure:

• P-waves (longitudinal waves) travel through both solids and liquids
• S-waves (transverse waves) only propagate through solids
• The behavior of these waves during earthquakes reveals that Earth has both liquid and solid core components

Vocabulary: Key terms in wave analysis:

• Longitudinal waves: Vibrations parallel to wave direction
• Transverse waves: Vibrations perpendicular to wave direction
• Refraction: Change in wave direction when entering different mediums
• Reflection: Bouncing back of waves from surfaces
