Physics Module 1: Chapter 2 Overview

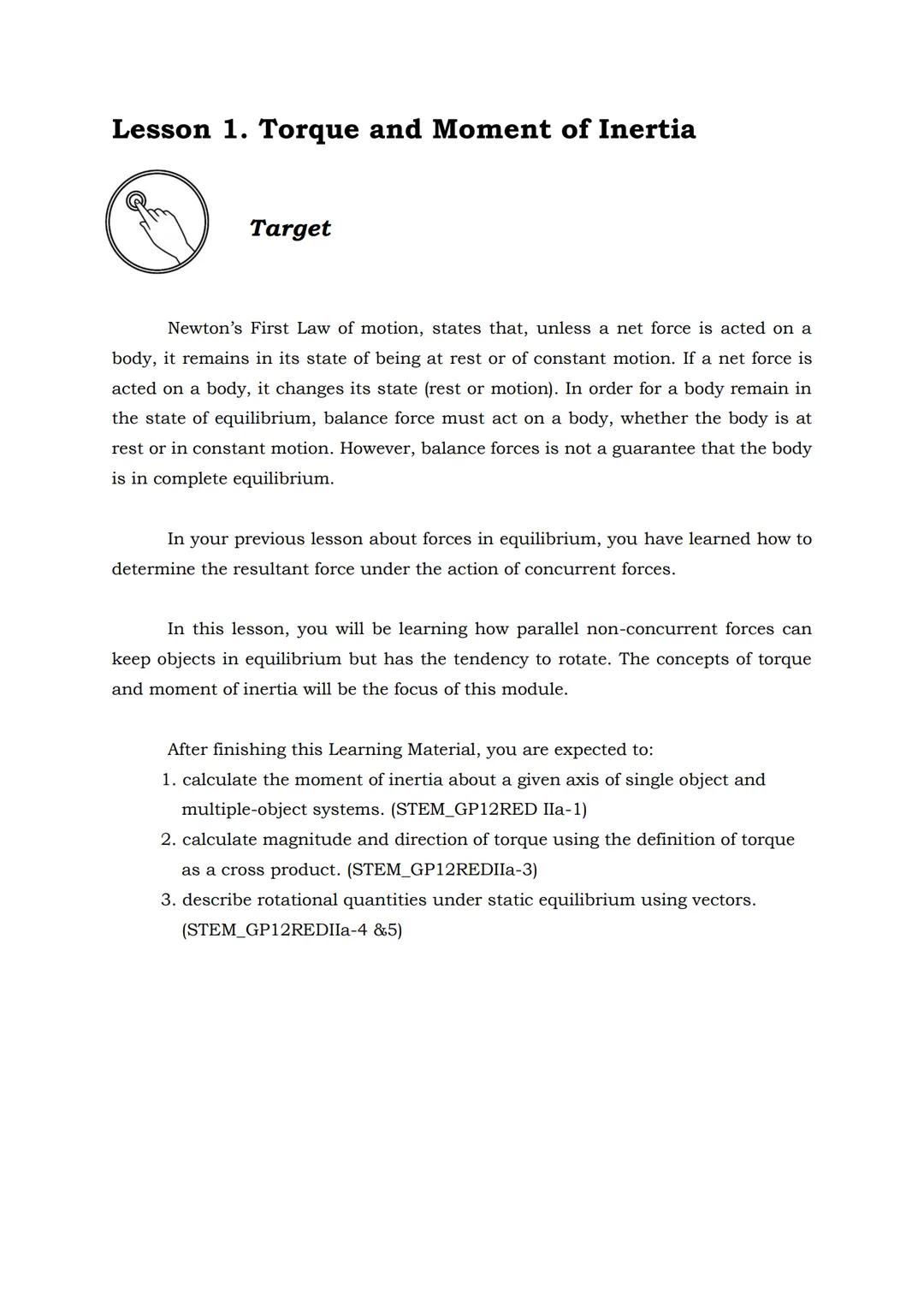

Module Introduction

This General Physics module dives into one of the most practical areas of mechanics you'll encounter. While you've already mastered forces in equilibrium, now you're stepping up to tackle parallel non-concurrent forces – forces that don't meet at a single point but can still create fascinating effects.

You'll master three key skills that'll serve you well in exams and real life. First, calculating moment of inertia for both single objects and complex systems. Second, working out torque magnitude and direction using cross products. Finally, describing rotational equilibrium using vectors.

Key Insight: Unlike the simple force equilibrium you've studied before, rotational systems introduce the exciting possibility of objects that want to spin even when forces are balanced!

Think of this as your gateway to understanding why engineers design car wheels the way they do, or how gymnasts control their spinning speed during routines.

Finding the Center of Gravity

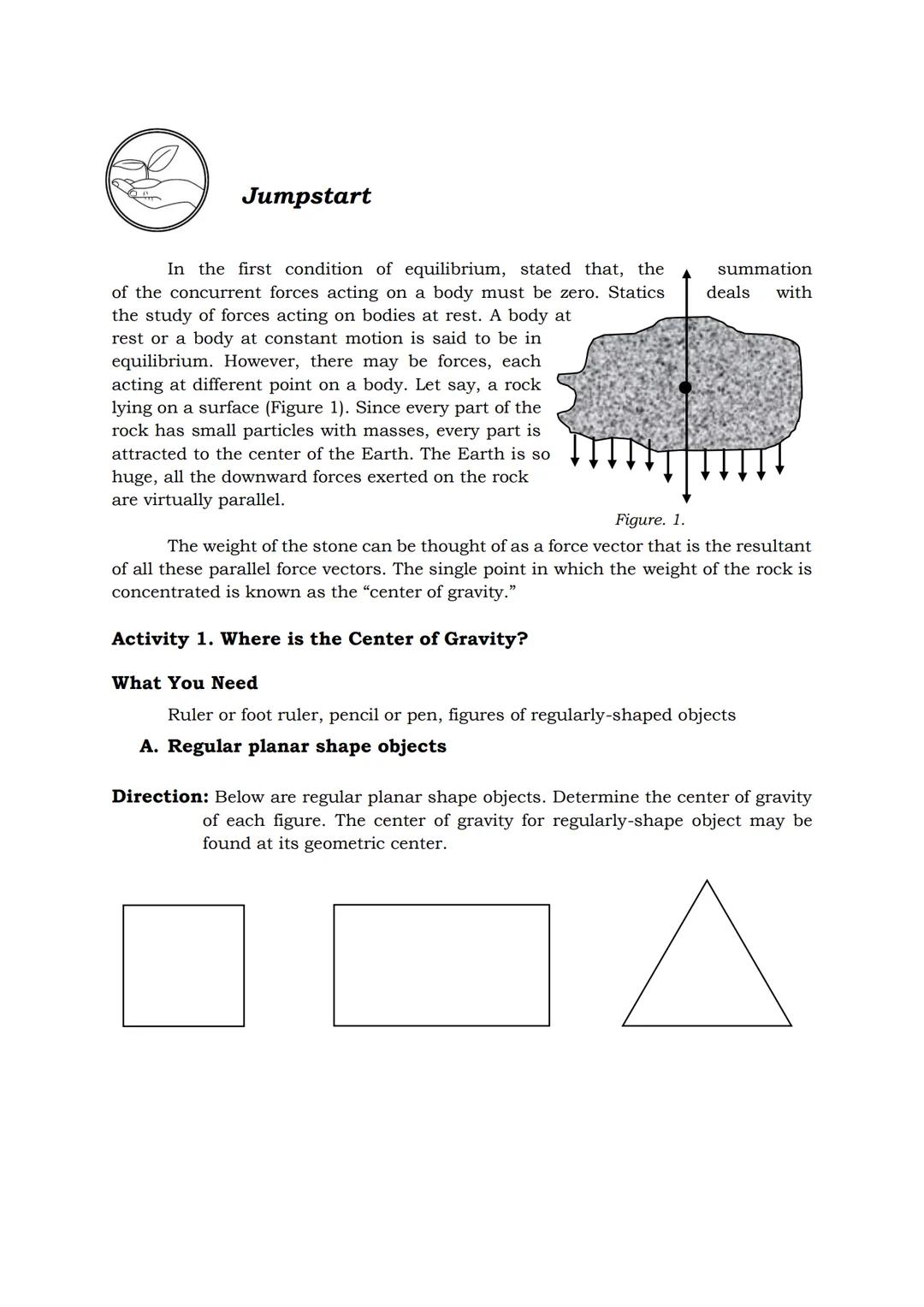

Understanding center of gravity is absolutely crucial before diving into rotational motion. It's that special point where all of an object's weight can be considered to act from – like the perfect balance point.

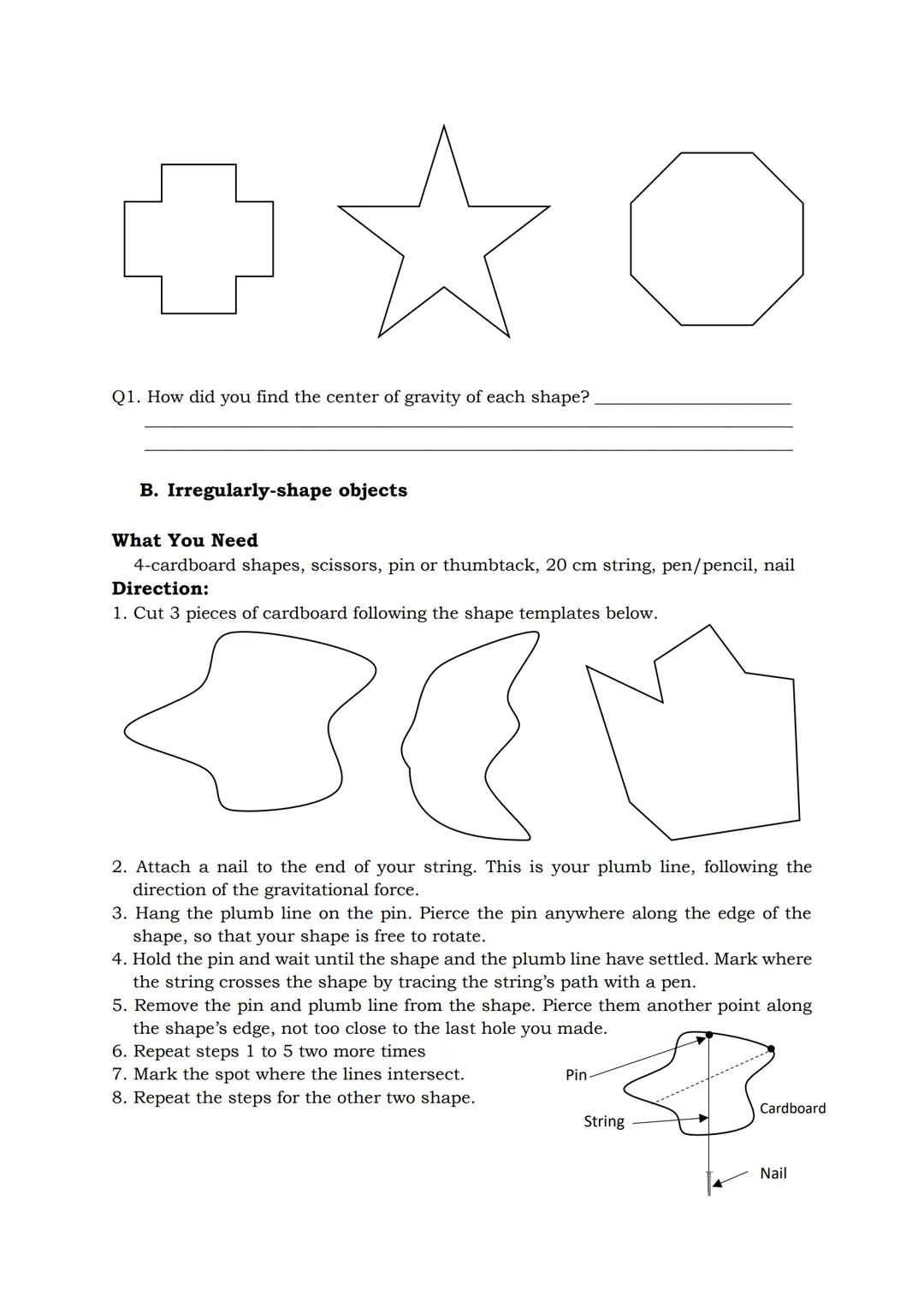

For regular shapes like circles or rectangles, finding the center of gravity is straightforward – it's simply the geometric center. However, irregular shapes require a clever technique using a plumb line and pin to trace intersecting lines from different hanging points.

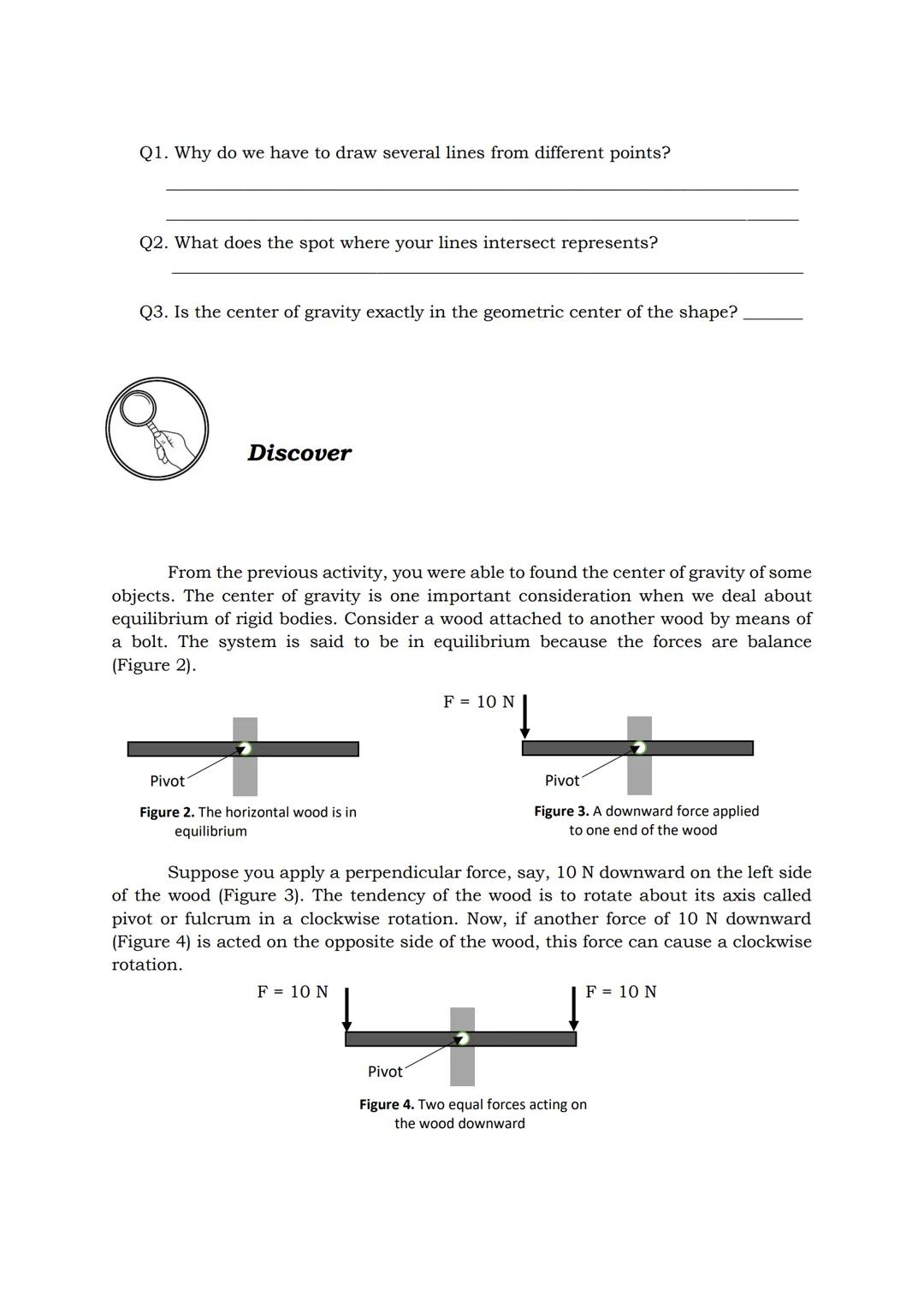

The practical activity with cardboard shapes demonstrates why multiple measurement lines are essential. Each line represents the direction of gravitational force from that hanging position, and their intersection reveals the true center of gravity.

Pro Tip: The center of gravity isn't always at the geometric center for irregular objects – this principle is crucial for understanding vehicle stability and building design!

This concept becomes your foundation for analyzing how objects will behave when forces try to make them rotate.

Understanding Torque

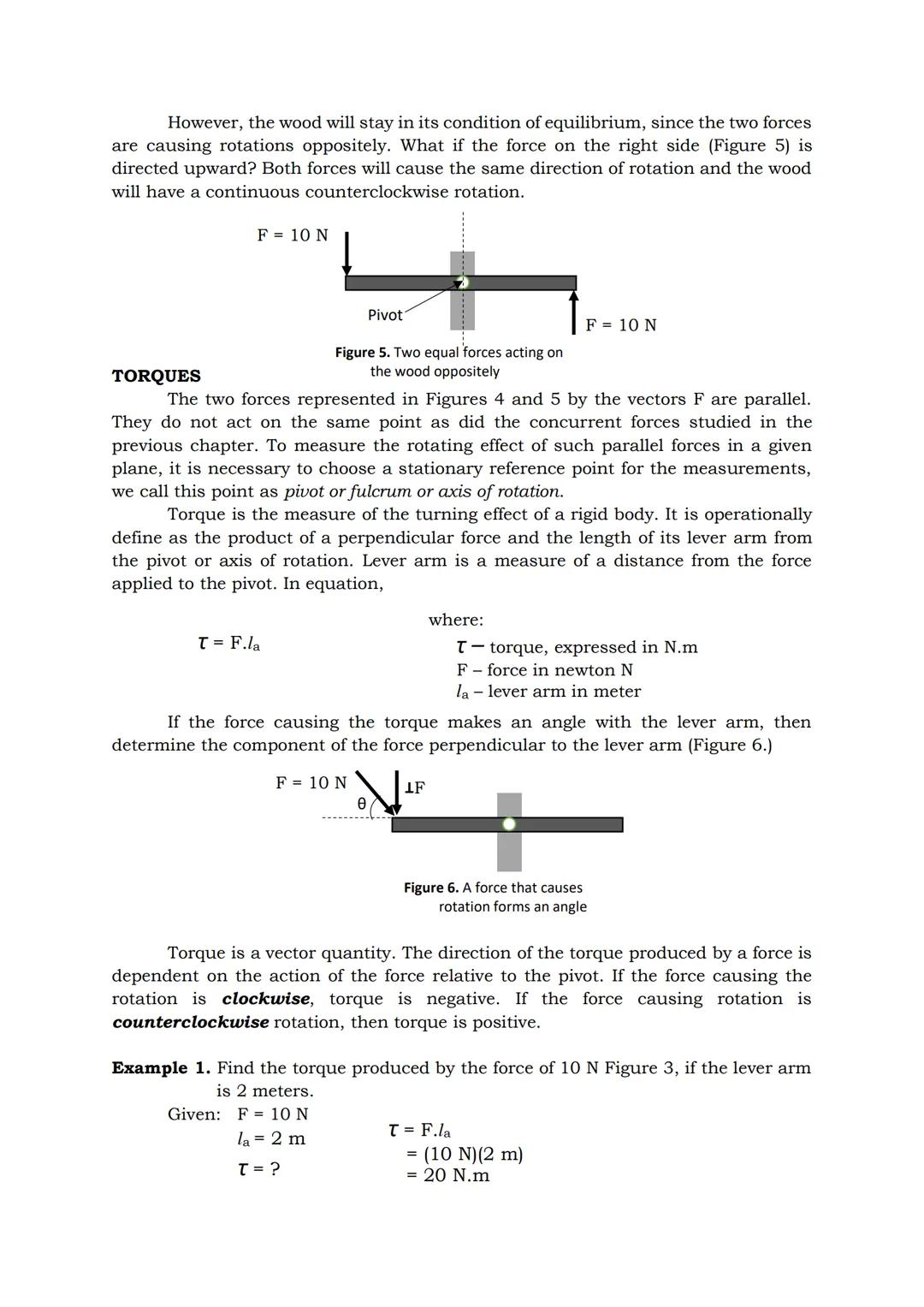

Torque is simply the measure of how much a force wants to make something rotate – think of it as "rotational force." When you apply a perpendicular force to a lever arm, you create this turning effect that can cause clockwise or counterclockwise rotation.

The basic torque formula is beautifully simple: τ = F × la, where τ is torque, F is the applied force, and la is the lever arm distance from the pivot point. When forces act at angles, you'll need the perpendicular component: τ = (F cos θ) × la.

Direction matters enormously in torque calculations. Clockwise rotations produce negative torque, while counterclockwise rotations give positive torque. This sign convention helps you determine whether competing torques will cancel each other out or add together.

Real-World Connection: Every time you use a wrench, you're applying torque principles – longer handles give greater turning power for the same applied force!

The examples show straightforward calculations: a 10 N force at 2 m creates 20 N⋅m of torque, demonstrating how distance dramatically amplifies rotational effect.

Moment of Inertia Fundamentals

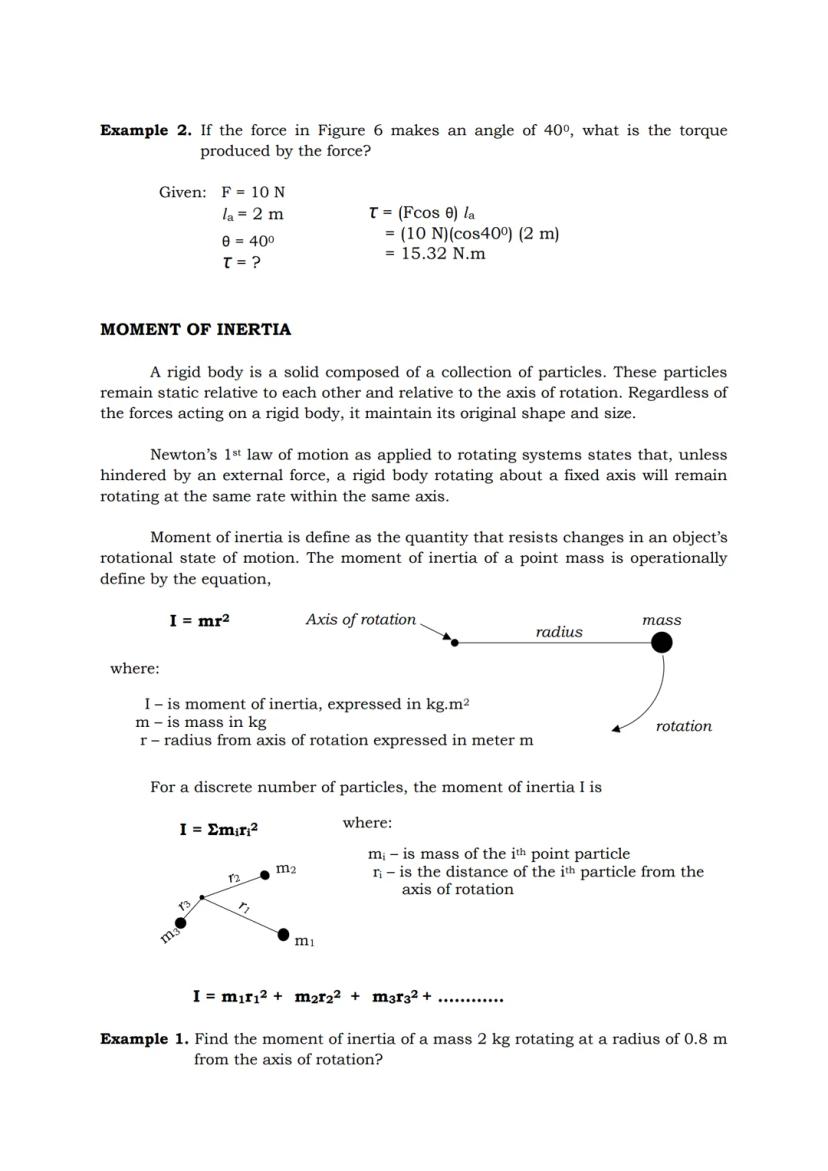

Moment of inertia is an object's resistance to changes in rotational motion – essentially the rotational equivalent of mass for linear motion. Just as heavier objects resist changes in straight-line motion, objects with larger moments of inertia resist changes in spinning motion.

For a single point mass, the formula is elegantly simple: I = mr². This reveals why distance from the rotation axis matters so much – since radius is squared, moving twice as far from the center quadruples the moment of inertia.

When dealing with multiple particles, you simply add up each contribution: I = Σ mᵢrᵢ². Each particle contributes based on both its mass and its distance from the rotation axis, squared.

Key Insight: Figure skaters use moment of inertia when they pull their arms in to spin faster – reducing their radius decreases their moment of inertia, so they speed up to conserve angular momentum!

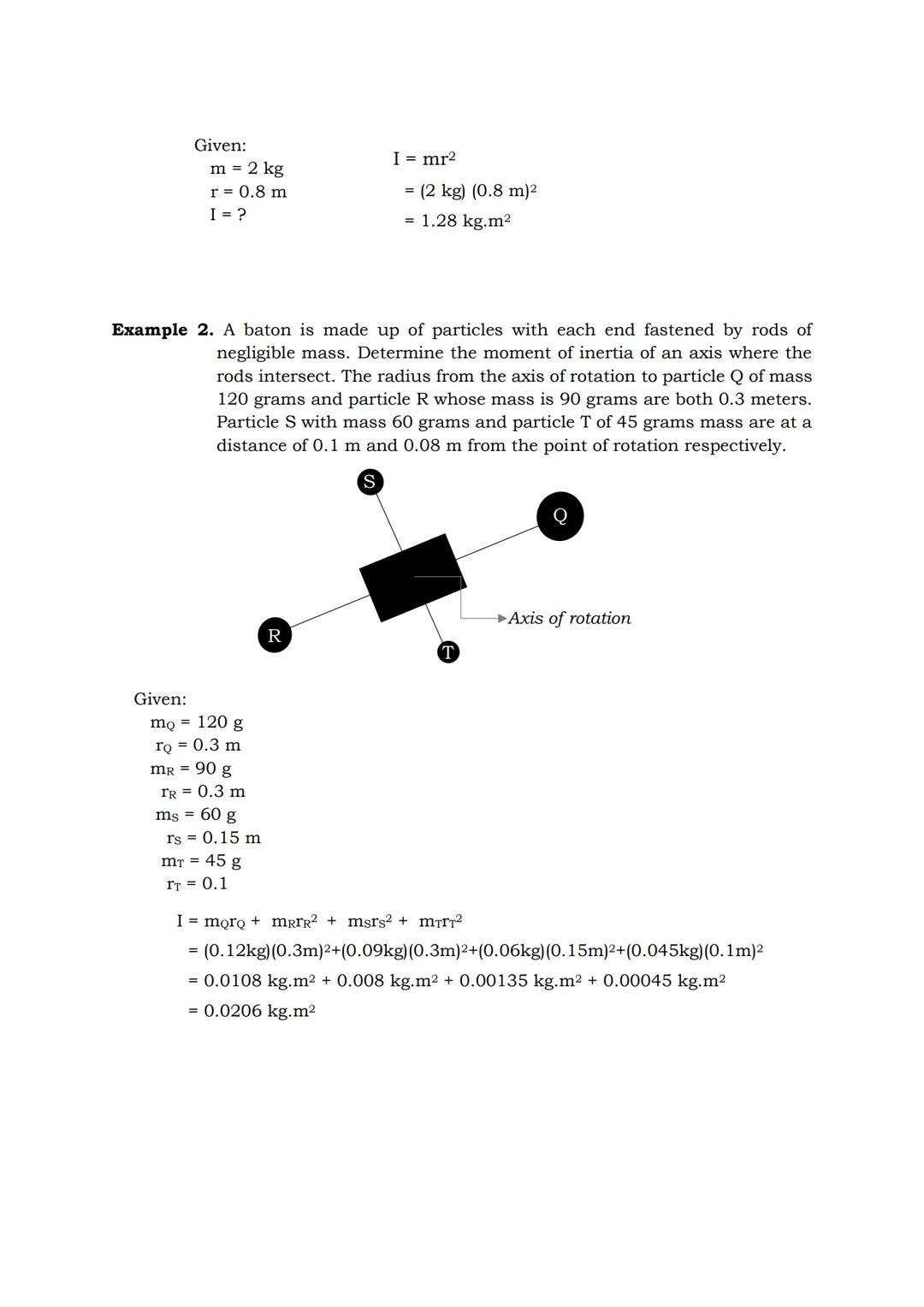

The worked examples demonstrate practical calculations, showing how to convert units properly and handle multi-particle systems with precision.
