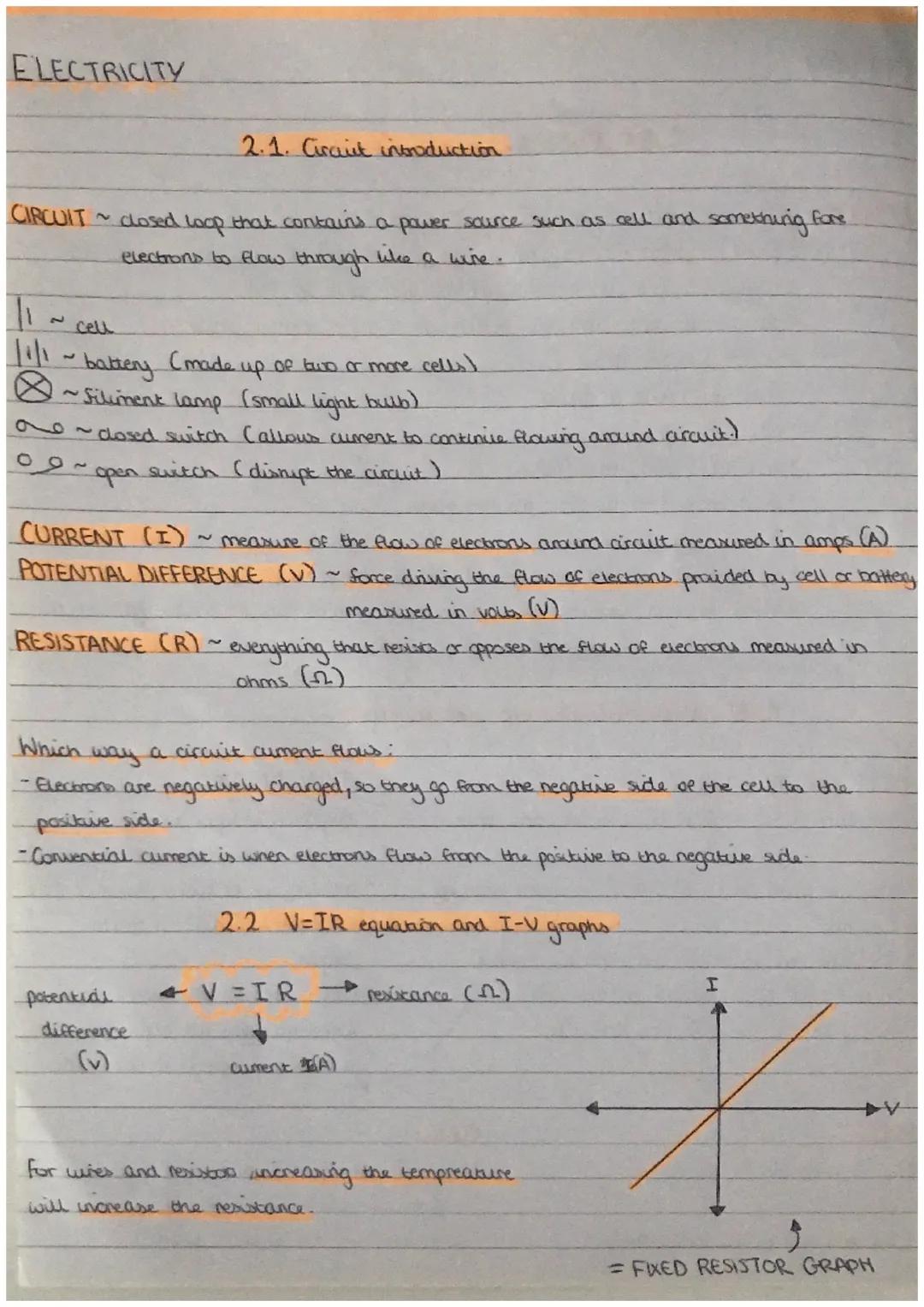

Circuit Basics and Key Terms

Ever wondered how your phone actually charges or why lights turn on instantly? It's all about understanding electric circuits - closed loops that let electrons flow from a power source through wires and components.

The three fundamental concepts you absolutely need to master are current (measured in amps), potential difference (measured in volts), and resistance (measured in ohms). Think of current as the flow of electrons, potential difference as the driving force from your battery, and resistance as anything that opposes this flow.

Here's something that confuses many students: electrons actually flow from negative to positive, but we use conventional current (positive to negative) in our diagrams. Don't worry - just stick with conventional current for your exams and you'll be fine.

Key Tip: Remember V=IR - this equation is your best friend for solving circuit problems!

Understanding V=IR and Component Behaviour

The V=IR equation is absolutely essential - it connects potential difference, current, and resistance in every circuit calculation you'll encounter. Master this formula and half your electricity problems become much easier.

Different components behave in fascinating ways. Fixed resistors show a straight line on I-V graphs because their resistance stays constant. Filament lamps curve because they get hotter and more resistant as current increases. Diodes are like one-way streets - they only let current flow in one direction.

You'll also need to understand charge using the formula Q = I × t. This measures the total amount of current that flows over a specific time period, measured in coulombs.

Exam Tip: Practice drawing I-V graphs for different components - they're popular exam questions!

Series vs Parallel Circuits

Series circuits are like a single-lane road where everything connects one after another. If one component breaks, the entire circuit stops working - just like old Christmas lights! The current stays the same everywhere, but the potential difference gets shared between components.

Parallel circuits are much more practical - they're like multi-lane roads with separate branches. If one component fails, the others keep working perfectly. This is why your house uses parallel wiring - you can turn off one light without affecting the others.

Here's the key difference: in series circuits, resistance adds up, making the total resistance higher. In parallel circuits, adding more branches actually reduces the total resistance because current has more paths to flow through.

Understanding LDRs (light dependent resistors) and thermistors is crucial - LDRs change resistance with light levels, whilst thermistors change with temperature. These are used in automatic lighting and heating systems.

Real-world Connection: Your home's electrical system uses parallel circuits - that's why you can use your phone whilst the TV is on!

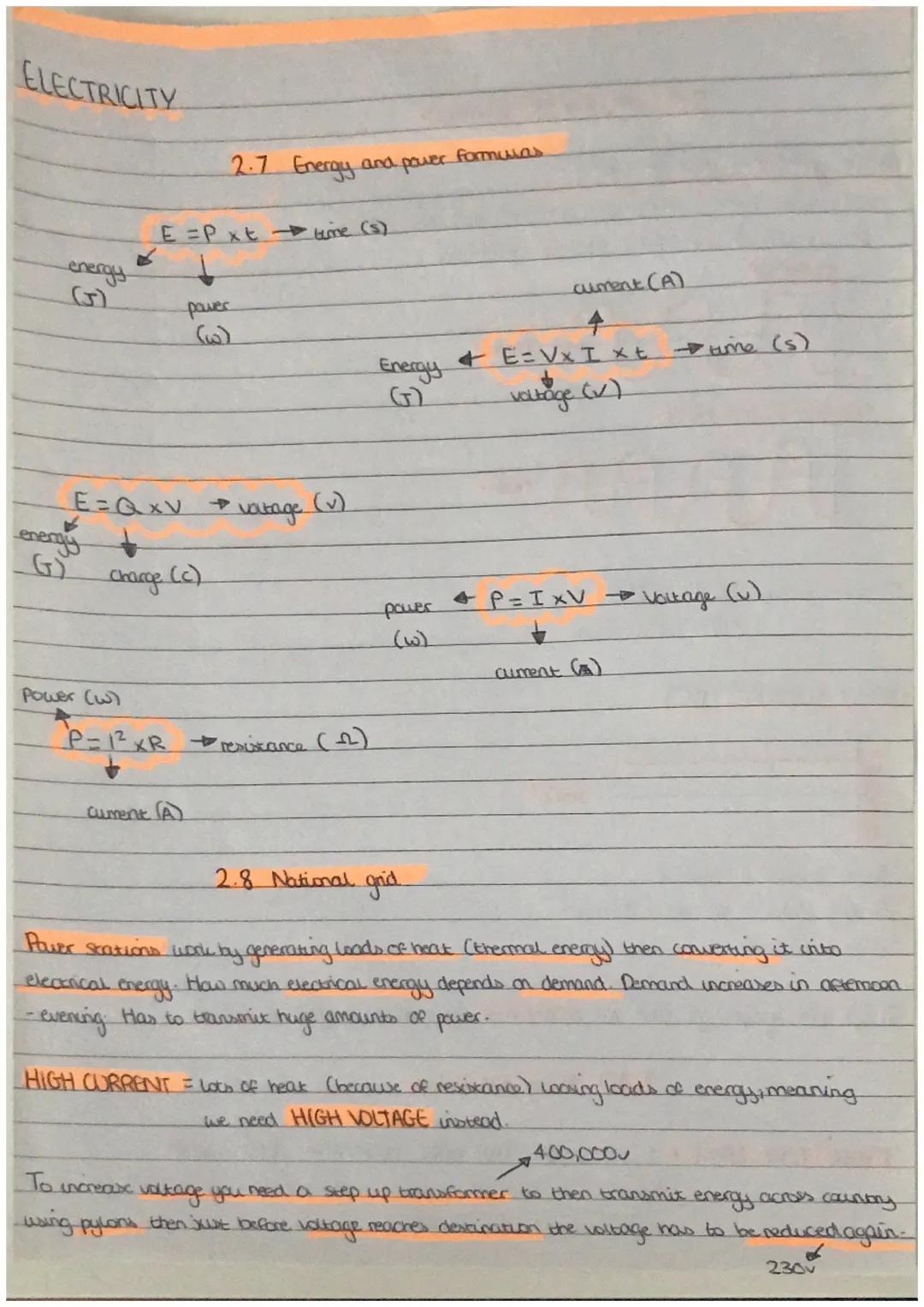

Energy, Power, and the National Grid

Power calculations might seem daunting, but they're just different ways of expressing how quickly energy is used. The key formulas are P = I × V, P = I²R, and E = P × t. These help you calculate everything from your electricity bill to how much energy your devices consume.

Power stations generate massive amounts of electrical energy by converting thermal energy. The tricky part is getting this power to your home efficiently - and that's where voltage becomes crucial.

Here's why the national grid uses such high voltages: high current creates lots of heat due to resistance, wasting enormous amounts of energy. Instead, we use step-up transformers to create 400,000V for transmission, then step-down transformers to reduce it to 230V for your home.

Mind-blowing Fact: The national grid voltage is nearly 2,000 times higher than what comes out of your wall socket!

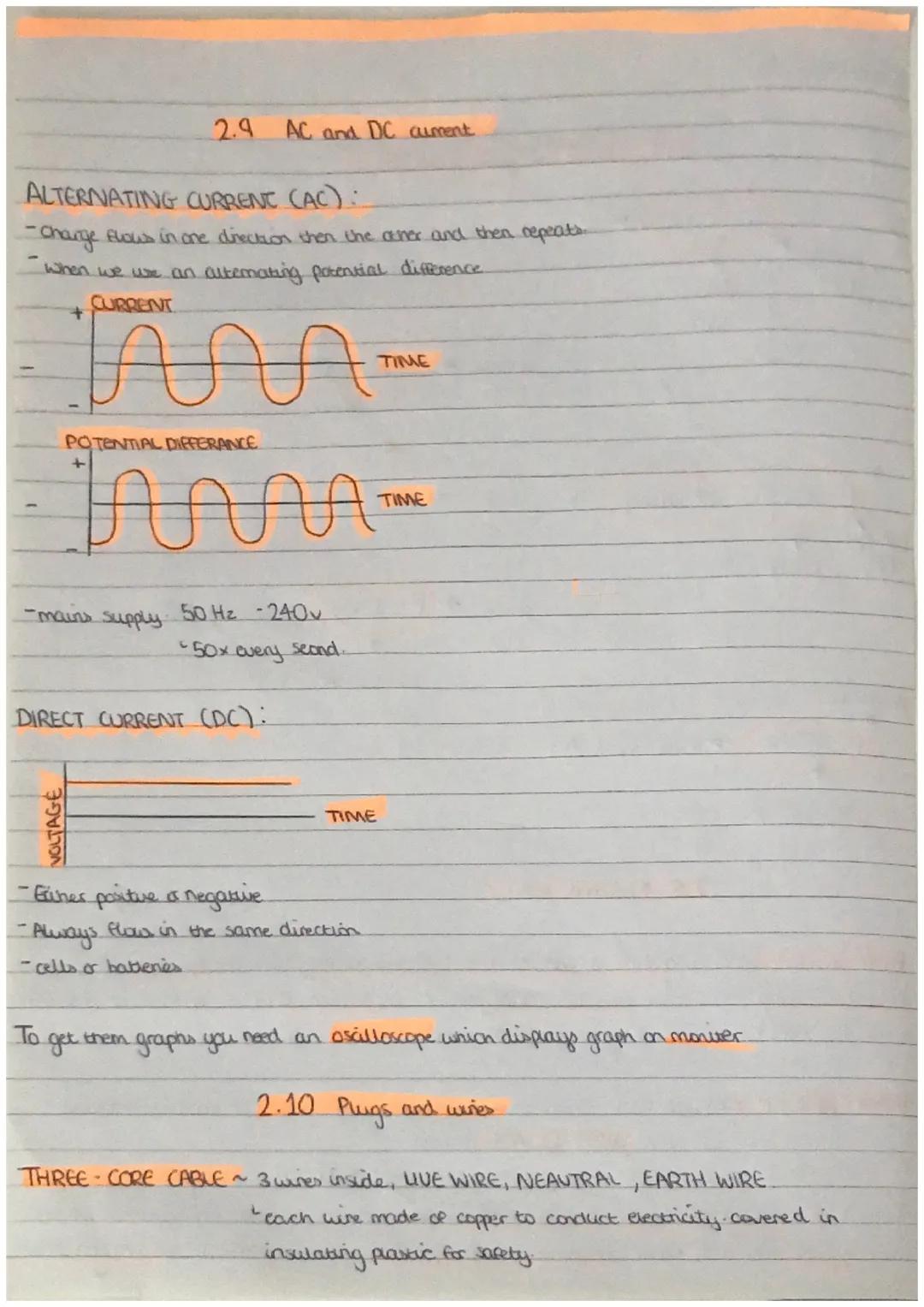

AC vs DC Current

Direct current (DC) flows in one direction constantly - like water flowing down a straight river. Your phone battery and laptop provide DC power, with voltage staying steady over time.

Alternating current (AC) changes direction 50 times every second in the UK - imagine water sloshing back and forth rapidly. This is what comes from your wall sockets at 230V, and it's perfect for transmitting power over long distances.

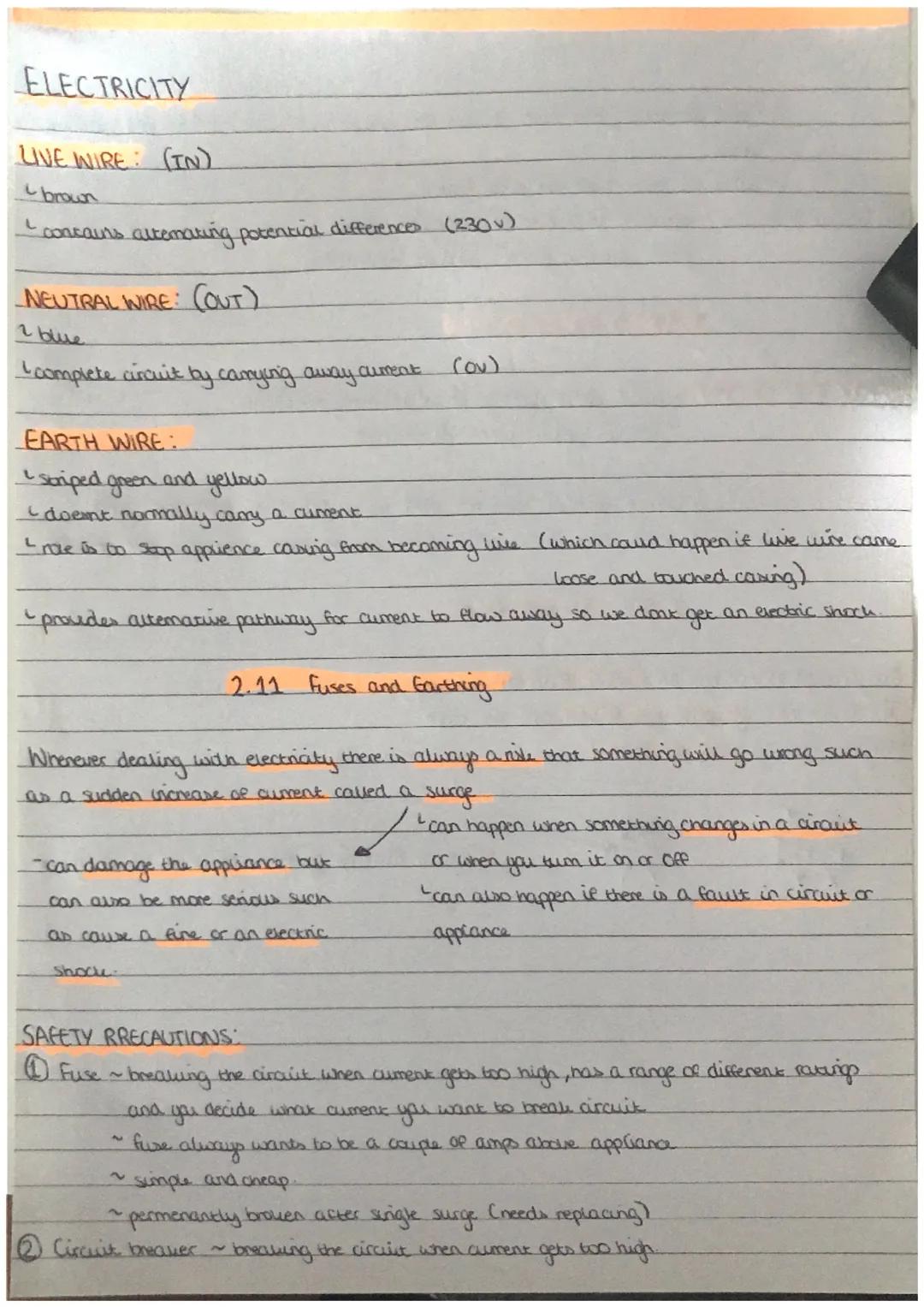

Understanding three-core cables is essential for electrical safety. The live wire (brown) carries 230V, the neutral wire (blue) completes the circuit at 0V, and the earth wire (green and yellow stripes) provides a safety pathway if something goes wrong.

You'll measure these currents using an oscilloscope, which displays the wave patterns on a screen - DC appears as straight lines, whilst AC creates the characteristic wave shape.

Safety First: Never forget - brown is live and dangerous, blue is neutral, and green/yellow is earth for protection!

Electrical Safety and Protection

Electrical surges can happen anytime - when you switch appliances on or off, or when circuits develop faults. These sudden current increases can damage equipment, cause fires, or give you electric shocks.

Fuses are your first line of defence - they contain a thin wire that melts when current gets too high, breaking the circuit instantly. Choose a fuse rating just a couple of amps above what your appliance needs. They're cheap but need replacing after each surge.

Circuit breakers do the same job but can be reset after tripping - just flip the switch back on. They're slightly more expensive but much more convenient than replacing fuses constantly.

Double insulation means appliances are covered in plastic casing with no exposed metal parts. Since plastic doesn't conduct electricity, you're protected even if internal wires come loose.

Practical Tip: Always check fuse ratings when replacing them - too high won't protect your appliance, too low will keep blowing unnecessarily!

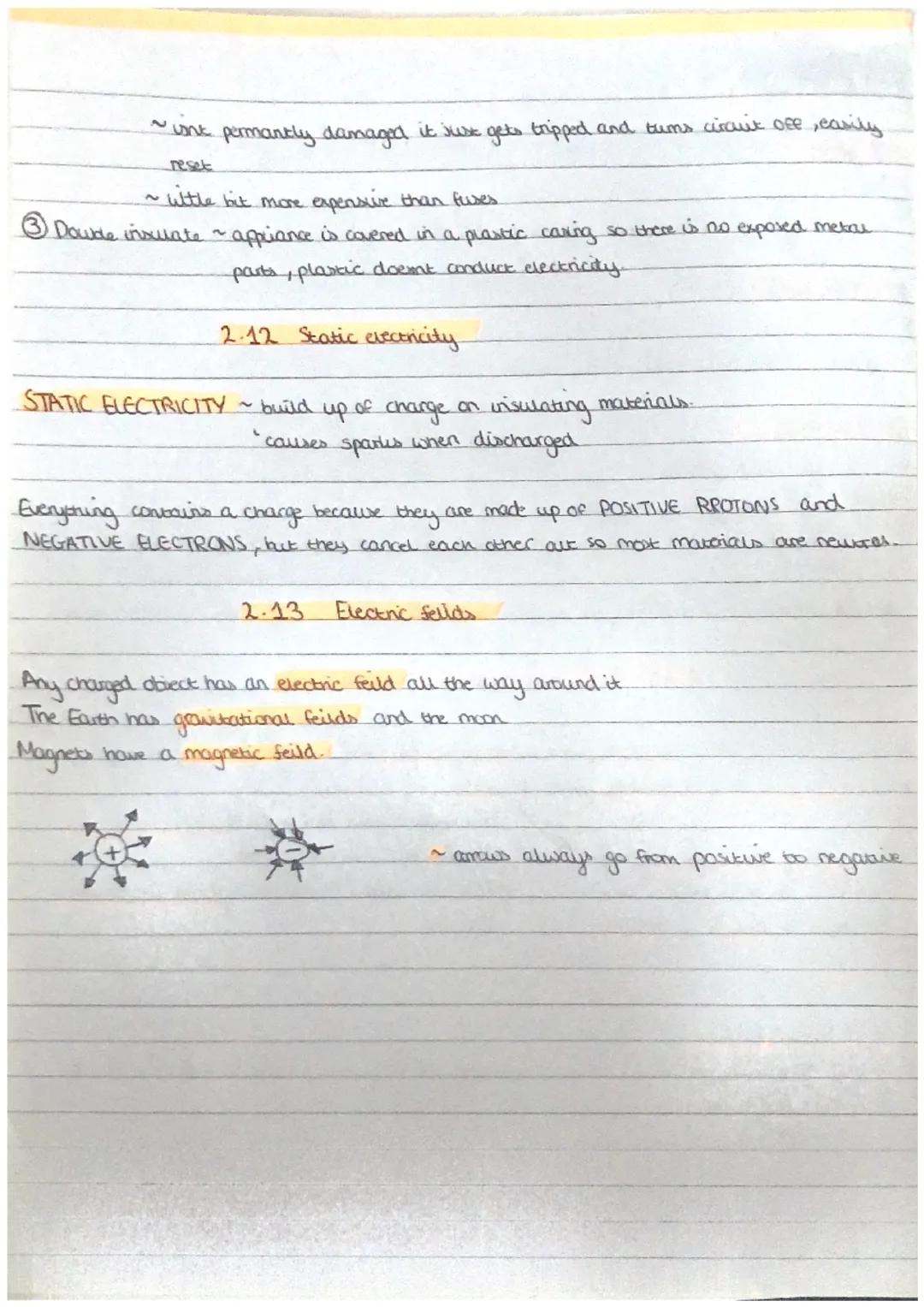

Static Electricity and Electric Fields

Static electricity builds up on insulating materials when electrons can't flow away easily. You experience this when your hair stands up after going down a plastic slide or when you get shocked touching a door handle.

Everything contains equal numbers of positive protons and negative electrons, so materials are normally neutral. Static builds up when this balance gets disturbed through friction or contact with other materials.

Electric fields exist around any charged object - just like gravitational fields around planets or magnetic fields around magnets. These invisible fields show the direction a positive charge would move, and they always point from positive to negative regions.

Understanding electric fields helps explain why static sparks jump across gaps and why your hair is attracted to charged balloons. The stronger the field, the more dramatic the effects you'll observe.

Fun Fact: Lightning is just static electricity on a massive scale - the same principles apply whether it's a tiny spark or a huge thunderbolt!
