Understanding Electrical Circuits in Physics
Aliki ๐ฉต
@study_wabbit

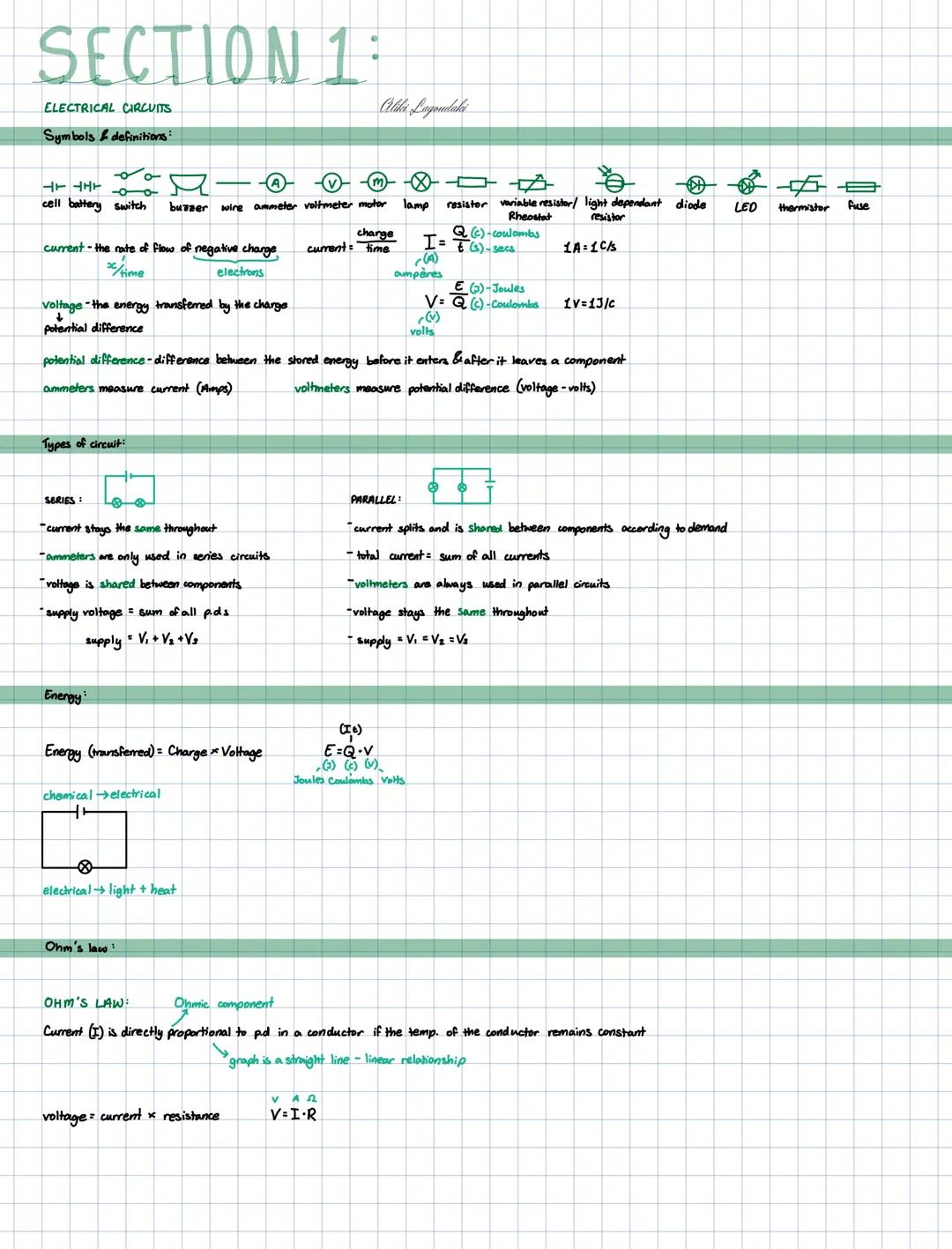

Electrical Circuits Fundamentals
Think of current as the flow of tiny charged particles (electrons) rushing through a wire - it's measured in amperes (A) and calculated as charge divided by time. When 1 coulomb of charge flows past a point in 1 second, you've got 1 amp of current.
Voltage (or potential difference) is the energy push that makes electrons move around a circuit. It's like the pressure in a water pipe - the higher the voltage, the more energy each electron carries. Voltage is measured in volts (V), where 1 volt equals 1 joule of energy per coulomb of charge.
Series circuits keep things simple: current stays the same throughout the entire loop, but voltage gets shared between components. Parallel circuits work differently - voltage stays constant, but current splits up between different branches. This is why your bedroom lights don't dim when you plug in your phone charger!
Quick Tip: Remember that ammeters always go in series (to measure current flow), whilst voltmeters always connect in parallel (to measure the energy difference across components).

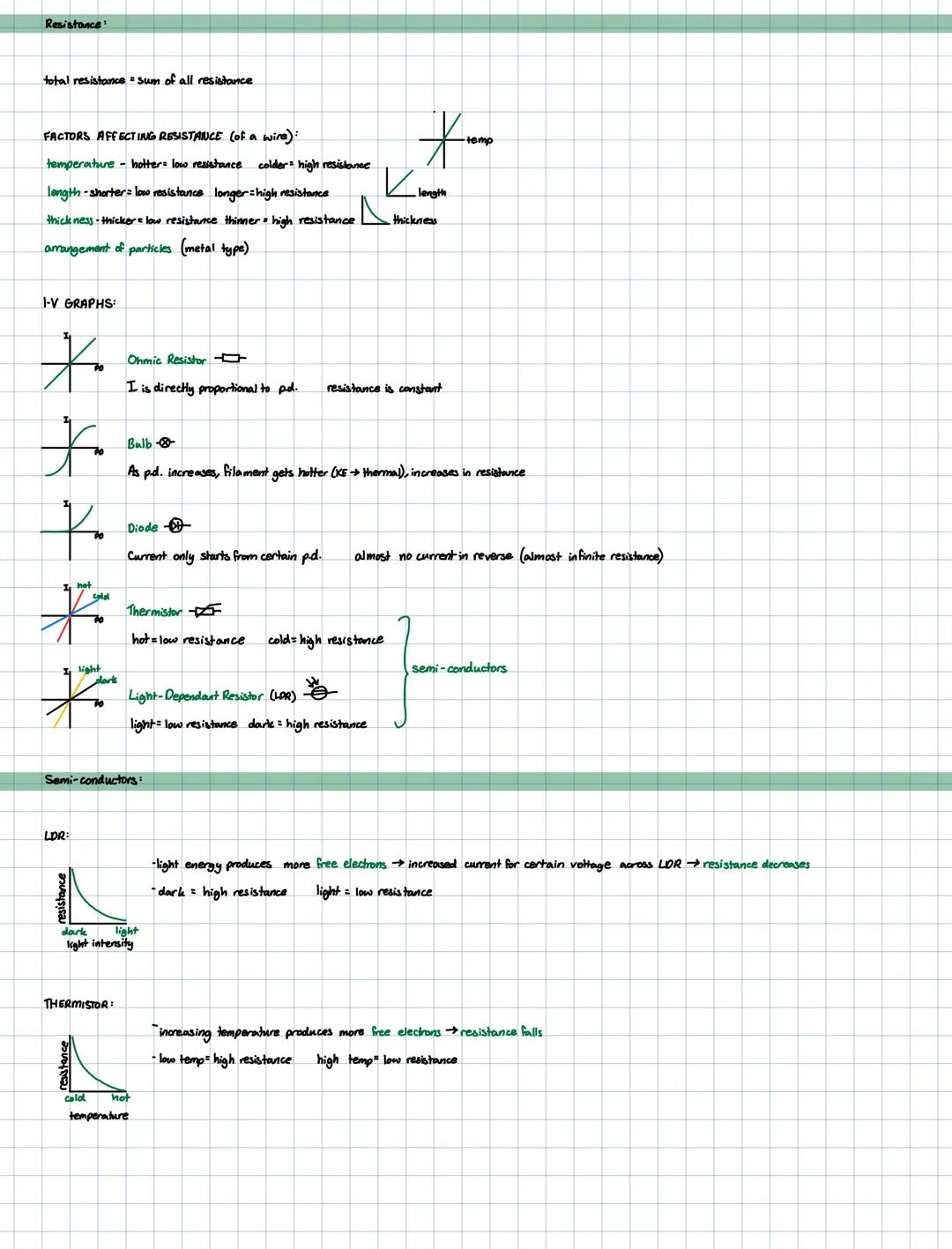

Resistance and Circuit Behaviour
Resistance is what slows down current flow - think of it as electrical friction. Ohm's Law shows the relationship: voltage equals current times resistance . Components that follow this rule perfectly are called ohmic, and they produce straight-line graphs.
Several factors affect a wire's resistance. Temperature matters most - hot wires have high resistance, cold ones have low resistance. Length and thickness count too: longer or thinner wires create more resistance, whilst shorter or thicker wires let current flow more easily.
I-V graphs reveal how different components behave. Light bulbs show curved lines because their filaments heat up and increase resistance. Diodes only let current flow one way after a certain voltage. Thermistors and Light-Dependant Resistors (LDRs) are special semiconductors that change resistance based on temperature and light.
Real-world Connection: Your phone's screen brightness automatically adjusts using an LDR - bright light creates low resistance, telling the phone to increase screen brightness, whilst darkness creates high resistance, dimming the display.
