Understanding the Particle Model of Matter in Physics

user profile picture

Charlotte @charlotte26

Ever wondered why ice floats on water or why you can smell food cooking from across the room?... Show more

III

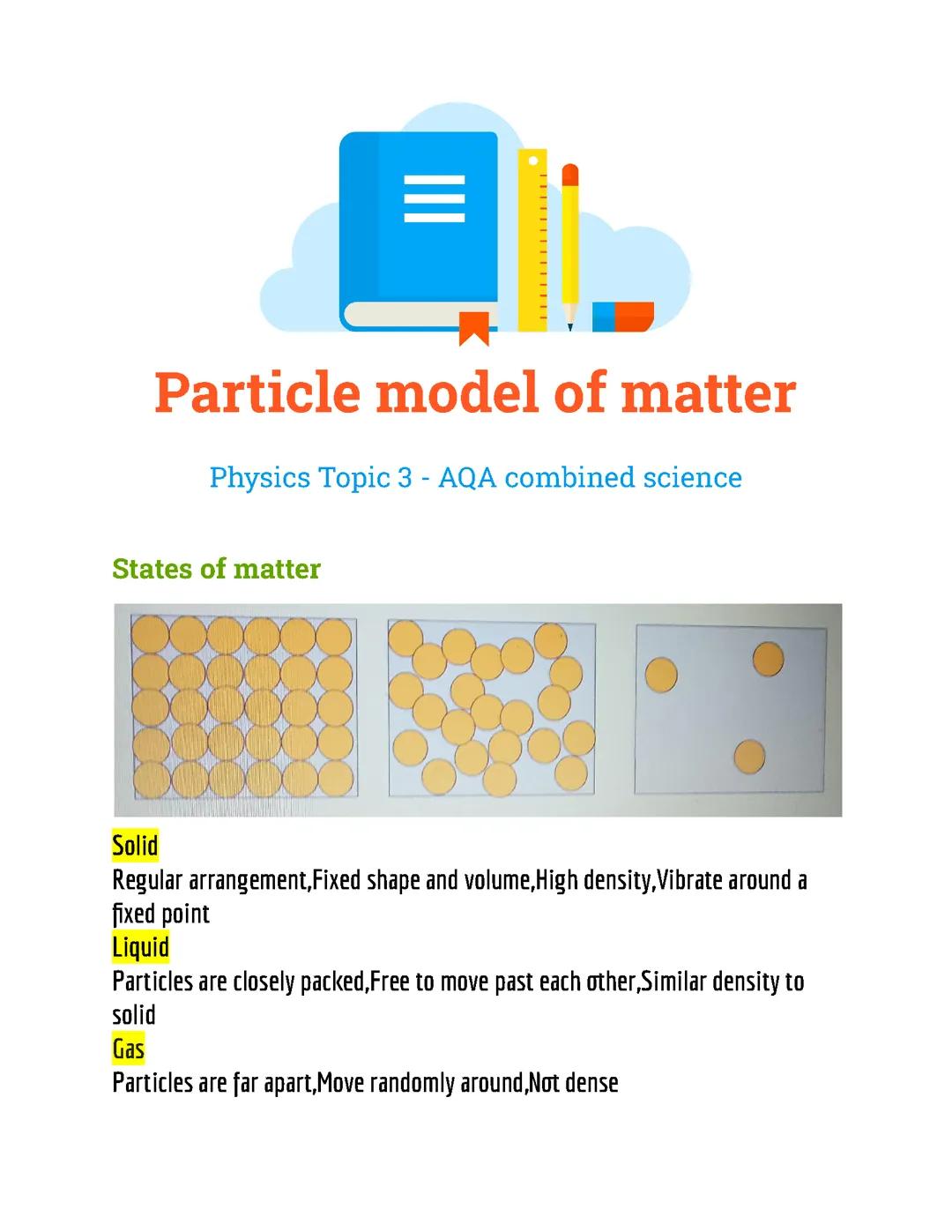

Particle model of matter
Physics Topic 3 - AQA combined science
States of matter
Solid
Regular arrangement, Fixed shape and volume,High

States of Matter

The particle model explains everything around you through three simple states. Solids have particles packed in regular arrangements that just vibrate around fixed points - think of them as people standing in neat rows, barely moving. This gives solids their fixed shape, volume, and high density.

Liquids are where things get interesting. The particles stay closely packed but can now slide past each other like people in a crowded corridor. They keep similar density to solids but lose that fixed shape.

Gases are the rebels of the particle world. Their particles zoom around randomly with loads of space between them, making gases much less dense than solids or liquids.

Top Tip Remember that density decreases as you go from solid to liquid to gas because the particles get more spread out!

III
Particle model of matter
Physics Topic 3 - AQA combined science
States of matter
Solid
Regular arrangement, Fixed shape and volume,High

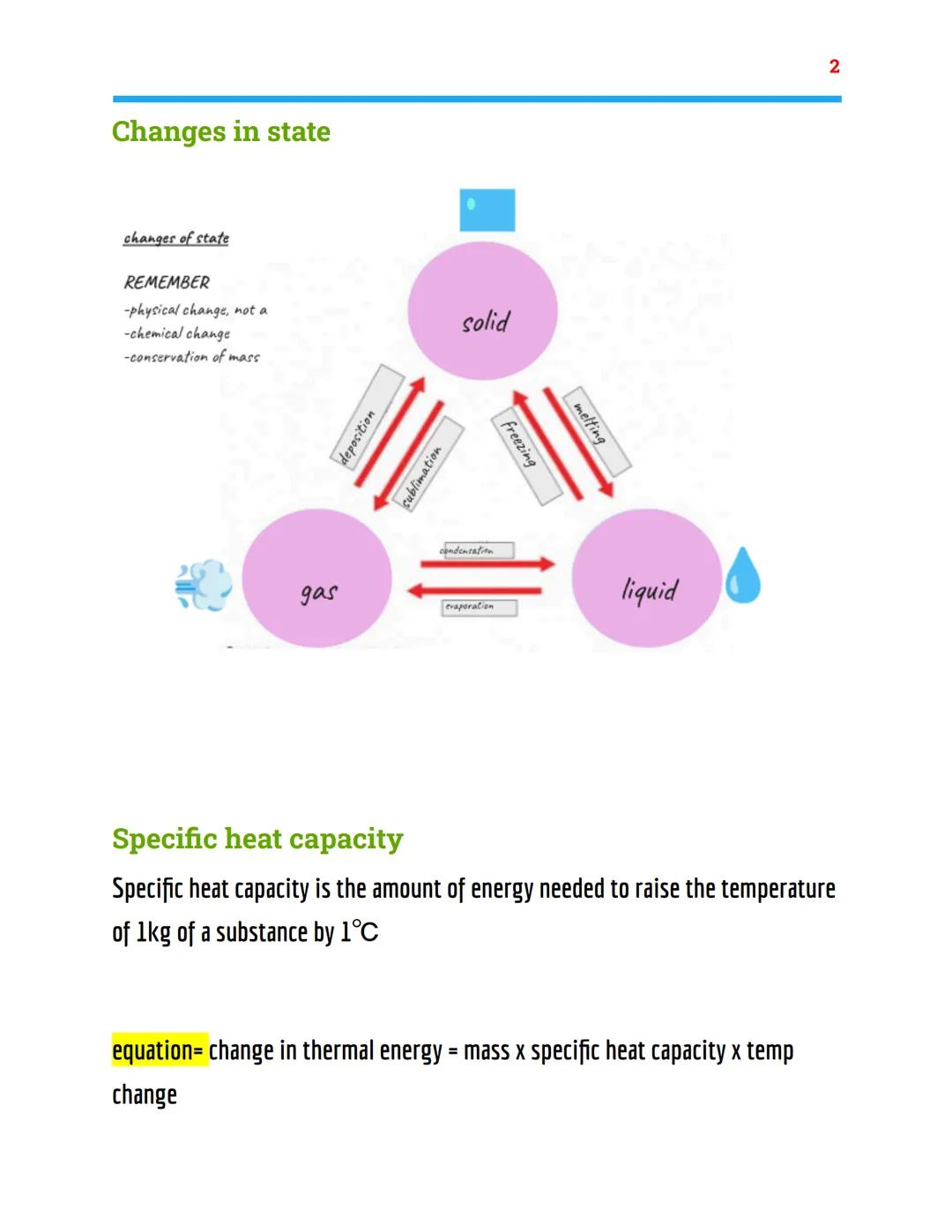

Changes of State and Specific Heat Capacity

When matter changes state, you're witnessing a physical change - no new substances form, and mass stays constant throughout. The particle model shows us six key transitions melting, freezing, evaporation, condensation, sublimation, and deposition.

Specific heat capacity measures how much energy you need to heat up 1kg of a substance by 1°C. Different materials need different amounts of energy - that's why metal feels colder than wood at the same temperature.

The essential equation is change in thermal energy = mass × specific heat capacity × temperature change. This formula helps you calculate exactly how much energy any heating or cooling process requires.

Exam Smart Always include units in your calculations - energy in Joules (J), mass in kilograms (kg), and temperature in degrees Celsius (°C).

III
Particle model of matter
Physics Topic 3 - AQA combined science
States of matter
Solid
Regular arrangement, Fixed shape and volume,High

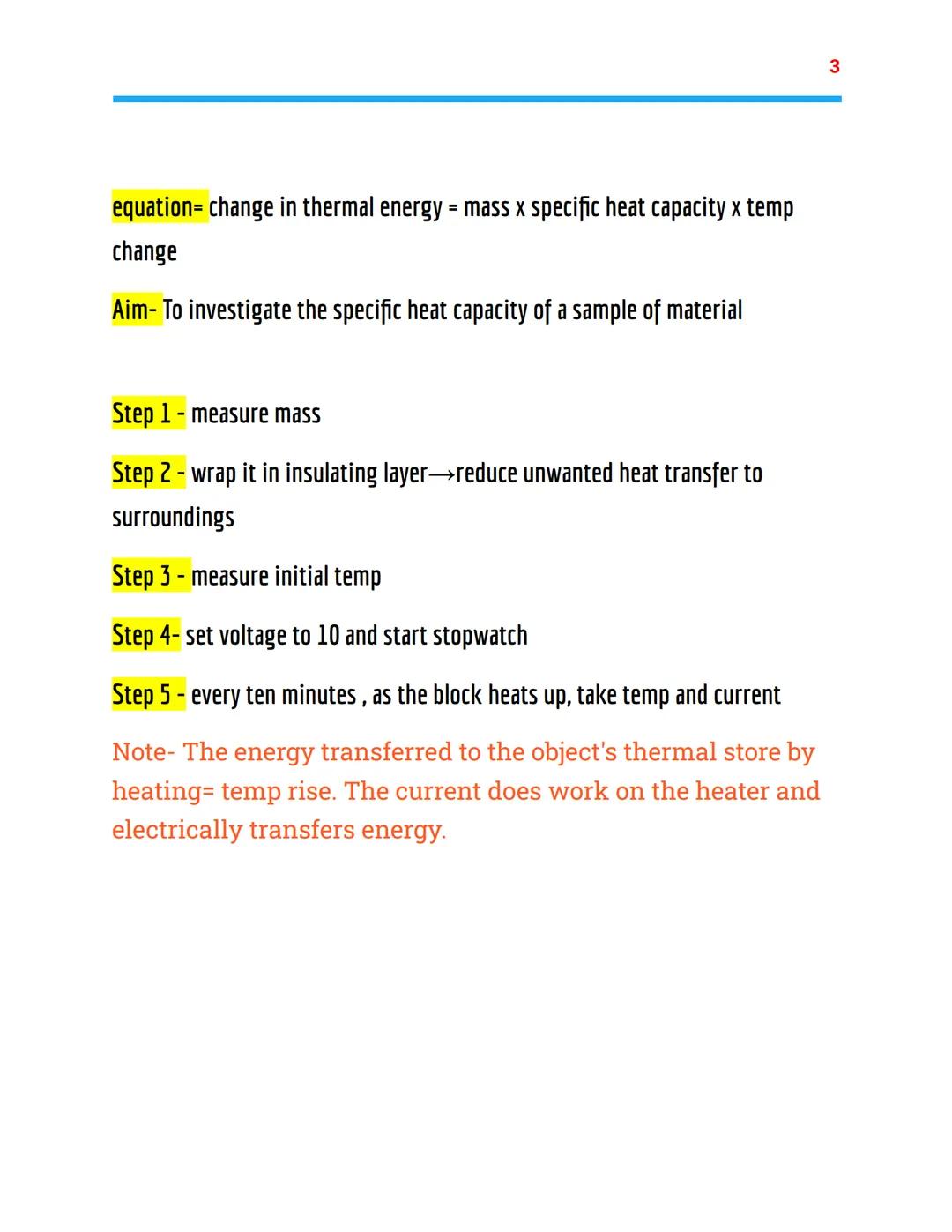

Investigating Specific Heat Capacity

This practical investigation lets you measure specific heat capacity yourself using some clever physics. You'll need to measure the mass of your material sample, then wrap it in insulation to prevent heat escaping to the surroundings.

The method involves heating the block with a known voltage whilst recording temperature and current every ten minutes. The electrical heater does work on the block, transferring energy to its thermal store.

Your stopwatch timing needs to be spot-on because you're measuring how energy input relates to temperature rise. The insulation is crucial - without it, loads of heat escapes and ruins your results.

Safety Note Always handle heated materials carefully and ensure electrical equipment is checked before use - hot blocks can cause burns!

III
Particle model of matter
Physics Topic 3 - AQA combined science
States of matter
Solid
Regular arrangement, Fixed shape and volume,High

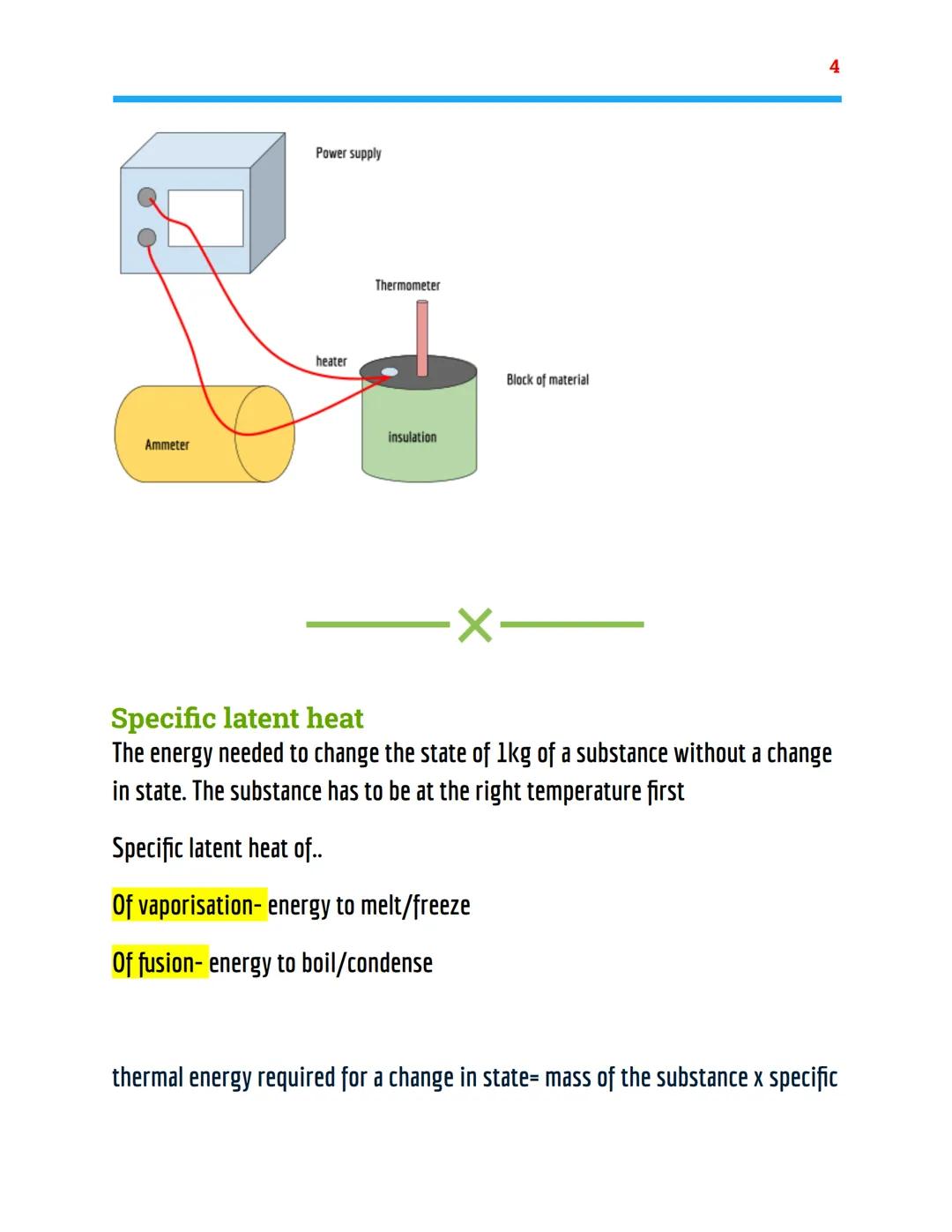

Specific Latent Heat

Specific latent heat is the energy needed to change 1kg of a substance's state without changing its temperature. This might sound odd, but energy still goes in even when the thermometer reading stays the same.

There are two types you need to know latent heat of fusion energyformelting/freezingenergy for melting/freezing and latent heat of vaporisation energyforboiling/condensingenergy for boiling/condensing. The substance must already be at the right temperature before the state change begins.

The equation is thermal energy for state change = mass × specific latent heat. The key difference from specific heat capacity is that latent heat involves no temperature change - all the energy goes into breaking or forming bonds between particles.

Remember During state changes, temperature stays constant even though energy is still being transferred - this often catches students out in exams!

III
Particle model of matter
Physics Topic 3 - AQA combined science
States of matter
Solid
Regular arrangement, Fixed shape and volume,High

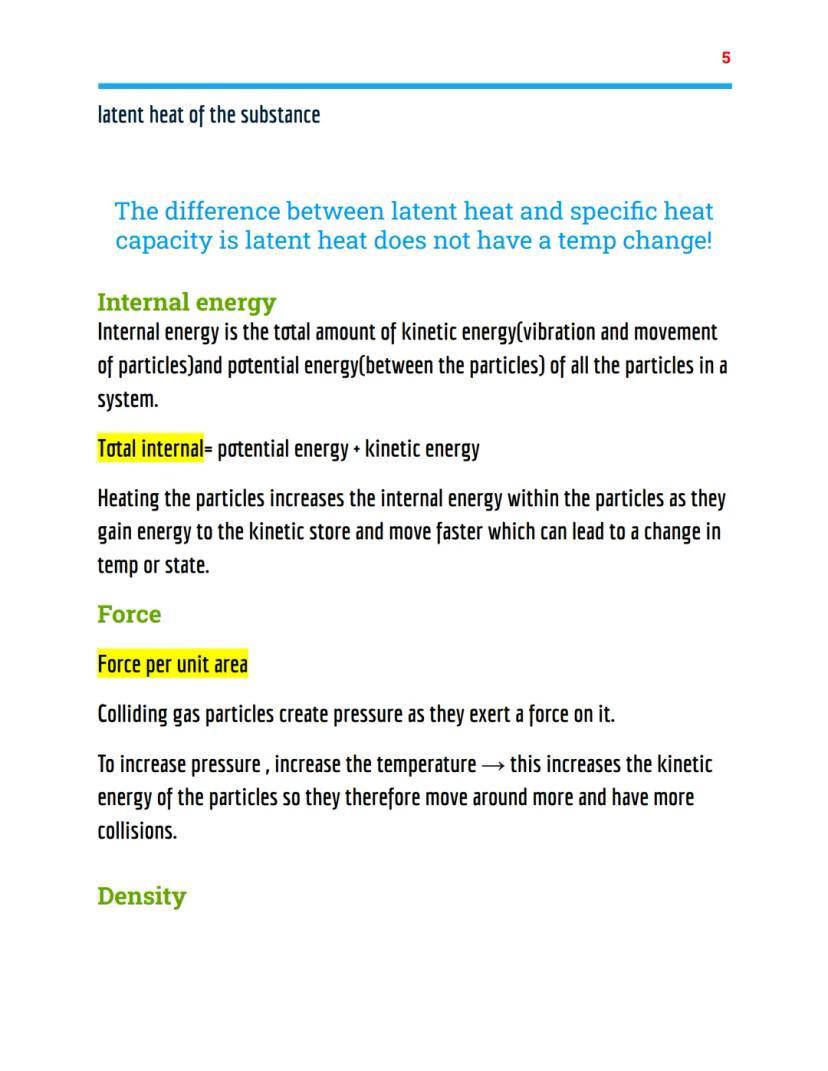

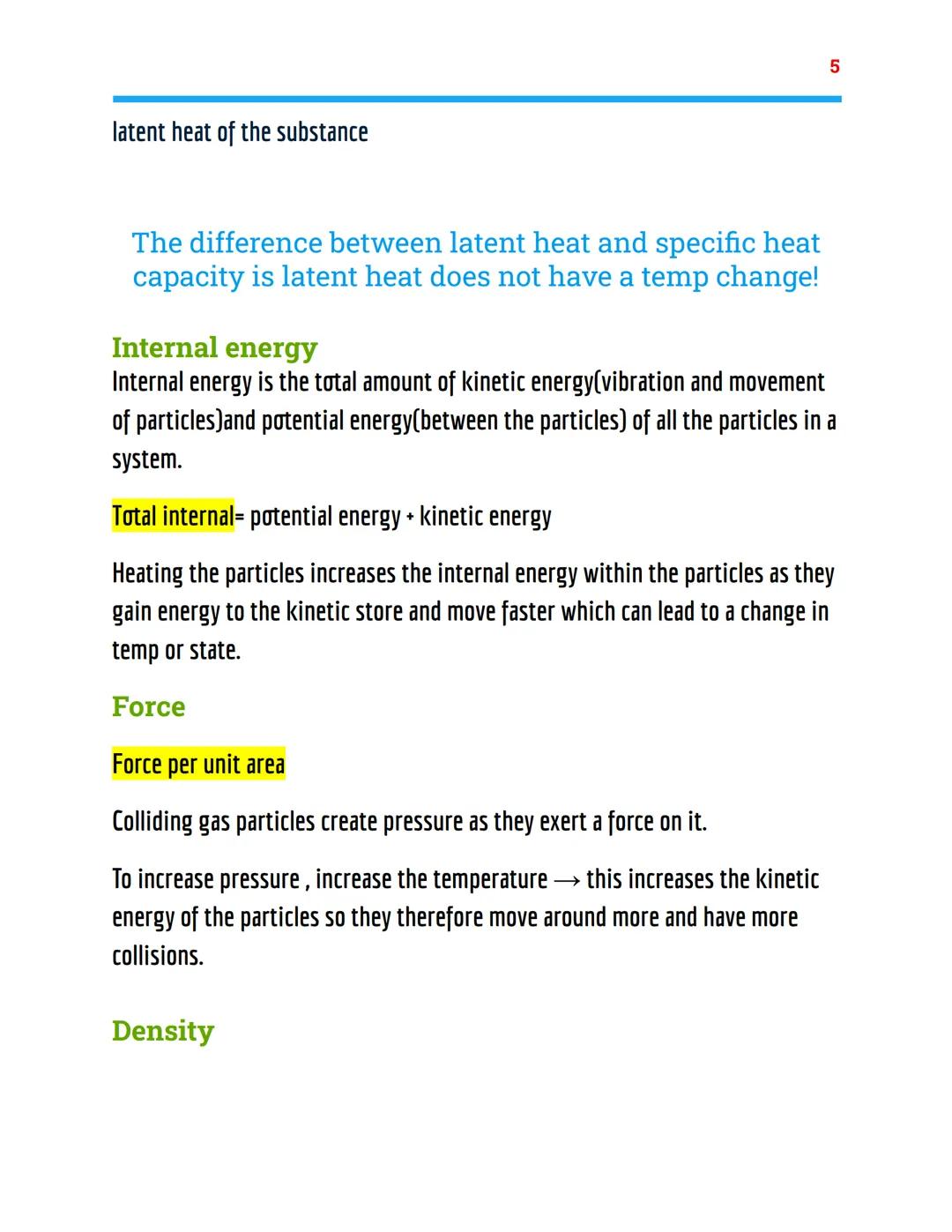

Internal Energy and Pressure

Internal energy combines all the kinetic energy (particle movement and vibration) and potential energy (forces between particles) in a system. When you heat something, particles gain kinetic energy and move faster, potentially causing temperature rises or state changes.

Pressure results from gas particles colliding with container walls, creating force per unit area. Want higher pressure? Increase the temperature - this gives particles more kinetic energy, making them move faster and collide more frequently with greater force.

Understanding internal energy helps explain why heating doesn't always increase temperature. During state changes, the extra energy breaks bonds rather than speeding up particles.

Think About It A pressure cooker works by increasing pressure to raise the boiling point - food cooks faster at higher temperatures!

III
Particle model of matter
Physics Topic 3 - AQA combined science
States of matter
Solid
Regular arrangement, Fixed shape and volume,High

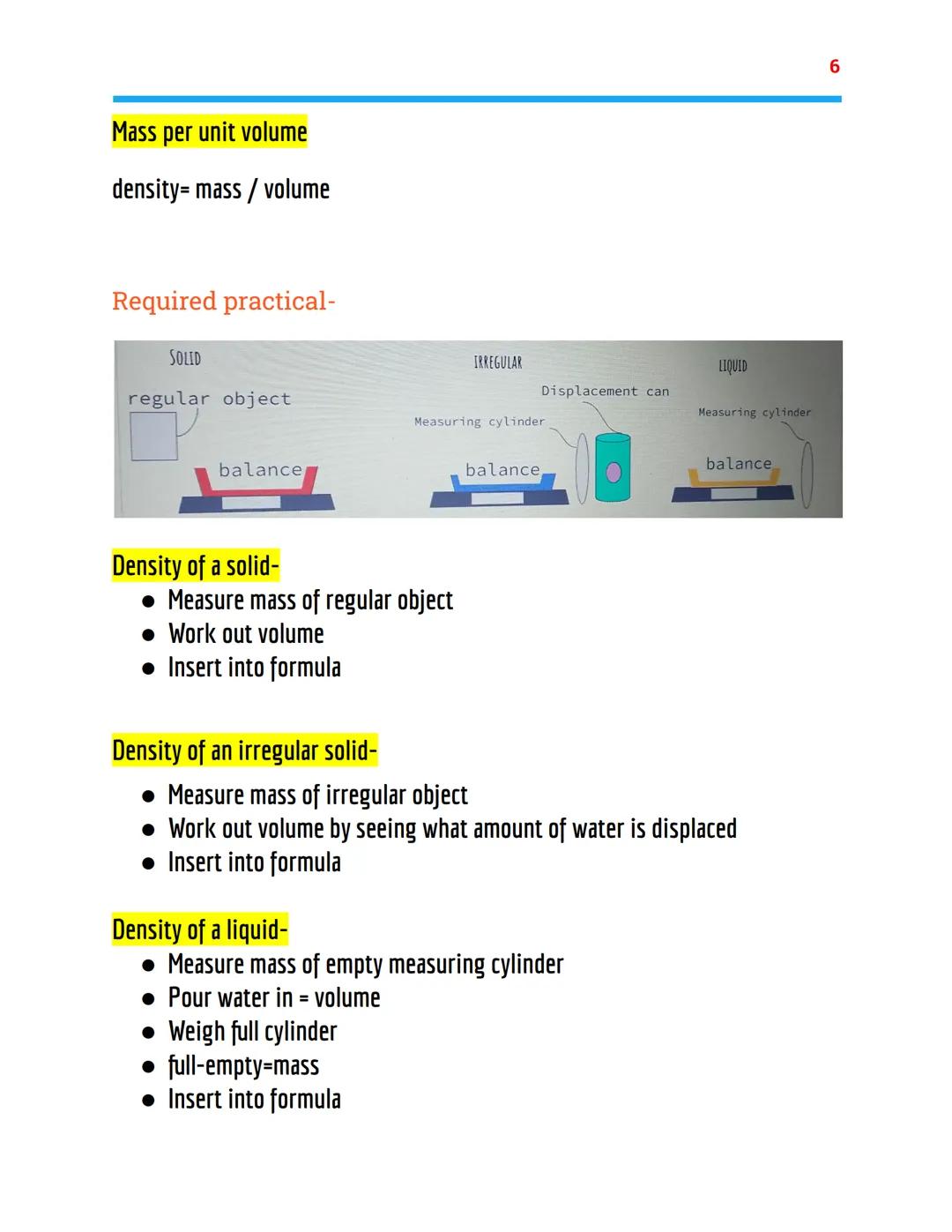

Measuring Density

Density equals mass per unit volume, and measuring it depends on whether your sample is a regular solid, irregular solid, or liquid. Each method uses the same principle but different techniques to find volume.

For regular solids, calculate volume using length × width × height measurements. Irregular solids require the displacement method - measure how much water they push aside in a displacement can or measuring cylinder.

Liquids need a measuring cylinder approach weigh the empty cylinder, add your liquid to measure volume, then weigh again. The difference gives you the liquid's mass, and you already know the volume.

Practical Tip Always read measuring cylinders at eye level from the bottom of the meniscus for accurate volume readings!
