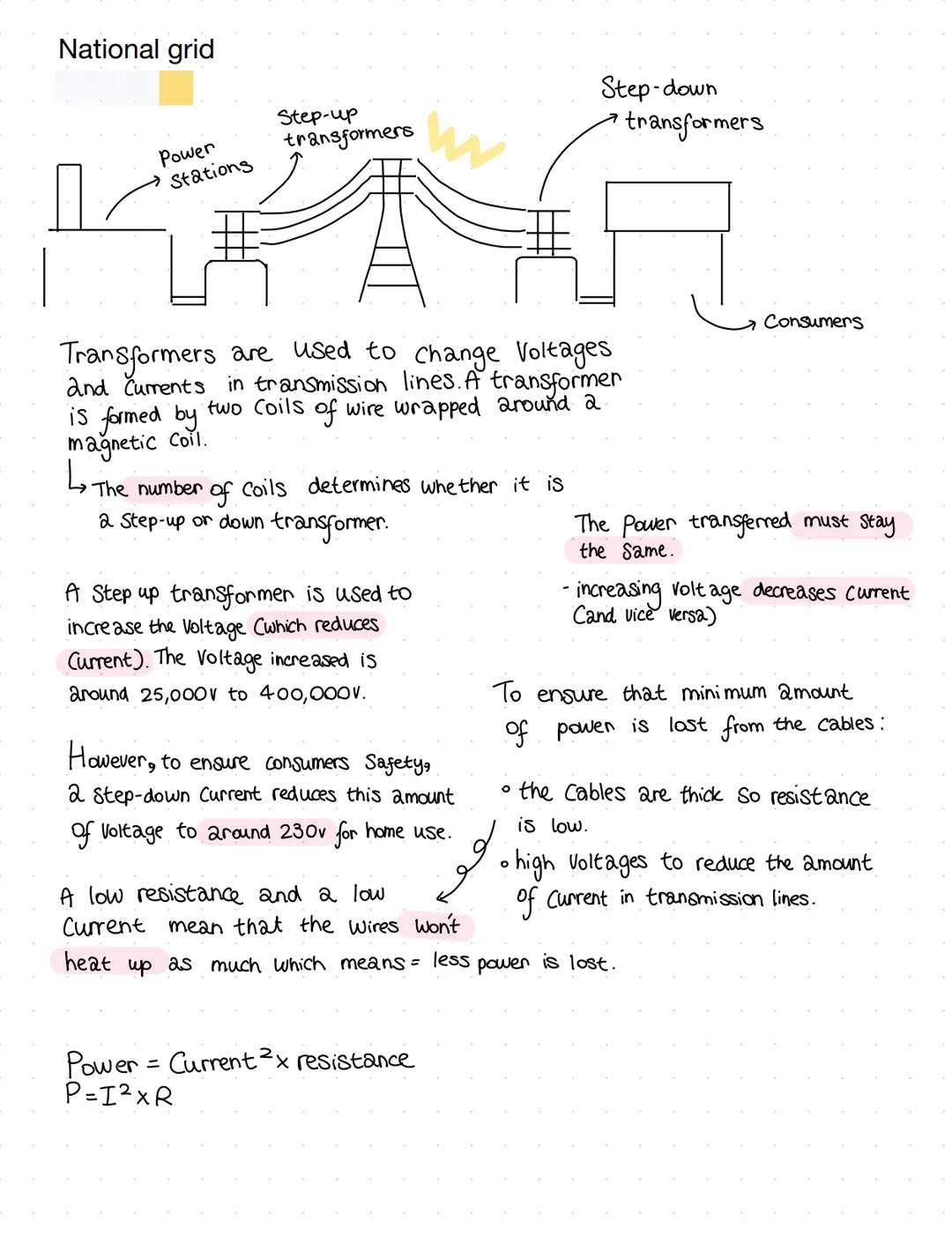

The National Grid System
Ever wondered how electricity gets from power stations to your phone charger? The national grid is like a massive electrical highway that connects power stations to every home and business in the country.
Transformers are the clever devices that make this whole system work safely. They're essentially two coils of wire wrapped around a magnetic core, and the number of coils determines whether they step voltage up or down. Think of them as electrical gear shifters!
Here's the brilliant bit: step-up transformers boost voltage from around 25,000V to a whopping 400,000V for transmission lines. This might seem dangerous, but it's actually genius - higher voltage means lower current, and that's exactly what we want.
Quick Tip: Remember P = I²R - this formula shows why reducing current (I) dramatically cuts power losses in cables.
The system uses thick cables and high voltages specifically to minimise energy waste. Less current flowing through low-resistance cables means the wires don't heat up much, so hardly any power gets lost along the way.
2
of 2

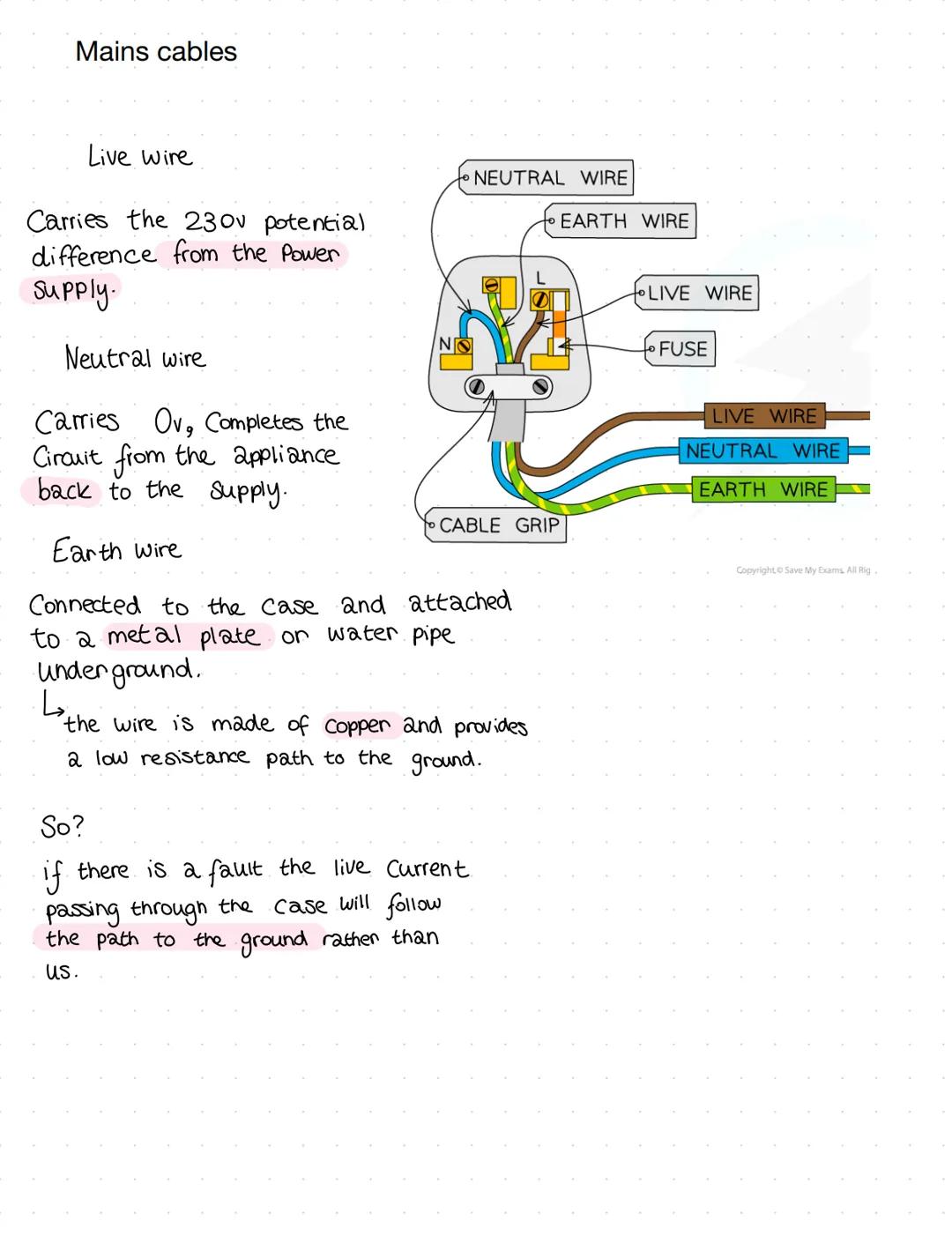

Mains Cables and Safety
Your home's electrical safety depends on three crucial wires working together perfectly. The live wire carries 230V from the power supply - this is the one that could give you a nasty shock.
The neutral wire carries 0V and completes the circuit back to the supply. It's like the return journey for electrons after they've powered your devices.
But the real hero is the earth wire - a copper wire connected to your appliance's case and literally buried in the ground. It provides an ultra-low resistance path that electricity prefers over your body.
Safety Note: If there's a fault and the live wire touches the case, current will rush down the earth wire instead of through you - potentially saving your life!
Step-down transformers reduce that massive transmission voltage back down to the safe 230V used in homes. Without them, plugging in your laptop would be rather explosive! This whole system ensures you get reliable power while staying safe.
We thought you’d never ask...
What is the Knowunity AI companion?
Our AI Companion is a student-focused AI tool that offers more than just answers. Built on millions of Knowunity resources, it provides relevant information, personalised study plans, quizzes, and content directly in the chat, adapting to your individual learning journey.
