Understanding Potential Difference: AC vs DC and More!

Understanding electrical concepts is fundamental to working with circuits and power systems.

Potential difference, measured in volts (V), represents the driving force that pushes electrons through a circuit. When there is a potential difference between two points, an electric current flows as electrons move through a conductor. This movement creates electrical current, which is measured in amperes (A). It's important to note that potential difference is measured in volts, not joules - this is a common misconception among students.

The distinction between AC (Alternating Current) and DC (Direct Current) is crucial in electrical systems. Alternating current periodically changes direction, while DC flows consistently in one direction. A battery provides DC power, making it suitable for portable devices. Common AC and DC appliances demonstrate this difference - household outlets deliver AC power for large appliances, while smartphones use DC power from batteries. The difference between AC and DC voltage lies in their waveform patterns - AC follows a sinusoidal wave, while DC maintains a constant voltage level.

Several factors affecting electrical resistance in conductors impact how easily current flows through a material. The four main factors that affect resistance include temperature, length of the conductor, cross-sectional area, and the material's inherent resistivity. According to the factors affecting resistance formula, resistance increases with length and temperature but decreases with larger cross-sectional areas. In practical applications, understanding these factors is essential for designing efficient electrical systems and selecting appropriate materials for specific applications. For instance, copper is widely used in electrical wiring because it offers low resistance and good conductivity. Temperature effects are particularly important in electrical resistance in conductors, as most materials show increased resistance with higher temperatures, affecting their performance in electrical circuits.

...

06/05/2023

667

5

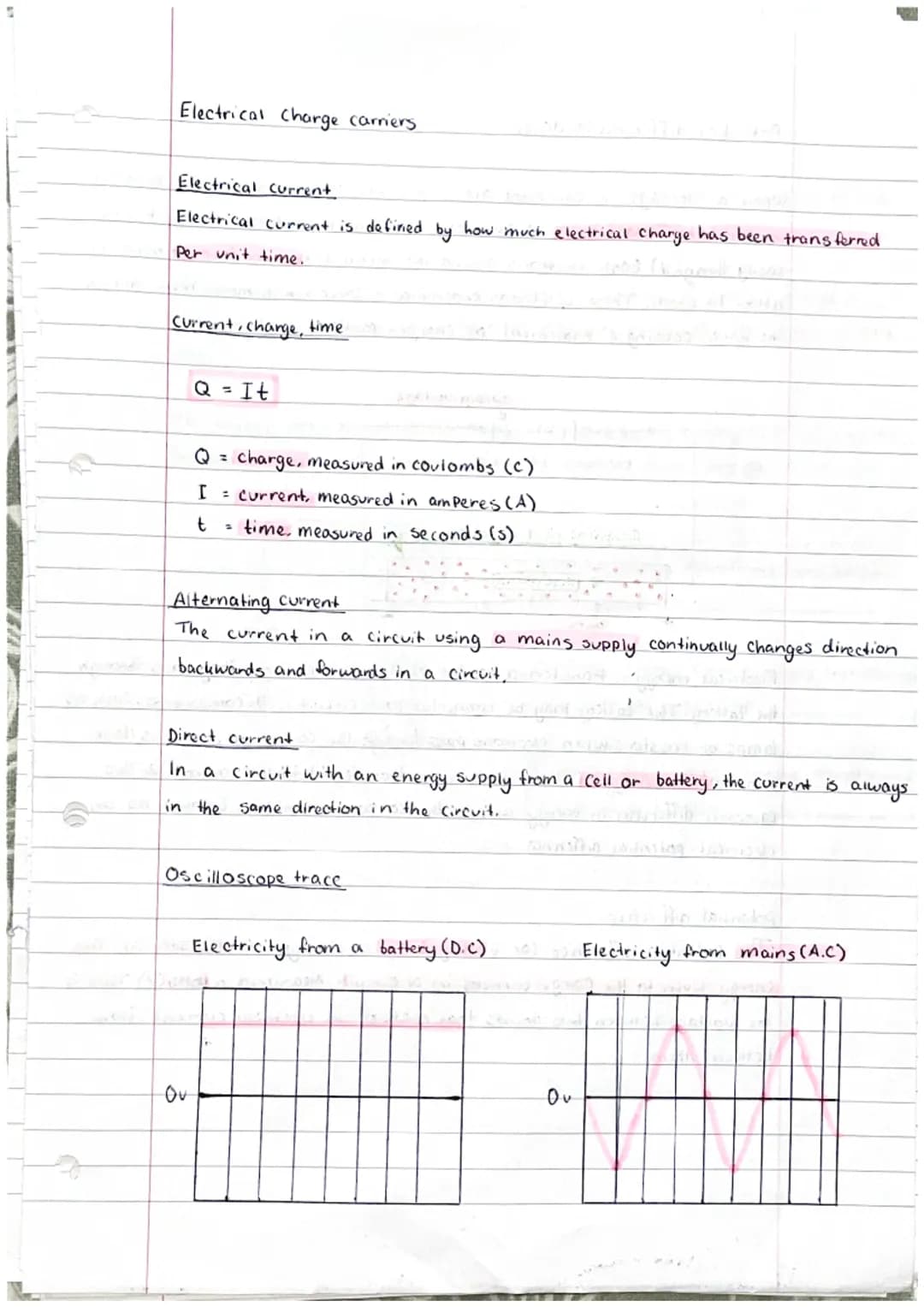

Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

View

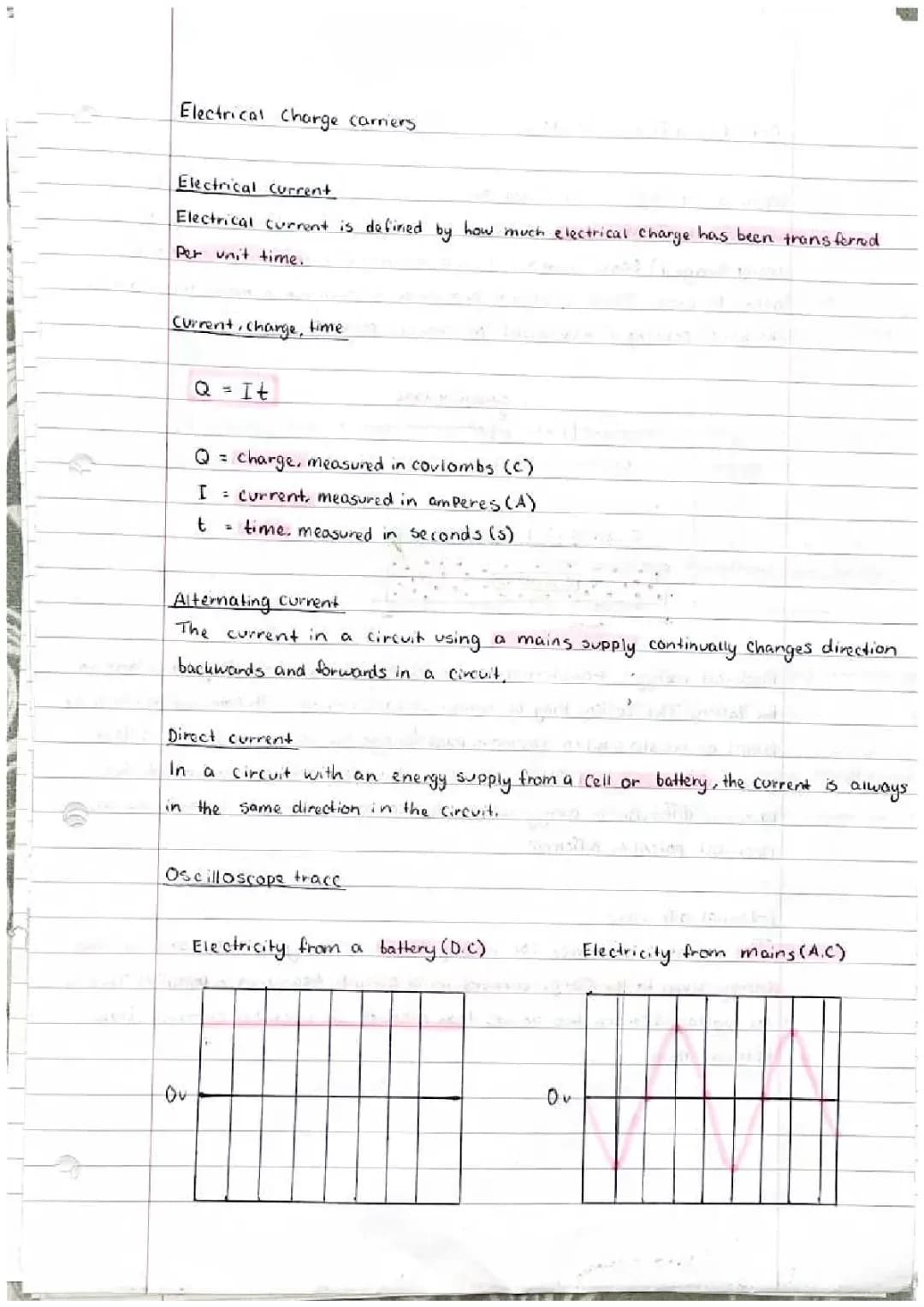

Understanding Electrical Current and Charge Carriers

What is potential difference and electrical current are fundamental concepts in circuit theory. When discussing how an electric current flows when what move through a conductor, we must understand that electrons are the primary charge carriers in metallic conductors. Current is measured in amperes (A) and represents the rate at which electrical charge flows through a circuit.

The relationship between current (I), charge (Q), and time (t) is expressed through the formula: I = Q/t, where charge is measured in coulombs (C) and time in seconds (s). This fundamental equation helps us understand how electrical charge transfer occurs over time in circuits.

Definition: Electrical current is the rate of flow of electrical charge carriers (typically electrons) through a conductor, measured in amperes (A).

Difference between AC and DC examples shows two distinct types of current flow. What is alternating current? AC current periodically reverses direction, typically 50-60 times per second in household electricity. In contrast, Is a battery AC or DC? Batteries provide DC current, which flows consistently in one direction. This distinction is crucial for understanding List of AC and DC appliances and their operation.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

View

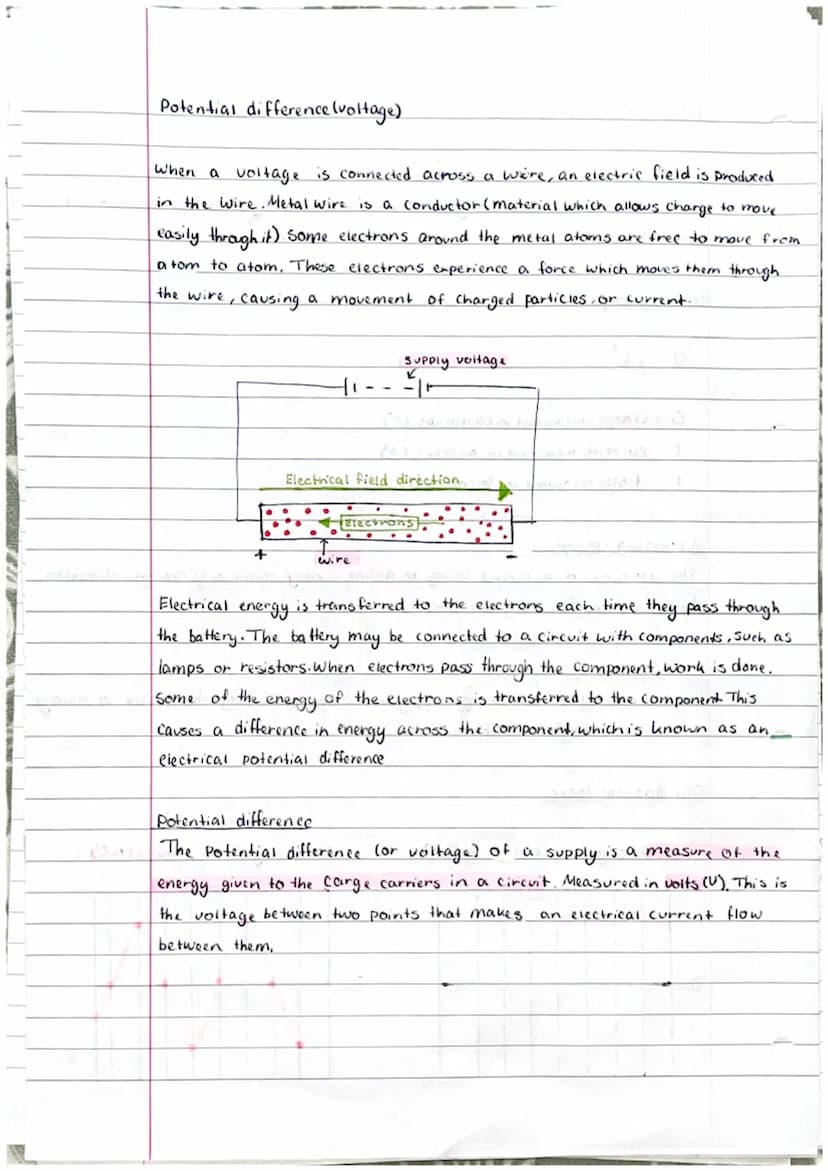

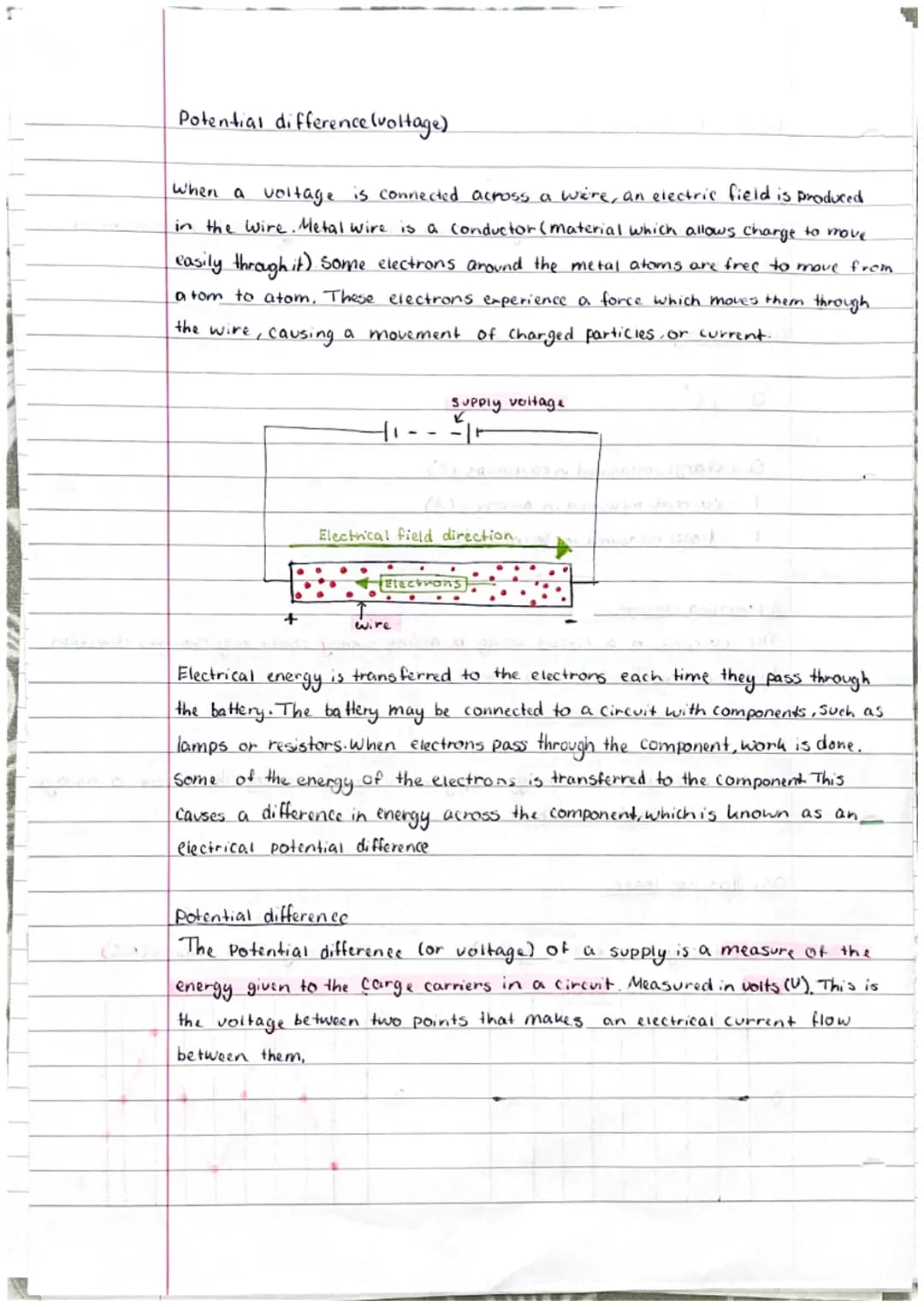

Potential Difference and Voltage Relationships

What is potential difference measured in? Potential difference, or voltage, is measured in volts (V) and represents the electrical pressure driving current through a circuit. This answers the question "What does the potential difference rating of a bulb tell you" - it indicates the optimal operating voltage for the device.

When examining Potential difference BBC Bitesize KS3 content, we learn that voltage creates an electric field in conductors, enabling charge movement. This process involves energy transfer from the power source to circuit components.

Highlight: True or false? potential difference is measured in joules - False! Potential difference is measured in volts, though it relates to energy (joules) per unit charge (coulomb).

The Difference between AC and DC voltage manifests in how electrical potential varies over time. AC voltage oscillates sinusoidally, while DC voltage maintains a constant level, affecting how different appliances function.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

View

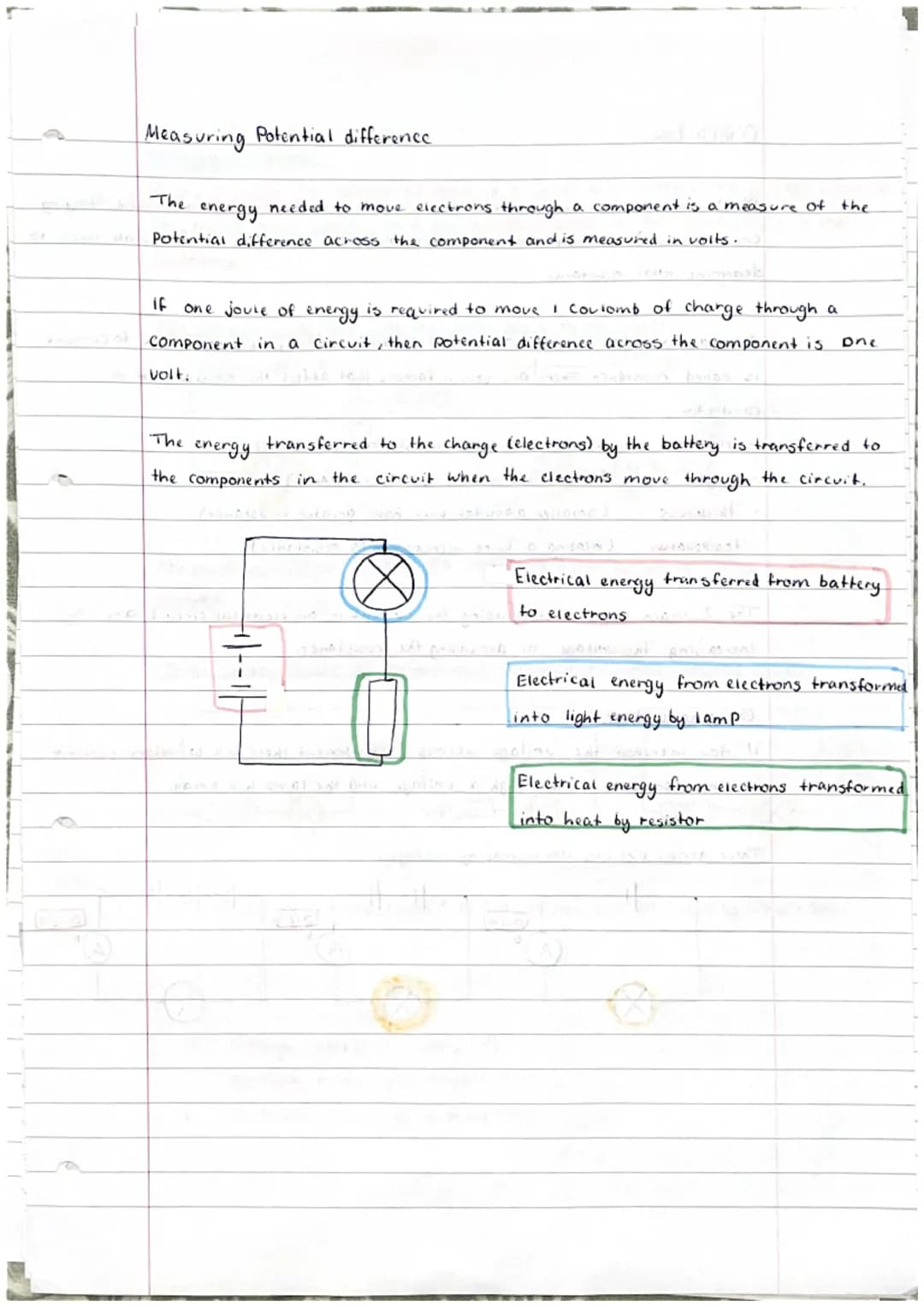

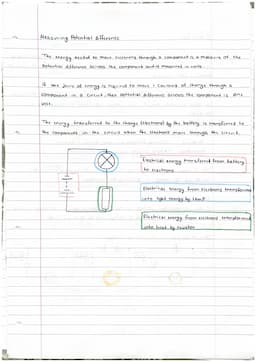

Measuring Electrical Potential and Energy Transfer

Measuring electrical potential difference in circuits formula involves understanding that voltage equals energy transferred per unit charge (V = E/Q). This relationship is crucial for calculating power consumption and efficiency in electrical systems.

Energy transfer occurs as electrons move through circuit components, converting electrical energy into other forms like light, heat, or mechanical energy. This process follows conservation of energy principles and determines device efficiency.

Example: A 6V battery connected to a 3Ω resistor will produce a current of 2A according to Ohm's Law (V = IR), demonstrating how potential difference drives current flow.

The relationship between voltage, current, and resistance forms the backbone of circuit analysis and helps explain why different components require specific operating voltages.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

View

Factors Affecting Electrical Resistance

Factors affecting electrical resistance in conductors wikipedia and Factors affecting electrical resistance in conductors pdf resources identify key variables affecting conductor resistance. 4 factors that affect resistance include material type, length, cross-sectional area, and temperature.

Factors Affecting resistance of a conductor Class 10 and Factors affecting electrical resistance in conductors class 12 explain how these variables interact. What are the factors that affect the resistance of a conductor can be understood through the resistance formula: R = ρL/A, where ρ is resistivity, L is length, and A is cross-sectional area.

Vocabulary: Resistivity (ρ) is a material property that indicates how strongly a material opposes electric current flow, measured in ohm-meters (Ω⋅m).

4 factors that affect resistance of a wire and Factors affecting resistance formula demonstrate that resistance increases with length and temperature but decreases with larger cross-sectional area. Understanding these relationships is crucial for electrical engineering and circuit design.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

View

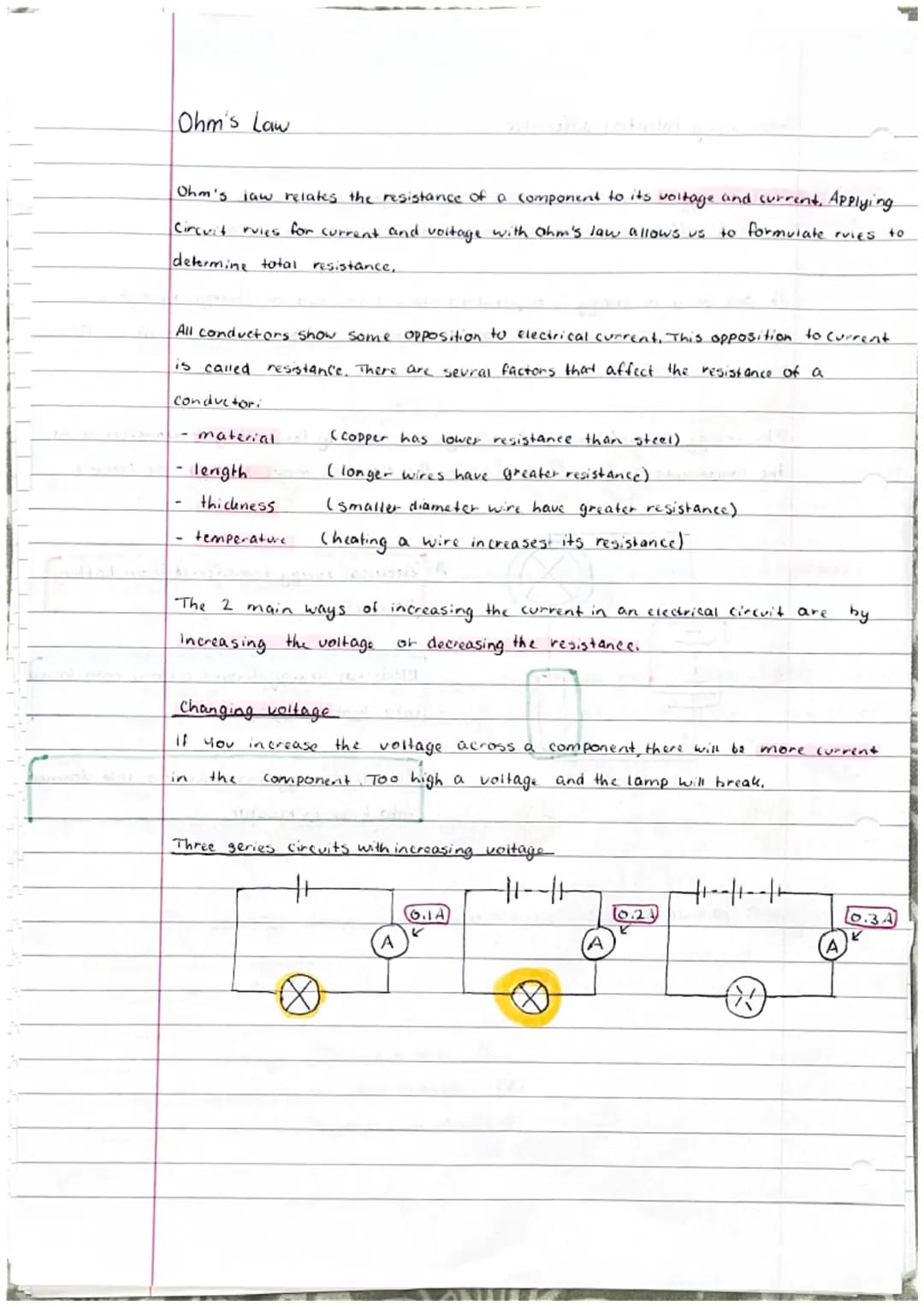

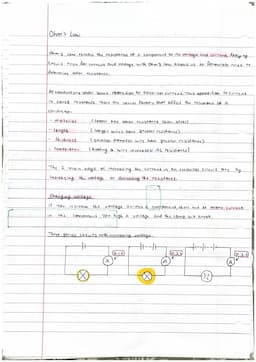

Understanding Electrical Resistance and Ohm's Law

What is potential difference and resistance are fundamental concepts in electrical circuits. When an electric current flows when electrons move through a conductor, the resistance they encounter affects the circuit's behavior. Understanding these relationships is crucial for working with electrical systems.

The relationship between voltage, current, and resistance is governed by Ohm's Law, expressed as V = IR. What is potential difference measured in? Voltage is measured in volts (V), while What is current measured in amperes (A). Resistance is measured in ohms (Ω). This fundamental relationship helps us understand how electrical circuits work.

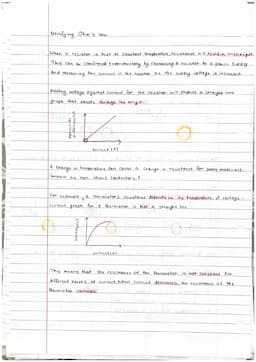

Definition: Ohm's Law states that the current flowing through a conductor is directly proportional to the potential difference across it, provided the temperature remains constant.

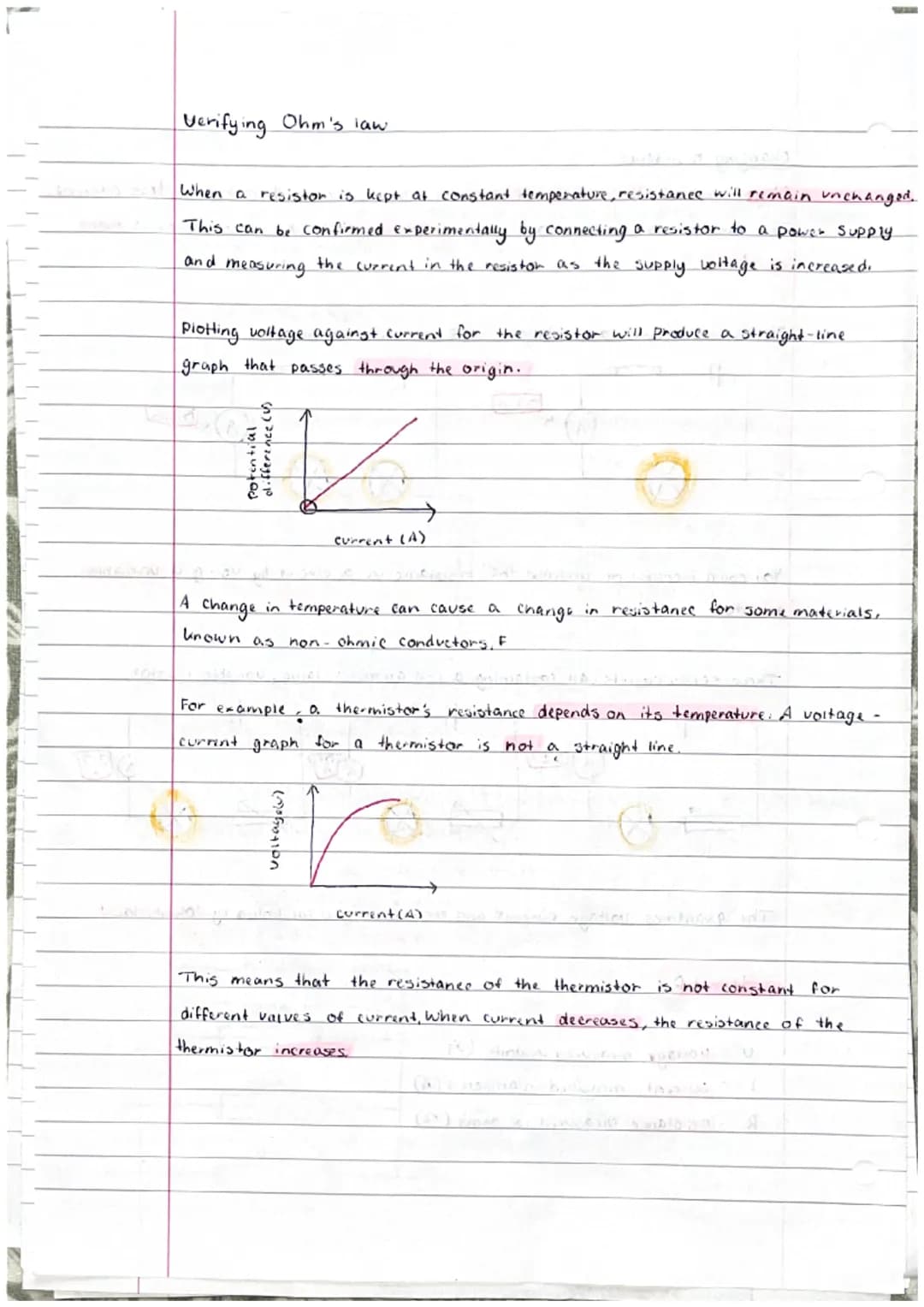

When working with resistors in circuits, temperature can significantly impact their behavior. Some materials, known as non-ohmic conductors, show varying resistance with temperature changes. For example, thermistors demonstrate non-linear behavior where their resistance changes with temperature variations.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

View

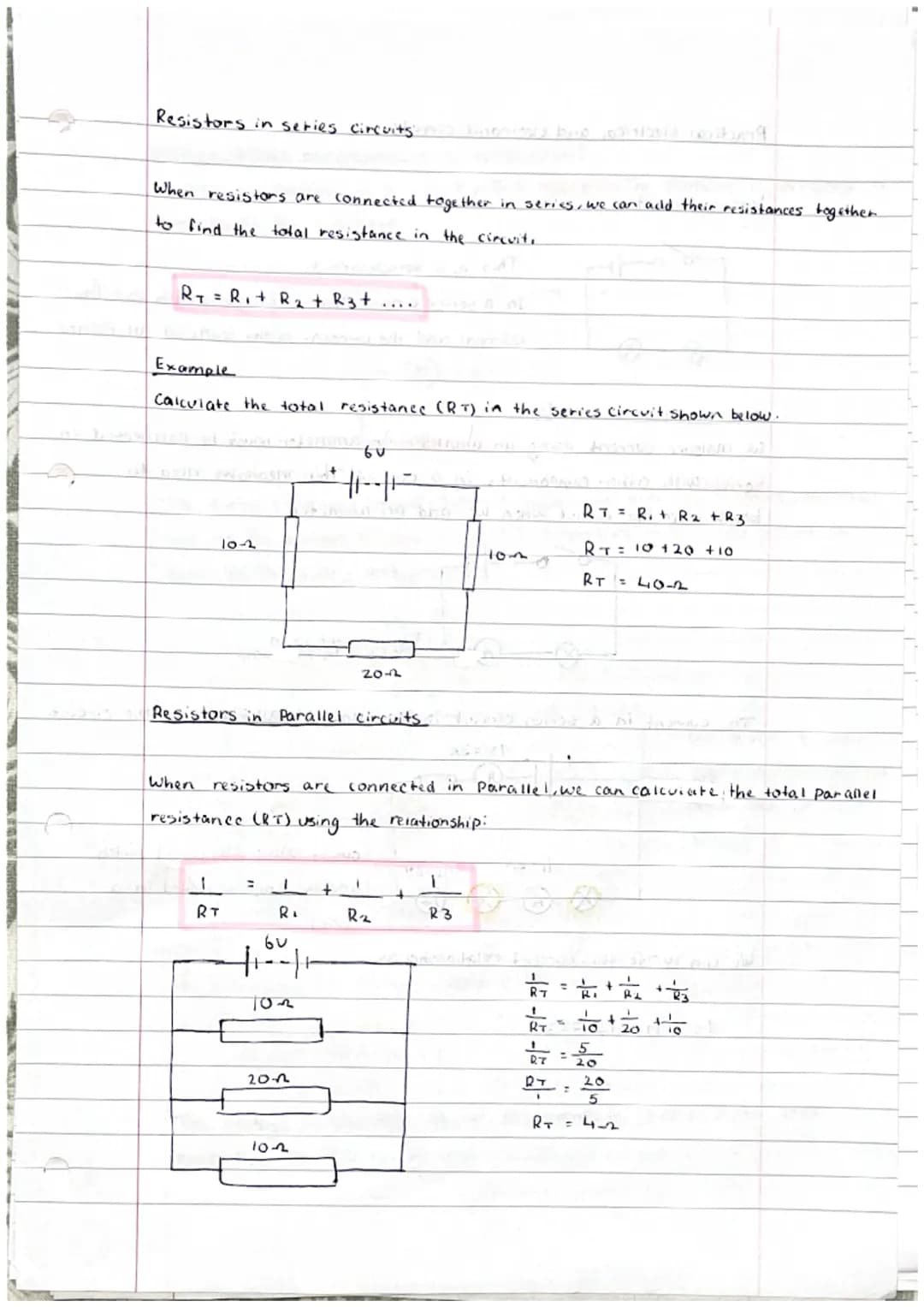

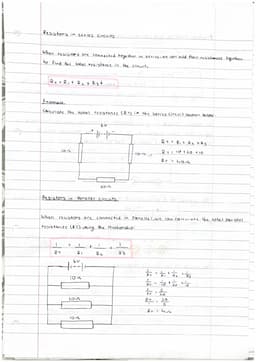

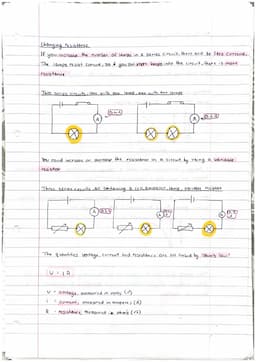

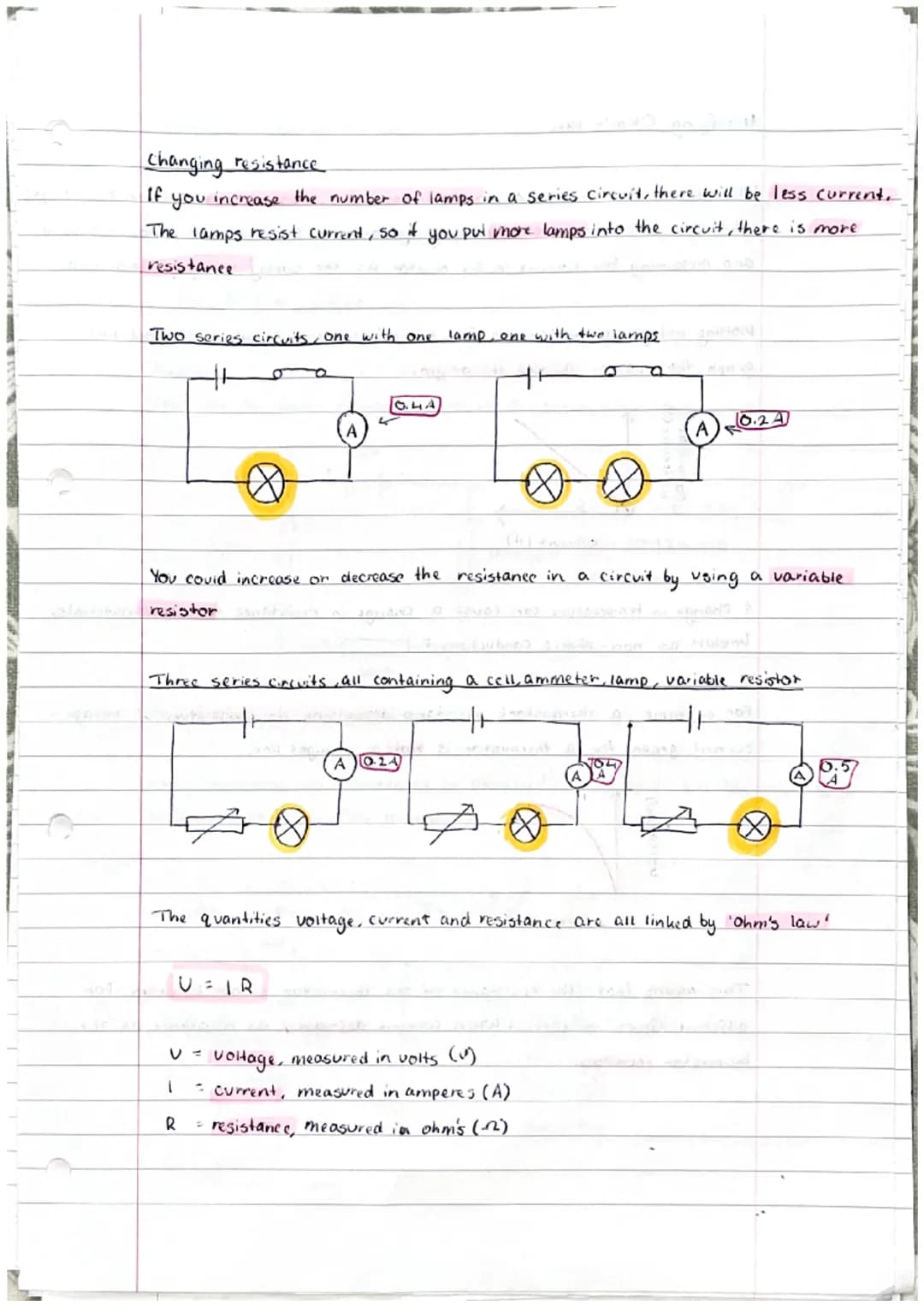

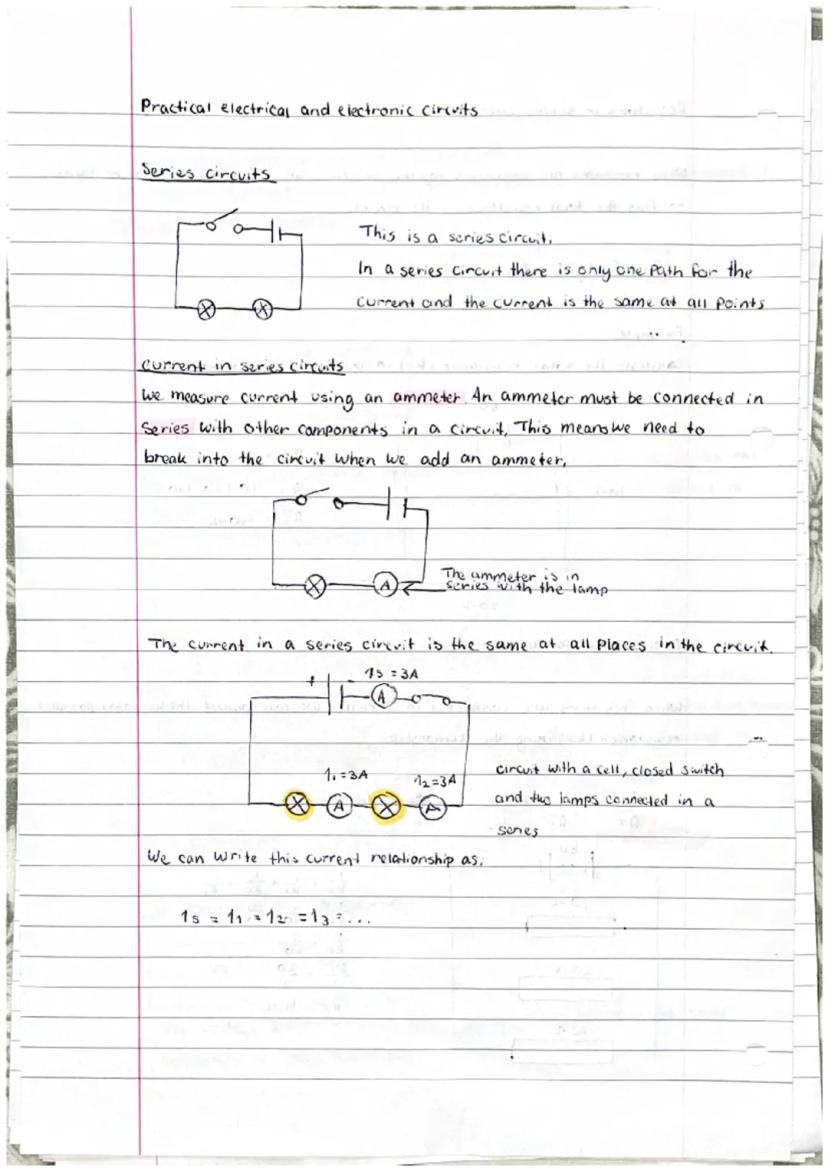

Resistor Configurations and Circuit Analysis

Factors affecting electrical resistance in conductors include temperature, length, cross-sectional area, and material type. These 4 factors that affect resistance determine how much opposition current faces when flowing through a circuit.

In series circuits, resistors are connected end-to-end, and their total resistance is calculated by adding individual resistances: Rtotal = R1 + R2 + R3

Example: In a series circuit with three resistors of 10Ω, 20Ω, and 30Ω, the total resistance would be 60Ω.

For parallel circuits, resistors are connected across common points, and the total resistance is calculated using the reciprocal formula: 1/Rtotal = 1/R1 + 1/R2 + 1/R3

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

View

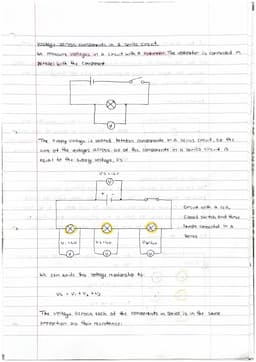

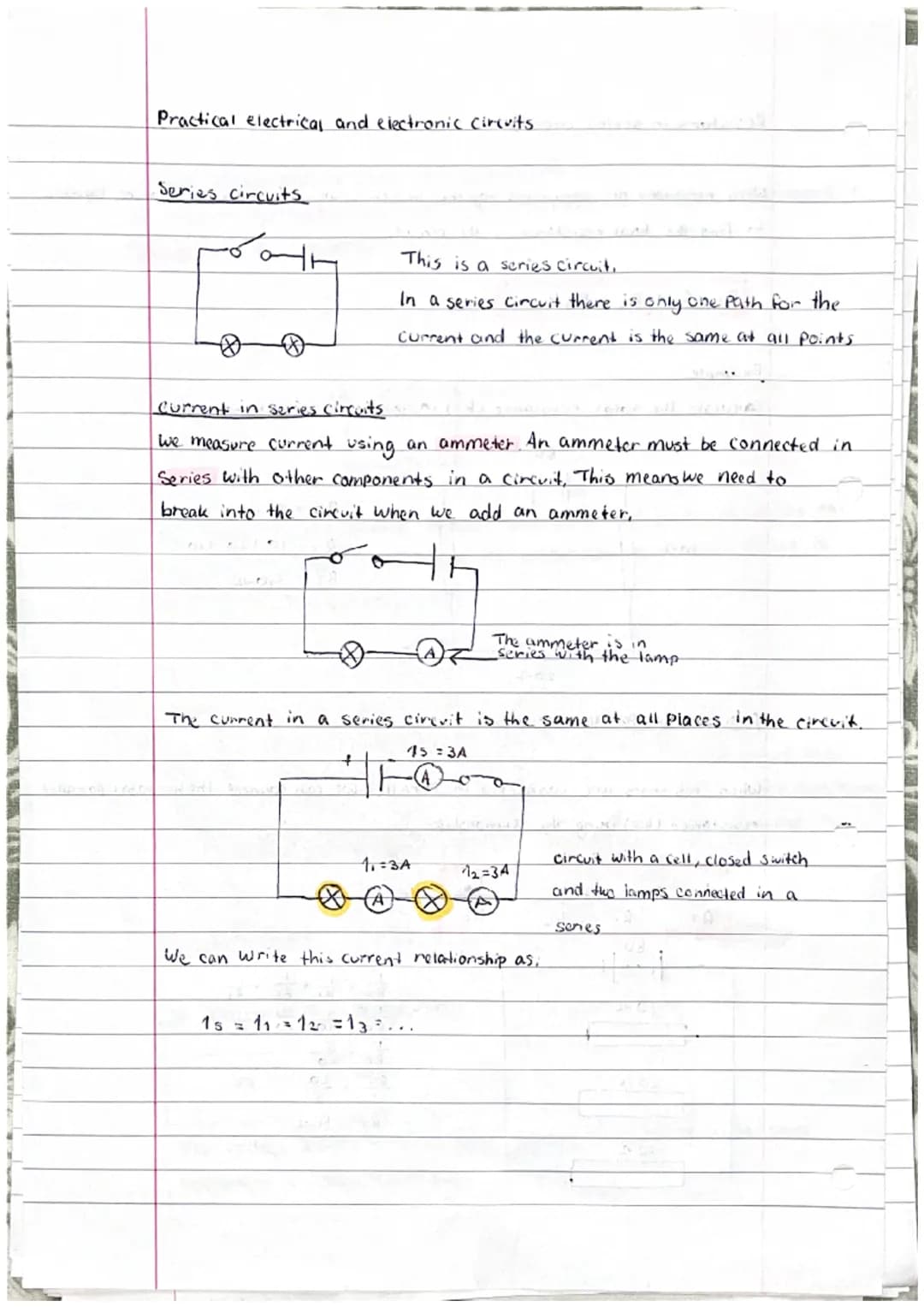

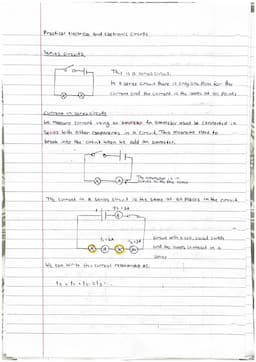

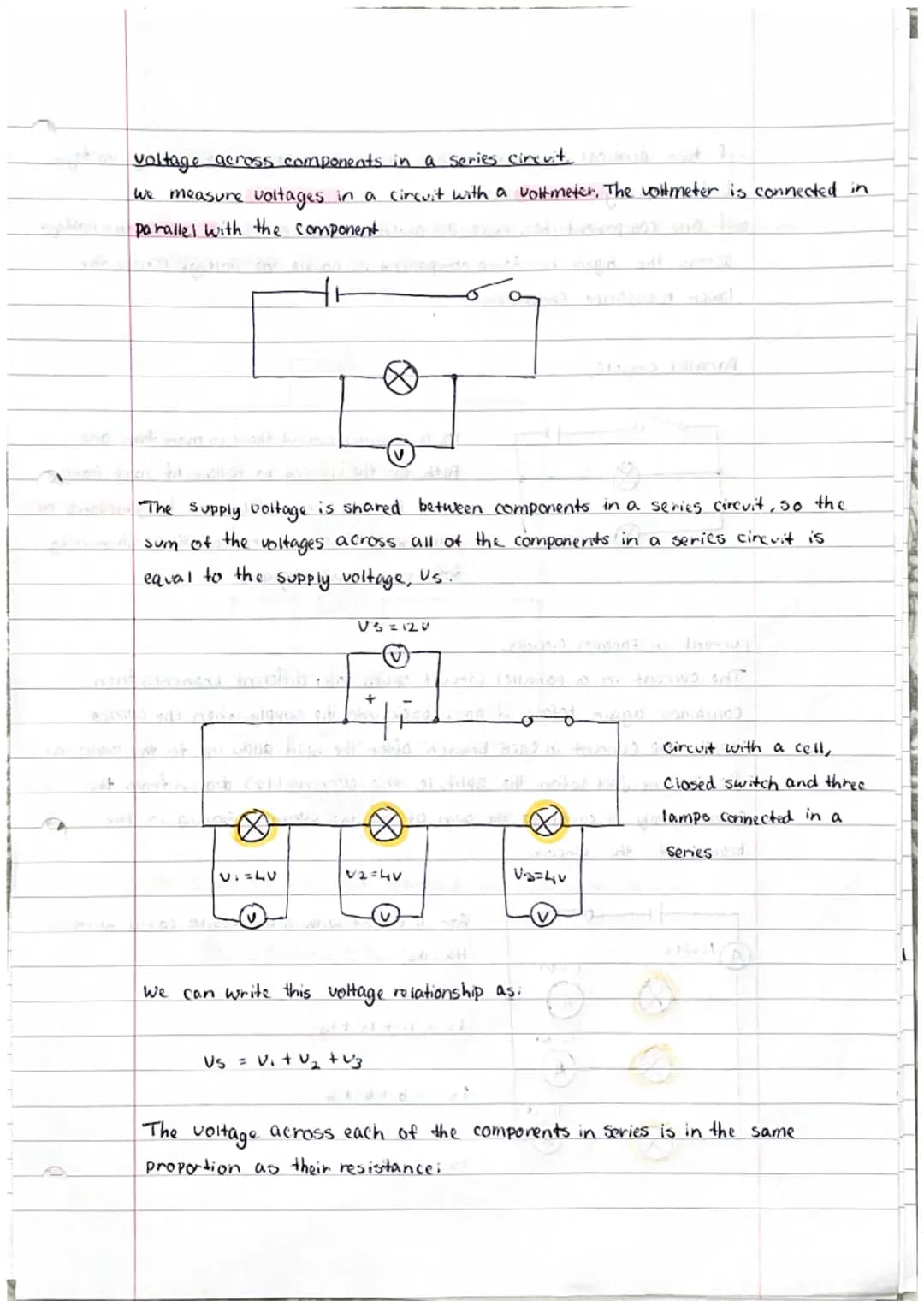

Current and Voltage Relationships in Circuits

Understanding the difference between AC and DC is crucial for electrical applications. What is alternating current? It's current that periodically reverses direction, while direct current flows in one direction only. Is a battery AC or DC? Batteries provide DC power.

Highlight: In series circuits, current remains constant throughout the circuit, while voltage is divided among components proportionally to their resistance.

When measuring electrical quantities:

  • Ammeters are connected in series to measure current
  • Voltmeters are connected in parallel to measure potential difference
  • The sum of voltage drops across series components equals the supply voltage
5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

View

Practical Applications and Circuit Measurements

List of AC and DC appliances commonly found in homes demonstrates the practical applications of electrical principles. AC-powered devices typically include household appliances, while DC-powered devices include mobile phones and laptops.

Vocabulary: Potential difference (voltage) is the electrical pressure driving current through a circuit.

Factors affecting electrical resistance in conductors Class 12 concepts show how resistance impacts real-world applications. Understanding these principles helps in:

  • Designing efficient electrical systems
  • Troubleshooting circuit problems
  • Selecting appropriate components for specific applications
  • Ensuring safe electrical installations

The relationship between voltage, current, and resistance forms the foundation for all electrical circuit analysis and design.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

View

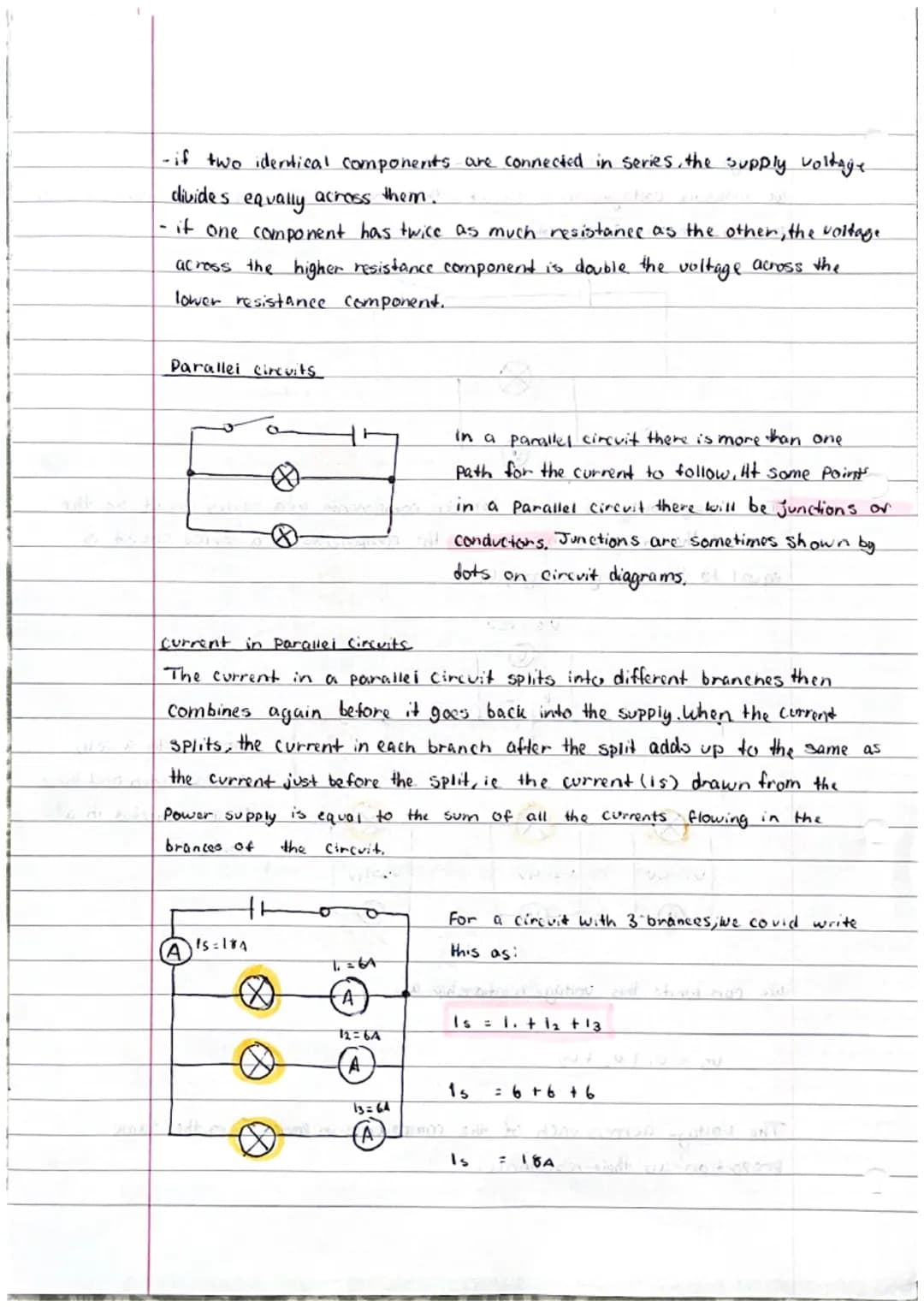

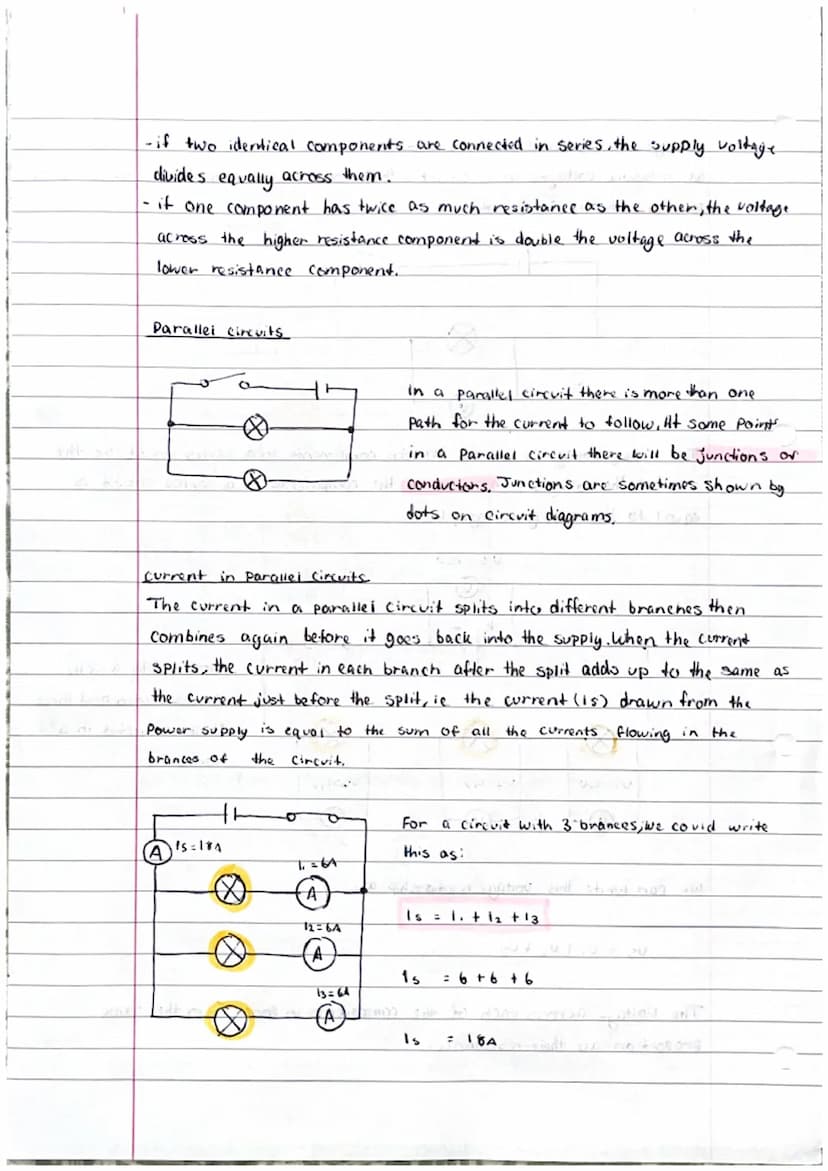

Understanding Current Flow in Parallel Circuits

What is potential difference and current distribution are fundamental concepts in parallel circuits. When an electric current flows when charged particles move through conductors in a circuit, they follow specific patterns in parallel arrangements. In parallel circuits, the current divides into multiple paths at junction points, creating separate branches that later recombine before returning to the power supply.

The mathematical relationship governing current in parallel circuits is straightforward but crucial. The total current drawn from the power supply equals the sum of currents flowing through each parallel branch. For example, in a three-branch parallel circuit, if each branch draws 6 amperes (What is current measured in - amperes or A), the total current would be 18 amperes (6A + 6A + 6A = 18A).

Definition: A parallel circuit is an electrical circuit where components are connected across different branches, each providing an independent path for current flow.

Understanding voltage distribution in parallel circuits is equally important. Unlike series circuits where voltage divides across components, in parallel circuits, each branch receives the full supply voltage. This characteristic makes parallel circuits particularly useful in household wiring, where multiple devices need to operate at the same voltage independently.

Example: Consider a parallel circuit with three identical light bulbs. If the power supply is 12V, each bulb receives 12V, regardless of how many bulbs are connected. This explains why household appliances continue working at full power even when other devices are plugged in or turned off.

The behavior of parallel circuits directly relates to factors affecting electrical resistance in conductors. When additional branches are added to a parallel circuit, the total resistance decreases, allowing more current to flow from the source. This principle is essential for designing efficient electrical systems and understanding the difference between AC and DC applications in real-world scenarios.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

17 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Understanding Potential Difference: AC vs DC and More!

H

Holly Carnson

@hollycarnson_eakb

·

40 Followers

Follow

Understanding electrical concepts is fundamental to working with circuits and power systems.

Potential difference, measured in volts (V), represents the driving force that pushes electrons through a circuit. When there is a potential difference between two points, an electric current flows as electrons move through a conductor. This movement creates electrical current, which is measured in amperes (A). It's important to note that potential difference is measured in volts, not joules - this is a common misconception among students.

The distinction between AC (Alternating Current) and DC (Direct Current) is crucial in electrical systems. Alternating current periodically changes direction, while DC flows consistently in one direction. A battery provides DC power, making it suitable for portable devices. Common AC and DC appliances demonstrate this difference - household outlets deliver AC power for large appliances, while smartphones use DC power from batteries. The difference between AC and DC voltage lies in their waveform patterns - AC follows a sinusoidal wave, while DC maintains a constant voltage level.

Several factors affecting electrical resistance in conductors impact how easily current flows through a material. The four main factors that affect resistance include temperature, length of the conductor, cross-sectional area, and the material's inherent resistivity. According to the factors affecting resistance formula, resistance increases with length and temperature but decreases with larger cross-sectional areas. In practical applications, understanding these factors is essential for designing efficient electrical systems and selecting appropriate materials for specific applications. For instance, copper is widely used in electrical wiring because it offers low resistance and good conductivity. Temperature effects are particularly important in electrical resistance in conductors, as most materials show increased resistance with higher temperatures, affecting their performance in electrical circuits.

...

06/05/2023

667



S4



Physics

25

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Understanding Electrical Current and Charge Carriers

What is potential difference and electrical current are fundamental concepts in circuit theory. When discussing how an electric current flows when what move through a conductor, we must understand that electrons are the primary charge carriers in metallic conductors. Current is measured in amperes (A) and represents the rate at which electrical charge flows through a circuit.

The relationship between current (I), charge (Q), and time (t) is expressed through the formula: I = Q/t, where charge is measured in coulombs (C) and time in seconds (s). This fundamental equation helps us understand how electrical charge transfer occurs over time in circuits.

Definition: Electrical current is the rate of flow of electrical charge carriers (typically electrons) through a conductor, measured in amperes (A).

Difference between AC and DC examples shows two distinct types of current flow. What is alternating current? AC current periodically reverses direction, typically 50-60 times per second in household electricity. In contrast, Is a battery AC or DC? Batteries provide DC current, which flows consistently in one direction. This distinction is crucial for understanding List of AC and DC appliances and their operation.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Potential Difference and Voltage Relationships

What is potential difference measured in? Potential difference, or voltage, is measured in volts (V) and represents the electrical pressure driving current through a circuit. This answers the question "What does the potential difference rating of a bulb tell you" - it indicates the optimal operating voltage for the device.

When examining Potential difference BBC Bitesize KS3 content, we learn that voltage creates an electric field in conductors, enabling charge movement. This process involves energy transfer from the power source to circuit components.

Highlight: True or false? potential difference is measured in joules - False! Potential difference is measured in volts, though it relates to energy (joules) per unit charge (coulomb).

The Difference between AC and DC voltage manifests in how electrical potential varies over time. AC voltage oscillates sinusoidally, while DC voltage maintains a constant level, affecting how different appliances function.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Measuring Electrical Potential and Energy Transfer

Measuring electrical potential difference in circuits formula involves understanding that voltage equals energy transferred per unit charge (V = E/Q). This relationship is crucial for calculating power consumption and efficiency in electrical systems.

Energy transfer occurs as electrons move through circuit components, converting electrical energy into other forms like light, heat, or mechanical energy. This process follows conservation of energy principles and determines device efficiency.

Example: A 6V battery connected to a 3Ω resistor will produce a current of 2A according to Ohm's Law (V = IR), demonstrating how potential difference drives current flow.

The relationship between voltage, current, and resistance forms the backbone of circuit analysis and helps explain why different components require specific operating voltages.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Factors Affecting Electrical Resistance

Factors affecting electrical resistance in conductors wikipedia and Factors affecting electrical resistance in conductors pdf resources identify key variables affecting conductor resistance. 4 factors that affect resistance include material type, length, cross-sectional area, and temperature.

Factors Affecting resistance of a conductor Class 10 and Factors affecting electrical resistance in conductors class 12 explain how these variables interact. What are the factors that affect the resistance of a conductor can be understood through the resistance formula: R = ρL/A, where ρ is resistivity, L is length, and A is cross-sectional area.

Vocabulary: Resistivity (ρ) is a material property that indicates how strongly a material opposes electric current flow, measured in ohm-meters (Ω⋅m).

4 factors that affect resistance of a wire and Factors affecting resistance formula demonstrate that resistance increases with length and temperature but decreases with larger cross-sectional area. Understanding these relationships is crucial for electrical engineering and circuit design.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Understanding Electrical Resistance and Ohm's Law

What is potential difference and resistance are fundamental concepts in electrical circuits. When an electric current flows when electrons move through a conductor, the resistance they encounter affects the circuit's behavior. Understanding these relationships is crucial for working with electrical systems.

The relationship between voltage, current, and resistance is governed by Ohm's Law, expressed as V = IR. What is potential difference measured in? Voltage is measured in volts (V), while What is current measured in amperes (A). Resistance is measured in ohms (Ω). This fundamental relationship helps us understand how electrical circuits work.

Definition: Ohm's Law states that the current flowing through a conductor is directly proportional to the potential difference across it, provided the temperature remains constant.

When working with resistors in circuits, temperature can significantly impact their behavior. Some materials, known as non-ohmic conductors, show varying resistance with temperature changes. For example, thermistors demonstrate non-linear behavior where their resistance changes with temperature variations.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Resistor Configurations and Circuit Analysis

Factors affecting electrical resistance in conductors include temperature, length, cross-sectional area, and material type. These 4 factors that affect resistance determine how much opposition current faces when flowing through a circuit.

In series circuits, resistors are connected end-to-end, and their total resistance is calculated by adding individual resistances: Rtotal = R1 + R2 + R3

Example: In a series circuit with three resistors of 10Ω, 20Ω, and 30Ω, the total resistance would be 60Ω.

For parallel circuits, resistors are connected across common points, and the total resistance is calculated using the reciprocal formula: 1/Rtotal = 1/R1 + 1/R2 + 1/R3

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Current and Voltage Relationships in Circuits

Understanding the difference between AC and DC is crucial for electrical applications. What is alternating current? It's current that periodically reverses direction, while direct current flows in one direction only. Is a battery AC or DC? Batteries provide DC power.

Highlight: In series circuits, current remains constant throughout the circuit, while voltage is divided among components proportionally to their resistance.

When measuring electrical quantities:

  • Ammeters are connected in series to measure current
  • Voltmeters are connected in parallel to measure potential difference
  • The sum of voltage drops across series components equals the supply voltage
5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Practical Applications and Circuit Measurements

List of AC and DC appliances commonly found in homes demonstrates the practical applications of electrical principles. AC-powered devices typically include household appliances, while DC-powered devices include mobile phones and laptops.

Vocabulary: Potential difference (voltage) is the electrical pressure driving current through a circuit.

Factors affecting electrical resistance in conductors Class 12 concepts show how resistance impacts real-world applications. Understanding these principles helps in:

  • Designing efficient electrical systems
  • Troubleshooting circuit problems
  • Selecting appropriate components for specific applications
  • Ensuring safe electrical installations

The relationship between voltage, current, and resistance forms the foundation for all electrical circuit analysis and design.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Understanding Current Flow in Parallel Circuits

What is potential difference and current distribution are fundamental concepts in parallel circuits. When an electric current flows when charged particles move through conductors in a circuit, they follow specific patterns in parallel arrangements. In parallel circuits, the current divides into multiple paths at junction points, creating separate branches that later recombine before returning to the power supply.

The mathematical relationship governing current in parallel circuits is straightforward but crucial. The total current drawn from the power supply equals the sum of currents flowing through each parallel branch. For example, in a three-branch parallel circuit, if each branch draws 6 amperes (What is current measured in - amperes or A), the total current would be 18 amperes (6A + 6A + 6A = 18A).

Definition: A parallel circuit is an electrical circuit where components are connected across different branches, each providing an independent path for current flow.

Understanding voltage distribution in parallel circuits is equally important. Unlike series circuits where voltage divides across components, in parallel circuits, each branch receives the full supply voltage. This characteristic makes parallel circuits particularly useful in household wiring, where multiple devices need to operate at the same voltage independently.

Example: Consider a parallel circuit with three identical light bulbs. If the power supply is 12V, each bulb receives 12V, regardless of how many bulbs are connected. This explains why household appliances continue working at full power even when other devices are plugged in or turned off.

The behavior of parallel circuits directly relates to factors affecting electrical resistance in conductors. When additional branches are added to a parallel circuit, the total resistance decreases, allowing more current to flow from the source. This principle is essential for designing efficient electrical systems and understanding the difference between AC and DC applications in real-world scenarios.

5
Electrical charge carriers
Electrical current
Electrical current is defined by how much electrical charge has been transferred.
Per unit t

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Voltage Distribution and Component Behavior in Circuits

Understanding how voltage distributes across components is crucial for circuit analysis and design. In series circuits, measuring electrical potential difference in circuits follows specific rules. When two identical components are connected in series, the supply voltage splits equally between them. However, if components have different resistances, the voltage distribution becomes proportional to their resistance values.

For instance, when one component has twice the resistance of another in a series circuit, it will have twice the voltage drop across it. This relationship demonstrates how factors affecting electrical resistance in conductors wikipedia principles apply in practical circuits. The voltage distribution follows Ohm's Law, where voltage equals current multiplied by resistance (V = IR).

Highlight: In parallel circuits, each branch receives the full supply voltage, while in series circuits, the voltage divides across components proportionally to their resistance.

This understanding is particularly important when working with various electrical devices. What does the potential difference rating of a bulb tell you about its operation? The rating indicates the voltage required for proper operation, which must match how the bulb is connected in the circuit. In parallel connections, bulbs receive the full supply voltage, making this configuration ideal for household lighting systems where consistent brightness is desired.

Vocabulary: Junction points in parallel circuits are locations where current divides into separate paths, often indicated by dots in circuit diagrams.
