Comprehensive National 5 Physics Exam Preparation Guide

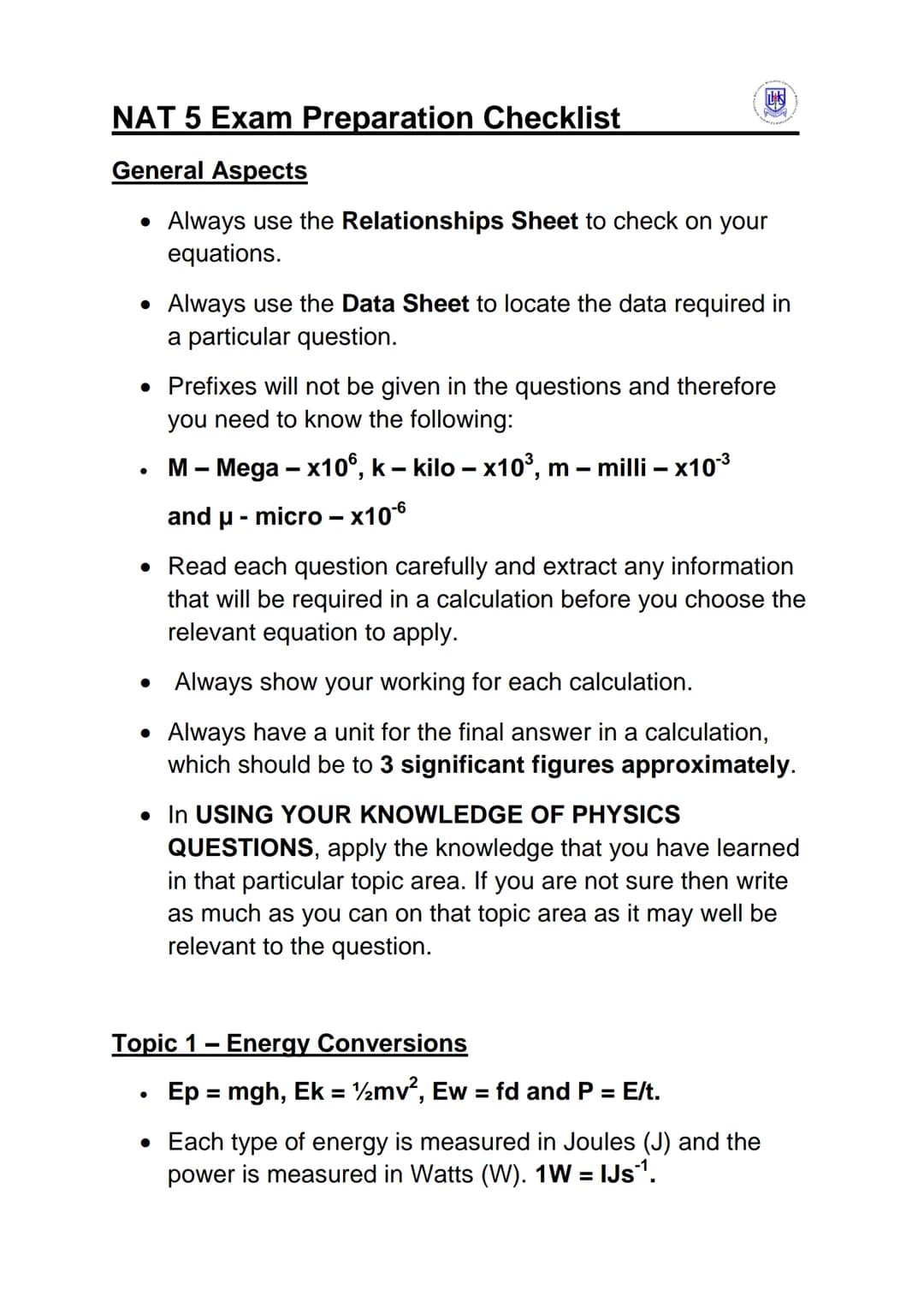

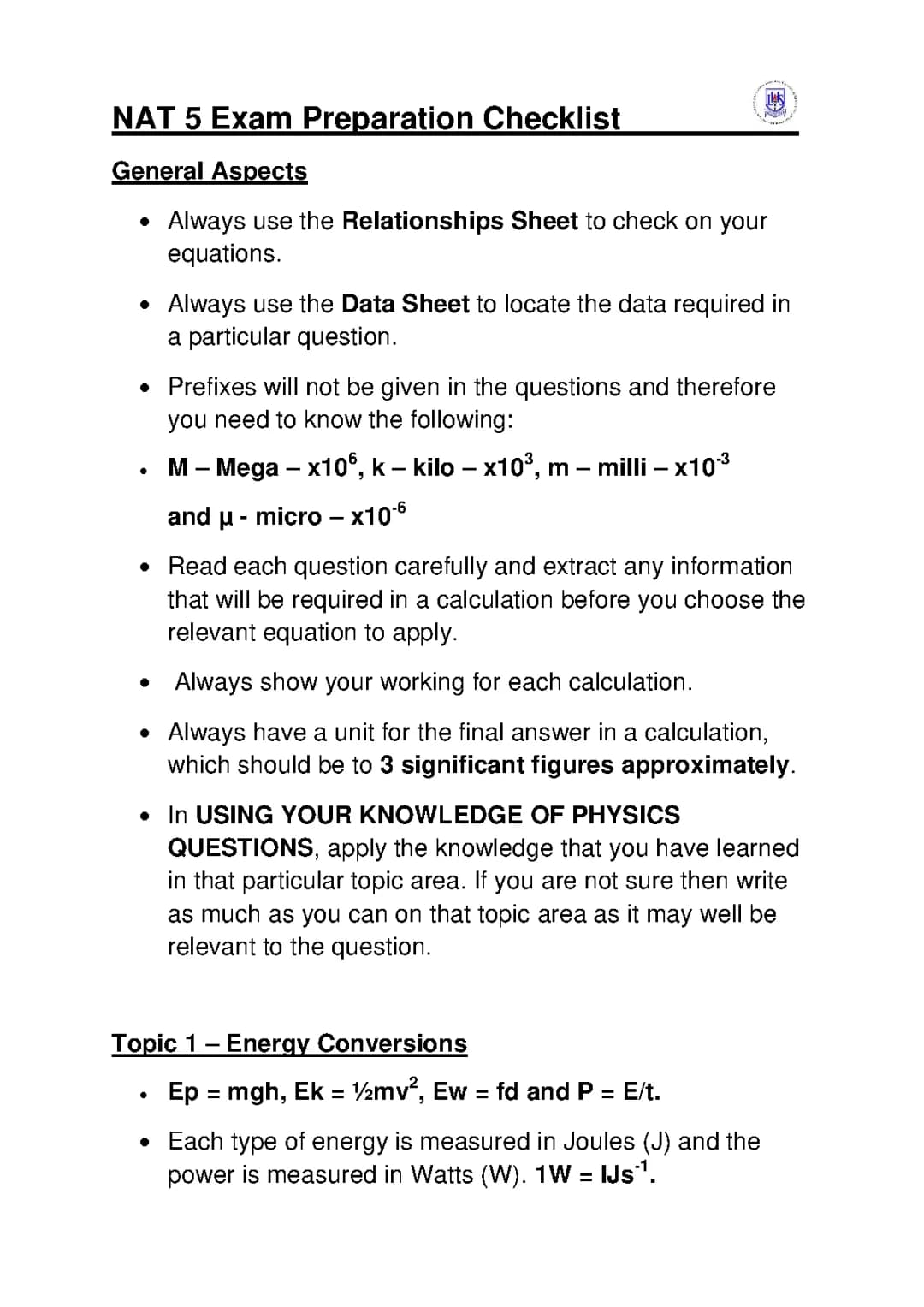

The foundation of successful National 5 Physics exam preparation lies in understanding key examination strategies and mastering essential physics concepts. Students must develop proficiency in using the Relationships Sheet and Data Sheet, which serve as critical resources during calculations. Understanding metric prefixes is fundamental - from mega (10⁶) to micro (10⁻⁶) - as these won't be provided during the exam.

Definition: Metric Prefixes in Physics

• Mega (M): multiplication by 10⁶
• Kilo $k$: multiplication by 10³
• Milli $m$: multiplication by 10⁻³
• Micro (μ): multiplication by 10⁻⁶

When tackling calculations, methodical working is essential. Each step should be clearly shown, and final answers must include appropriate units and be expressed to three significant figures. This systematic approach not only helps in avoiding errors but also ensures maximum mark allocation.

For knowledge-based questions, comprehensive understanding of topic areas is crucial. Students should demonstrate their grasp of physics concepts by providing detailed explanations, even when uncertain about specific aspects of a question.

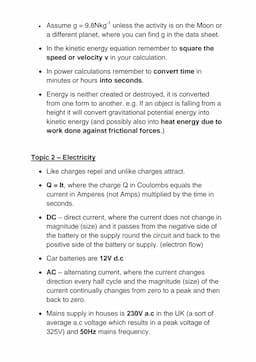

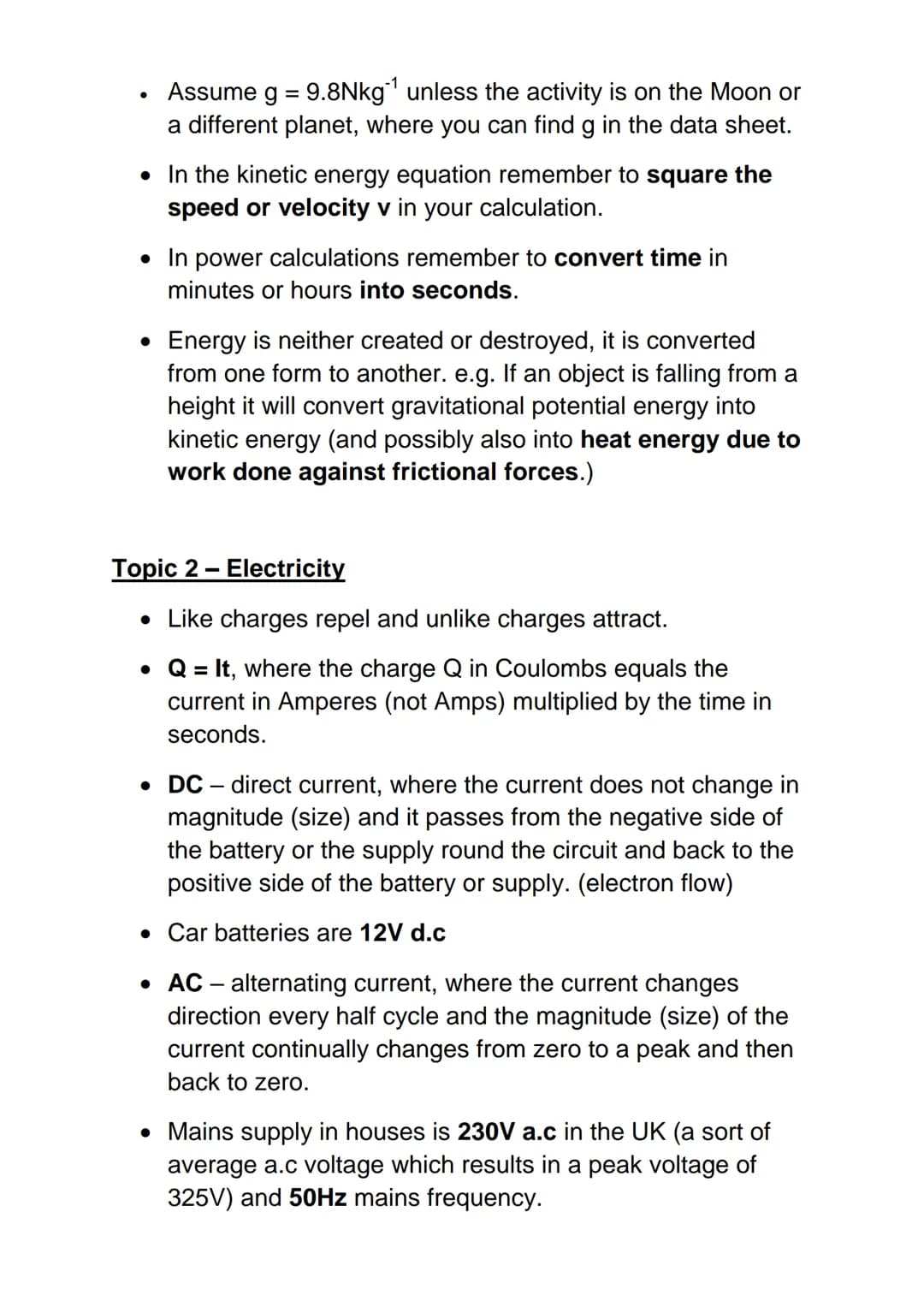

Energy Conversions and Transfer in Physics

Understanding energy transfer and conversion is fundamental to physics. The key equations governing energy calculations include potential energy (Ep = mgh), kinetic energy (Ek = ½mv²), work done (Ew = fd), and power $P = E/t$. All energy measurements are expressed in Joules (J), while power is measured in Watts (W).

Example: Energy Transfer in Daily Life When a roller coaster climbs to its peak, it gains gravitational potential energy. As it descends, this energy converts to kinetic energy, demonstrating energy conservation in action.

The conservation of energy principle states that energy cannot be created or destroyed, only converted between different forms. This fundamental concept applies to all energy transformations, whether in mechanical systems, electrical devices, or natural processes.

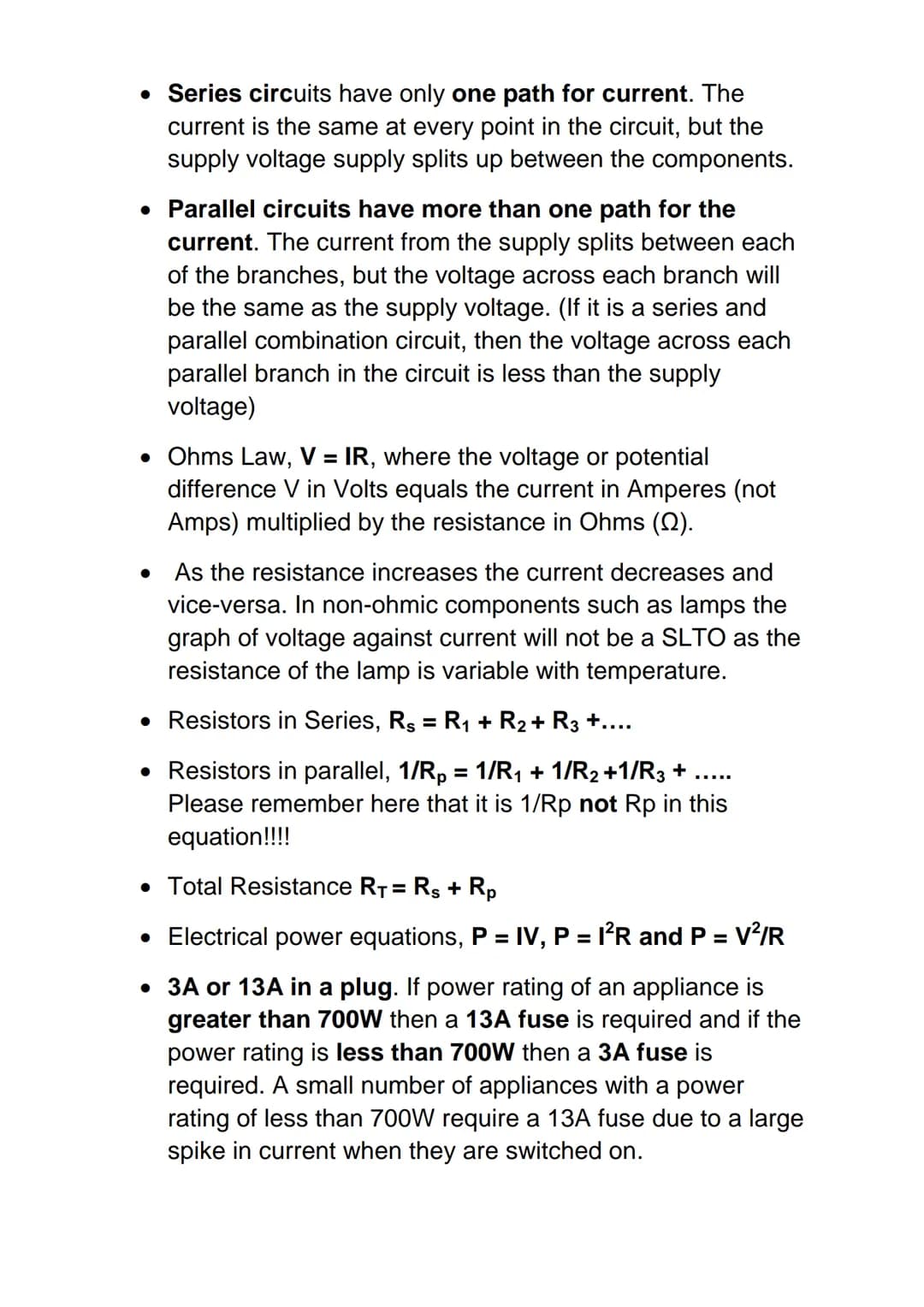

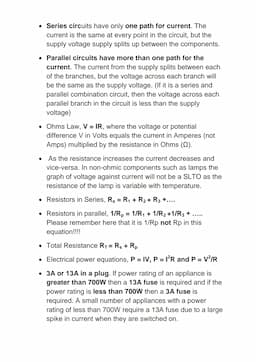

Understanding Electrical Circuits and Components

Series and parallel circuits represent fundamental concepts in electrical physics. In series circuits, current remains constant throughout while voltage divides among components. Conversely, parallel circuits feature multiple current paths with constant voltage across parallel branches.

Highlight: Key Circuit Characteristics

• Series Circuits: Single current path, voltage division
• Parallel Circuits: Multiple current paths, constant voltage
• Combined Circuits: Complex voltage and current distribution

Ohm's Law $V = IR$ governs the relationship between voltage, current, and resistance. For series resistors, total resistance is the sum of individual resistances $Rs = R₁ + R₂ + R₃$. In parallel configurations, the reciprocal of total resistance equals the sum of individual reciprocals $1/R = 1/R₁ + 1/R₂ + 1/R₃$.

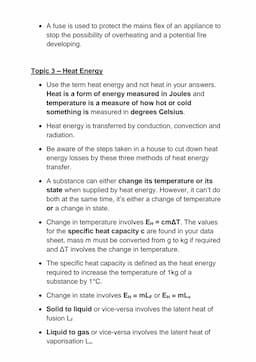

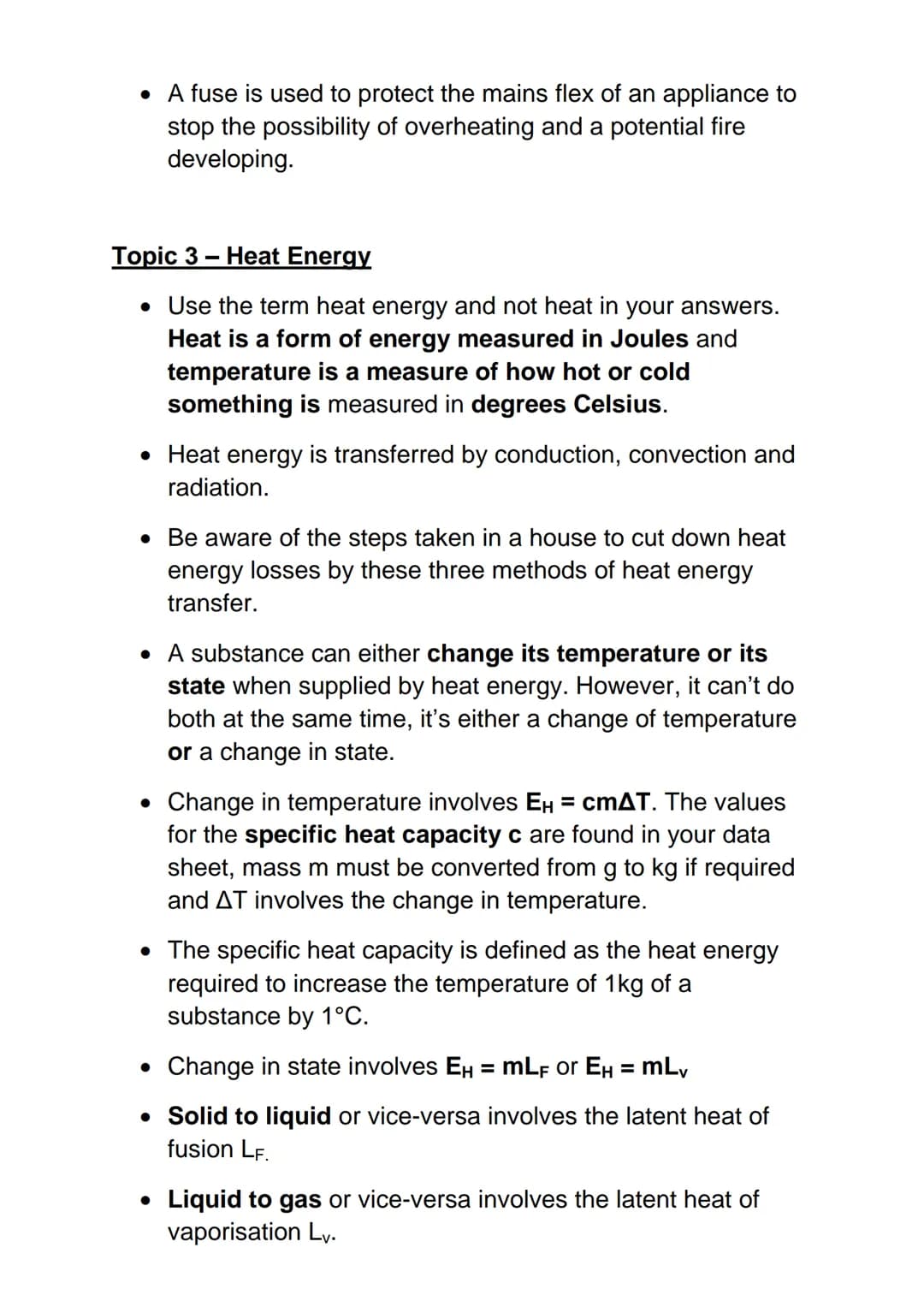

Heat Energy Transfer and State Changes

Heat energy transfer occurs through three primary mechanisms: conduction, convection, and radiation. Understanding these processes is crucial for analyzing thermal systems and energy efficiency in real-world applications.

Vocabulary: Heat Energy Terms

• Specific Heat Capacity: Energy required to raise 1kg of substance by 1°C
• Latent Heat of Fusion: Energy for solid-liquid transition
• Latent Heat of Vaporization: Energy for liquid-gas transition

When substances undergo temperature changes, the equation EH = cmΔT applies, where specific heat capacity values can be found in data sheets. State changes, however, involve different equations: Ex = mLf for solid-liquid transitions and Ev = mLv for liquid-gas transitions. These processes cannot occur simultaneously - a substance either changes temperature or state at any given moment.

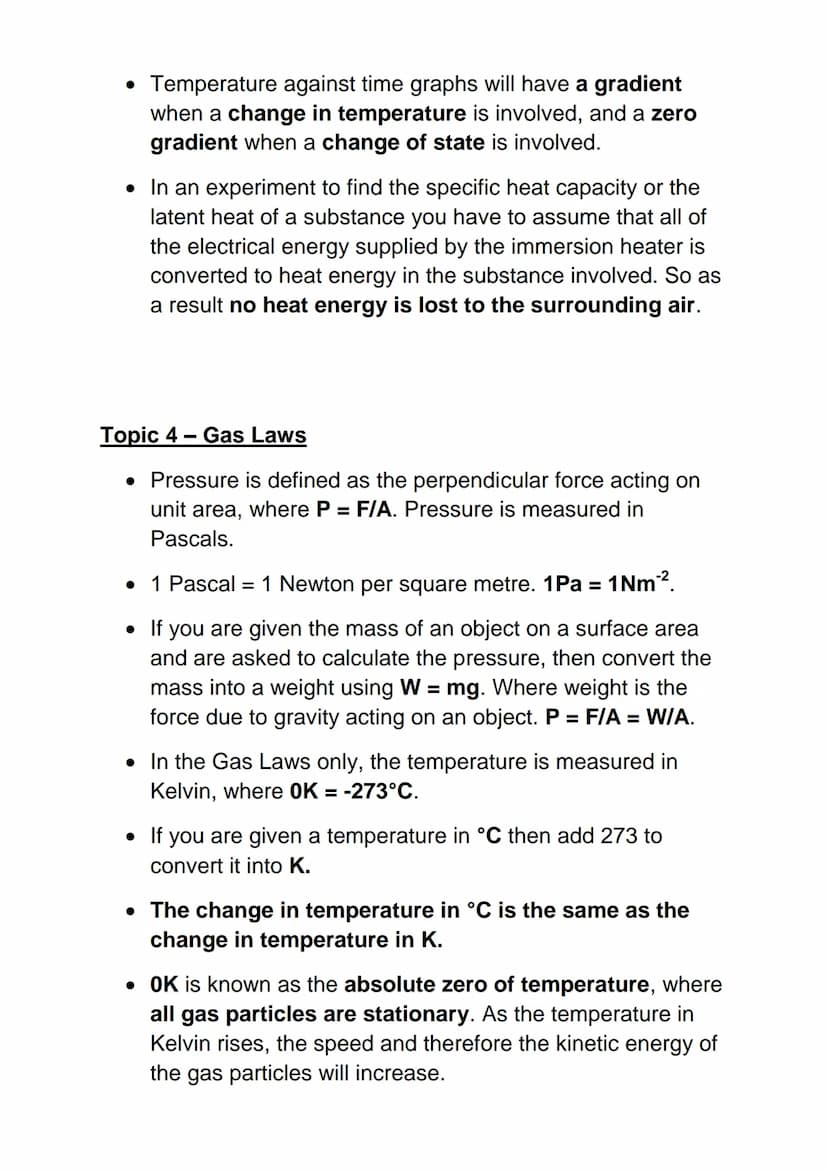

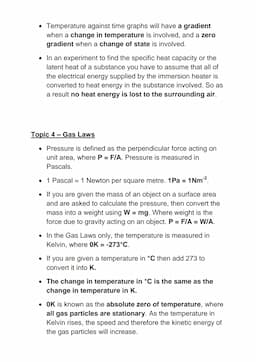

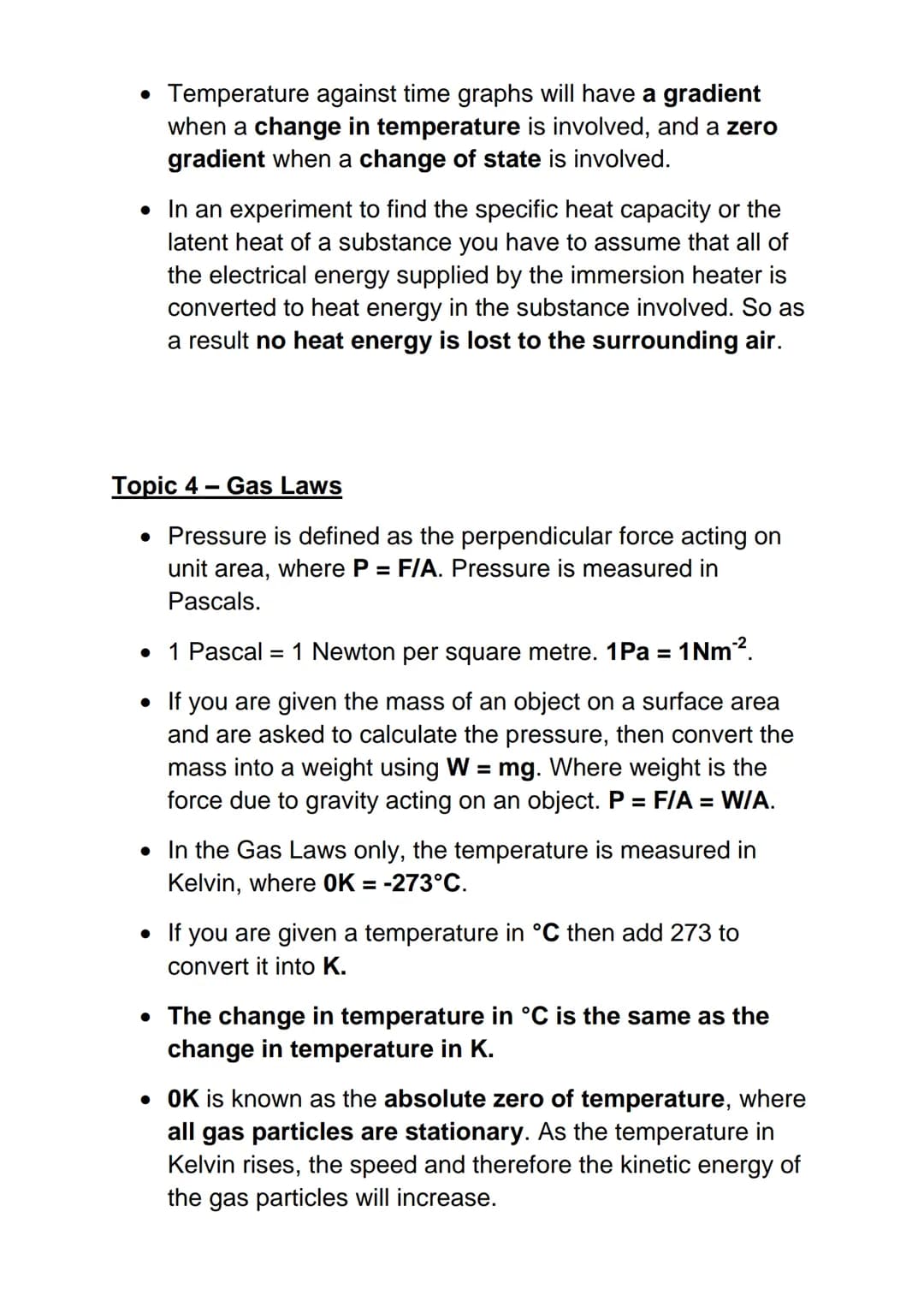

Understanding Gas Laws and Temperature in Physics

The relationship between temperature and physical state changes is fundamental in National 5 Physics. When examining temperature-time graphs, the gradient indicates temperature changes while flat sections represent state changes. This principle is crucial for understanding specific heat capacity and latent heat experiments.

Pressure, a key concept in gas laws, is defined as perpendicular force per unit area $P = F/A$ measured in Pascals. When working with gas laws, temperature must be in Kelvin scale, where 0K equals -273°C. This absolute zero represents the point where gas particles become stationary. As temperature increases in Kelvin, gas particles gain more kinetic energy and speed.

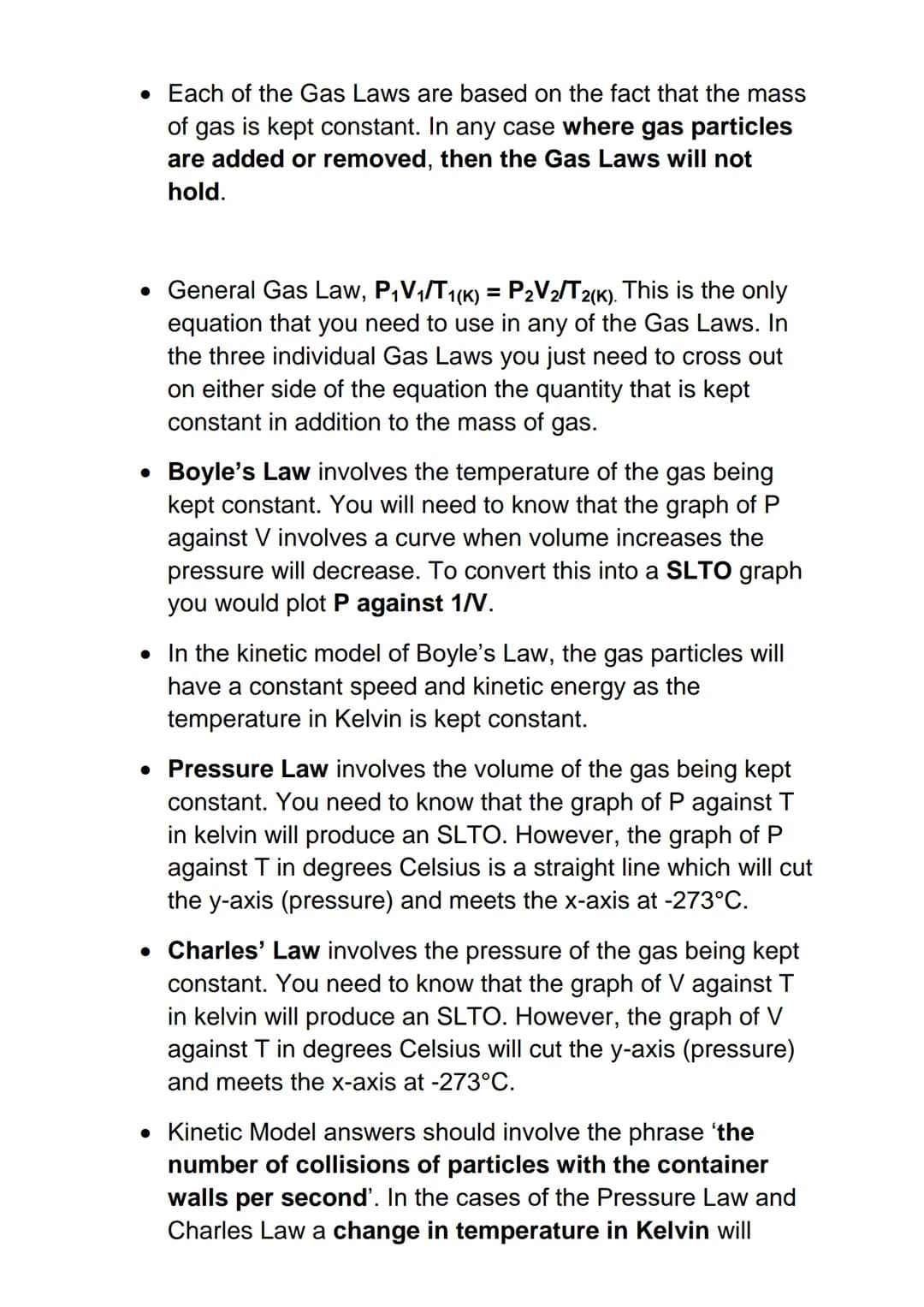

The General Gas Law $P₁V₁/T₁ = P₂V₂/T₂$ forms the foundation for understanding gas behavior. This equation applies when mass remains constant. Individual gas laws - Boyle's, Charles', and Pressure Law - are derived from this general principle by keeping one variable constant.

Definition: Pressure (P) = Force (F) / Area (A), measured in Pascals (Pa) where 1 Pa = 1 N/m²

Highlight: Always convert temperatures to Kelvin scale $K = °C + 273$ when solving gas law problems to avoid losing marks.

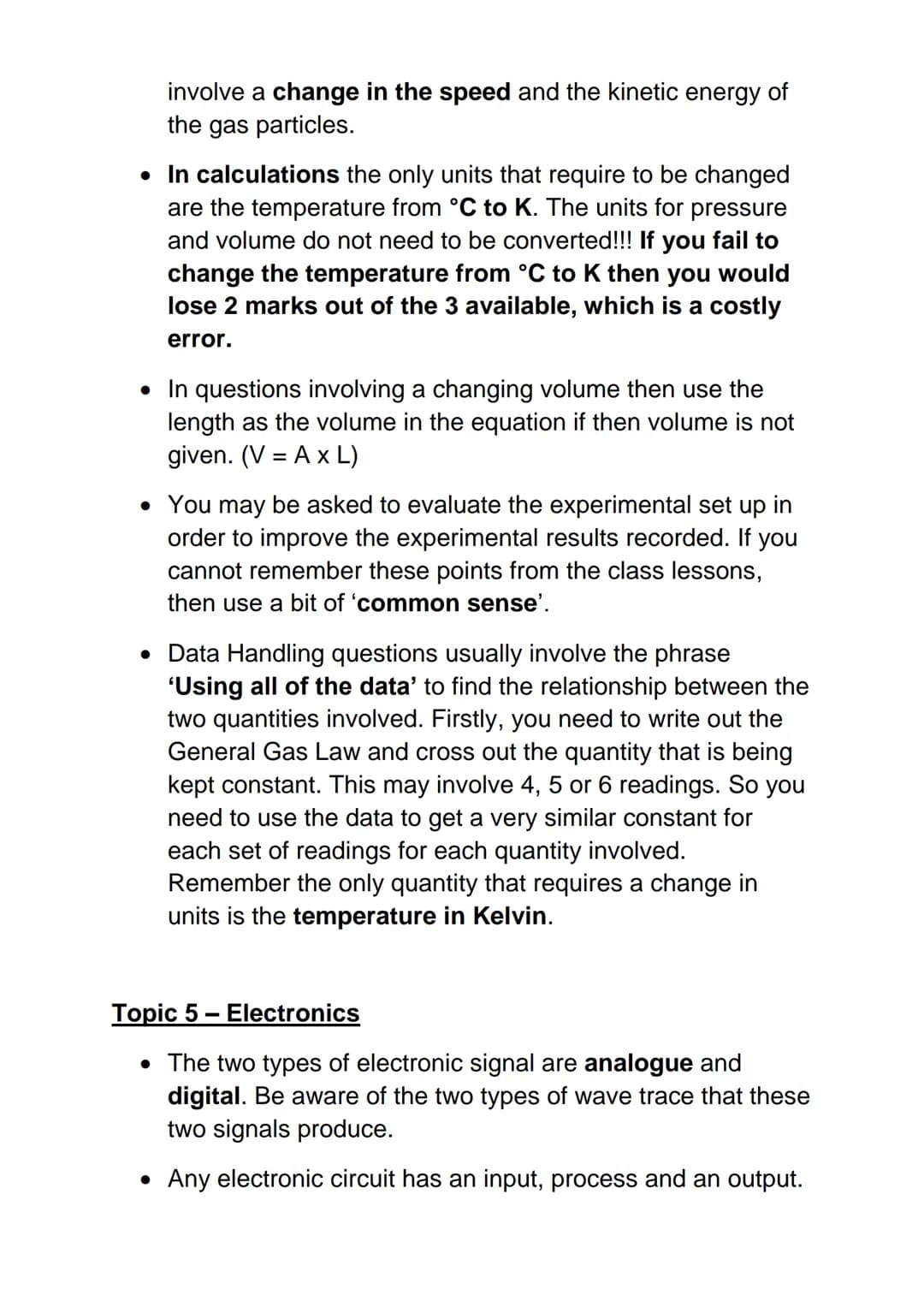

Electronics Fundamentals in Physics

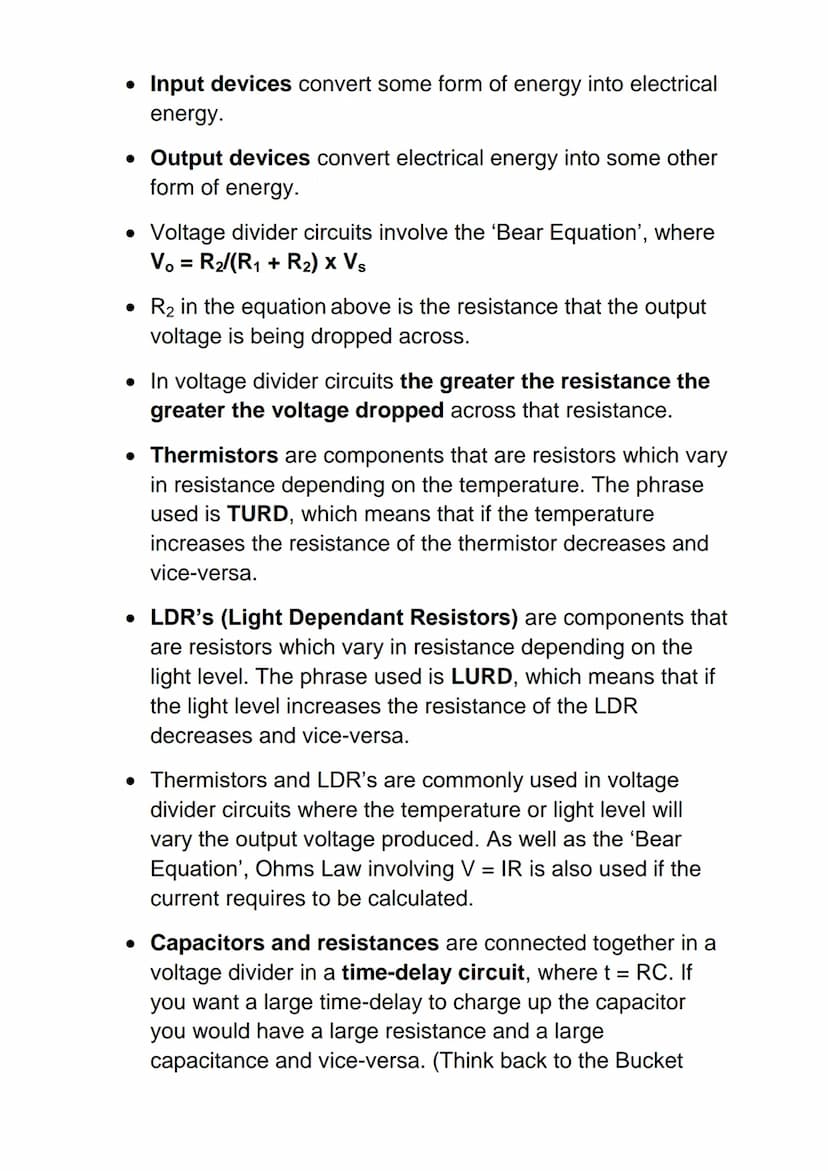

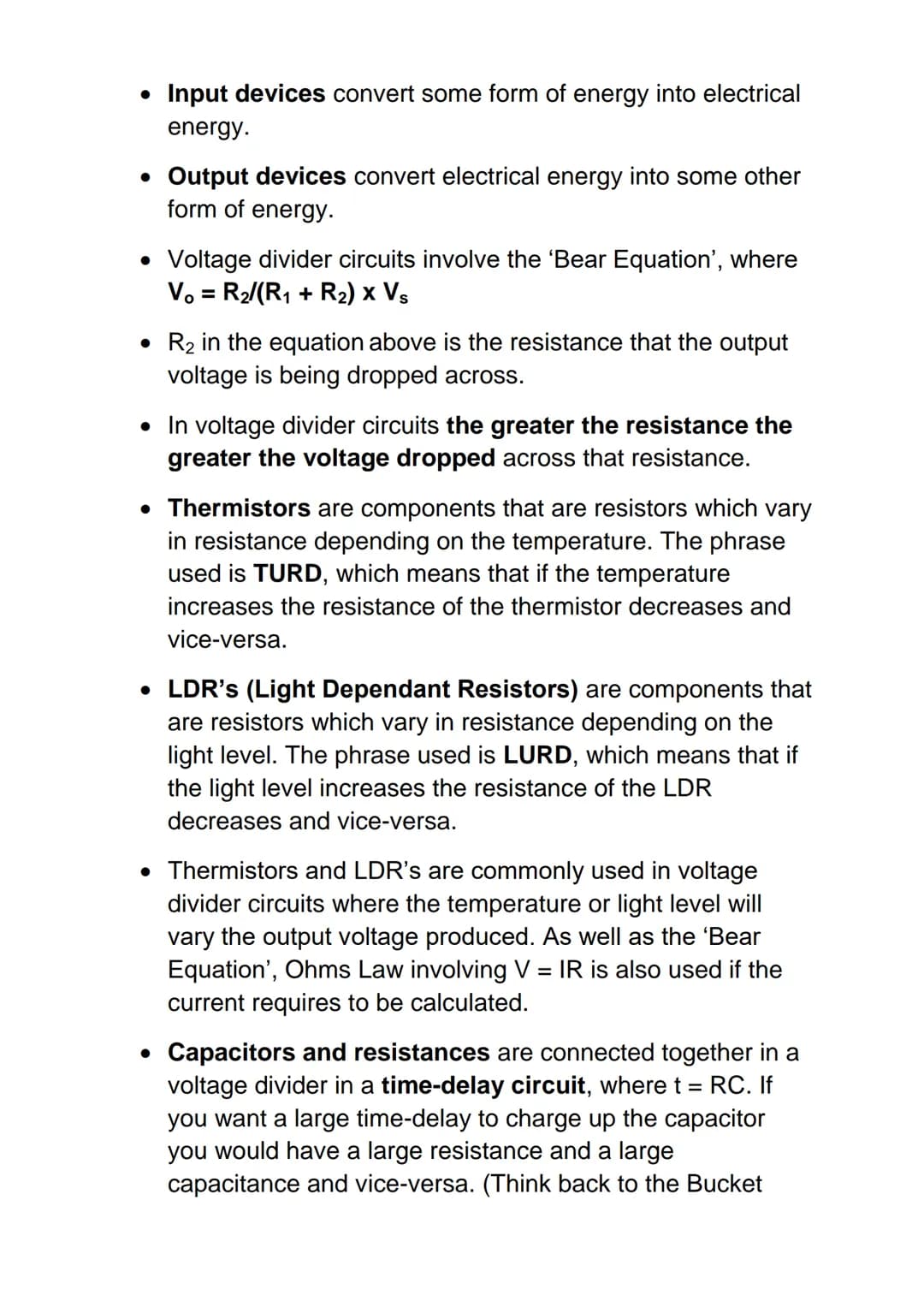

Electronic circuits consist of three essential components: input devices that convert various energy forms into electrical energy, processing components, and output devices that convert electrical energy back into other forms. Understanding voltage divider circuits is crucial, where the output voltage follows the "Bear Equation": Vo = R₂/$R₁ + R₂$ × Vs.

Temperature-sensitive components like thermistors follow the TURD principle (Temperature Up, Resistance Down), while Light Dependent Resistors (LDRs) follow LURD (Light Up, Resistance Down). These components are frequently used in voltage divider circuits for environmental monitoring applications.

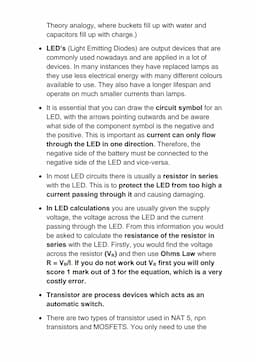

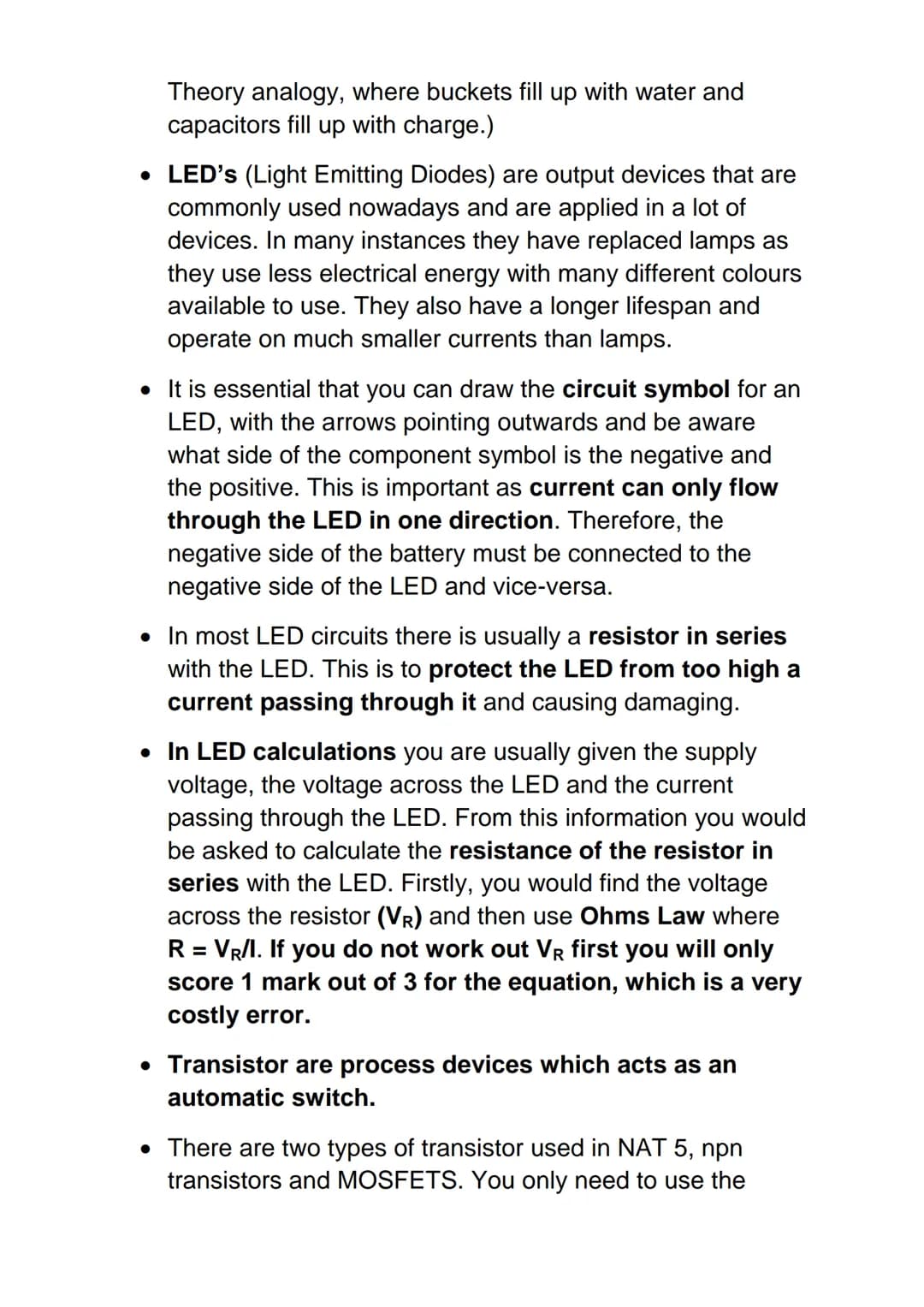

LED circuits require careful attention to polarity and current protection. A series resistor is typically included to prevent damage from excessive current. When calculating the required resistance, first determine the voltage across the resistor (VR) before applying Ohm's Law $R = VR/I$.

Vocabulary: LED (Light Emitting Diode) - A semiconductor device that emits light when current flows through it

Example: In an LED circuit with a 9V supply and LED voltage drop of 2V, the voltage across the protective resistor would be 7V (VR = VS - VLED)

Circuit Components and Applications

Transistors serve as automatic switches in electronic circuits, with two main types used in National 5 Physics: npn transistors and MOSFETs. These components are essential for controlling current flow and creating automated systems.

Capacitors and resistors work together in time-delay circuits, where the delay period is calculated using t = RC. Larger resistance and capacitance values result in longer delay times, similar to how larger buckets take longer to fill with water.

Modern electronic applications increasingly use LEDs over traditional lamps due to their energy efficiency, longer lifespan, and variety of available colors. Understanding proper LED circuit design, including correct polarity and current-limiting resistors, is crucial for successful implementation.

Definition: Time delay in RC circuits: t = RC, where t is in seconds, R in ohms, and C in farads

Highlight: Always include a current-limiting resistor in series with LEDs to prevent damage from excessive current

Advanced Circuit Analysis and Troubleshooting

Voltage divider circuits form the backbone of many sensor applications in National 5 Physics. The relationship between resistance values determines voltage distribution, with larger resistances resulting in larger voltage drops across those components.

When evaluating experimental setups, consider factors that might affect accuracy and reliability. This includes proper component selection, circuit configuration, and environmental conditions that could influence measurements.

Data handling in electronics requires careful attention to units and relationships between quantities. When analyzing circuit behavior, ensure all measurements are in compatible units and consider the physical principles governing component interactions.

Example: A voltage divider with R1 = 1kΩ and R2 = 2kΩ connected to a 9V supply will output 6V across R2

Highlight: In voltage divider calculations, always identify R2 as the resistance across which the output voltage is measured

Understanding Transistor Circuits and Speed Measurements in Physics

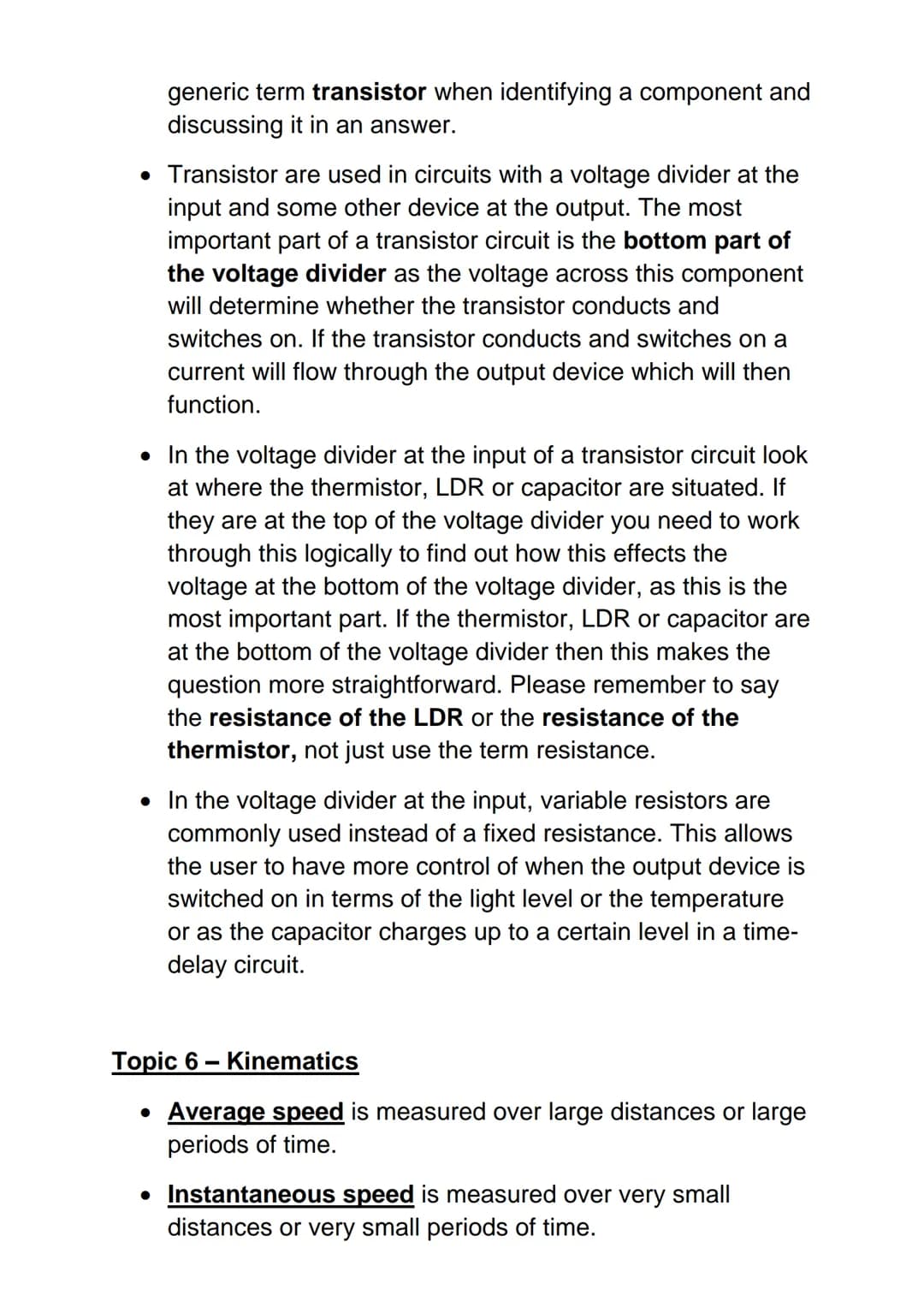

Transistors serve as fundamental electronic components that control current flow in circuits, playing a crucial role in modern electronics. When analyzing transistor circuits, it's essential to understand their integration with voltage dividers and output devices for effective circuit operation.

The voltage divider configuration at the input stage of a transistor circuit is particularly critical. The bottom section of this voltage divider determines the transistor's conducting state. When sufficient voltage develops across this lower component, the transistor enters its conduction mode, allowing current to flow through the output device. This mechanism forms the basis for many electronic switching applications in National 5 Physics.

Definition: A transistor is a semiconductor device that can amplify or switch electronic signals, acting as the building block of modern electronics.

Light-Dependent Resistors (LDRs), thermistors, and capacitors often appear in transistor circuits as part of the voltage divider network. Their positioning - whether at the top or bottom of the voltage divider - significantly impacts circuit behavior. When these components occupy the top position, careful analysis becomes necessary to determine the resulting voltage across the bottom section. Conversely, bottom placement typically simplifies circuit analysis.

Highlight: Variable resistors in voltage dividers provide user control over circuit triggering points, whether responding to light levels, temperature changes, or timing in delay circuits.

The study of motion introduces two crucial speed concepts. Average speed calculations involve larger distances or time periods, providing an overall movement assessment. In contrast, instantaneous speed measurements focus on extremely small distance or time intervals, offering precise velocity information at specific moments.

Example: Consider a car's speedometer showing instantaneous speed at any moment, while average speed would describe the entire journey's pace from start to finish.

Kinematics and Circuit Analysis in National 5 Physics revision

Understanding speed measurements forms a cornerstone of kinematics studies in physics. The distinction between average and instantaneous speed becomes particularly relevant when analyzing motion in various contexts, from everyday transportation to complex scientific experiments.

Vocabulary: Kinematics - The branch of physics dealing with motion of objects without considering the forces causing the motion.

Circuit analysis requires careful attention to component placement and functionality. In transistor circuits, the voltage divider's configuration significantly influences the circuit's behavior. The bottom section's voltage determines whether the transistor conducts, making this region crucial for circuit operation. This understanding proves essential for National 5 Physics exam preparation.

When working with electronic components like LDRs and thermistors, precise terminology becomes crucial. Rather than using generic terms, specify "resistance of the LDR" or "resistance of the thermistor" to demonstrate clear understanding. This precision in language helps avoid ambiguity in circuit analysis and problem-solving.

Example: In a light-sensing circuit, an LDR's resistance changes with light intensity, affecting the voltage divider's output and consequently the transistor's switching behavior.

Variable resistors introduce flexibility in circuit design, allowing precise control over switching thresholds. This adaptability proves particularly valuable in applications requiring specific response points to environmental changes or timing requirements, enhancing the circuit's practical utility.
