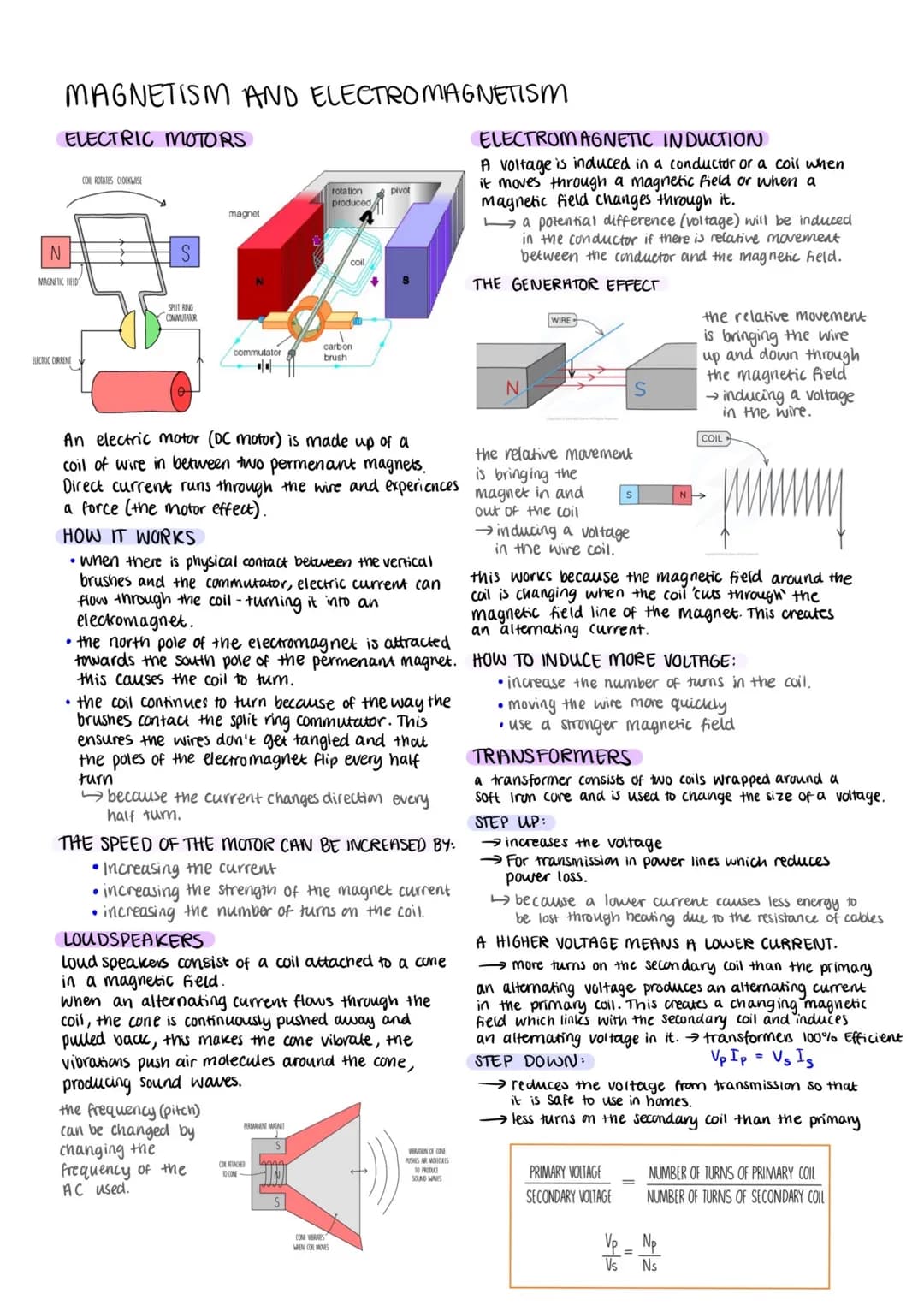

Electric Motors, Loudspeakers, and Electromagnetic Induction

This page delves deeper into practical applications of electromagnetism, focusing on electric motors, loudspeakers, and the principle of electromagnetic induction.

Electric motors, specifically DC motors, are explained in detail. They consist of a coil of wire placed between two permanent magnets. When direct current flows through the wire, it experiences a force due to the motor effect, causing rotation.

Highlight: The speed of an electric motor can be increased by increasing the current, strengthening the magnet, or adding more turns to the coil.

The page then discusses loudspeakers, which utilize electromagnetic principles to produce sound. A loudspeaker consists of a coil attached to a cone within a magnetic field. When an alternating current flows through the coil, it causes the cone to vibrate, producing sound waves.

Example: In a loudspeaker, the vibration of the cone pushes air molecules, creating sound waves that we hear.

Electromagnetic induction is introduced as the phenomenon where a voltage is induced in a conductor or coil when it moves through a magnetic field or when a magnetic field changes around it. This principle is crucial for understanding generators and transformers.

Definition: The generator effect occurs when relative movement between a conductor and a magnetic field induces a voltage in the conductor.

The page concludes by explaining how to induce more voltage in electromagnetic induction, which is essential for optimizing the efficiency of generators and other electromagnetic devices.

Vocabulary: Relative movement in electromagnetic induction refers to the motion between the conductor and the magnetic field, which is necessary to induce a voltage.

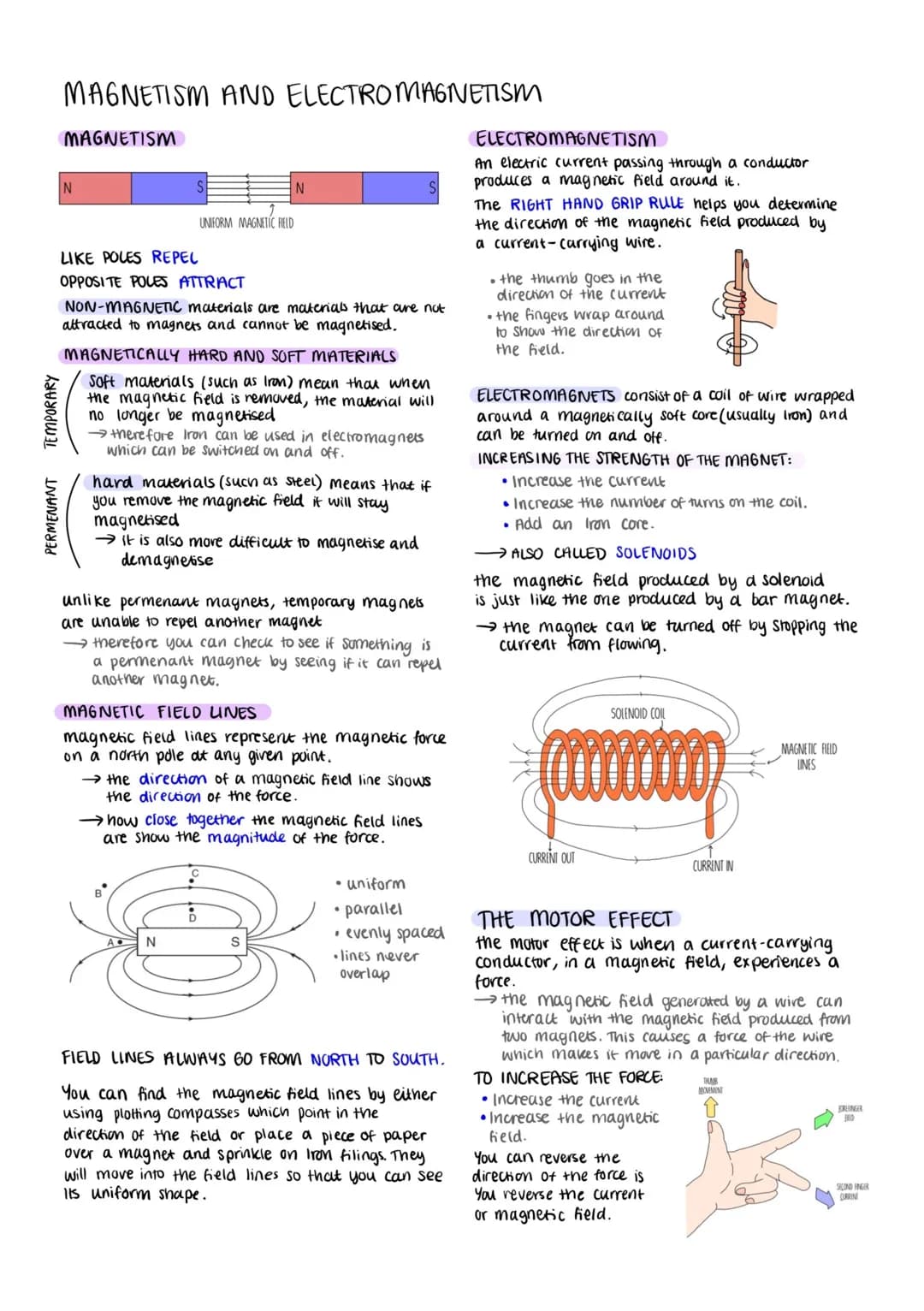

Magnetism and Electromagnetism: Fundamentals and Applications

This page introduces the core concepts of magnetism and electromagnetism, focusing on the differences between temporary and permanent magnetism and their practical applications.

Magnetic materials are classified based on their ability to retain magnetism. Temporary magnet examples include soft materials like iron, which lose their magnetism when the magnetic field is removed. In contrast, permanent magnet examples are made of hard materials like steel, which retain their magnetism.

Definition: Non-magnetic materials are substances that are not attracted to magnets and cannot be magnetized.

The page explains magnetic field lines, which represent the magnetic force on a north pole at any given point. The direction of these lines indicates the force direction, while their proximity shows the force magnitude.

Highlight: Magnetic field lines always go from north to south poles and never overlap.

Electromagnetism is introduced as the phenomenon where an electric current passing through a conductor produces a magnetic field. The right-hand grip rule is explained as a method to determine the direction of the magnetic field produced by a current-carrying wire.

Example: In the right-hand grip rule, the thumb points in the direction of the current, while the fingers wrap around to show the direction of the field.

The page also covers electromagnets, which consist of a coil of wire wrapped around a magnetically soft core, usually iron. These can be turned on and off and are also known as solenoids.

Vocabulary: Solenoids are coils of wire that produce a magnetic field when an electric current passes through them.

The motor effect is described as the force experienced by a current-carrying conductor in a magnetic field. This principle is fundamental to the operation of electric motors.
