Investigating Electrical Components in GCSE Physics Circuits
This page provides a comprehensive guide on conducting experiments to investigate various electrical components as part of GCSE Physics circuits studies. The content is particularly relevant for students following the GCSE Physics electrical circuits practical guide Edexcel or preparing for Physics Paper 1 required practicals BBC Bitesize AQA.

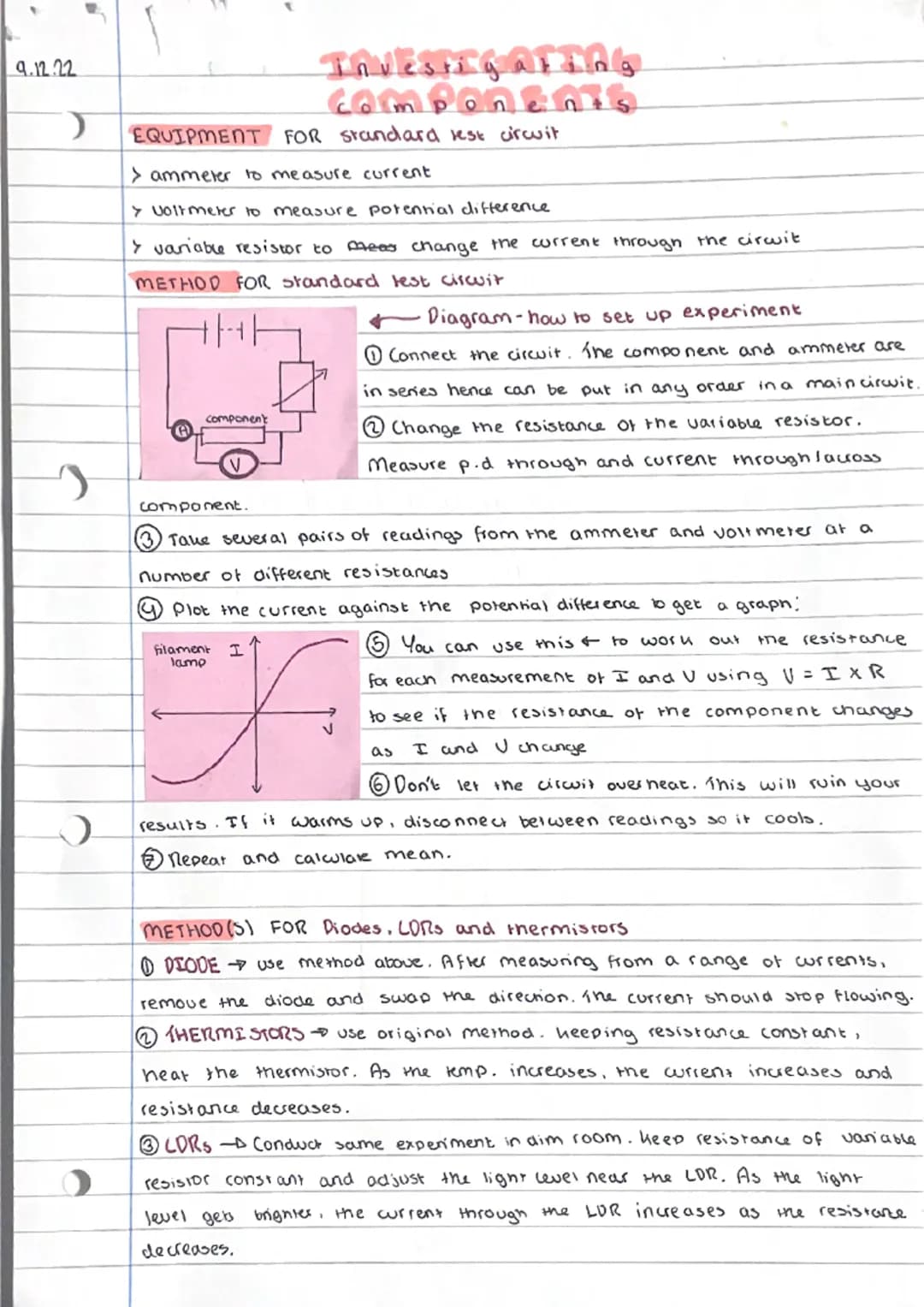

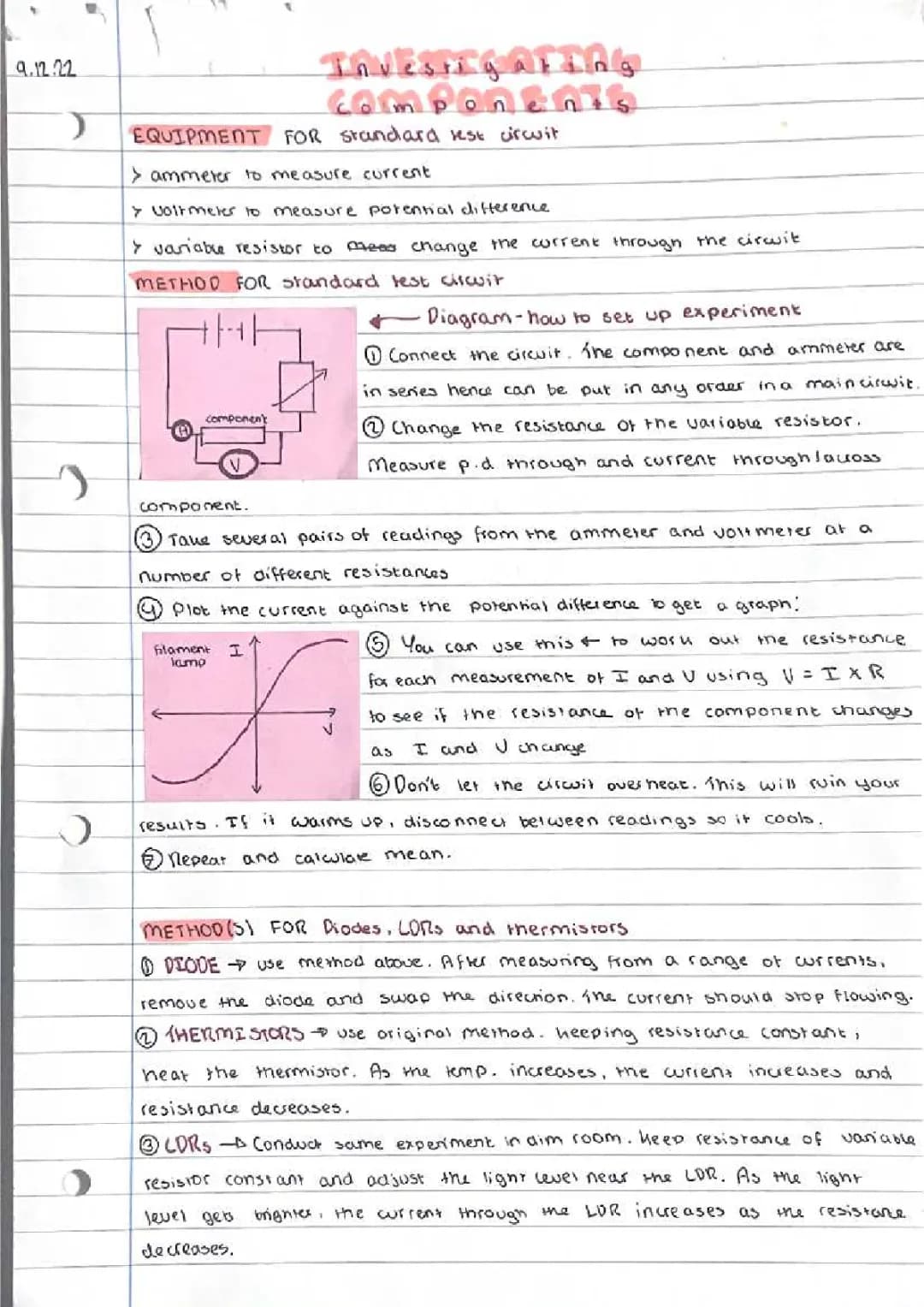

The page begins by listing the essential equipment for a standard test circuit, which includes an ammeter for measuring current, a voltmeter for measuring potential difference, and a variable resistor to adjust the current through the circuit. This setup is fundamental for investigating components in electrical circuits GCSE.
The method for the standard test circuit is then detailed step-by-step. Students are instructed to connect the circuit with the component and ammeter in series, which can be arranged in any order in the main circuit. The procedure involves changing the resistance of the variable resistor and measuring the potential difference and current across the component. Multiple readings are to be taken at different resistances.
Highlight: The importance of plotting current against potential difference is emphasized, as this graph can be used to determine the resistance of the component.
The page also covers the calculation of resistance using the equation V = I x R, which is crucial for GCSE Physics circuit calculations. Students are advised to calculate resistance for each measurement to observe if the component's resistance changes.
Vocabulary: V = I x R, where V is potential difference (volts), I is current (amperes), and R is resistance (ohms).
An important note is included about preventing the circuit from overheating, as this can affect the accuracy of results. Students are advised to disconnect the circuit between readings to allow cooling if necessary.
The latter part of the page describes specific methods for investigating diodes, thermistors, and Light Dependent Resistors (LDRs).
For diodes, the standard method is used, but students are instructed to reverse the diode's direction after initial measurements to demonstrate its unidirectional conductivity.
Example: When testing a diode, current should flow in one direction but stop when the diode is reversed in the circuit.
The thermistor investigation involves keeping the resistance constant and adjusting the temperature near the thermistor. Students should observe that as temperature increases, current increases and resistance decreases.
For LDRs, the experiment should be conducted in a dim room. The resistance of the variable resistor is kept constant while the light level near the LDR is adjusted. Students should note that as light intensity increases, the current through the LDR increases and its resistance decreases.
Definition: Thermistor: A resistor whose resistance varies significantly with temperature.
This practical guide provides students with hands-on experience in measuring current and potential difference in experiments GCSE, which is essential for understanding the behavior of different electrical components and preparing for exams.
