Fun with Electricity: I-V Graphs, High Voltage Power, and Christmas Light Circuits!

Open

22

0

J

JK Lee

23/10/2022

Physics

IGCSE EDEXCEL PHYSICS: Electricity

Subjects

/

Physics

Fun with Electricity: I-V Graphs, High Voltage Power, and Christmas Light Circuits!

A comprehensive guide to electrical concepts covering current, resistance, circuits, and electrical safety. The material explores fundamental principles of electricity from basic current flow to complex circuit configurations and safety measures.

  • Understanding I-V graphs in electricity demonstrates the relationship between voltage and current across different components
  • Circuit configurations and their practical applications, including the difference between series and parallel circuits for Christmas lights
  • Safety considerations in electrical systems, including the benefits of using high voltage in power transmission
  • Detailed exploration of static electricity, conductors, and insulators
  • Real-world applications including photocopiers and lightning phenomena
...

23/10/2022

1334

2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

View

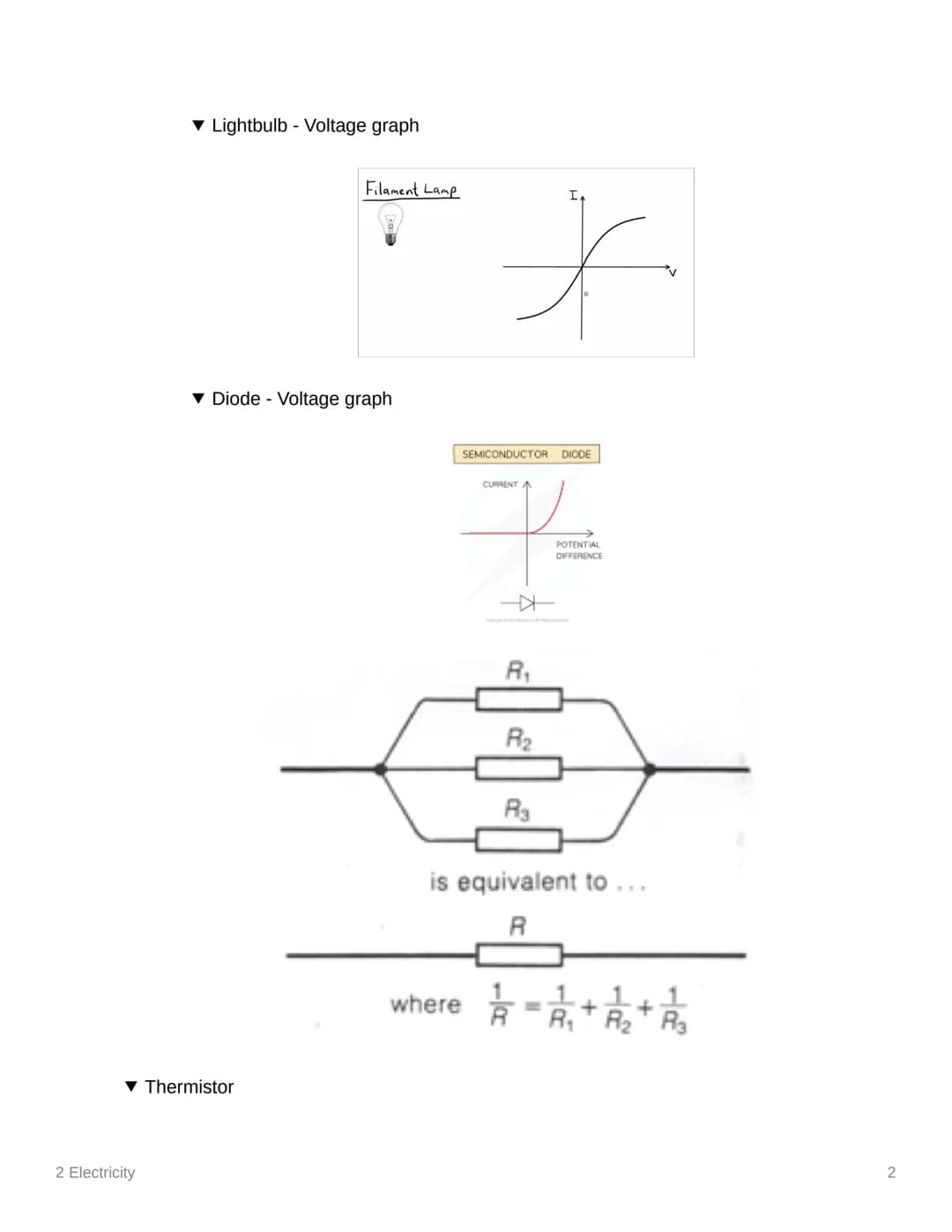

Component Characteristics

This section explores how different electrical components respond to voltage changes, focusing on specific components like lightbulbs, thermistors, and diodes.

Definition: A semiconductor diode is a component that allows current to flow in only one direction.

Highlight: Different components show distinct I-V characteristics, which are crucial for circuit design and application.

Example: A filament lamp's resistance increases as voltage increases, resulting in a non-linear I-V graph.

2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

View

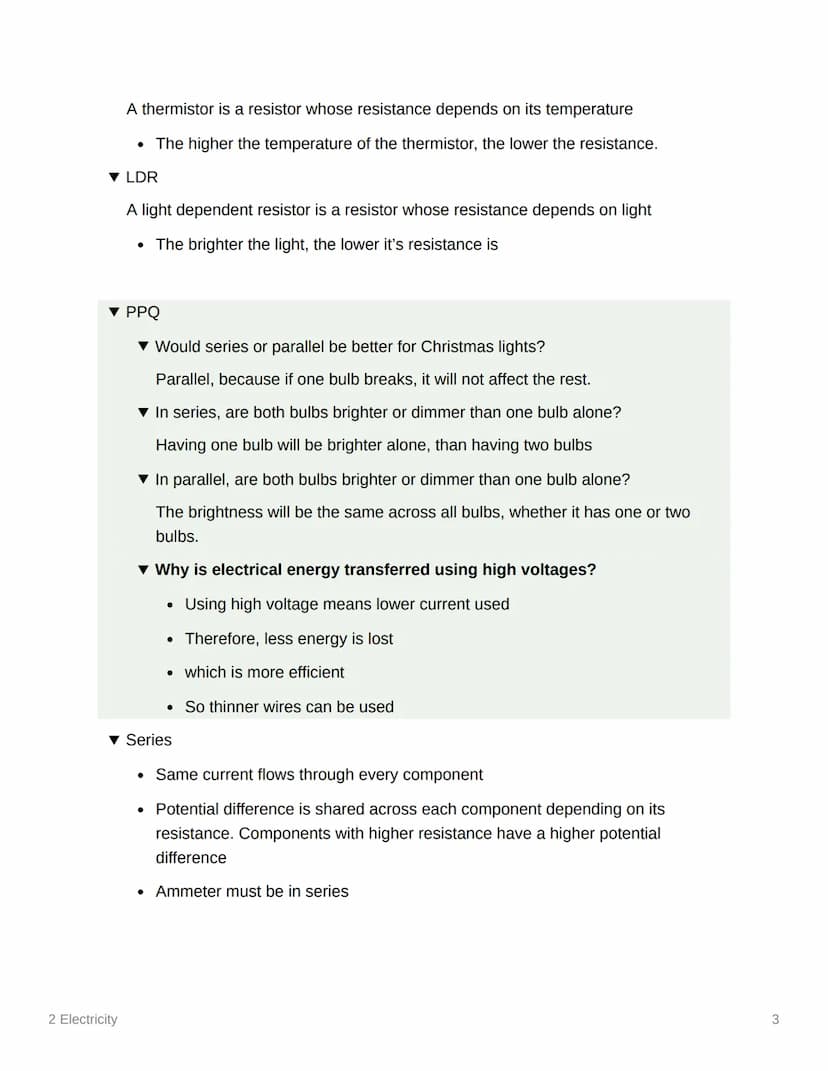

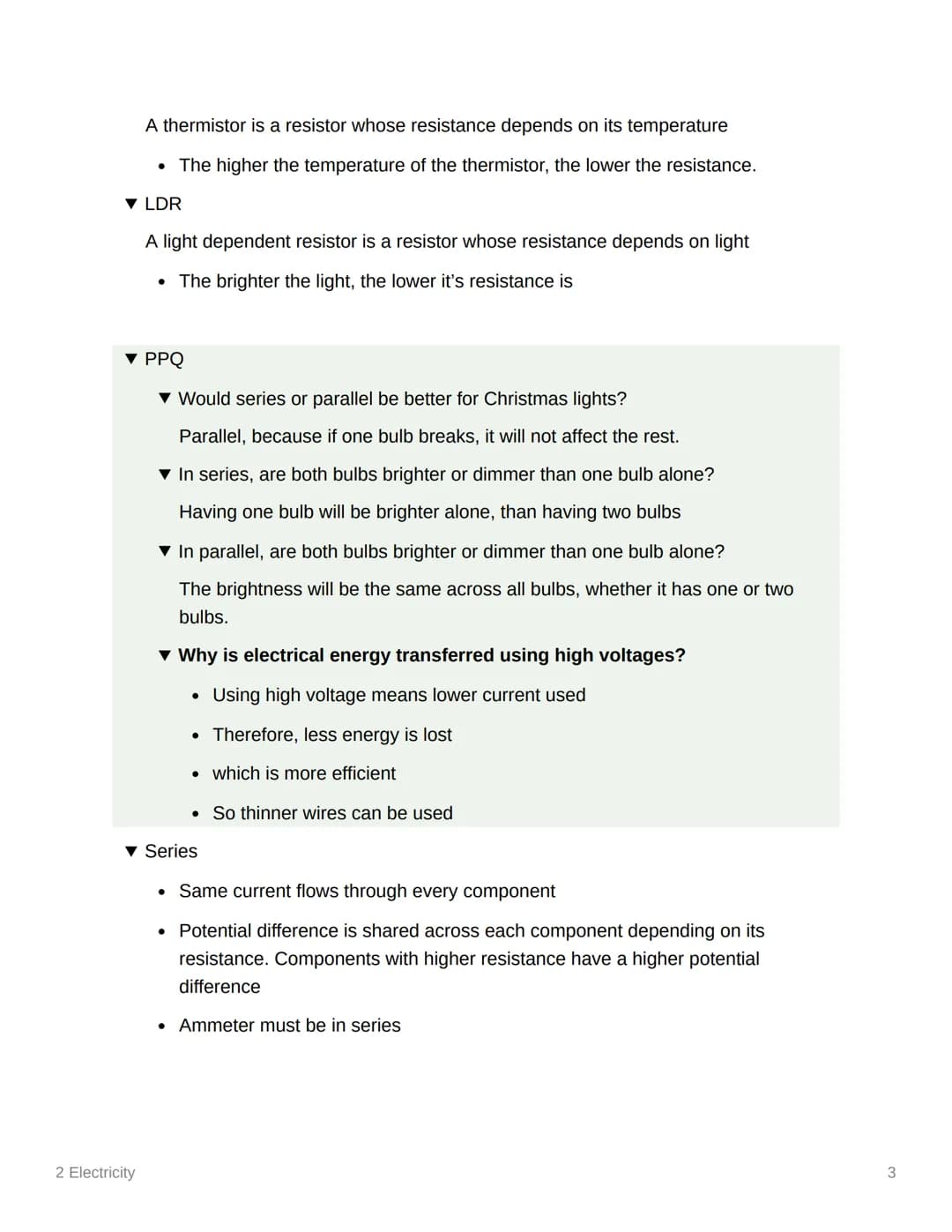

Circuit Components and Applications

This section details various circuit components and their practical applications, particularly focusing on thermistors and Light Dependent Resistors (LDRs).

Definition: A thermistor is a temperature-dependent resistor whose resistance decreases as temperature increases.

Example: Christmas lights work better in parallel circuits because if one bulb fails, the others continue to function.

Highlight: High voltage transmission reduces energy loss and allows for thinner wires in power distribution.

2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

View

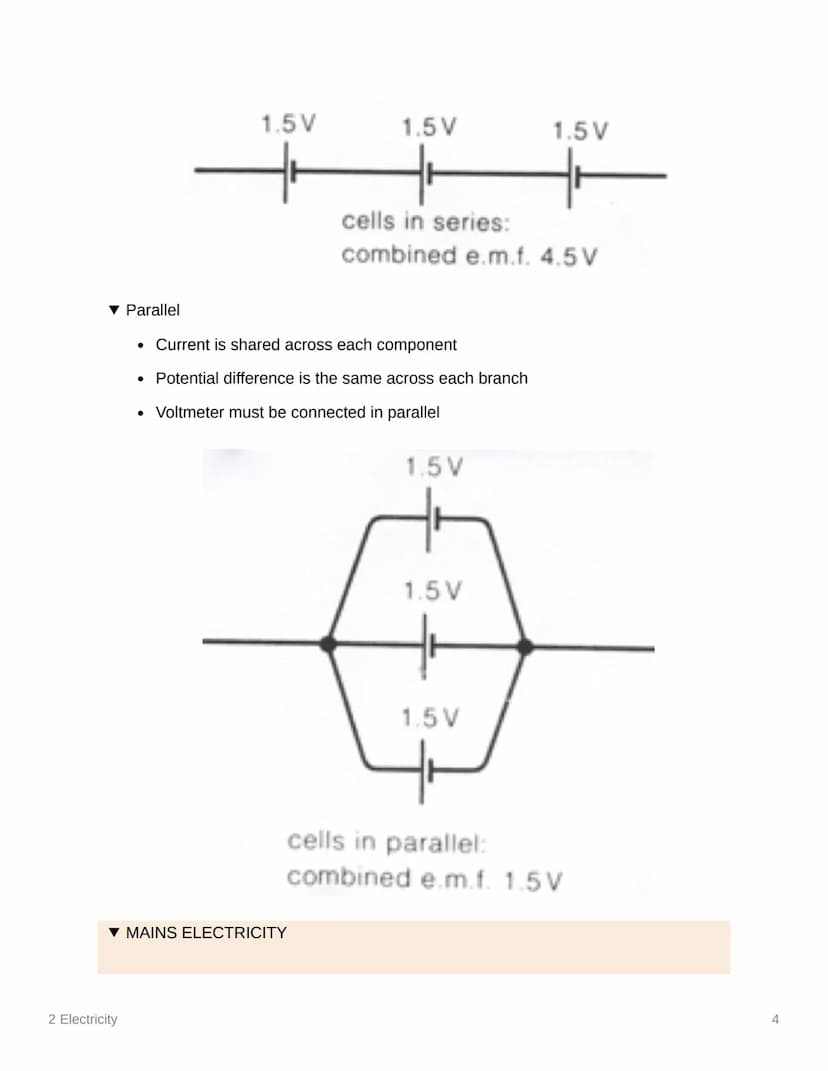

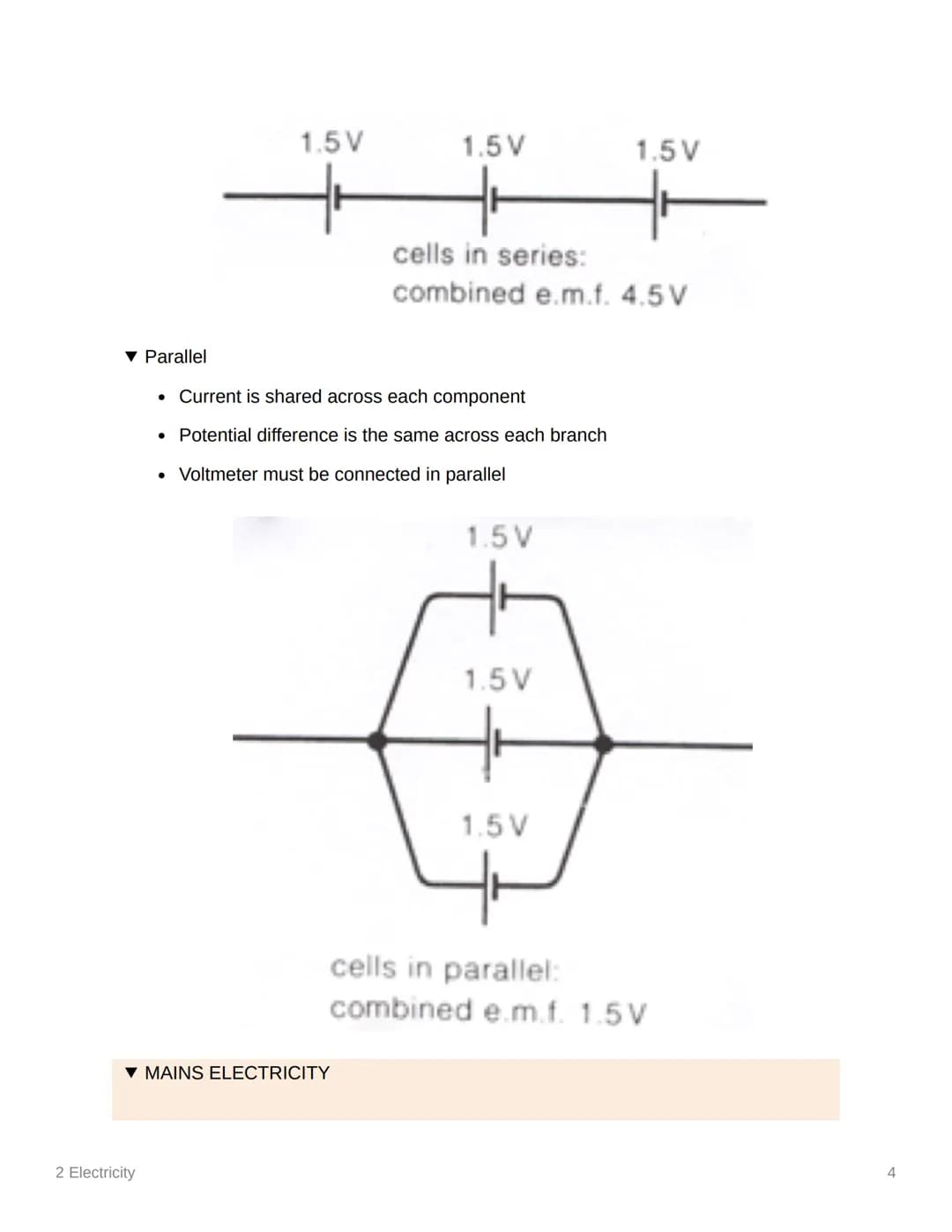

Circuit Configurations

This section examines different ways to connect electrical components, focusing on series and parallel circuits.

Definition: In series circuits, current remains constant through all components while voltage is shared.

Example: Batteries can be connected in series to increase total voltage or in parallel to maintain voltage while increasing capacity.

Highlight: Voltmeters must be connected in parallel while ammeters must be in series for correct measurements.

2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

View

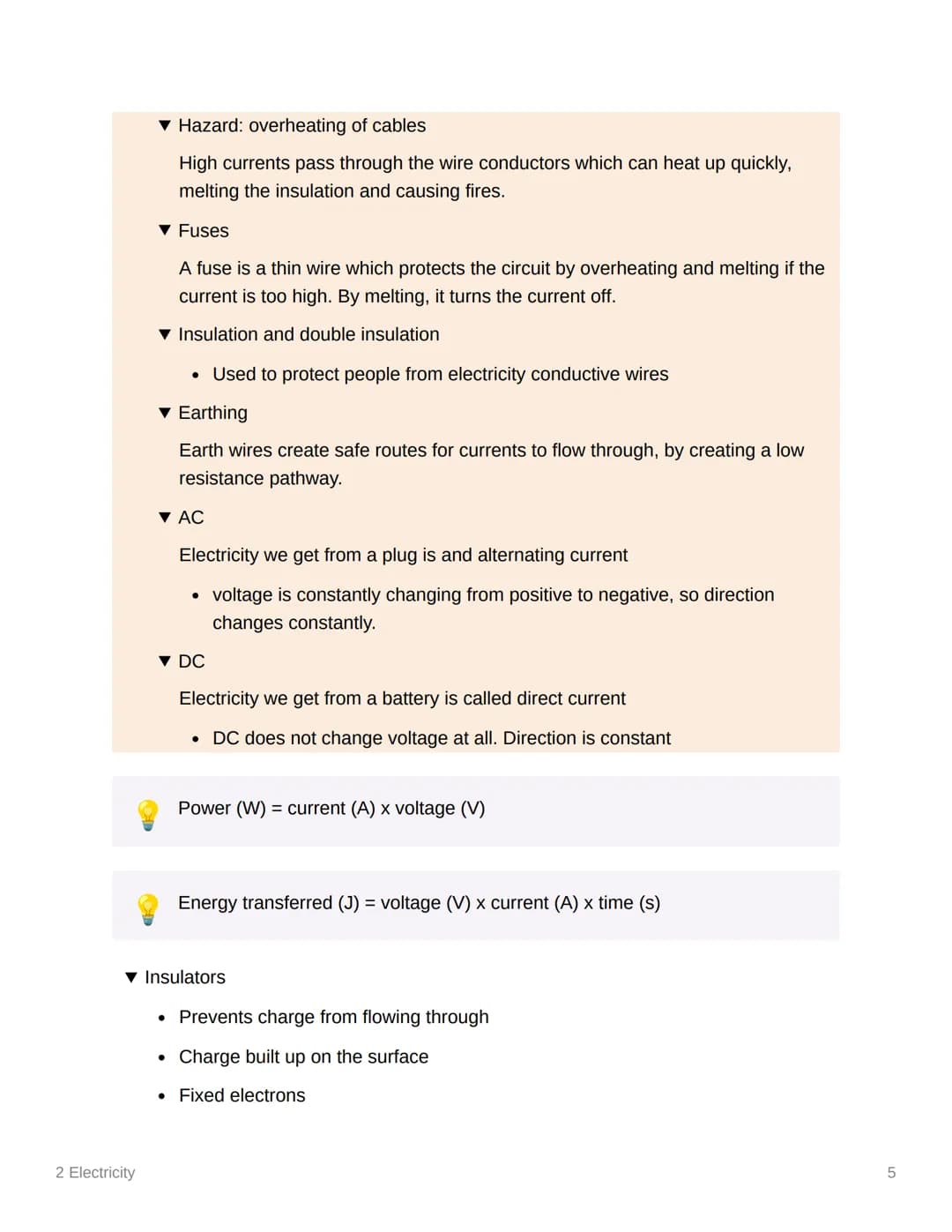

Electrical Safety and Current Types

This section covers essential safety aspects of electrical systems and different types of electrical current.

Definition: A fuse is a safety device that melts when current exceeds safe levels, protecting circuits from damage.

Vocabulary: AC (Alternating Current) and DC (Direct Current) are two fundamental types of electrical current.

Highlight: Proper insulation and earthing are crucial safety measures in electrical systems.

2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

View

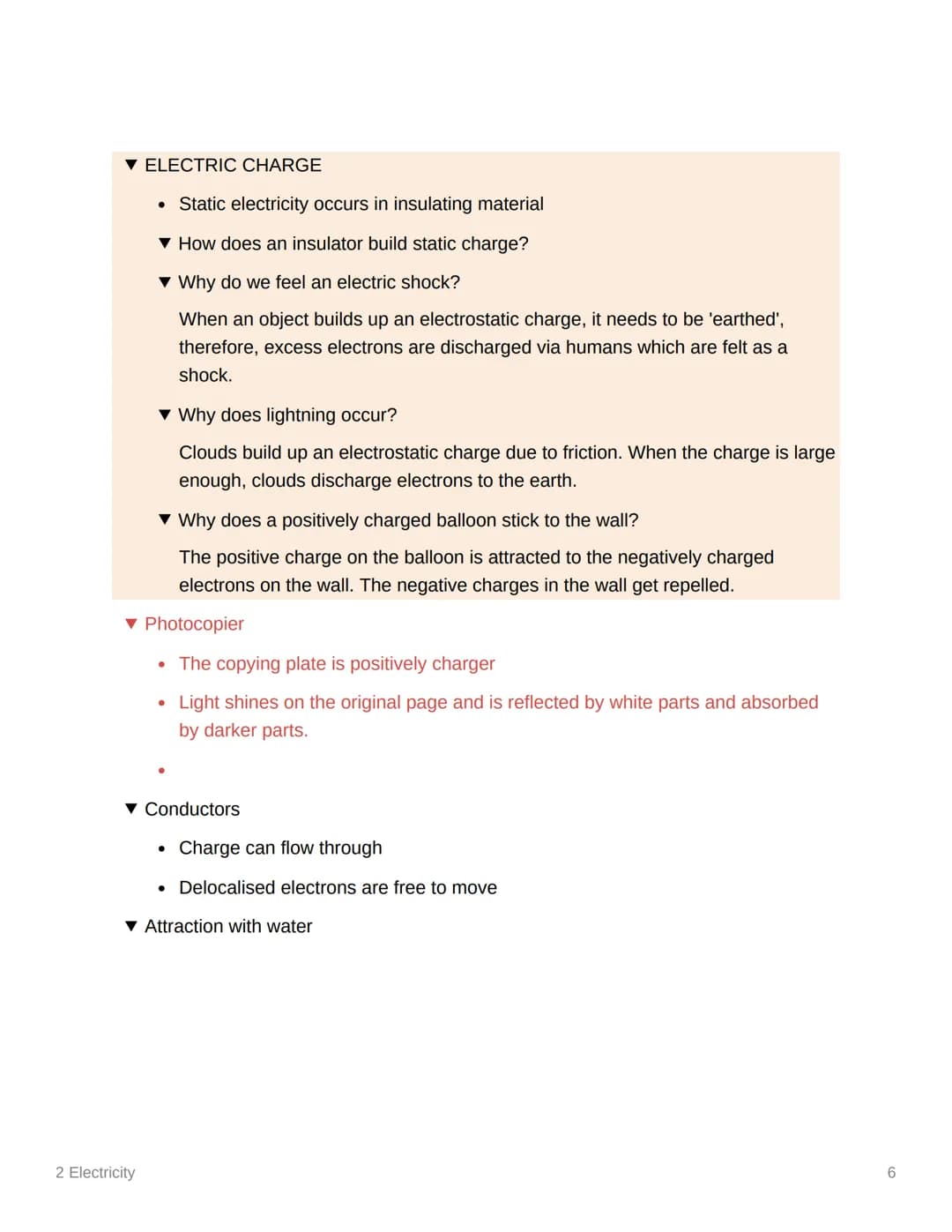

Static Electricity and Conductors

This section explores static electricity, its causes, and effects, along with the properties of conductors and insulators.

Definition: Static electricity occurs when electric charges accumulate on insulating materials through friction.

Example: Lightning occurs when clouds discharge accumulated static electricity to the earth.

Highlight: Conductors allow charge flow through delocalized electrons, while insulators prevent charge movement.

2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

View

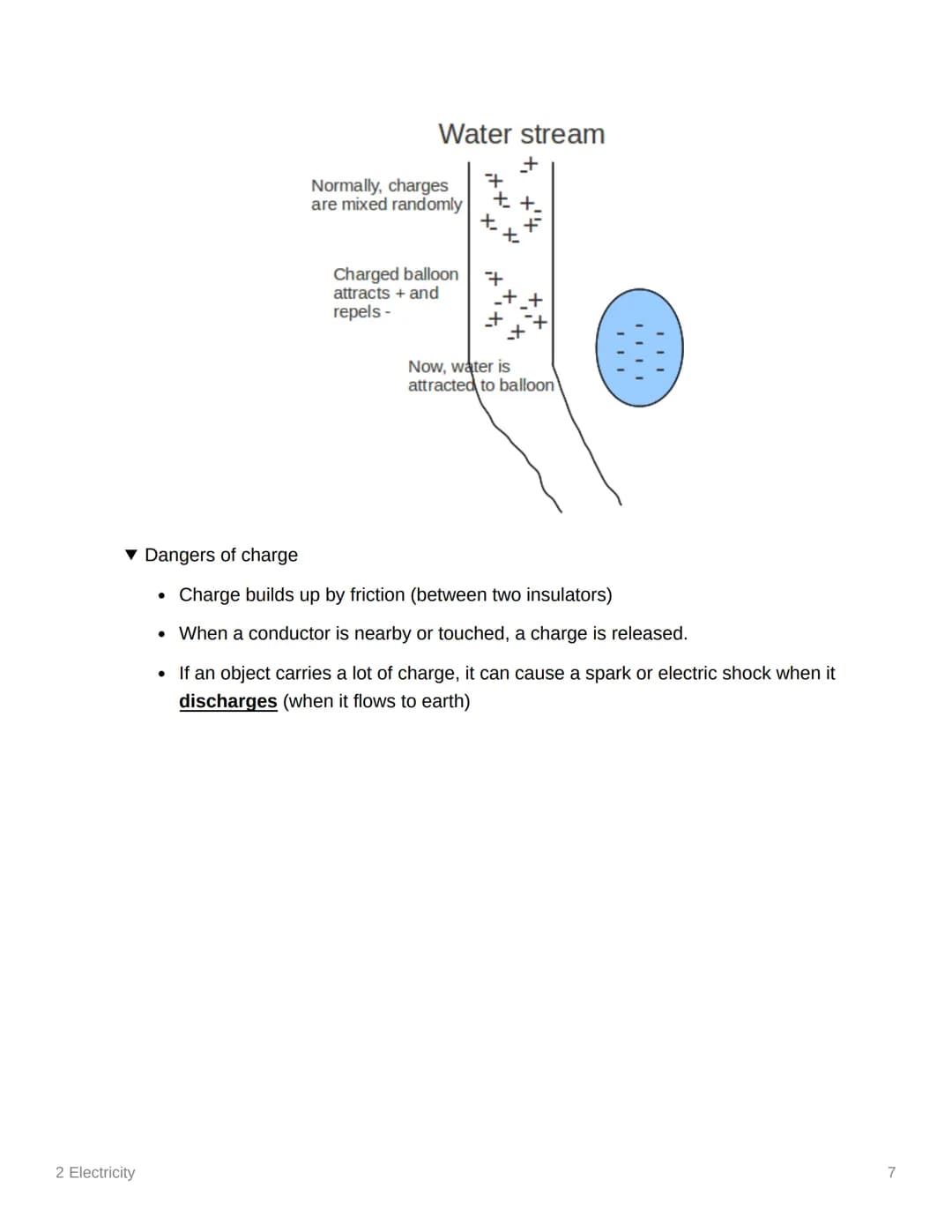

Electrical Safety and Charge Behavior

This section concludes with important safety considerations regarding electrical charge and its practical applications.

Definition: Charge buildup occurs through friction between insulators and can be discharged through conductors.

Example: Water streams can be attracted to charged objects due to charge separation.

Highlight: Large charge accumulations can create dangerous situations, potentially causing sparks or electric shocks.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

20 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Subjects

Physics



Physics

•

1,334

•

23 Oct 2022

•

7 pages

Fun with Electricity: I-V Graphs, High Voltage Power, and Christmas Light Circuits!

J

JK Lee

@jklee_myja

A comprehensive guide to electrical concepts covering current, resistance, circuits, and electrical safety. The material explores fundamental principles of electricity from basic current flow to complex circuit configurations and safety measures.

  • Understanding I-V graphs in electricitydemonstrates the relationship between... Show more
2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Component Characteristics

This section explores how different electrical components respond to voltage changes, focusing on specific components like lightbulbs, thermistors, and diodes.

Definition: A semiconductor diode is a component that allows current to flow in only one direction.

Highlight: Different components show distinct I-V characteristics, which are crucial for circuit design and application.

Example: A filament lamp's resistance increases as voltage increases, resulting in a non-linear I-V graph.

2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Circuit Components and Applications

This section details various circuit components and their practical applications, particularly focusing on thermistors and Light Dependent Resistors (LDRs).

Definition: A thermistor is a temperature-dependent resistor whose resistance decreases as temperature increases.

Example: Christmas lights work better in parallel circuits because if one bulb fails, the others continue to function.

Highlight: High voltage transmission reduces energy loss and allows for thinner wires in power distribution.

2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Circuit Configurations

This section examines different ways to connect electrical components, focusing on series and parallel circuits.

Definition: In series circuits, current remains constant through all components while voltage is shared.

Example: Batteries can be connected in series to increase total voltage or in parallel to maintain voltage while increasing capacity.

Highlight: Voltmeters must be connected in parallel while ammeters must be in series for correct measurements.

2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Electrical Safety and Current Types

This section covers essential safety aspects of electrical systems and different types of electrical current.

Definition: A fuse is a safety device that melts when current exceeds safe levels, protecting circuits from damage.

Vocabulary: AC (Alternating Current) and DC (Direct Current) are two fundamental types of electrical current.

Highlight: Proper insulation and earthing are crucial safety measures in electrical systems.

2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Static Electricity and Conductors

This section explores static electricity, its causes, and effects, along with the properties of conductors and insulators.

Definition: Static electricity occurs when electric charges accumulate on insulating materials through friction.

Example: Lightning occurs when clouds discharge accumulated static electricity to the earth.

Highlight: Conductors allow charge flow through delocalized electrons, while insulators prevent charge movement.

2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Electrical Safety and Charge Behavior

This section concludes with important safety considerations regarding electrical charge and its practical applications.

Definition: Charge buildup occurs through friction between insulators and can be discharged through conductors.

Example: Water streams can be attracted to charged objects due to charge separation.

Highlight: Large charge accumulations can create dangerous situations, potentially causing sparks or electric shocks.

2 Electricity CURRENT ELECTRICITY Current (A) = Charge (C) / Time (s) Current is rate of flow of charge 2.9 I-V GRAPHS ▼ Resistance (Ohms) •

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

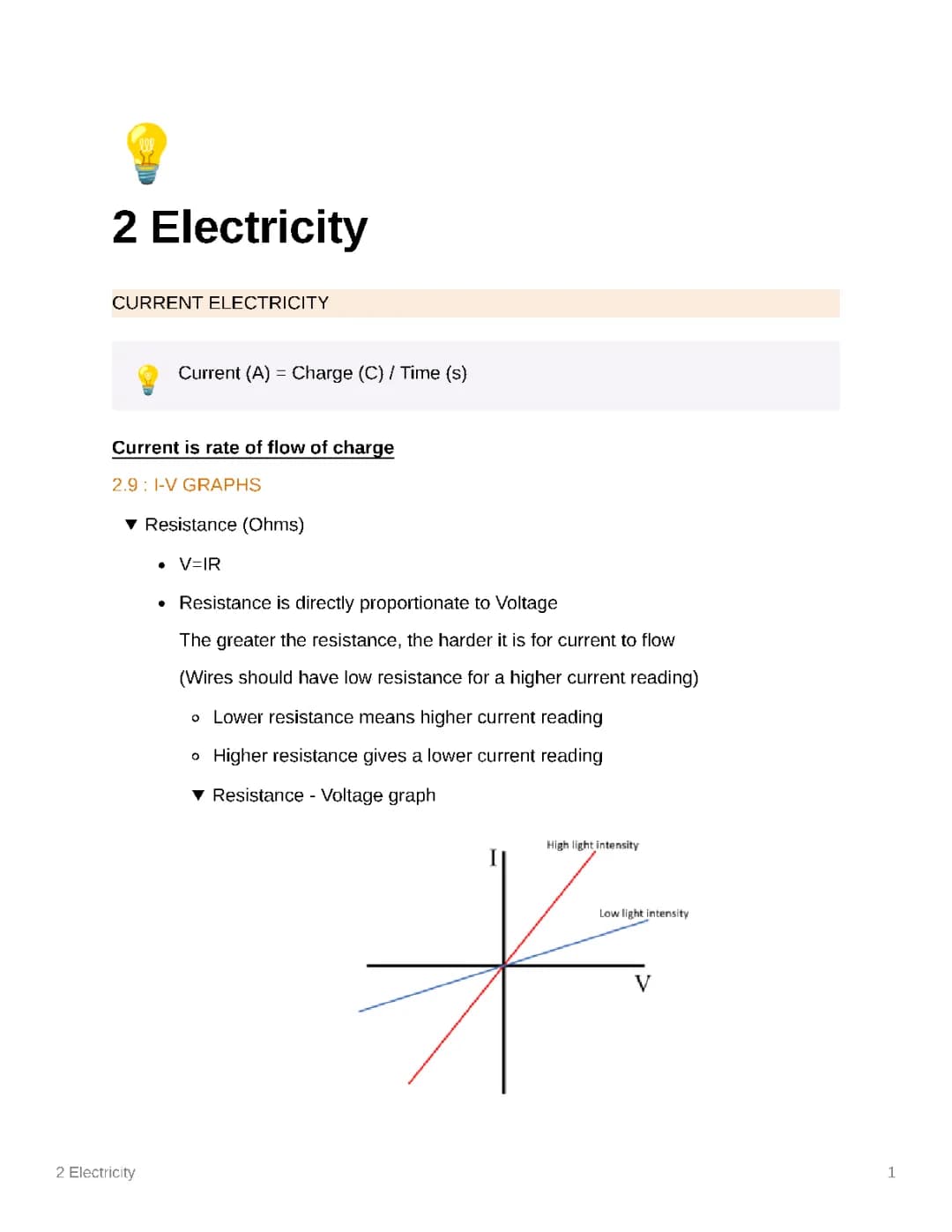

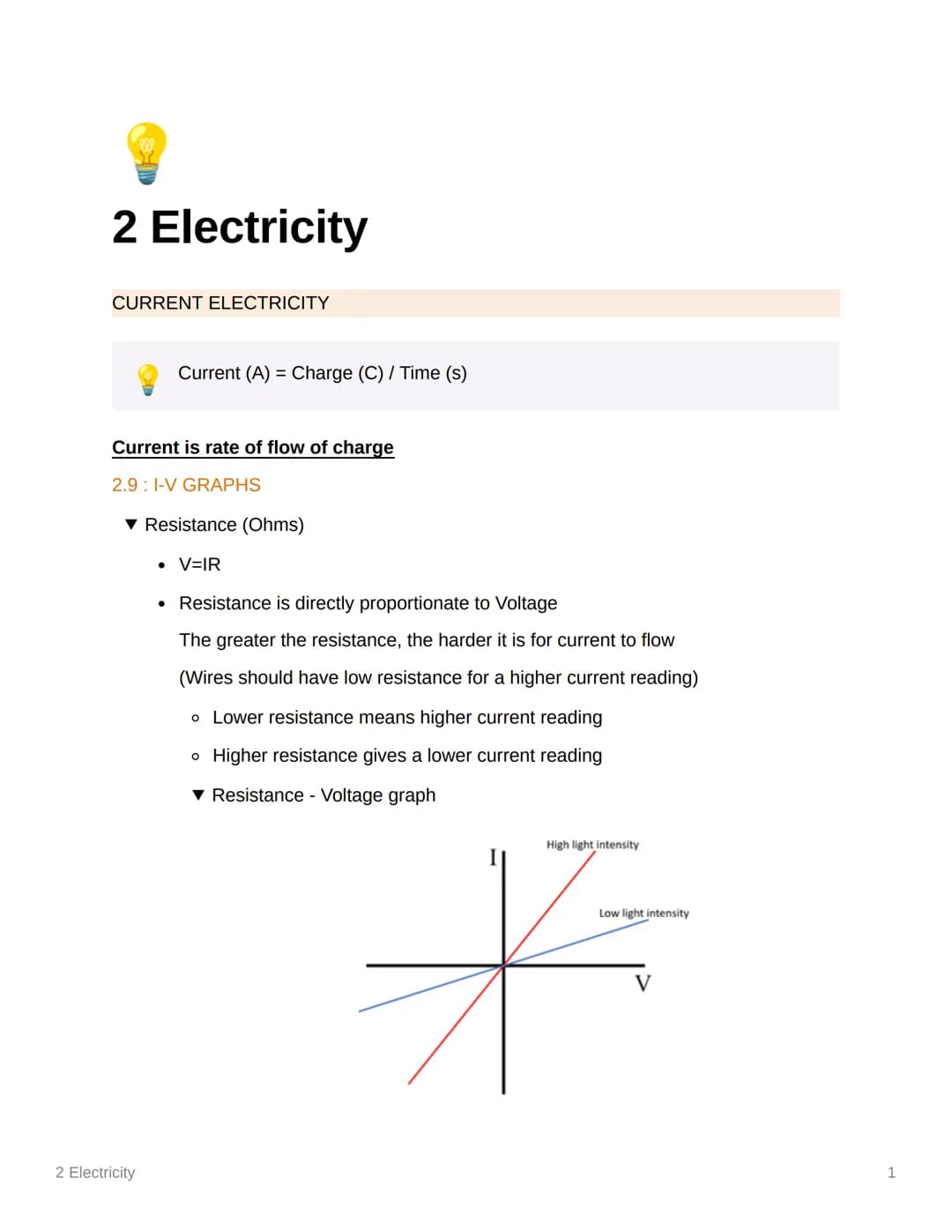

Current Electricity and I-V Graphs

This section introduces fundamental concepts of electrical current and voltage-current relationships. The material covers resistance and its effects on current flow through various components.

Definition: Current is defined as the rate of flow of charge, measured in amperes (A), calculated as Charge (C) divided by Time (s).

Highlight: The relationship between voltage and current follows Ohm's Law (V=IR), where resistance directly affects current flow.

Example: In practical applications, wires should have low resistance to achieve higher current readings.

Vocabulary: I-V graphs (Current-Voltage graphs) show the relationship between current and voltage in electrical components.
