Wave Behavior at Boundaries

This section explores what happens when waves encounter boundaries between different media, introducing key concepts in wave reflection and refraction.

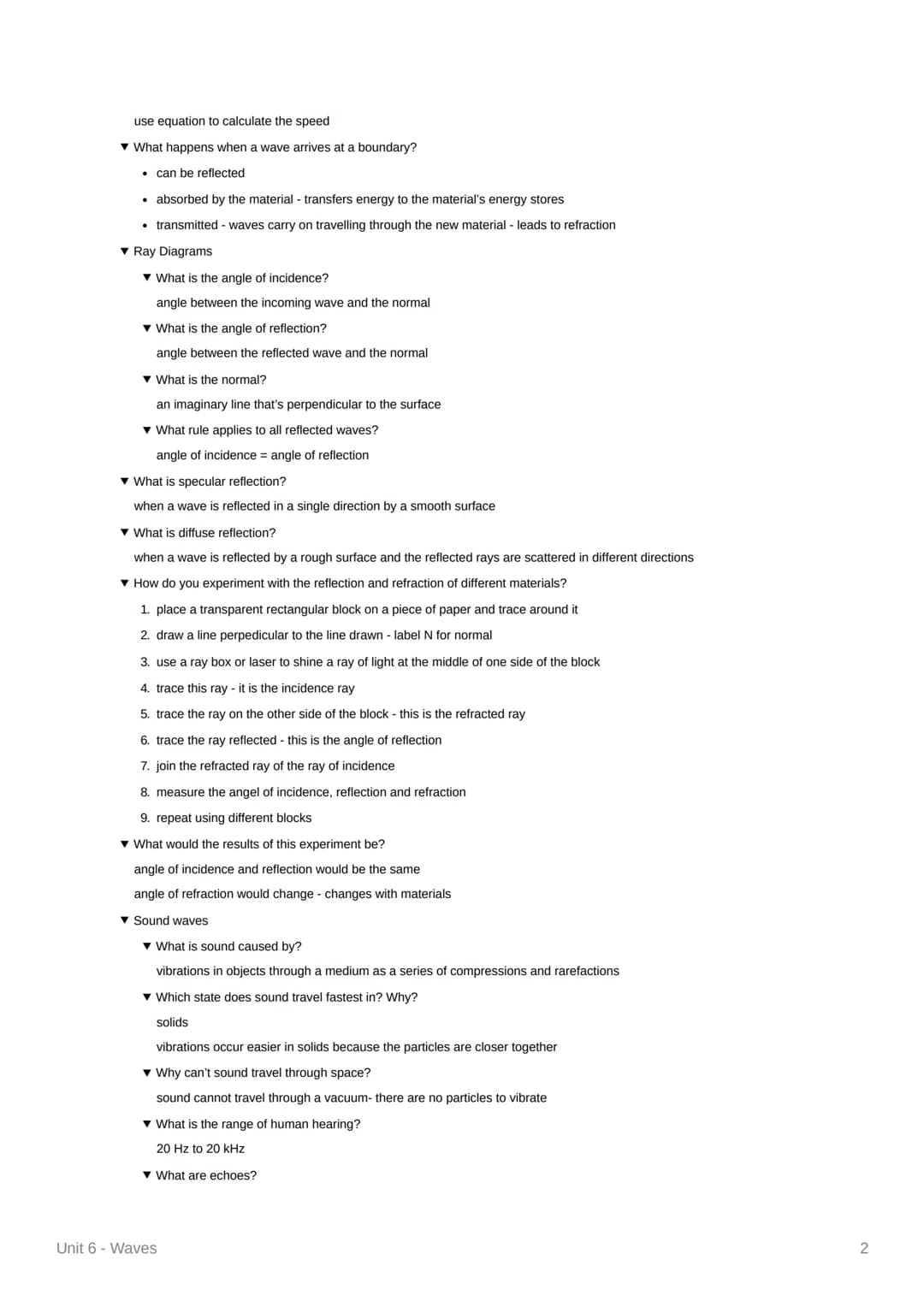

Wave Interactions at Boundaries

When a wave reaches a boundary, it can undergo several processes:

1. Reflection: The wave bounces back from the boundary
2. Absorption: The wave's energy is transferred to the material
3. Transmission: The wave continues through the new material, often leading to refraction

Ray Diagrams and Reflection Laws

Understanding ray diagrams is essential for visualizing wave behavior:

Vocabulary:

• Angle of incidence: Angle between the incoming wave and the normal
• Angle of reflection: Angle between the reflected wave and the normal
• Normal: An imaginary line perpendicular to the surface at the point of incidence

Highlight: The fundamental law of reflection states that the angle of incidence equals the angle of reflection.

Types of Reflection

The guide distinguishes between two types of reflection:

1. Specular reflection: Occurs on smooth surfaces, resulting in a single reflected direction
2. Diffuse reflection: Happens on rough surfaces, scattering reflected waves in various directions

Experimental Approach to Reflection and Refraction

The text outlines a step-by-step procedure for investigating reflection and refraction using different materials. This experiment is valuable for answering AQA GCSE Physics exam-style questions on waves.

Example: To study reflection and refraction:

1. Place a transparent block on paper and trace its outline
2. Draw a normal line and use a ray box to shine light at the block
3. Trace incident, reflected, and refracted rays
4. Measure angles of incidence, reflection, and refraction
5. Repeat with different materials to compare results

Sound Waves and Their Properties

This section delves into the nature of sound waves, their propagation through different media, and human perception of sound.

Nature of Sound Waves

Sound is a form of energy transfer through vibrations:

Definition: Sound waves are longitudinal waves caused by vibrations in objects, propagating through a medium as a series of compressions and rarefactions.

Sound Propagation in Different Media

The speed of sound varies depending on the medium:

Highlight: Sound travels fastest in solids because the particles are closer together, allowing vibrations to propagate more easily.

It's important to note that sound cannot travel through a vacuum, which explains why there is no sound in space.

Human Hearing Range

Vocabulary: The range of human hearing is typically between 20 Hz to 20 kHz.

Echoes and Sound Reflection

Echoes are a common phenomenon related to sound waves:

Definition: Echoes are reflected sound waves that return to the listener after bouncing off a surface.

Sound Refraction

When sound waves enter a different medium:

• Their wavelength changes
• The frequency remains constant
• The wave speed changes accordingly

This concept is crucial for understanding GCSE Physics questions and answers related to wave behavior.

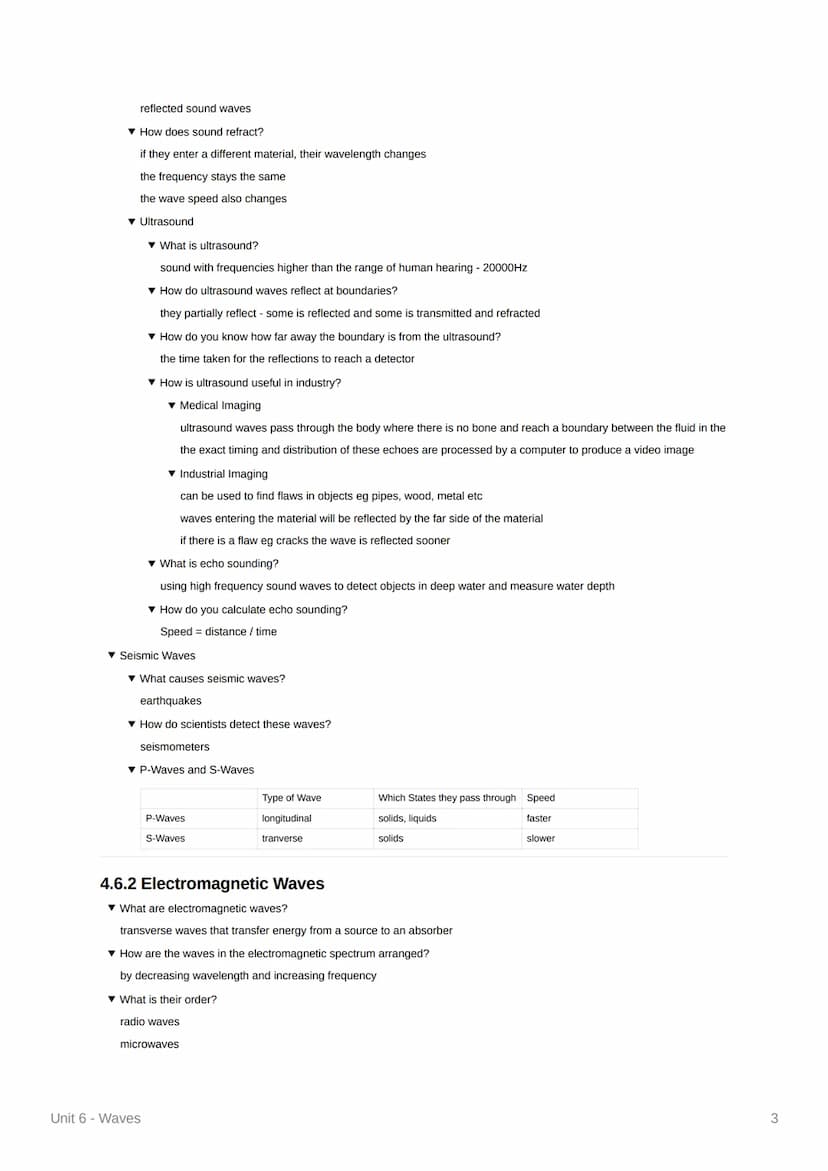

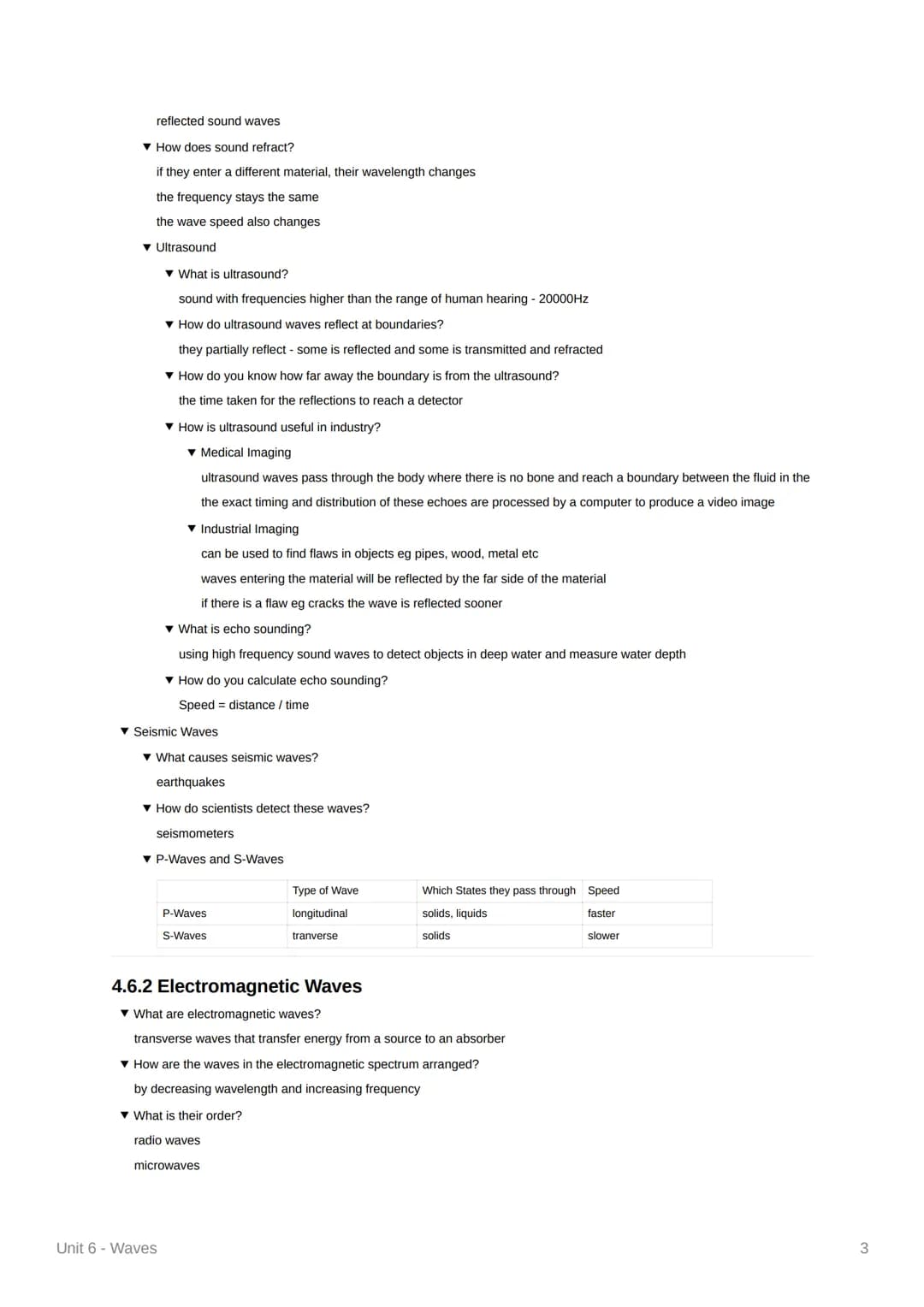

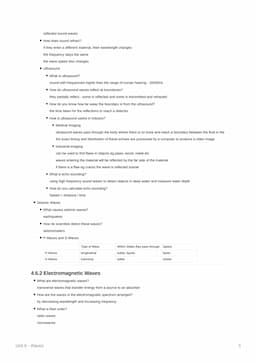

Ultrasound and Its Applications

This section explores ultrasound, its properties, and its various applications in medical and industrial settings.

Definition and Properties of Ultrasound

Definition: Ultrasound refers to sound waves with frequencies higher than the upper limit of human hearing, typically above 20,000 Hz.

Reflection of Ultrasound Waves

Ultrasound waves exhibit partial reflection at boundaries between different media. This property is fundamental to many of its applications.

Distance Measurement Using Ultrasound

The distance to a boundary can be determined using ultrasound:

Highlight: The time taken for ultrasound reflections to reach a detector is used to calculate the distance to the reflecting boundary.

Applications of Ultrasound

Ultrasound has numerous practical applications, particularly in medical and industrial contexts:

1. Medical Imaging

   Example: In medical ultrasound, waves pass through the body and reflect at tissue boundaries. A computer processes these reflections to produce real-time video images.

2. Industrial Imaging

   Example: Ultrasound can detect flaws in materials like pipes, wood, or metal. Earlier reflections indicate the presence of defects or cracks.

3. Echo Sounding

   Definition: Echo sounding uses high-frequency sound waves to detect objects, commonly used in marine applications for depth measurement and object detection.

These applications demonstrate the practical relevance of wave concepts covered in AQA GCSE Physics Waves Exam questions.

Wave Experiments and Practical Skills

This section focuses on practical experiments and skills related to waves, which are essential for GCSE Physics questions and answers and required practicals.

Speed of Waves Experiment

The guide outlines several methods for measuring wave speed:

1. Using an Oscilloscope for Sound Waves

   Example: Set up two microphones connected to an oscilloscope. Move one microphone until the waves align one wavelength apart. Measure this distance to find the wavelength, then use the wave speed equation $v = f × λ$ to calculate speed.

2. Speed of Water Ripples Experiment

   Highlight: This experiment, similar to a ripple tank experiment for GCSE Physics, uses a signal generator to create waves in a ripple tank. The wavelength is measured using shadows cast on a screen, and the speed is calculated using the wave speed formula.

3. Waves on Strings Experiment

   Example: Use a signal generator and vibration transducer to create waves on a string. Adjust the frequency until a clear wave pattern forms, measure the wavelength, and calculate the speed using the known frequency.

These experiments are excellent preparation for AQA GCSE Physics required practical waves in a solid and help students understand how to calculate wave speed without wavelength in some scenarios.

Reflection and Refraction Experiment

The guide provides a detailed method for investigating reflection and refraction:

1. Place a transparent block on paper and trace its outline
2. Draw a normal line perpendicular to one side
3. Use a ray box or laser to shine light at the block
4. Trace the incident, reflected, and refracted rays
5. Measure the angles of incidence, reflection, and refraction
6. Repeat with different materials

This experiment is valuable for answering questions about the properties of waves GCSE and understanding how waves behave at boundaries between different media.

Highlight: These practical skills and experiments are crucial for success in GCSE Physics waves Questions and answers and help students apply theoretical knowledge to real-world scenarios.

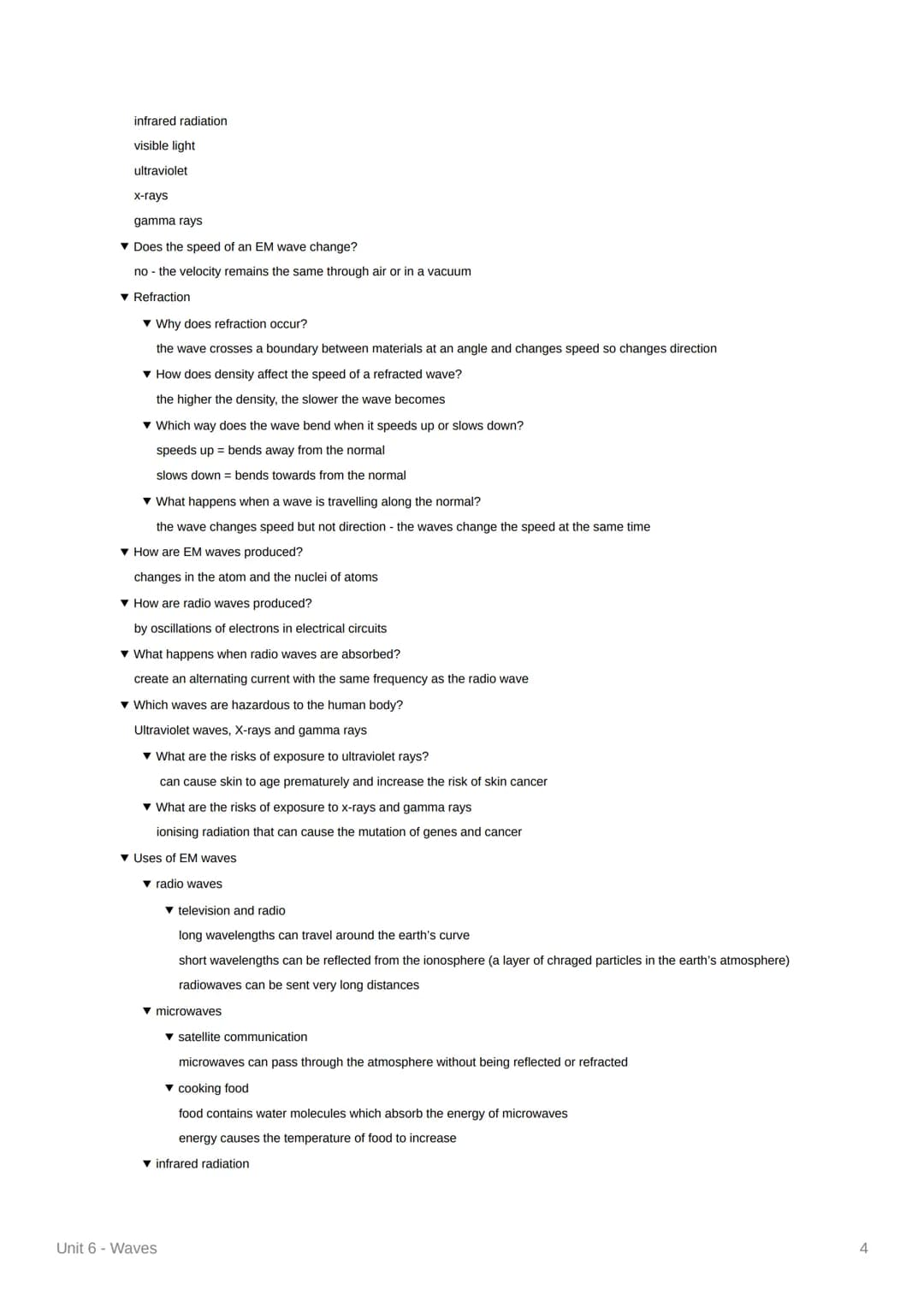

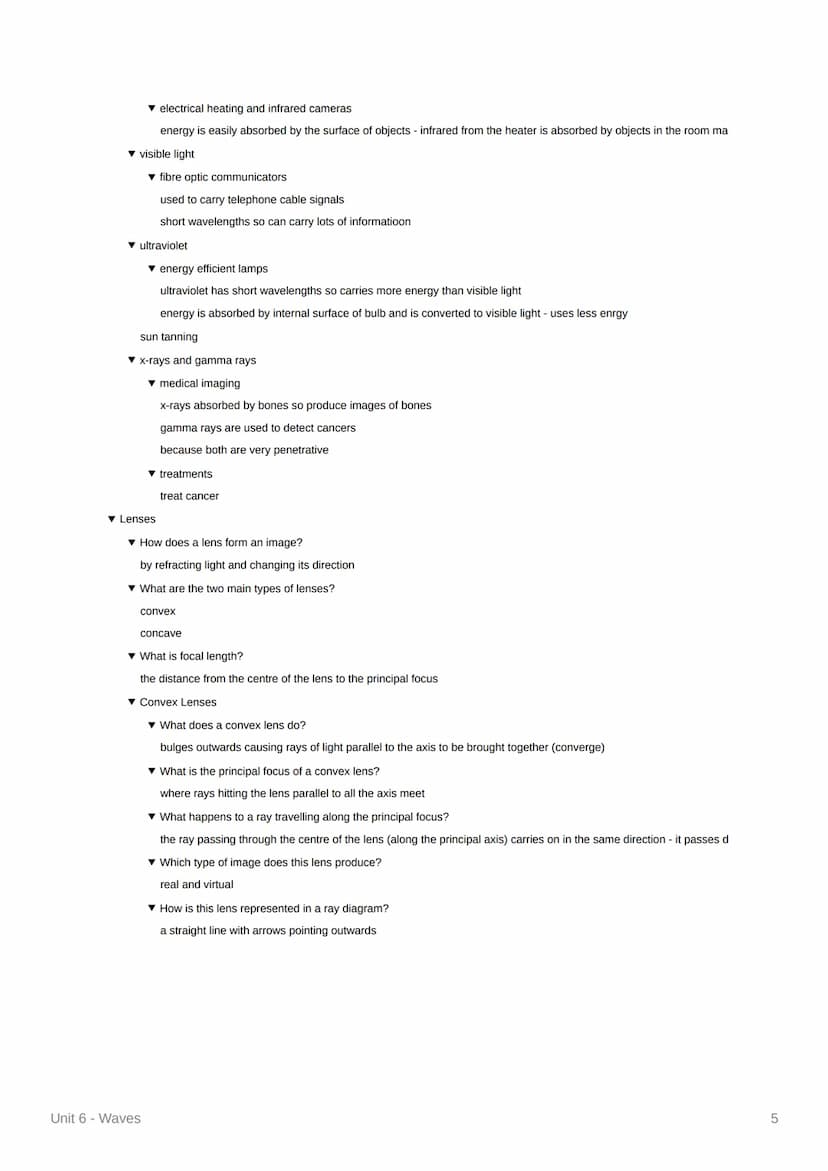

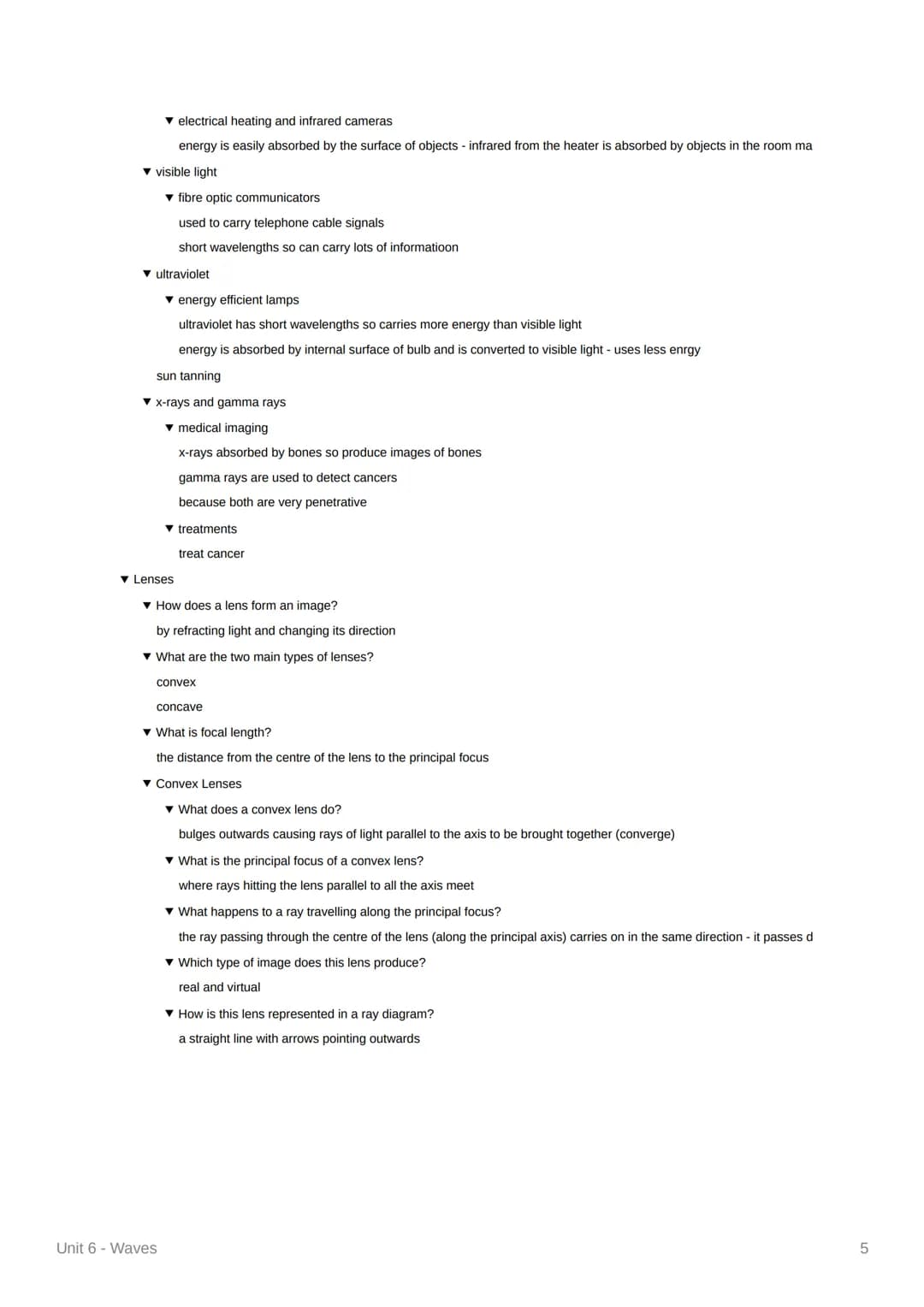

Page 5: Electromagnetic Wave Applications

This page explores practical applications of electromagnetic waves across different wavelengths.

Example: Fiber optic communications use short wavelengths to carry large amounts of information.

Highlight: X-rays and gamma rays' penetrative properties make them suitable for medical imaging and cancer treatment.

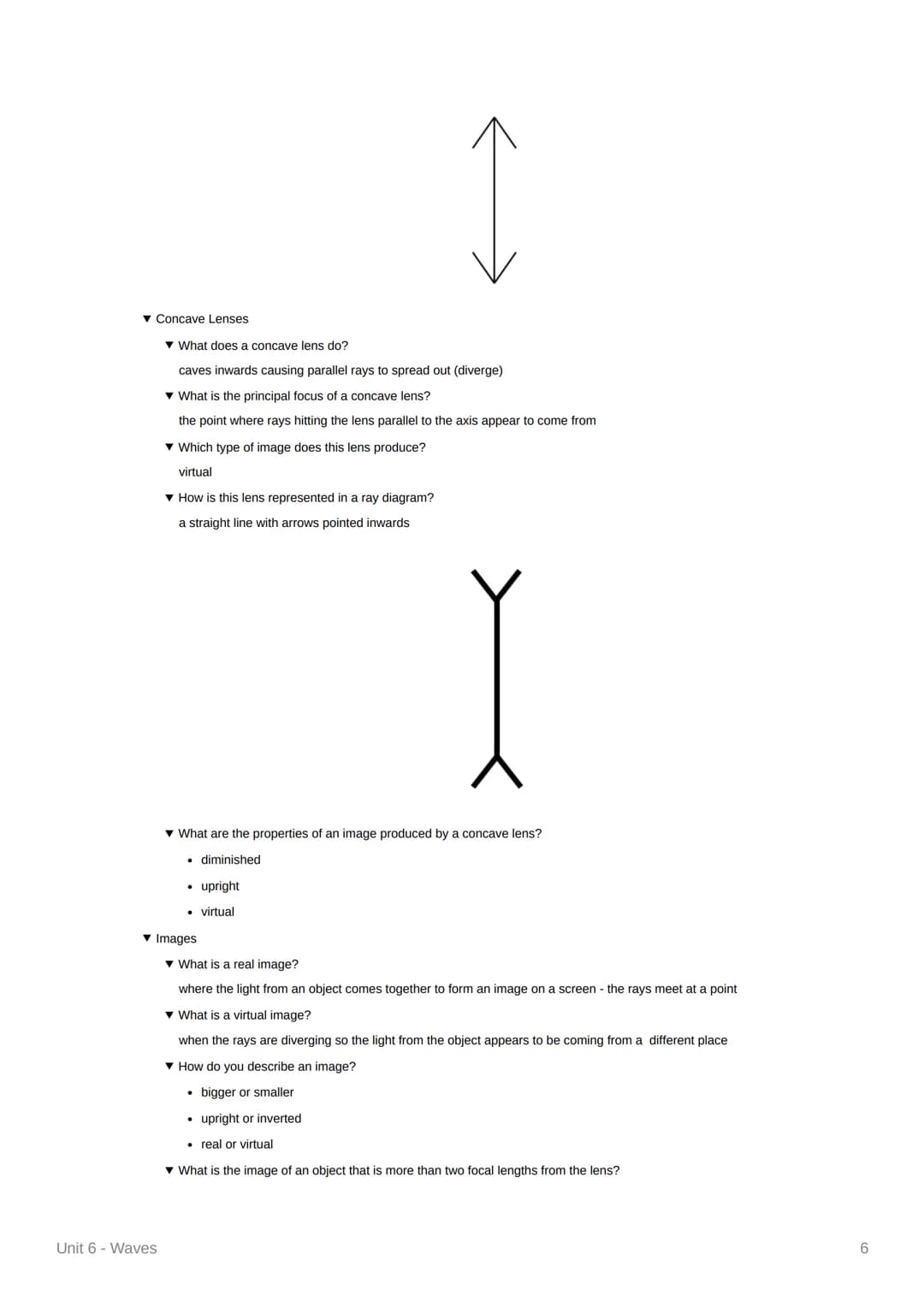

Page 6: Concave Lenses

This section details the properties and effects of concave lenses, important for understanding optical systems.

Definition: A concave lens causes parallel rays to diverge, producing virtual, diminished, and upright images.

Highlight: The principal focus of a concave lens is the point where parallel rays appear to originate after passing through the lens.

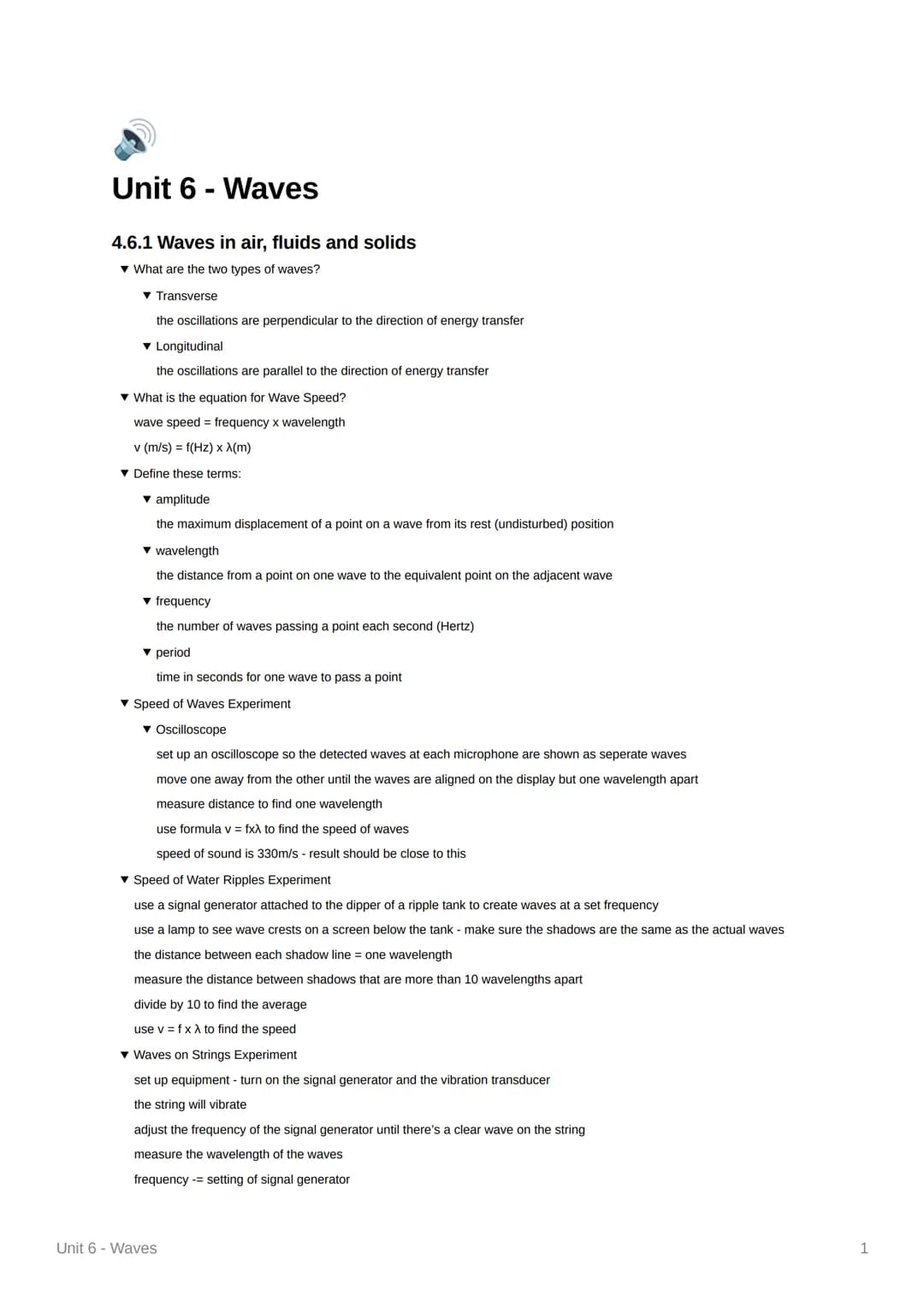

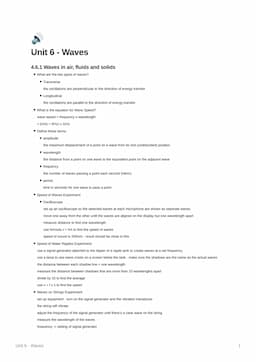

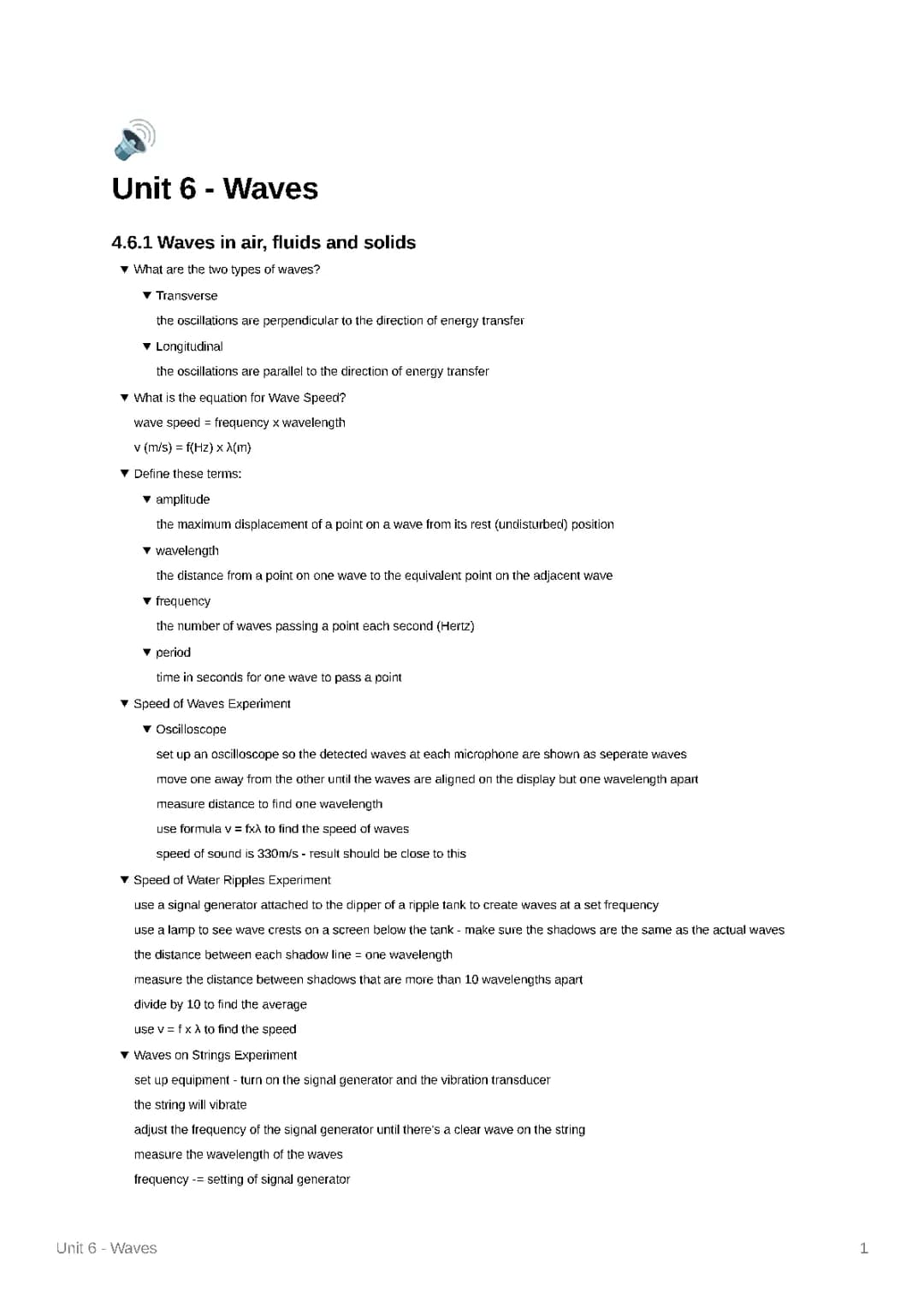

Types of Waves and Wave Properties

This section introduces the fundamental concepts of waves in physics, focusing on their types and key properties.

Transverse and Longitudinal Waves

Waves are classified into two main types based on the direction of oscillation relative to energy transfer:

Definition: Transverse waves have oscillations perpendicular to the direction of energy transfer, while longitudinal waves oscillate parallel to the energy transfer direction.

Wave Speed Equation

Understanding the relationship between wave speed, frequency, and wavelength is crucial in GCSE Physics waves questions.

Highlight: The wave speed equation is given by: wave speed $v$ = frequency $f$ × wavelength (λ)

Key Wave Properties

Several important terms describe the characteristics of waves:

Vocabulary:

• Amplitude: Maximum displacement from the rest position
• Wavelength: Distance between equivalent points on adjacent waves
• Frequency: Number of waves passing a point per second (measured in Hertz)
• Period: Time for one complete wave to pass a point

Experiments for Measuring Wave Speed

The guide outlines several simple experiments for measuring wave properties in GCSE Physics:

1. Using an oscilloscope to measure sound wave speed
2. Measuring water ripple speed in a ripple tank
3. Calculating wave speed on strings

These experiments provide practical applications of the wave speed formula and help students understand how to calculate wave speed without wavelength in some cases.
