GCSE Physics Energy Revision: Active Recall Methods, Specific Heat Capacity Tips, and More!

A comprehensive guide to GCSE Physics energy concepts, covering energy stores, transfers, and practical applications in both theoretical and experimental contexts. The guide emphasizes active recall techniques and includes detailed explanations of energy stores and transfers along with practical experiments.

• The document covers fundamental energy concepts including energy stores, conservation principles, and renewable resources
• Detailed practical procedures for specific heat capacity practical experiments are outlined
• Extensive coverage of renewable and non-renewable energy resources with their advantages and disadvantages
• Focus on thermal energy transfer and insulation techniques
• Integration of real-world applications and experimental methods

...

26/05/2023

1981

M
Unit 1 - Energy
Energy Stores
▼ What are the main energy stores?
magnetic, chemical, thermal, elastic potential, gravitational potential,

View

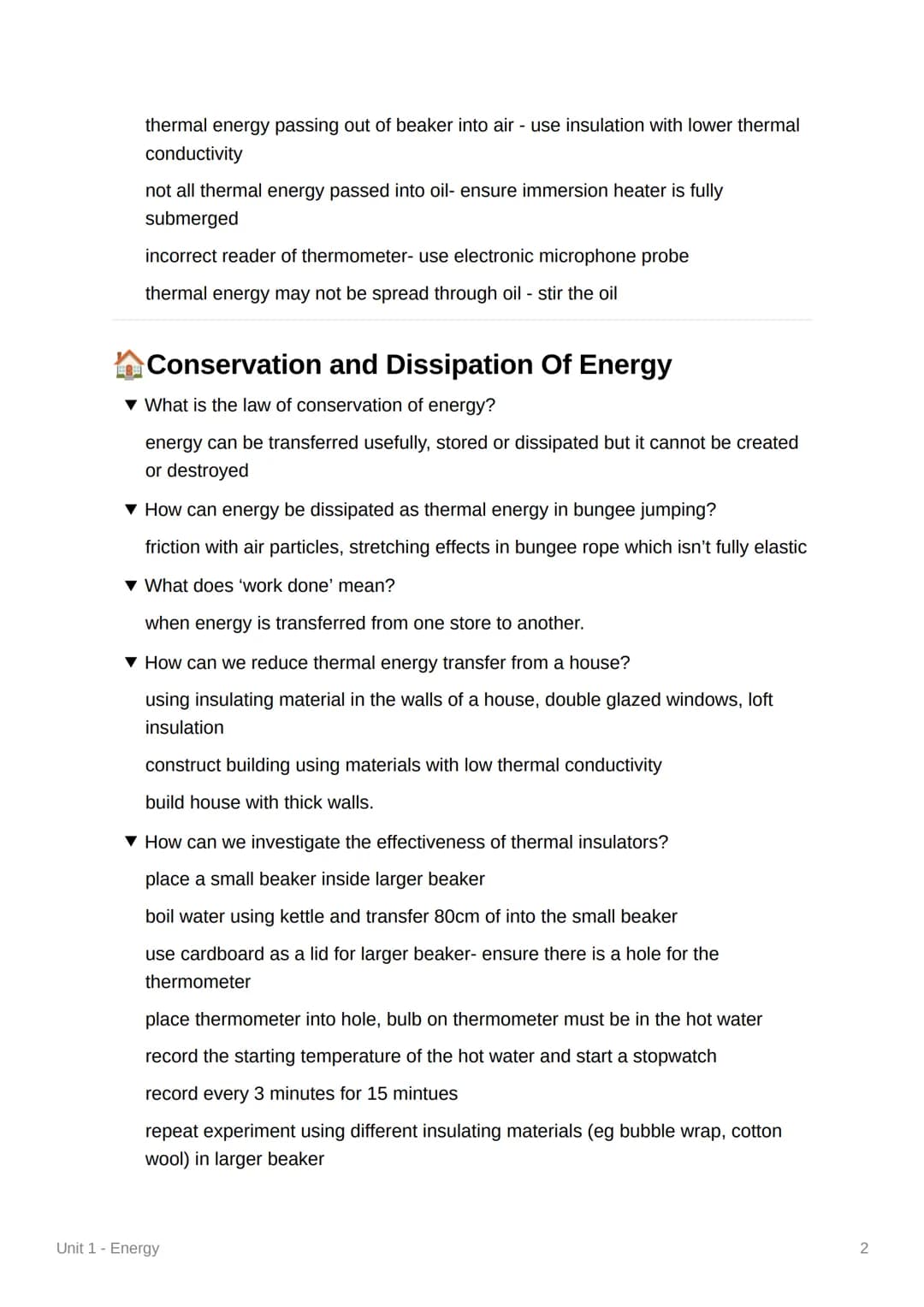

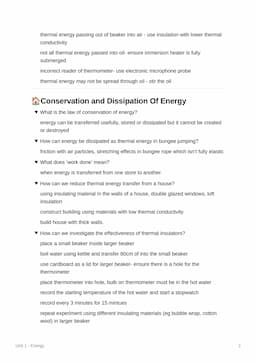

Conservation and Dissipation of Energy

This section delves into the law of conservation of energy and explores how energy can be dissipated in various scenarios.

Quote: "Energy can be transferred usefully, stored or dissipated but it cannot be created or destroyed."

This fundamental principle, known as the law of conservation of energy, underpins much of physics and is crucial for GCSE Physics energy revision.

Example: In bungee jumping, energy is dissipated as thermal energy through friction with air particles and the stretching effects of the bungee rope.

The concept of 'work done' is introduced as the transfer of energy from one store to another.

The guide provides practical ways to reduce thermal energy transfer from a house:

  • Using insulating materials in walls
  • Installing double-glazed windows
  • Adding loft insulation
  • Constructing buildings with materials of low thermal conductivity
  • Building houses with thick walls

Two experiments are described to investigate thermal insulation:

  1. Effectiveness of different insulating materials: Place a small beaker inside a larger one Fill the small beaker with hot water Use different insulating materials in the larger beaker Measure temperature changes over time
  2. Effect of insulation thickness: Wrap a beaker of hot water with varying layers of newspaper Measure temperature changes over time for each thickness

Vocabulary: A fluid is defined as a substance in which particles are free to move, encompassing both liquids and gases.

M
Unit 1 - Energy
Energy Stores
▼ What are the main energy stores?
magnetic, chemical, thermal, elastic potential, gravitational potential,

View

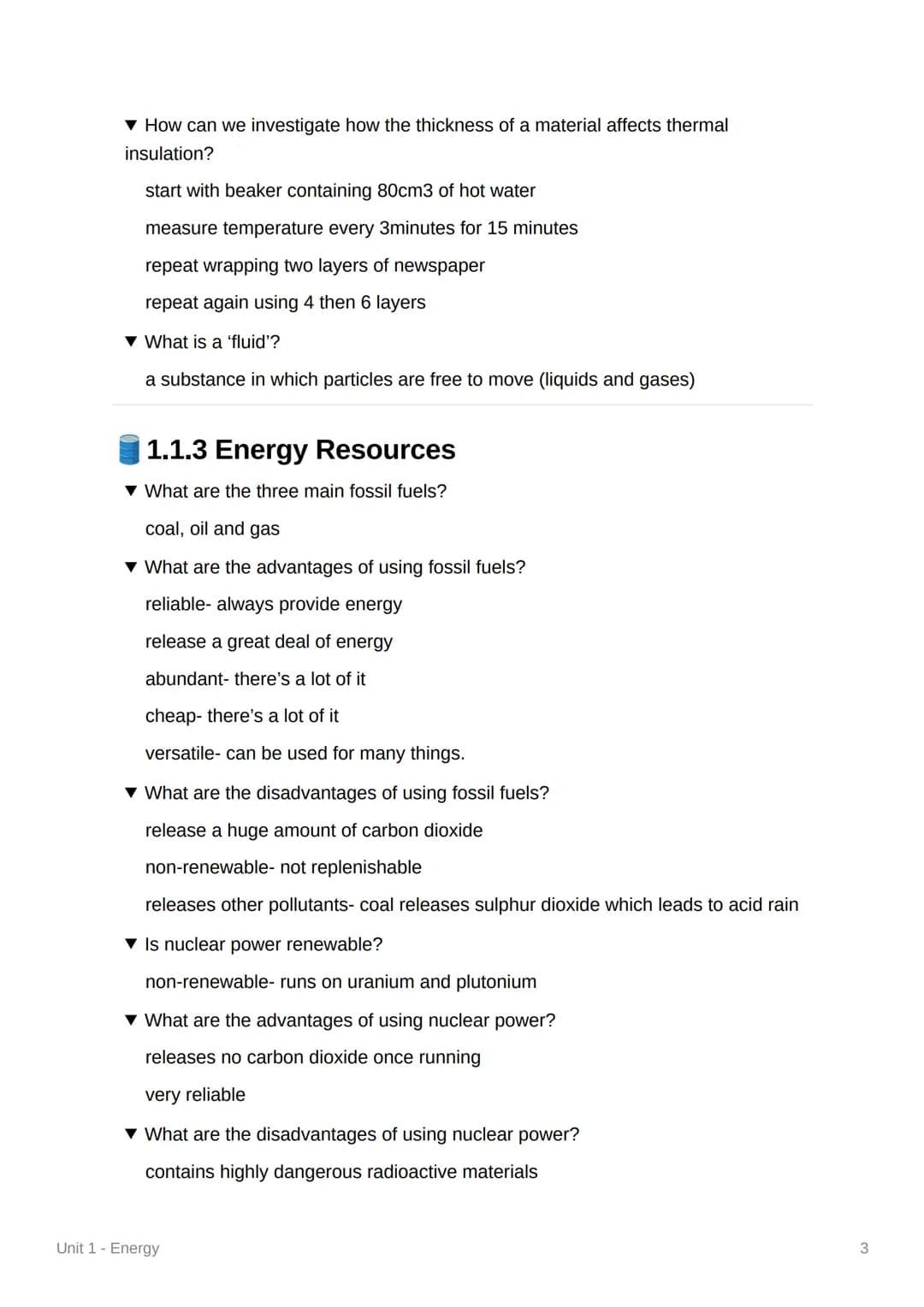

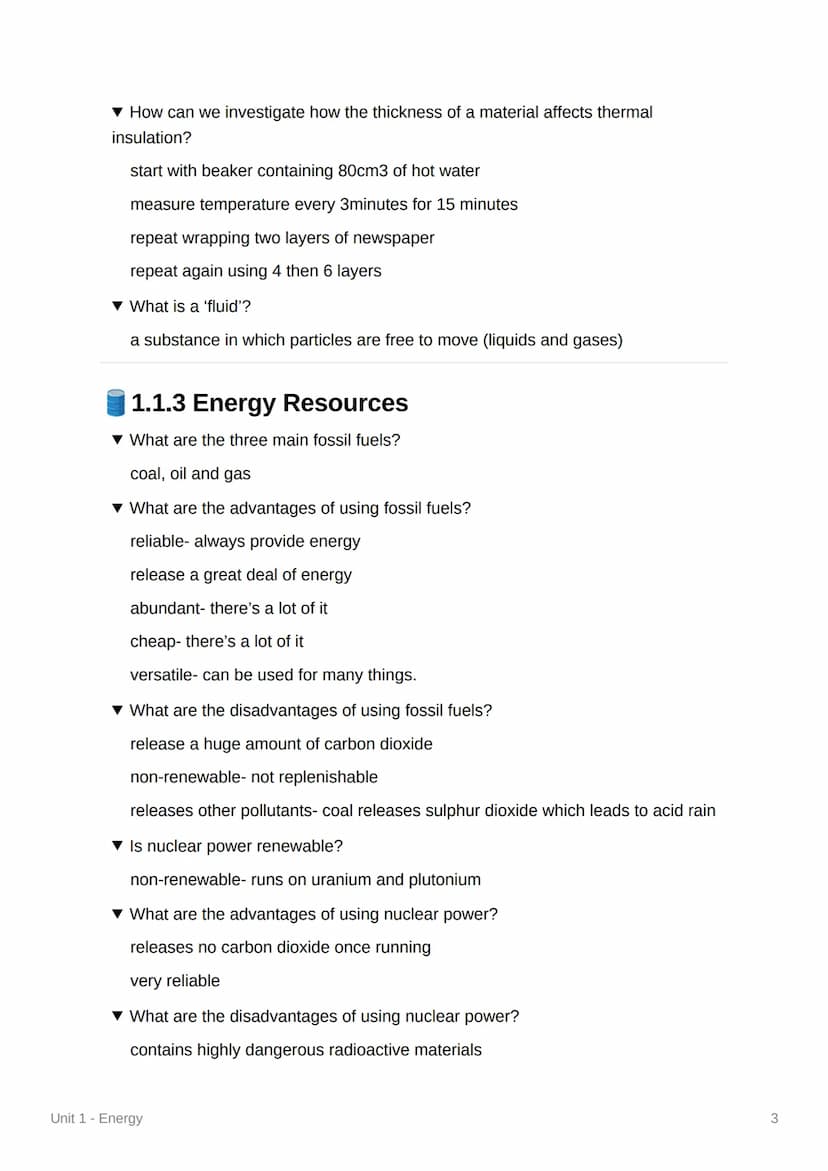

Energy Resources

This section covers various energy resources, both non-renewable and renewable, discussing their advantages and disadvantages.

Non-renewable energy sources:

  1. Fossil Fuels coal,oil,andgascoal, oil, and gas Advantages: Reliable energy supply High energy output Abundant Relatively cheap Versatile applications Disadvantages: High carbon dioxide emissions Non-renewable Release of other pollutants e.g.,sulphurdioxidecausingacidraine.g., sulphur dioxide causing acid rain
  2. Nuclear Power Advantages: No carbon dioxide emissions during operation Very reliable energy source Disadvantages: Uses dangerous radioactive materials Expensive and time-consuming decommissioning process Generates hazardous radioactive waste

Renewable energy sources:

Definition: A renewable energy resource is one that can be replenished as it is used.

Main renewable energy resources include:

  • Wind
  • Solar
  • Hydroelectric
  • Tidal
  • Biofuels
  • Geothermal
  • Waves

The guide provides a detailed comparison of advantages and disadvantages for various renewable sources:

  1. Wind and Solar Power Advantages: Low running costs No pollutants during operation Disadvantages: High initial costs Large land requirements Weather-dependent power production
  2. Geothermal Power Advantages: Reliable Renewable Disadvantages: Expensive to build Limited geographical availability
  3. Biofuels Advantages: Renewable Suitable for use in vehicles Easy to transport Disadvantages: Require large cultivation areas Energy-intensive harvesting and processing

Highlight: Understanding the pros and cons of different energy resources is crucial for GCSE Physics energy questions and answers, particularly in evaluating their environmental impact and sustainability.

This comprehensive guide provides essential information for GCSE Physics energy active recall techniques, helping students prepare effectively for their exams using active recall studying examples and active recall methods.

M
Unit 1 - Energy
Energy Stores
▼ What are the main energy stores?
magnetic, chemical, thermal, elastic potential, gravitational potential,

View

Nuclear Power and Energy Resources

This section covers nuclear power and its implications, crucial for understanding modern energy production methods.

Definition: Nuclear power is a non-renewable energy source that uses uranium or plutonium as fuel.

Highlight: While nuclear power produces no direct CO2 emissions during operation, it generates radioactive waste requiring long-term storage.

M
Unit 1 - Energy
Energy Stores
▼ What are the main energy stores?
magnetic, chemical, thermal, elastic potential, gravitational potential,

View

Renewable Energy Resources

This chapter explores sustainable energy sources and their implementation in modern power systems.

Definition: Renewable energy resources are those that can be replenished as they are used.

Example: Wind and solar power installations demonstrate the balance between environmental benefits and practical limitations.

Highlight: The main renewable sources include wind, solar, hydroelectric, tidal, biofuels, geothermal, and wave energy.

M
Unit 1 - Energy
Energy Stores
▼ What are the main energy stores?
magnetic, chemical, thermal, elastic potential, gravitational potential,

View

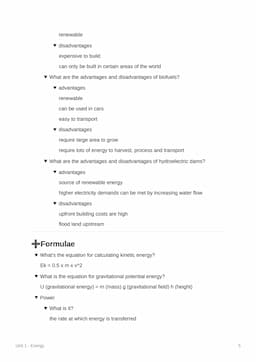

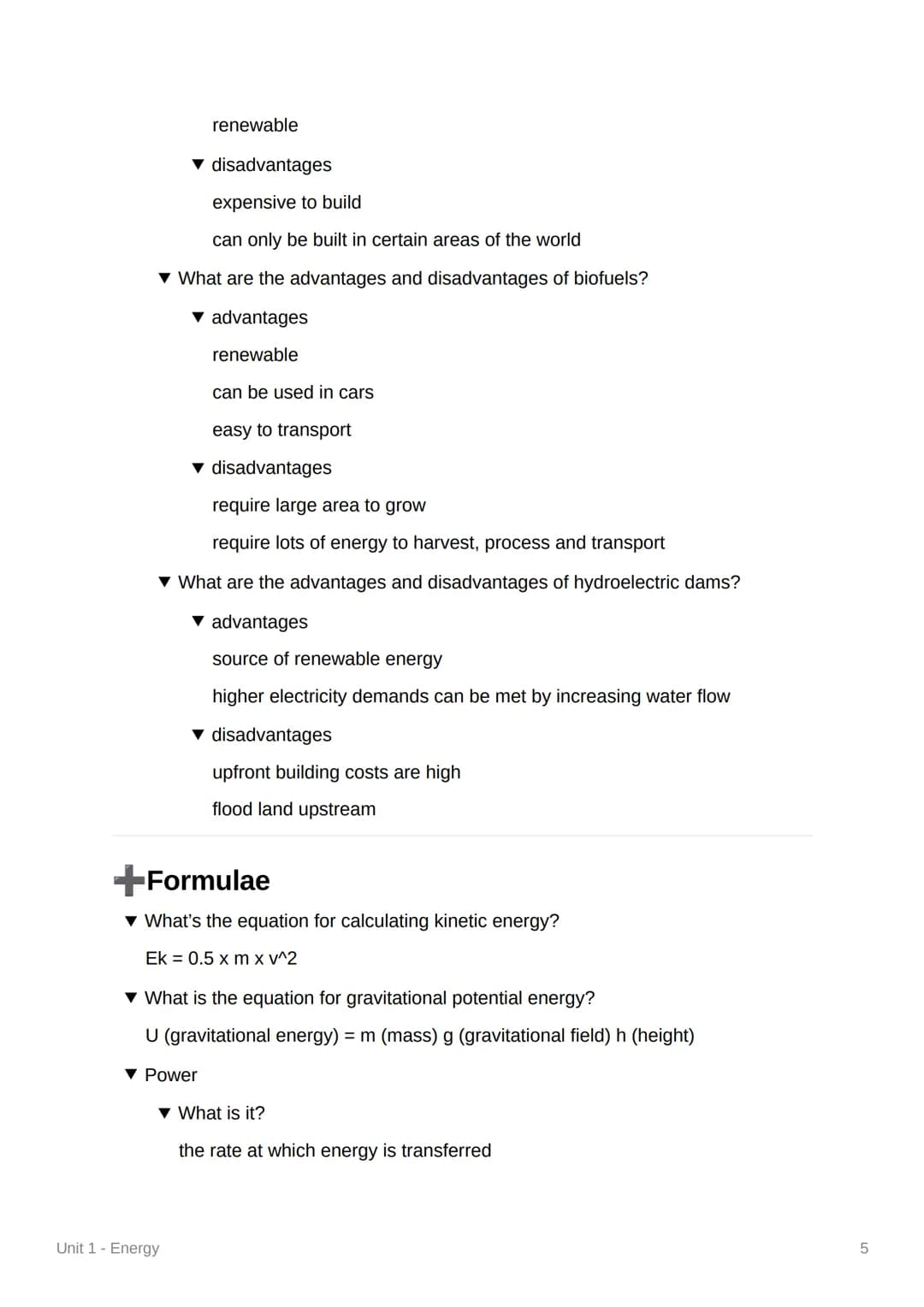

Advantages and Disadvantages of Alternative Energy

The final section analyzes the practical implications of different renewable energy sources.

Highlight: Each renewable energy source has specific advantages and limitations that affect its suitability for different locations and applications.

Example: Geothermal power offers reliability but is limited by geographical constraints and high initial costs.

Vocabulary: Biofuels are renewable energy sources derived from organic materials, offering transportability but requiring significant land use.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

21 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.



Physics

1,981

26 May 2023

6 pages

GCSE Physics Energy Revision: Active Recall Methods, Specific Heat Capacity Tips, and More!

user profile picture

Zainab

@zainab_02839

A comprehensive guide to GCSE Physics energy concepts, covering energy stores, transfers, and practical applications in both theoretical and experimental contexts. The guide emphasizes active recall techniques and includes detailed explanations of energy stores and transfers along with practical experiments.... Show more

M
Unit 1 - Energy
Energy Stores
▼ What are the main energy stores?
magnetic, chemical, thermal, elastic potential, gravitational potential,

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Conservation and Dissipation of Energy

This section delves into the law of conservation of energy and explores how energy can be dissipated in various scenarios.

Quote: "Energy can be transferred usefully, stored or dissipated but it cannot be created or destroyed."

This fundamental principle, known as the law of conservation of energy, underpins much of physics and is crucial for GCSE Physics energy revision.

Example: In bungee jumping, energy is dissipated as thermal energy through friction with air particles and the stretching effects of the bungee rope.

The concept of 'work done' is introduced as the transfer of energy from one store to another.

The guide provides practical ways to reduce thermal energy transfer from a house:

  • Using insulating materials in walls
  • Installing double-glazed windows
  • Adding loft insulation
  • Constructing buildings with materials of low thermal conductivity
  • Building houses with thick walls

Two experiments are described to investigate thermal insulation:

  1. Effectiveness of different insulating materials: Place a small beaker inside a larger one Fill the small beaker with hot water Use different insulating materials in the larger beaker Measure temperature changes over time
  2. Effect of insulation thickness: Wrap a beaker of hot water with varying layers of newspaper Measure temperature changes over time for each thickness

Vocabulary: A fluid is defined as a substance in which particles are free to move, encompassing both liquids and gases.

M
Unit 1 - Energy
Energy Stores
▼ What are the main energy stores?
magnetic, chemical, thermal, elastic potential, gravitational potential,

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

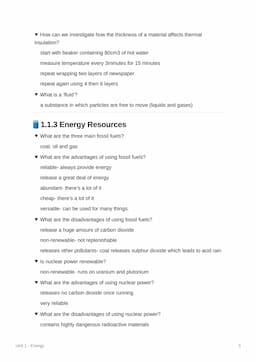

Energy Resources

This section covers various energy resources, both non-renewable and renewable, discussing their advantages and disadvantages.

Non-renewable energy sources:

  1. Fossil Fuels coal,oil,andgascoal, oil, and gas Advantages: Reliable energy supply High energy output Abundant Relatively cheap Versatile applications Disadvantages: High carbon dioxide emissions Non-renewable Release of other pollutants e.g.,sulphurdioxidecausingacidraine.g., sulphur dioxide causing acid rain
  2. Nuclear Power Advantages: No carbon dioxide emissions during operation Very reliable energy source Disadvantages: Uses dangerous radioactive materials Expensive and time-consuming decommissioning process Generates hazardous radioactive waste

Renewable energy sources:

Definition: A renewable energy resource is one that can be replenished as it is used.

Main renewable energy resources include:

  • Wind
  • Solar
  • Hydroelectric
  • Tidal
  • Biofuels
  • Geothermal
  • Waves

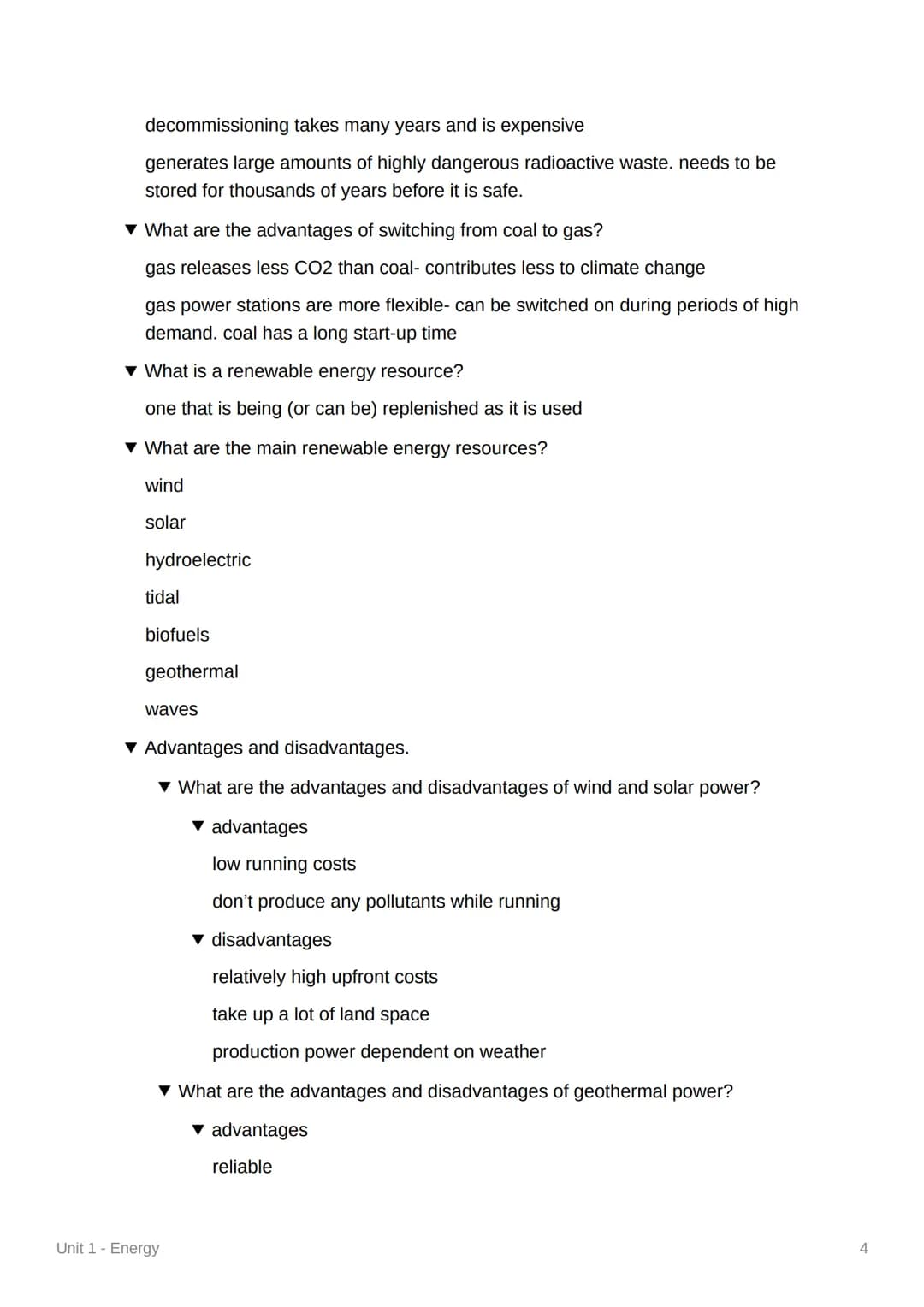

The guide provides a detailed comparison of advantages and disadvantages for various renewable sources:

  1. Wind and Solar Power Advantages: Low running costs No pollutants during operation Disadvantages: High initial costs Large land requirements Weather-dependent power production
  2. Geothermal Power Advantages: Reliable Renewable Disadvantages: Expensive to build Limited geographical availability
  3. Biofuels Advantages: Renewable Suitable for use in vehicles Easy to transport Disadvantages: Require large cultivation areas Energy-intensive harvesting and processing

Highlight: Understanding the pros and cons of different energy resources is crucial for GCSE Physics energy questions and answers, particularly in evaluating their environmental impact and sustainability.

This comprehensive guide provides essential information for GCSE Physics energy active recall techniques, helping students prepare effectively for their exams using active recall studying examples and active recall methods.

M
Unit 1 - Energy
Energy Stores
▼ What are the main energy stores?
magnetic, chemical, thermal, elastic potential, gravitational potential,

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Nuclear Power and Energy Resources

This section covers nuclear power and its implications, crucial for understanding modern energy production methods.

Definition: Nuclear power is a non-renewable energy source that uses uranium or plutonium as fuel.

Highlight: While nuclear power produces no direct CO2 emissions during operation, it generates radioactive waste requiring long-term storage.

M
Unit 1 - Energy
Energy Stores
▼ What are the main energy stores?
magnetic, chemical, thermal, elastic potential, gravitational potential,

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Renewable Energy Resources

This chapter explores sustainable energy sources and their implementation in modern power systems.

Definition: Renewable energy resources are those that can be replenished as they are used.

Example: Wind and solar power installations demonstrate the balance between environmental benefits and practical limitations.

Highlight: The main renewable sources include wind, solar, hydroelectric, tidal, biofuels, geothermal, and wave energy.

M
Unit 1 - Energy
Energy Stores
▼ What are the main energy stores?
magnetic, chemical, thermal, elastic potential, gravitational potential,

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Advantages and Disadvantages of Alternative Energy

The final section analyzes the practical implications of different renewable energy sources.

Highlight: Each renewable energy source has specific advantages and limitations that affect its suitability for different locations and applications.

Example: Geothermal power offers reliability but is limited by geographical constraints and high initial costs.

Vocabulary: Biofuels are renewable energy sources derived from organic materials, offering transportability but requiring significant land use.

M
Unit 1 - Energy
Energy Stores
▼ What are the main energy stores?
magnetic, chemical, thermal, elastic potential, gravitational potential,

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

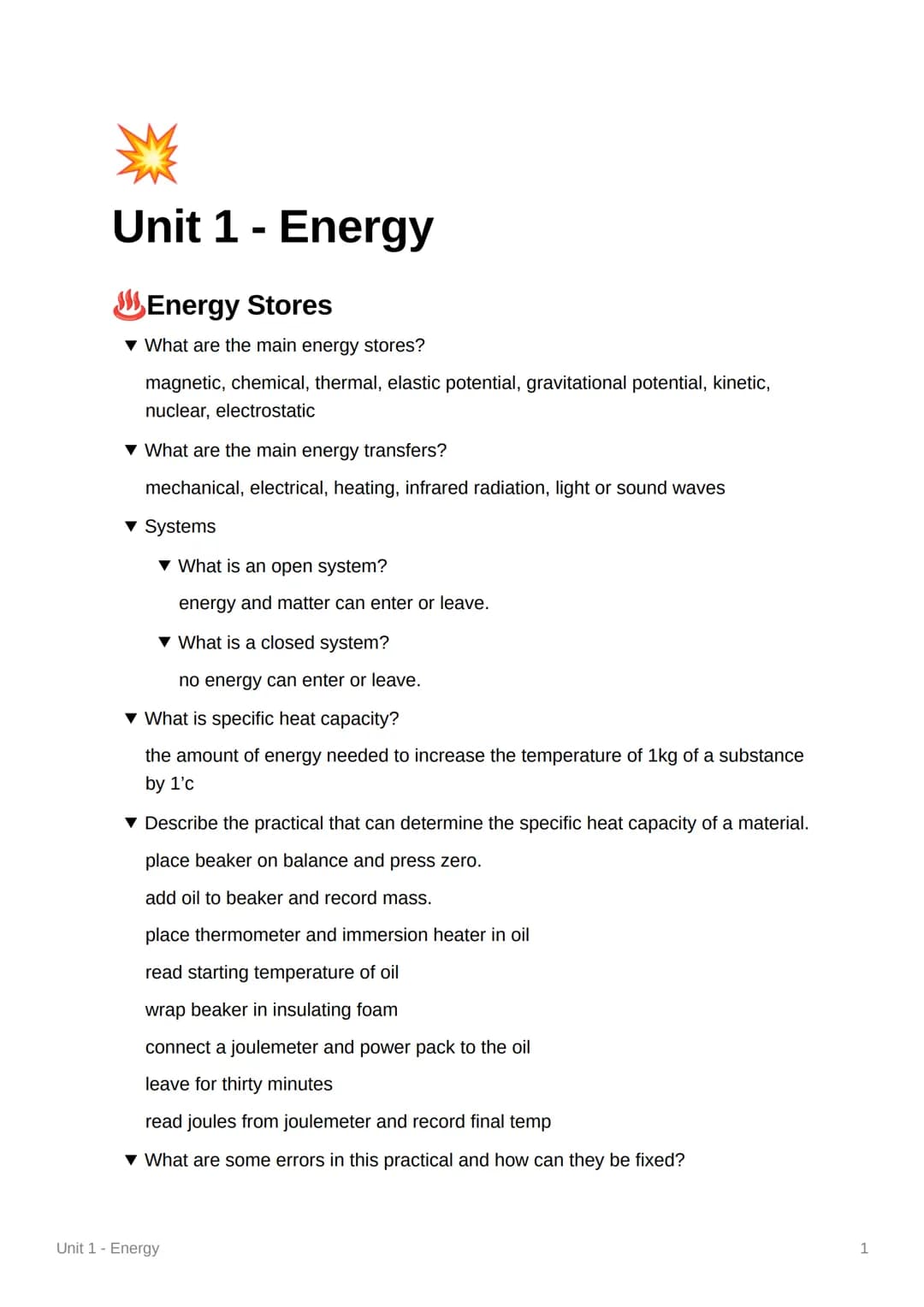

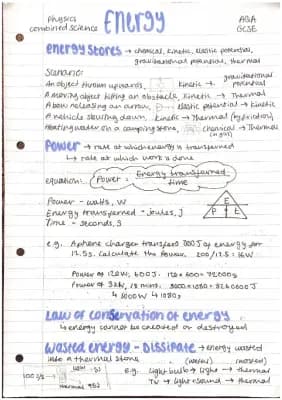

Energy Stores and Transfers

This section introduces the fundamental concepts of energy in GCSE Physics, focusing on energy stores, transfers, and systems.

Vocabulary: Energy stores are locations where energy can be stored, while energy transfers describe how energy moves between these stores.

The main energy stores include:

  • Magnetic
  • Chemical
  • Thermal
  • Elastic potential
  • Gravitational potential
  • Kinetic
  • Nuclear
  • Electrostatic

Energy transfers occur through:

  • Mechanical means
  • Electrical processes
  • Heating
  • Infrared radiation
  • Light or sound waves

Definition: An open system allows energy and matter to enter or leave, while a closed system prevents energy from entering or leaving.

The concept of specific heat capacity is introduced, along with a practical experiment to determine it:

Example: To determine specific heat capacity:

  1. Place a beaker on a balance and zero it
  2. Add oil to the beaker and record its mass
  3. Insert a thermometer and immersion heater into the oil
  4. Record the starting temperature
  5. Insulate the beaker with foam
  6. Connect a joulemeter and power pack
  7. Leave for 30 minutes
  8. Record the final temperature and energy used

Highlight: Common errors in this practical include heat loss to the surroundings, incomplete energy transfer to the oil, and inaccurate temperature readings. These can be mitigated through better insulation, ensuring full submersion of the heater, and using electronic probes.

Can't find what you're looking for? Explore other subjects.

Students love us — and so will you.

4.9/5

App Store

4.8/5

Google Play

The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.

Stefan S

iOS user

This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.

Samantha Klich

Android user

Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.

Anna

iOS user

Best app on earth! no words because it’s too good

Thomas R

iOS user

Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.

Basil

Android user

This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.

David K

iOS user

The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!

Sudenaz Ocak

Android user

In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.

Greenlight Bonnie

Android user

very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.

Rohan U

Android user

I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didn’t even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as I’m sure you too will see developments.

Xander S

iOS user

THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮

Elisha

iOS user

This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now

Paul T

iOS user

The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.

Stefan S

iOS user

This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.

Samantha Klich

Android user

Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.

Anna

iOS user

Best app on earth! no words because it’s too good

Thomas R

iOS user

Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.

Basil

Android user

This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.

David K

iOS user

The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!

Sudenaz Ocak

Android user

In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.

Greenlight Bonnie

Android user

very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.

Rohan U

Android user

I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didn’t even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as I’m sure you too will see developments.

Xander S

iOS user

THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮

Elisha

iOS user

This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now

Paul T

iOS user
