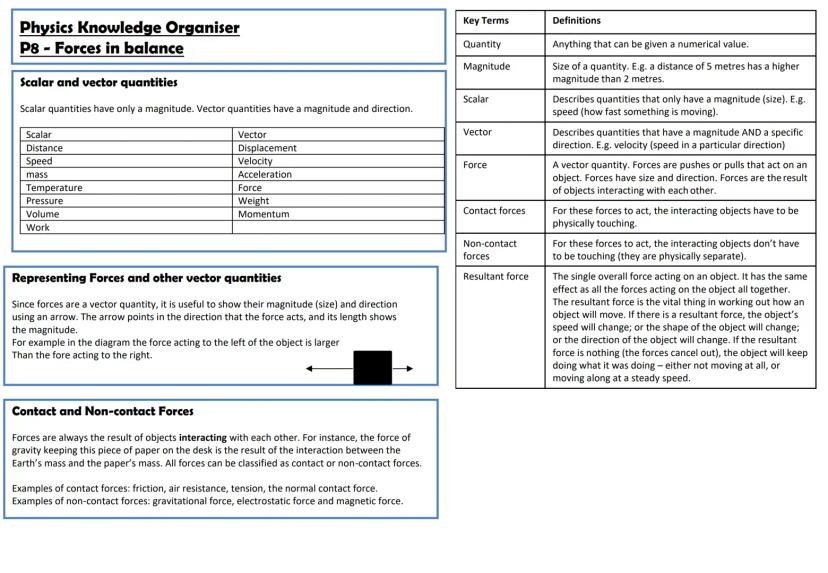

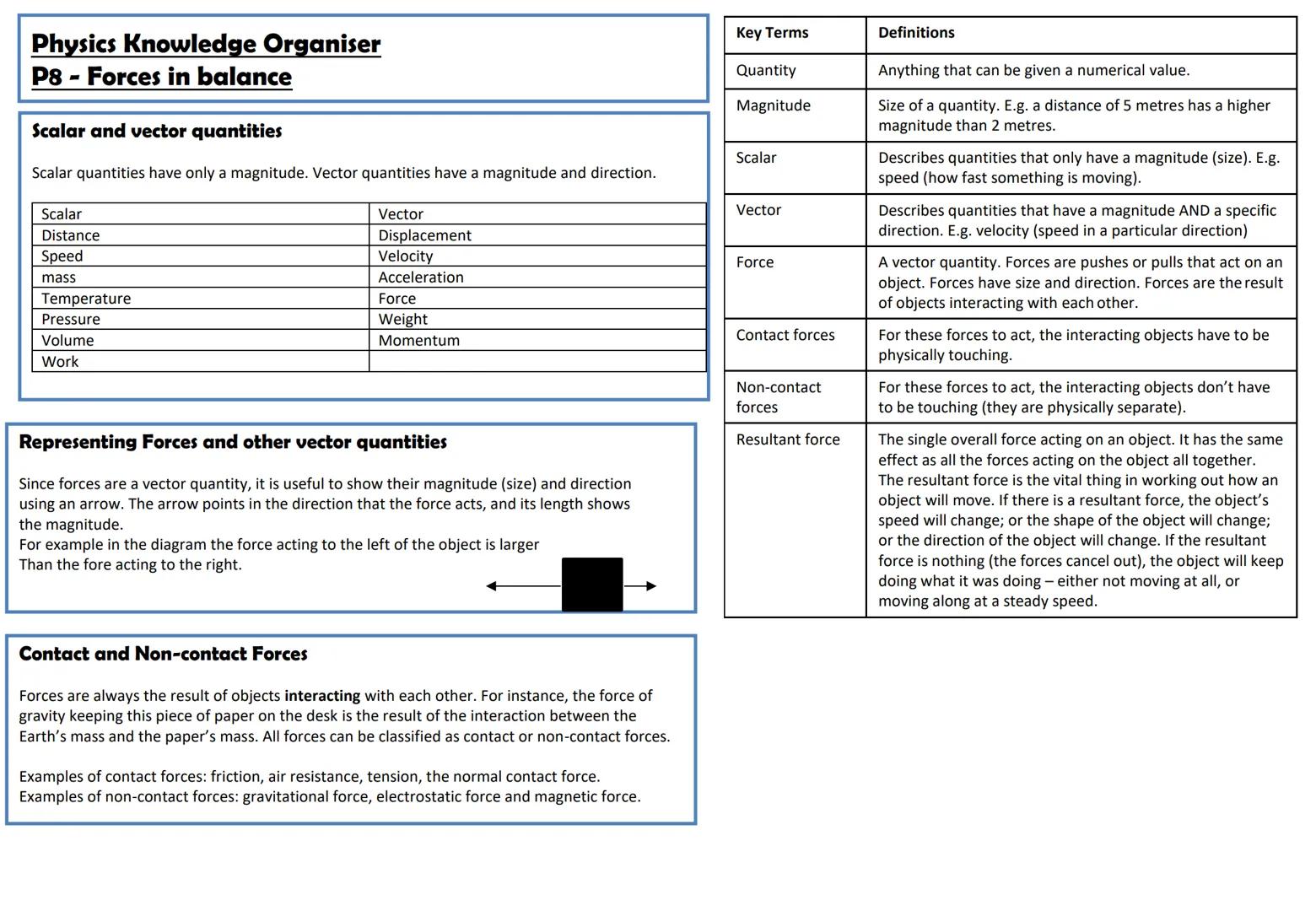

Scalar and Vector Quantities
Think about giving directions to your mate - saying "walk 5 metres" isn't very helpful, but "walk 5 metres north" gets them where they need to go. That's the difference between scalar and vector quantities in physics.
Scalar quantities only have size (magnitude) - like distance, speed, mass, and temperature. You just need a number to describe them completely. Vector quantities need both size and direction - like displacement, velocity, acceleration, and force.
Forces are always vectors because they push or pull in specific directions. They come in two types: contact forces (like friction) where objects must touch, and non-contact forces (like gravity) that work across empty space. You can represent forces using arrows - longer arrows mean stronger forces, and the arrow points in the force's direction.
Quick tip: If you need to know "which way", it's probably a vector quantity!
2
of 6

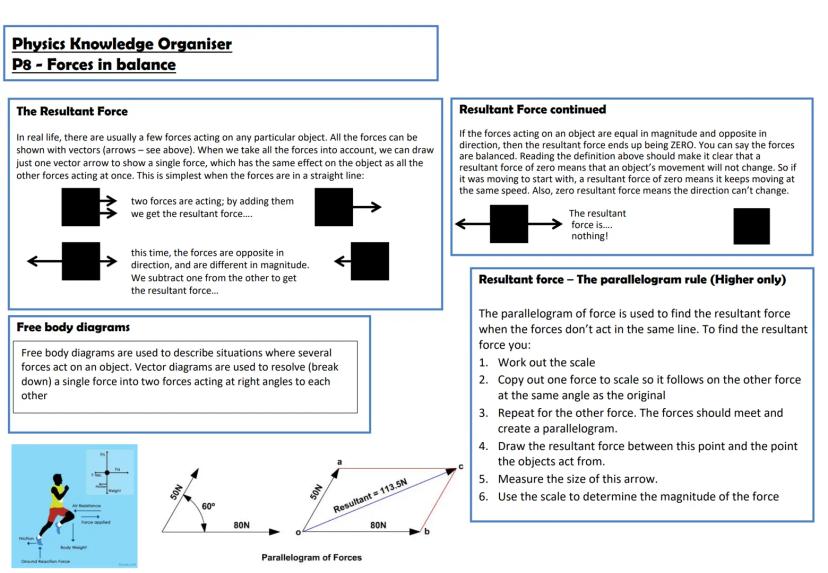

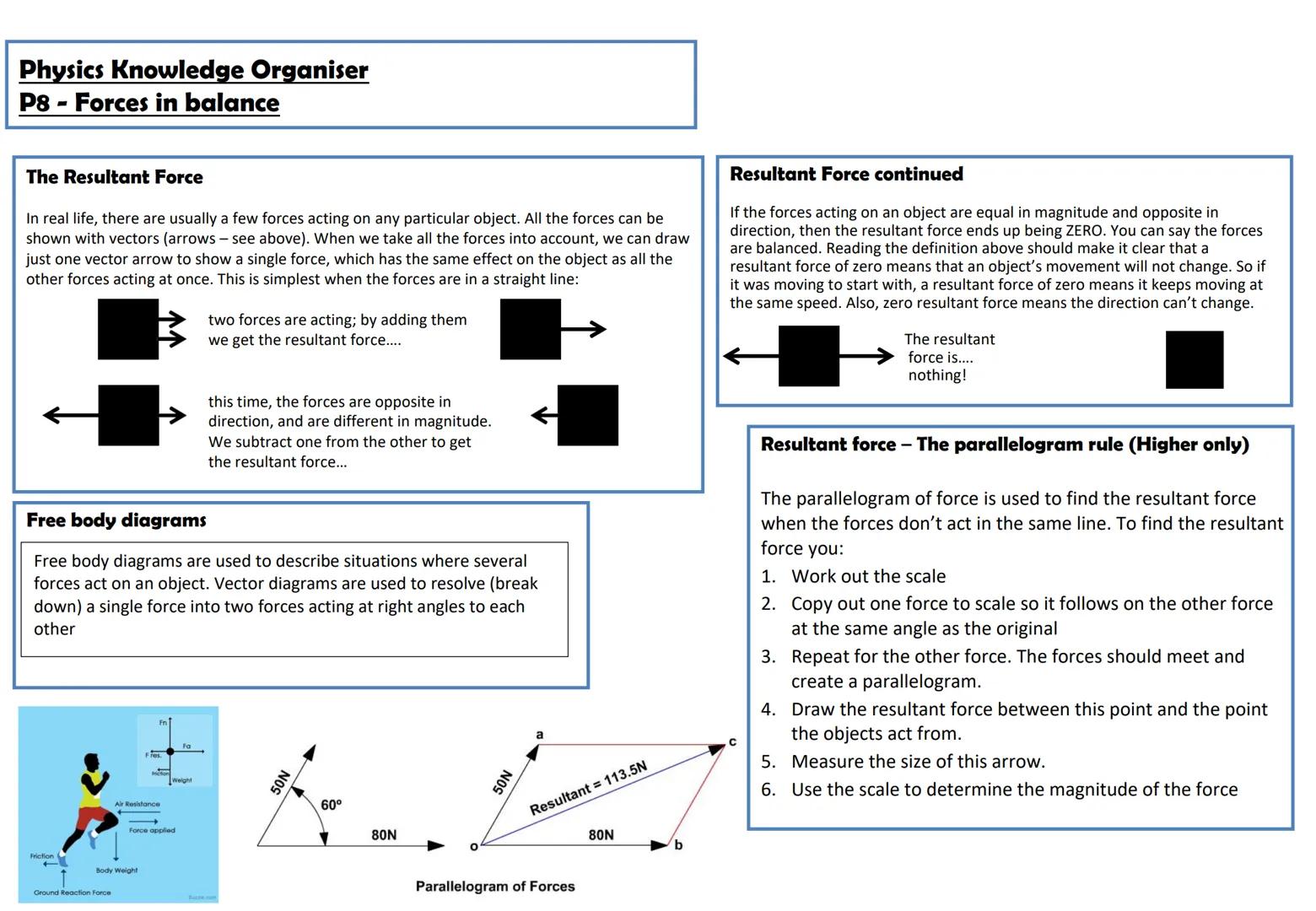

Understanding Resultant Forces
In real life, multiple forces usually act on objects simultaneously, like when you're cycling against wind resistance whilst pedaling forward. The resultant force is the single force that has the same effect as all these forces combined.
When forces act in the same line, you simply add forces going the same way and subtract opposing forces. If the resultant force equals zero, the forces are balanced and the object won't change its motion - it'll keep doing exactly what it was doing before.
Free body diagrams help visualise all forces acting on an object. For more complex situations where forces don't act in straight lines, you can use the parallelogram rule to find the resultant force geometrically.
Remember: Zero resultant force doesn't mean no forces - it means all forces cancel each other out perfectly!
3
of 6

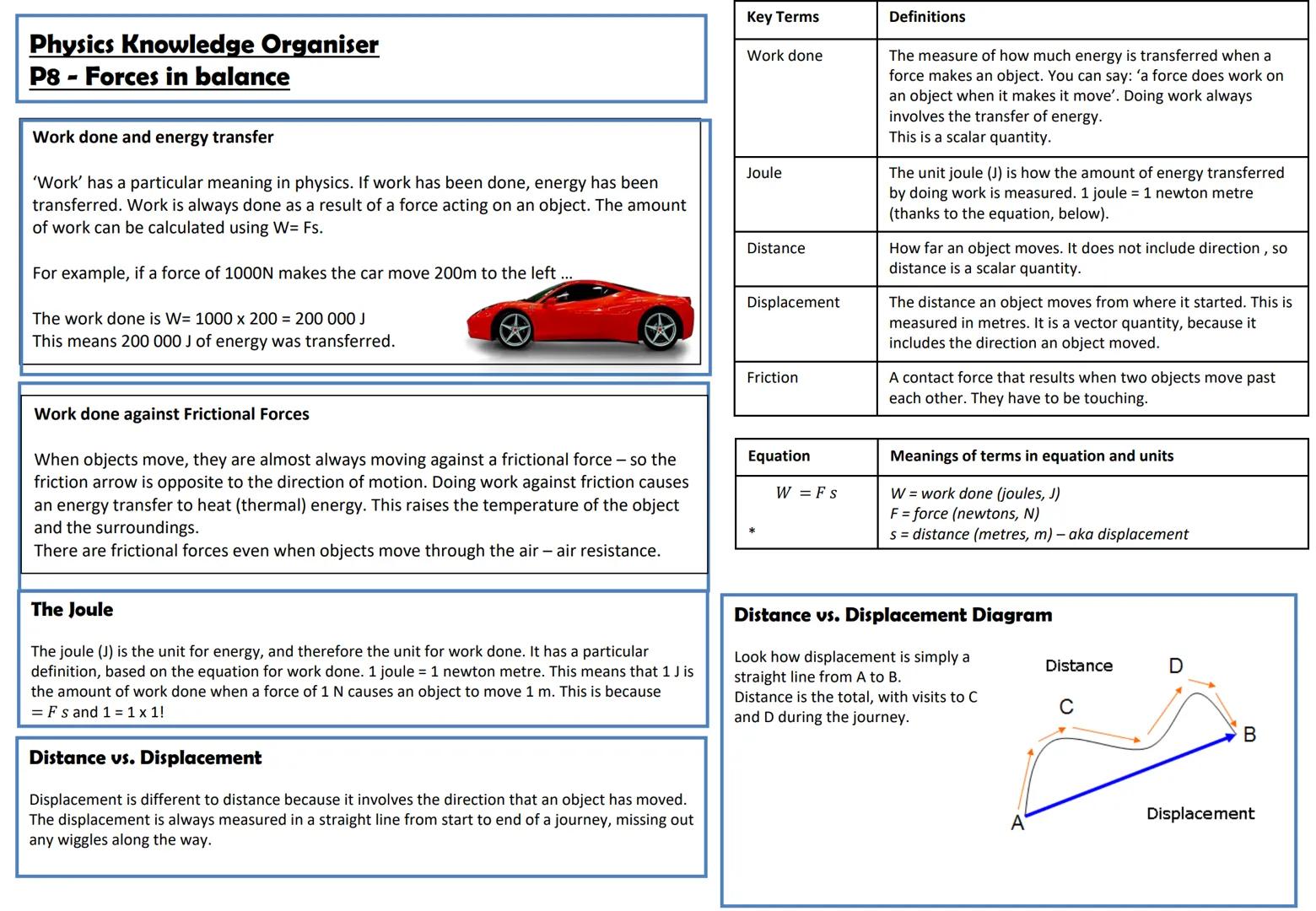

Work Done and Energy Transfer
When you push your bike up a hill, you're doing work in the physics sense - and that's why you get knackered! Work happens whenever a force makes an object move, and it always involves transferring energy.
The equation W = Fs tells you how much work is done. Work is measured in joules (J), where 1 joule equals the work done when 1 newton of force moves an object 1 metre. When you do work against friction (like air resistance), energy gets transferred to heat - that's why car brakes get hot.
Distance and displacement aren't the same thing. Distance is how far you actually travel (scalar), whilst displacement is the straight-line distance from start to finish (vector). If you run around a football pitch and end up where you started, your displacement is zero even though you've covered loads of distance.
Real-world connection: This is why sat-navs calculate different routes for "shortest distance" vs "quickest time"!
4
of 6

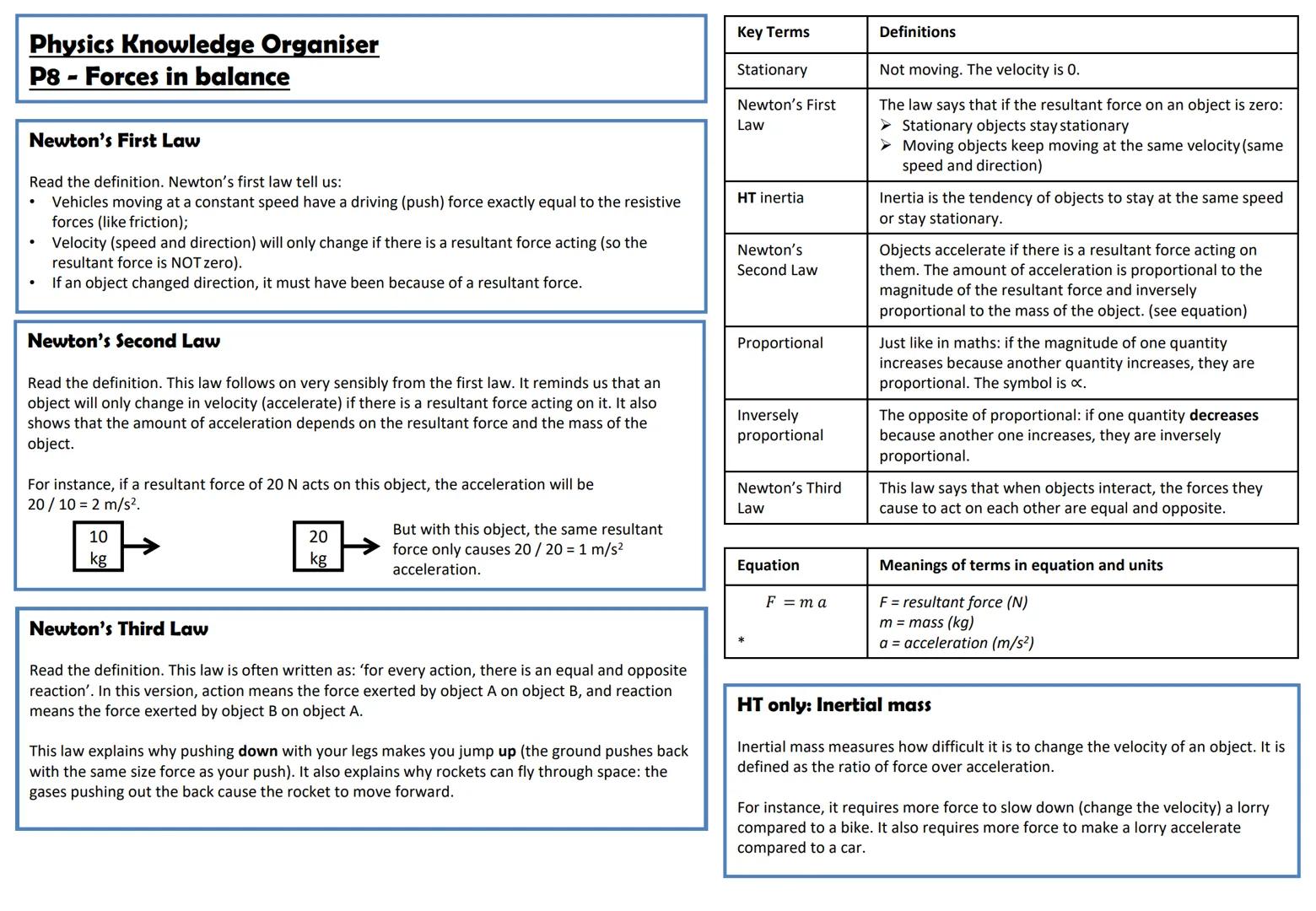

Newton's Three Laws of Motion
Newton's First Law explains why you slide forward when a bus brakes suddenly - moving objects keep moving unless a resultant force stops them. Stationary objects stay put for the same reason. This tendency to resist changes in motion is called inertia.
Newton's Second Law gives us the famous equation F = ma. More force means more acceleration, but heavier objects accelerate less for the same force. This is why it's harder to push a car than a shopping trolley with the same force.
Newton's Third Law states that forces always come in pairs - when you jump, you push down on the ground and it pushes back up on you with equal force. This isn't just about contact either; rockets work in space because the gases they push out push back on the rocket.
Memory trick: Every action has an equal and opposite reaction - think about walking, swimming, or even sitting in a chair!
5
of 6

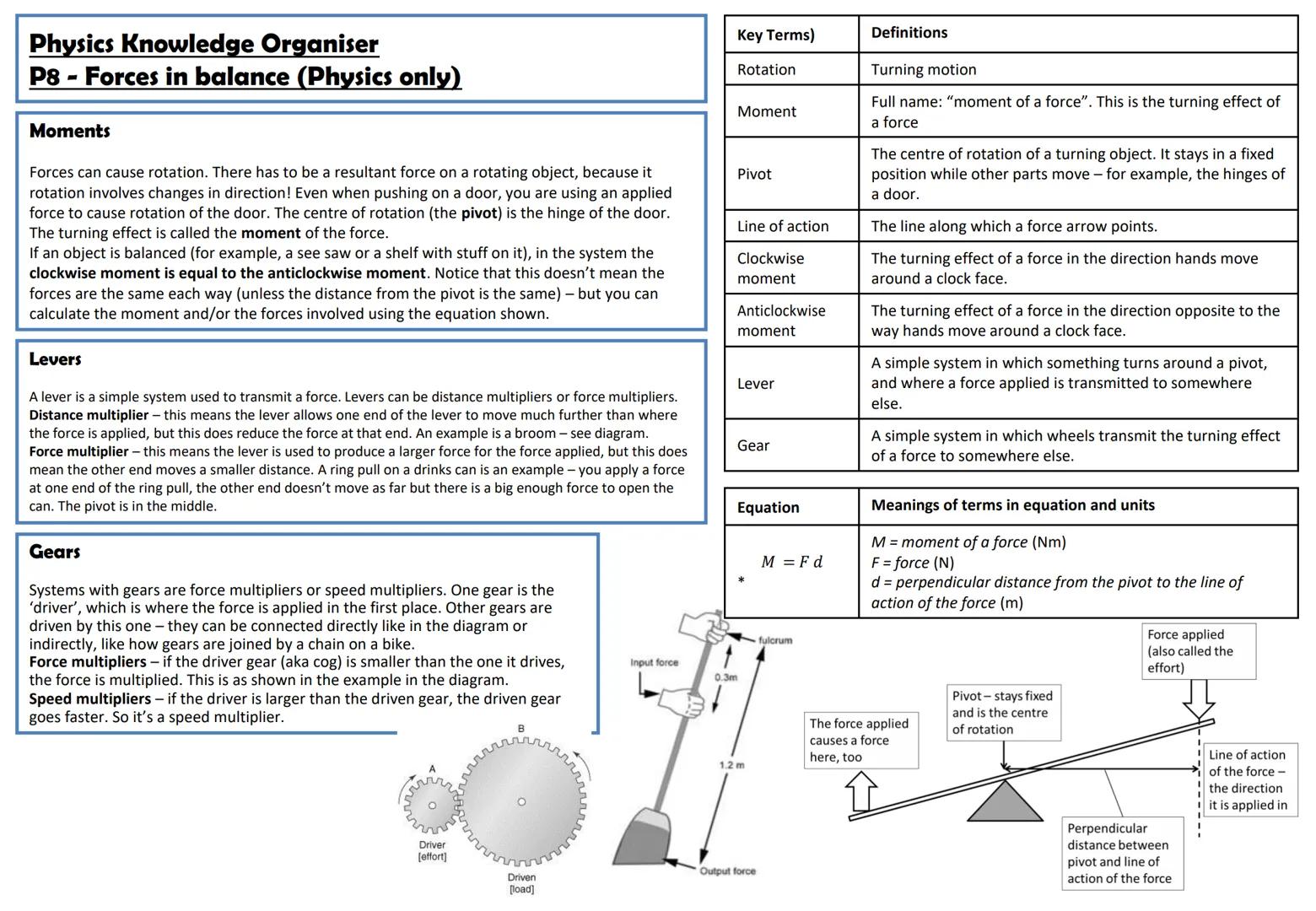

Moments and Simple Machines
Ever noticed it's much easier to open a door by pushing near the handle rather than near the hinges? That's because of moments - the turning effect of forces around a pivot point.
The moment equation M = Fd shows that both the force size and distance from the pivot matter. For balanced objects like see-saws, clockwise moments equal anticlockwise moments. This principle helps you work out unknown forces or distances.
Levers and gears are simple machines that make work easier. Levers can be force multipliers (like bottle openers) or distance multipliers (like brooms). Gears work similarly - small gears driving large ones multiply force, whilst large gears driving small ones multiply speed.
Everyday example: Your bike gears use these principles - low gear multiplies your pedaling force for hills, high gear multiplies speed for flat roads!
