The Motor Effect and Fleming's Right-Hand Rule

This section delves into the practical applications of electromagnetism and the motor effect.

Definition: The motor effect occurs when a conductor carrying a current is placed in a magnetic field, resulting in forces between the magnet and conductor.

Highlight: The force magnitude depends on the magnetic flux density, current, and conductor length, expressed as F = BIl.

Example: Electromagnets are used in cranes for lifting magnetic materials and can be easily controlled by switching the current on or off.

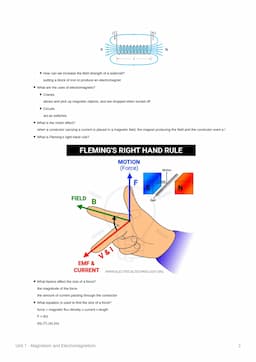

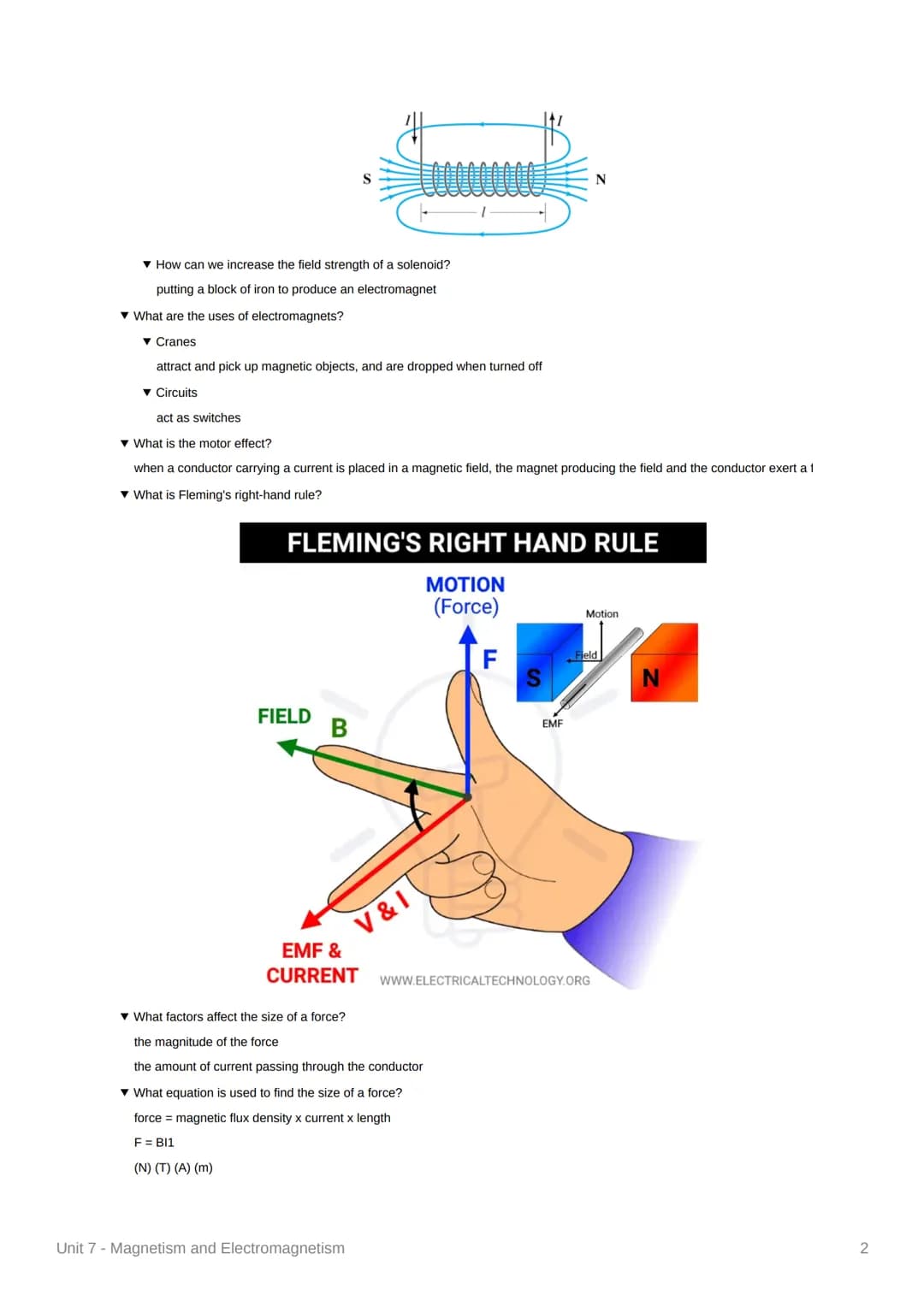

The section thoroughly explains Fleming's right-hand rule, which helps determine the direction of motion in electromagnetic applications.

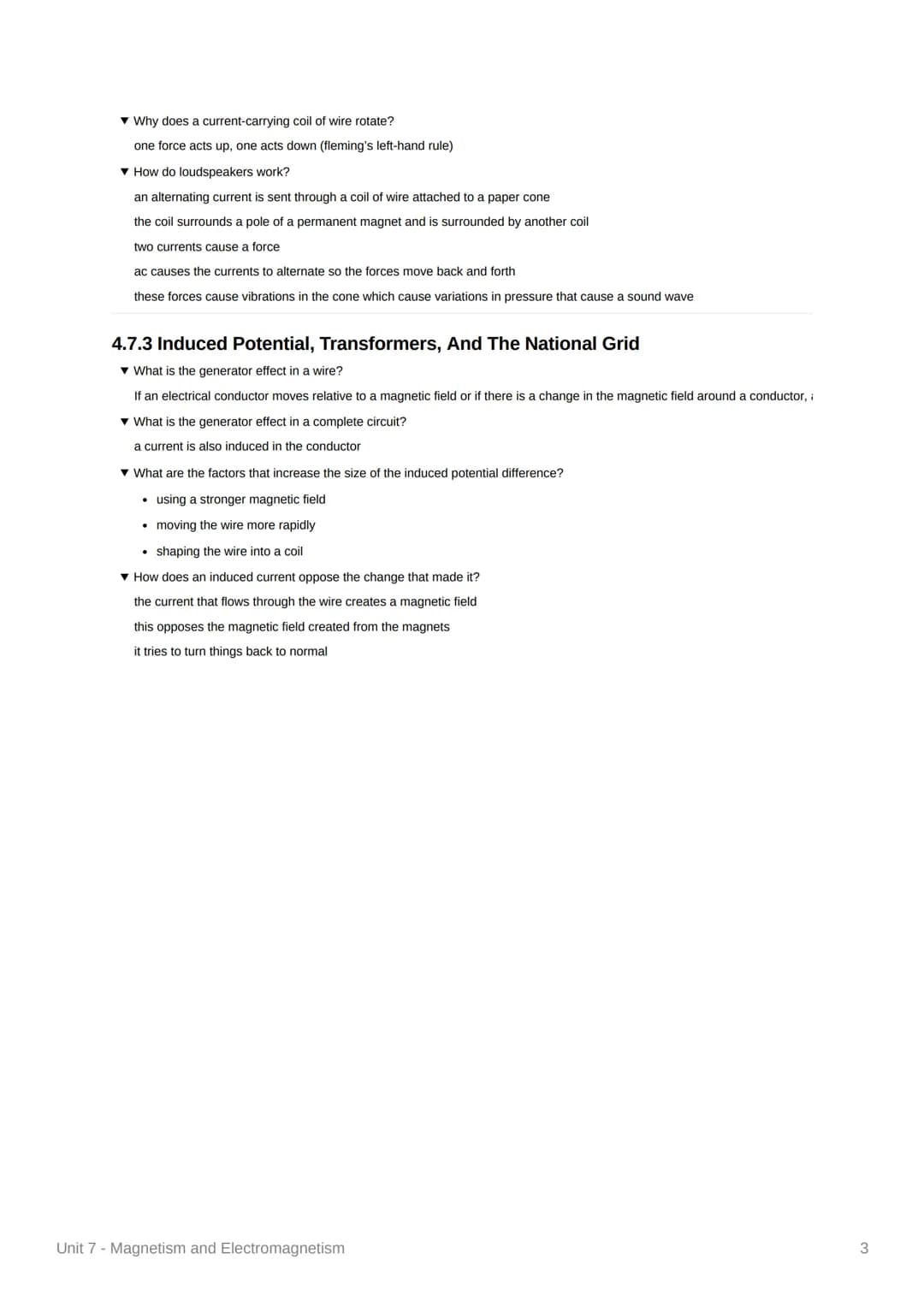

Electromagnetic Applications and Induced Potential

This section covers practical applications of electromagnetism, particularly in loudspeakers and electromagnetic induction.

Definition: The generator effect occurs when an electrical conductor moves relative to a magnetic field, inducing a potential difference.

Example: Loudspeakers work by converting electrical signals into sound waves through electromagnetic forces acting on a paper cone.

Highlight: The size of induced potential difference can be increased by:

• Using stronger magnetic fields
• Moving the wire more rapidly
• Shaping the wire into a coil

The section concludes with an explanation of how induced currents oppose the change that created them, demonstrating the principle of electromagnetic induction.

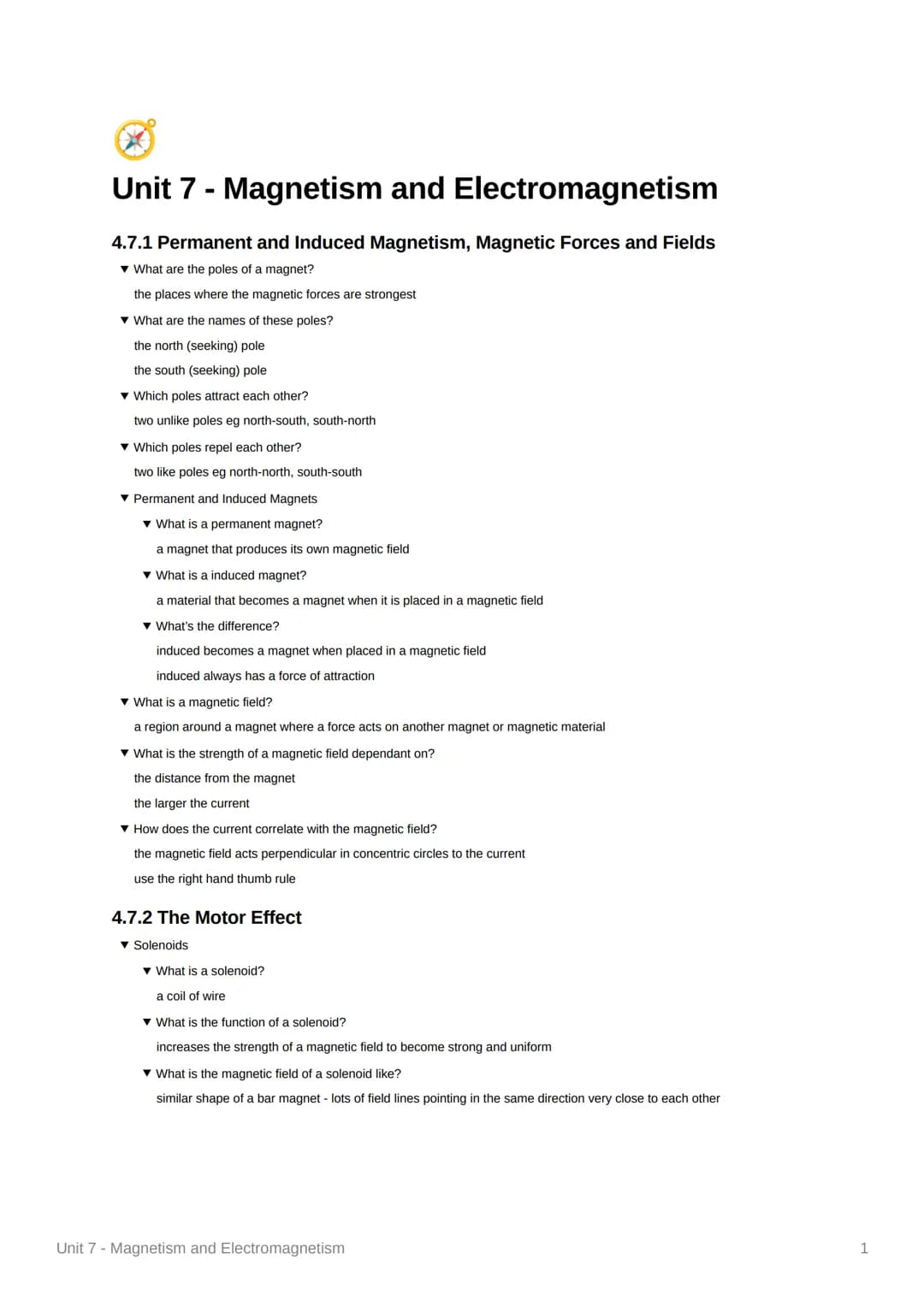

Fundamentals of Magnetism

This section introduces the core concepts of magnetism and magnetic fields. The content explores the fundamental properties of magnets and their interactions.

Definition: A magnetic field is a region around a magnet where a force acts on another magnet or magnetic material.

Vocabulary: Permanent magnets produce their own magnetic field, while induced magnets become magnetic only when placed in a magnetic field.

Example: Like poles (north-north or south-south) repel each other, while unlike poles (north-south) attract.

Highlight: The strength of a magnetic field depends on the distance from the magnet and the current flowing through it.

The section also covers solenoids, which are coils of wire that can create strong, uniform magnetic fields. The magnetic field strength of a solenoid can be increased by inserting an iron core, creating an electromagnet.
