Factors Affecting Resistance and Circuit Components

This section delves into the various factors that influence electrical resistance and introduces key circuit components, crucial for understanding resistance in GCSE Physics.

Factors Affecting Resistance

1. Current:

   • Increased current provides more energy to electrons
   • Electrons collide with atoms in the resistor, transferring energy
   • Atomic vibrations increase, making electron flow more difficult
   • Result: Resistance increases, current decreases

2. Temperature:

   • In normal wires, resistance increases with temperature due to increased atomic vibrations
   • Thermistors exhibit decreased resistance at higher temperatures

Example: Thermistors are often used in temperature detectors and thermostats due to their temperature-sensitive resistance properties.

3. Length:

   • Longer wires have higher resistance
   • Electrons must navigate through more resistor atoms in longer wires

4. Light:

   • Light Dependent Resistors (LDRs) have lower resistance in higher light intensity
   • Resistance is greatest in darkness

Application: LDRs are commonly used in automatic night lights due to their light-sensitive resistance.

5. Voltage (for specific components):
   • Diodes allow current to flow freely in one direction (used to convert AC to DC)
   • High resistance in the opposite direction prevents current flow

Circuit Components

1. Resistors:

   • Fixed resistance components
   • Used to control current flow in circuits

2. Filament Lamps:

   • Non-ohmic components
   • Resistance increases as the filament heats up

3. Semiconductor Diodes:

   • Allow current flow in one direction
   • Used in rectification (AC to DC conversion)

4. Thermistors:

   • Temperature-sensitive resistors
   • Commonly used in temperature control systems

5. Light Dependent Resistors (LDRs):

   • Light-sensitive resistors
   • Applications include automatic lighting systems

Highlight: Understanding the behavior of these components is crucial for analyzing and designing electrical circuits in GCSE Physics electricity exam questions and answers.

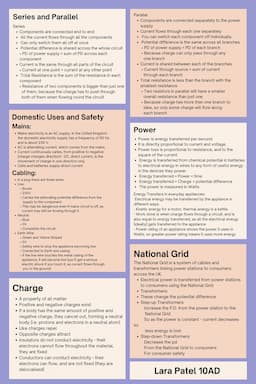

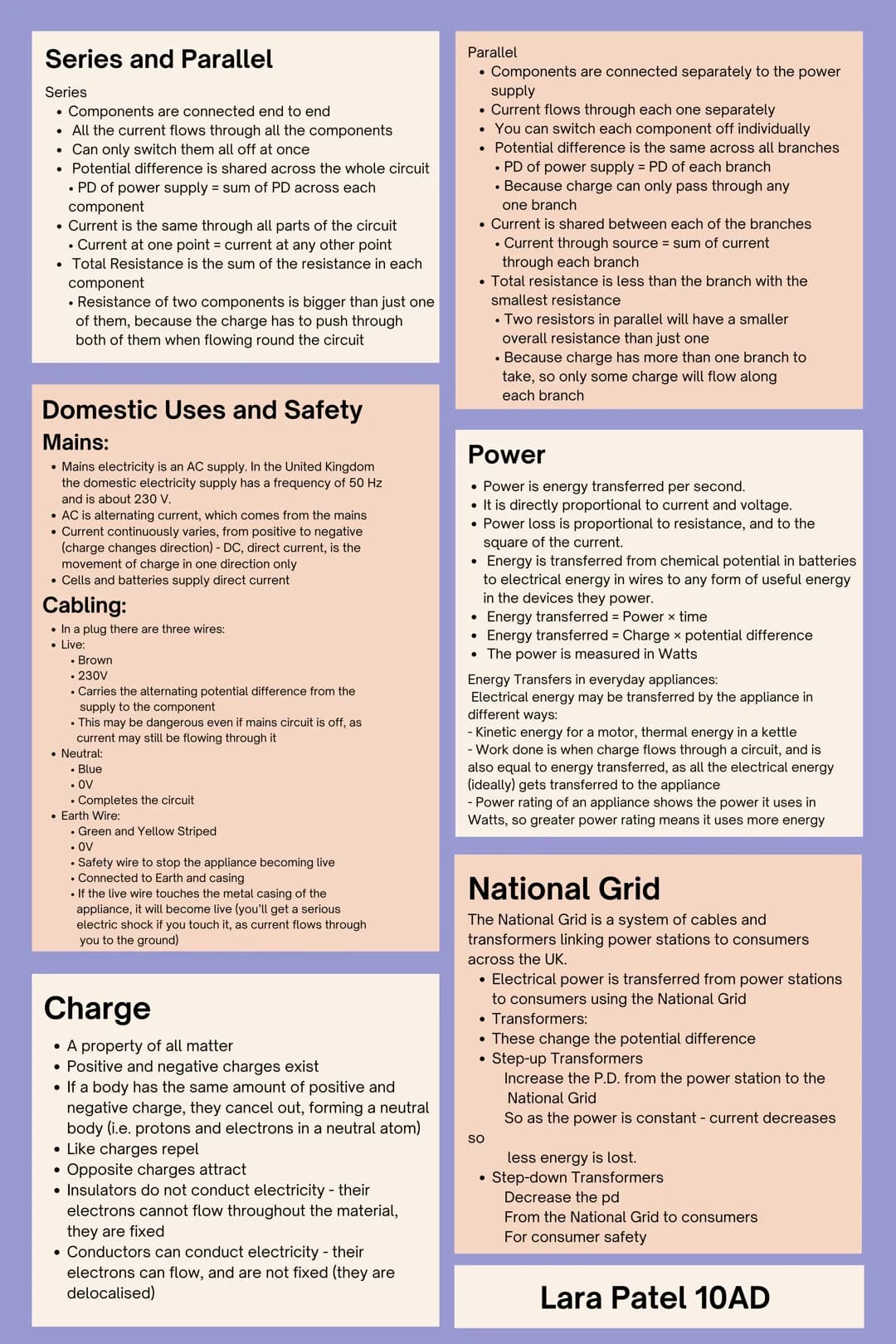

Domestic Electricity and Safety

This final section covers essential information about domestic electricity supply and safety measures, which are critical topics in GCSE Physics Electricity revision notes.

Mains Electricity

Definition: Mains electricity in the United Kingdom is an AC (Alternating Current) supply with a frequency of 50 Hz and a voltage of approximately 230 V.

Key characteristics of AC:

• Current continuously varies between positive and negative
• Charge changes direction periodically
• Contrasts with DC (Direct Current), where charge moves in one direction only

Example: Cells and batteries supply direct current, while household power outlets provide alternating current.

Domestic Wiring and Safety

A standard UK plug contains three wires, each with a specific function and color coding:

1. Live Wire:

   • Color: Brown
   • Voltage: 230V
   • Function: Carries alternating potential difference from the supply to the component
   • Safety note: May be dangerous even when the mains circuit is off

2. Neutral Wire:

   • Color: Blue
   • Voltage: 0V
   • Function: Completes the circuit

3. Earth Wire:

   • Color: Green and Yellow Striped
   • Voltage: 0V
   • Function: Safety wire to prevent appliances from becoming live
   • Connected to the Earth and the appliance casing

Highlight: The earth wire is a crucial safety feature. If the live wire accidentally touches the metal casing of an appliance, the earth wire provides a safe path for the current, preventing electric shock.

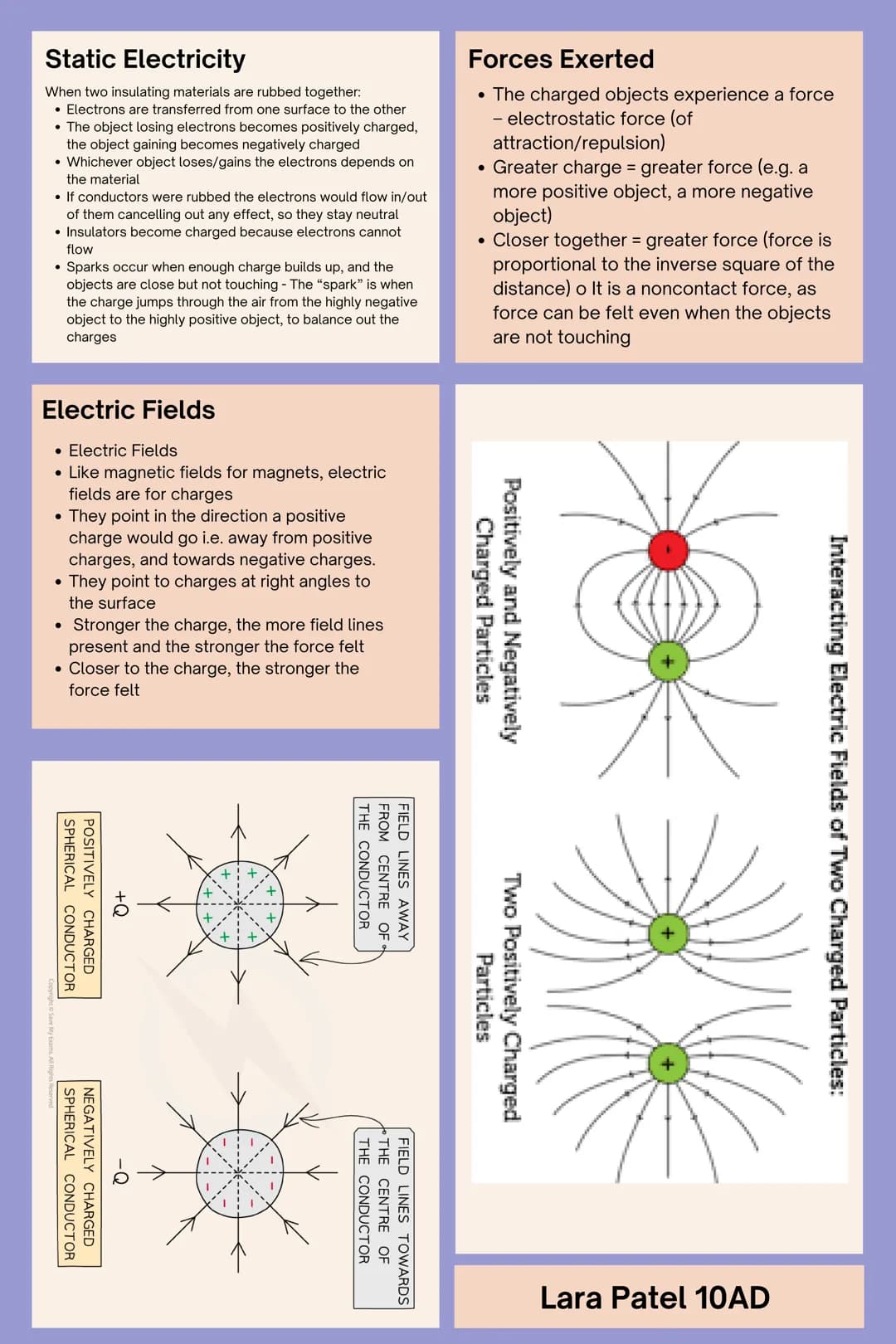

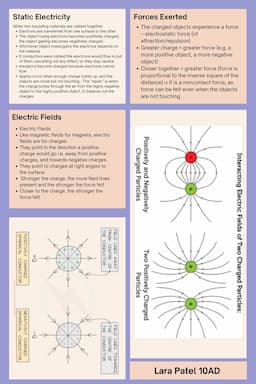

Electrical Charge in Context

Understanding electrical charge is fundamental to grasping the concepts of current and potential difference:

• Charge is a property of all matter
• Both positive and negative charges exist
• In a neutral body, positive and negative charges are balanced
• Like charges repel, opposite charges attract

Vocabulary: Potential Difference (PD) - The difference in electrical potential energy per unit charge between two points in an electrical circuit.

This comprehensive guide covers key topics in GCSE AQA Physics electricity, from basic concepts to practical applications and safety considerations. Students can use these GCSE Physics electricity notes PDF to reinforce their understanding and prepare for exams effectively.

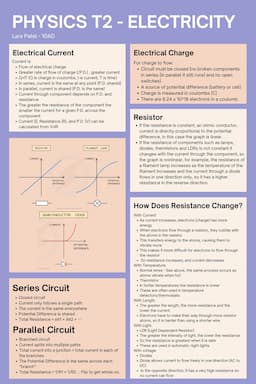

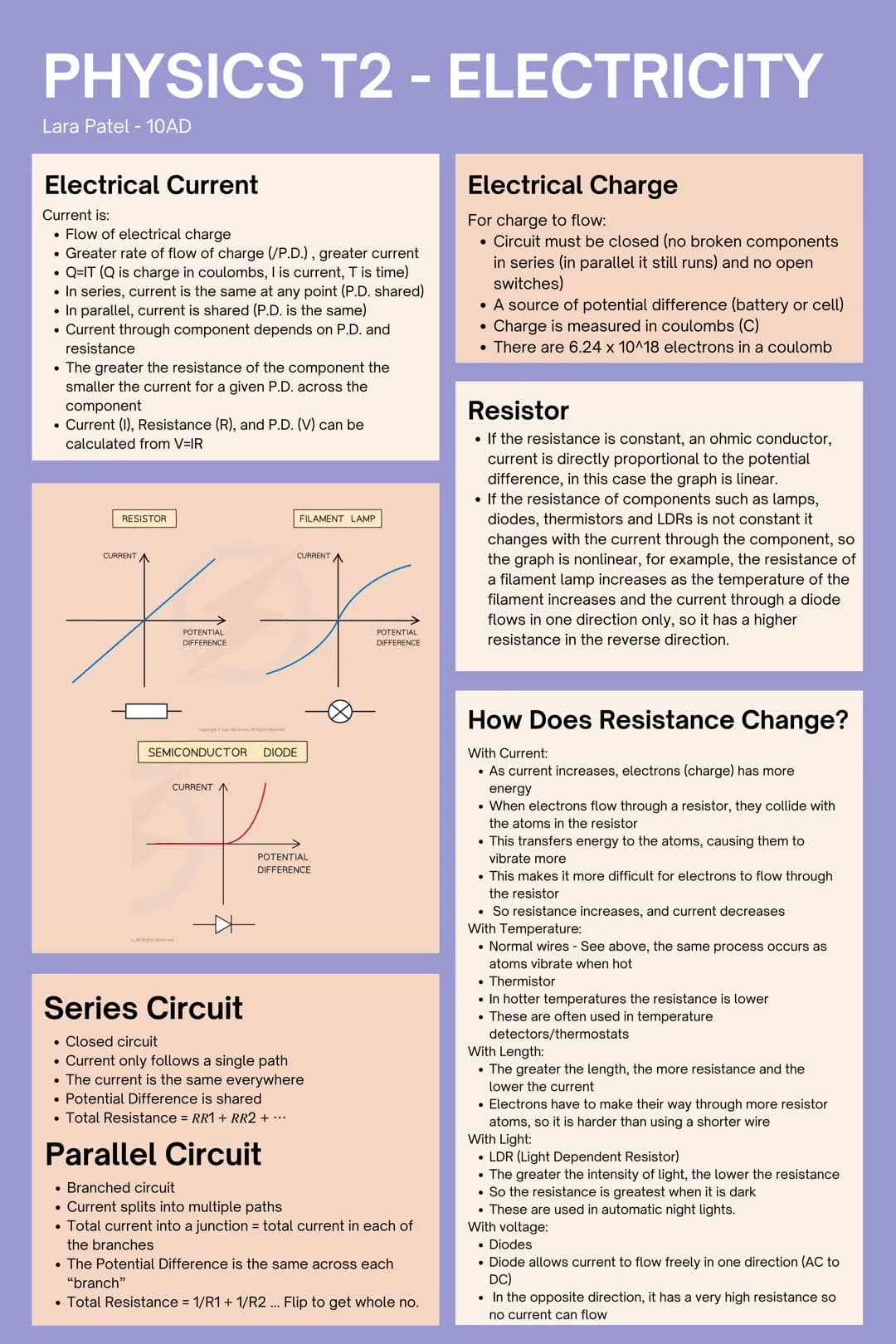

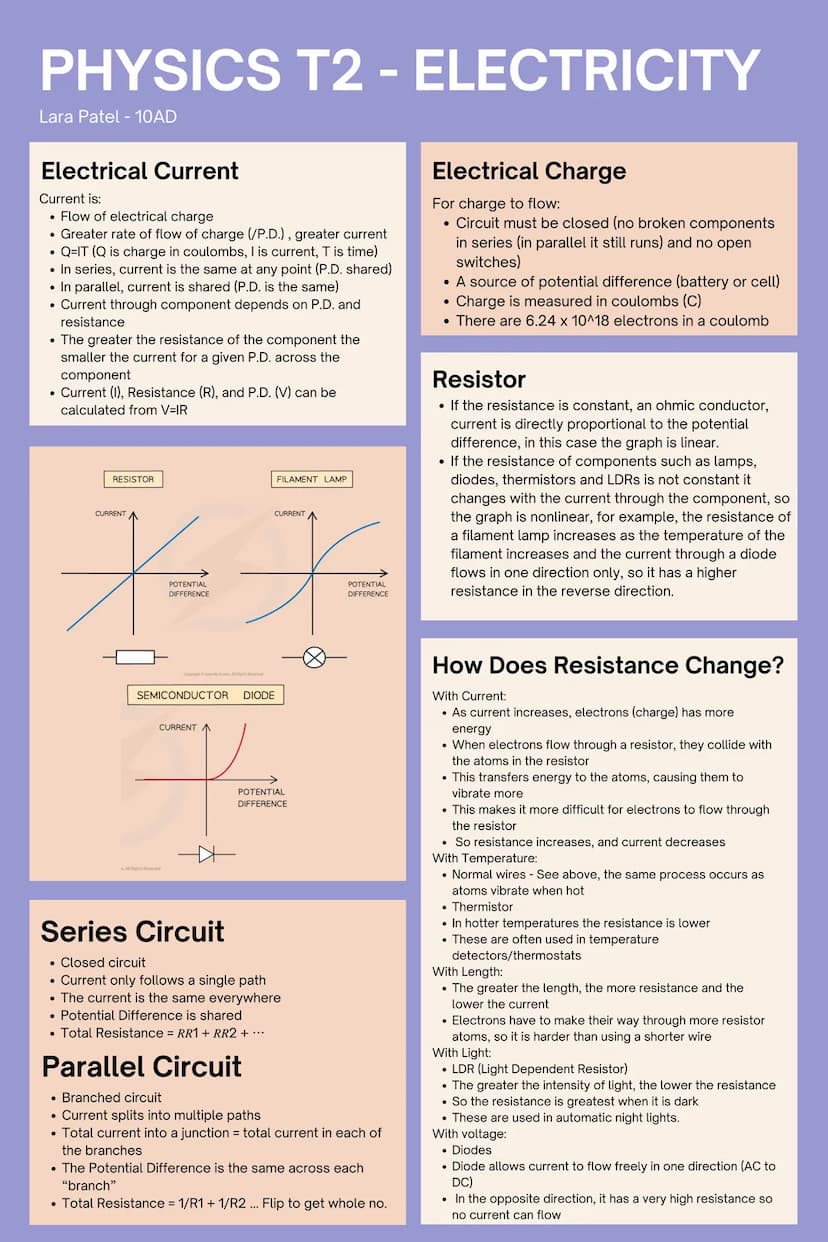

Electrical Current and Circuits

This section explores the fundamentals of electrical current and circuit types, essential for understanding GCSE Physics electricity.

Electrical Current Electrical current is defined as the flow of electrical charge. The relationship between current, charge, and time is expressed by the equation Q=IT, where Q is charge in coulombs, I is current, and T is time.

Highlight: In series circuits, current remains constant at any point, while potential difference is shared. In parallel circuits, current is shared, but potential difference remains the same across branches.

Circuit Types

1. Series Circuits:

   • Closed circuit with a single path for current
   • Current is constant throughout
   • Potential difference is shared among components
   • Total resistance is the sum of individual component resistances

2. Parallel Circuits:

   • Branched circuit with multiple paths for current
   • Current splits into different branches
   • Potential difference is the same across each branch
   • Total resistance is calculated using the reciprocal method

Example: In a series circuit with two resistors (R1 and R2), the total resistance is R_total = R1 + R2. In a parallel circuit, it would be 1/R_total = 1/R1 + 1/R2.

Electrical Charge For charge to flow in a circuit, two conditions must be met:

1. The circuit must be closed
2. There must be a source of potential difference (e.g., a battery or cell)

Vocabulary: Coulomb (C) - The unit of electrical charge. One coulomb contains 6.24 x 10^18 electrons.

Resistance and Component Behavior The relationship between current, resistance, and potential difference is governed by Ohm's Law: V = IR.

Definition: An ohmic conductor is a component with constant resistance, resulting in a linear relationship between current and potential difference.

Non-ohmic components, such as lamps, diodes, thermistors, and LDRs, have varying resistance depending on conditions like temperature or light intensity.

Example: In a filament lamp, resistance increases as the temperature of the filament rises, leading to a non-linear current-voltage relationship.
