GCSE AQA Physics Paper 1 Practical Methods Guide

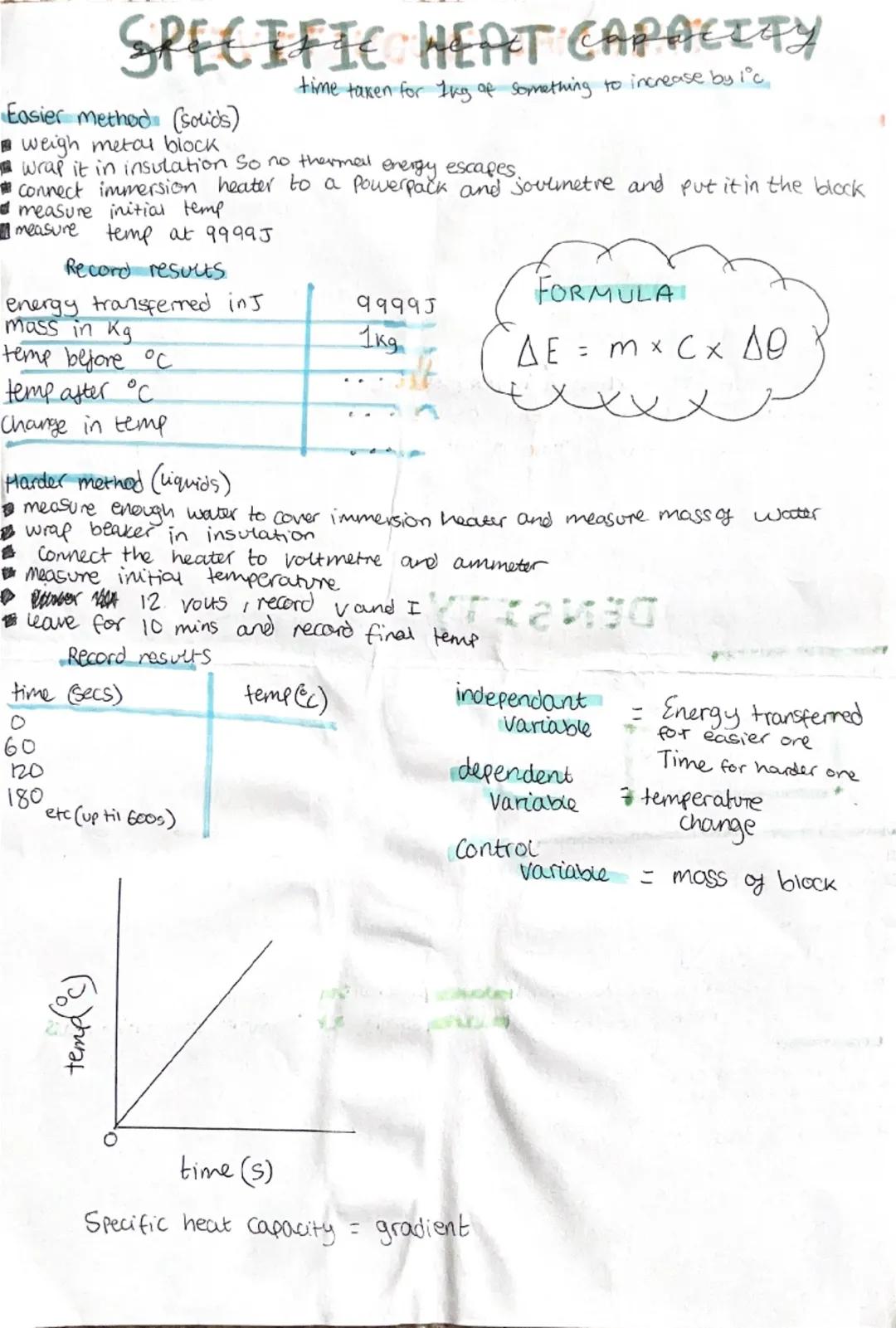

Measuring Specific Heat Capacity

Ever wondered how much energy it takes to heat different materials? That's what specific heat capacity measures! There are two main experimental methods to find this value.

For solid materials, you'll need to weigh a metal block, wrap it in insulation to prevent heat loss, and insert an immersion heater connected to a joulmeter. Measure the initial temperature, apply energy for a set time, and record the final temperature. The formula to calculate specific heat capacity is ΔE = m × c × Δθ, where ΔE is energy transferred, m is mass, c is specific heat capacity, and Δθ is the temperature change.

For liquids, you'll measure a quantity of water, insulate the beaker, connect the heater to measuring instruments, and record temperature changes over time. In this method, you'd typically take readings every minute for about 10 minutes.

Quick Tip: When graphing your results for the liquid method, the gradient of your temperature-time graph will give you the specific heat capacity value!

Remember to identify your variables clearly: the independent variable is energy transferred (easier method) or time (harder method), dependent variable is temperature change, and your control variable is the mass of the material.

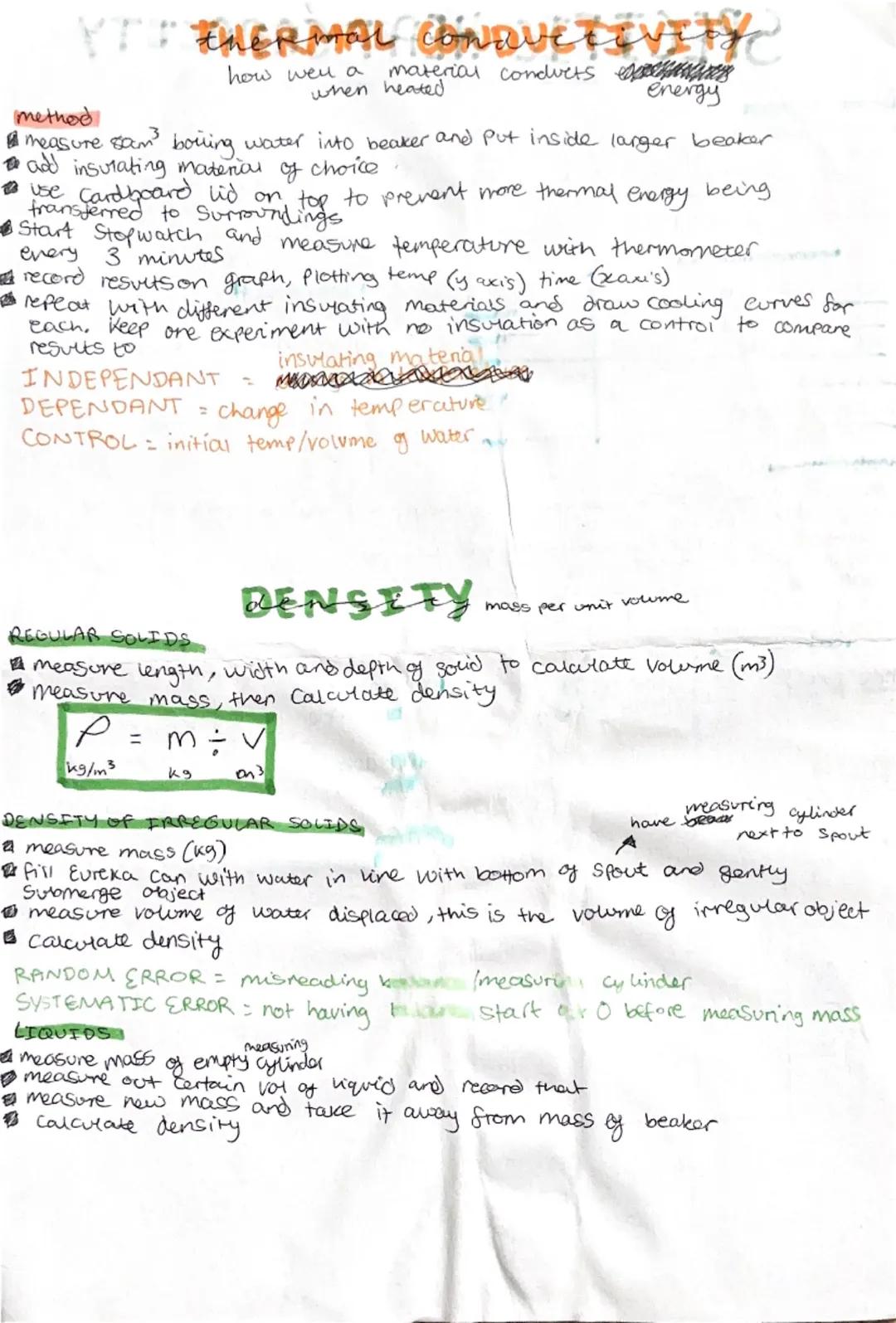

Thermal Conductivity and Density

Materials conduct heat at different rates—this is called thermal conductivity. To test this, fill a beaker with hot water, place it inside a larger beaker with your insulating material, and cover with a lid. Measure the temperature every 3 minutes and plot your cooling curves. The steeper the curve, the poorer the insulator!

Density is simply the mass per unit volume $kg/m³$. For regular solids, measure length, width and depth to calculate volume, then weigh the object. Use the formula ρ = m ÷ V to find density.

For irregular solids, use a displacement method: fill a Eureka can to the spout, submerge your object, and measure the volume of water displaced. This equals the volume of your object. For liquids, measure the mass of an empty cylinder, add a known volume of liquid, measure the new mass, and calculate the difference.

Watch out! Common errors include misreading the measuring cylinder (random error) and not zeroing the scale before measuring mass (systematic error).

When conducting these experiments, you'll need to identify your variables carefully. For thermal conductivity, the insulating material is your independent variable, and temperature change is your dependent variable.

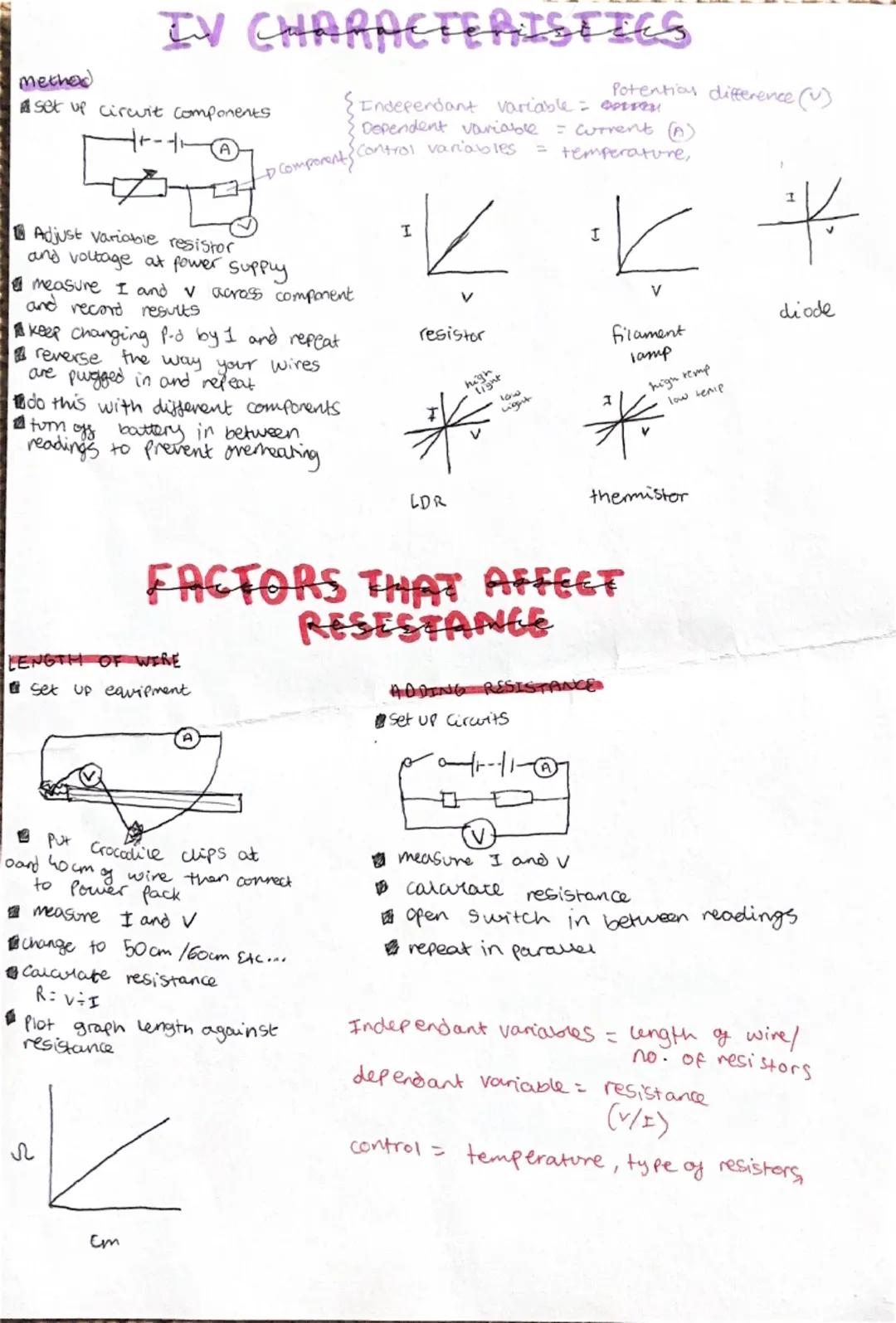

I-V Characteristics

The relationship between current and voltage tells us how different electrical components behave in circuits. This is incredibly useful for understanding how your phone or computer actually works!

To measure I-V characteristics, set up a circuit with your component, a variable resistor and power supply. Adjust the voltage, measure both current and voltage, and record your results. Increase the voltage in small steps and repeat. Then reverse your connections and repeat the measurements to get a complete picture.

Different components produce distinctive I-V graphs: resistors show a straight line, filament lamps curve upward, and diodes only allow current in one direction. Light-dependent resistors (LDRs) change with light intensity, while thermistors vary with temperature.

For investigating resistance factors, you can test how length affects wire resistance by measuring current and voltage at different lengths. You can also explore how adding resistors in series or parallel changes overall resistance.

Pro Tip: Always turn off your power supply between readings to prevent components from overheating and giving inaccurate results!

Remember your variables: the independent variable is voltage (for I-V characteristics) or wire length/number of resistors (for resistance factors), while the dependent variable is current or calculated resistance.
