Understanding Wave Properties and Calculations in GCSE Physics

A longitudinal wave consists of compressions and rarefactions, which are essential concepts in GCSE Combined Science Physics Paper 1 topics. When examining wave diagrams, we must correctly identify key components like wavelength and amplitude to understand wave behavior.

Definition: A longitudinal wave is a type of wave where particles oscillate parallel to the direction of wave travel, creating regions of compression and rarefaction.

The relationship between frequency and period is fundamental in wave mechanics. For a wave with a frequency of 4.0 kHz $4000 Hz$, we can calculate its period using the equation T = 1/f. This gives us 1/4000 = 0.00025 seconds or 2.5 × 10⁻⁴ seconds. Understanding these calculations is crucial for Physics GCSE questions and answers pdf practice.

The wave speed formula connects three vital wave properties: v = f × λ, where v is wave speed, f is frequency, and λ is wavelength. This equation appears frequently in GCSE physics wave calculations questions and answers and is essential for solving practical problems.

Wave Speed and Temperature Relationships

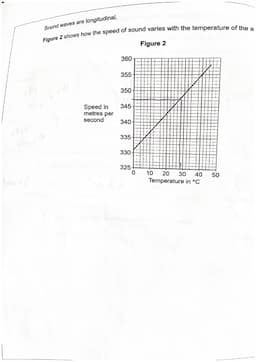

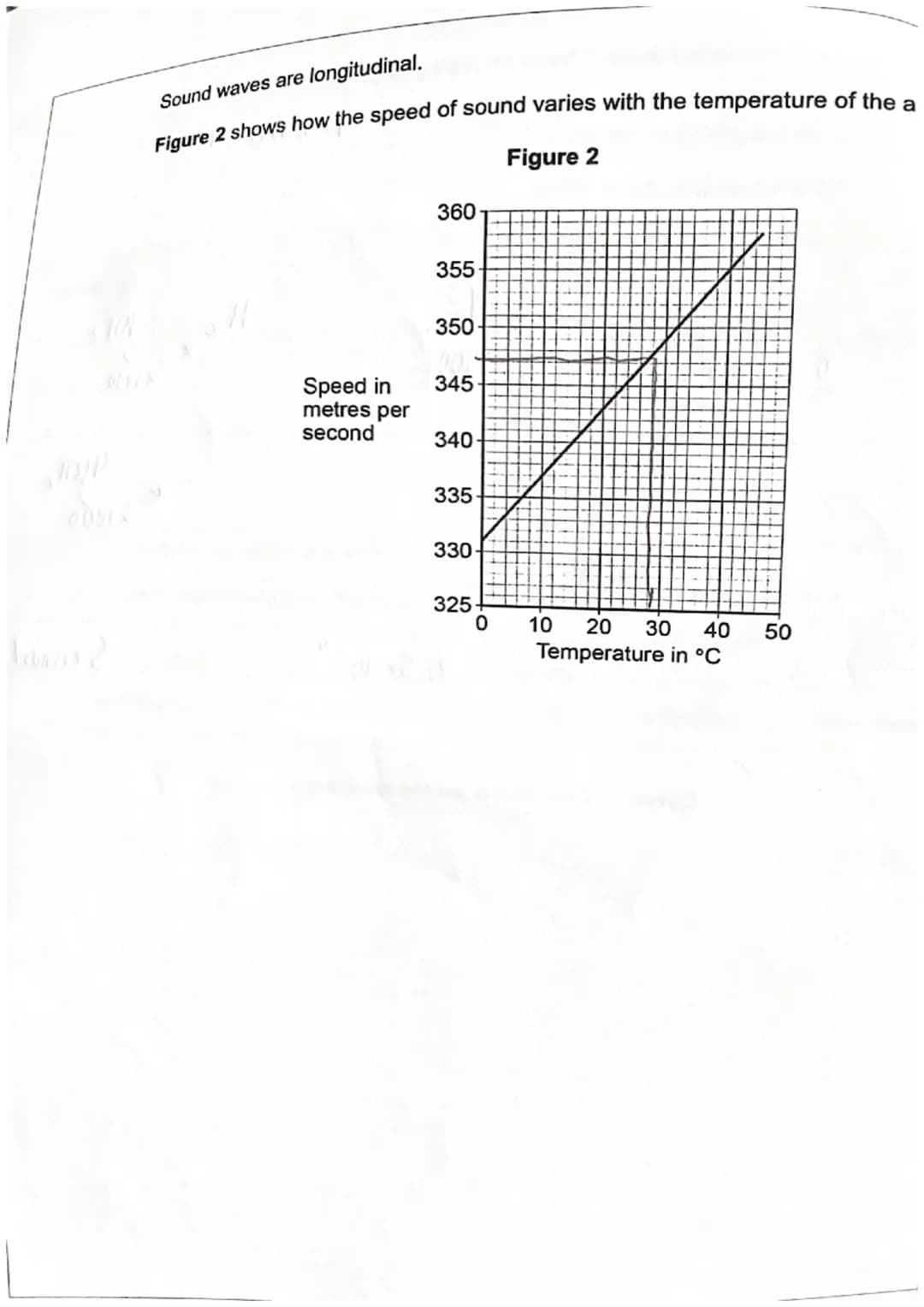

Sound waves demonstrate how wave properties can vary with environmental conditions. The speed of sound increases with temperature, as shown by the linear relationship in temperature-speed graphs. This concept is commonly tested in AQA GCSE Physics revision notes pdf.

Highlight: The speed of sound in air increases by approximately 0.6 meters per second for every 1°C rise in temperature.

When solving wave problems involving temperature, we must first determine the wave speed from the temperature conditions before calculating wavelength or frequency. This systematic approach is essential for success in Physics Paper 1 AQA past papers.

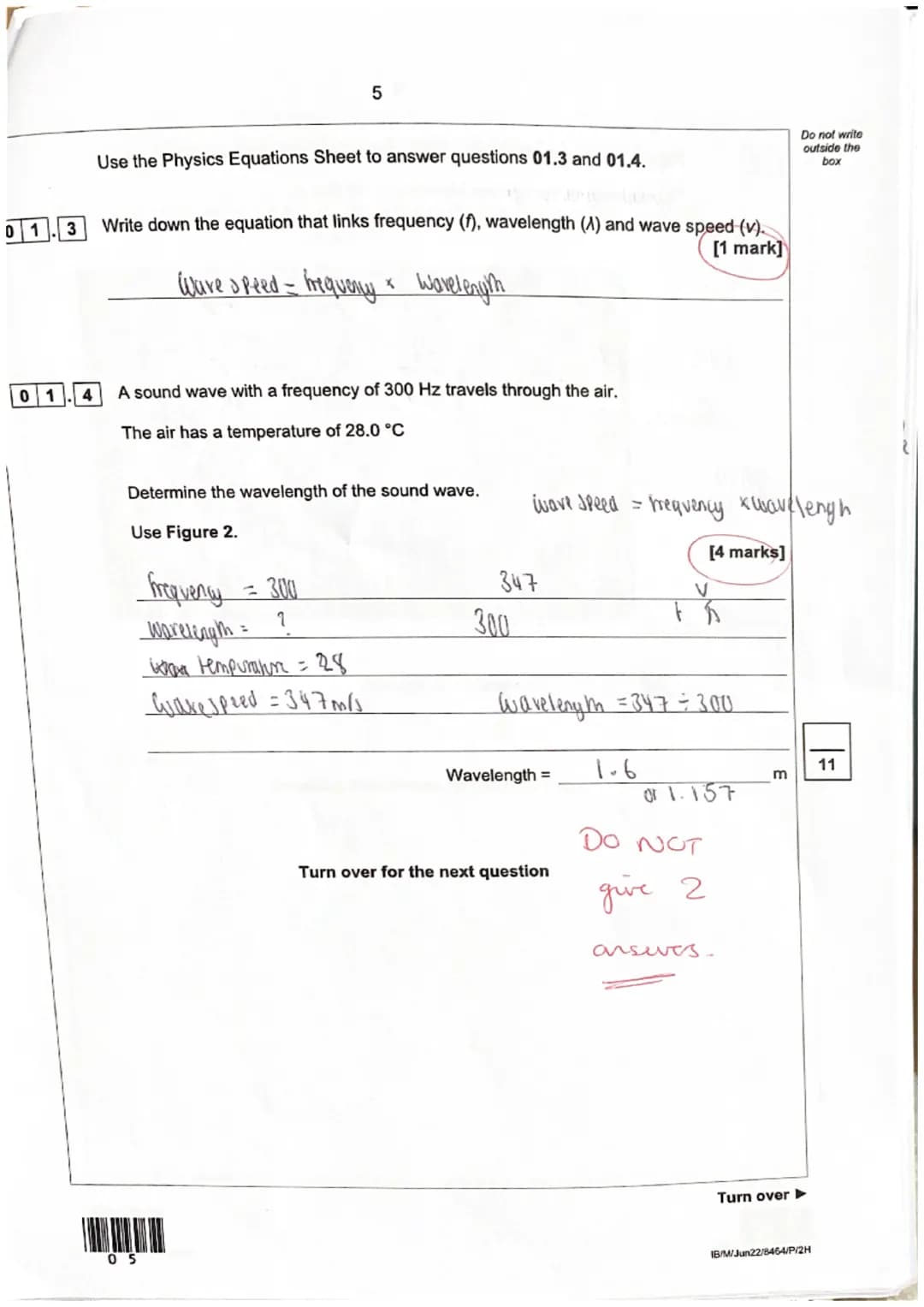

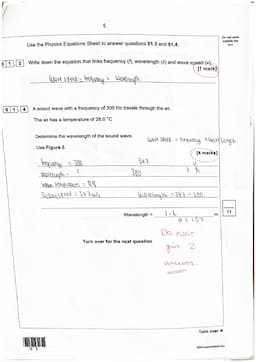

For a sound wave with a frequency of 300 Hz traveling through air at 28.0°C, we can determine its wavelength using the wave speed equation. At this temperature, sound travels at approximately 347 m/s.

Practical Applications of Wave Calculations

Understanding wave calculations has practical applications in various fields, from medical ultrasound to seismology. These concepts form a crucial part of AQA GCSE Combined Science Physics Paper 1 topics.

Example: To find wavelength when given frequency and wave speed:

1. Identify the wave speed $v = 347 m/s$
2. Use the frequency $f = 300 Hz$
3. Apply the formula: λ = v/f
4. Calculate: 347 ÷ 300 = 1.16 meters

This methodical approach to problem-solving is essential for mastering GCSE physics exam paper solutions.

Advanced Wave Concepts and Analysis

The study of waves extends beyond basic calculations to include complex phenomena like interference and diffraction. These topics frequently appear in Physics GCSE past Papers Edexcel and require thorough understanding.

Vocabulary: Key wave terms include:

• Wavelength: Distance between successive wave peaks
• Frequency: Number of waves passing a point per second
• Period: Time taken for one complete wave cycle
• Amplitude: Maximum displacement from equilibrium

Understanding these relationships helps in analyzing wave behavior and solving complex problems in AQA gcse Physics past papers. The ability to interpret wave diagrams and perform calculations is essential for achieving high grades in physics examinations.

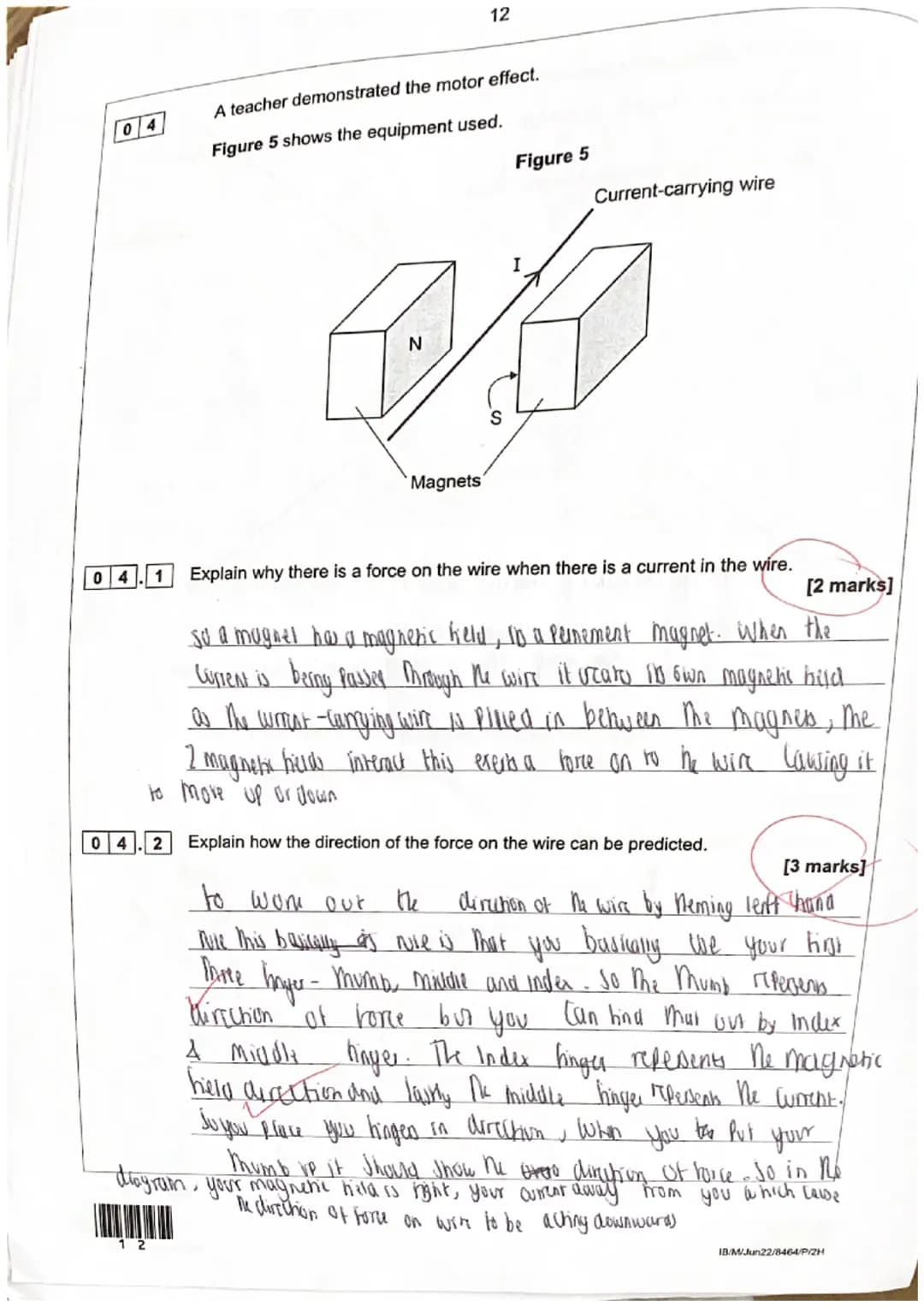

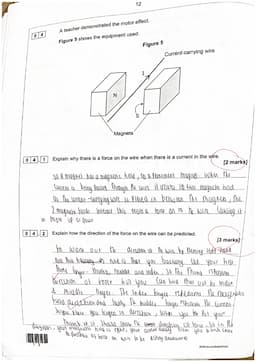

Understanding Motor Effect and Electromagnetic Forces in GCSE Physics

The motor effect represents a fundamental concept in GCSE Combined Science Physics Paper 1 topics, demonstrating the interaction between magnetic fields and electric currents. When a current-carrying wire is placed within a magnetic field, it experiences a force due to the interaction of two distinct magnetic fields - one from the permanent magnets and another created by the current-flowing wire.

In practical applications, this electromagnetic interaction forms the basis for electric motors and generators. The permanent magnets create a stable magnetic field, while the wire carrying current generates its own magnetic field. These fields interact, producing a force that causes the wire to move either upward or downward, depending on the current direction and magnetic field orientation.

Definition: The motor effect occurs when a current-carrying conductor experiences a force when placed in a magnetic field. This force results from the interaction between the magnetic field of the permanent magnets and the magnetic field created by the current in the wire.

To predict the force direction accurately, physicists use Fleming's Left-Hand Rule, a crucial tool in AQA GCSE Physics revision. This rule employs three fingers - thumb, first finger $index$, and second finger $middle$ - to determine the relationship between current, magnetic field, and force directions. The thumb represents the direction of motion or force, the first finger points in the magnetic field direction $North to South$, and the second finger indicates the current direction.

Wave Calculations and Electromagnetic Applications

Understanding wave speed formula and electromagnetic principles is essential for mastering Physics GCSE questions and answers. The wave speed equation $v = f λ$ connects frequency $f$ and wavelength $λ$ to determine wave velocity. This relationship is fundamental in analyzing both mechanical and electromagnetic waves.

Vocabulary: Wave speed $v$ is measured in meters per second $m/s$, frequency $f$ in Hertz $Hz$, and wavelength $λ$ in meters $m$. The wave speed unit helps us understand how quickly waves propagate through different media.

When solving GCSE physics wave calculations questions and answers, students must understand that the period of wave formula $T = 1/f$ relates to frequency, while the wave speed = distance and time equation $v = d/t$ provides a practical way to calculate wave velocity. These equations are frequently tested in Physics Paper 1 AQA past papers and require careful application of units and mathematical principles.

The practical applications of electromagnetic forces and wave behaviors extend beyond theoretical physics into real-world technologies like electric motors, generators, and communication systems. Understanding these principles helps explain how everyday devices work and forms a crucial part of modern technological advancement.

Page 1-2: Wave Properties and Calculations

This section covers fundamental wave properties and calculations related to waves.

Vocabulary: Longitudinal wave - A wave in which the vibrations are parallel to the direction of travel of the wave.

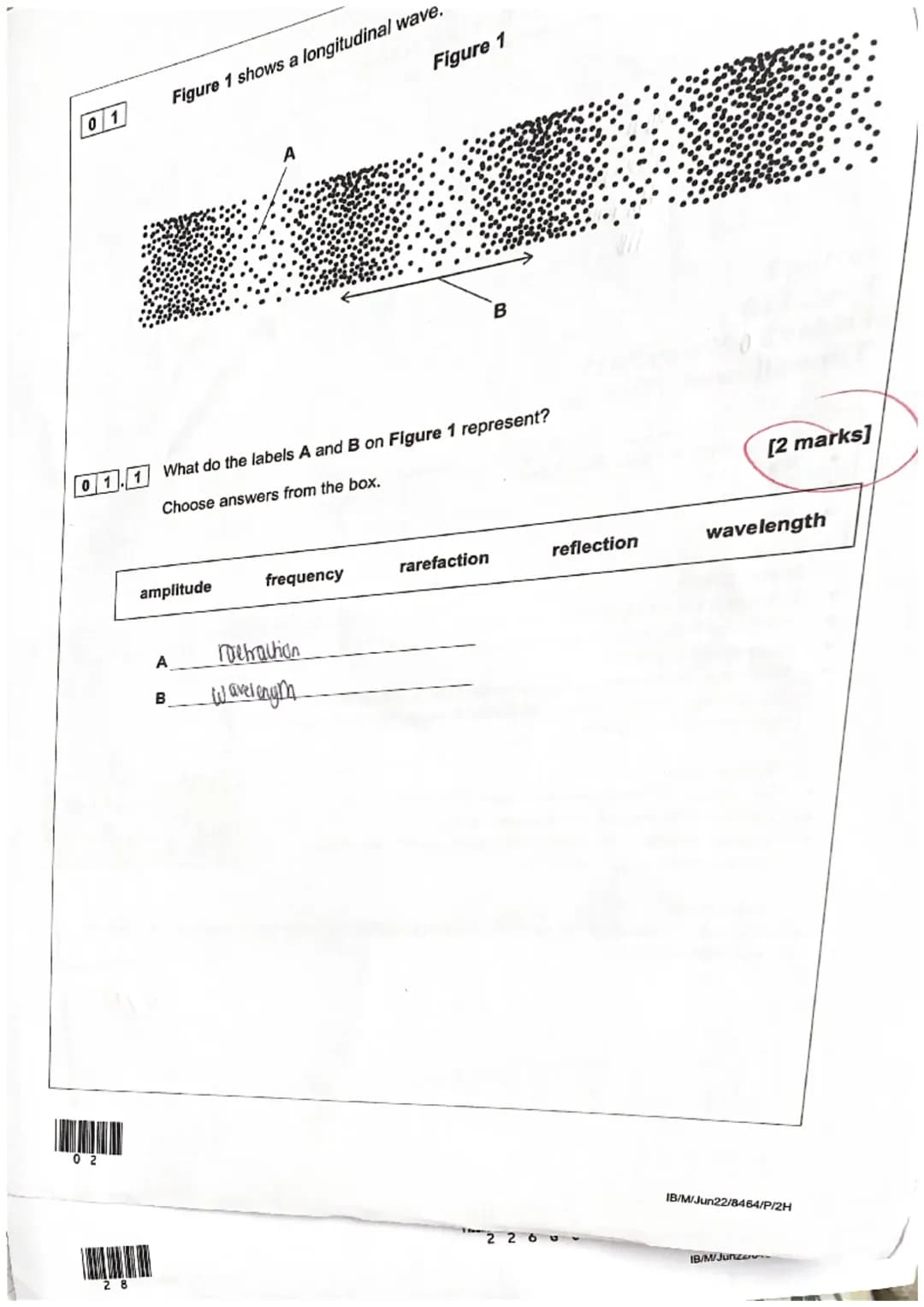

The diagram shows a longitudinal wave with labels A and B representing: A - Wavelength B - Rarefaction

Definition: Wavelength - The distance between two consecutive corresponding points on a wave.

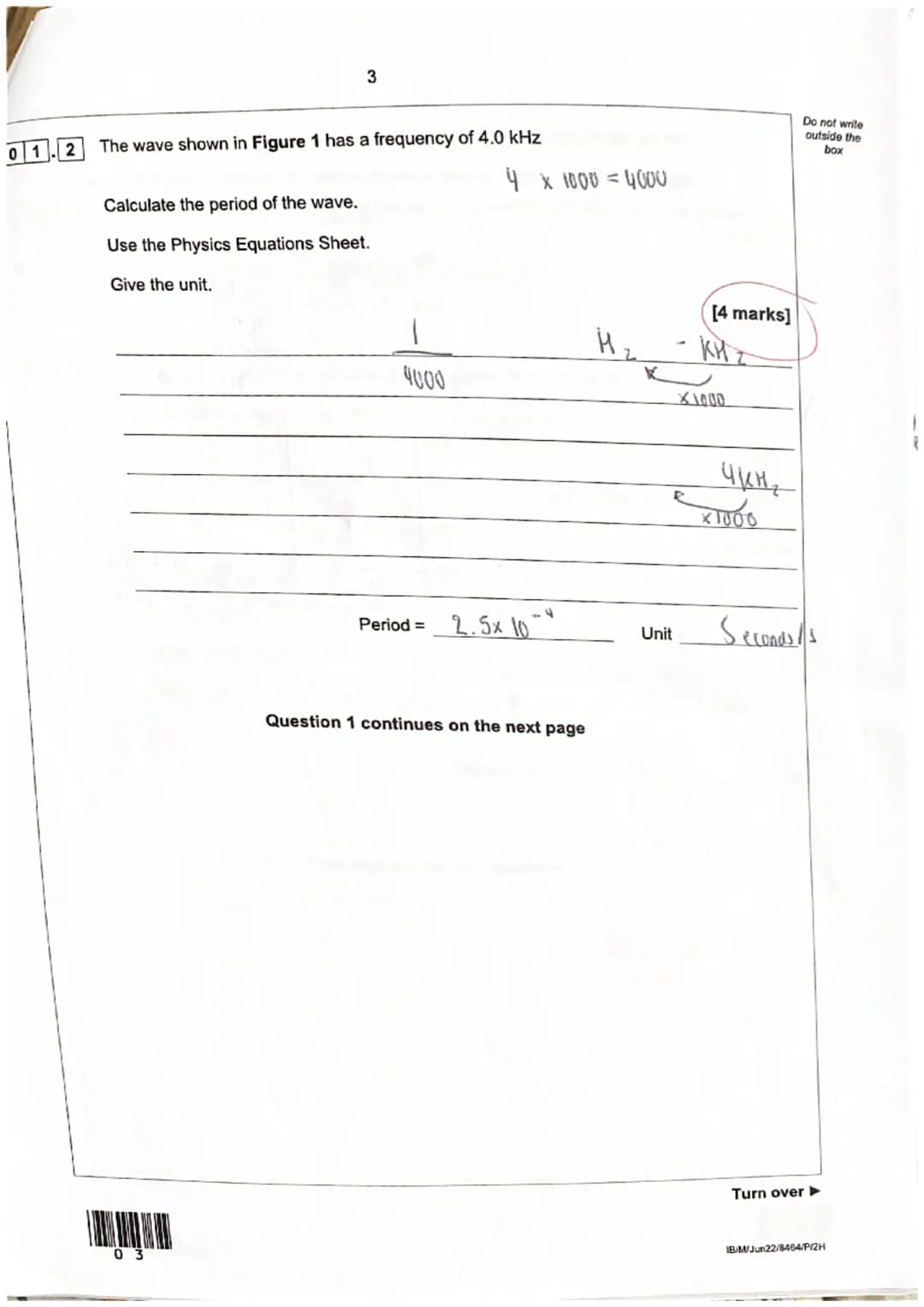

A wave calculation is presented:

Given: Frequency = 4.0 kHz Calculate: Period of the wave

Example: Period = 1/frequency = 1/4000 Hz = 2.5 x 10^-4 seconds

Highlight: It's crucial to convert kHz to Hz by multiplying by 1000 before performing calculations.
