AQA A-Level Physics: Further Mechanics for Year 13
Ruth Johnson
@ruthjohnson_cbxl
1 / 3

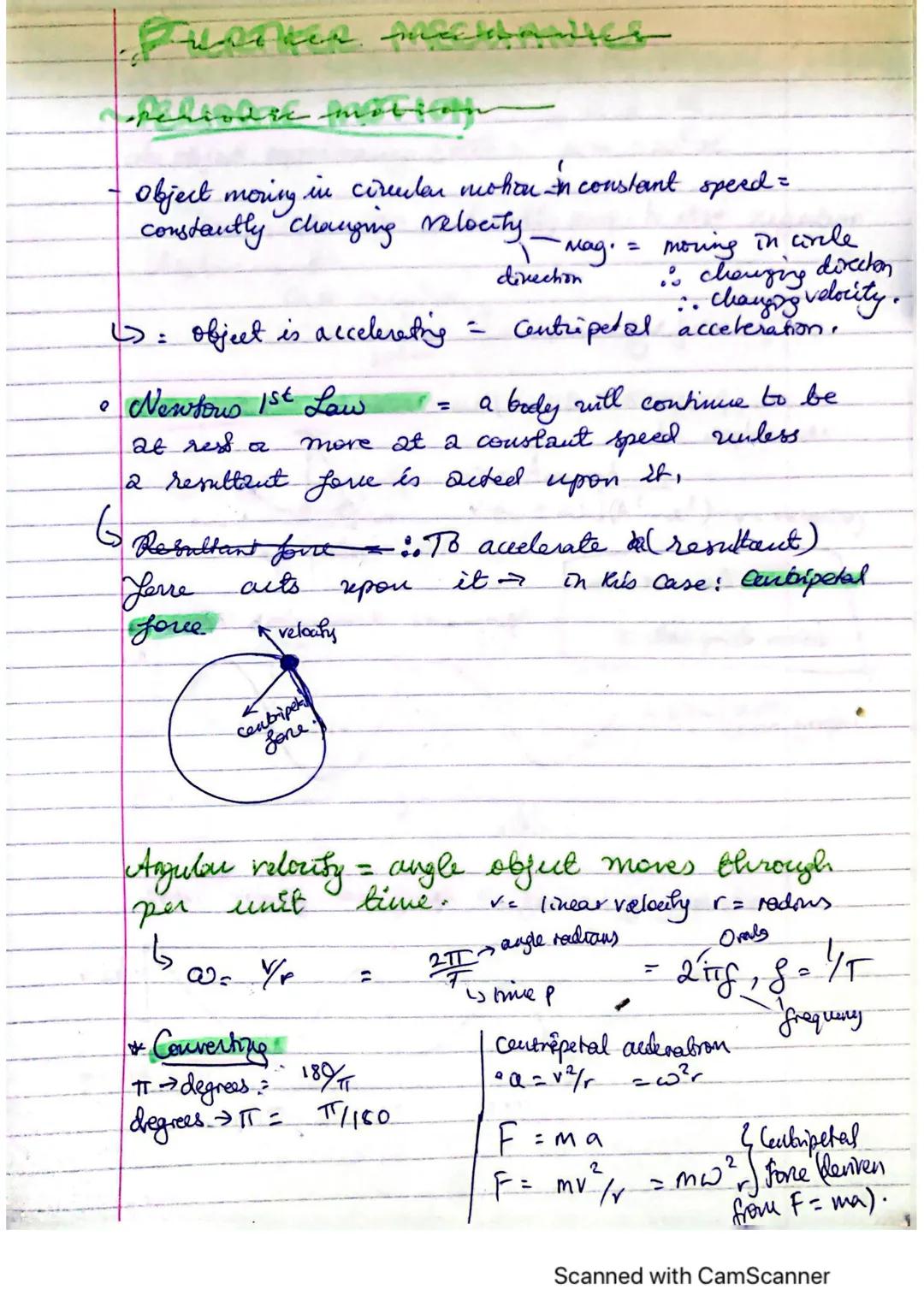

Periodic Motion and Centripetal Force
When objects move in circles at constant speed, they're actually accelerating even though their speed stays the same. This happens because they're constantly changing direction, which means their velocity is changing.
This acceleration points towards the centre of the circle and is called centripetal acceleration. According to Newton's first law, objects naturally want to move in straight lines, so you need a force to keep them moving in circles.
The centripetal force required depends on the object's mass, speed, and the radius of the circle. You can calculate it using F = mv²/r or F = mω²r, where ω (omega) represents angular velocity - how fast the object rotates through angles.
Quick tip: Remember that centripetal force isn't a new type of force - it's just the name for whatever force (tension, friction, gravity) that's pulling the object towards the centre!
Converting between degrees and radians is essential here: 180° = π radians, so use the conversion factor π/180 when needed.

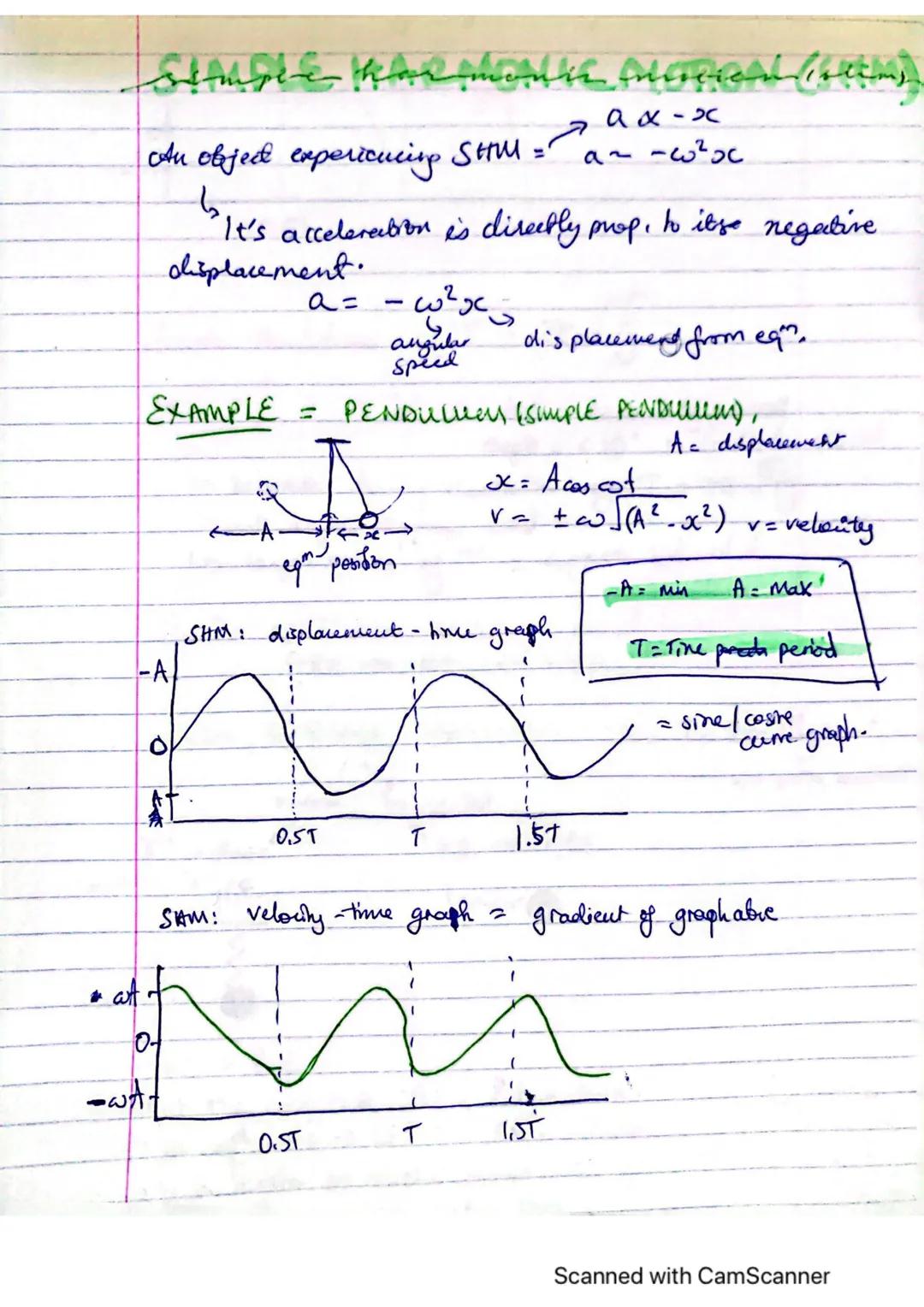

Simple Harmonic Motion (SHM)
Simple harmonic motion is everywhere - from pendulums to guitar strings to atoms vibrating in crystals. The key feature is that acceleration is always proportional to displacement but in the opposite direction: a = -ω²x.
A simple pendulum is the perfect example. When you displace it from equilibrium, it oscillates back and forth with the equation x = A cos ωt, where A is the amplitude (maximum displacement).
The displacement-time graph creates a beautiful sine or cosine curve, showing the regular pattern of oscillation. The time for one complete cycle is called the period (T).
Remember: For SHM to work with pendulums, keep the angle small (less than 10°) - otherwise the maths gets much more complicated!
The velocity changes too, following v = ±ω√. Notice how velocity is maximum at the equilibrium position and zero at maximum displacement.

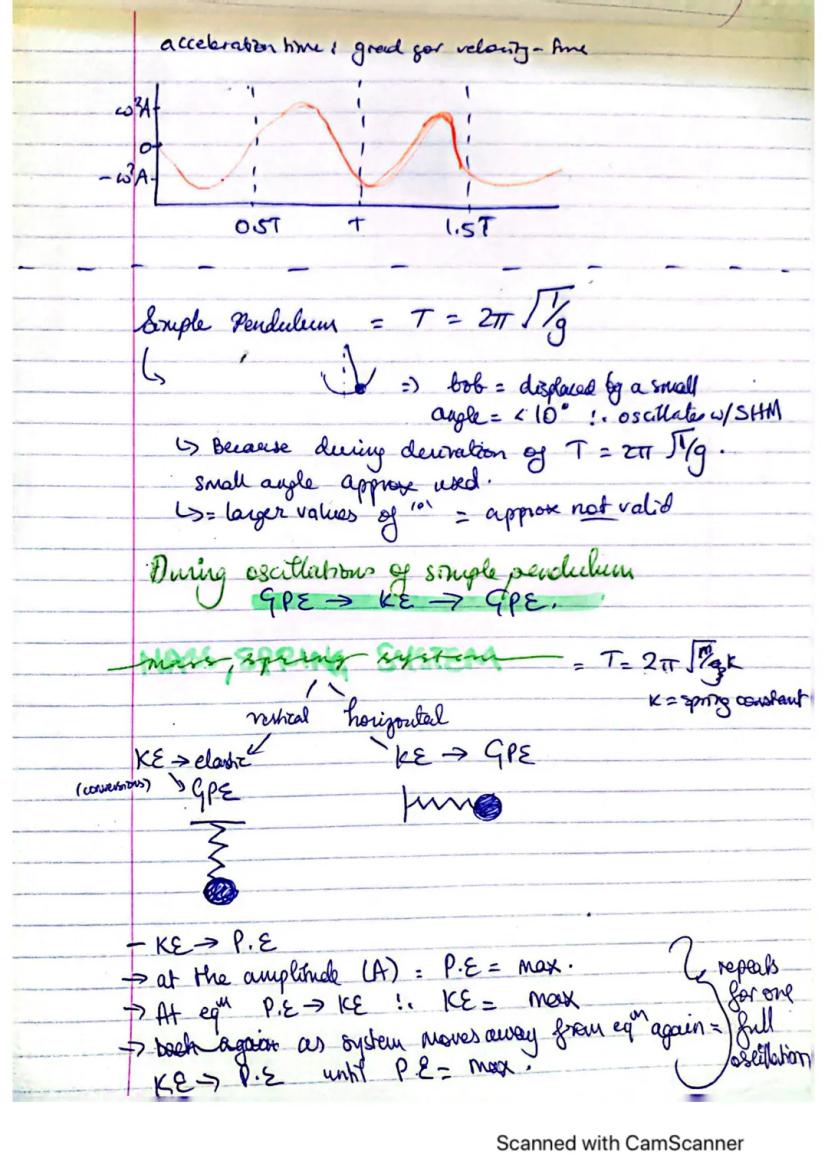

Energy in Oscillating Systems
The beauty of SHM systems lies in their energy transformations. In a simple pendulum, gravitational potential energy converts to kinetic energy and back again in a continuous cycle.
For pendulums, the period formula T = 2π√ shows that longer pendulums swing more slowly. This only works for small angles because of the mathematical approximations used in deriving this formula.
Mass-spring systems work similarly but exchange kinetic energy with elastic potential energy instead of gravitational. At maximum displacement (amplitude A), all energy is potential. At equilibrium, all energy is kinetic.
The acceleration-time graph for SHM is always opposite to the displacement graph - when displacement is maximum positive, acceleration is maximum negative, showing that restoring force trying to pull the object back to equilibrium.
Energy insight: Total energy in SHM remains constant throughout the oscillation - it just keeps changing from one form to another!
