The AC Generator

This page delves into the specifics of alternating current (AC) generators, explaining their structure and function. AC generator coil rotation and voltage production is a central theme, illustrating how mechanical energy is converted into electrical energy.

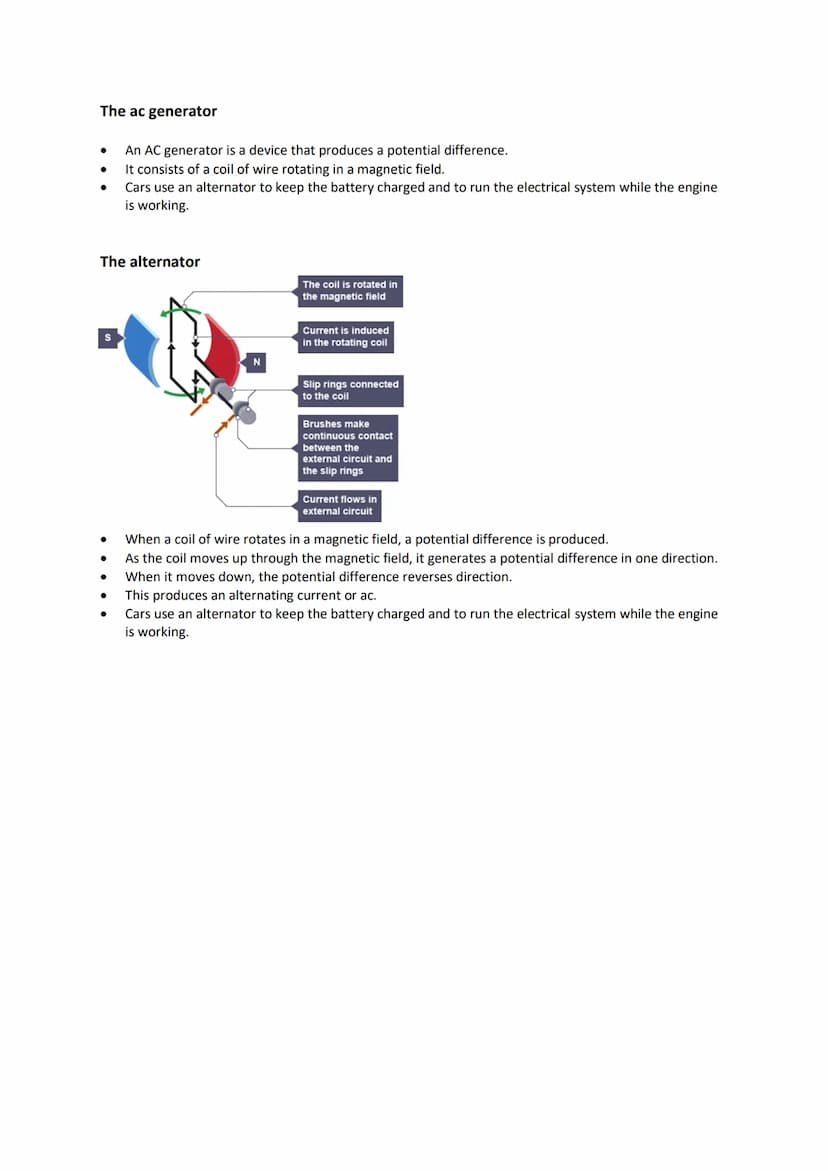

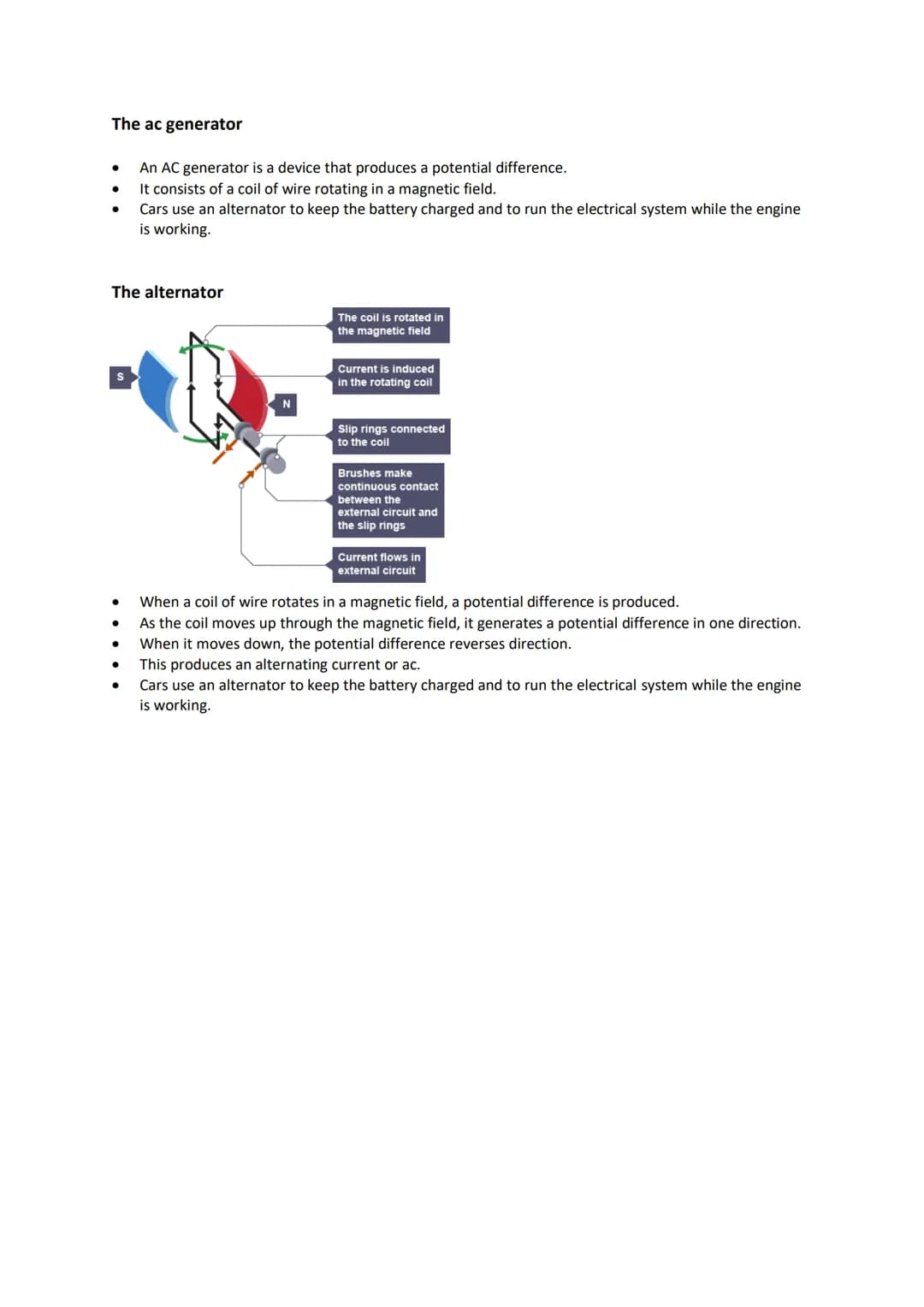

An AC generator consists of a coil of wire rotating within a magnetic field. This rotation induces a potential difference that alternates in direction, producing an alternating current.

Example: A car's alternator is a practical application of an AC generator, used to charge the battery and power the electrical system while the engine is running.

The key components of an AC generator include:

1. A rotating coil of wire
2. A strong magnetic field
3. Slip rings connected to the coil
4. Brushes that maintain contact between the external circuit and slip rings

As the coil rotates, it generates a potential difference that changes direction with each half-rotation. This continuous change in direction results in the production of alternating current.

Vocabulary: Slip rings are continuous conductive rings that maintain electrical contact with the rotating coil in an AC generator.

Alternator Output on a Graph

This page provides a visual representation of the output from an alternator, which is a type of AC generator. The graph illustrates the relationship between potential difference and time, showcasing the characteristic sine wave pattern of alternating current.

The sine curve on the graph represents the cyclical nature of the alternating current produced by the generator. Each complete rotation of the coil corresponds to one full cycle on the graph.

Highlight: The maximum potential difference or current can be increased by:

1. Increasing the speed of rotation
2. Strengthening the magnetic field
3. Adding more turns to the coil

The graph is divided into key points that correspond to different positions of the rotating coil:

1. At 0° and 180°: The coil moves parallel to the magnetic field, resulting in no induced potential difference.
2. At 90° and 270°: The coil moves perpendicular to the magnetic field, producing maximum potential difference in opposite directions.

Definition: A sine curve is a smooth, repetitive oscillation that represents the cyclical nature of alternating current in AC generators.

This visual representation helps in understanding the continuous nature of AC generation and how the coil's position relates to the produced voltage.

The DC Generator

This page introduces direct current (DC) generators, highlighting their key differences from AC generators. The focus is on the unique component that allows DC generators to produce a unidirectional current: the split ring commutator.

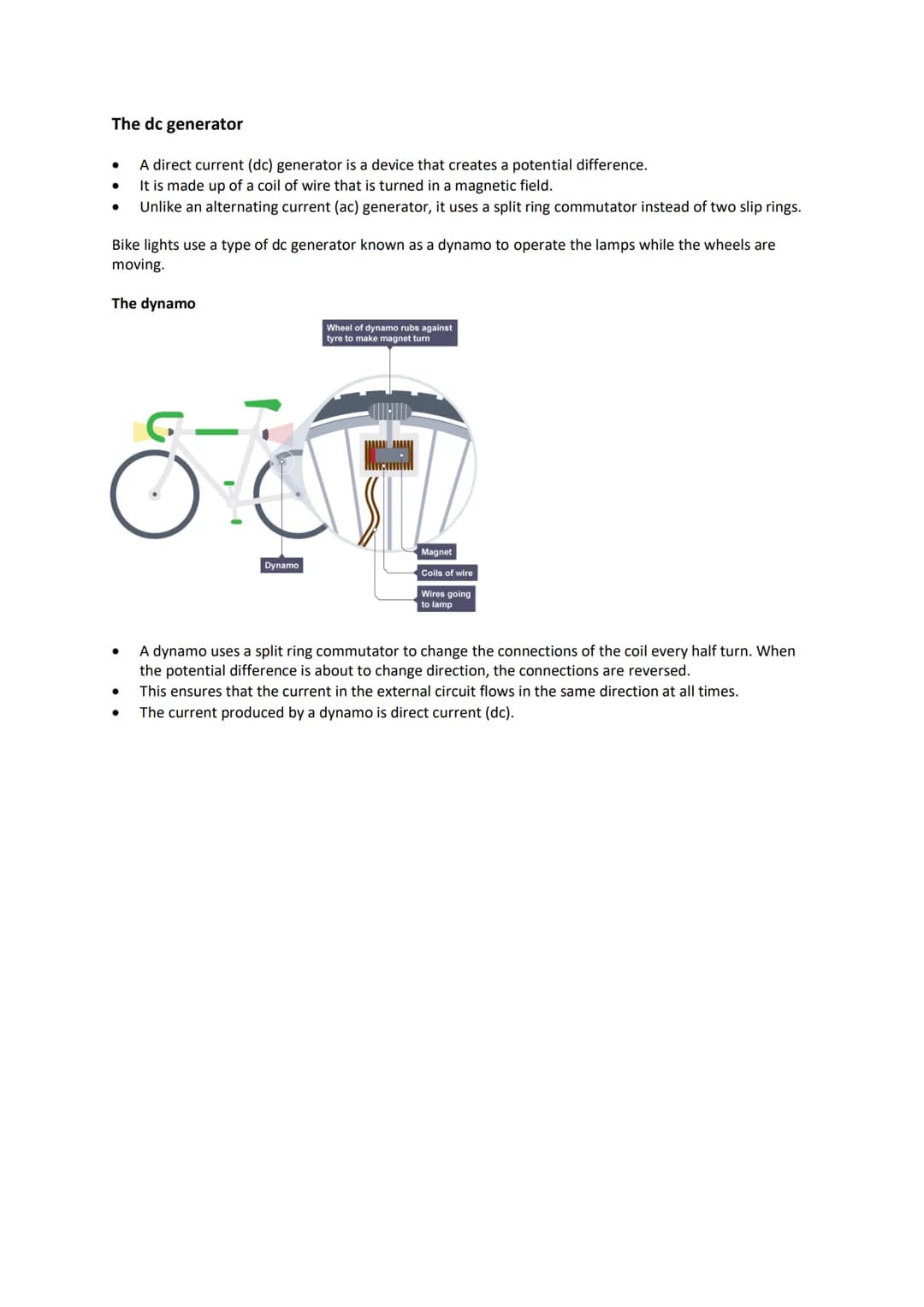

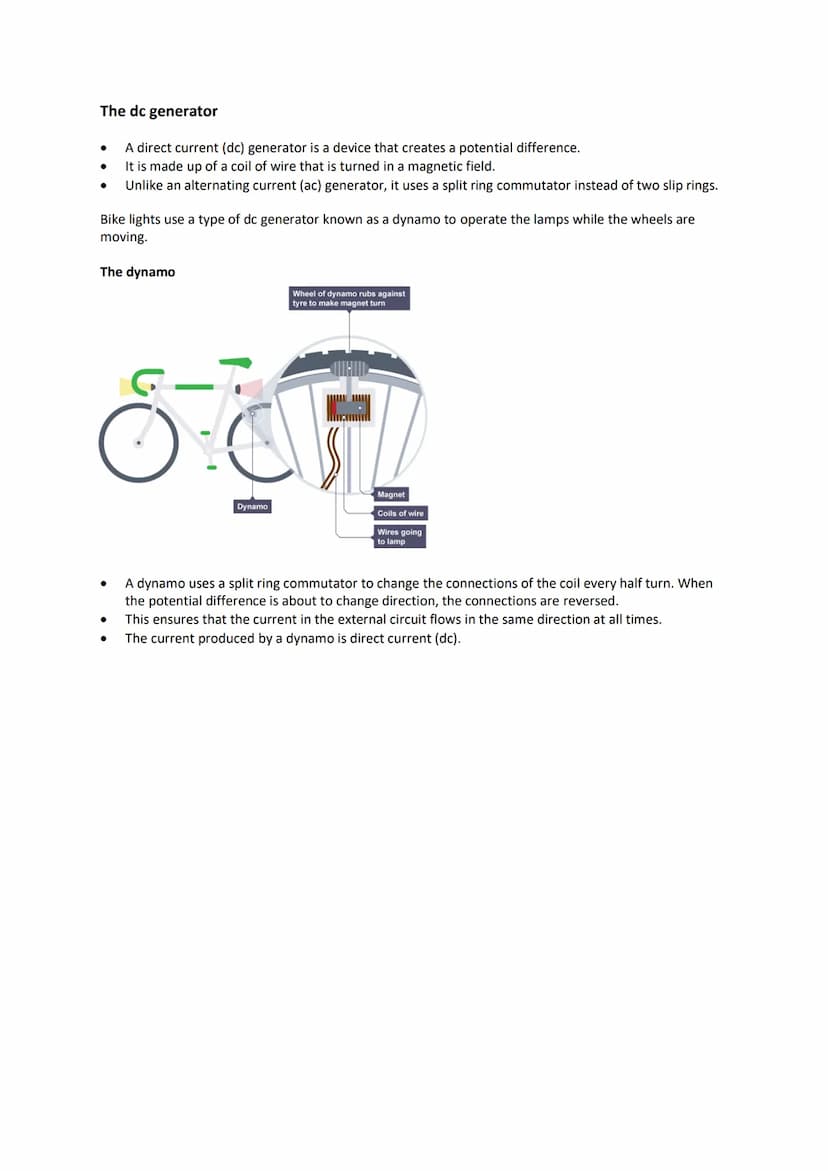

A DC generator, like its AC counterpart, consists of a coil of wire rotating in a magnetic field. However, it employs a split ring commutator instead of slip rings to convert the alternating current into direct current.

Vocabulary: A split ring commutator is a device in DC generators that reverses the connections of the coil every half turn, ensuring the current in the external circuit flows in the same direction.

One practical application of DC generators is the dynamo, commonly used in bike lights. The dynamo generates electricity to power the lamps while the bicycle is in motion.

Example: A bicycle dynamo uses the rotation of the wheel to turn a magnet within a stationary coil, producing electricity to power the bike's lights.

The key advantage of a DC generator is its ability to produce current that flows consistently in one direction, which is essential for many electrical applications and battery charging.

The Dynamo

This page provides an in-depth look at the dynamo, a specific type of DC generator often used in small-scale applications. The dynamo's structure and functioning are explained, emphasizing how it converts mechanical energy into electrical energy.

The main components of a dynamo include:

1. A rotating magnet
2. Stationary coils of wire
3. A split ring commutator
4. Brushes for electrical contact

Definition: A dynamo is a type of generator that converts mechanical energy into electrical energy, specifically producing direct current.

The dynamo's unique feature is its split ring commutator, which reverses the connections of the coil every half turn. This mechanism ensures that the current in the external circuit always flows in the same direction, despite the alternating nature of the induced current in the coil.

Highlight: The split ring commutator is the key component that distinguishes a DC generator from an AC generator, allowing it to produce direct current.

The dynamo's wheel typically rubs against the bicycle tire, causing the internal magnet to rotate. This rotation induces a current in the stationary coils, which is then converted to DC by the commutator before being sent to power the bicycle's lamps.

Dynamo Output on a Graph

This final page visualizes the output of a dynamo on a graph, illustrating how the split ring commutator affects the current produced. The graph shows the relationship between potential difference and time for a DC generator.

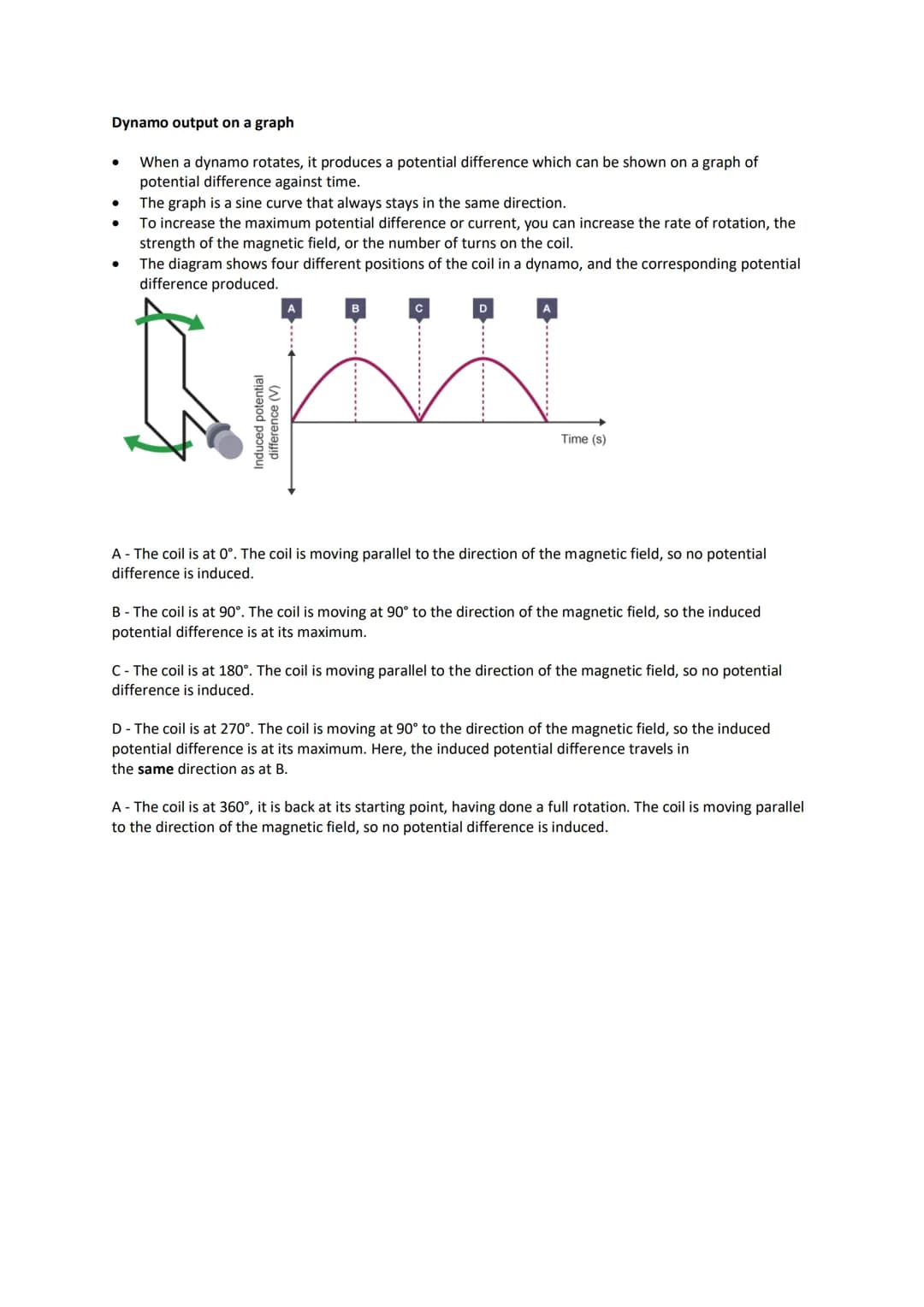

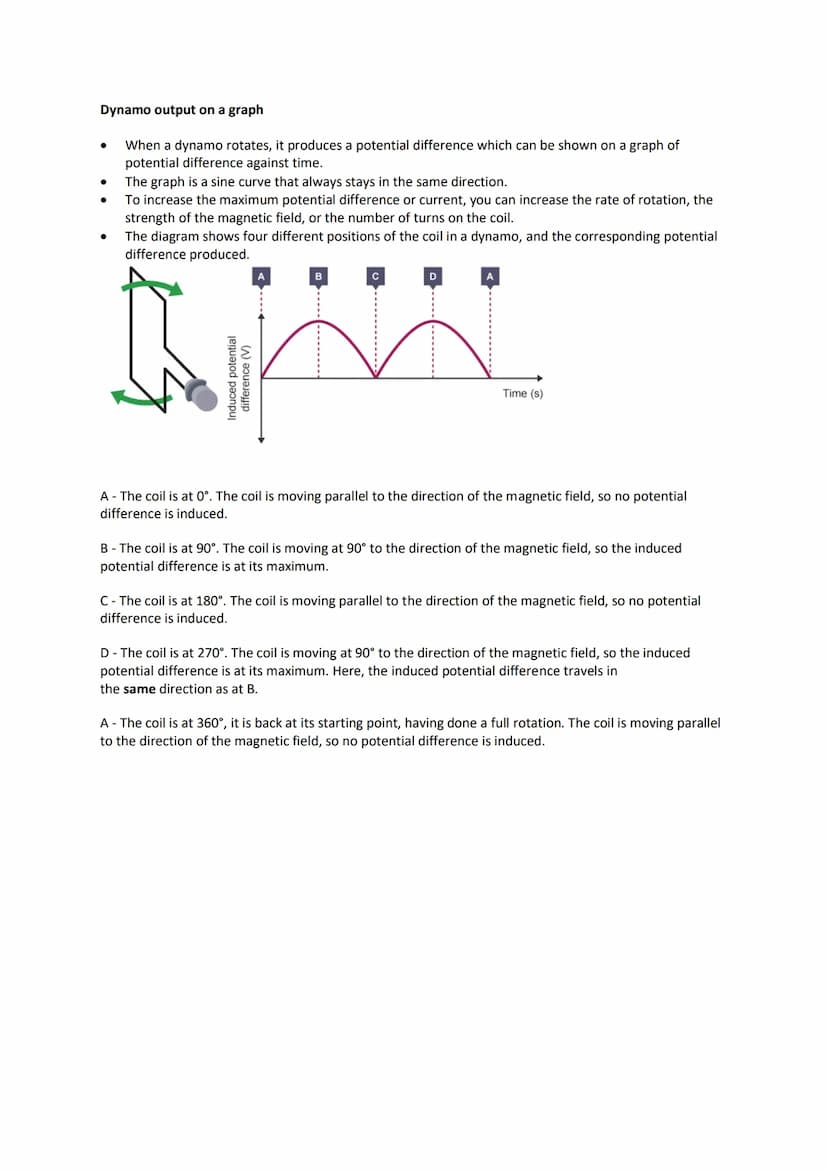

Unlike the sine wave of an AC generator, the dynamo's output graph shows a series of positive half-sine waves. This pattern results from the commutator's action of reversing the connections just as the induced current is about to change direction.

Highlight: The graph of a dynamo's output always stays in the positive direction, reflecting the unidirectional nature of the direct current it produces.

To increase the maximum potential difference or current output of a dynamo, several factors can be adjusted:

1. Increasing the rate of rotation
2. Strengthening the magnetic field
3. Adding more turns to the coil

These adjustments can help optimize the dynamo's performance for specific applications, such as powering bicycle lights more efficiently.

Example: A faster-spinning bicycle wheel will cause the dynamo to produce a higher potential difference, resulting in brighter lights.

Understanding the output characteristics of a dynamo is crucial for designing and implementing DC power systems in various small-scale applications.

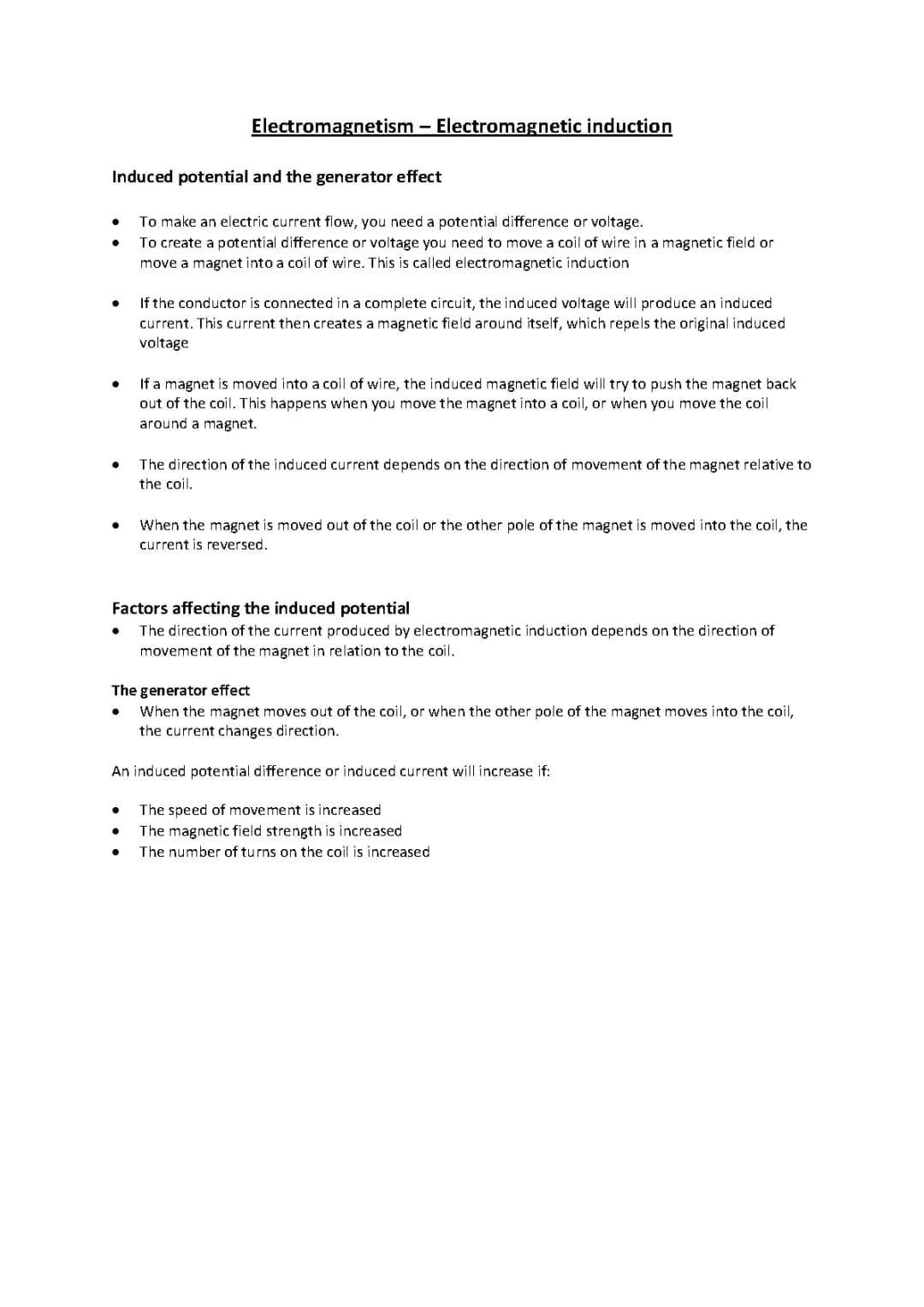

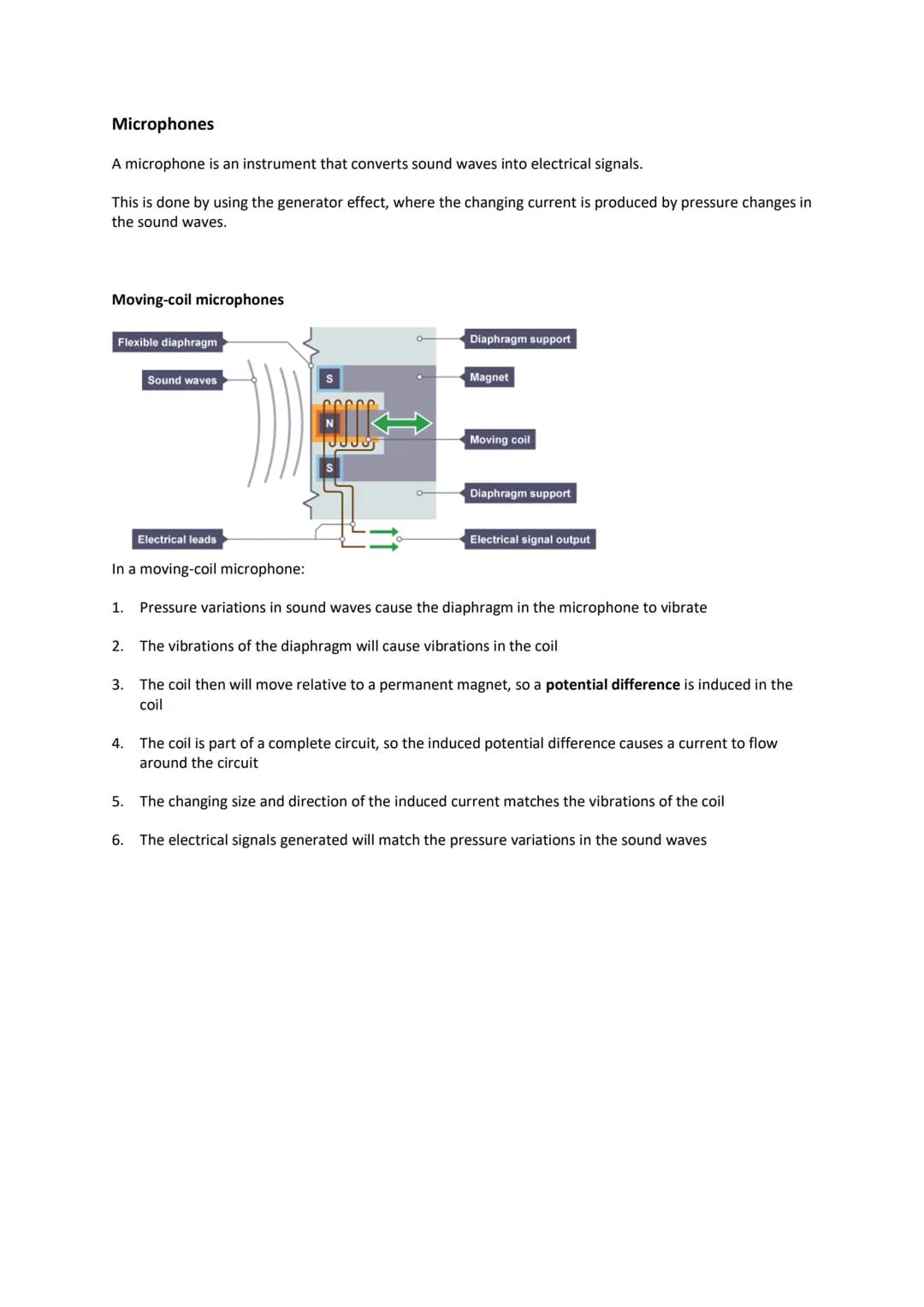

Induced Potential and the Generator Effect

This page introduces the concept of electromagnetic induction and its role in generating electric current. Factors affecting induced potential in electromagnetism are explored, highlighting the key elements that influence the strength of the induced voltage.

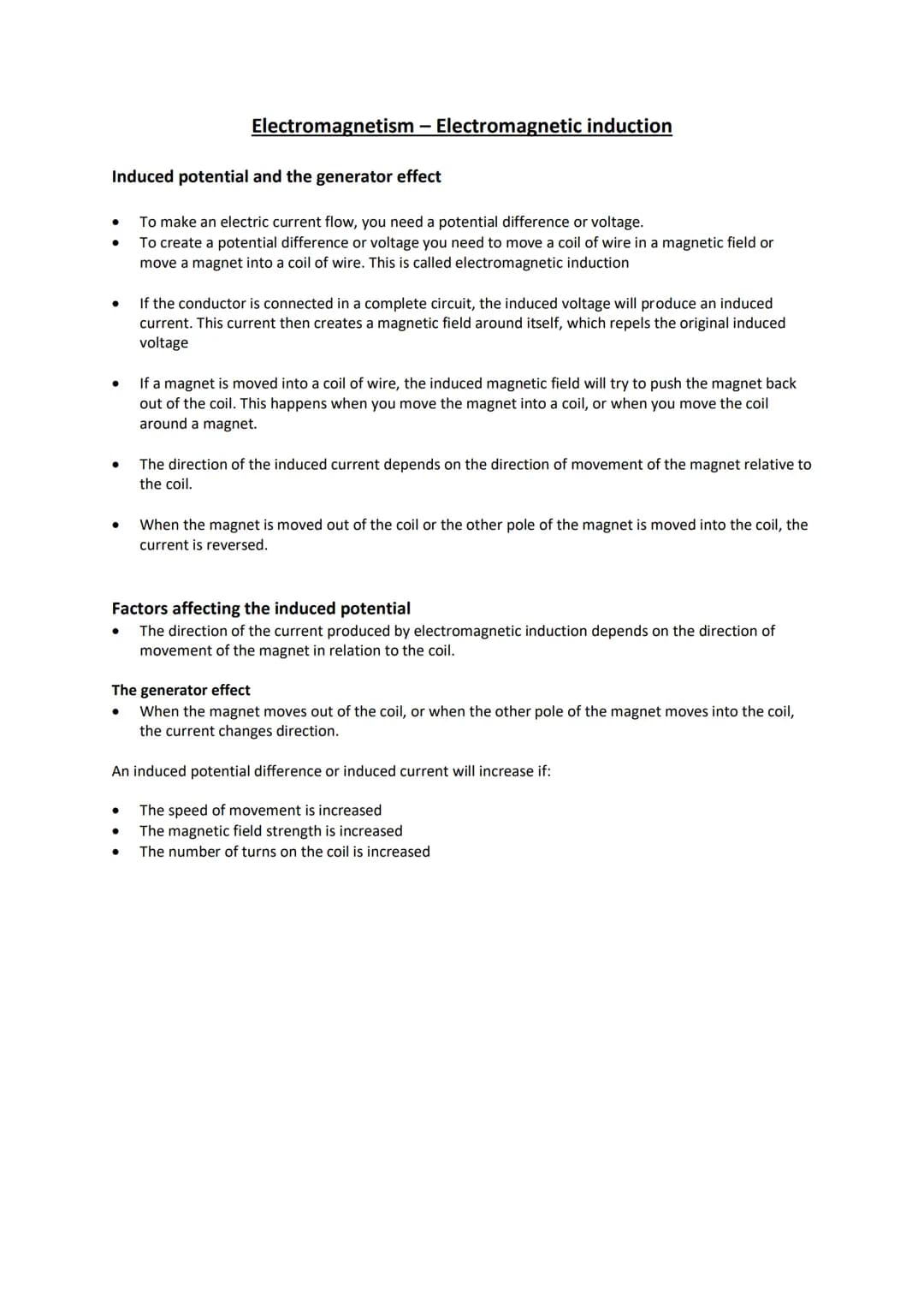

Electromagnetic induction occurs when a conductor moves through a magnetic field or when a magnetic field changes near a conductor. This process creates a potential difference or voltage, which can drive an electric current if the conductor is part of a complete circuit.

Definition: Electromagnetic induction is the process of generating an electric current by moving a conductor through a magnetic field or by changing a magnetic field near a conductor.

The direction of the induced current depends on the relative movement between the magnet and the coil. When the magnet is moved out of the coil or when the opposite pole is introduced, the current reverses direction.

Highlight: The strength of the induced potential can be increased by:

1. Increasing the speed of movement
2. Strengthening the magnetic field
3. Adding more turns to the coil

These factors are crucial in optimizing the efficiency of generators and other devices that rely on electromagnetic induction.
