Electromagnetic Spectrum GCSE Study Guide: Edexcel, AQA, and IGCSE KS3 Notes
Erin
@erin_agwa
1 / 4

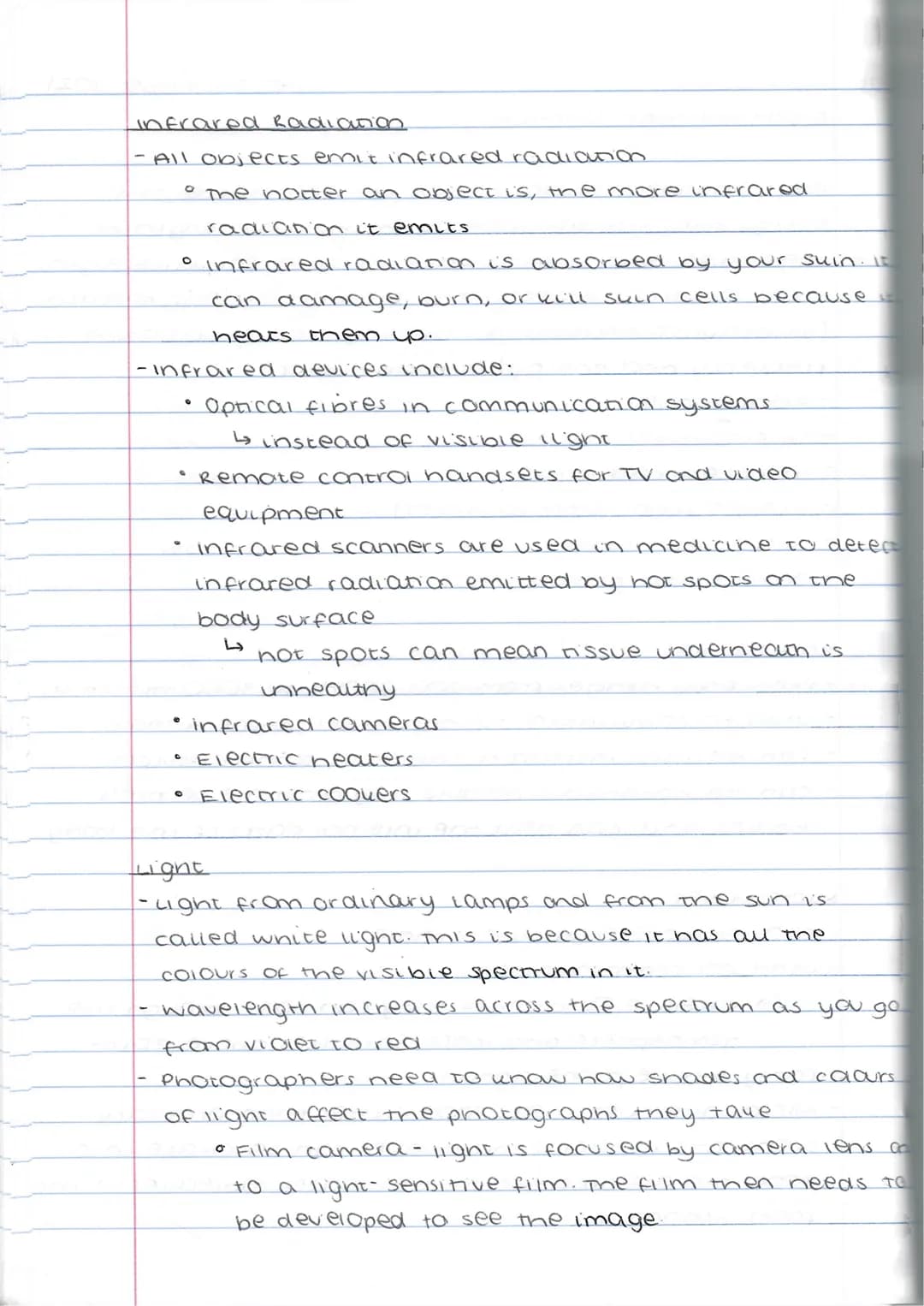

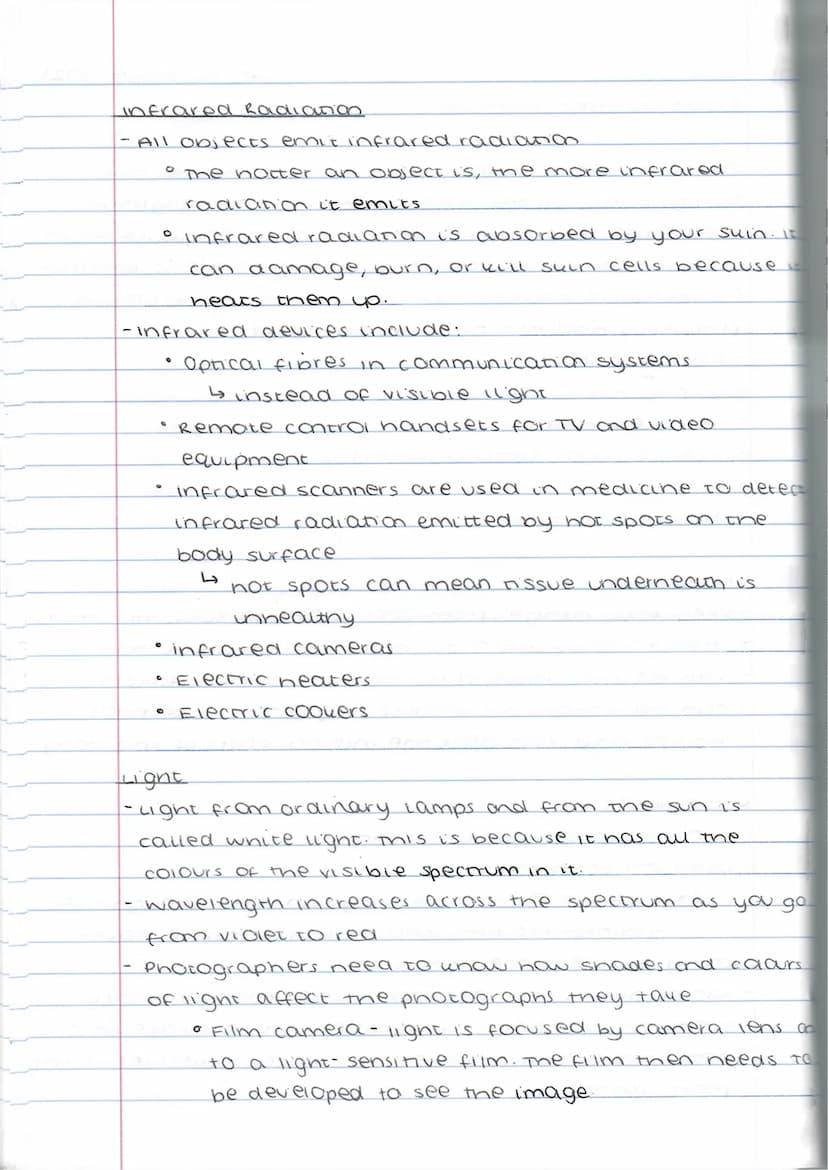

Infrared Radiation and Visible Light
Infrared radiation is emitted by all objects, with hotter objects emitting more. This property makes infrared radiation useful in various applications.
Definition: Infrared radiation - electromagnetic waves with wavelengths longer than visible light but shorter than microwaves.
Infrared has numerous applications in technology and medicine:
• Optical fibres in communication systems • Remote control handsets • Medical infrared scanners for detecting hot spots on the body surface • Infrared cameras • Electric heaters and cookers
Highlight: Infrared radiation can be harmful to skin cells if absorbed in large amounts, potentially causing damage or burns.
Visible light, including white light from the sun and ordinary lamps, contains all colors of the visible spectrum. The wavelength increases from violet to red across this spectrum.
Example: In photography, understanding how different shades and colors of light affect images is crucial. Film cameras use light-sensitive film, while digital cameras use sensors with light-sensitive pixels to capture images.

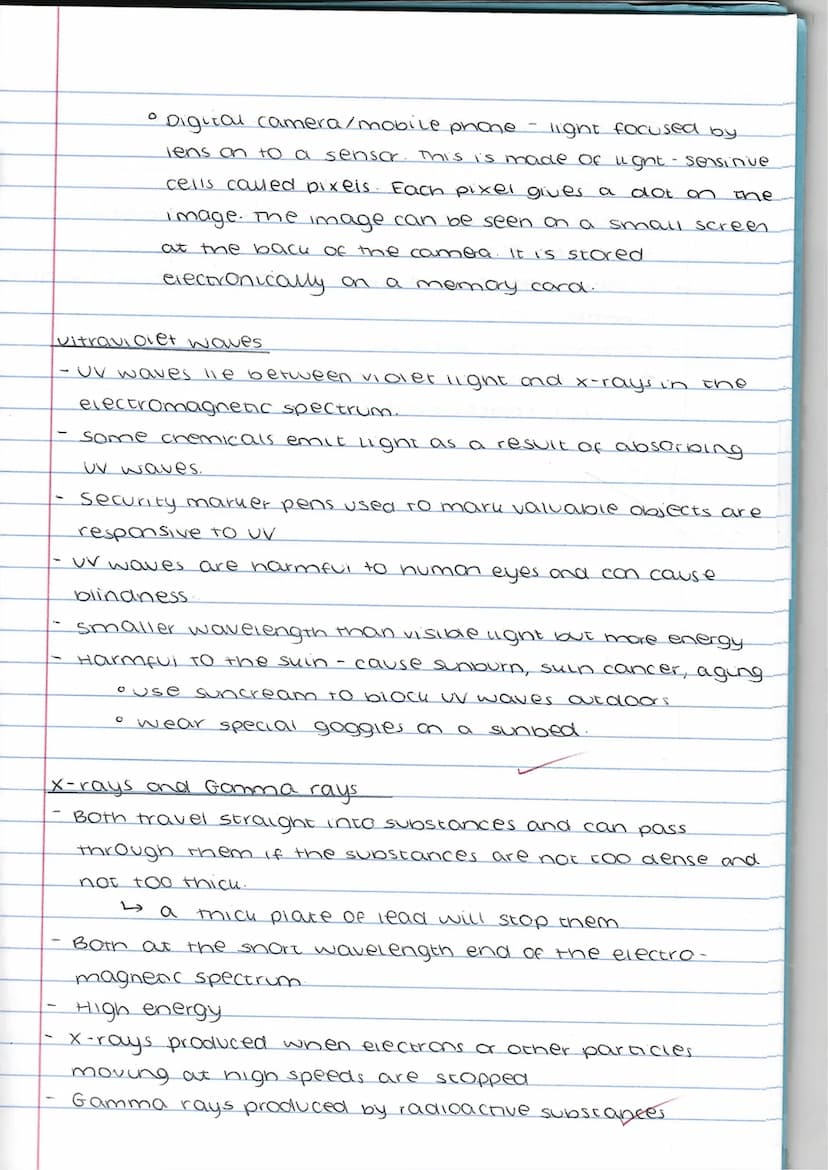

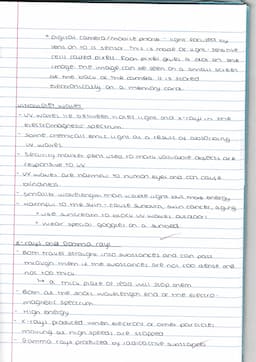

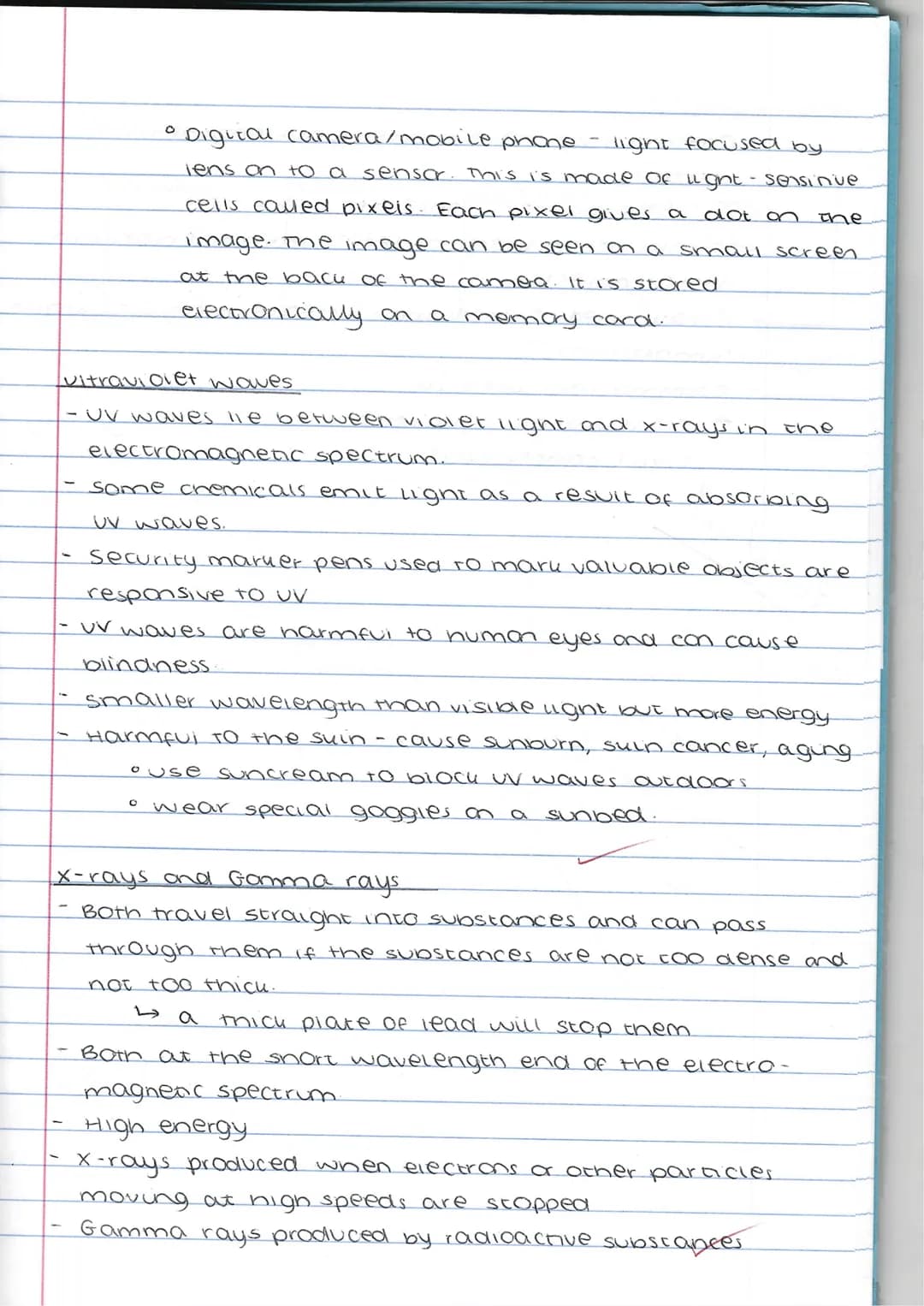

Ultraviolet Waves, X-rays, and Gamma Rays
Ultraviolet (UV) waves lie between violet light and X-rays in the electromagnetic spectrum. They have shorter wavelengths and more energy than visible light.
Highlight: UV waves can be harmful to human eyes and skin, potentially causing blindness, sunburn, skin cancer, and premature aging.
Example: Security marker pens use chemicals that emit light when exposed to UV waves, making them useful for marking valuable objects.
X-rays and gamma rays are at the short wavelength end of the electromagnetic spectrum, possessing high energy and the ability to penetrate substances.
Definition: X-rays - produced when high-speed electrons or other particles are stopped.
Definition: Gamma rays - produced by radioactive substances and have shorter wavelengths than X-rays.
Both X-rays and gamma rays have important applications:
• X-rays are used to detect internal cracks in metal objects and create images of broken limbs in medicine. • Gamma rays are used to kill harmful bacteria and cancer cells.
Highlight: Due to their high energy, X-rays and gamma rays can be dangerous and require proper shielding, such as thick lead plates, for safe use.
This comprehensive overview of the electromagnetic spectrum is essential for GCSE physics study and provides a foundation for understanding the various applications and potential harmful effects of electromagnetic waves in our daily lives and in scientific research.

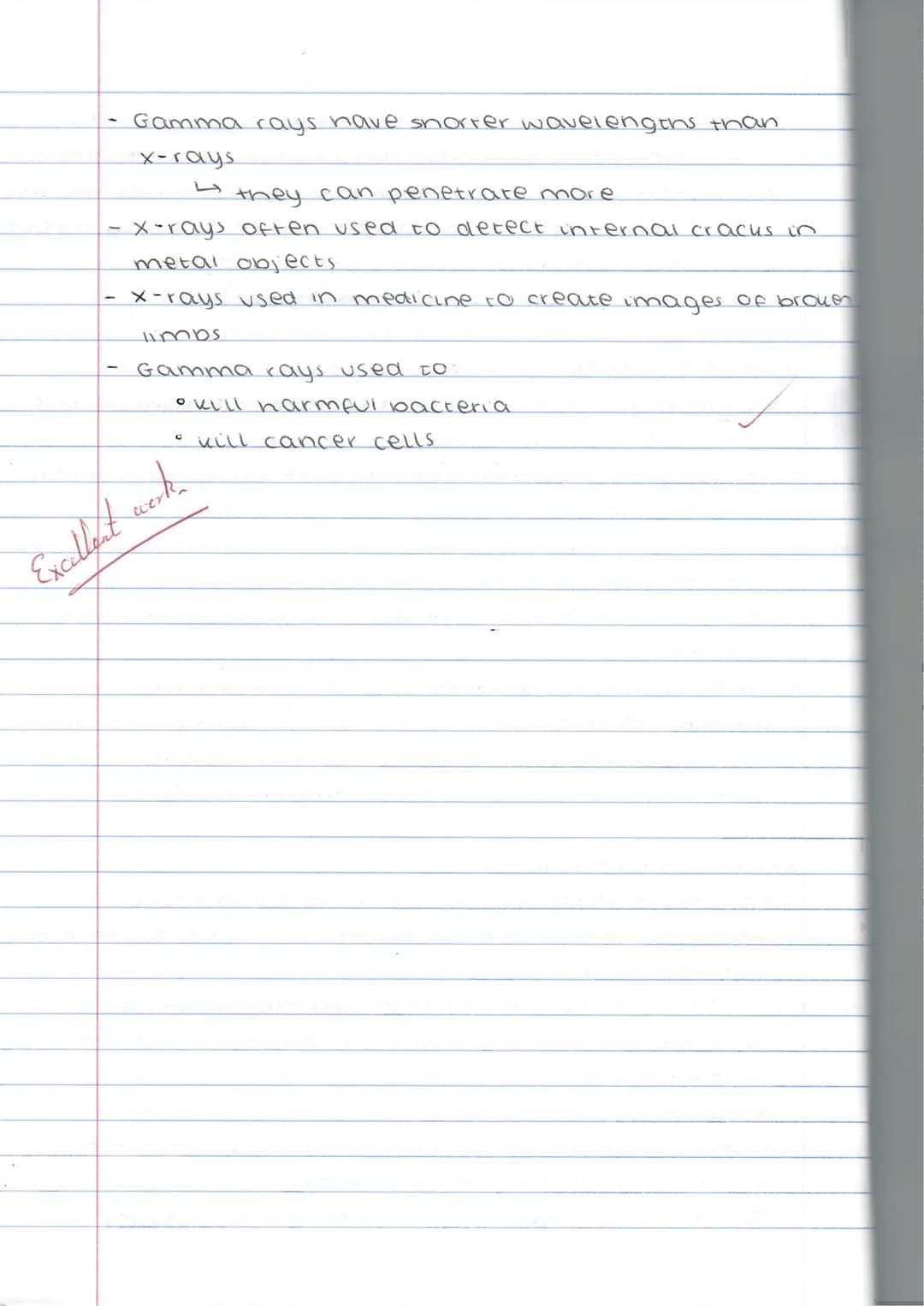

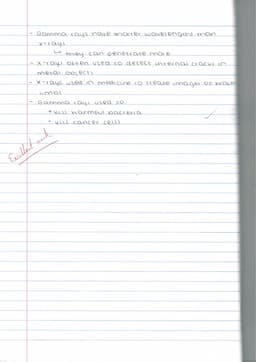

Page 4: High-Energy Radiation
The final section covers X-rays and gamma rays, the highest-energy portions of the electromagnetic spectrum, and their critical applications in medicine and industry.
Example: X-rays are commonly used for detecting broken bones and internal metal fractures, while gamma rays are employed in cancer treatment.
Highlight: Gamma rays possess the shortest wavelengths and highest penetrating power, making them both useful and potentially dangerous in medical applications.
The text concludes by emphasizing the importance of proper safety measures when working with high-energy radiation.

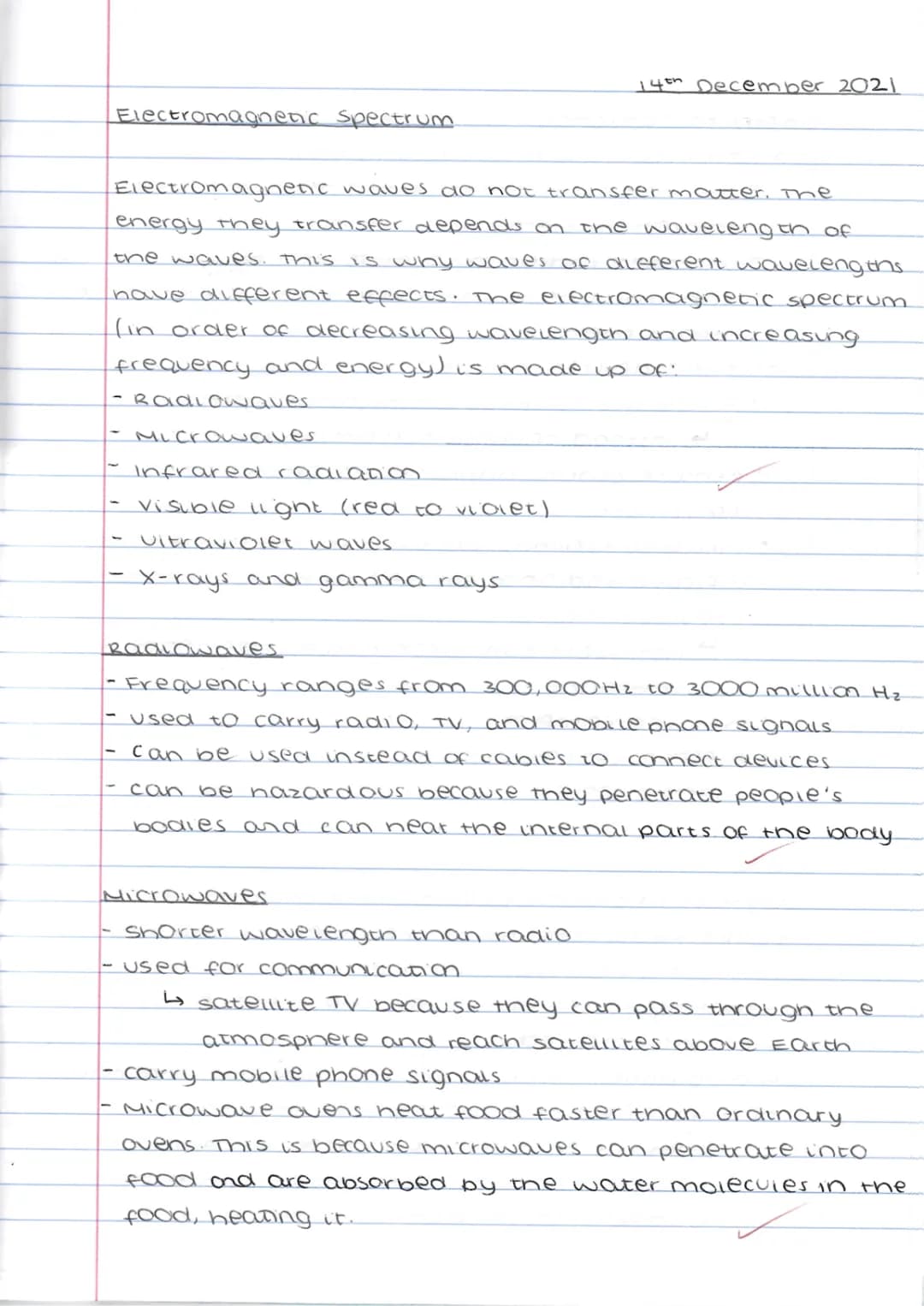

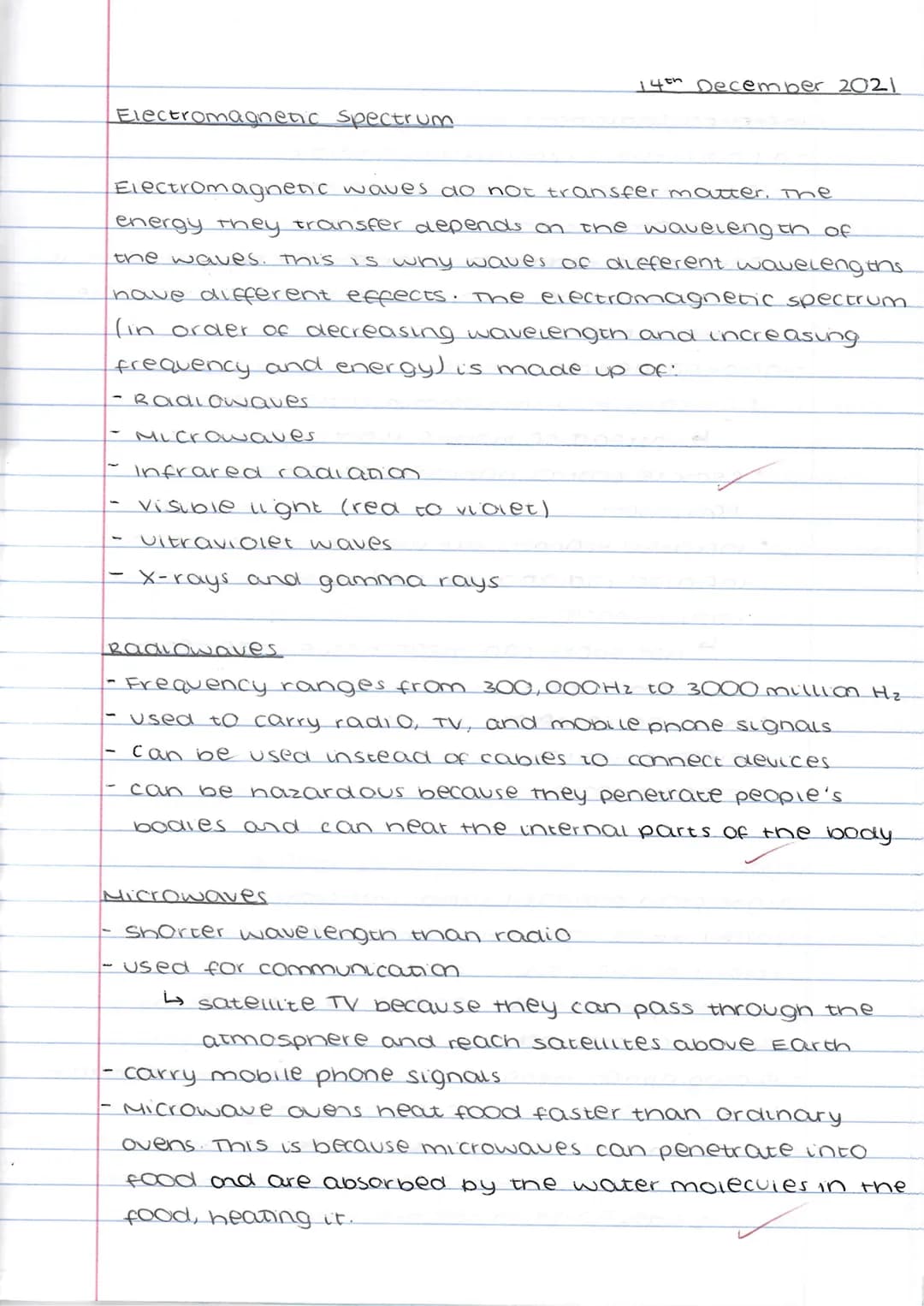

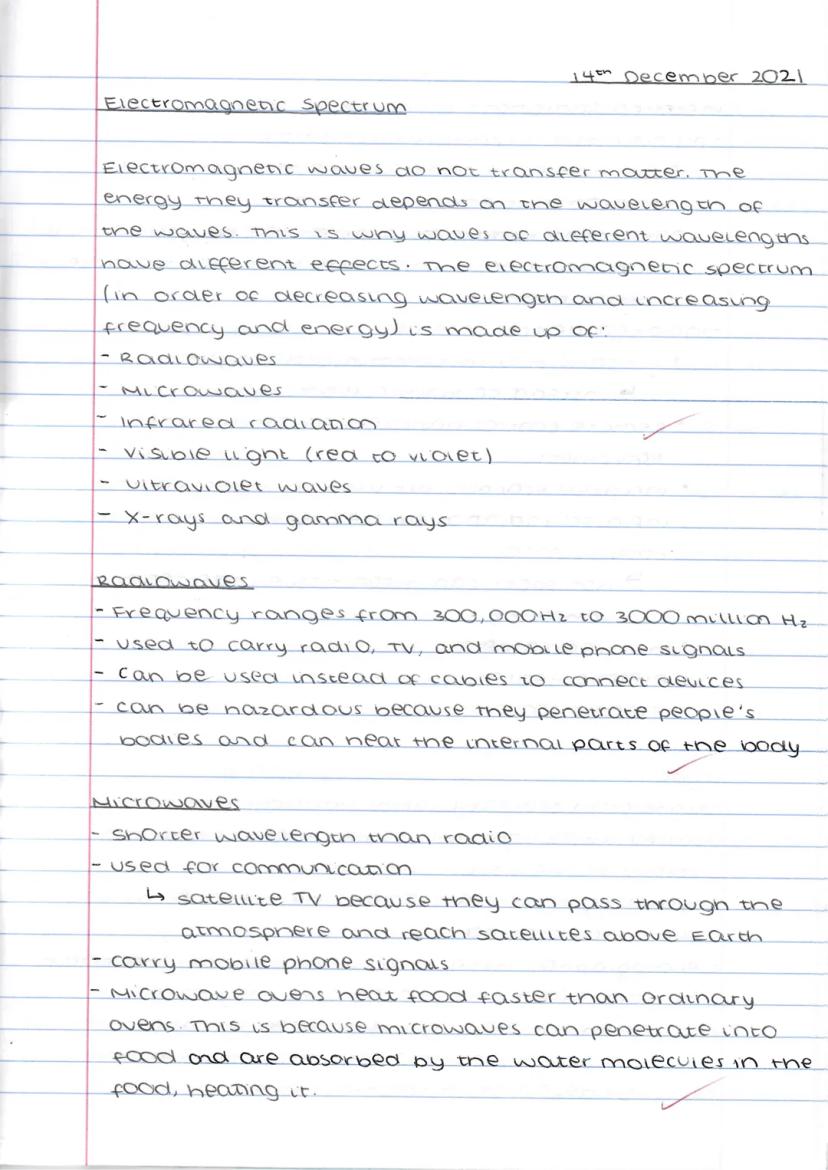

Electromagnetic Spectrum Overview
The electromagnetic spectrum is a crucial concept in GCSE physics, encompassing a range of electromagnetic waves with varying properties. This page introduces the different types of waves in order of decreasing wavelength and increasing frequency and energy.
Radiowaves, the longest wavelength in the spectrum, have frequencies ranging from 300,000 Hz to 3000 million Hz. They are widely used in communication technology, including radio, TV, and mobile phone signals.
Highlight: Radiowaves can penetrate the human body, which makes them useful for medical imaging but also potentially hazardous.
Microwaves, with shorter wavelengths than radiowaves, are versatile in their applications. They are used in satellite TV communications due to their ability to pass through the atmosphere.
Example: Microwave ovens use these waves to heat food rapidly by causing water molecules to vibrate.
Vocabulary: Electromagnetic waves - waves that can travel through a vacuum and do not require a medium for propagation.
