Understanding Electrical Circuit Symbols and Components

Current, potential difference and resistance form the foundation of electrical circuits. Every electrical component has a unique symbol that helps engineers and students understand circuit diagrams effectively. The basic components include switches, bulbs, cells, and measuring instruments like ammeters and voltmeters.

A switch controls current flow in circuits - when closed, it allows current to flow, and when open, it stops the flow. Understanding electrical components in aqa physics requires knowing that cells and batteries serve as energy sources, with batteries containing multiple cells for increased electrical energy output. Measuring instruments are crucial: ammeters measure current in series connections, while voltmeters measure potential difference in parallel connections.

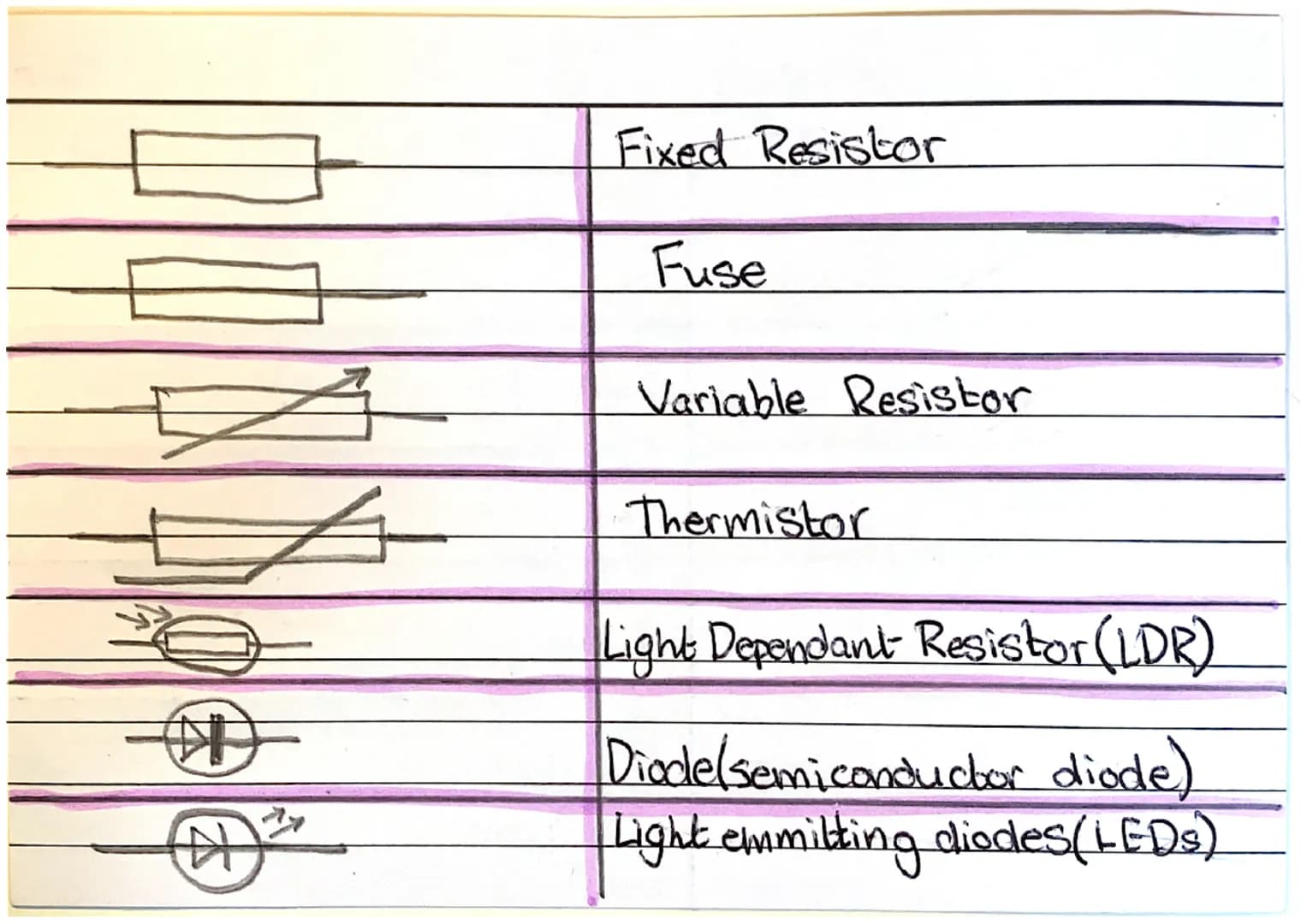

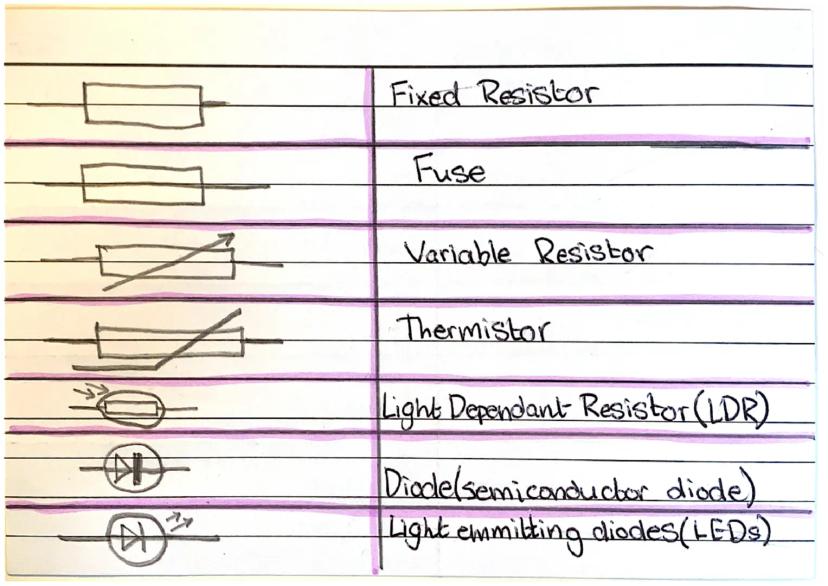

Resistors play vital roles in controlling current flow. Fixed resistors maintain constant resistance, while variable resistors allow adjustment of current flow. Modern circuits often include temperature-sensitive thermistors and light-dependent resistors (LDRs). Semiconductor components like diodes and LEDs control current direction and convert electrical energy to light respectively.

Definition: A circuit is a complete path through which electrical current can flow, containing various components that control and direct the flow of electricity.

Current and Resistance Relationships in Circuits

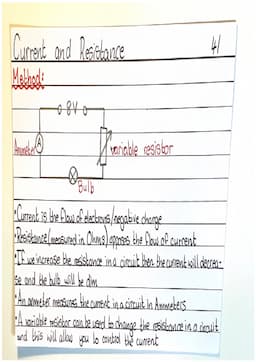

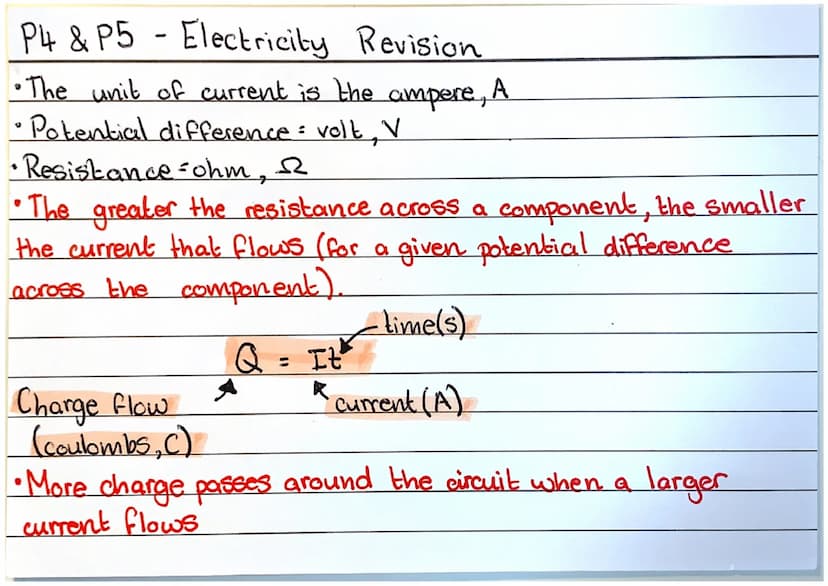

GCSE Physics electricity exam questions and answers frequently focus on the relationship between current and resistance. Current represents the flow of electrons or negative charge through a conductor, while resistance opposes this flow. This fundamental relationship determines how electrical devices function.

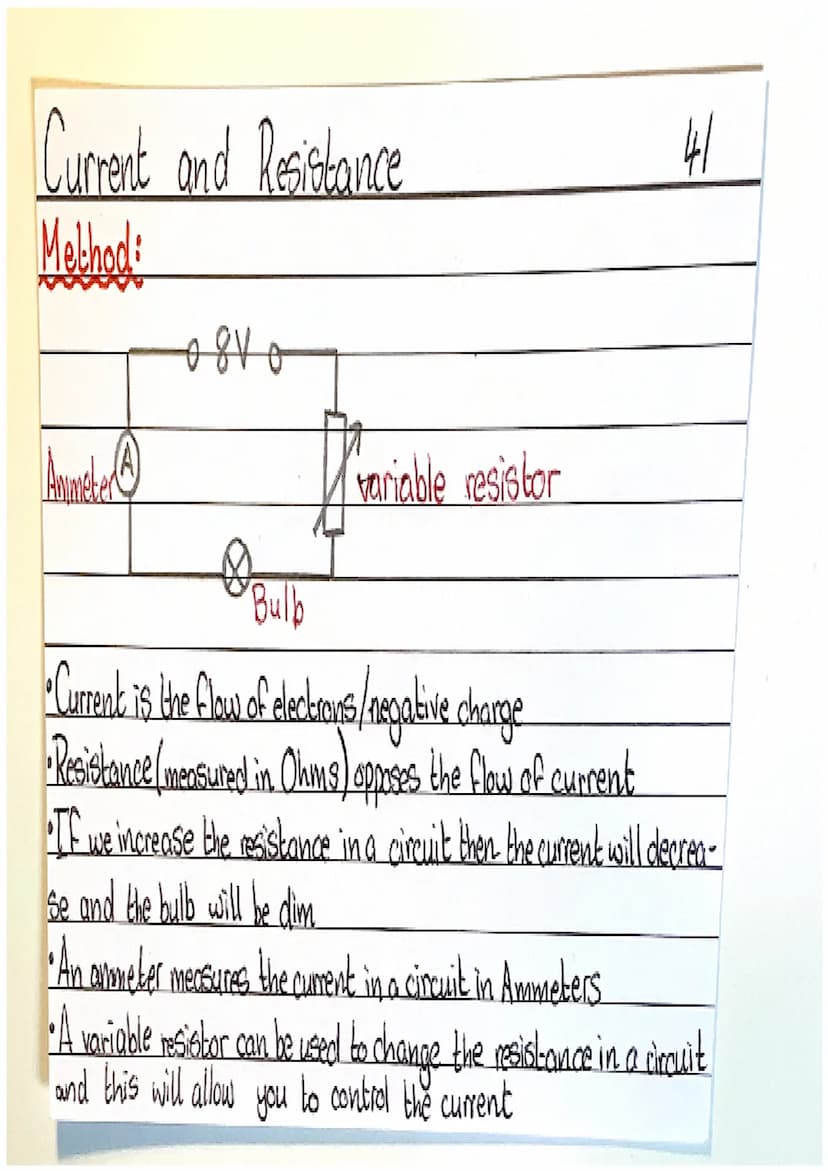

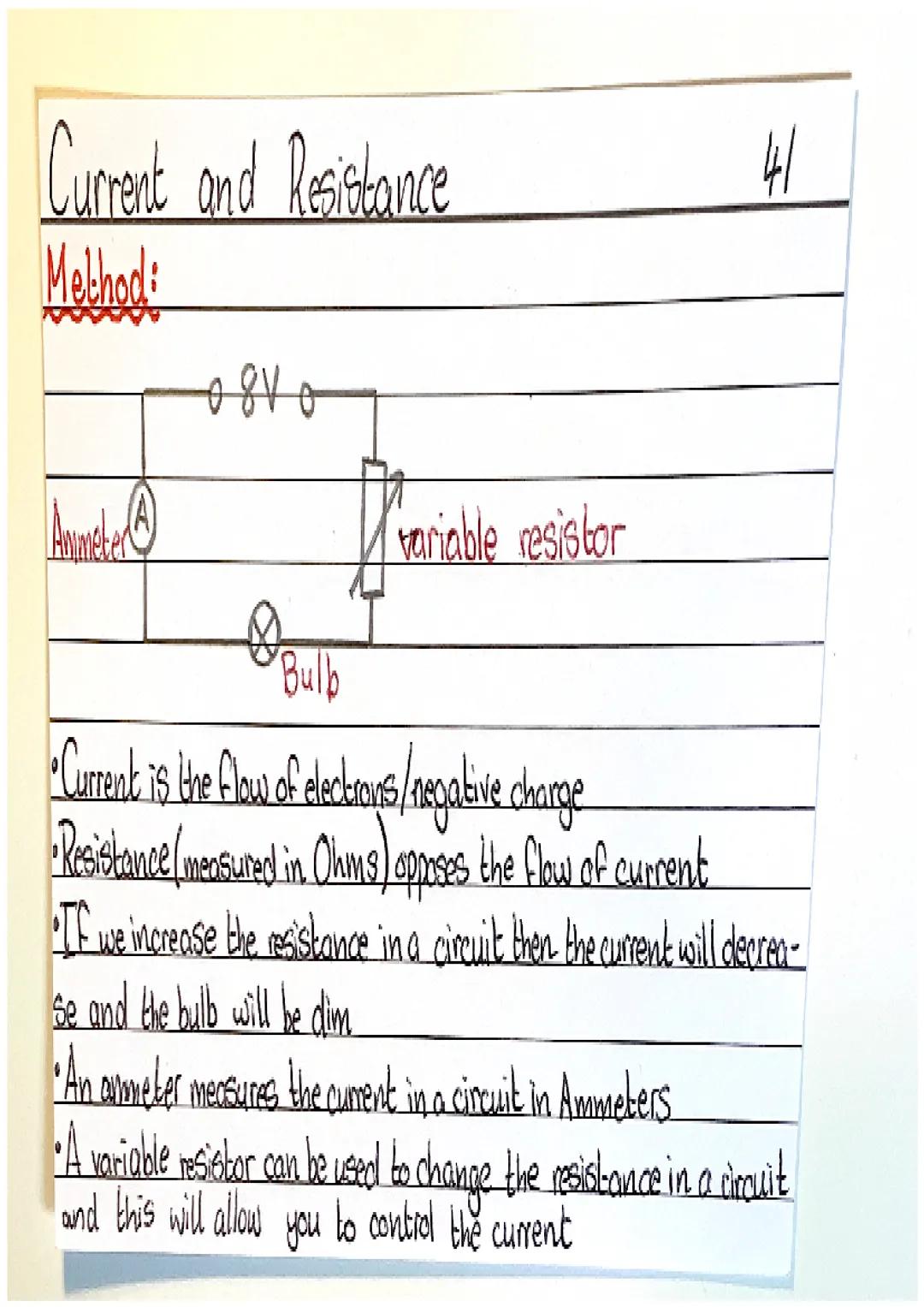

When working with Current and resistance calculations for aqa triple physics, understanding that increasing resistance decreases current is crucial. This relationship explains why bulbs dim when resistance increases. Practical measurements involve using ammeters for current readings and incorporating variable resistors to control current flow precisely.

Highlight: The relationship between current and resistance is inverse - as resistance increases, current decreases, assuming constant voltage.

Essential Electrical Calculations and Formulas

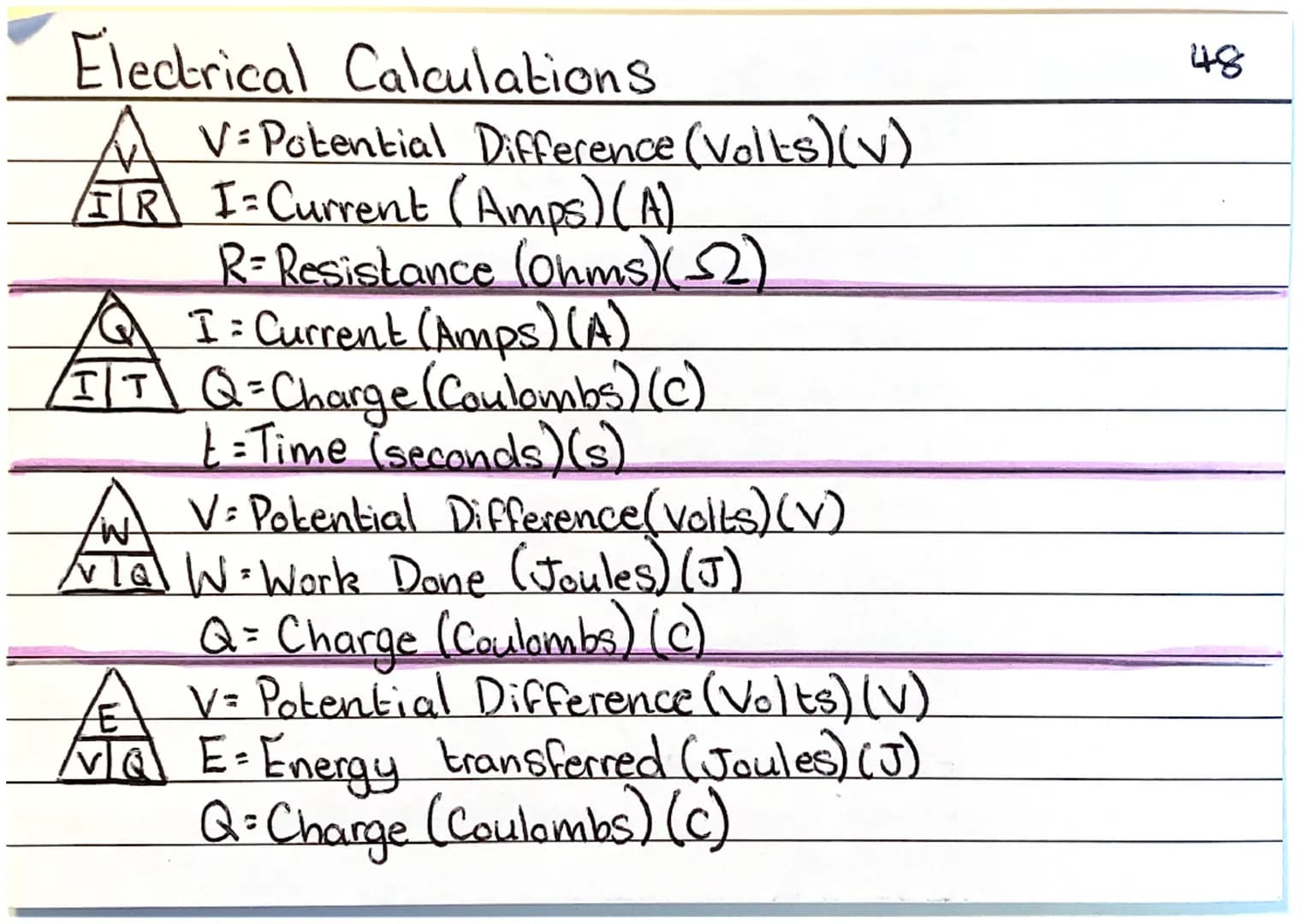

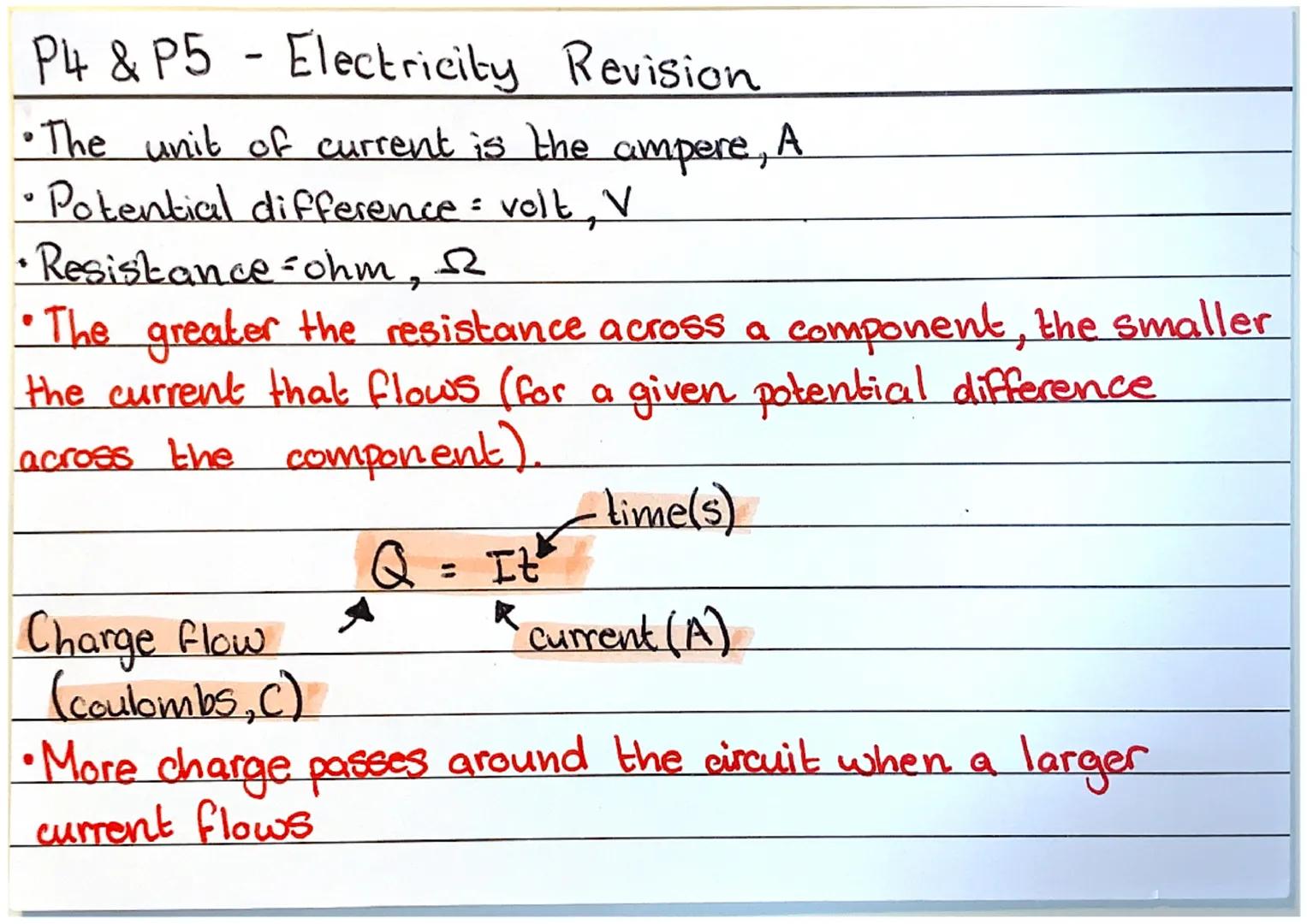

GCSE Physics Electricity revision Notes emphasize three fundamental equations: Ohm's Law $V=IR$, current equation $I=Q/t$, and energy transfer equations $E=VQ$. These formulas help calculate various electrical quantities including potential difference, current, resistance, charge, and energy transfer.

Understanding these equations is crucial for Current potential difference and resistance equation applications. Potential difference (V) is measured in volts, current (I) in amperes, resistance (R) in ohms, charge (Q) in coulombs, and time $t$ in seconds. These relationships form the mathematical foundation of electrical calculations.

Example: If a circuit has a potential difference of 12V and a current of 2A, the resistance can be calculated using V=IR: R = V/I = 12/2 = 6Ω

Energy Transformations in Electrical Components

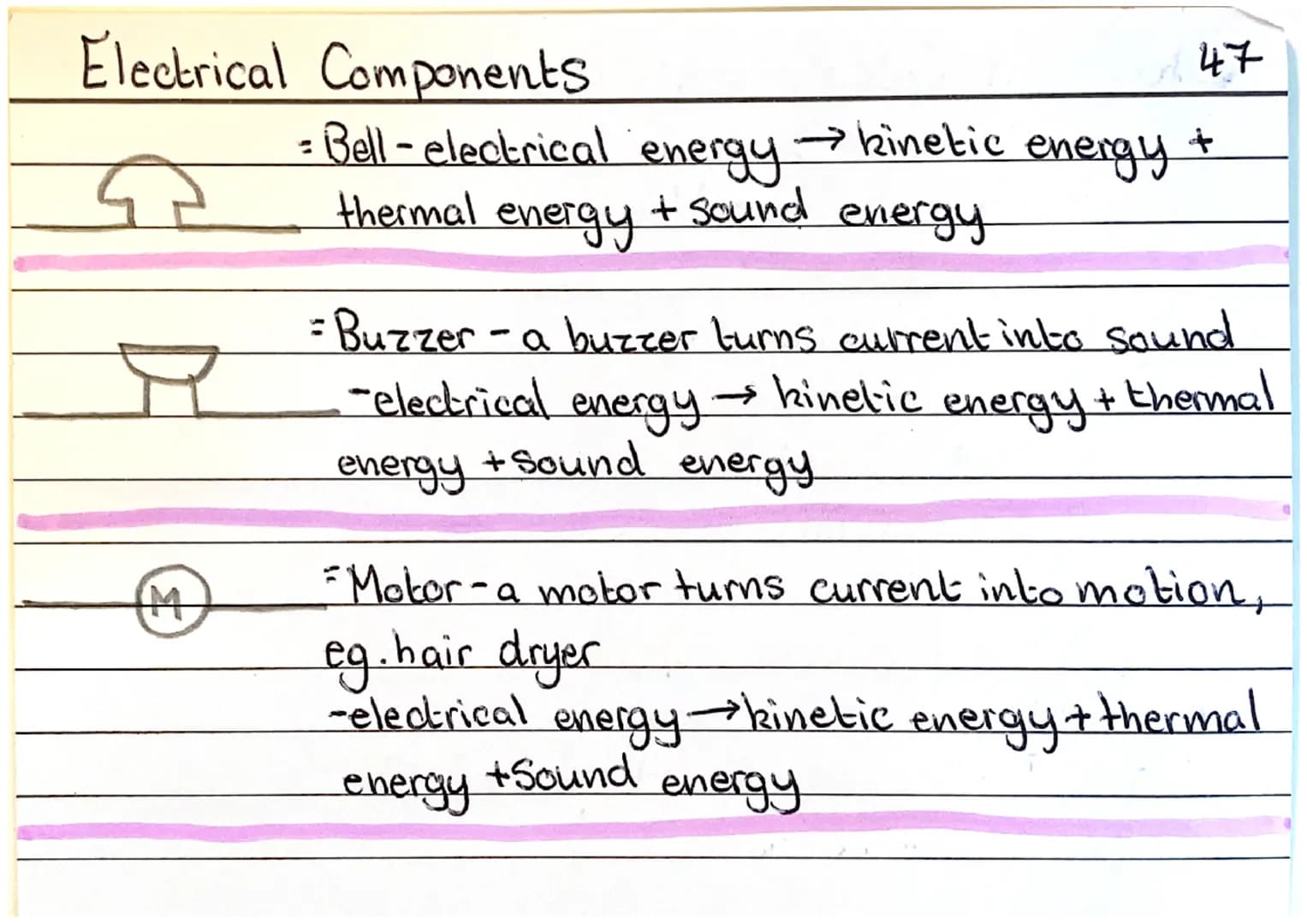

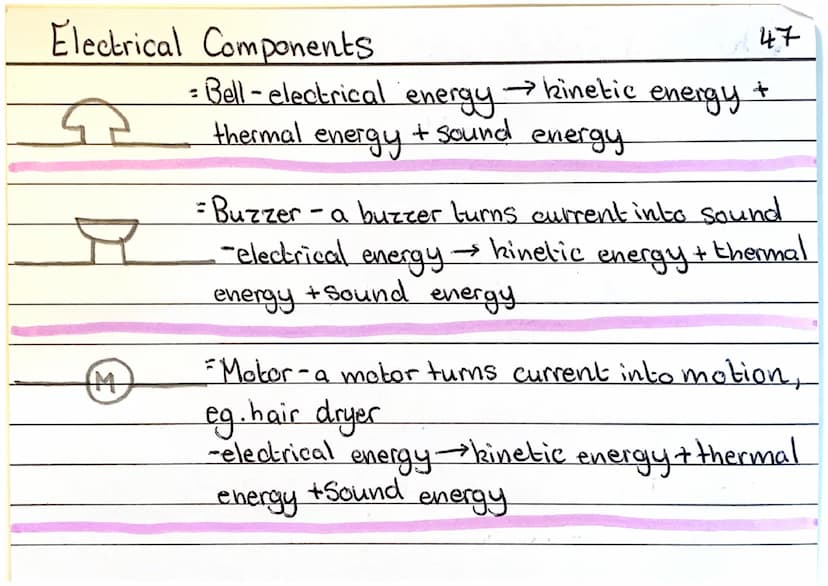

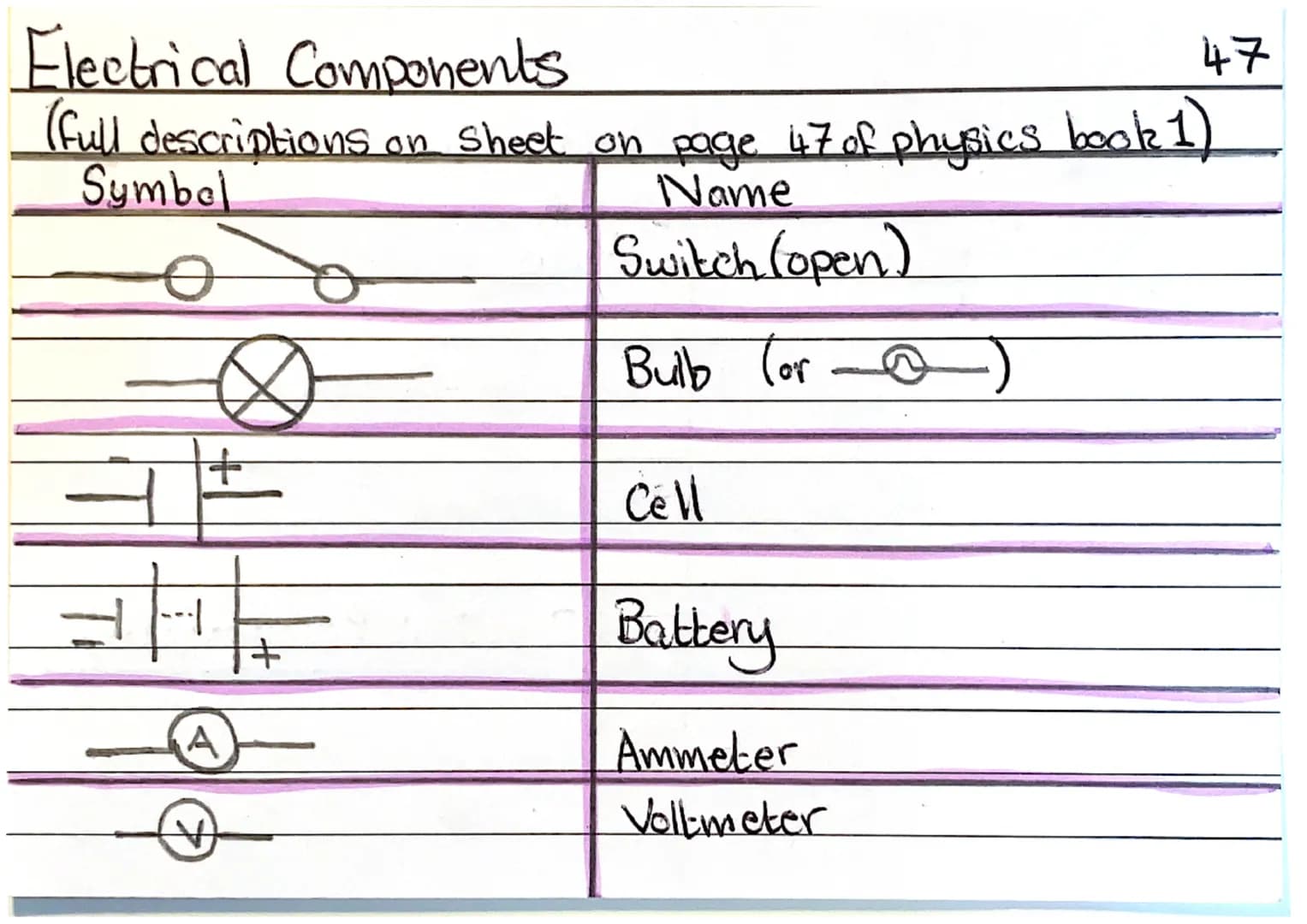

Different electrical components transform electrical energy into various useful forms. Understanding electrical components in aqa physics gcse includes knowing how devices convert energy. Bells convert electrical energy into kinetic, sound, and thermal energy, making them effective signaling devices.

Buzzers operate similarly to bells but are optimized for sound production. Motors demonstrate another important energy transformation, converting electrical energy into rotational kinetic energy, with some energy lost as heat and sound. These practical applications show how electrical energy can be harnessed for different purposes.

Vocabulary: Energy transformation - the process where energy changes from one form to another, such as electrical energy converting to kinetic or sound energy in electrical devices.

Understanding Electrical Circuits and Components in Physics

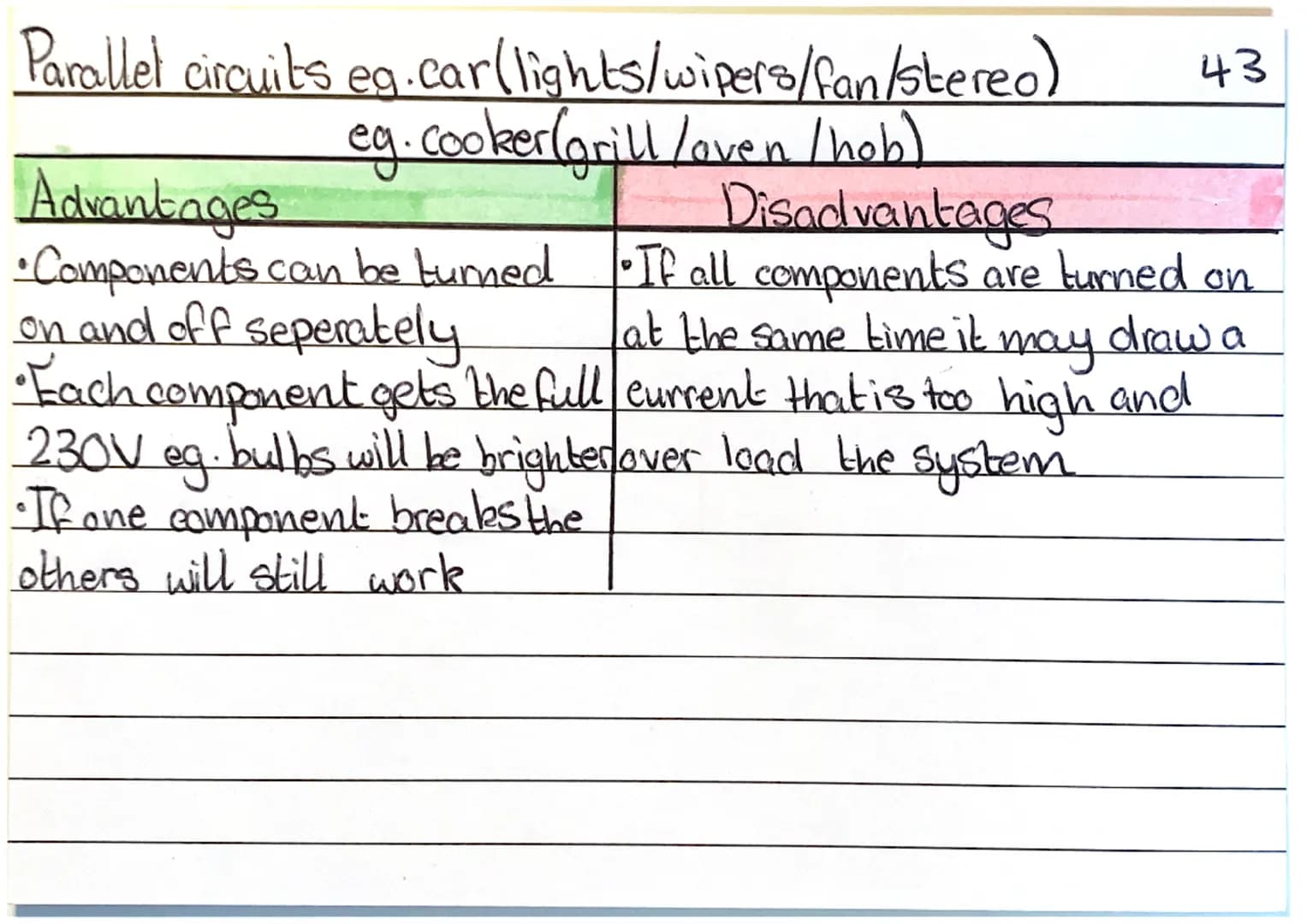

In electrical circuits, understanding the fundamental differences between parallel and series circuits is crucial for GCSE Physics electricity exam questions and answers. Parallel circuits, commonly found in everyday applications like cars and kitchen appliances, offer distinct advantages in practical usage.

Definition: Parallel circuits allow multiple components to operate independently while receiving full voltage supply, typically 230V in household applications.

The functionality of parallel circuits provides several key benefits. Components can be controlled individually, meaning you can turn lights, wipers, or stereo systems on and off separately in a car's electrical system. Each component receives the full voltage supply, ensuring optimal performance - for instance, bulbs maintain their full brightness. Additionally, if one component fails, the rest of the circuit continues to function normally.

However, parallel circuits do have limitations. The primary disadvantage emerges when multiple components operate simultaneously, potentially drawing excessive current that could overload the system. This is particularly relevant in household applications where multiple high-power devices might be used concurrently.

Series Circuits and Their Applications

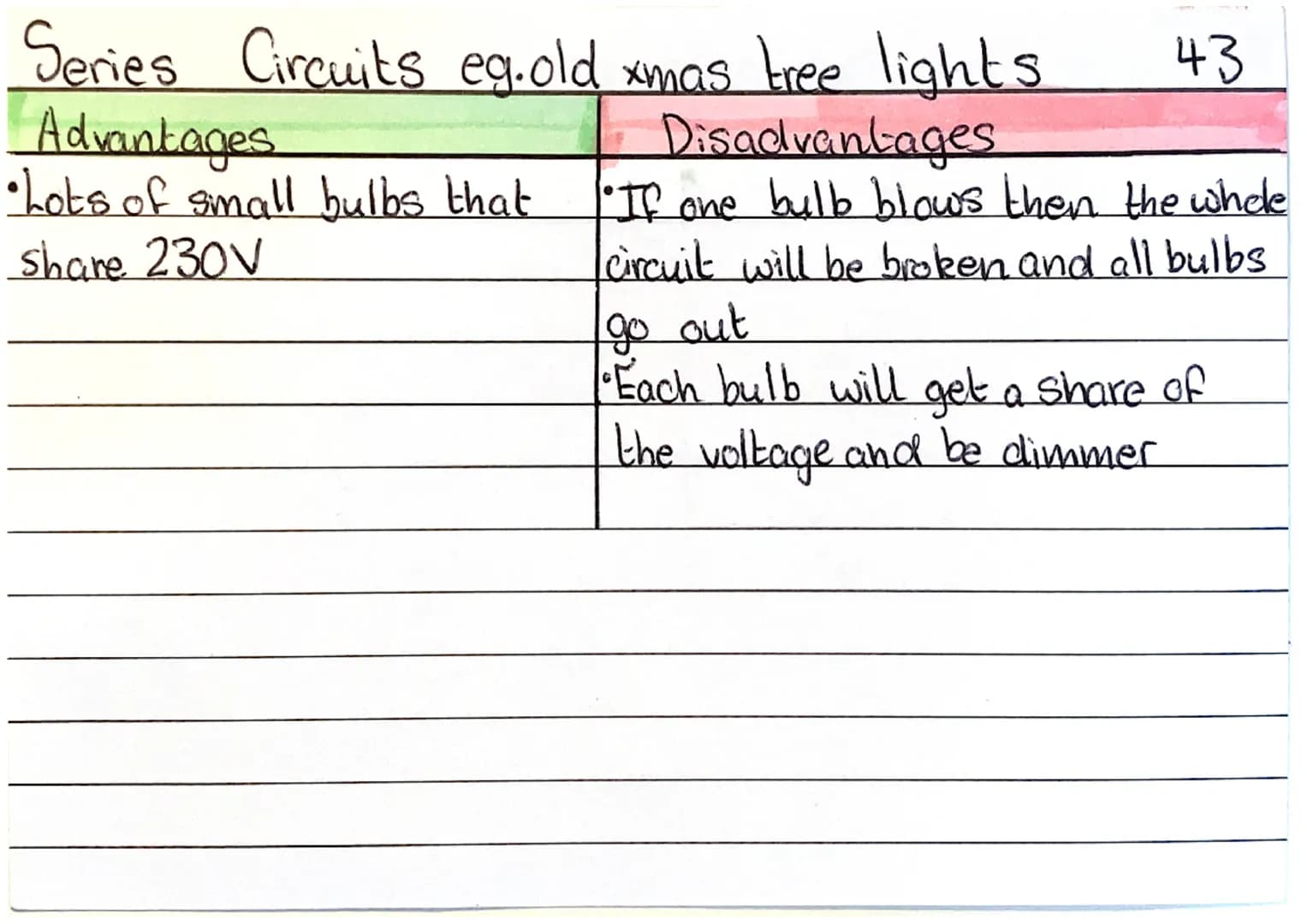

Series circuits, historically used in applications like old-style Christmas tree lights, demonstrate different characteristics from parallel arrangements. These circuits create a single path for current flow, affecting how components interact with each other.

Example: In a series circuit of Christmas tree lights, the voltage from the power source (230V) is shared among all bulbs, making each individual bulb dimmer than if it were in a parallel circuit.

The main advantage of series circuits lies in their ability to use multiple small components that share the total voltage, making them suitable for specific applications where lower individual voltages are desired. However, this configuration has significant drawbacks. If one component fails (like a single bulb burning out), the entire circuit breaks, causing all components to stop working.

Highlight: The key distinction between series and parallel circuits affects their reliability and practical applications in different scenarios.

Fundamental Electrical Quantities and Relationships

Understanding Current and resistance calculations for aqa triple physics requires knowledge of basic electrical quantities. Current, measured in amperes (A), represents the flow of charge through a circuit. Potential difference, measured in volts (V), indicates the electrical pressure driving current flow. Resistance, measured in ohms (Ω), determines how much the component opposes current flow.

Vocabulary:

• Current (I) - measured in amperes (A)
• Potential Difference (V) - measured in volts (V)
• Resistance (R) - measured in ohms (Ω)

The relationship between these quantities follows Ohm's Law, which states that for a given potential difference, higher resistance results in lower current flow. This fundamental principle is crucial for Understanding electrical components in aqa physics gcse.

Essential Electrical Components and Symbols

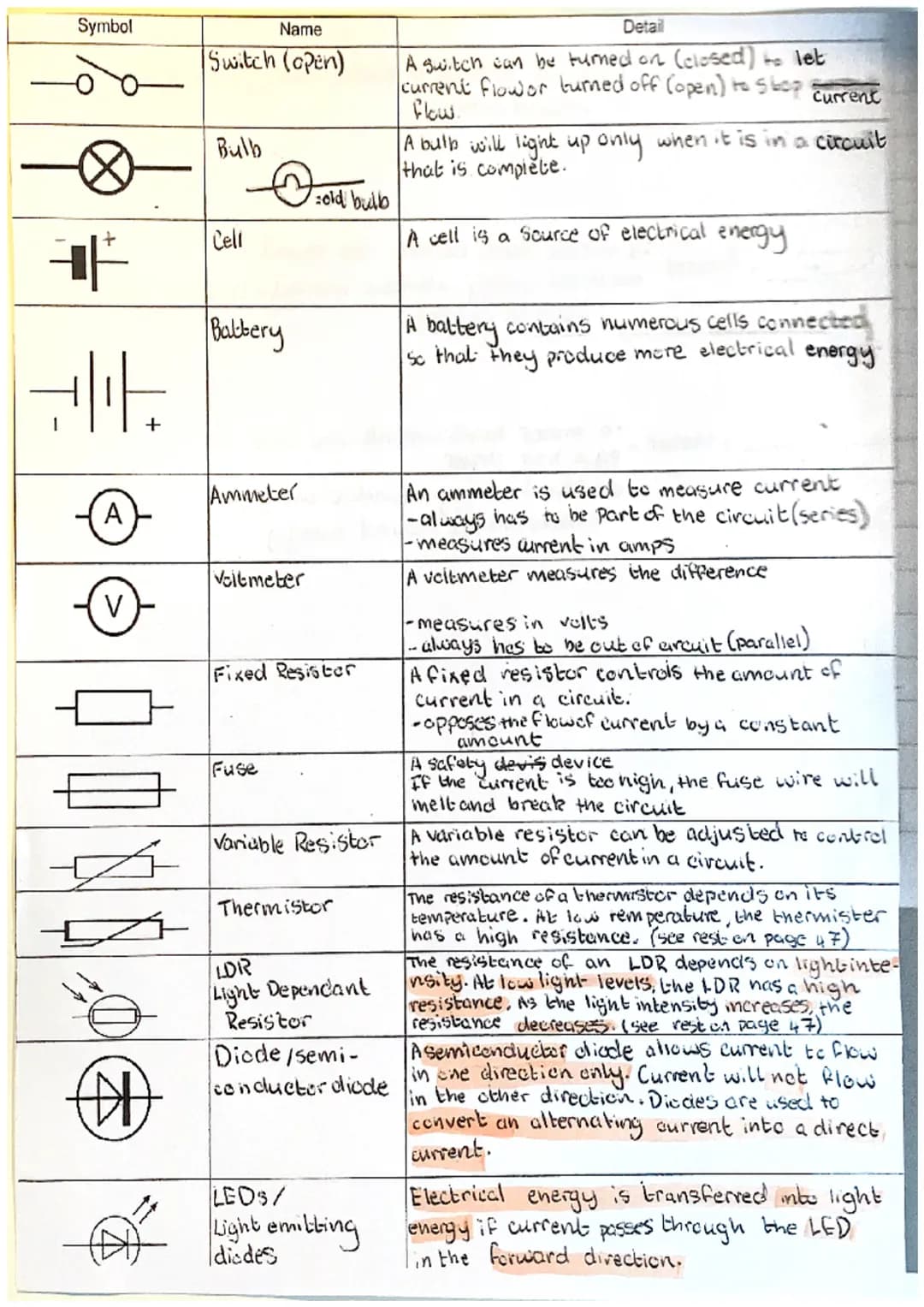

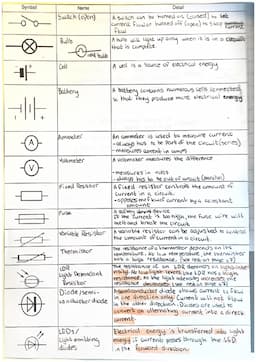

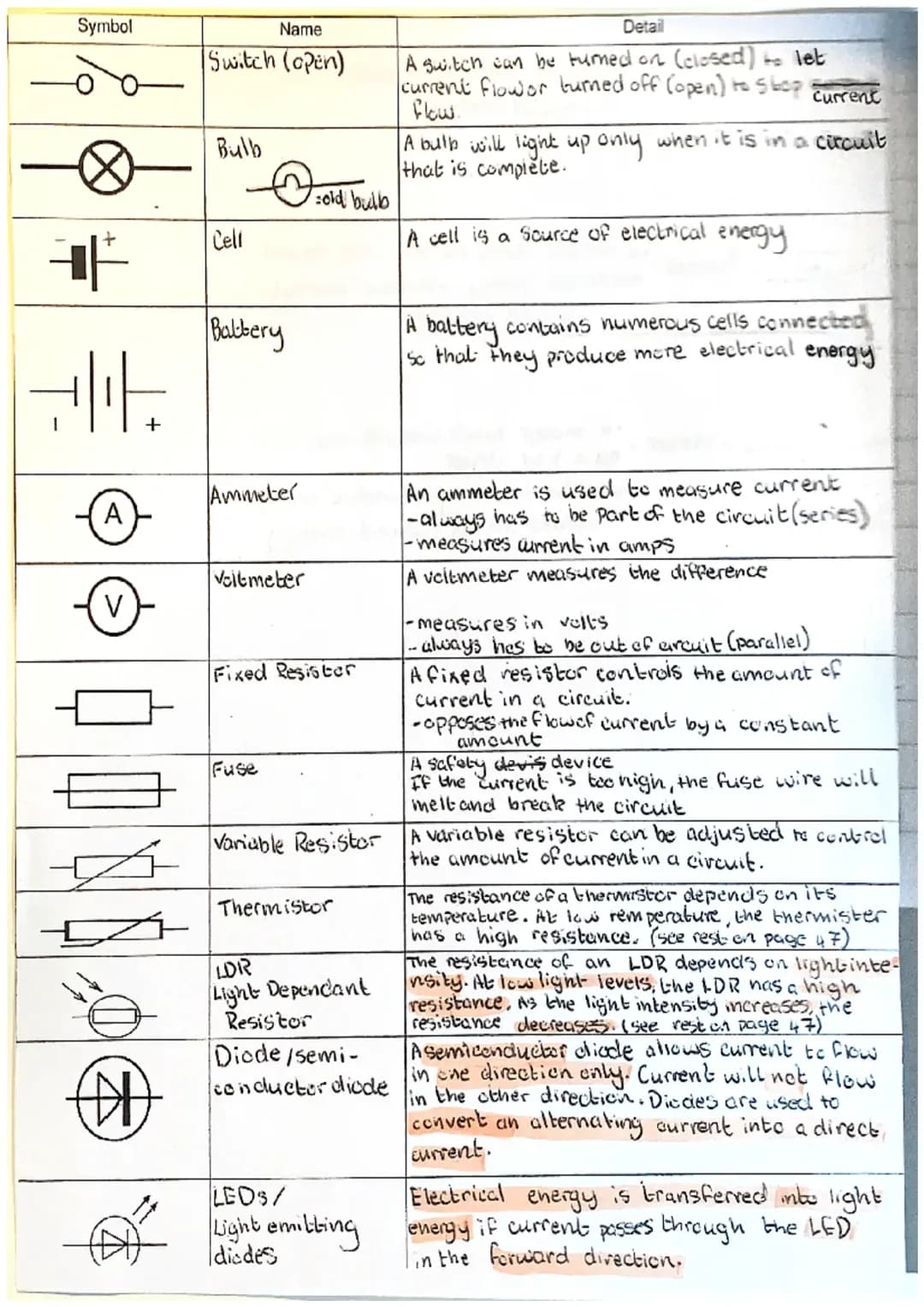

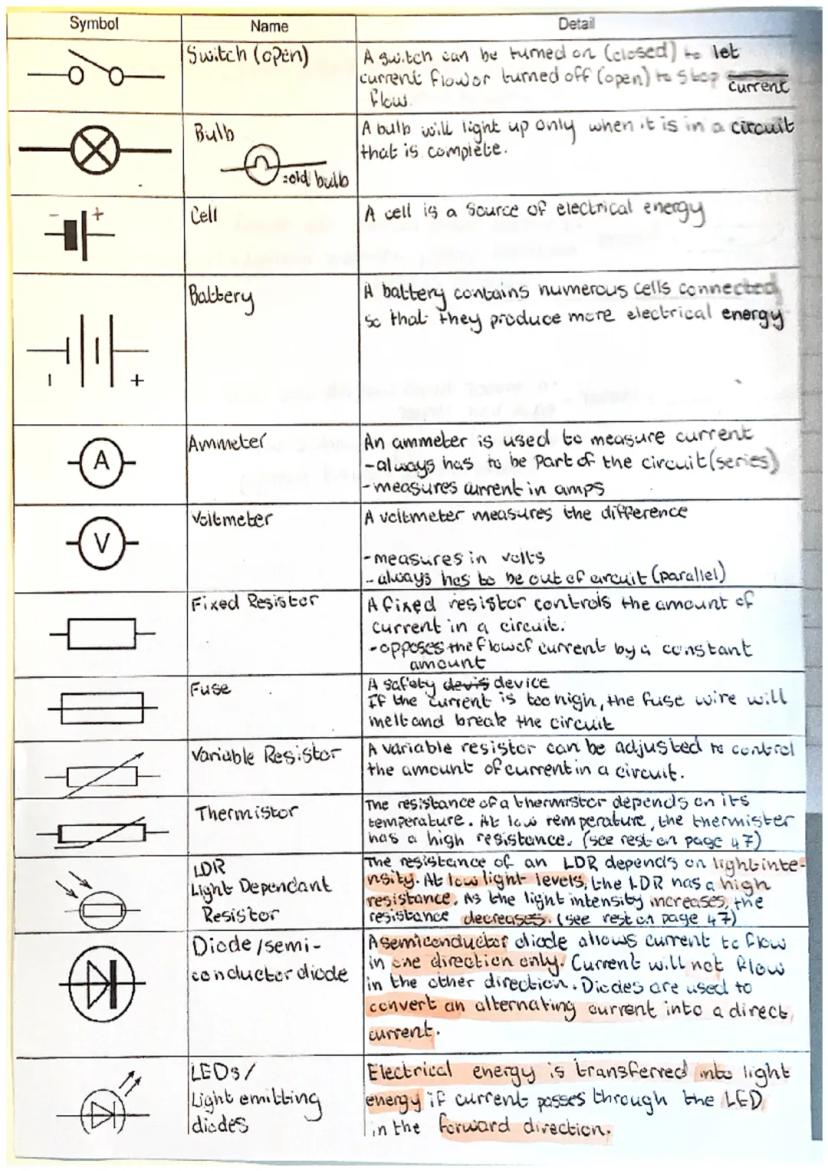

For GCSE Physics circuits questions and answers pdf, familiarity with various electrical components and their symbols is essential. Each component serves specific functions within circuits and is represented by standardized symbols in circuit diagrams.

Definition: Basic circuit components include:

• Switches: Control current flow
• Cells/Batteries: Provide electrical energy
• Ammeters: Measure current
• Voltmeters: Measure potential difference
• Resistors: Control current flow
• Diodes: Allow current flow in one direction only
• LEDs: Convert electrical energy to light

These components can be combined in various ways to create functional circuits. Understanding their individual roles and how they interact is crucial for analyzing and designing electrical systems. Special components like thermistors and Light Dependent Resistors (LDRs) respond to environmental changes, making them valuable in sensing and control applications.

Understanding Resistors in GCSE Physics Electricity

Resistors play a crucial role in electrical circuits, and understanding their behavior is fundamental to Understanding electrical components in aqa physics gcse. The relationship between current, potential difference, and resistance follows specific patterns that students need to master for their GCSE Physics electricity exam questions and answers.

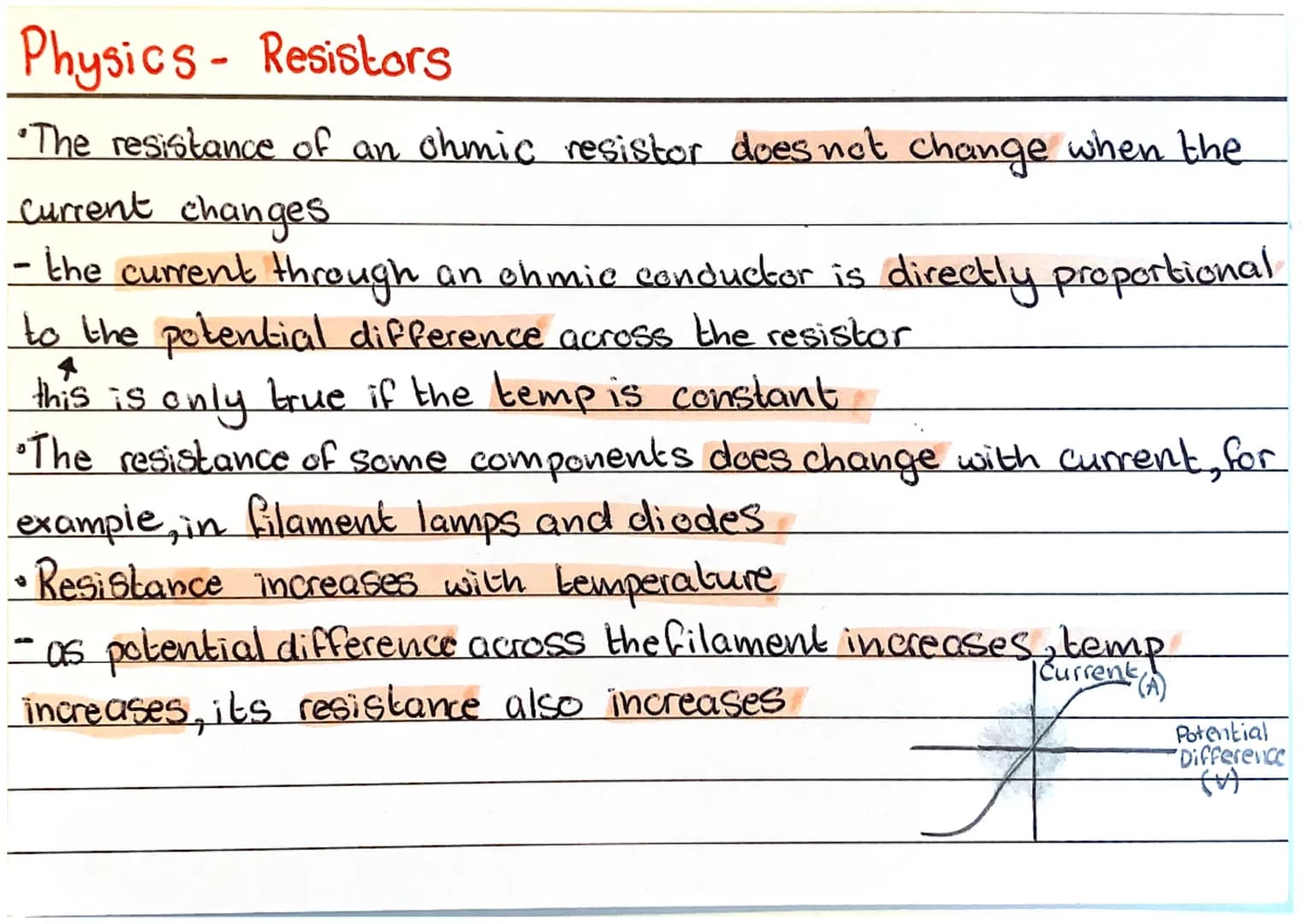

Definition: An ohmic resistor maintains constant resistance regardless of changes in current, provided the temperature remains stable. The current flowing through an ohmic conductor exhibits direct proportionality to the potential difference across it.

Temperature significantly impacts resistance in electrical components. This relationship is particularly important when studying Current and resistance calculations for aqa triple physics. As temperature increases, the resistance of most conducting materials also increases due to increased atomic vibrations interfering with electron flow.

Non-ohmic components, such as filament lamps and diodes, demonstrate variable resistance depending on current flow. In filament lamps, for instance, as the potential difference increases, the temperature rises, leading to higher resistance. This non-linear relationship is crucial for understanding real-world applications and answering Current, potential difference and resistance questions.

Example: Consider a filament lamp: Initially, at room temperature, it has low resistance. As current flows, the filament heats up, causing its resistance to increase significantly. This results in a non-linear current-potential difference graph, unlike the straight line observed with ohmic resistors.

Advanced Concepts in Current and resistance calculations for aqa triple physics

The study of resistance extends beyond basic definitions when preparing for Electricity in triple physics higher paper 1 aqa questions and answers. Understanding how different components respond to changing conditions is essential for mastering circuit analysis and problem-solving.

Highlight: The relationship between current and potential difference in ohmic conductors can be expressed through Ohm's Law: V = IR, where V is potential difference, I is current, and R is resistance. This fundamental equation is crucial for GCSE Physics circuits questions and answers.

Temperature dependence of resistance is particularly relevant in practical applications. For Understanding electrical components in aqa physics notes, students must recognize that most conductors show increased resistance at higher temperatures. This principle affects everything from household appliances to industrial equipment.

Vocabulary: Ohmic conductors maintain a constant resistance, while non-ohmic conductors exhibit varying resistance. This distinction is vital for understanding component behavior in circuits and answering questions in GCSE Physics Electricity revision Notes.

The practical implications of resistance changes are significant in circuit design and operation. Engineers must account for these variations when designing electrical systems, making this knowledge essential for both academic understanding and real-world applications. This concept frequently appears in Current and resistance calculations for aqa triple physics questions.
