Electric fields are invisible force fields that surround charged objects,...
Physics85 views·Updated 4 Jul 2026·3 pagesExploring Electric Fields: Principles, Forces, and Potentials
Rhea Patel@rheapatel_twzq
1 / 3
1
of 3

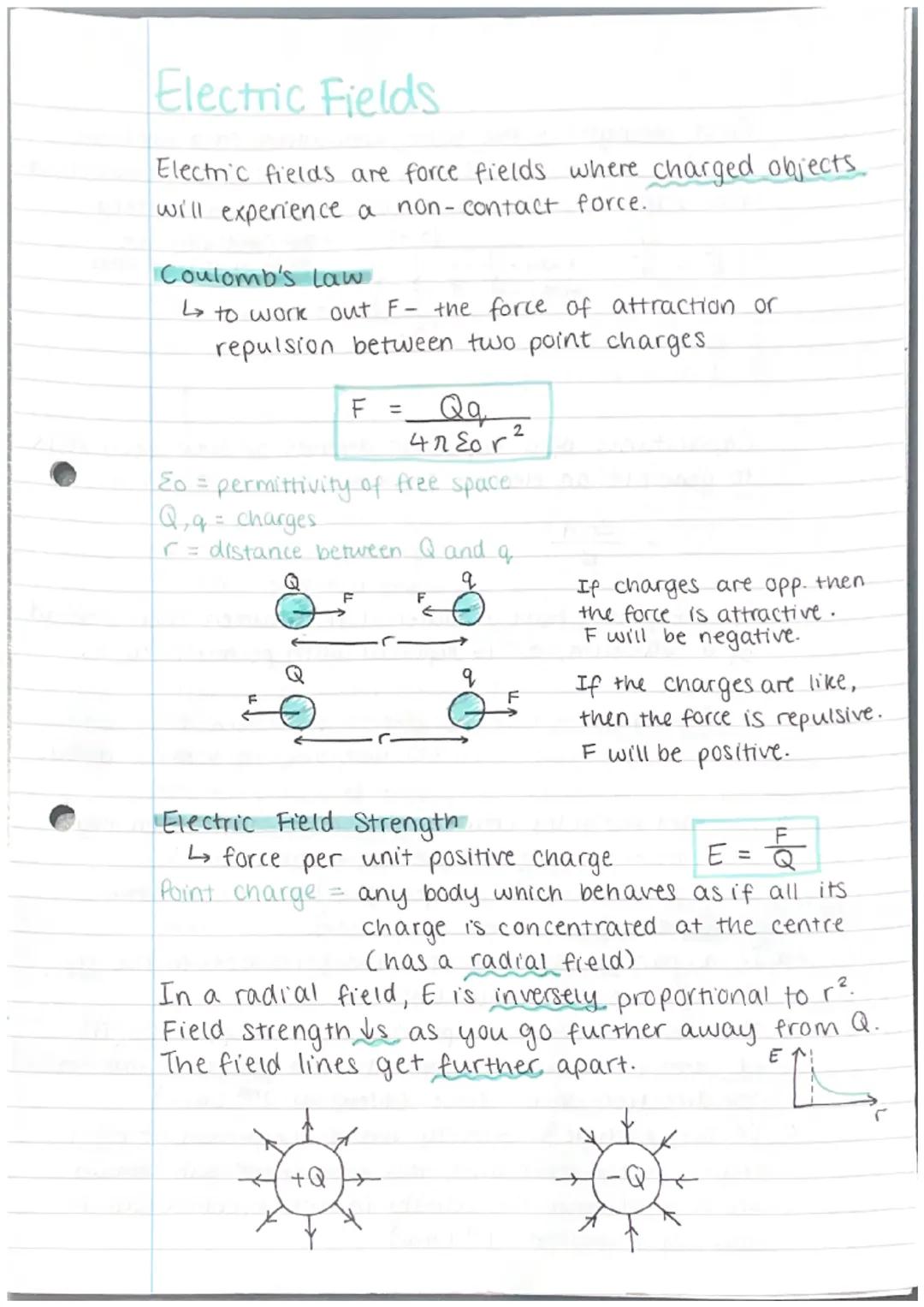

Electric Fields and Coulomb's Law
Think of electric fields as invisible zones around charged objects where other charges will feel a push or pull. Coulomb's Law lets you calculate exactly how strong this force will be using the formula F = Qq/(4πε₀r²).
The direction of the force depends entirely on the types of charges involved. Opposite charges attract (giving a negative force value), whilst like charges repel (giving a positive force value). It's like magnets, but with electricity instead.
Electric field strength measures the force per unit positive charge, calculated as E = F/Q. In a radial field around a point charge, the field strength weakens as you move further away - you can actually see this because the field lines spread out more.
Quick Tip: Remember that field strength follows an inverse square law - double the distance, and the field becomes four times weaker!
2
of 3

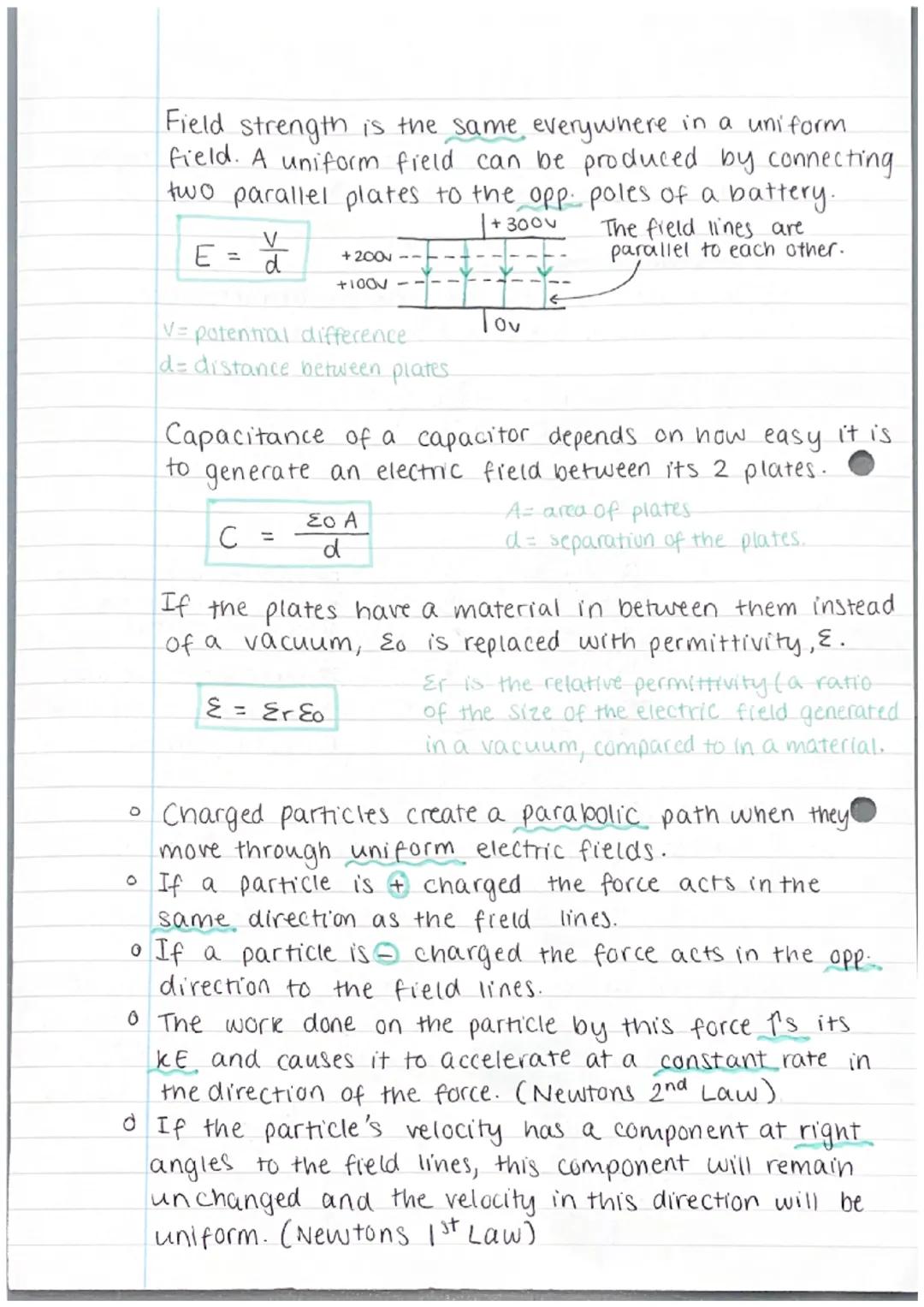

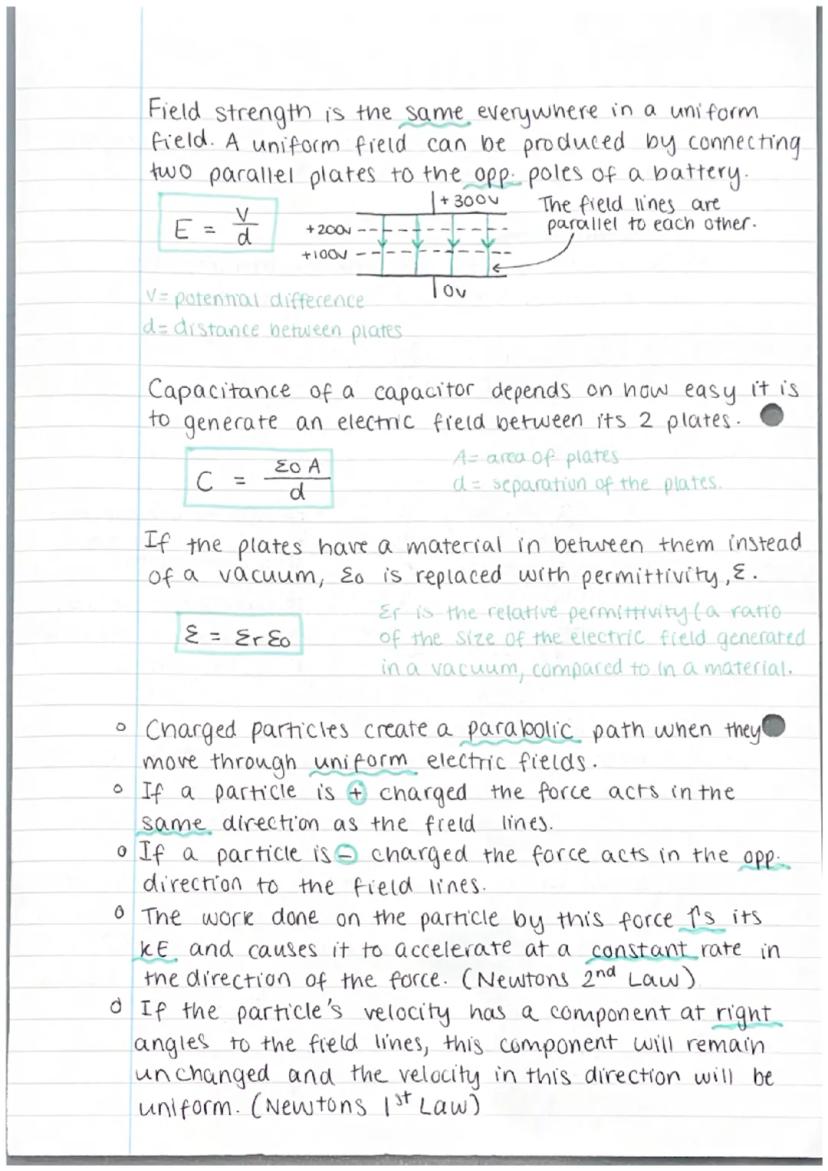

Uniform Fields and Capacitors
Uniform electric fields are like the complete opposite of radial fields - the field strength stays exactly the same everywhere. You can create one by connecting two parallel plates to opposite ends of a battery, and the field strength becomes E = V/d.
Capacitors work by storing charge on these parallel plates. Their capacitance (how much charge they can store) depends on the plate area, the distance between them, and what material sits between the plates: C = ε₀A/d.
When charged particles zip through uniform fields, they follow parabolic paths - just like throwing a ball horizontally whilst gravity pulls it down. Positive particles follow the field lines, whilst negative particles go against them.
Real-world Connection: This parabolic motion is exactly how old CRT televisions and computer monitors worked - electrons were steered by electric fields to hit the right spots on the screen!
3
of 3

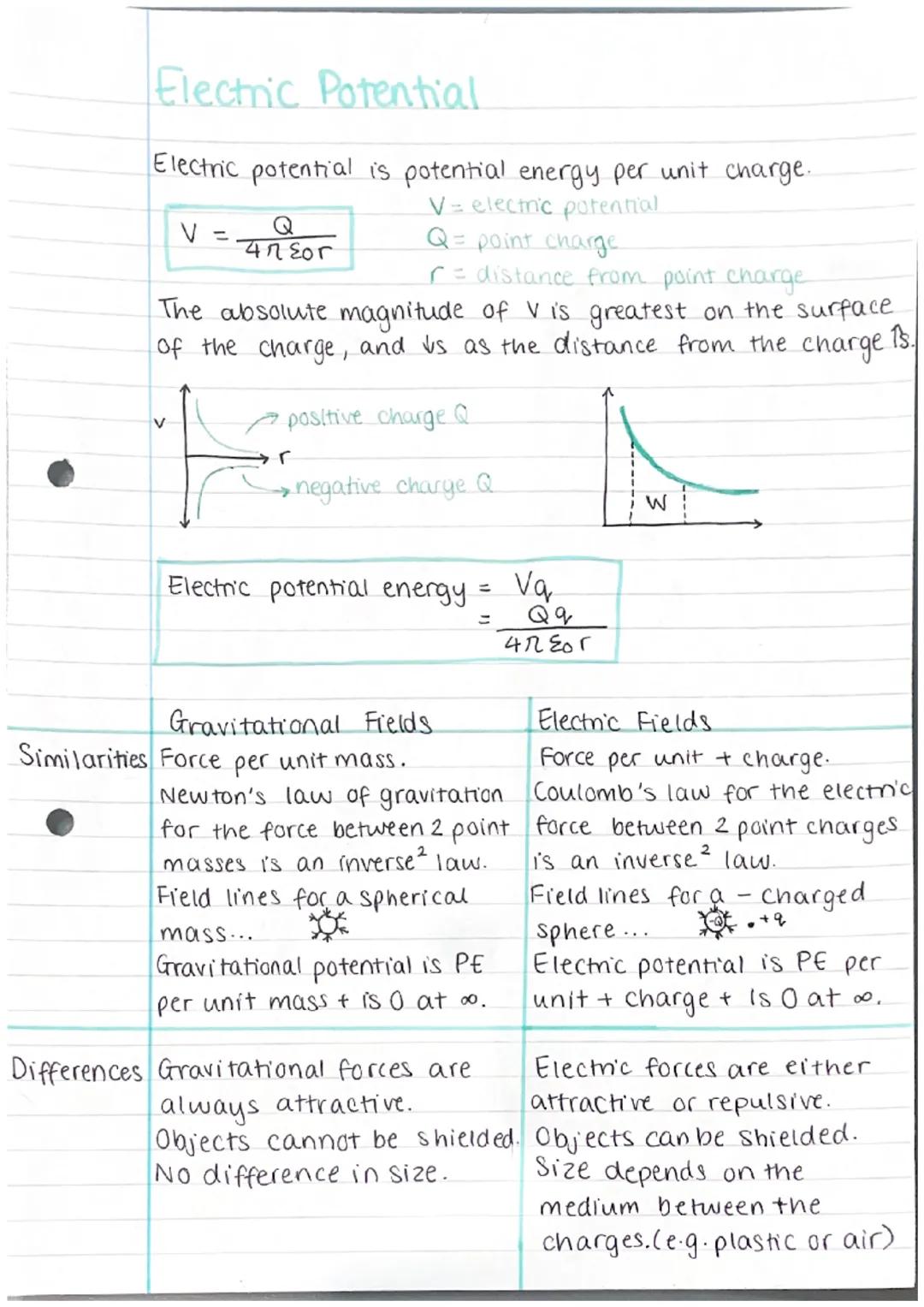

Electric Potential and Field Comparisons
Electric potential tells you the potential energy per unit charge at any point, calculated as V = Q/(4πε₀r). Think of it like electric "height" - charges naturally want to roll from high potential to low potential, just like a ball rolling downhill.
The potential is strongest right at the surface of a charge and gets weaker as you move away. Electric potential energy combines this with the actual charge present: PE = Vq/(4πε₀r).
Electric fields and gravitational fields work remarkably similarly - both follow inverse square laws and use field lines. However, gravity only attracts, whilst electric forces can push or pull. Also, you can shield electric fields with conductors, but nothing blocks gravity.
Exam Success: The comparison between gravitational and electric fields is a favourite exam topic - make sure you can list at least three similarities and three differences!
