Understanding Hooke's Law and Elasticity Basics

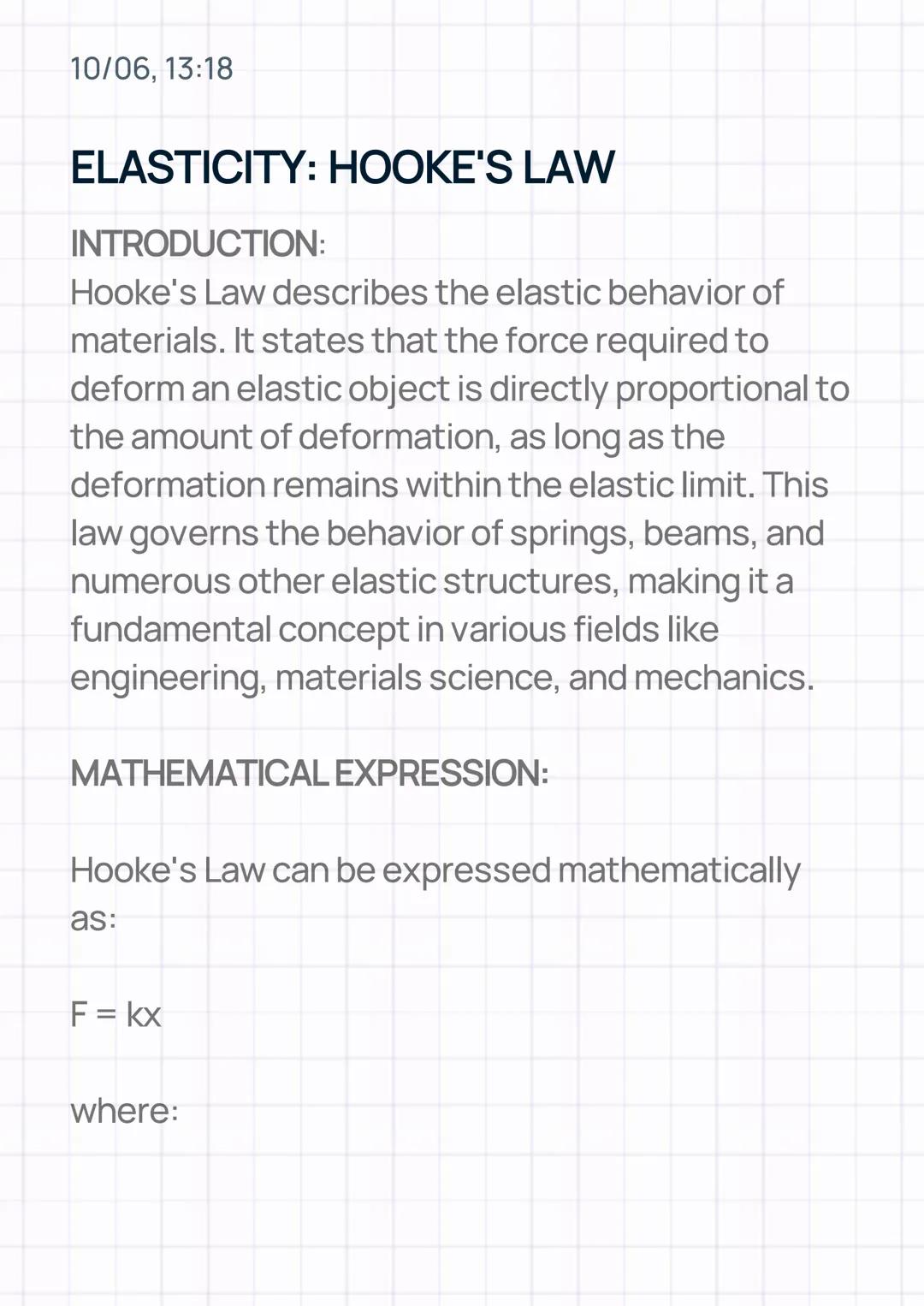

Understanding Hooke's Law

The beauty of Hooke's Law lies in its simplicity: the more you stretch or compress an elastic object, the more force it pushes back with. This relationship stays perfectly proportional as long as you don't push the material beyond its elastic limit.

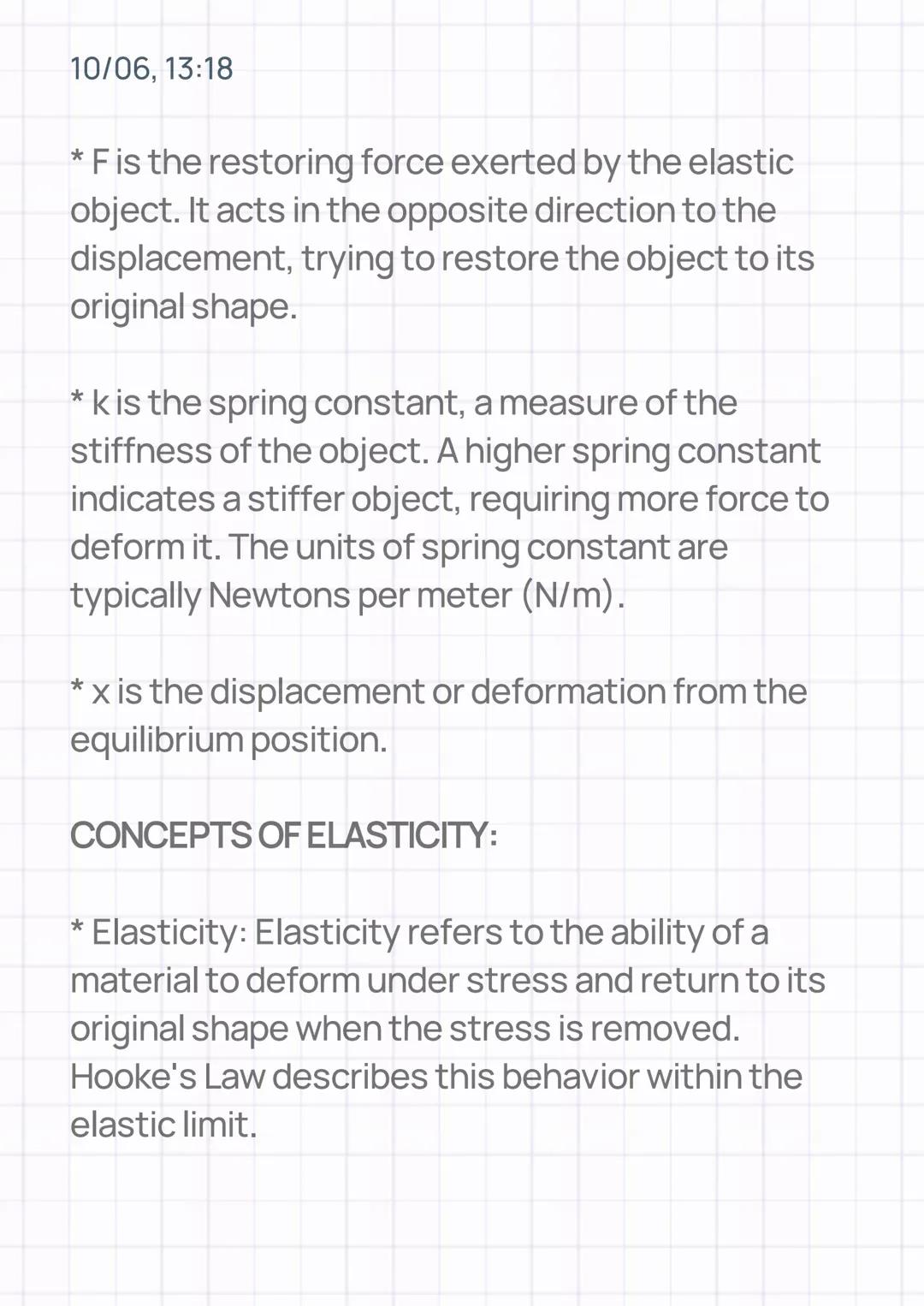

The mathematical expression is beautifully straightforward: F = kx. Here, F represents the restoring force (the material fighting back), k is the spring constant (how stiff the material is), and x is how far you've displaced it from its natural position.

Think of it like this: a stiff spring (high k value) requires loads more force to stretch the same distance as a soft spring (low k value). The spring constant, measured in Newtons per metre (N/m), is basically the material's resistance to being messed about with.

Quick Check: If you double the displacement, you double the force needed - that's the proportional relationship in action!

Key Concepts in Elasticity

Elasticity is essentially a material's ability to bounce back to its original shape after being deformed. It's like a memory - the material "remembers" its original form and tries to return to it when you stop applying force.

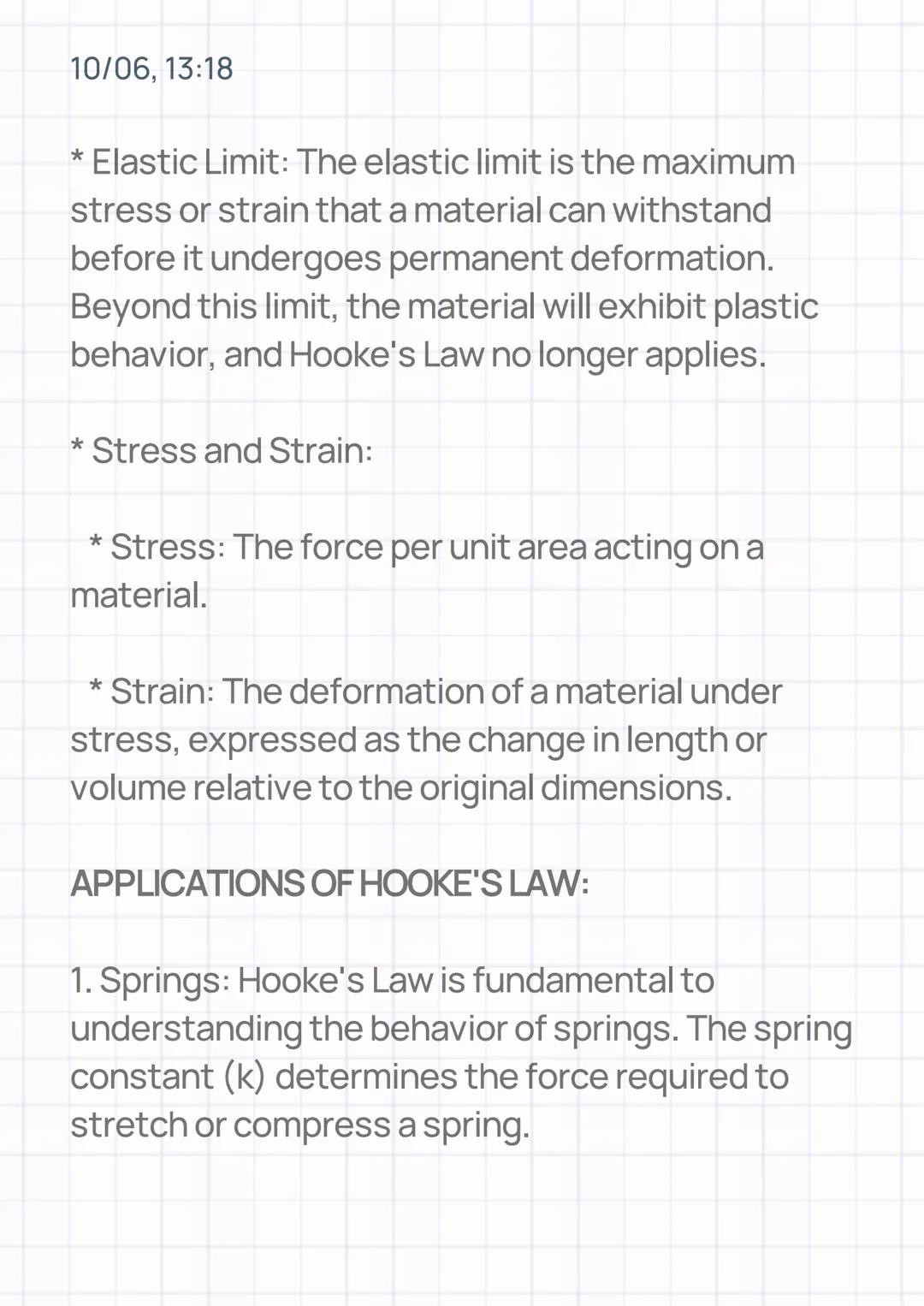

The elastic limit is the crucial boundary you need to understand. Push a material beyond this point, and it won't fully recover - you've caused permanent damage. Below this limit, Hooke's Law works perfectly; beyond it, all bets are off.

Stress and strain are the technical terms you'll encounter frequently. Stress is the force per unit area (how much pressure you're applying), while strain measures the actual deformation relative to the original size. These concepts help engineers predict how materials will behave under different loads.

Remember: Once you exceed the elastic limit, the material enters plastic deformation territory where Hooke's Law no longer applies!

Real-World Applications

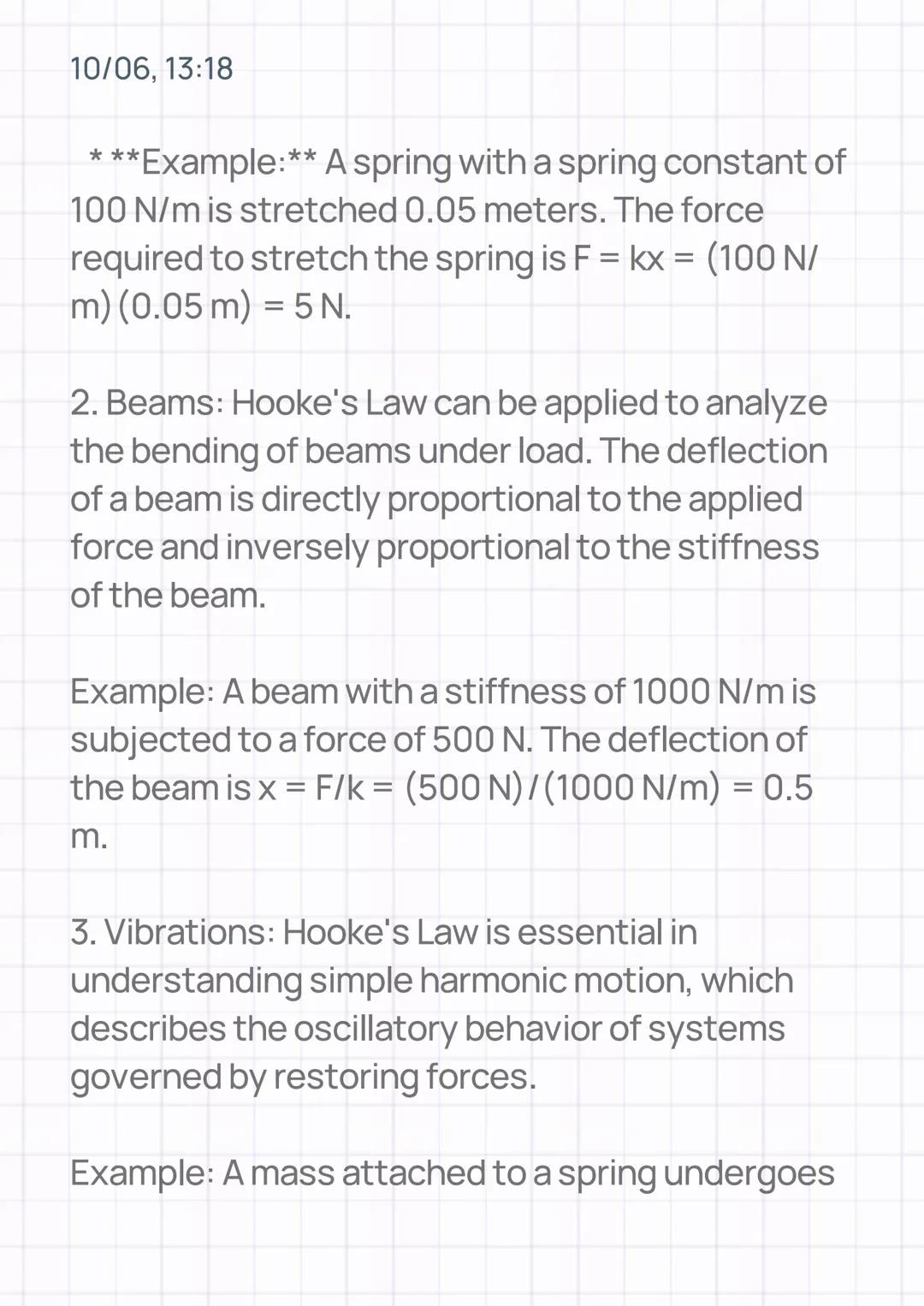

Springs are the most obvious application - from your car's suspension to the mechanism in a ballpoint pen. The spring constant determines exactly how much force you need to compress or extend the spring by a specific amount.

Beam analysis in construction relies heavily on Hooke's Law. Engineers calculate how much a beam will bend (deflect) under load using the relationship x = F/k, where the beam's stiffness replaces the spring constant.

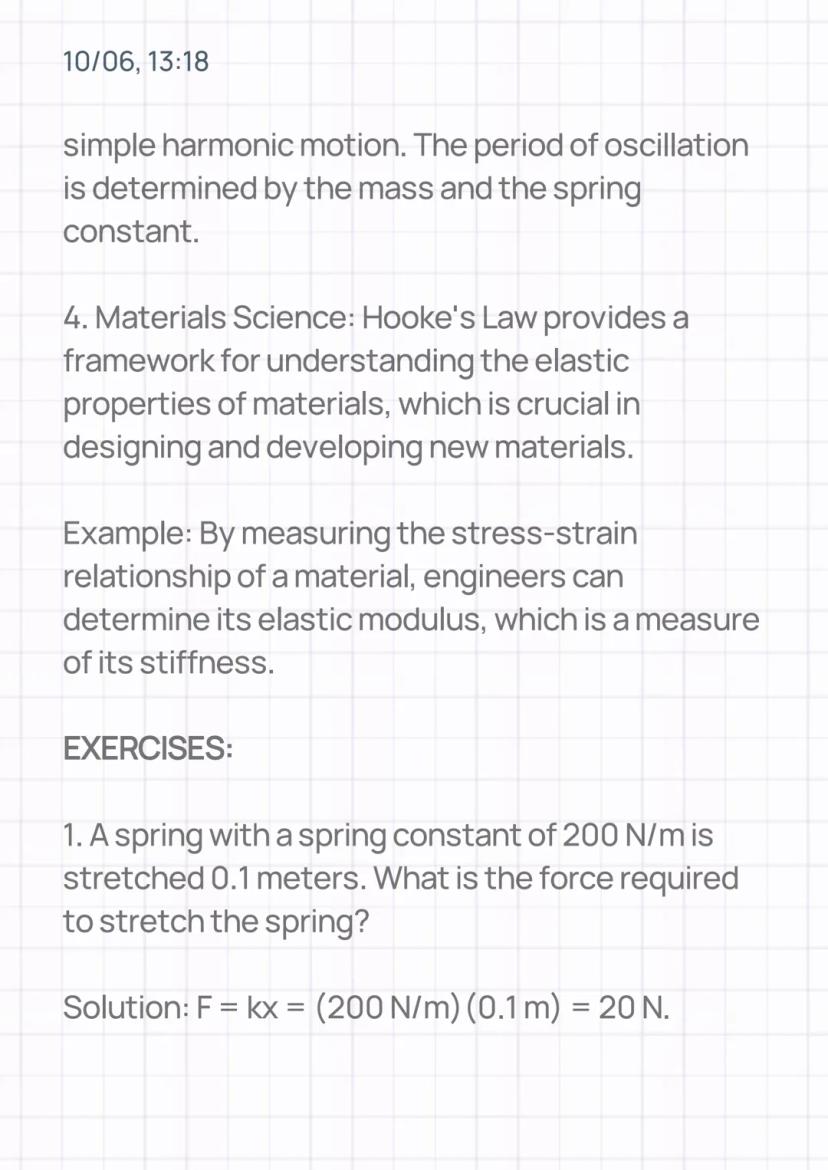

Simple harmonic motion governs oscillating systems like pendulums and vibrating strings. A mass on a spring creates this motion because of the restoring force described by Hooke's Law. The period of oscillation depends on both the mass and the spring constant.

In materials science, Hooke's Law helps determine a material's elastic modulus - essentially how stiff it is. This information is vital when designing everything from aircraft wings to smartphone screens.

Practical Tip: Higher spring constants mean stiffer materials that resist deformation more - useful for structural applications!

Working Through Examples

Let's tackle some calculations that show Hooke's Law in action. If you have a spring with k = 200 N/m and stretch it 0.1 metres, the force required is F = kx = (200)(0.1) = 20 N. Simple!

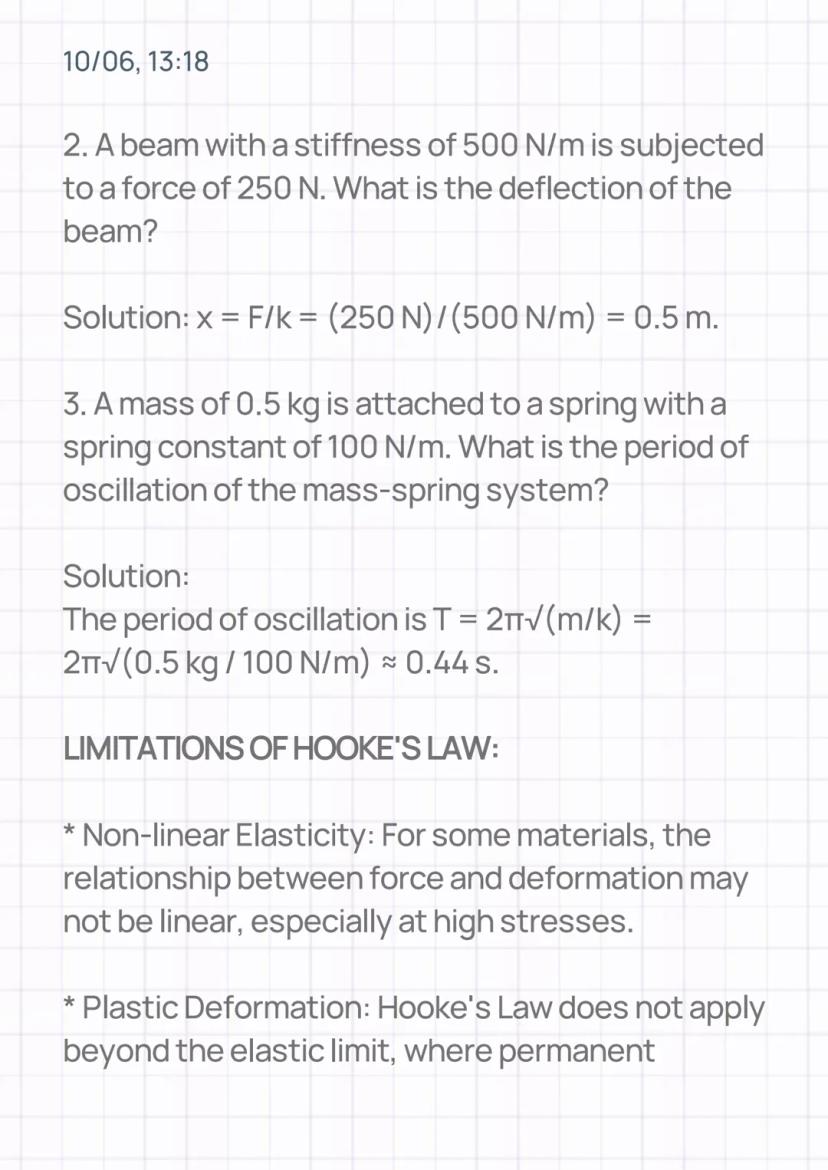

For beam deflection, rearrange the formula to x = F/k. A beam with 500 N/m stiffness under 250 N force deflects by x = 250/500 = 0.5 metres. The stiffer the beam, the less it bends.

Oscillation periods use a more complex formula: T = 2π√(m/k). A 0.5 kg mass on a 100 N/m spring oscillates with period T = 2π√$0.5/100$ ≈ 0.44 seconds. Notice how increasing mass slows oscillation, while increasing spring stiffness speeds it up.

These calculations appear constantly in physics exams and engineering problems. Master the basic rearrangements of F = kx and you'll handle most scenarios confidently.

Exam Tip: Always check your units - force in Newtons, displacement in metres, spring constant in N/m!

Limitations You Need to Know

Non-linear elasticity occurs when materials don't follow the straight-line relationship at high stresses. Some materials naturally behave this way, making Hooke's Law only an approximation rather than an absolute rule.

Plastic deformation happens once you exceed the elastic limit. The material permanently changes shape and won't return to its original form. Think of bending a paperclip too far - it stays bent even when you release the force.

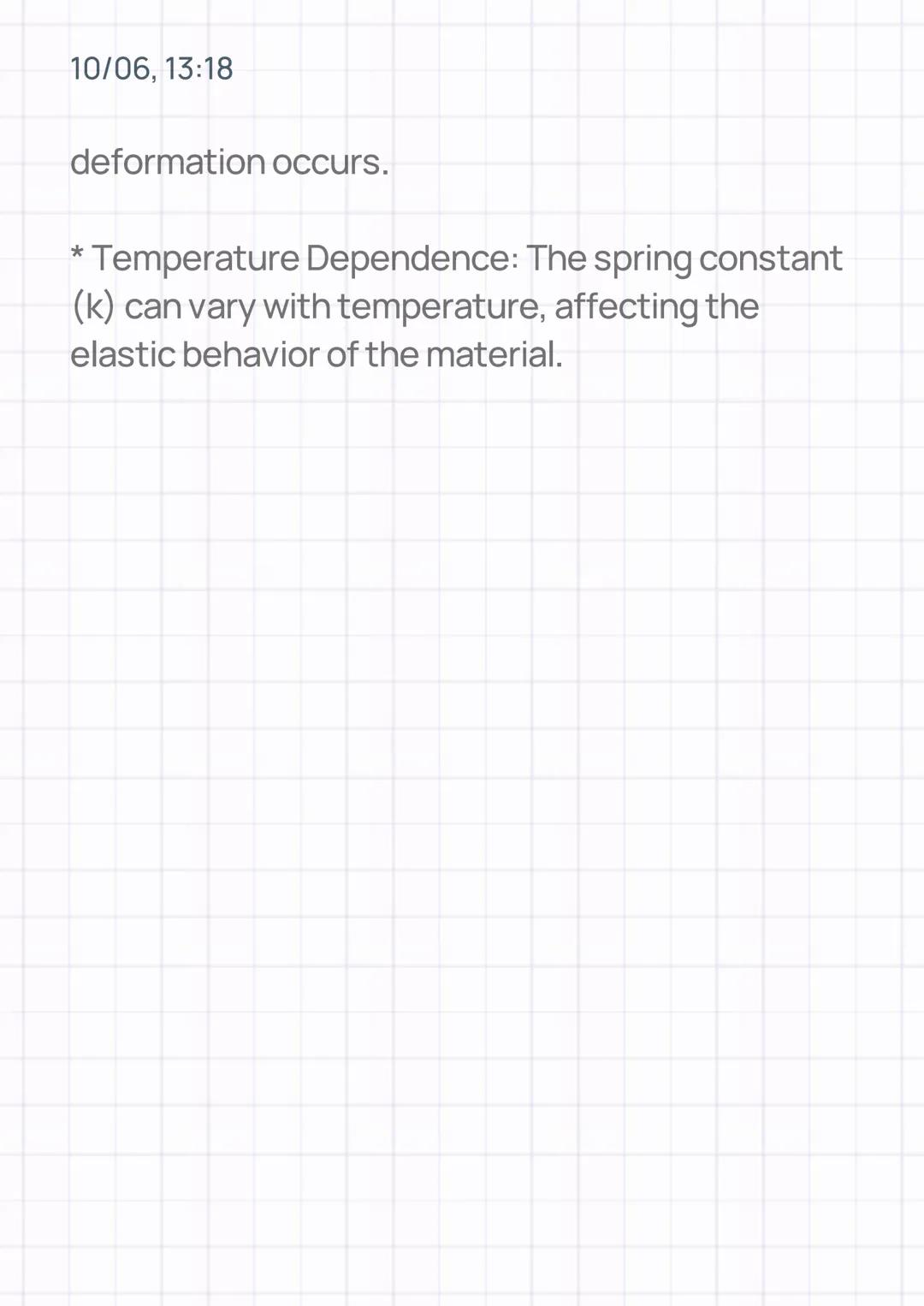

Temperature effects can significantly alter the spring constant. Most materials become softer (lower k) when heated and stiffer when cooled. This is why engineers must consider operating temperatures in their designs.

Understanding these limitations prevents you from misapplying Hooke's Law. It's incredibly useful within its valid range, but recognising when it breaks down is equally important for accurate predictions.

Key Point: Hooke's Law is a linear approximation that works brilliantly within the elastic range but fails beyond the elastic limit!
