Fun with Distance-Time Graphs: Learn Speed and Velocity for Class 9 and GCSE

G

goodness

@gvvdness

Calculating speed using distance-time graphsis a key skill in... Show more

4.5.6.1.1 Distance and displacement
Content
Distance is fornect moves Distance does not involve
Displacement includes both the distance an o

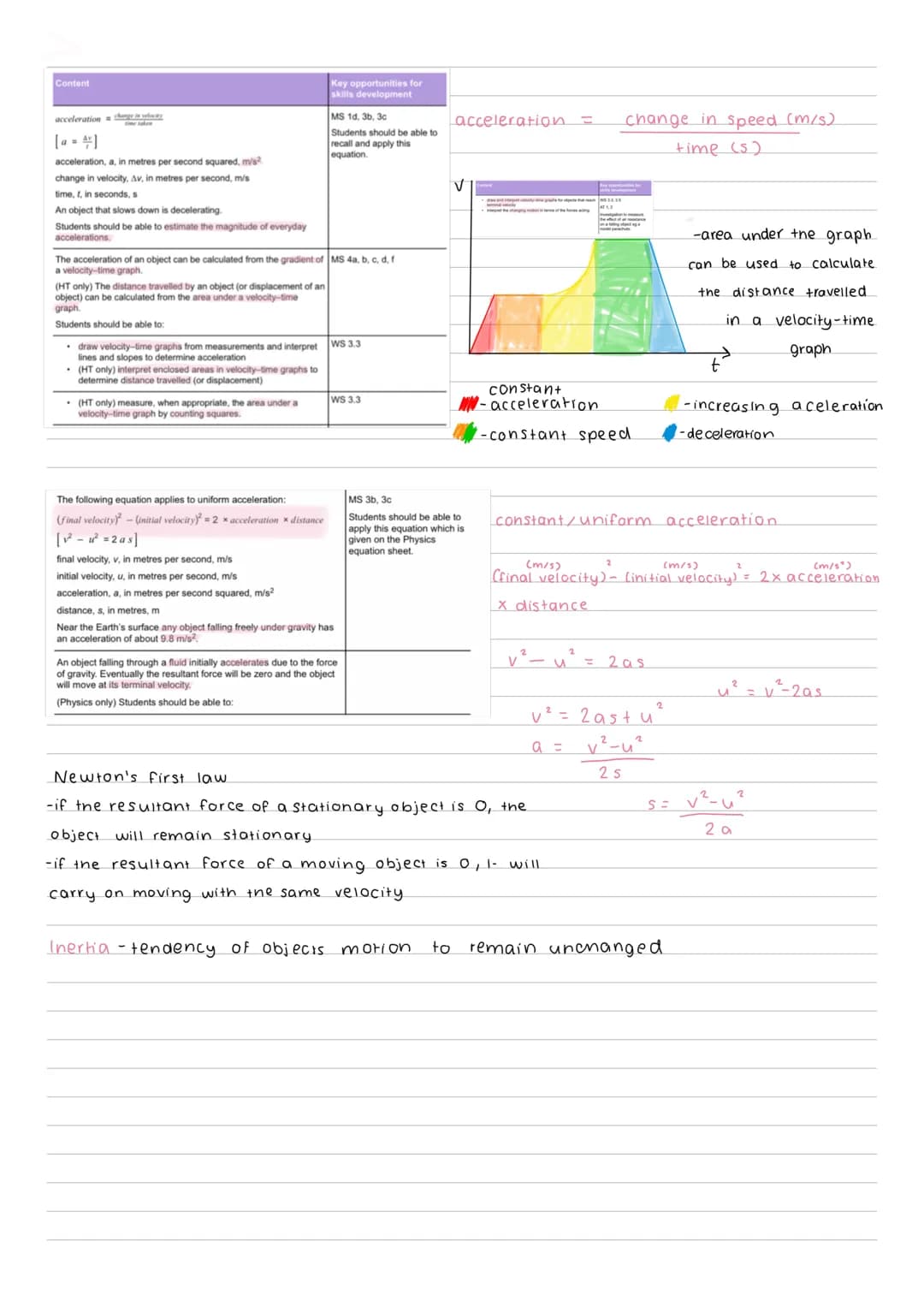

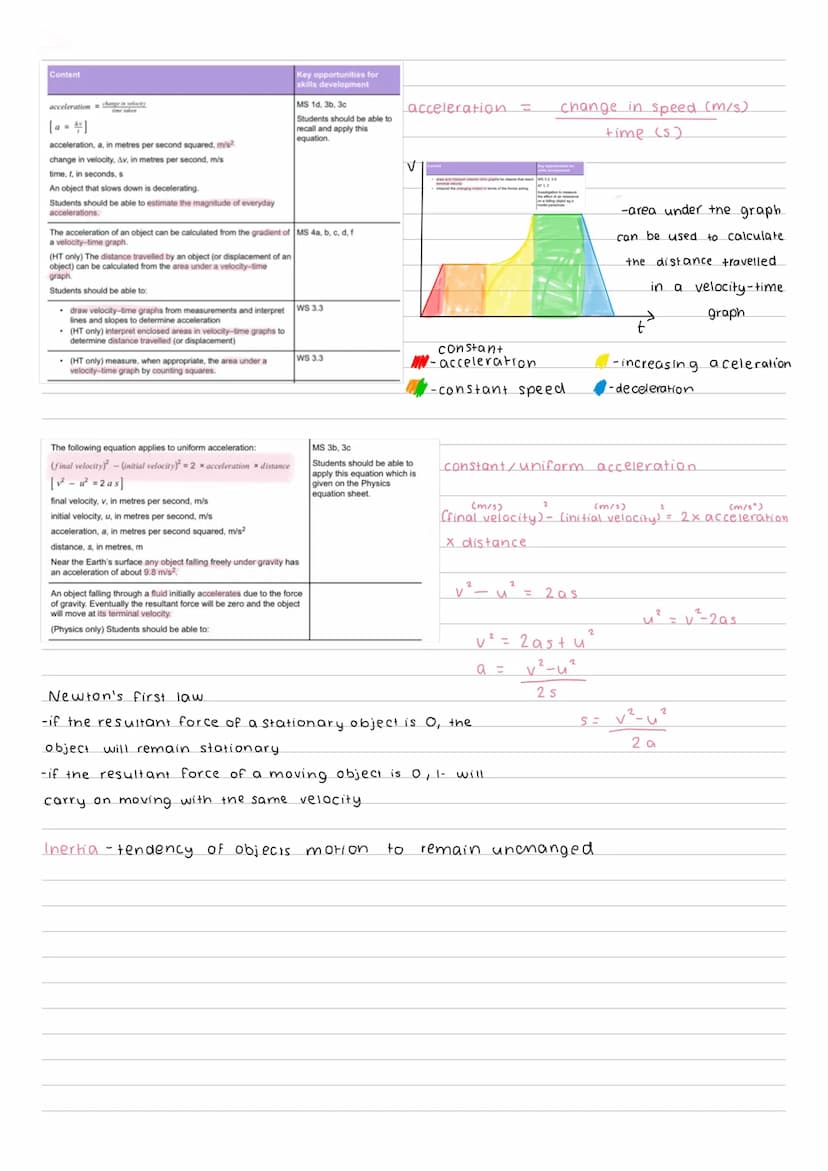

Velocity and Acceleration

This section delves deeper into the concepts of velocity and acceleration.

Definition: Velocity is an object's speed in a given direction. It is a vector quantity.

Students should be able to explain the distinction between vector and scalar quantities as they apply to displacement, distance, velocity, and speed.

Example: An object moving in a circle has constant speed but changing velocity, as the direction is constantly changing.

The concept of acceleration is introduced:

Definition: Acceleration is the rate of change of velocity over time.

The equation for acceleration is:

a = Δv / t

where a is acceleration in meters per second squared m/s2m/s², Δv is change in velocity in meters per second m/sm/s, and t is time in seconds ss.

Highlight: An object that slows down is decelerating.

Students should be able to estimate the magnitude of everyday accelerations.

Velocity-Time Graphs and Further Calculations

This section covers the interpretation and use of velocity-time graphs.

The acceleration of an object can be calculated from the gradient of a velocity-time graph. The distance traveled ordisplacementor displacement can be calculated from the area under a velocity-time graph.

Students should be able to:

  1. Draw velocity-time graphs from measurements
  2. Interpret lines and slopes to determine acceleration
  3. Interpret enclosed areas in velocity-time graphs to determine distance traveled
  4. Measure the area under a velocity-time graph by counting squares when appropriate

An important equation for uniform acceleration is introduced:

v² - u² = 2as

where v is final velocity m/sm/s, u is initial velocity m/sm/s, a is acceleration m/s2m/s², and s is distance mm.

Highlight: Near Earth's surface, any object falling freely under gravity has an acceleration of about 9.8 m/s².

The concept of terminal velocity is briefly mentioned, where an object falling through a fluid eventually reaches a constant speed due to the balance of forces.

4.5.6.1.1 Distance and displacement
Content
Distance is fornect moves Distance does not involve
Displacement includes both the distance an o

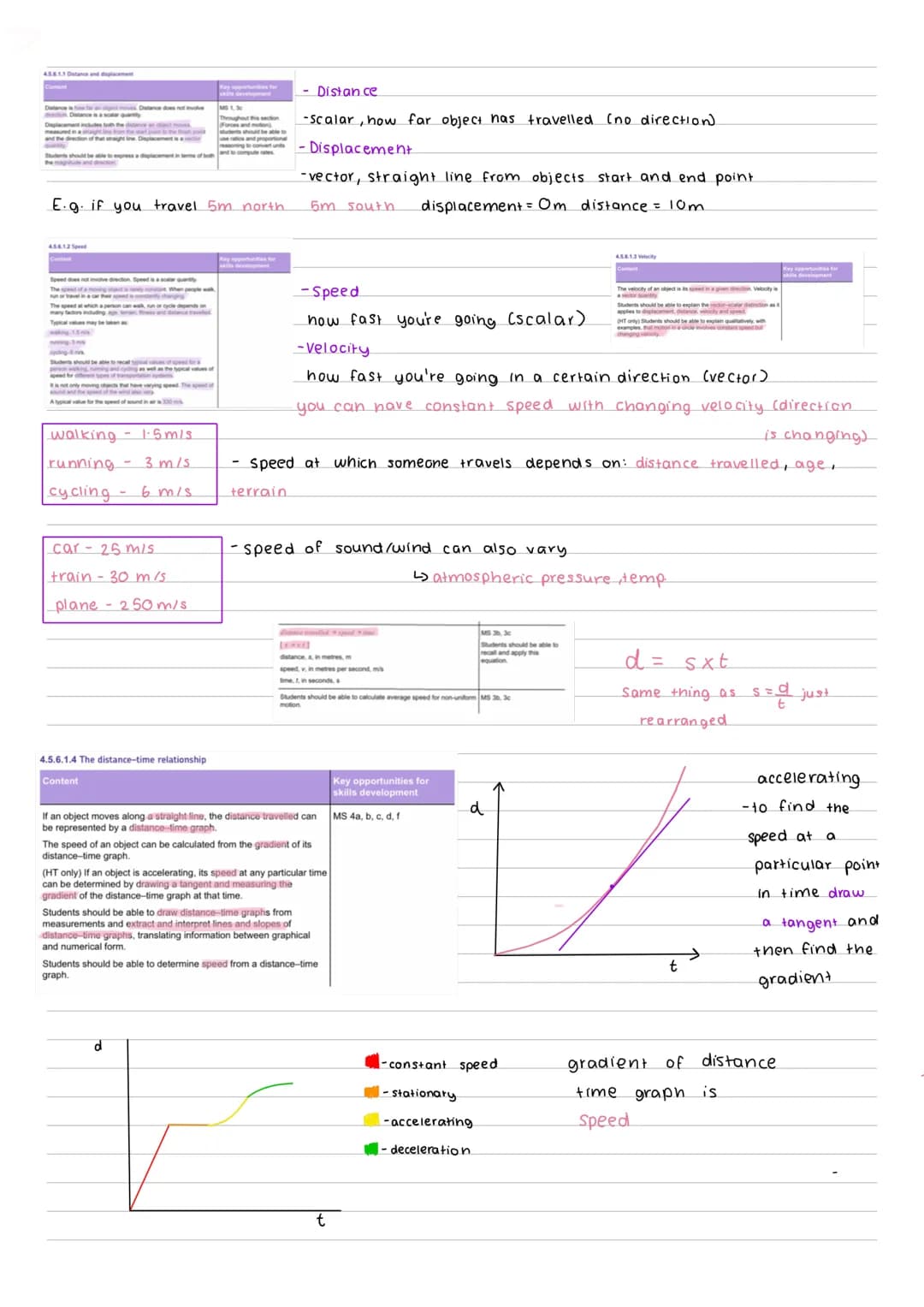

Distance, Displacement, Speed and Velocity

This section introduces fundamental concepts in motion and kinematics.

Definition: Distance is how far an object moves, while displacement includes both distance and direction in a straight line.

Highlight: Speed is a scalar quantity magnitudeonlymagnitude only, while velocity is a vector quantity magnitudeanddirectionmagnitude and direction.

Students should be able to express displacement in terms of both distance and direction, and calculate ratios between them. The speed of a moving object is not always constant. Factors like terrain and age can affect how fast a person walks, runs or cycles.

Example: If you travel 5m north and then 5m south, your displacement is 0m but your total distance traveled is 10m.

Vocabulary: Scalar quantities have only magnitude, while vector quantities have both magnitude and direction.

Typical speeds for various modes of transportation are provided:

  • Walking: 1.5 m/s
  • Running: 3 m/s
  • Cycling: 6 m/s
  • Car: 25 m/s
  • Train: 30 m/s
  • Plane: 250 m/s

The speed of sound in air is typically around 330 m/s, but can vary based on atmospheric conditions.

Distance-Time Graphs and Speed Calculations

This section focuses on representing motion graphically and calculating speed.

Definition: A distance-time graph represents the distance traveled by an object over time.

The speed of an object can be calculated from the gradient of its distance-time graph. For non-uniform motion, students should be able to calculate average speed.

Highlight: For accelerating objects, instantaneous speed can be determined by drawing a tangent to the distance-time graph at a specific point and measuring its gradient.

Students should be able to:

  1. Draw distance-time graphs from measurements
  2. Interpret lines and slopes of distance-time graphs
  3. Translate information between graphical and numerical form
  4. Determine speed from a distance-time graph

The fundamental equation relating distance, speed, and time is:

distance = speed × time

or in symbolic form:

d = v × t

where d is distance in meters mm, v is speed in meters per second m/sm/s, and t is time in seconds ss.
