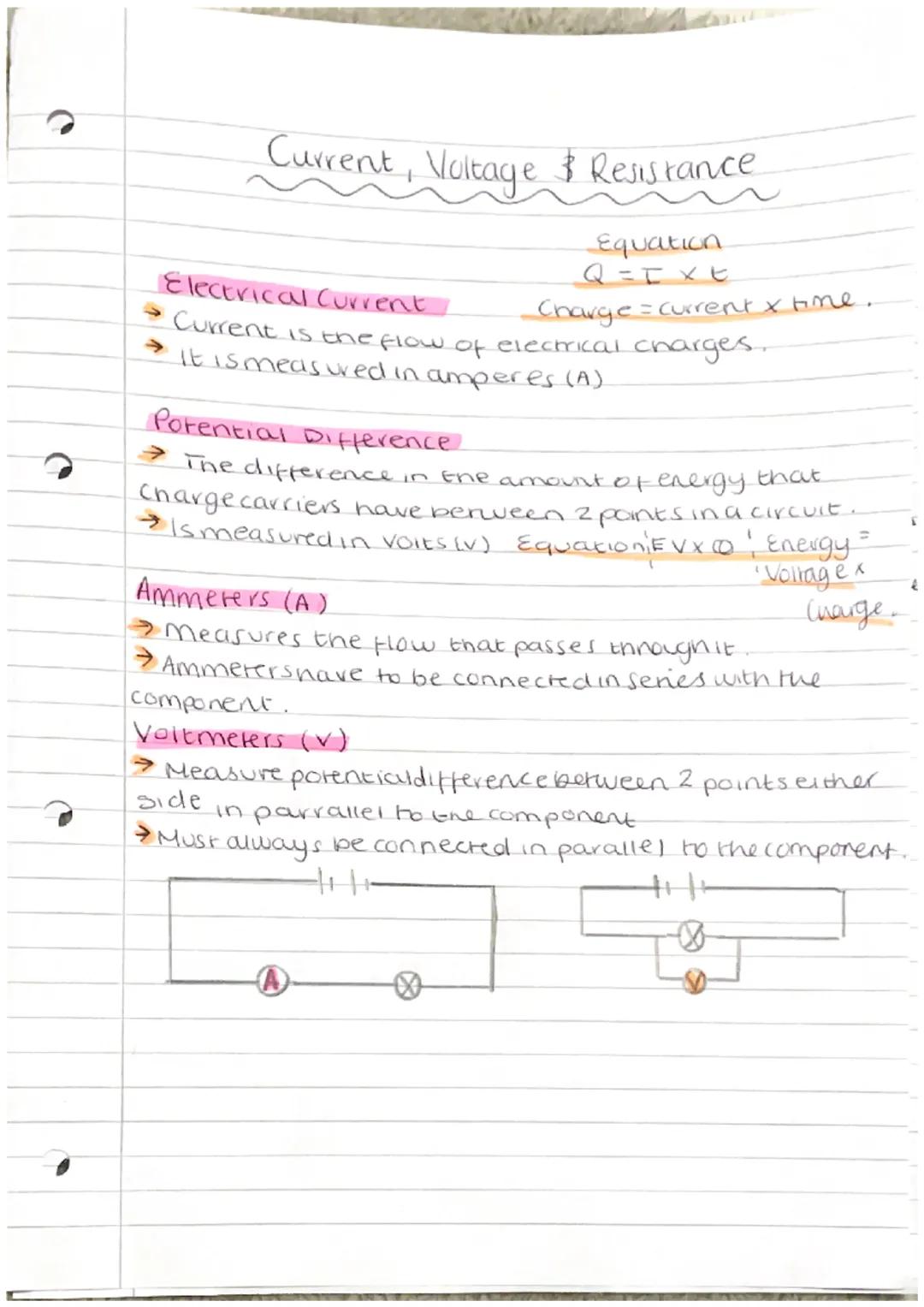

Understanding Current and Potential Difference
Current is basically electricity on the move - it's the flow of electrical charges through a wire or component. Think of it like water flowing through a pipe, except it's tiny charged particles instead of water droplets. We measure current in amperes (A), and there's a handy equation to remember: Q = I × t (charge equals current multiplied by time).
Potential difference (also called voltage) is the energy difference that charge carriers have between two points in a circuit. Imagine it as the 'electrical pressure' that pushes current around a circuit - just like water pressure pushes water through pipes. This is measured in volts (V), and the equation is Energy = Voltage × Charge.
Quick Tip: Think of voltage as the 'push' and current as the 'flow' - you need the push to create the flow!
Getting these measurements right is crucial, and that's where ammeters and voltmeters come in. Ammeters measure current and must be connected in series with components, whilst voltmeters measure potential difference and must always be connected in parallel.
Measuring Electrical Quantities
When you're working with circuits in your physics practicals, knowing how to use measuring instruments properly can make or break your results. Ammeters are your go-to tool for measuring current - they tell you exactly how much electrical flow is passing through a component.
The key rule with ammeters is that they must be connected in series with whatever you're measuring. This means the current has to flow through the ammeter itself, giving you an accurate reading of the electrical flow.
Voltmeters work differently - they measure the potential difference between two points in your circuit. Unlike ammeters, voltmeters must always be connected in parallel to the component you're investigating. This setup lets them compare the energy levels on either side of the component.
Remember: Series for ammeters (current flows through), parallel for voltmeters (measures across two points)!
Mastering these measurement techniques will set you up perfectly for GCSE physics practicals and help you understand how electrical devices actually work in the real world.
We thought you’d never ask...
What is the Knowunity AI companion?
Our AI Companion is a student-focused AI tool that offers more than just answers. Built on millions of Knowunity resources, it provides relevant information, personalised study plans, quizzes, and content directly in the chat, adapting to your individual learning journey.
Where can I download the Knowunity app?
You can download the app from Google Play Store and Apple App Store.
Is Knowunity really free of charge?
That's right! Enjoy free access to study content, connect with fellow students, and get instant help – all at your fingertips.
Most popular content in Physics
Most popular content
Can't find what you're looking for? Explore other subjects.
Students love us — and so will you.
4.6/5
App Store
4.7/5
Google Play
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
Best app on earth! no words because it’s too good
Thomas R
iOS user
Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.
Basil
Android user
This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.
Rohan U
Android user
I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didn’t even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as I’m sure you too will see developments.
Xander S
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE Knowunity AI. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮
Elisha
iOS user
This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now
Paul T
iOS user
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
Best app on earth! no words because it’s too good
Thomas R
iOS user
Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.
Basil
Android user
This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.
Rohan U
Android user
I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didn’t even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as I’m sure you too will see developments.
Xander S
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE Knowunity AI. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮
Elisha
iOS user
This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now
Paul T
iOS user

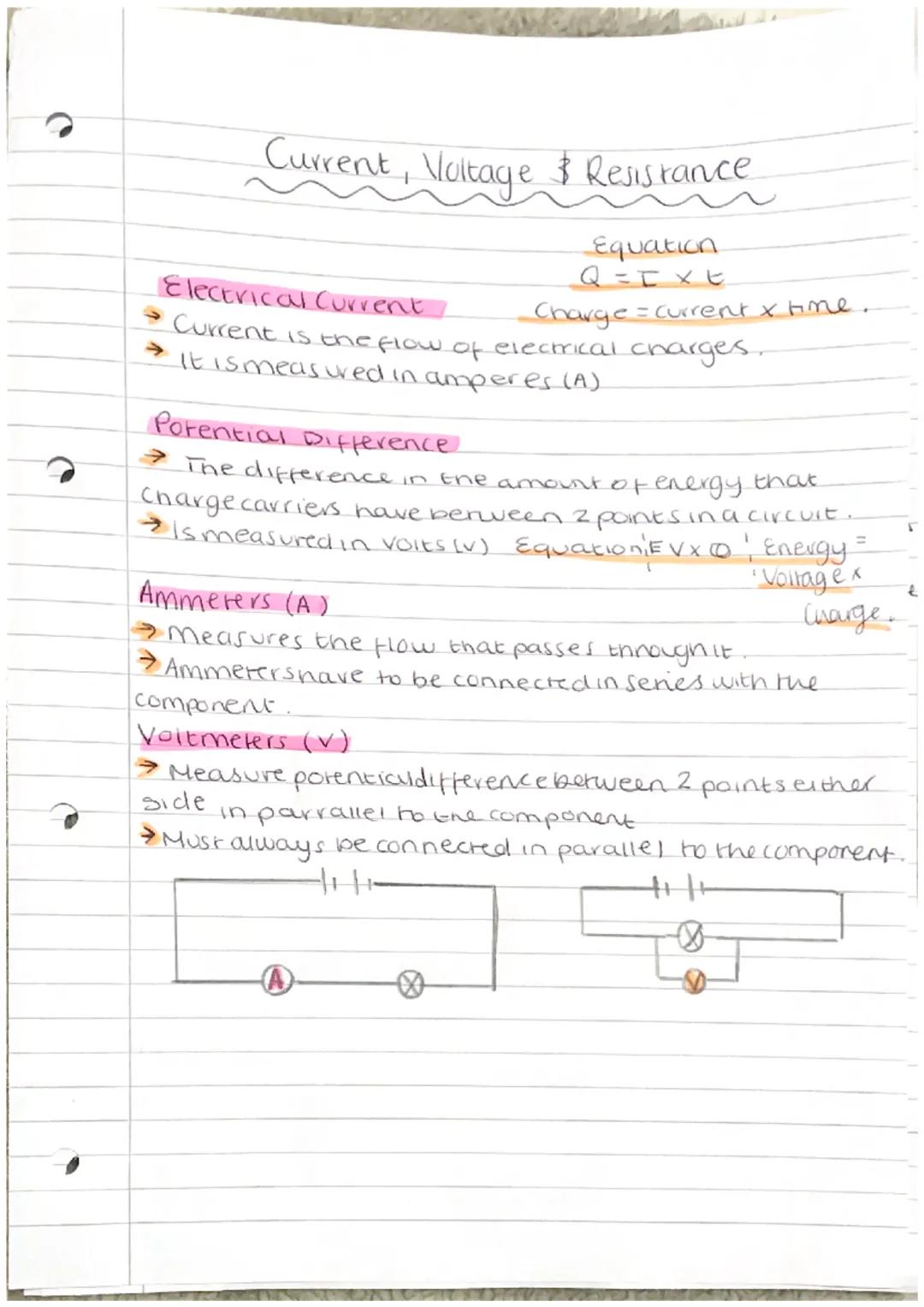

Understanding Current, Voltage, and Resistance
Olivia Davis
@oliviadavis_jxu
Ever wondered how electricity actually flows through your phone charger or bedroom lights? Understanding current, voltage, and resistance is like learning the language of electricity - and it's simpler than you think!
Understanding Current and Potential Difference
Current is basically electricity on the move - it's the flow of electrical charges through a wire or component. Think of it like water flowing through a pipe, except it's tiny charged particles instead of water droplets. We measure current in amperes (A), and there's a handy equation to remember: Q = I × t (charge equals current multiplied by time).
Potential difference (also called voltage) is the energy difference that charge carriers have between two points in a circuit. Imagine it as the 'electrical pressure' that pushes current around a circuit - just like water pressure pushes water through pipes. This is measured in volts (V), and the equation is Energy = Voltage × Charge.
Quick Tip: Think of voltage as the 'push' and current as the 'flow' - you need the push to create the flow!
Getting these measurements right is crucial, and that's where ammeters and voltmeters come in. Ammeters measure current and must be connected in series with components, whilst voltmeters measure potential difference and must always be connected in parallel.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
Measuring Electrical Quantities
When you're working with circuits in your physics practicals, knowing how to use measuring instruments properly can make or break your results. Ammeters are your go-to tool for measuring current - they tell you exactly how much electrical flow is passing through a component.
The key rule with ammeters is that they must be connected in series with whatever you're measuring. This means the current has to flow through the ammeter itself, giving you an accurate reading of the electrical flow.
Voltmeters work differently - they measure the potential difference between two points in your circuit. Unlike ammeters, voltmeters must always be connected in parallel to the component you're investigating. This setup lets them compare the energy levels on either side of the component.
Remember: Series for ammeters (current flows through), parallel for voltmeters (measures across two points)!
Mastering these measurement techniques will set you up perfectly for GCSE physics practicals and help you understand how electrical devices actually work in the real world.
