Magnetism and Electromagnetism: Fundamental Principles and Practical Applications

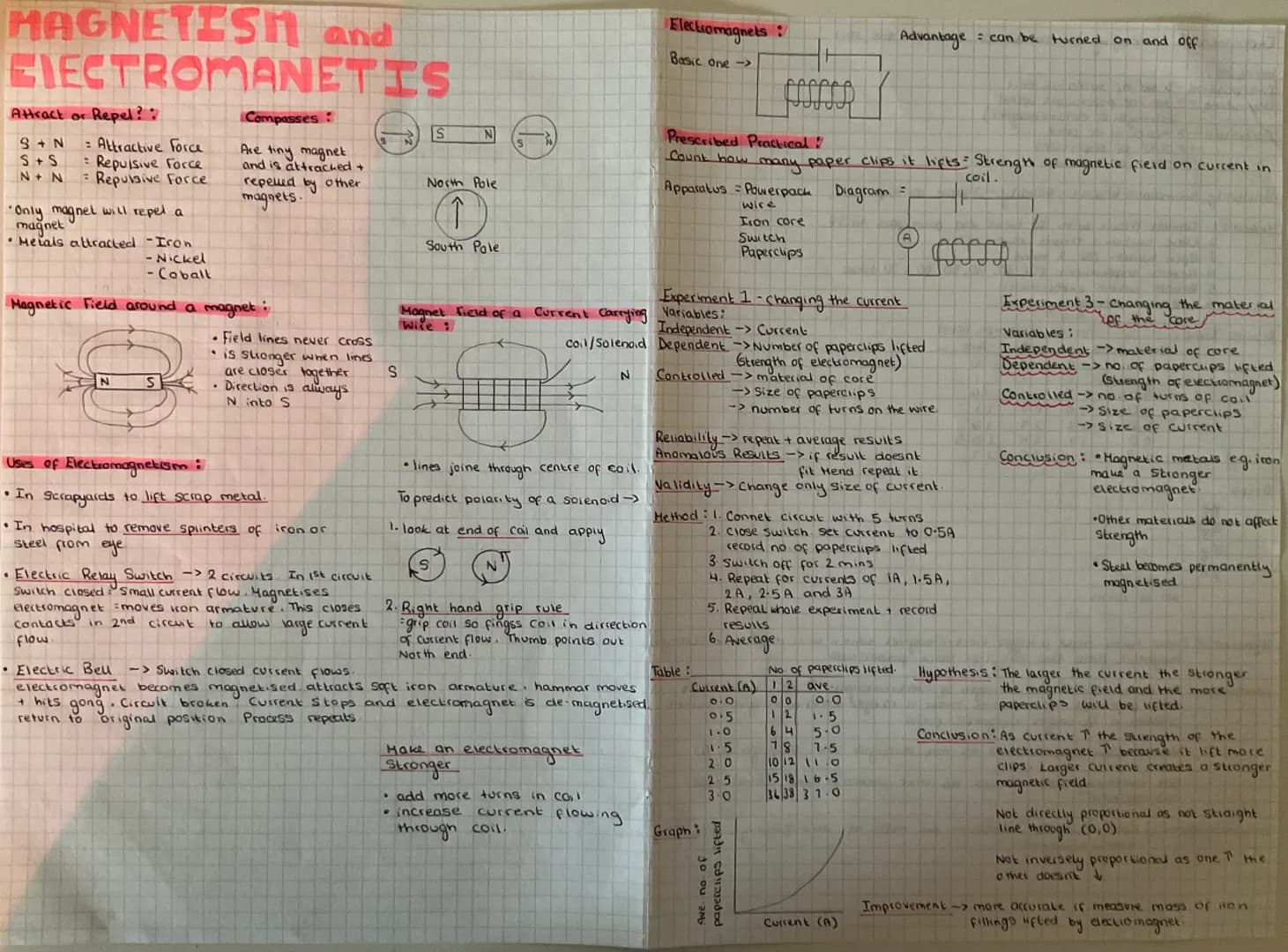

This page provides a comprehensive overview of magnetism and electromagnetism, covering key concepts essential for GCSE physics students. It explores magnetic forces, fields, and various practical applications of electromagnetic principles.
Magnetic Attraction and Repulsion
The document begins by explaining the basic principles of magnetic attraction and repulsion:
Highlight: Opposite poles (N+S) attract, while like poles (S+S or N+N) repel.
It's noted that only magnets can repel other magnets, while certain metals (iron, nickel, and cobalt) are attracted to magnets.
Magnetic Fields
The text describes the properties of magnetic fields around magnets:
Definition: Magnetic field lines never cross, are stronger when closer together, and always flow from North to South.
Compasses and Magnetic Fields
A brief explanation of compasses is provided:
Vocabulary: Compasses are tiny magnets that are attracted to and repelled by other magnets.
Practical Applications of Electromagnetism
The document outlines several practical applications of electromagnetism:
- Scrapyards: Lifting scrap metal
- Hospitals: Removing metal splinters from eyes
- Electric Relay Switches: Controlling circuits
- Electric Bells: Creating sound through electromagnetic action
Electromagnetic Fields
The text explains the magnetic field created by current-carrying wires and coils:
Example: In a solenoid, magnetic field lines join through the center of the coil.
It also introduces the Right Hand Grip Rule for predicting solenoid polarity.
Strengthening Electromagnets
The document provides tips on increasing electromagnet strength:
Highlight: Add more turns to the coil or increase the current flowing through it.
Prescribed Practical: Electromagnet Strength
A detailed experimental procedure is outlined for investigating the relationship between current and electromagnet strength:
- Setup: Power pack, wire, iron core, switch, and paperclips
- Variables: Independent (current), Dependent (number of paperclips lifted), Controlled (core material, paperclip size, wire turns)
- Method: Systematically changing current and recording paperclips lifted
- Data Analysis: Graphing results and drawing conclusions
Quote: "As current increases, the strength of the electromagnet increases because it lifts more clips. Larger current creates a stronger magnetic field."
The document concludes with suggestions for further experiments, such as changing the core material, and potential improvements to the experimental design.
This comprehensive guide serves as an excellent resource for students preparing for GCSE physics magnetism and electromagnetism exam questions and practical assessments.
