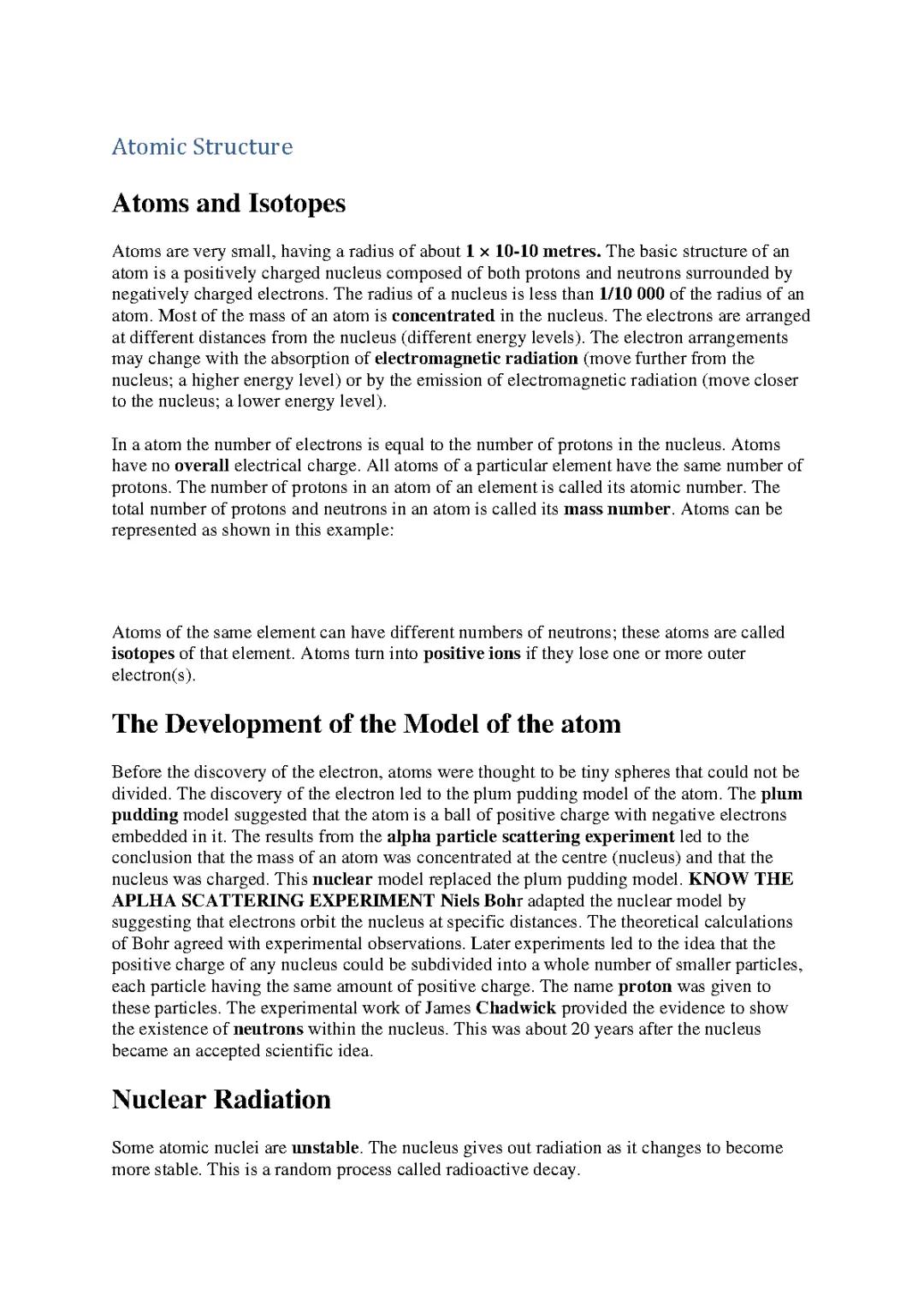

# Atomic Structure

# Atoms and Isotopes

Atoms are very small, having a radius of about 1 x 10-10 metres. The basic structure of an
atom is

Atomic Structure and Development

Your mobile phone contains billions of atoms, each incredibly tiny at just 1 × 10⁻¹⁰ metres across. Think of an atom like a football stadium where the nucleus is a marble at the centre - that's how much empty space there is!

Every atom has a nucleus (containing protons and neutrons) surrounded by electrons whizzing around at different energy levels. The number of protons equals the number of electrons, keeping the atom electrically neutral. Isotopes are atoms of the same element with different numbers of neutrons - like different versions of the same thing.

Scientists didn't always know this structure. They started with the idea that atoms were solid spheres, then discovered the plum pudding model (electrons stuck in positive "pudding"). The famous alpha scattering experiment proved atoms have a dense nucleus, leading to our modern understanding.

Key insight: Most of an atom's mass is crammed into the tiny nucleus - imagine all of a football stadium's weight squeezed into a marble at the centre!

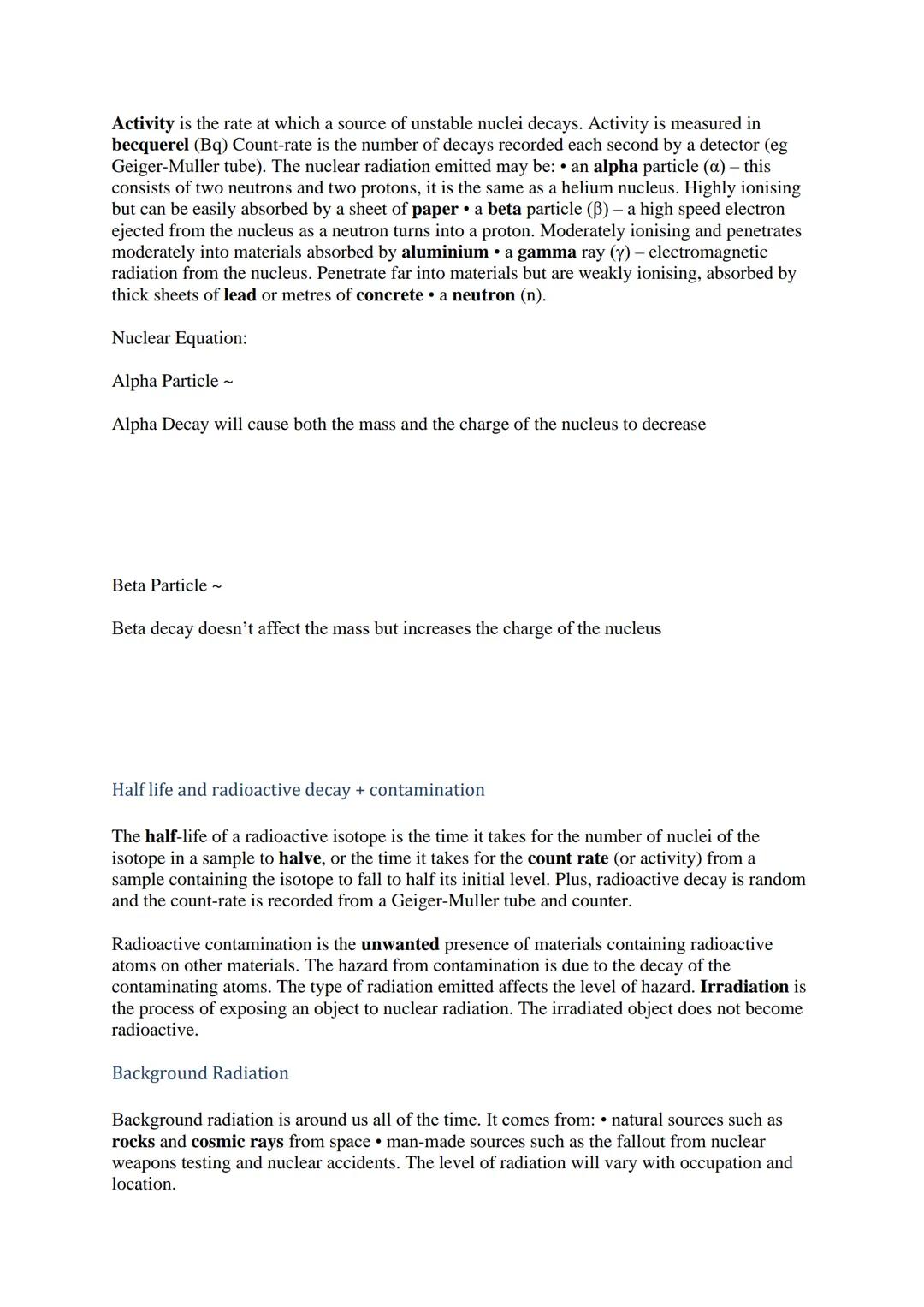

Nuclear Radiation and Decay

Some atomic nuclei are like wobbly chairs - they're unstable and need to release energy to become stable through radioactive decay. This happens randomly, like popcorn popping - you can't predict exactly when each kernel will pop.

There are three main types of nuclear radiation. Alpha particles are chunky $2 protons + 2 neutrons$ but easily stopped by paper. Beta particles are fast electrons that can penetrate further but are stopped by aluminium. Gamma rays are electromagnetic radiation that can penetrate deeply and need thick lead or concrete to stop them.

Half-life is the time it takes for half of a radioactive sample to decay. If you start with 1000 radioactive nuclei and the half-life is 5 years, you'll have 500 left after 5 years, 250 after 10 years, and so on.

Background radiation is everywhere around us - from rocks, cosmic rays, and even man-made sources like nuclear weapons testing. Contamination means radioactive material gets on you, whilst irradiation means radiation passes through you without making you radioactive.

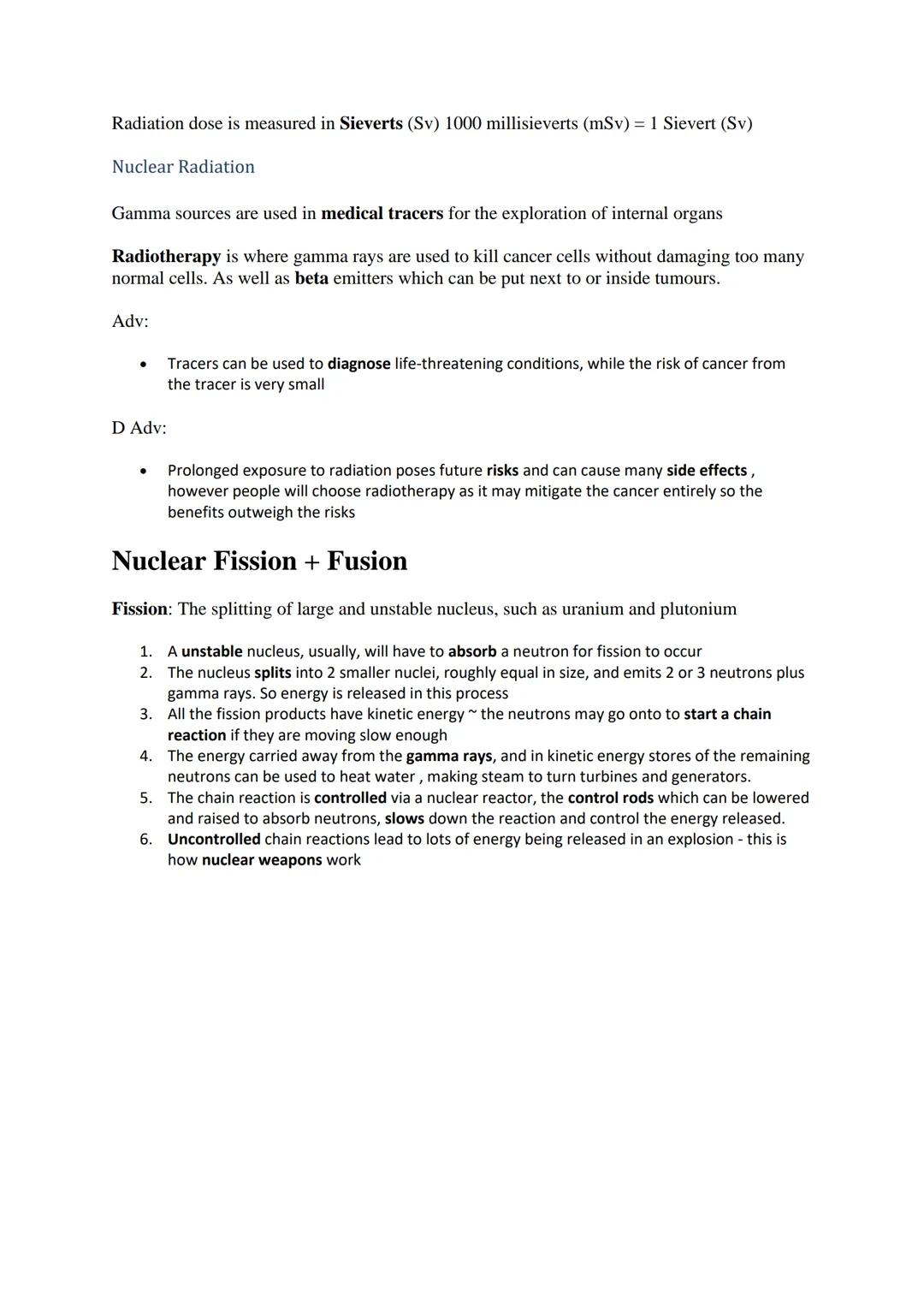

Remember: Radiation dose is measured in Sieverts (Sv) - this tells you how much biological damage the radiation might cause.

Medical Uses and Nuclear Processes

Doctors use gamma rays as medical tracers to see inside your body and in radiotherapy to destroy cancer cells. It's like having a tiny lighthouse inside you that doctors can track, or a precise weapon targeting only the bad cells.

Nuclear fission is when large, unstable nuclei (like uranium) split apart after absorbing a neutron. This creates two smaller nuclei, releases 2-3 new neutrons, plus loads of energy. If those neutrons hit other nuclei, you get a chain reaction.

In nuclear power stations, control rods are lowered or raised to absorb neutrons and control the reaction rate - like having brakes on a car. The energy released heats water into steam, which spins turbines to generate electricity. Without control rods, you'd get an uncontrolled explosion like in nuclear weapons.

The benefits of medical radiation often outweigh the risks. Yes, radiation can cause future health problems, but if it can cure your cancer today, most people choose treatment. It's about weighing up immediate life-saving benefits against small future risks.

Think about it: Nuclear fission in power stations is just a very carefully controlled version of what happens in nuclear weapons - the difference is all about control.
