Understanding Atomic Structure and Electron Arrangement in AQA Physics

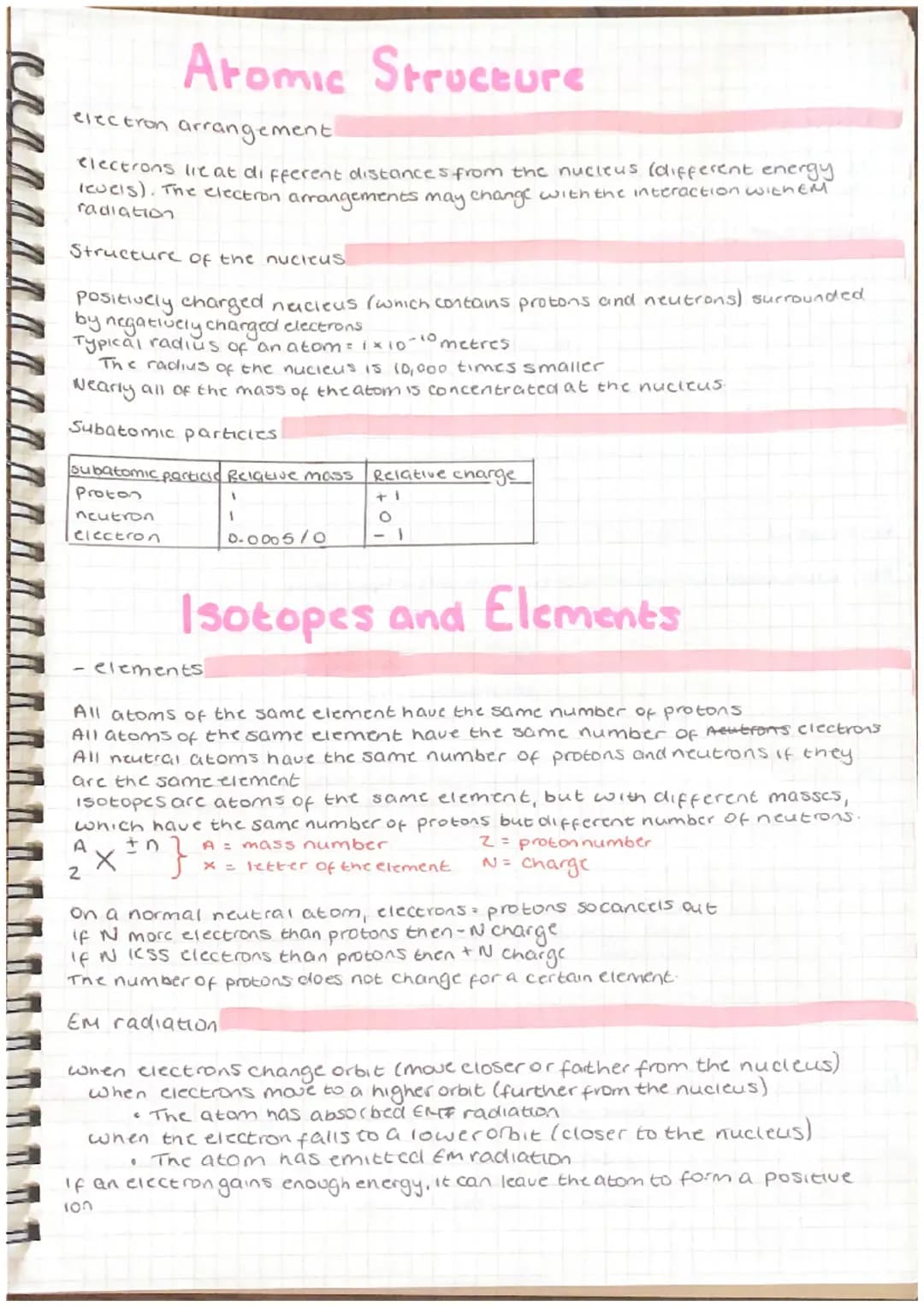

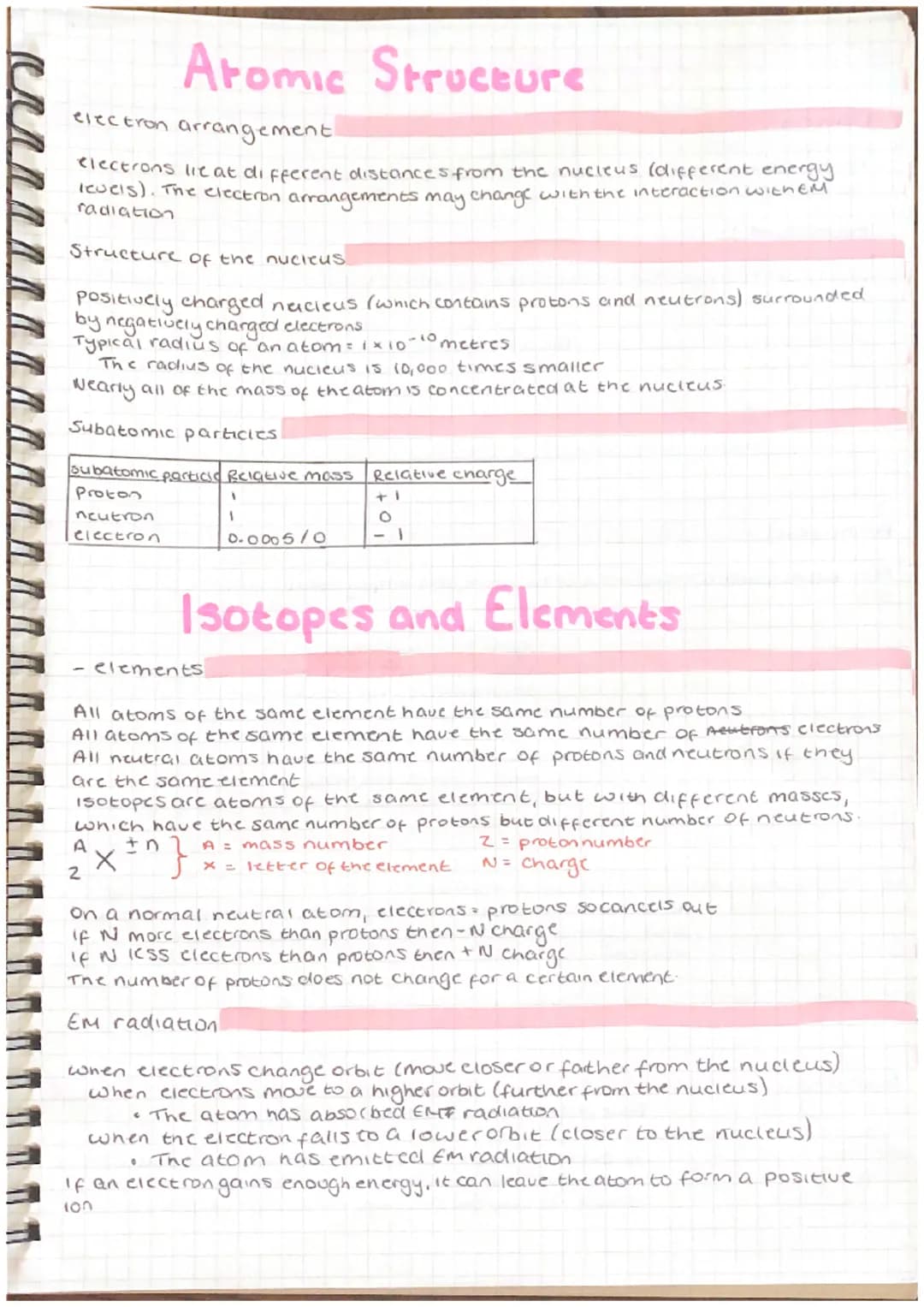

Understanding Atomic Structure and Subatomic Particles

The Atomic Structure Physics forms the foundation of matter, consisting of a positively charged nucleus surrounded by negatively charged electrons. The nucleus, containing protons and neutrons, is remarkably compact - about 10,000 times smaller than the atom's total radius of approximately 1 x 10⁻¹⁰ meters. Despite its tiny size, the nucleus holds nearly all of the atom's mass.

Definition: An atom consists of three main subatomic particles: protons (relative mass 1, charge +1), neutrons (relative mass 1, charge 0), and electrons (relative mass 0.0005, charge -1).

Elements are distinguished by their atomic number (number of protons), while isotopes of the same element have different numbers of neutrons. In neutral atoms, the number of protons equals the number of electrons, resulting in no net charge. When atoms gain or lose electrons, they become ions with either negative or positive charges respectively.

Electromagnetic (EM) radiation plays a crucial role in electron behavior. When electrons absorb energy, they can move to higher energy levels farther from the nucleus. Conversely, when electrons fall to lower energy levels, they emit EM radiation. If an electron gains sufficient energy, it can completely escape the atom, forming a positive ion.

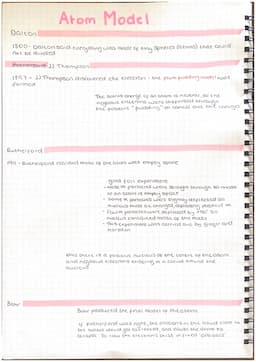

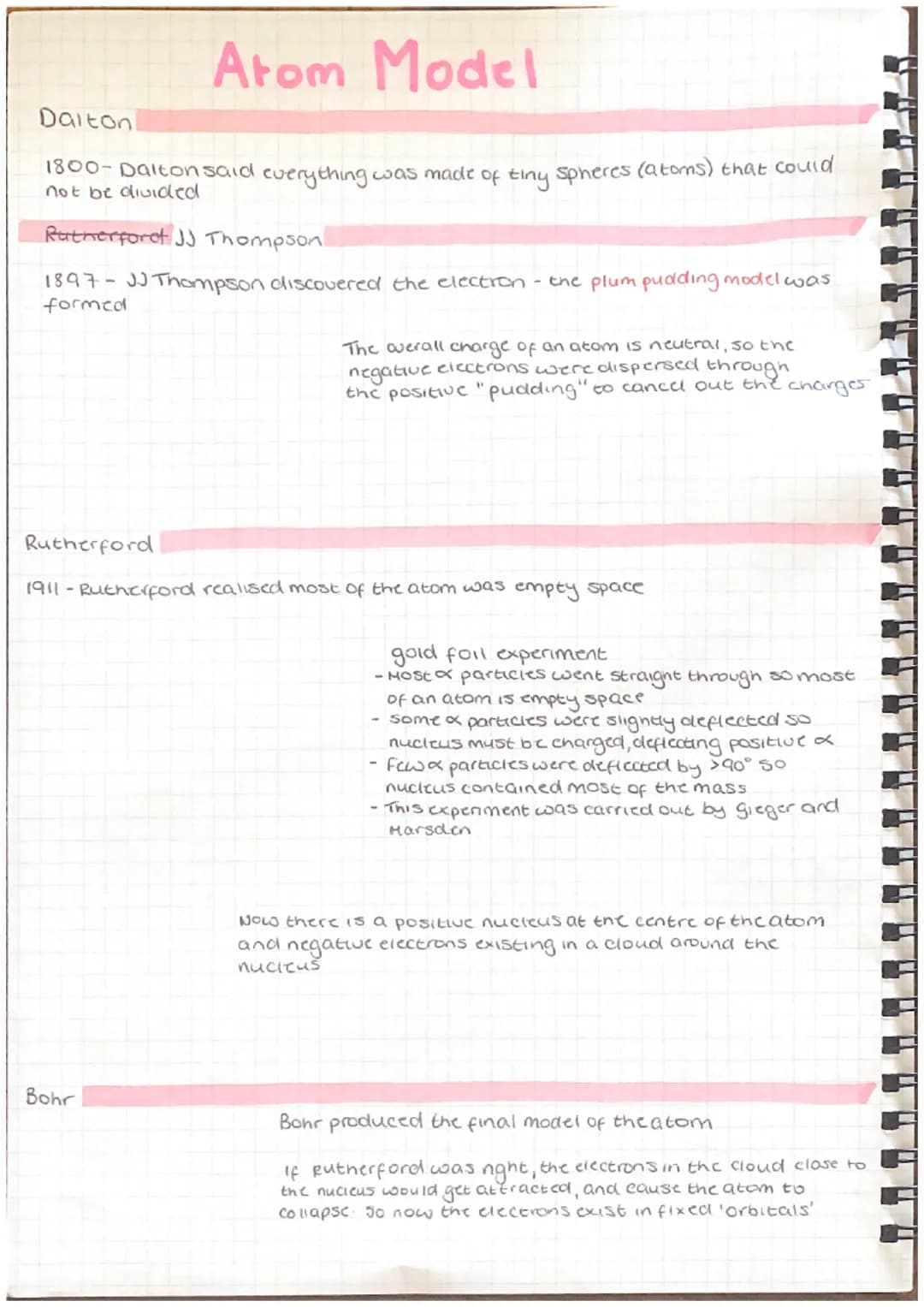

Evolution of Atomic Models Through History

The understanding of atomic structure evolved significantly through various models. In 1800, Dalton proposed that matter consisted of indivisible spheres called atoms. The Rutherford atomic model emerged from the famous gold foil experiment, which revealed that atoms were mostly empty space with a dense, positive nucleus.

Highlight: The gold foil experiment showed that:

• Most alpha particles passed straight through, indicating mostly empty space
• Some particles deflected slightly, suggesting a charged nucleus
• Few particles reflected back, proving a dense, massive nucleus

The Niels Bohr atomic model addressed a critical flaw in Rutherford's model. If electrons simply orbited the nucleus like planets, they would spiral inward and collapse. Bohr proposed that electrons (negatively charged particles) have been shown to orbit the nucleus at distances in fixed energy levels or "orbitals."

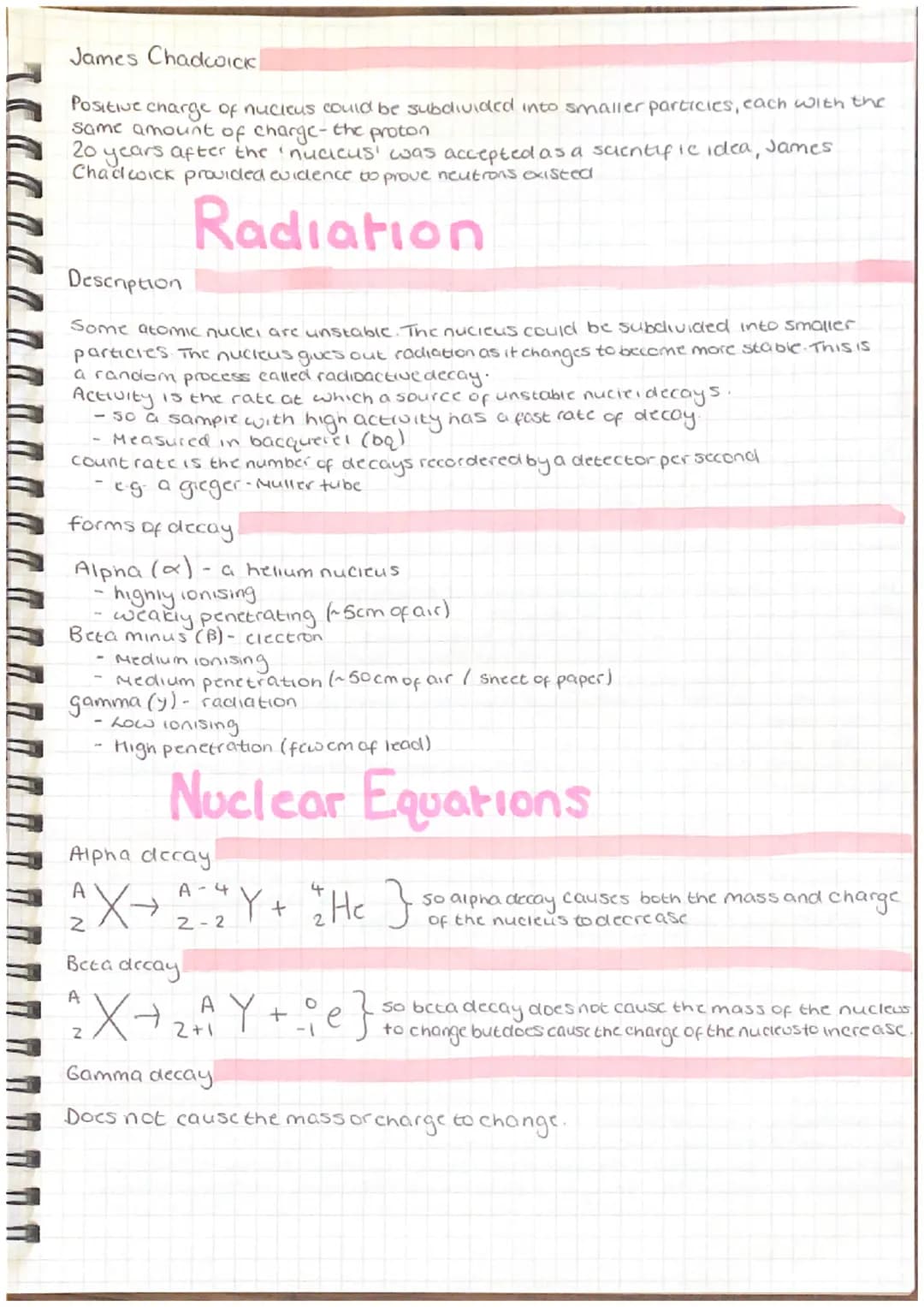

James Chadwick's Contributions and Radiation

James Chadwick's discovery of the neutron in the 1930s completed our modern understanding of atomic structure. James Chadwick experiment provided crucial evidence for the existence of neutrons, neutral particles within the nucleus alongside protons.

Vocabulary: Radioactive decay is a random process where unstable nuclei emit radiation to become more stable. Activity, measured in becquerels (Bq), represents the decay rate.

Three main types of radiation exist:

1. Alpha (α) radiation: Highly ionizing but weakly penetrating helium nuclei
2. Beta (β) radiation: Moderately ionizing and penetrating electrons
3. Gamma (γ) radiation: Weakly ionizing but highly penetrating electromagnetic waves

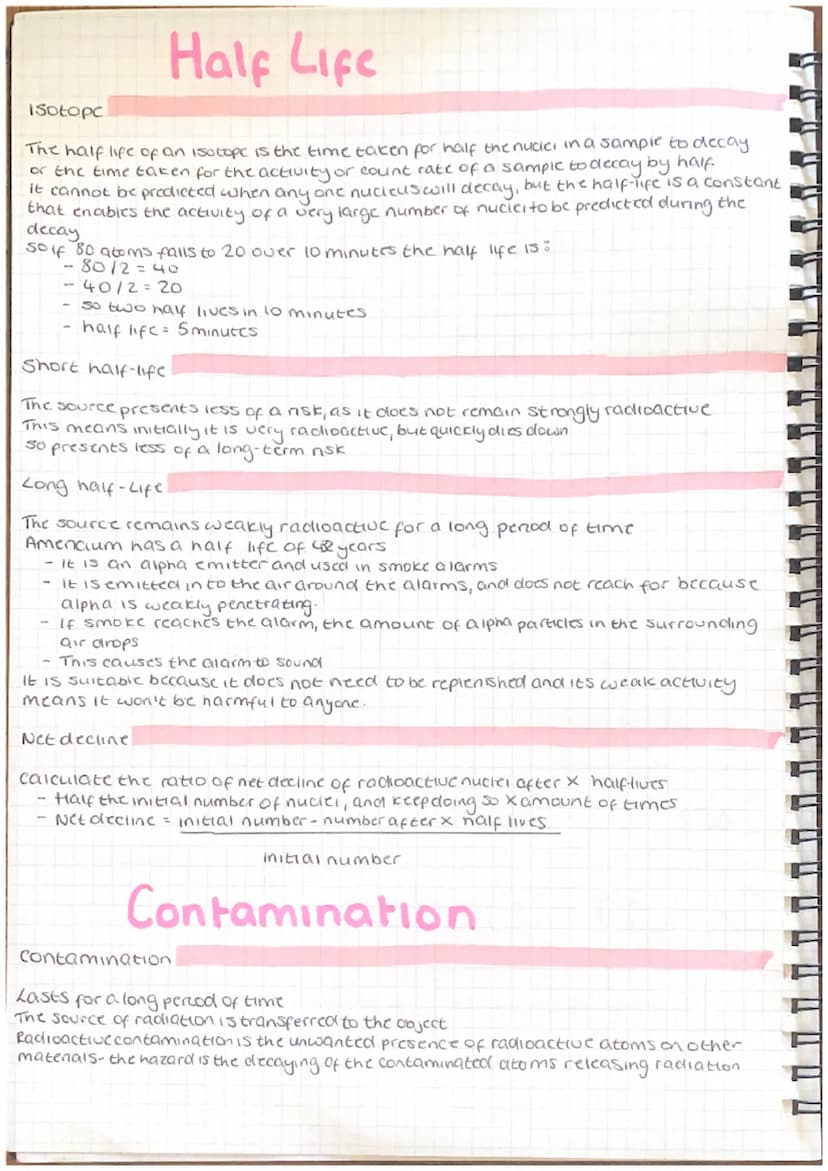

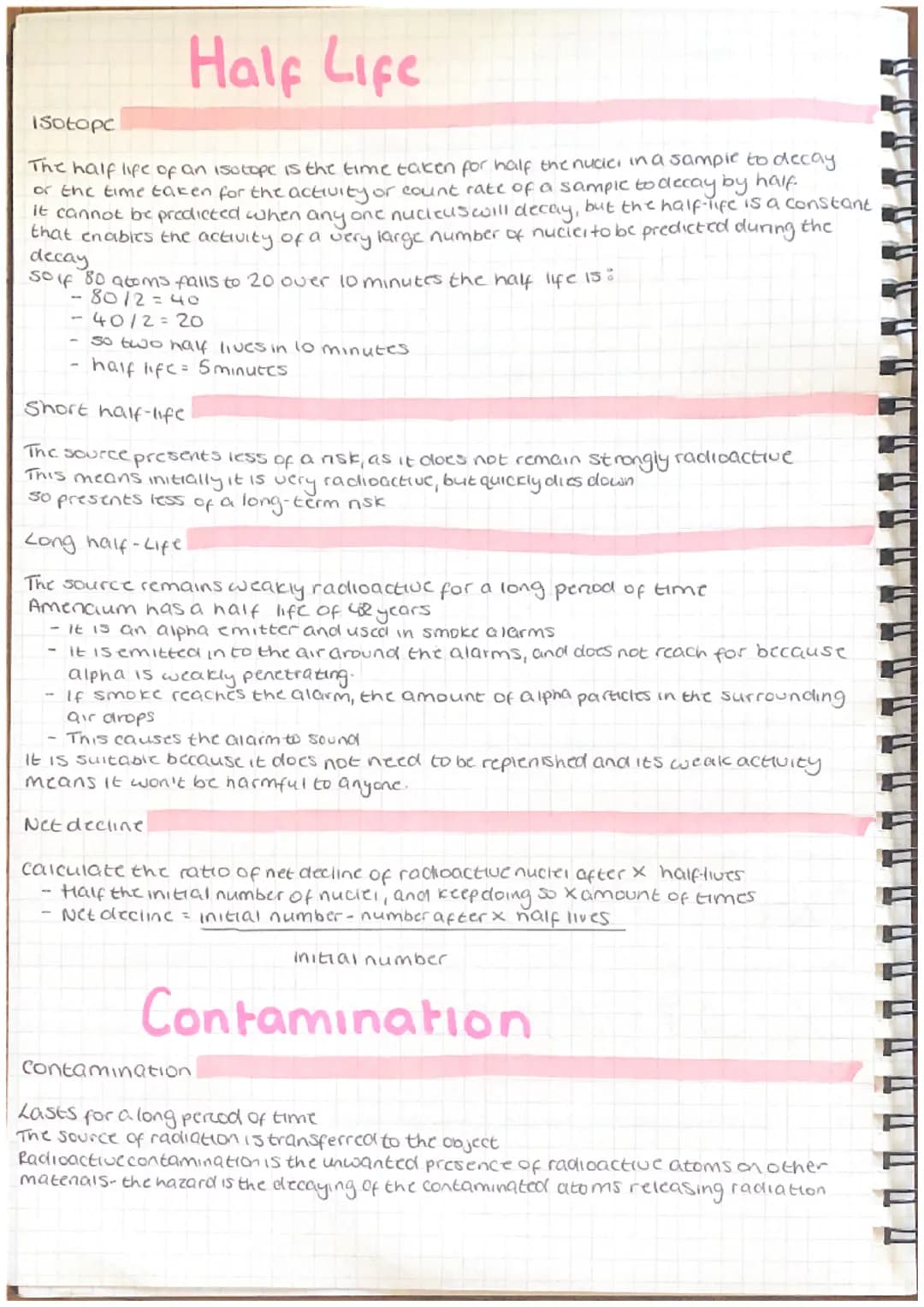

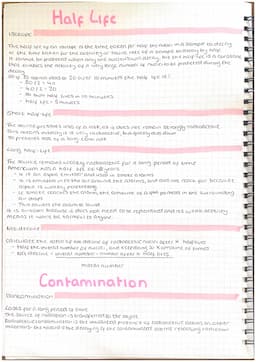

Half-Life and Radioactive Applications

Half-life represents the time required for half of a radioactive sample to decay. While individual atomic decay is unpredictable, half-life provides a reliable measure for large numbers of atoms. This concept has practical applications in various fields.

Example: If a sample's activity decreases from 80 to 20 counts over 10 minutes, the half-life is 5 minutes because:

• First half-life: 80 → 40
• Second half-life: 40 → 20

Radioactive materials with different half-lives serve various purposes. Short half-life isotopes pose intense but brief radiation risks, while long half-life isotopes, like Americium in smoke detectors, provide sustained but lower-level radiation. Contamination occurs when radioactive atoms transfer to other materials, creating ongoing radiation hazards.

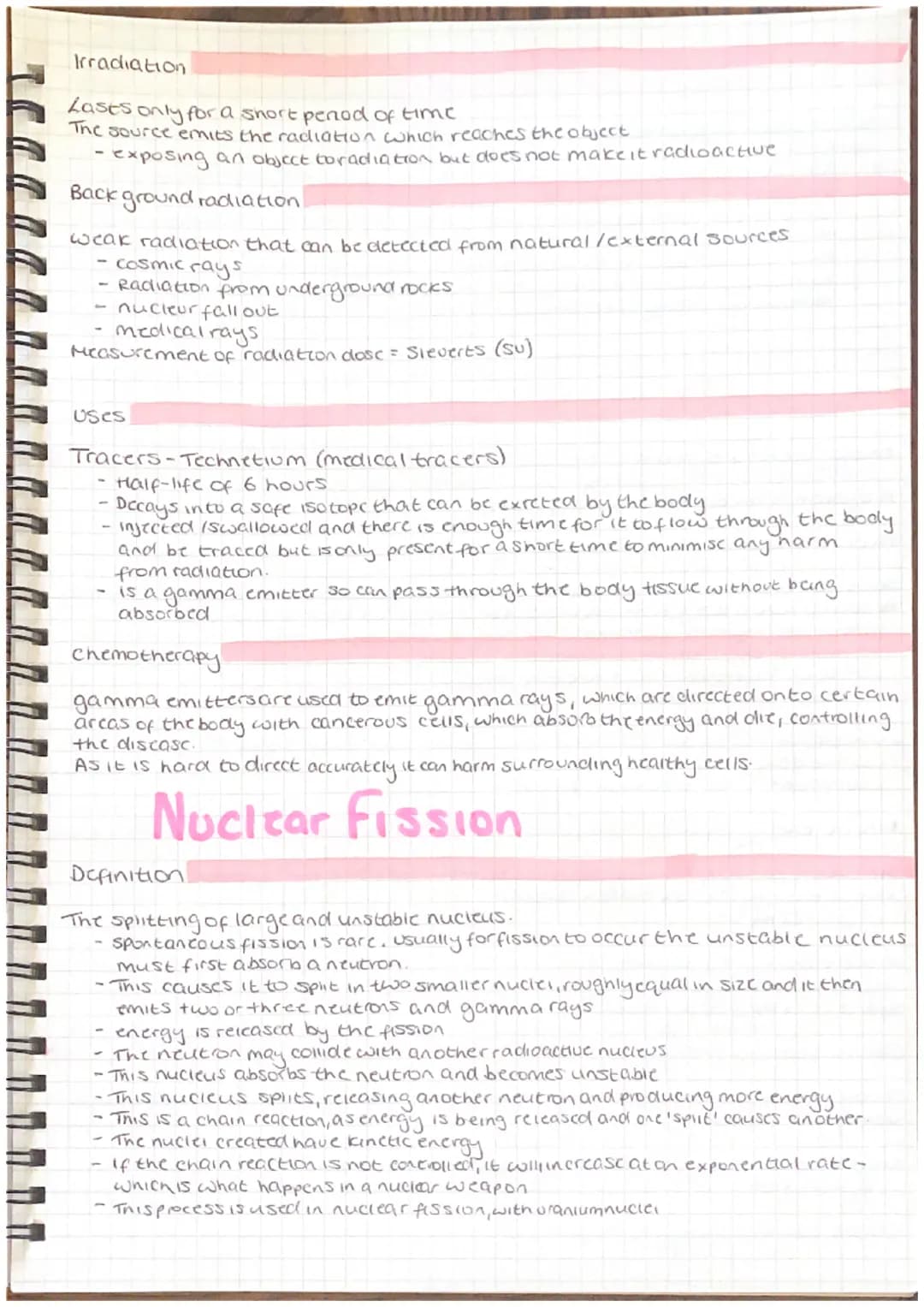

Understanding Irradiation and Nuclear Processes in Physics

Atomic Structure Physics and radiation processes are fundamental concepts in nuclear physics. Irradiation occurs when an object is exposed to radiation without becoming radioactive itself. The radiation source emits particles or waves that interact with the target object for a limited time period.

Background radiation exists naturally in our environment from multiple sources. This includes cosmic rays from space, radiation from underground rocks, and residual nuclear fallout. Medical facilities also contribute to background radiation through diagnostic equipment. The standard measurement unit for radiation dose is the Sievert (Sv).

Medical applications utilize radioactive tracers like Technetium-99m, which has specific properties making it ideal for diagnostic imaging. With a Radioactive decay half-life of 6 hours, it decays into a safe isotope that the body can eliminate naturally. As a gamma emitter, it can penetrate body tissues without significant absorption, allowing doctors to track its movement through the body while minimizing radiation exposure.

Definition: Irradiation is the process of exposing an object to radiation without making it radioactive. The radiation interacts with the object temporarily but does not leave behind radioactive particles.

Nuclear Fission and Fusion Processes

Nuclear fission involves splitting large unstable nuclei into smaller ones. While spontaneous fission is rare, the process typically begins when an unstable nucleus absorbs a neutron. This triggers the nucleus to split into two roughly equal parts, releasing additional neutrons and gamma rays along with significant energy.

The released neutrons can trigger a chain reaction by colliding with other radioactive nuclei. Each subsequent split releases more neutrons and energy, creating a self-sustaining process. In nuclear power plants, this chain reaction is carefully controlled, while nuclear weapons allow it to proceed exponentially.

The Rutherford atomic model helped explain how nuclear processes work at the atomic level. The model, which was later refined by Niels Bohr atomic model, showed how electrons (negatively charged particles) have been shown to orbit the nucleus at distances that affect nuclear reactions.

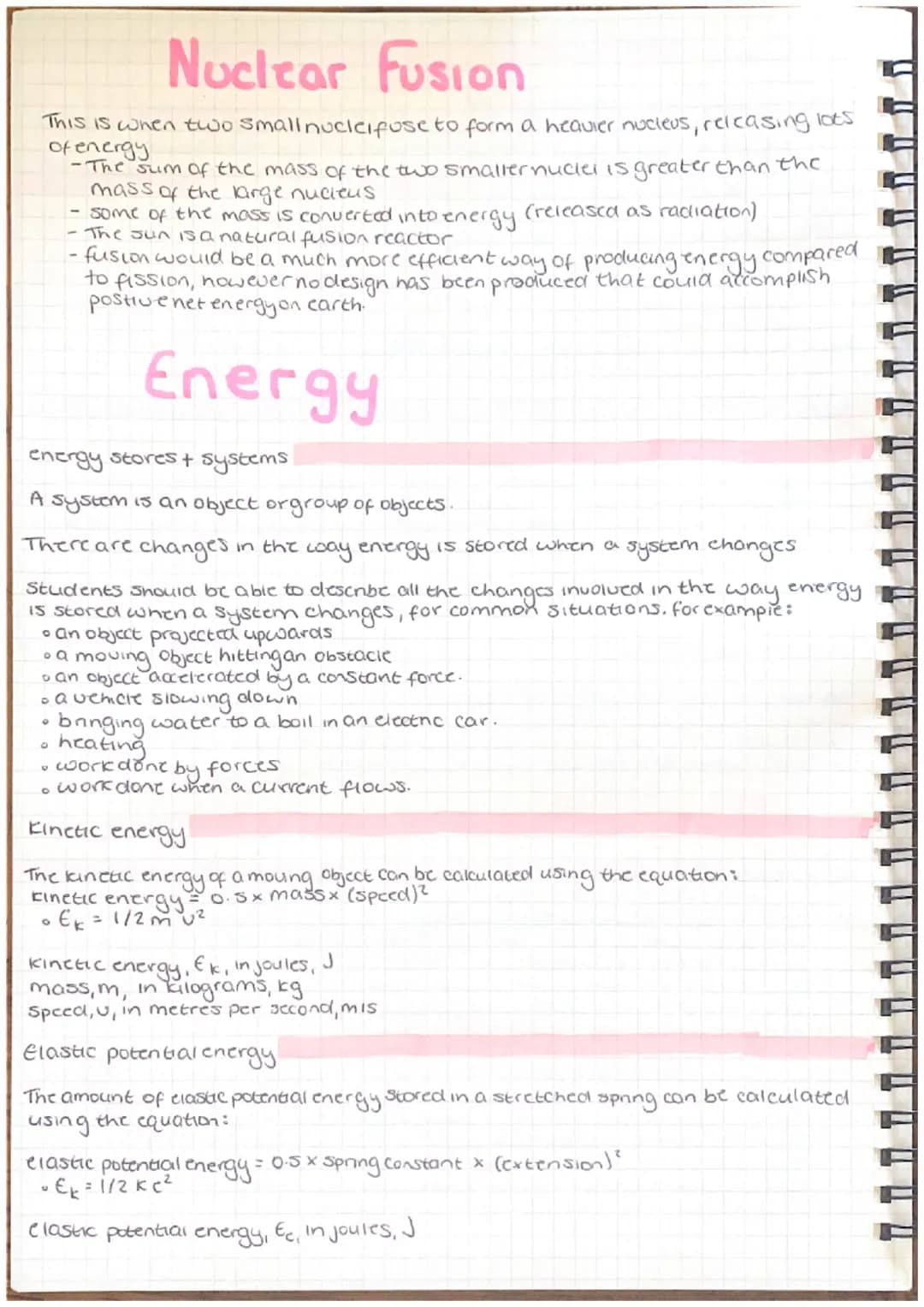

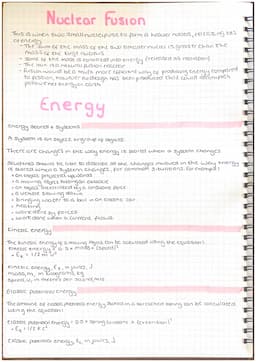

Highlight: Nuclear fusion, unlike fission, combines small nuclei to form larger ones. This process powers the Sun and releases enormous energy, though creating sustainable fusion reactions on Earth remains challenging.

Energy Transfer and Storage Systems

Energy exists in various forms and can transfer between different storage systems. When analyzing energy changes, it's crucial to consider the entire system - defined as an object or group of objects that interact. Common scenarios include projectile motion, collisions, acceleration, and thermal processes.

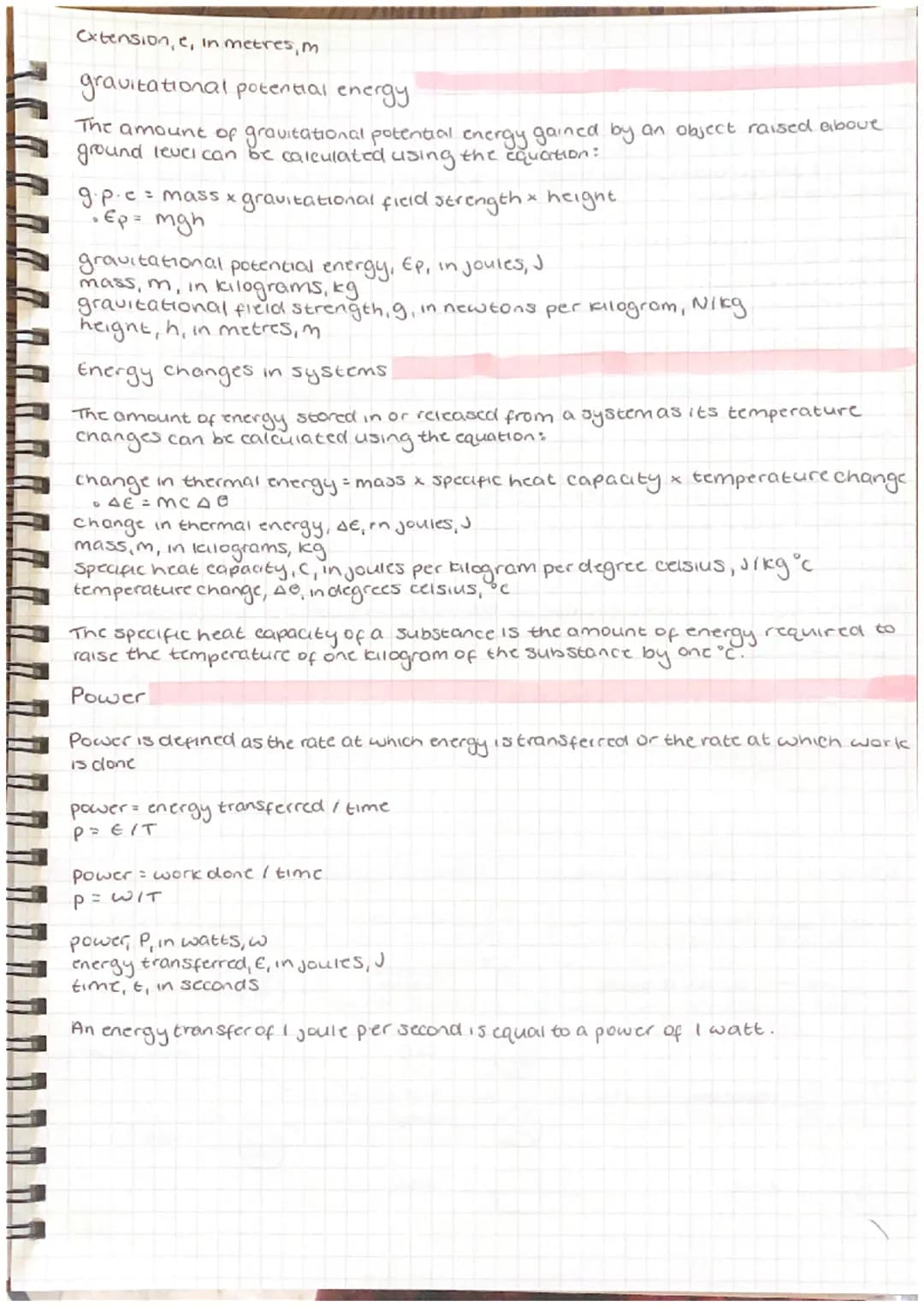

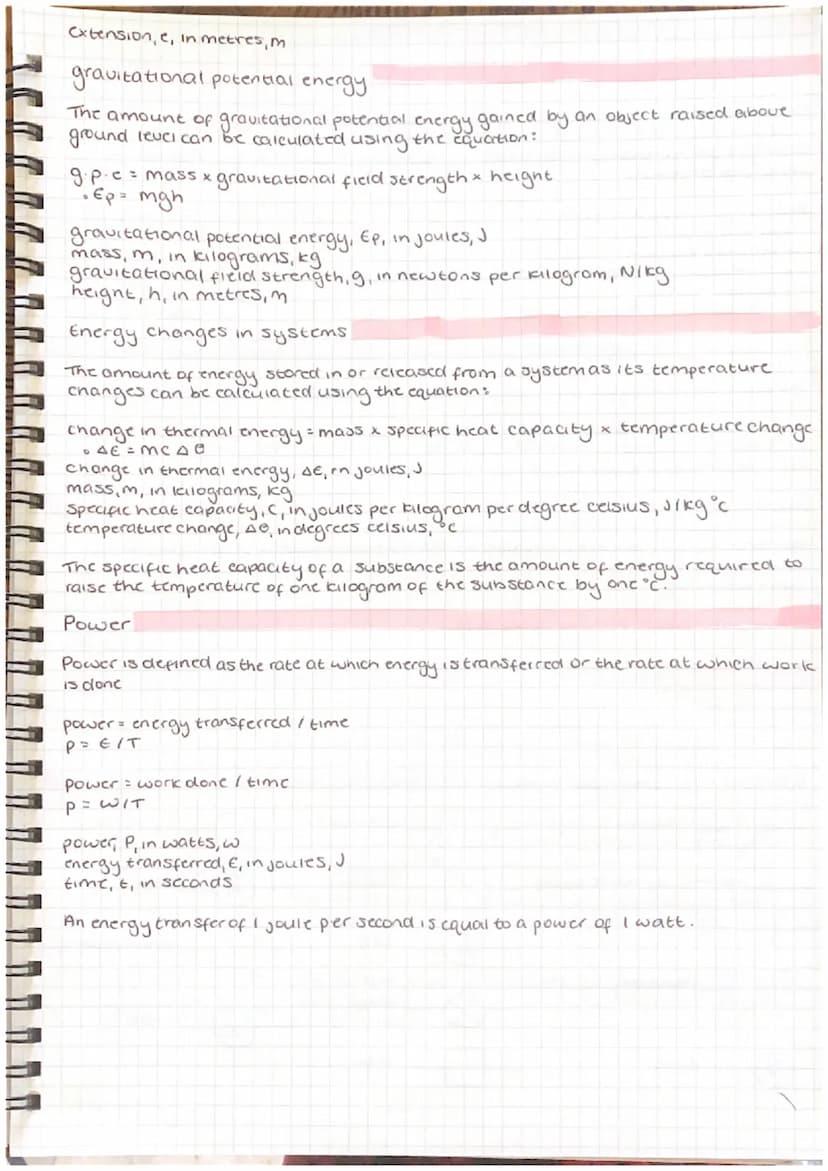

Kinetic energy of moving objects can be calculated using the equation Ek = ½mv², where m is mass and v is velocity. Similarly, gravitational potential energy follows the equation Ep = mgh, where h is height and g is gravitational field strength. These equations help quantify energy transformations in physical systems.

The specific heat capacity of materials determines how much energy is needed to change their temperature. This relationship is expressed as ΔE = mcΔθ, where m is mass, c is specific heat capacity, and Δθ is temperature change.

Example: When a car brakes, kinetic energy transforms into thermal energy through friction. The energy isn't lost but converts to a less useful form, demonstrating energy conservation.

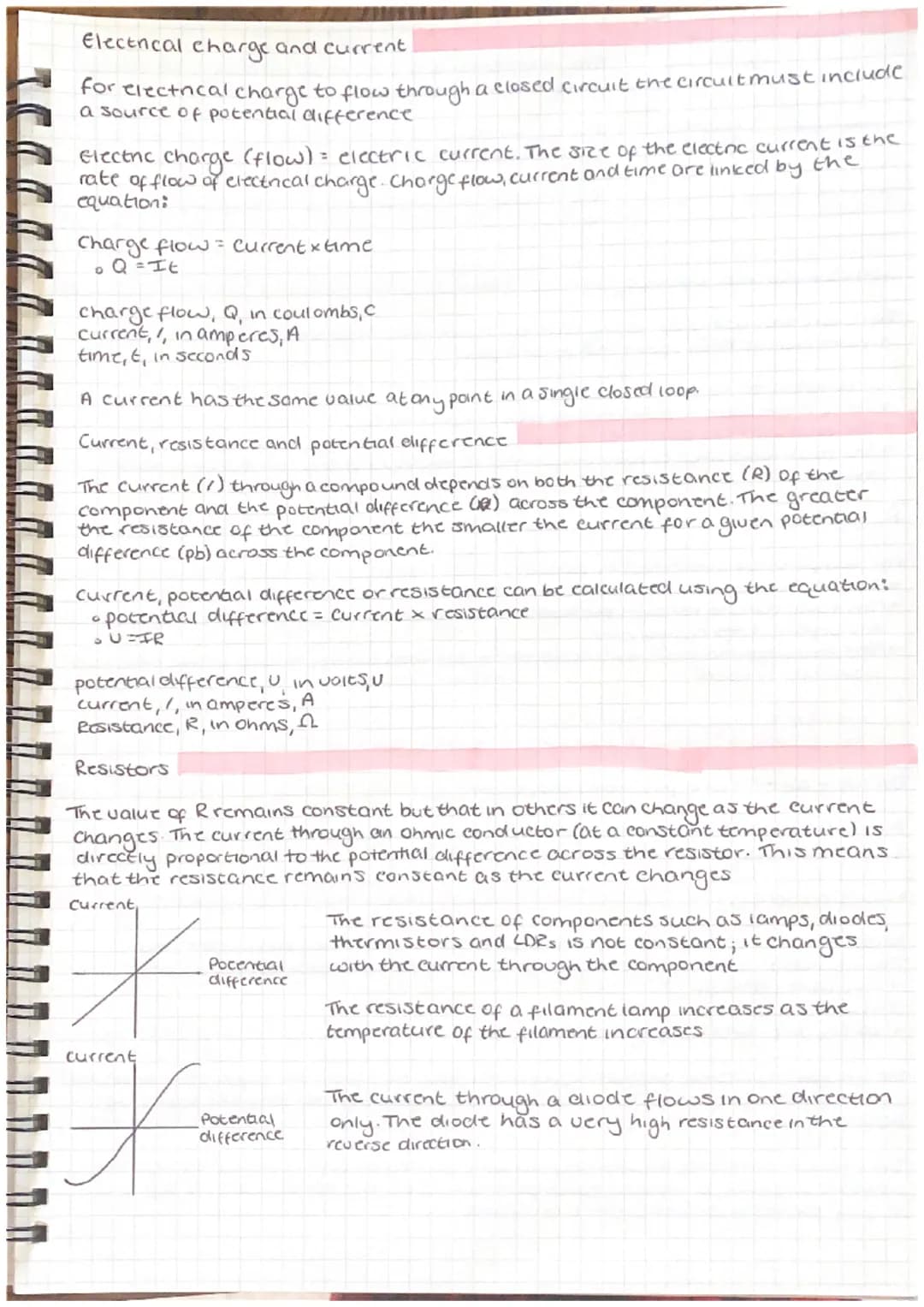

Electrical Circuits and Current Flow

Understanding electrical circuits requires knowledge of charge flow, current, and potential difference. Current (I) represents the rate of charge flow through a circuit, measured in amperes (A). The relationship between charge flow (Q), current, and time $t$ follows Q = It.

In circuit components, resistance (R) affects current flow according to Ohm's Law: V = IR, where V is potential difference. Different components exhibit varying resistance characteristics. While some maintain constant resistance (ohmic conductors), others like thermistors and light-dependent resistors (LDRs) show variable resistance depending on conditions.

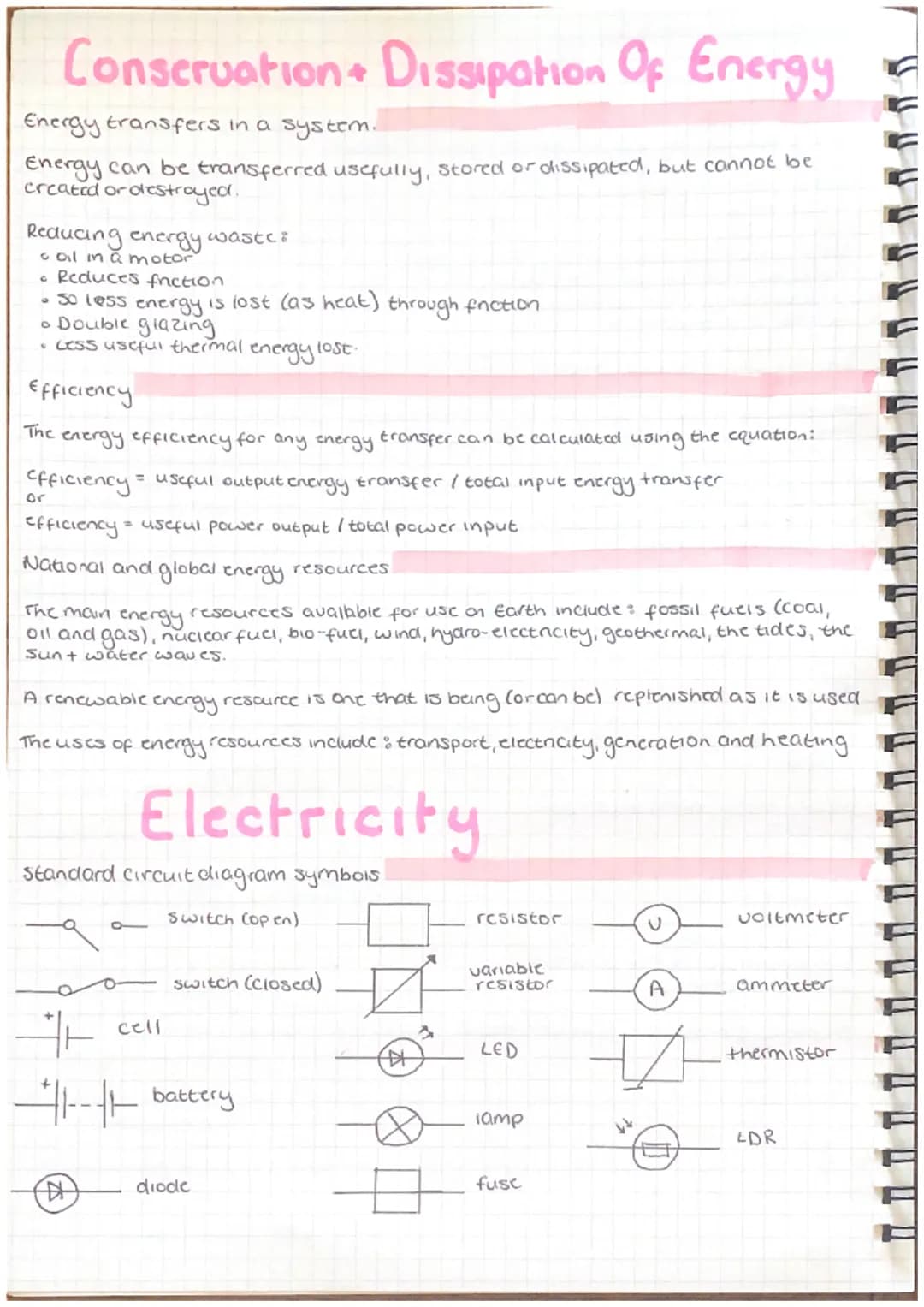

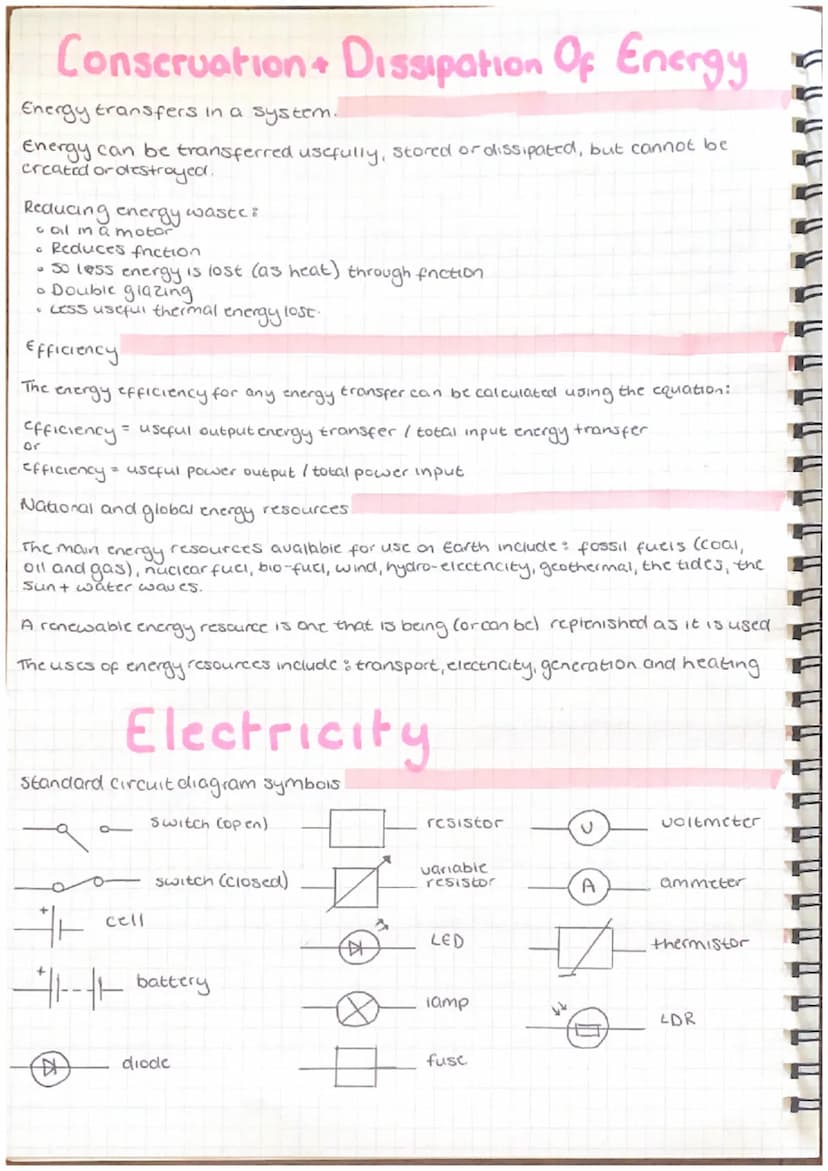

Standard circuit symbols provide a universal language for representing electrical components. These include basic elements like cells, switches, and resistors, as well as more complex components like diodes and variable resistors.

Vocabulary: Potential difference (voltage) is the driving force that moves electrical charge through a circuit, measured in volts (V).

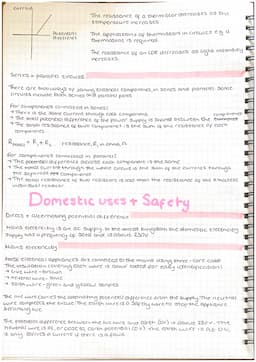

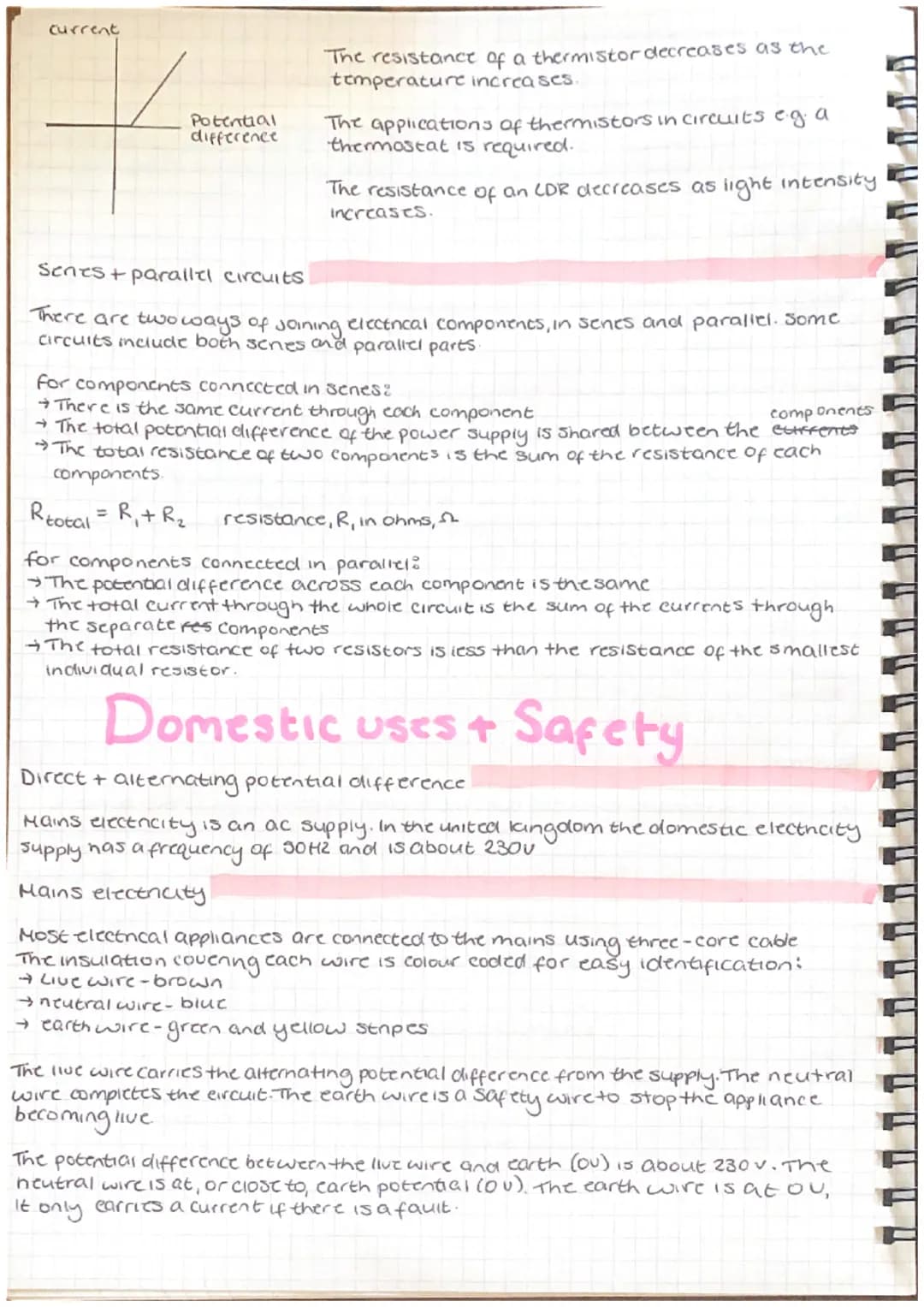

Understanding Electrical Circuits and Safety in Physics

Atomic Structure Physics fundamentals help us understand how electrical circuits work at their most basic level. When examining current flow and potential difference in circuits, we must consider how electrons move through different arrangements of components.

In series circuits, components are connected end-to-end in a single path. The current remains constant throughout the circuit while the potential difference is divided among the components. This follows a key mathematical relationship where the total resistance equals the sum of individual component resistances (Rtotal = R₁ + R₂). This principle is crucial for designing circuits where precise voltage drops are needed across specific components.

For parallel circuits, components are connected across different branches. Each branch experiences the same potential difference, while the total current splits between the paths. The total resistance in parallel is always less than the smallest individual resistance, making parallel circuits ideal for applications requiring multiple devices to operate independently at the same voltage.

Definition: A thermistor is a temperature-dependent resistor whose resistance decreases as temperature increases, while a Light Dependent Resistor (LDR) shows decreased resistance with increased light intensity.

Highlight: In UK domestic electricity, the mains supply operates at 230V with a frequency of 50Hz, using a three-core cable system for safety and proper operation.

Domestic Electricity Safety and Applications

The safe implementation of domestic electricity relies on proper understanding of the three-wire system used in household wiring. Each wire serves a specific purpose and is color-coded for safety: brown for live, blue for neutral, and green/yellow stripes for earth.

The live wire carries the alternating potential difference of approximately 230V, while the neutral wire completes the circuit and typically stays near earth potential (0V). The earth wire acts as a crucial safety feature, only conducting current in fault conditions to prevent appliances from becoming dangerously "live."

Understanding these concepts is essential for both practical applications and safety. Modern electrical systems incorporate various safety devices like circuit breakers and residual current devices (RCDs) that rely on these principles to protect users from electrical hazards.

Example: In a household circuit, if a fault occurs causing the metal casing of an appliance to become live, the earth wire provides a low-resistance path for the current to flow safely to ground, triggering protective devices and preventing electric shock.

Vocabulary: Alternating Current (AC) is the type of electrical current used in homes where the direction of current flow periodically reverses, typically 50 times per second in the UK (50Hz).
