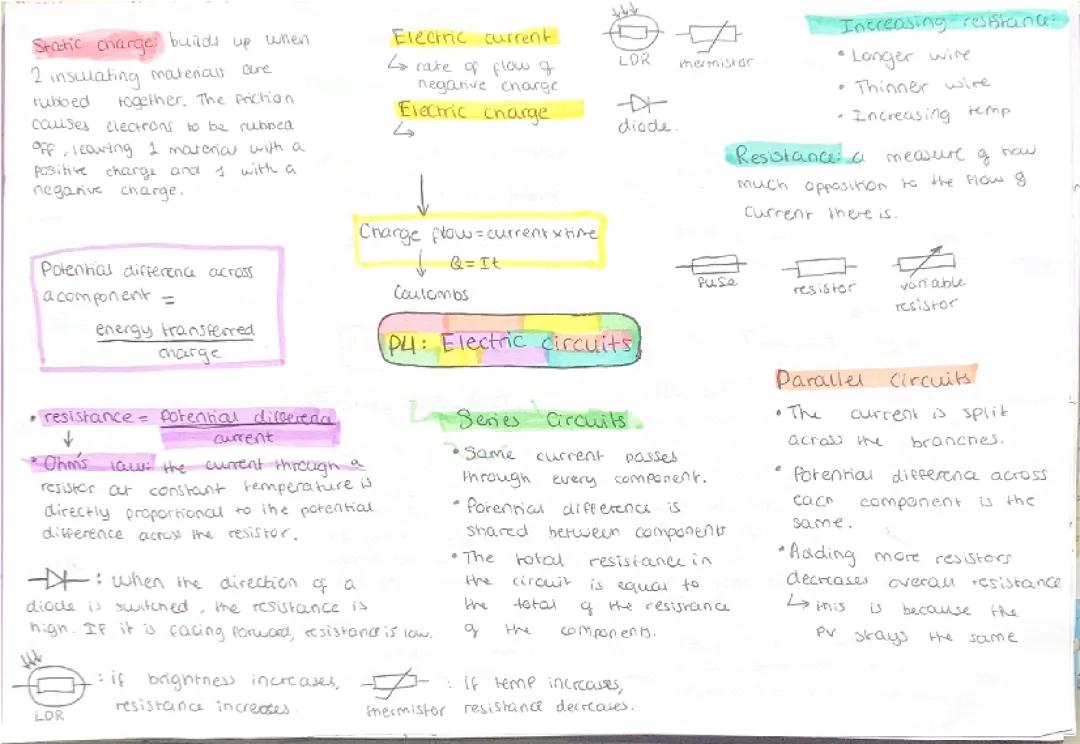

Electric Circuits and Current

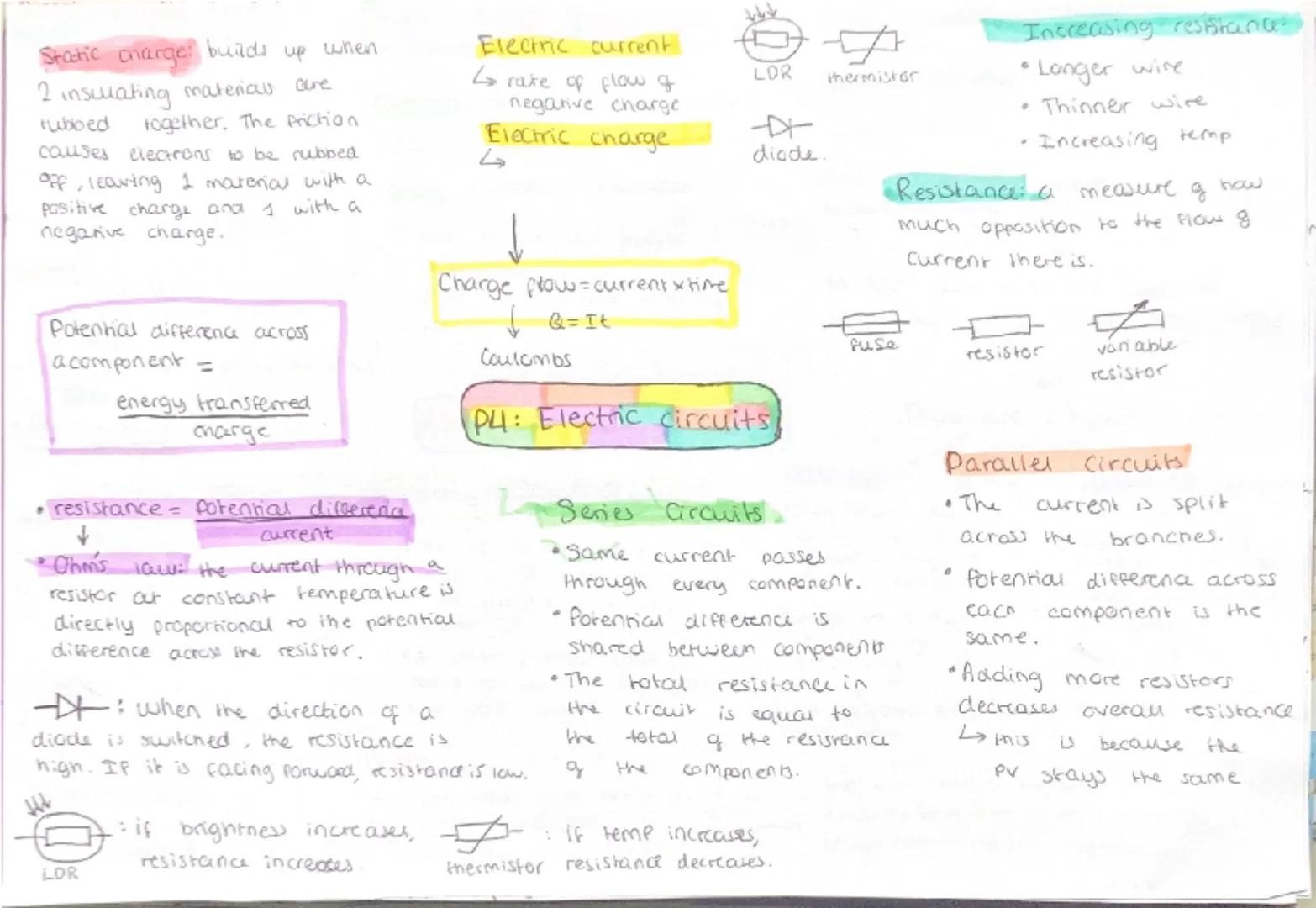

Static electricity happens when you rub two insulating materials together - think about rubbing a balloon on your hair. The friction causes electrons to transfer from one material to another, leaving one positively charged and one negatively charged.

Electric current is simply the rate at which electric charge flows through a circuit. You can calculate it using the formula Q = It, where Q is charge (in coulombs), I is current (in amps), and t is time (in seconds). This formula shows that more current flowing for longer means more charge has moved.

Ohm's law is your best mate for understanding circuits: current through a resistor is directly proportional to the potential difference across it (as long as temperature stays constant). This means doubling the voltage doubles the current. Resistance measures how much a component opposes the flow of current - think of it like a narrow doorway slowing down a crowd.

Quick Tip: Remember that potential difference = energy transferred ÷ charge, and resistance = potential difference ÷ current. These relationships will pop up in nearly every electricity question!

Several factors affect resistance: longer wires have more resistance, thinner wires increase resistance, and higher temperatures usually increase resistance too. Special components like LDRs (light-dependent resistors) decrease resistance when light increases, whilst thermistors decrease resistance as temperature rises. Diodes are clever - they have high resistance in one direction but low resistance when current flows the 'right' way.

Series circuits are like a single-lane road where current has only one path. Current stays the same through every component, but potential difference gets shared between components. The total resistance equals the sum of all individual resistances.

Parallel circuits work differently - current splits across multiple branches like cars choosing different lanes. Each component gets the full potential difference, and adding more resistors actually decreases overall resistance because you're giving current more paths to follow.
