Series vs Parallel Circuits: The Basics

Ever wondered why your Christmas lights all go out when one bulb fails? That's because they're wired in series circuits, where components connect end-to-end like a chain. In series, current flows through each component one after another, so if one breaks, the whole circuit stops working.

Parallel circuits work completely differently - they're like having multiple roads to the same destination. Components connect separately to the power supply, so you can switch each one on or off independently. This is why your bedroom light doesn't turn off when you switch on your desk lamp.

Here's what makes them different: In series circuits, potential difference gets shared between components but current stays the same throughout. In parallel circuits, it's the opposite - potential difference stays the same across all branches, but current splits between them.

Quick Test Tip: Remember that total resistance in series circuits increases (like adding obstacles), whilst in parallel circuits it decreases (like adding more pathways for current to flow).

Key Circuit Rules You Need to Know

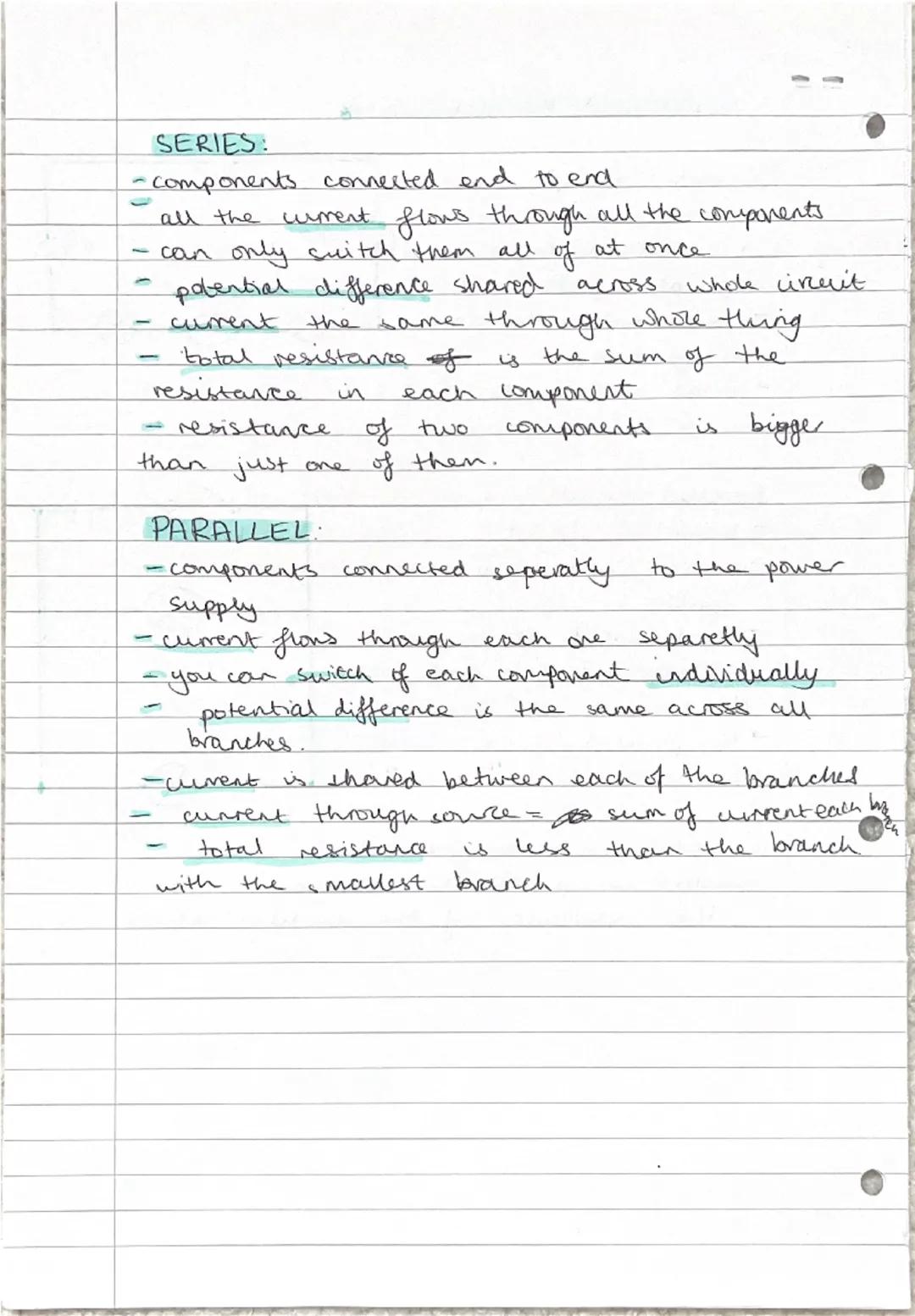

Series circuits follow simple rules that'll help you tackle exam questions confidently. Since there's only one path for current, it's the same everywhere in the circuit. To find total resistance, just add up all the individual resistances: R₁ + R₂ + R₃...

Parallel circuits are trickier but follow logical patterns. Current splits at junctions, so the total current entering equals the sum of currents in each branch. What's brilliant about parallel circuits is that total resistance is always less than the smallest individual resistor.

The potential difference (voltage) behaves oppositely in each type. Series circuits share voltage between components, whilst parallel circuits give the same voltage to every branch. This is why parallel wiring is used in your home - every appliance gets the full mains voltage.

Exam Hack: If you're stuck on a circuit question, first identify whether it's series or parallel, then apply the appropriate rules for current, voltage, and resistance.

Essential Circuit Symbols and Charge Flow

Learning circuit symbols might seem boring, but they're your key to understanding any electrical diagram. The basics include cells and batteries (your power sources), resistors, switches (open and closed), lamps, ammeters (measure current), and voltmeters (measure potential difference).

Electrical charge only flows when you have a complete, closed circuit - no gaps or open switches allowed. Think of it like water flowing through pipes; if there's a break anywhere, nothing moves. You also need a source of potential difference, like a battery, to push the charge around.

The relationship between charge, current, and time is dead simple: Q = I × t. Current is just the rate of charge flow, so the faster charge moves, the greater the current. This formula appears in loads of exam questions, so make sure you can rearrange it.

Memory Trick: Remember that current flows from positive to negative terminals, even though electrons actually move the opposite way - this is called conventional current flow.

Ohm's Law and Component Behaviour

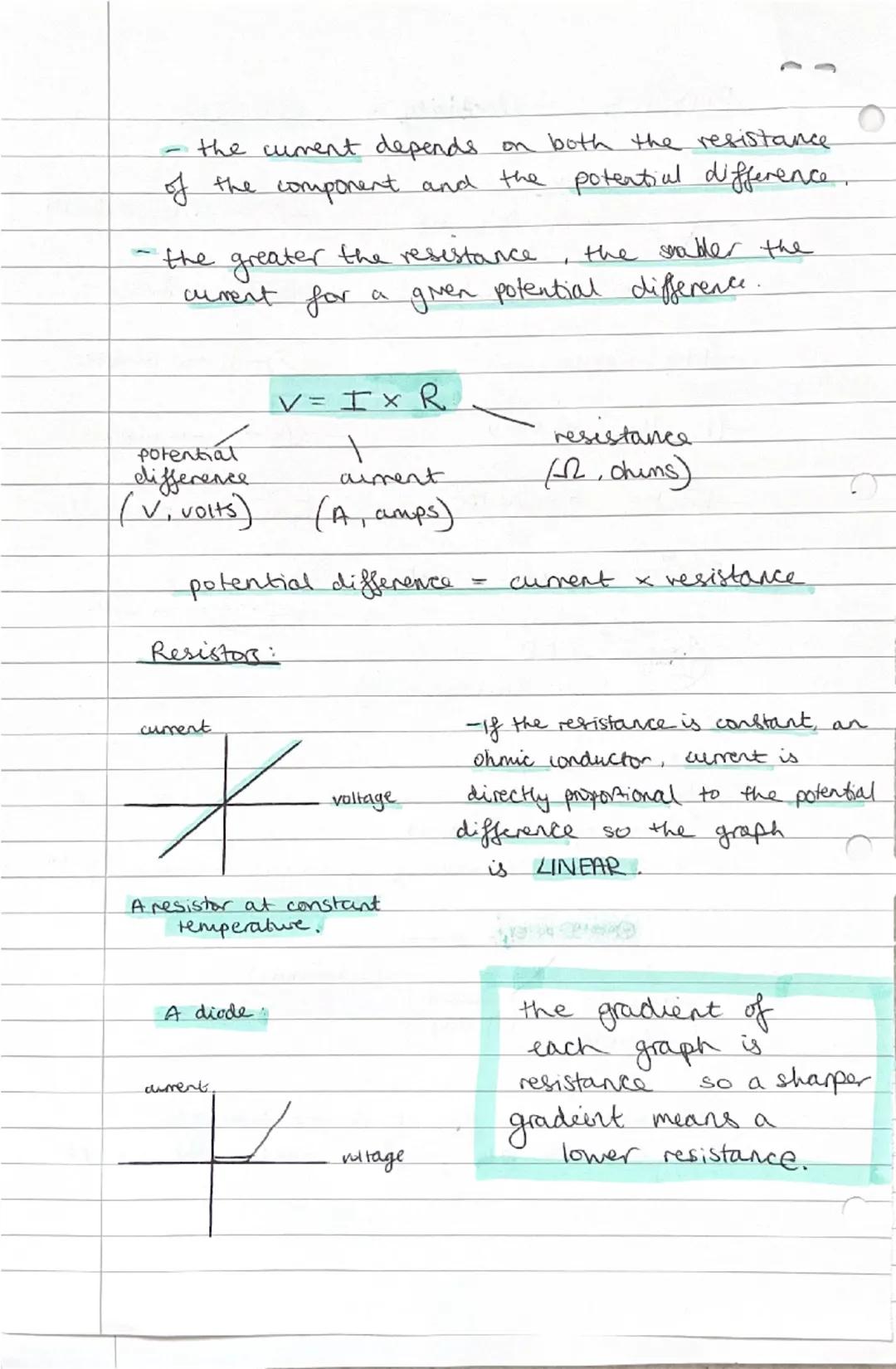

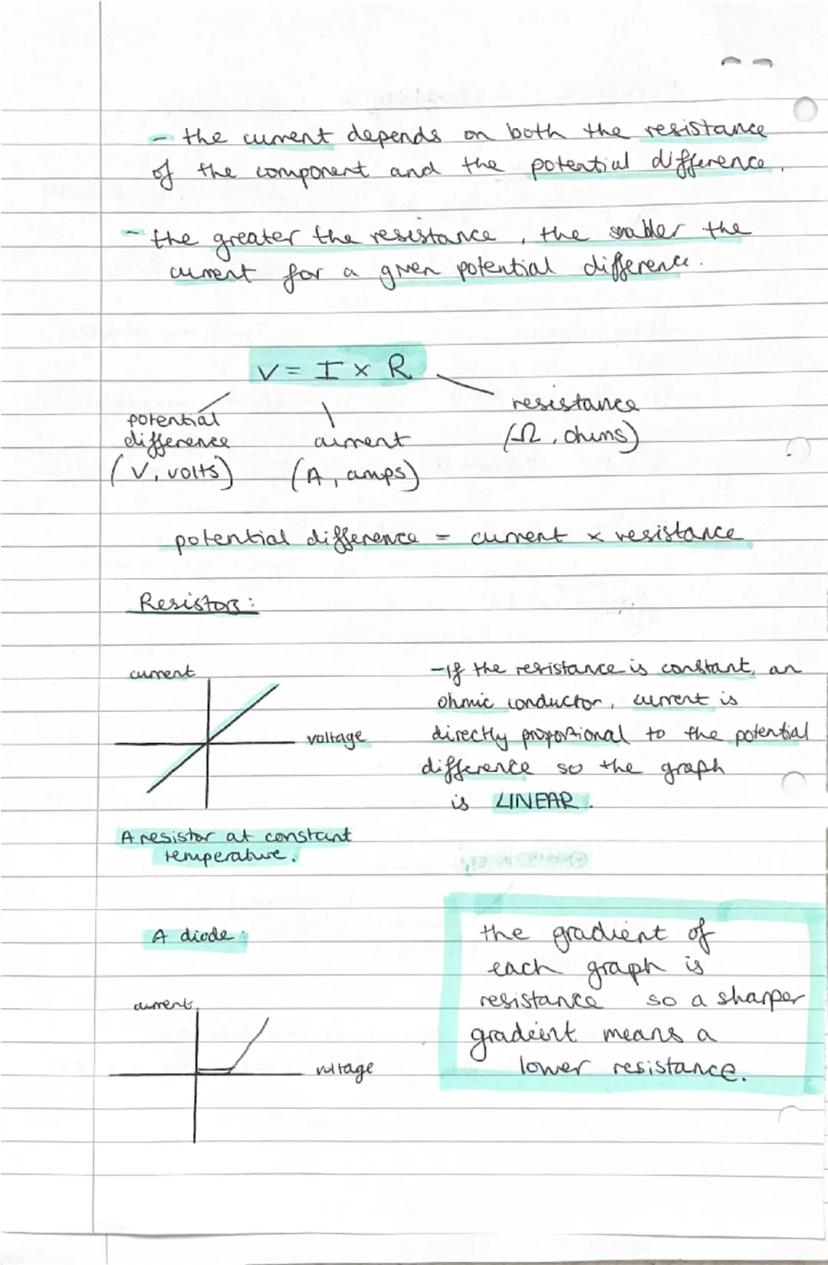

The most important equation in electricity is V = I × R (voltage = current × resistance). This relationship, known as Ohm's Law, helps you calculate any unknown value when you know the other two. Master this formula and you'll breeze through most circuit calculations.

Ohmic conductors like resistors at constant temperature create lovely straight-line graphs when you plot current against voltage. This linear relationship means current is directly proportional to potential difference - double the voltage, double the current.

Diodes behave completely differently, only allowing current to flow in one direction. Their I-V graph looks like a hockey stick, showing virtually no current in the reverse direction but increasing current once the forward voltage reaches a threshold.

Graph Tip: The gradient (steepness) of I-V graphs tells you about resistance - a steeper gradient means lower resistance, whilst a gentler slope indicates higher resistance.

Non-Linear Components and Temperature Effects

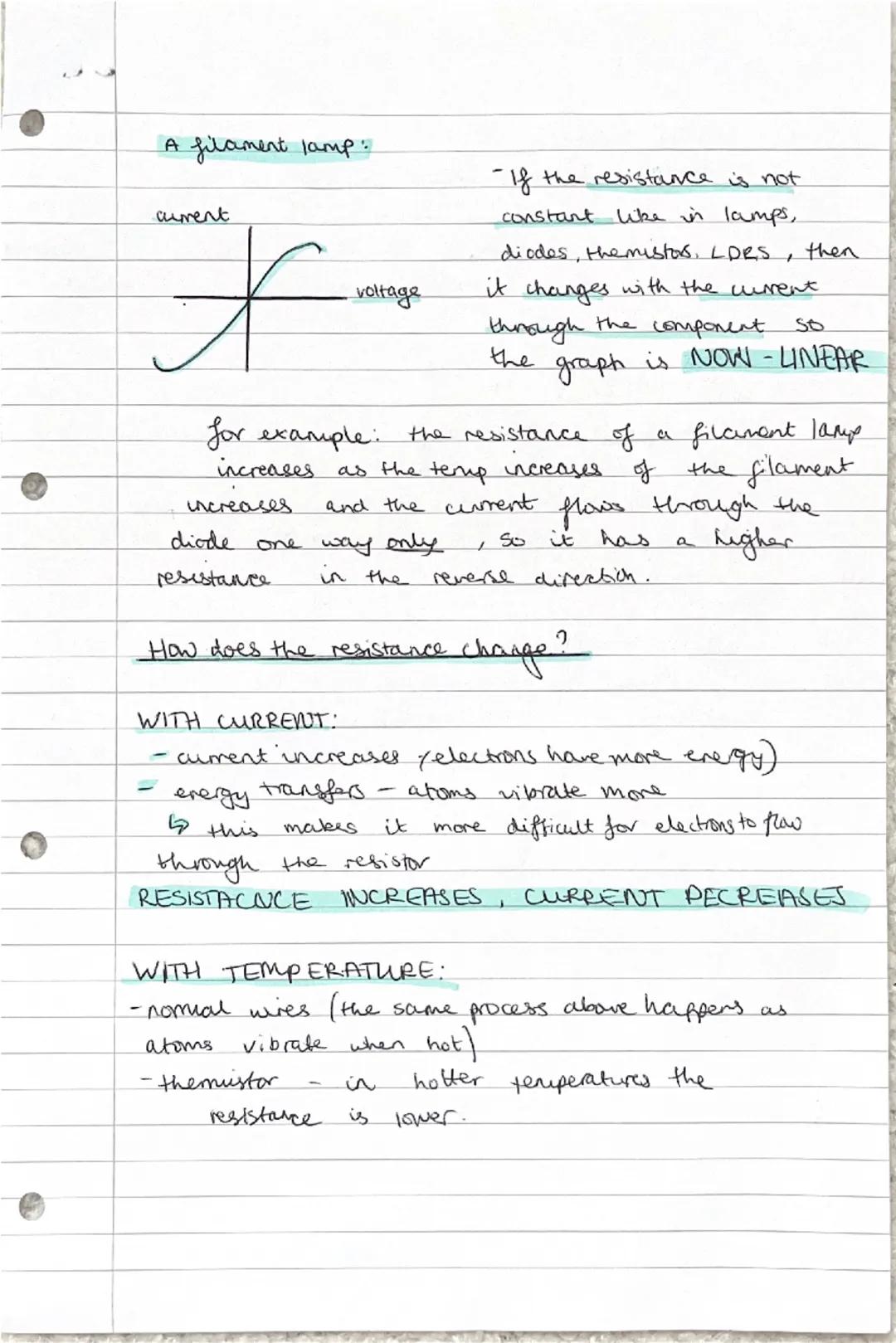

Filament lamps create curved I-V graphs because their resistance changes with temperature. As current increases, the filament gets hotter, atoms vibrate more, and it becomes harder for electrons to flow through - so resistance increases.

Understanding why resistance changes with current is crucial for exams. When current increases, electrons carry more energy, which transfers to atoms in the conductor. These atoms vibrate more vigorously, creating more obstacles for electron flow, which increases resistance.

Thermistors work in reverse to normal conductors - as temperature increases, their resistance actually decreases. This makes them perfect for temperature sensors and automatic heating controls.

The process is always the same: more energy → more atomic vibration → harder electron flow → higher resistance. This explains why electrical components can get warm during use.

Real-world Connection: This is why your phone charger gets warm - the resistance in the components increases as current flows through them, converting electrical energy to heat energy.

Factors Affecting Resistance

Light-dependent resistors (LDRs) are brilliant components that change resistance based on light intensity. In bright conditions, resistance drops dramatically, whilst in darkness, resistance increases. This makes them perfect for automatic night lights and burglar alarms.

Wire length significantly affects resistance - longer wires mean higher resistance because electrons must navigate through more atoms. It's like running through a crowded corridor versus an empty room; the longer the corridor, the more obstacles you encounter.

Diodes have a unique property where resistance depends entirely on direction. They allow current to flow freely in one direction (forward bias) but create massive resistance in the opposite direction (reverse bias). This makes them essential for converting AC to DC power.

Understanding these resistance variations helps explain how many everyday devices work, from automatic street lighting to phone chargers. Each component's resistance behaviour serves a specific purpose in electronic circuits.

Application Alert: LDRs are everywhere in modern life - from camera light meters to security lights that turn on automatically when it gets dark.
