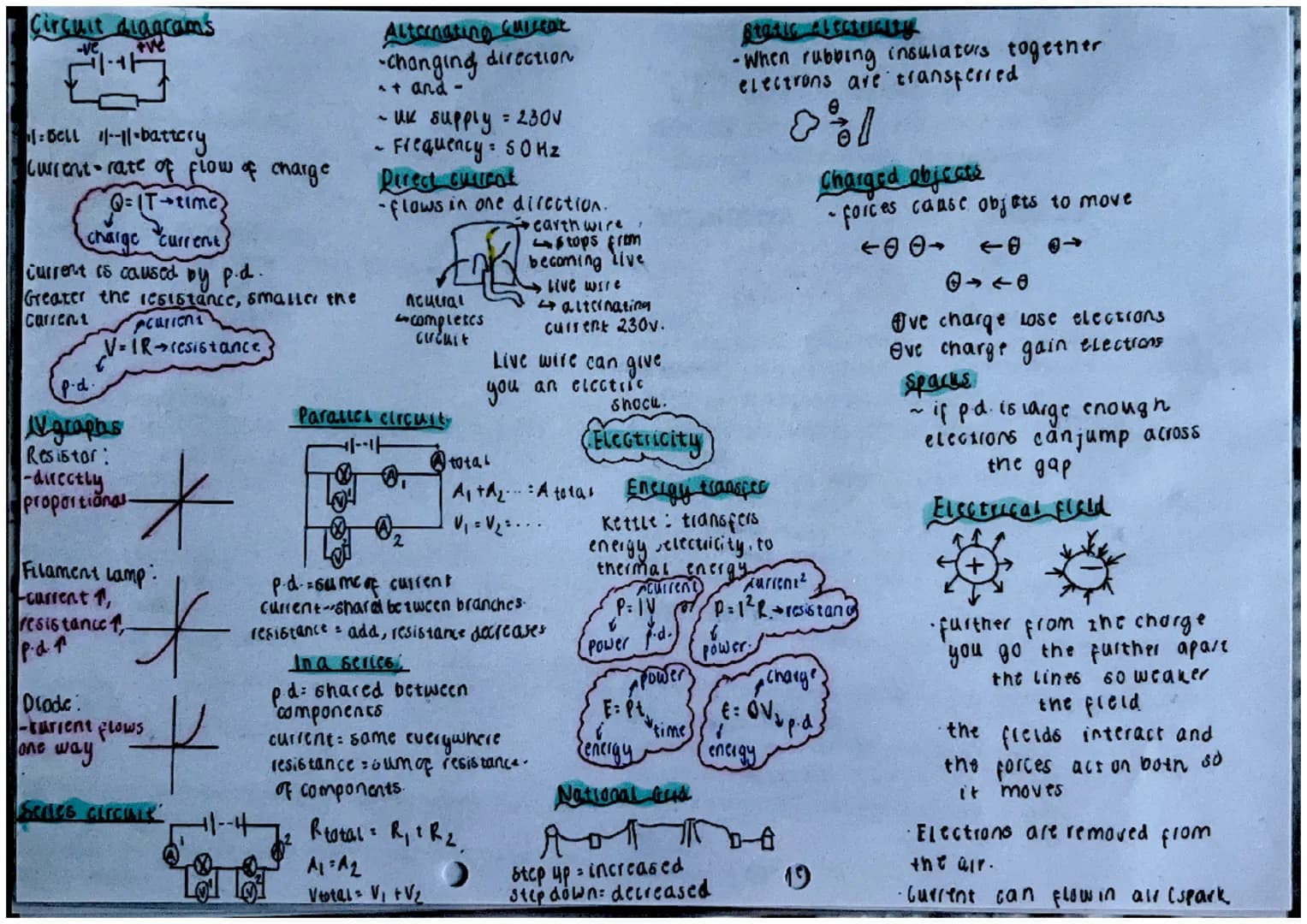

Circuit Diagrams and Electricity

This section focuses on electrical circuits, components, and calculations essential for AQA GCSE Physics revision.

Key concepts:

• Current as the rate of flow of charge: Q = It
• Ohm's Law: V = IR
• Power in electrical circuits: P = IV

Definition: Alternating current (AC) changes direction periodically, while direct current (DC) flows in one direction.

The guide explains series and parallel circuits:

Highlight: In series circuits, current is the same throughout, while in parallel circuits, current is shared between branches.

Safety in electrical systems is emphasized:

• Earth wire prevents devices from becoming live
• Live wire carries alternating current at 230V and can cause electric shocks

The National Grid is introduced, explaining step-up and step-down transformers for efficient electricity distribution.

Example: A kettle transfers electrical energy to thermal energy, demonstrating practical applications of energy transfer in everyday devices.

Static electricity and electrical fields are also covered, providing a comprehensive overview of electrical phenomena.

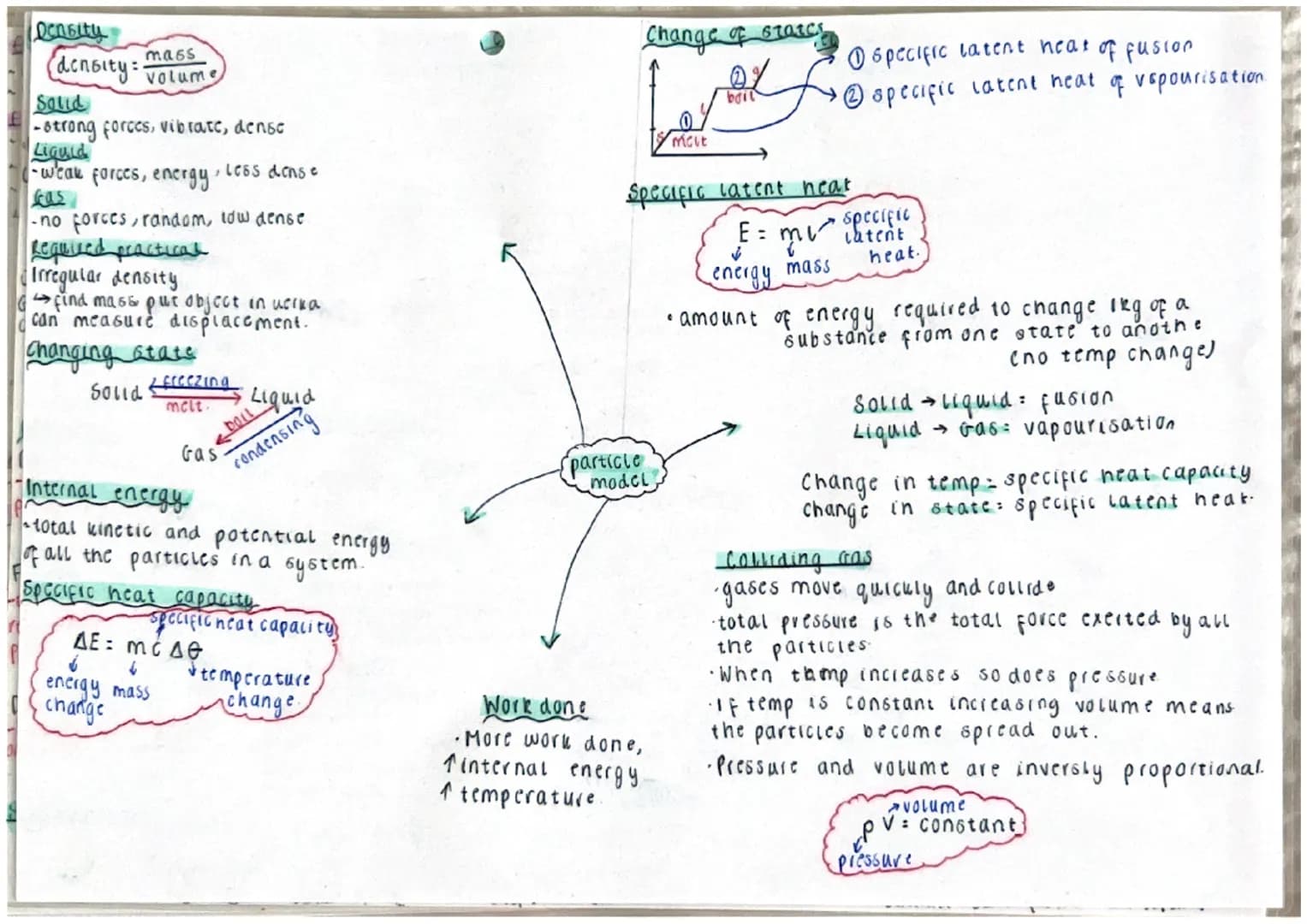

Density and States of Matter

This section explores the relationship between mass, volume, and density, crucial for understanding material properties in GCSE Physics Combined Science.

Key points:

• Density formula: ρ = m/V
• Characteristics of solids, liquids, and gases in terms of particle arrangement and forces

Vocabulary: Internal energy is the total kinetic and potential energy of all particles in a system.

The guide covers changes of state and related energy calculations:

Definition: Specific latent heat is the amount of energy required to change 1kg of a substance from one state to another without changing temperature.

Practical applications include:

• Measuring density of irregular objects using displacement
• Calculating energy changes during phase transitions

Example: The specific latent heat of fusion applies to solid-liquid transitions, while the specific latent heat of vaporization applies to liquid-gas transitions.

This comprehensive coverage of energy, electricity, and matter provides students with a solid foundation for AQA GCSE Physics Paper 1 and prepares them for more advanced concepts in physics education.

Page 3: Density and State Changes

This page explores density calculations, state changes, and internal energy concepts, crucial for understanding Physics energy revision Notes. The content includes practical applications and detailed explanations of specific heat capacity.

Vocabulary: Internal energy represents the total kinetic and potential energy of all particles in a system.

Example: The specific latent heat of fusion represents the energy required to change 1kg of a substance from solid to liquid state without temperature change.

Highlight: Gas pressure results from particle collisions, demonstrating the relationship between particle movement and physical properties.

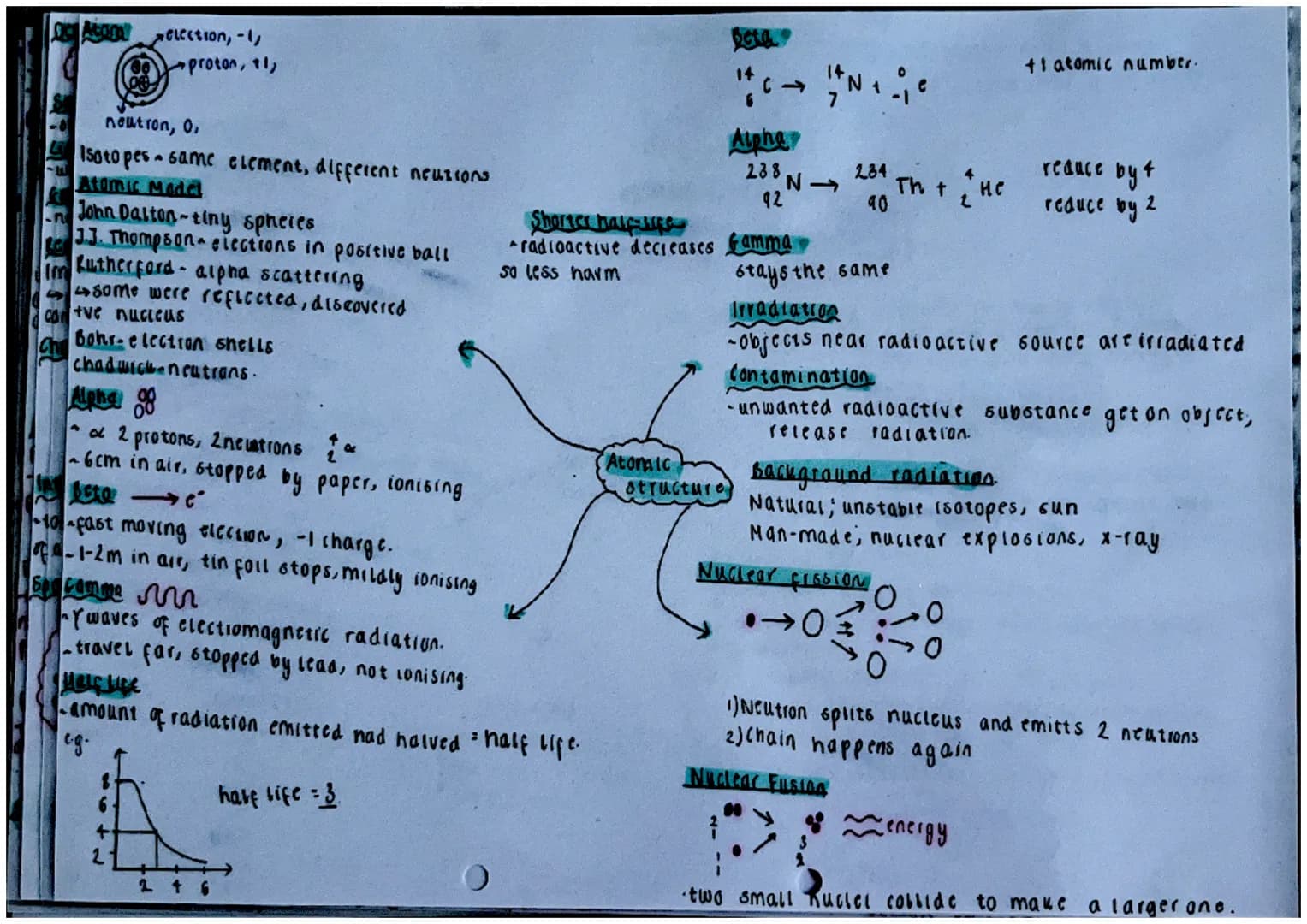

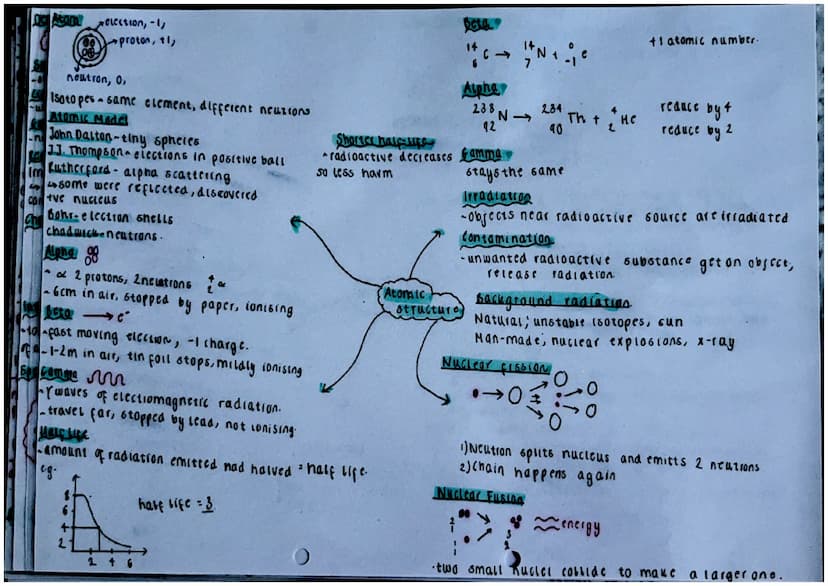

Page 4: Atomic Structure and Radiation

This section covers atomic models and radiation types, essential for understanding Nuclear power and radioactive processes. The content includes detailed explanations of isotopes and radiation types.

Definition: Isotopes are atoms of the same element with different numbers of neutrons.

Example: Alpha radiation consists of two protons and two neutrons, traveling approximately 6cm in air and stopped by paper.

Highlight: Half-life represents the time taken for the amount of radioactive material to reduce by half.

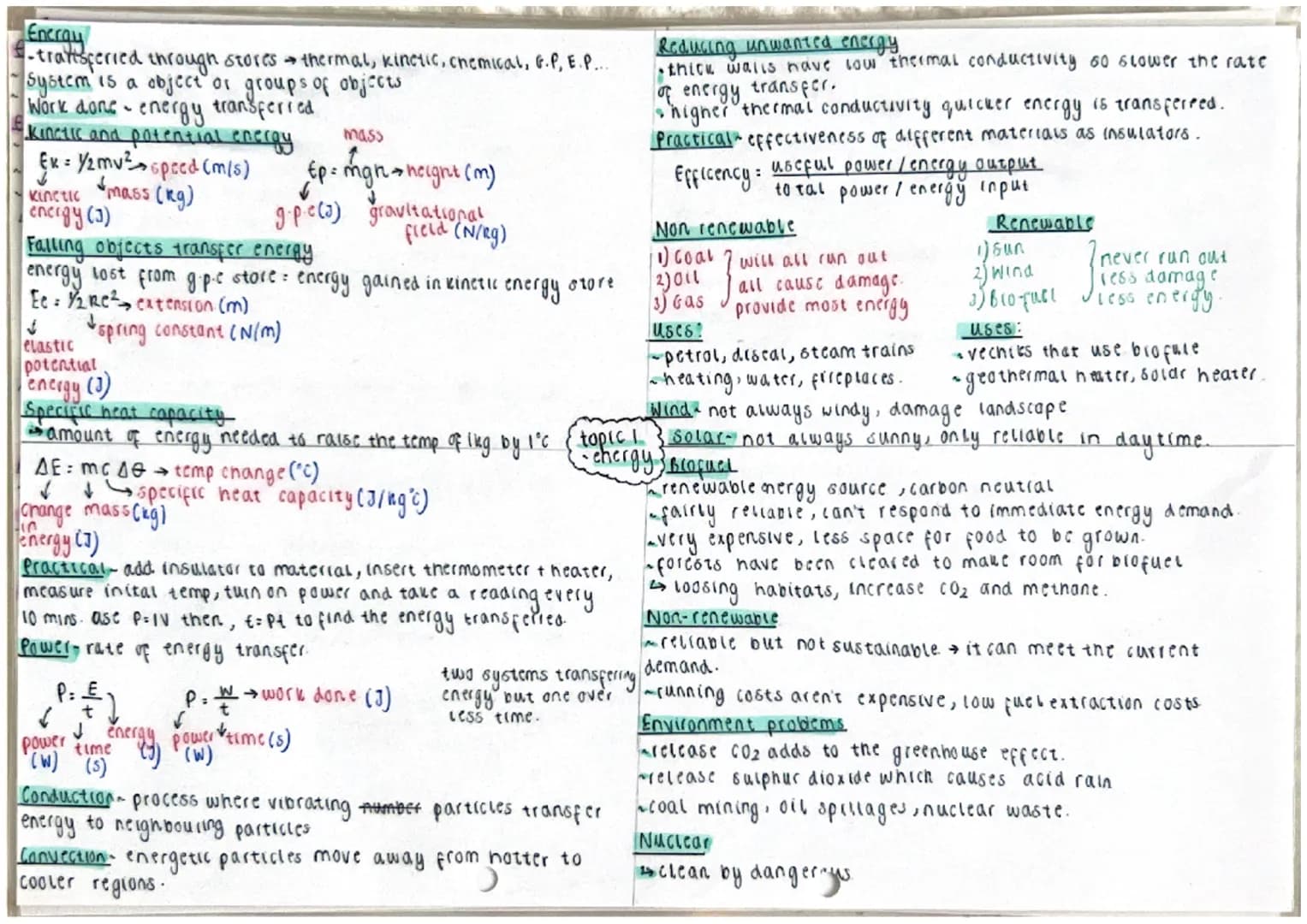

Energy Transfer and Calculations

Energy is a fundamental concept in physics, involving transfers between various stores such as thermal, kinetic, chemical, and gravitational potential energy. Understanding these transfers is crucial for GCSE Physics energy questions and answers.

Key points:

• Work done is energy transferred
• Kinetic energy formula: KE = 1/2mv²
• Gravitational potential energy: GPE = mgh
• Power is the rate of energy transfer: P = E/t

Definition: Specific heat capacity is the amount of energy needed to raise the temperature of 1kg of a substance by 1°C.

Practical applications include calculating energy transfers in falling objects and springs. Students should be familiar with energy calculations in physics for both kinetic and potential energy.

Example: A practical experiment to determine specific heat capacity involves using insulators, thermometers, and heaters to measure temperature changes over time.

The topic also covers renewable and non-renewable energy resources:

Highlight: Non-renewable sources like coal, oil, and gas provide most energy but will eventually run out and cause environmental damage.

Vocabulary: Renewable energy sources include solar, wind, and biofuels, which are sustainable but may have limitations in reliability or environmental impact.

Nuclear power is discussed as a low-carbon option, though it has its own challenges:

Quote: "Nuclear power is fairly reliable but can't respond to immediate energy demand. It's very expensive and requires space that could be used for food production."
