GCSE Physics P8: Forces, Vectors, Scalars & Newton's Laws Explained
P8 Physics: Forces in Balanceis a crucial topic in GCSE Physics that explores the fundamental concepts of forces, vectors, and scalars. This unit covers Newton's laws of motion, resultant forces, and the principles of moments and levers. Students will... Show more

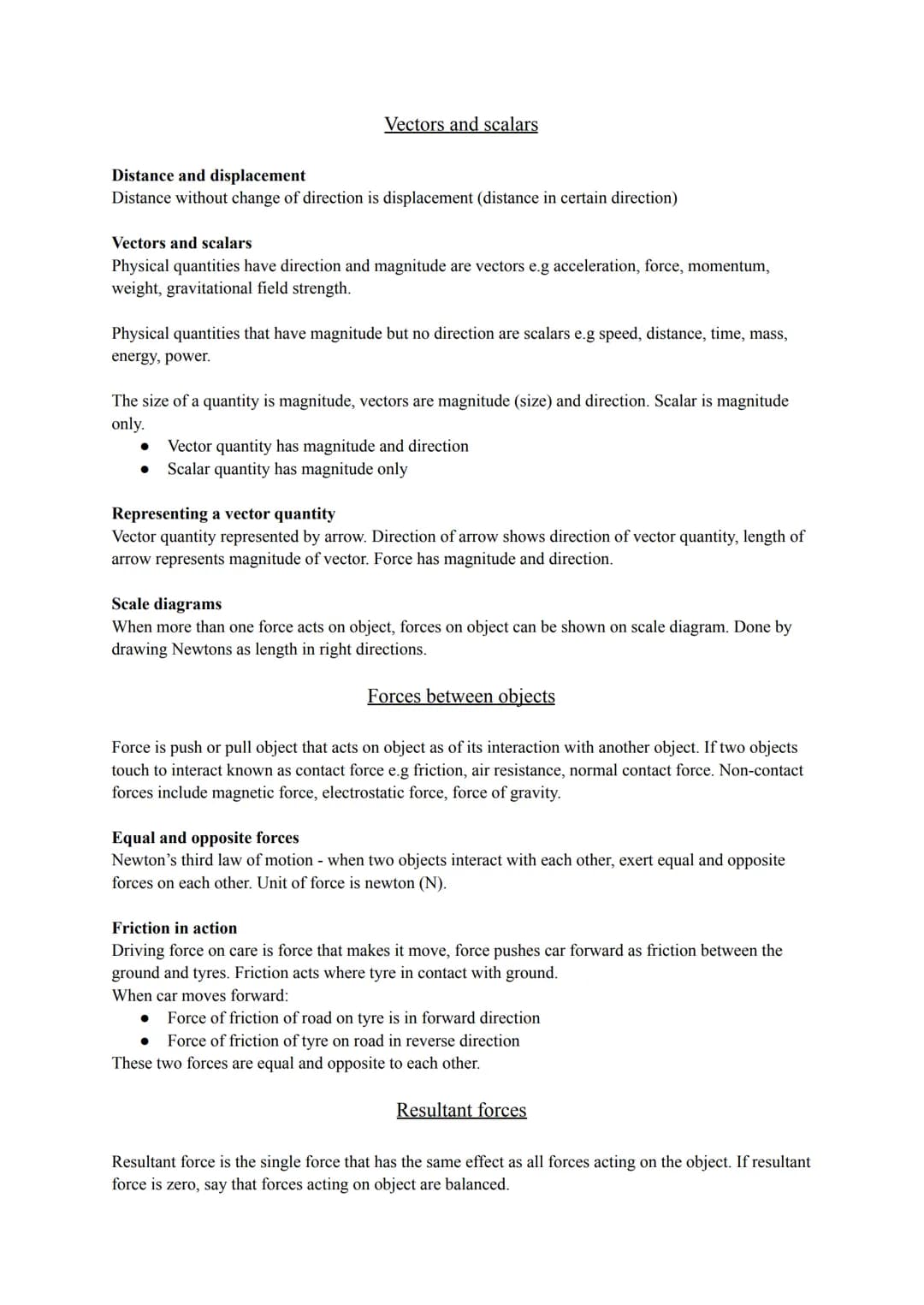

Vectors and Scalars
This section introduces the fundamental concepts of vectors and scalars in physics, crucial for understanding what is p8 physics and how forces are represented.
Definition: Vector quantities have both magnitude and direction, while scalar quantities have only magnitude.
Examples of vector quantities include acceleration, force, momentum, weight, and gravitational field strength. Scalar quantities include speed, distance, time, mass, energy, and power.
Highlight: The size of a quantity is called its magnitude. Vectors are characterized by both magnitude and direction, while scalars only have magnitude.
Representing vector quantities is done using arrows, where the direction of the arrow indicates the direction of the vector, and the length represents its magnitude.
Example: Force is a vector quantity, as it has both magnitude (strength) and direction.
Scale diagrams are used to represent multiple forces acting on an object, with forces drawn to scale in the correct directions.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy
Forces Between Objects and Newton's Third Law
This section delves into the nature of forces and introduces Newton's Third Law, a key concept in understanding what is p8 GCSE.
Forces are defined as pushes or pulls that act on an object due to its interaction with another object. They can be categorized as contact forces (e.g., friction, air resistance, normal contact force) or non-contact forces (e.g., magnetic force, electrostatic force, gravitational force).
Definition: Newton's Third Law of Motion states that when two objects interact, they exert equal and opposite forces on each other.
The unit of force is the newton (N).
Example: In the case of a moving car, the friction between the tires and the road demonstrates Newton's Third Law. The force of friction of the road on the tire is in the forward direction, while the force of friction of the tire on the road is in the reverse direction. These forces are equal and opposite.
The concept of resultant force is introduced, which is the single force that has the same effect as all forces acting on an object. When the resultant force is zero, the forces acting on the object are considered balanced.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy

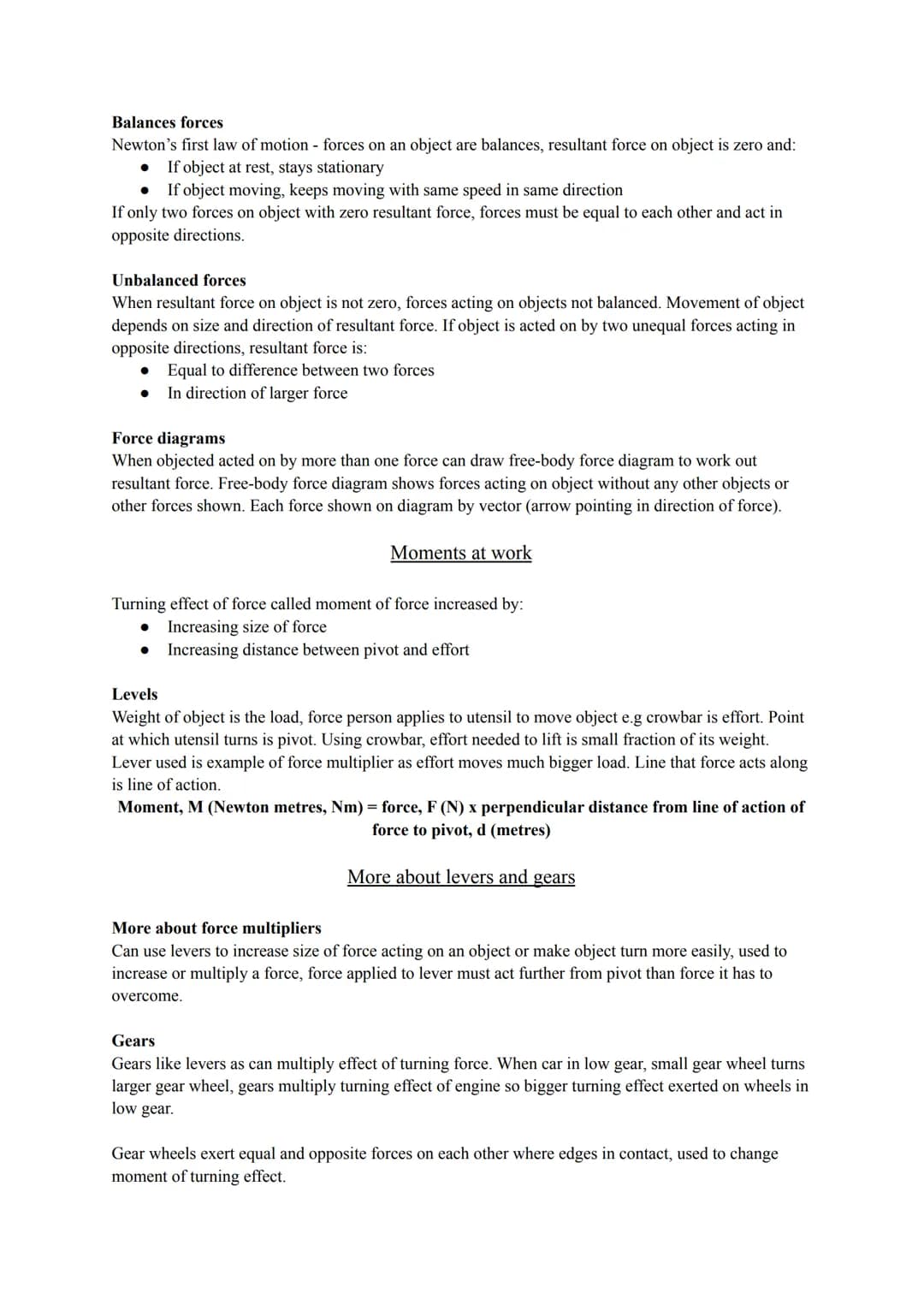

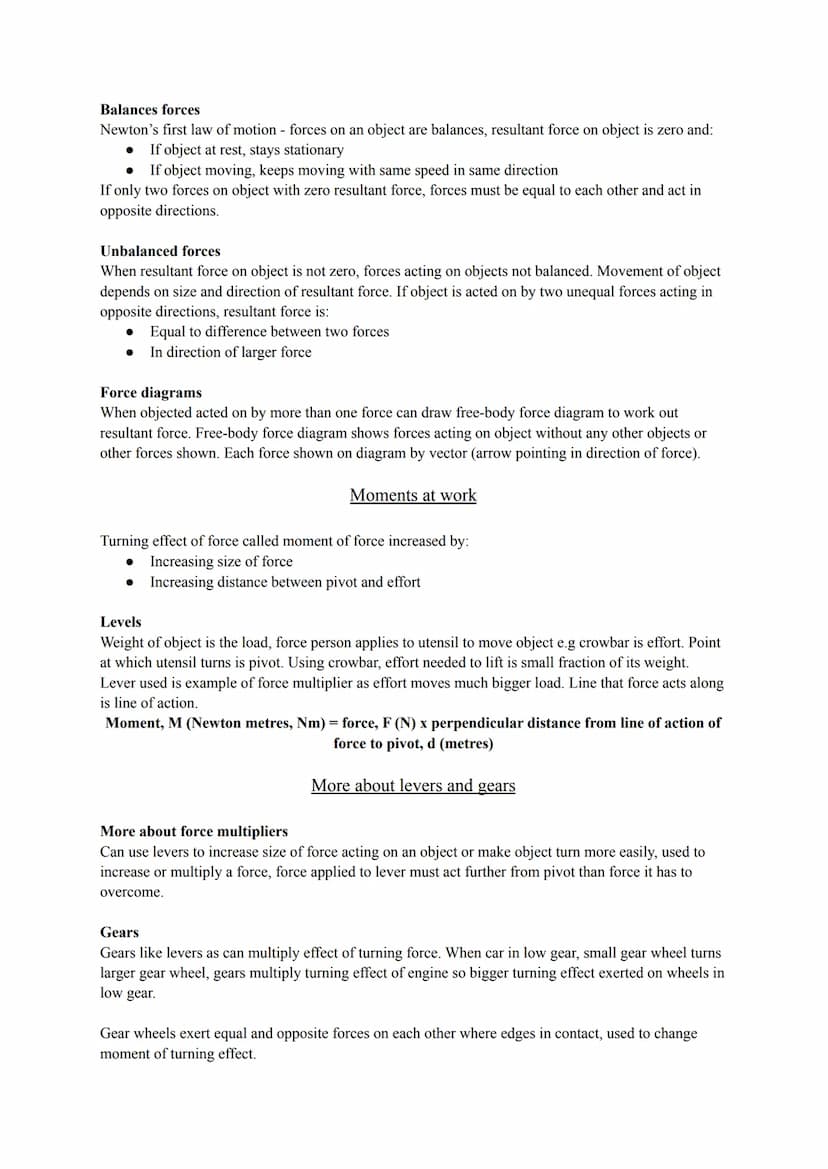

Balanced and Unbalanced Forces
This section explores the concepts of balanced and unbalanced forces, introducing Newton's First Law of Motion and explaining how forces affect object motion.
Definition: Newton's First Law of Motion states that if the forces on an object are balanced (resultant force is zero), then:
- If the object is at rest, it stays stationary
- If the object is moving, it keeps moving with the same speed in the same direction
When only two forces act on an object with zero resultant force, they must be equal to each other and act in opposite directions.
Unbalanced forces occur when the resultant force on an object is not zero. The movement of the object depends on the size and direction of the resultant force.
Example: If an object is acted on by two unequal forces in opposite directions, the resultant force is equal to the difference between the two forces and acts in the direction of the larger force.
Force diagrams, specifically free-body force diagrams, are introduced as a tool to visualize and calculate resultant forces when multiple forces act on an object.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy
Moments, Levers, and Gears
This final section covers the concepts of moments, levers, and gears, which are essential for understanding force multipliers and mechanical advantage in GCSE physics forces vectors scalars explained AQA.
Definition: The turning effect of a force is called the moment of force. It can be increased by:
- Increasing the size of the force
- Increasing the distance between the pivot and the effort
Levers are introduced as force multipliers, where a small effort can move a much larger load.
Vocabulary: In a lever system:
- The weight of the object is the load
- The force applied to move the object is the effort
- The point at which the lever turns is the pivot
The formula for calculating moments is presented:
Moment (Nm) = Force (N) × perpendicular distance from the line of action of force to pivot (m)
Gears are explained as another type of force multiplier, similar to levers. They can be used to change the moment or turning effect of a force.
Example: In a car's gearing system:
- Low gear provides low speed but high turning effect
- High gear provides high speed but low turning effect
The section concludes with an introduction to the concept of center of mass, which is crucial for understanding the balance and stability of objects.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy
Overall Summary
P8 Physics: Forces in Balance is a comprehensive exploration of force-related concepts in GCSE Physics. The unit covers:
- Distinction between vectors and scalars
- Analysis of forces using diagrams and calculations
- Newton's laws of motion and their applications
- Balanced and unbalanced forces
- Moments and levers as force multipliers
- Center of mass and its importance
This foundational knowledge is essential for understanding more complex physics concepts and real-world applications of forces.
We thought you’d never ask...
What is the Knowunity AI companion?
Our AI Companion is a student-focused AI tool that offers more than just answers. Built on millions of Knowunity resources, it provides relevant information, personalised study plans, quizzes, and content directly in the chat, adapting to your individual learning journey.
Where can I download the Knowunity app?
You can download the app from Google Play Store and Apple App Store.
Is Knowunity really free of charge?
That's right! Enjoy free access to study content, connect with fellow students, and get instant help – all at your fingertips.
24
Smart Tools NEW
Transform this note into: ✓ 50+ Practice Questions ✓ Interactive Flashcards ✓ Full Mock Exam ✓ Essay Outlines
Mock Exam
Quiz
Flashcards
Essay
Most popular content in Physics
Most popular content
Can't find what you're looking for? Explore other subjects.
Students love us — and so will you.
4.9/5
App Store
4.8/5
Google Play
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
Best app on earth! no words because it’s too good
Thomas R
iOS user
Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.
Basil
Android user
This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.
Rohan U
Android user
I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didn’t even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as I’m sure you too will see developments.
Xander S
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮
Elisha
iOS user
This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now
Paul T
iOS user
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
Best app on earth! no words because it’s too good
Thomas R
iOS user
Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.
Basil
Android user
This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.
Rohan U
Android user
I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didn’t even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as I’m sure you too will see developments.
Xander S
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮
Elisha
iOS user
This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now
Paul T
iOS user
