Electricity in the Home - A comprehensive guide covering GCSE... Show more
Physics
SociologySign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy
13
0
Imy
02/12/2025
Physics
AQA GCSE P5 notes
1 / 5
Electrical Safety and Components

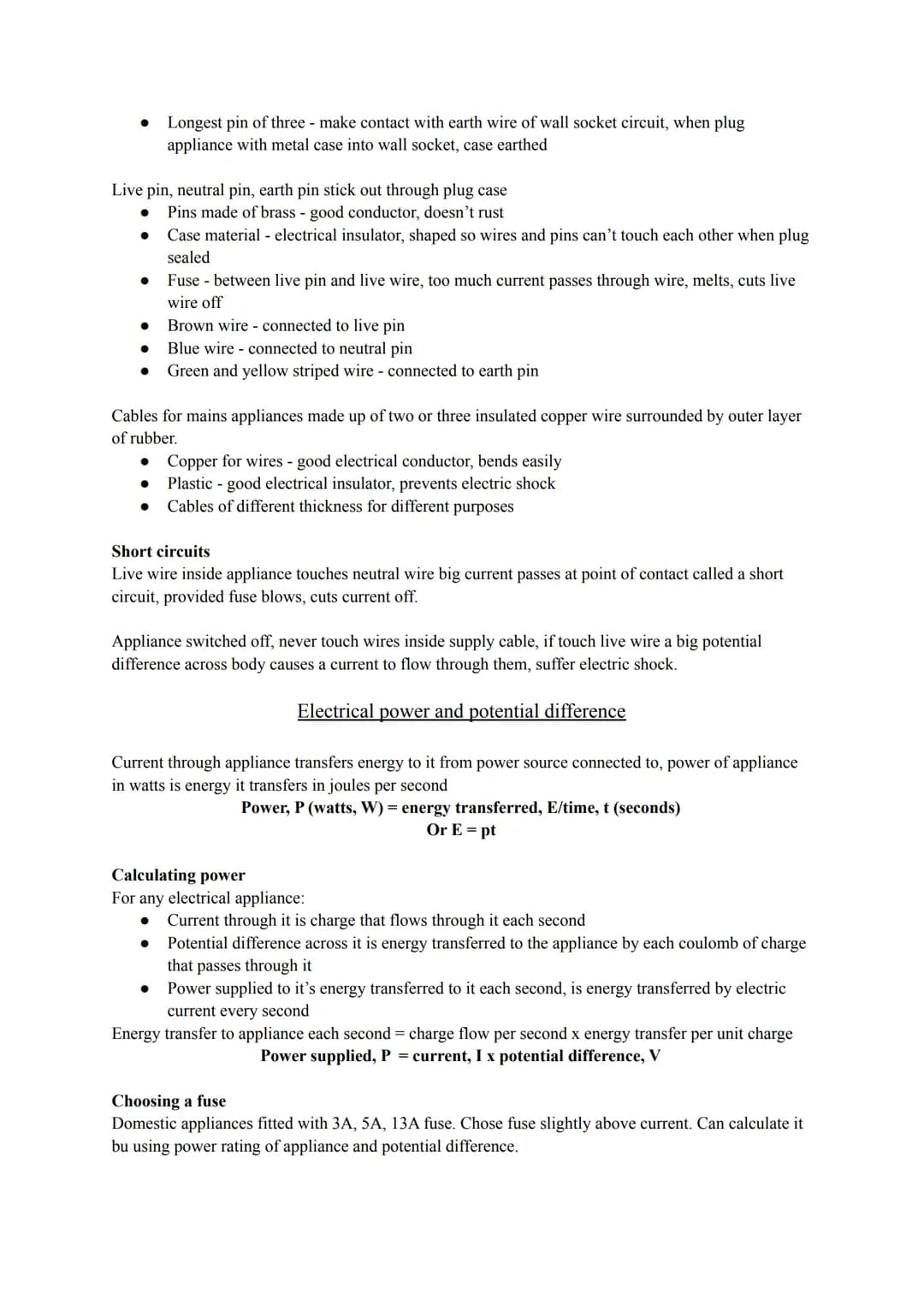

This section focuses on the safety features and components of electrical systems, particularly in domestic settings.
The importance of proper insulation in cables, plugs, and sockets is emphasized, explaining how these components contribute to electrical safety.
Highlight: The outer casings of plugs, sockets, and cables in mains circuits are made of hard-wearing electrical insulators to prevent accidental contact with live wires.
The structure and function of a three-pin plug are detailed, including the purpose of each pin and wire color coding.
Vocabulary: Double-insulated appliances have no earth wire connection due to their plastic casing, which provides additional protection against electric shock.
The concept of short circuits is introduced, explaining how they occur and the role of fuses in preventing electrical hazards.
Definition: A short circuit occurs when the live wire inside an appliance touches the neutral wire, causing a large current to flow at the point of contact.
The section concludes with advice on electrical safety, stressing the importance of proper handling of electrical devices and the dangers of electric shock.
Electrical Power and Calculations
This section delves into the mathematical aspects of electricity, focusing on power calculations and their applications in electrical systems.
The relationship between electrical power, energy transfer, and time is explained, introducing the fundamental equation for power calculation.
Definition: Electrical power (P) is the rate at which energy (E) is transferred in an electrical system, measured in watts (W).
The section provides formulas for calculating power in electrical circuits, emphasizing the relationship between current, voltage, and power.
Example: To calculate the power of an appliance, multiply the current (I) flowing through it by the potential difference (V) across it: P = I × V.
Guidance on choosing appropriate fuses for domestic appliances is provided, linking power ratings to fuse selection.
Highlight: When selecting a fuse for an appliance, choose one with a rating slightly above the calculated current to ensure safe operation.
The concept of resistance heating is introduced, explaining how electrical energy is converted to heat in resistors.
Vocabulary: Resistance heating refers to the process by which an electric current passing through a resistor generates heat, which is then dissipated to the surroundings.
The section concludes with an introduction to more advanced power calculations, including the relationship between power, current, and resistance.
Advanced Electrical Concepts
This final section touches on more complex aspects of electrical systems, building on the foundational knowledge presented earlier.
The relationship between electrical currents and energy transfer is briefly introduced, setting the stage for more advanced study in GCSE Physics Electricity.
Highlight: Understanding the connection between electrical currents and energy transfer is crucial for analyzing the efficiency of electrical systems and solving complex GCSE electricity questions and answers.
While the content in this section is limited, it suggests that further exploration of these topics would be beneficial for students preparing for advanced GCSE Physics electricity exam questions.
Example: Advanced topics might include detailed analysis of power transmission in the National Grid, efficiency calculations for transformers, and in-depth study of alternating current characteristics.
This section serves as a bridge to more advanced electrical concepts, encouraging students to expand their knowledge beyond the basics covered in the previous sections.

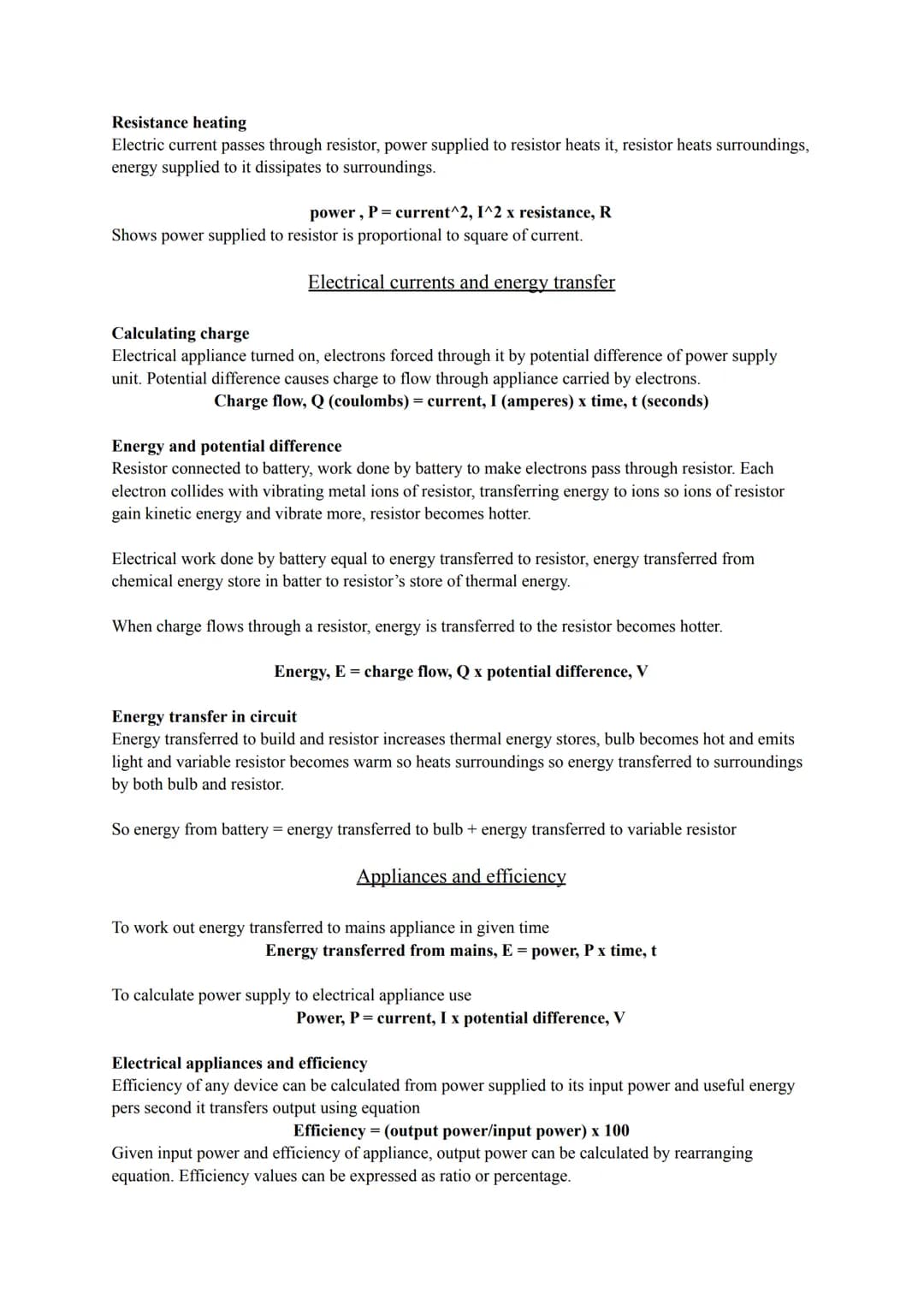

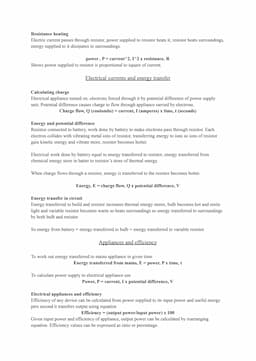

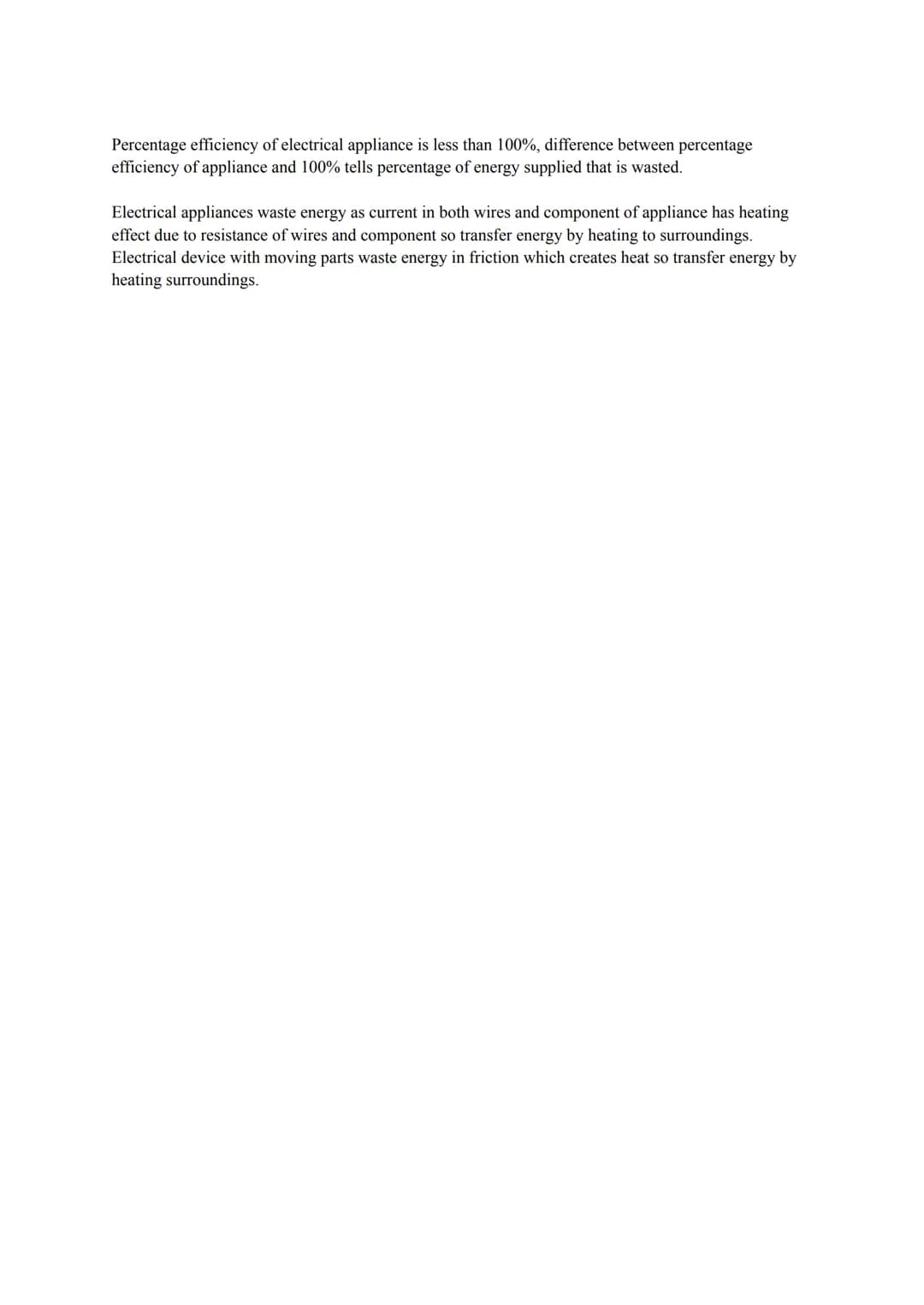

Page 4: Resistance Heating and Energy Transfer
This page examines the relationship between electrical current, resistance, and energy transfer in electrical systems.
Definition: Power (P) equals current squared (I²) multiplied by resistance (R).
Vocabulary: Coulomb - the unit of electrical charge.
Example: When electrons flow through a resistor, they collide with metal ions, transferring energy as heat.

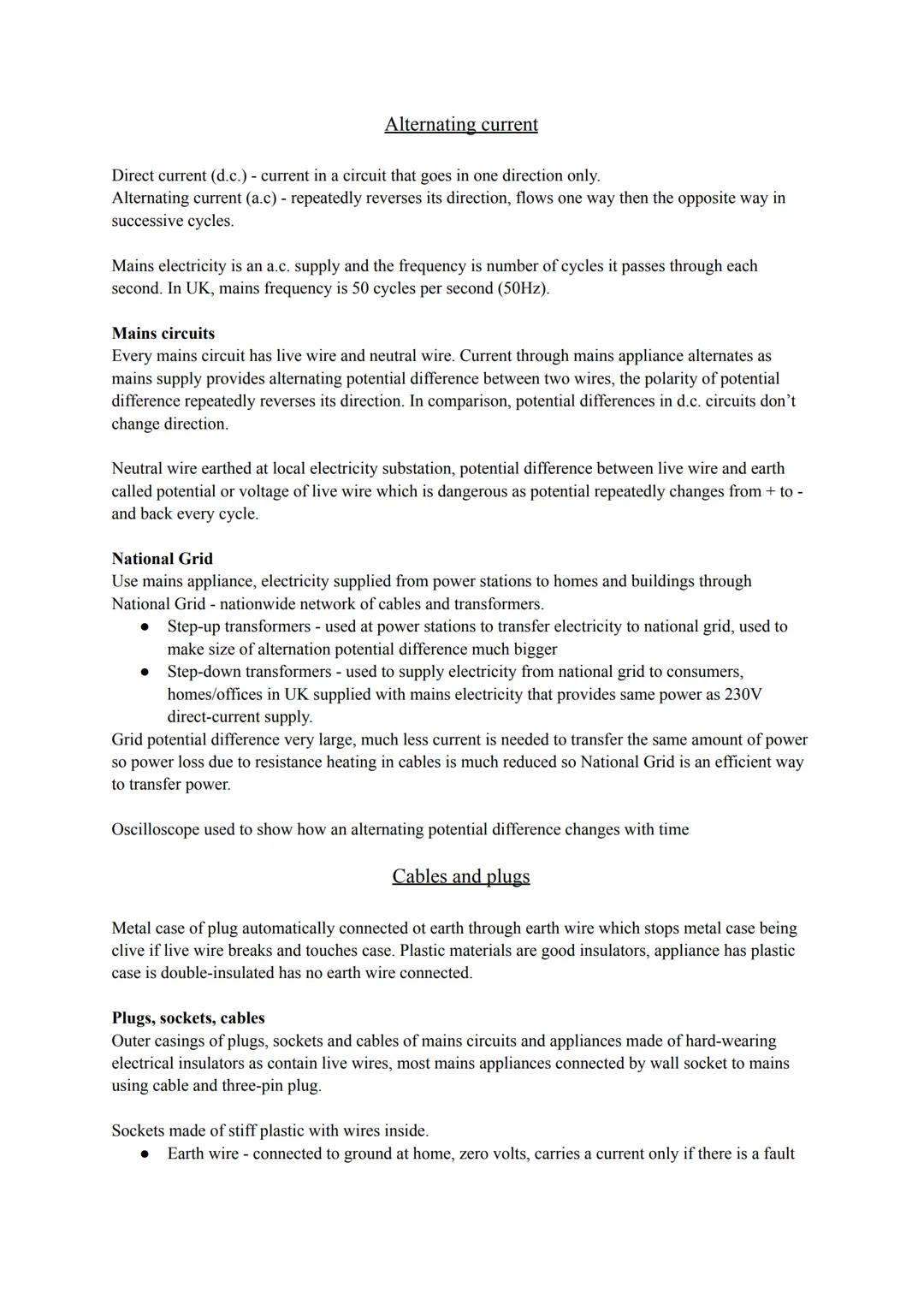

Alternating Current and Mains Electricity
This section introduces the fundamental concepts of alternating current (AC) and direct current (DC), with a focus on mains electricity in the UK.
Definition: Alternating current (AC) is an electric current that repeatedly reverses its direction, flowing one way and then the opposite way in successive cycles.
The frequency of mains electricity in the UK is explained, highlighting its importance in domestic power supply.
Highlight: In the UK, the mains electricity frequency is 50 cycles per second (50Hz).
The structure of mains circuits is described, emphasizing the role of live and neutral wires. The section also introduces the concept of earthing and its significance in electrical safety.
Vocabulary: Earthing refers to the practice of connecting electrical systems to the ground, providing a safe path for excess current and reducing the risk of electric shock.
The National Grid is introduced as the nationwide network for electricity distribution, explaining the use of transformers to efficiently transmit power over long distances.
Example: Step-up transformers at power stations increase the voltage for long-distance transmission, while step-down transformers reduce the voltage for safe use in homes and offices.
The use of oscilloscopes to visualize alternating potential difference is briefly mentioned, providing a practical application of the concepts discussed.
