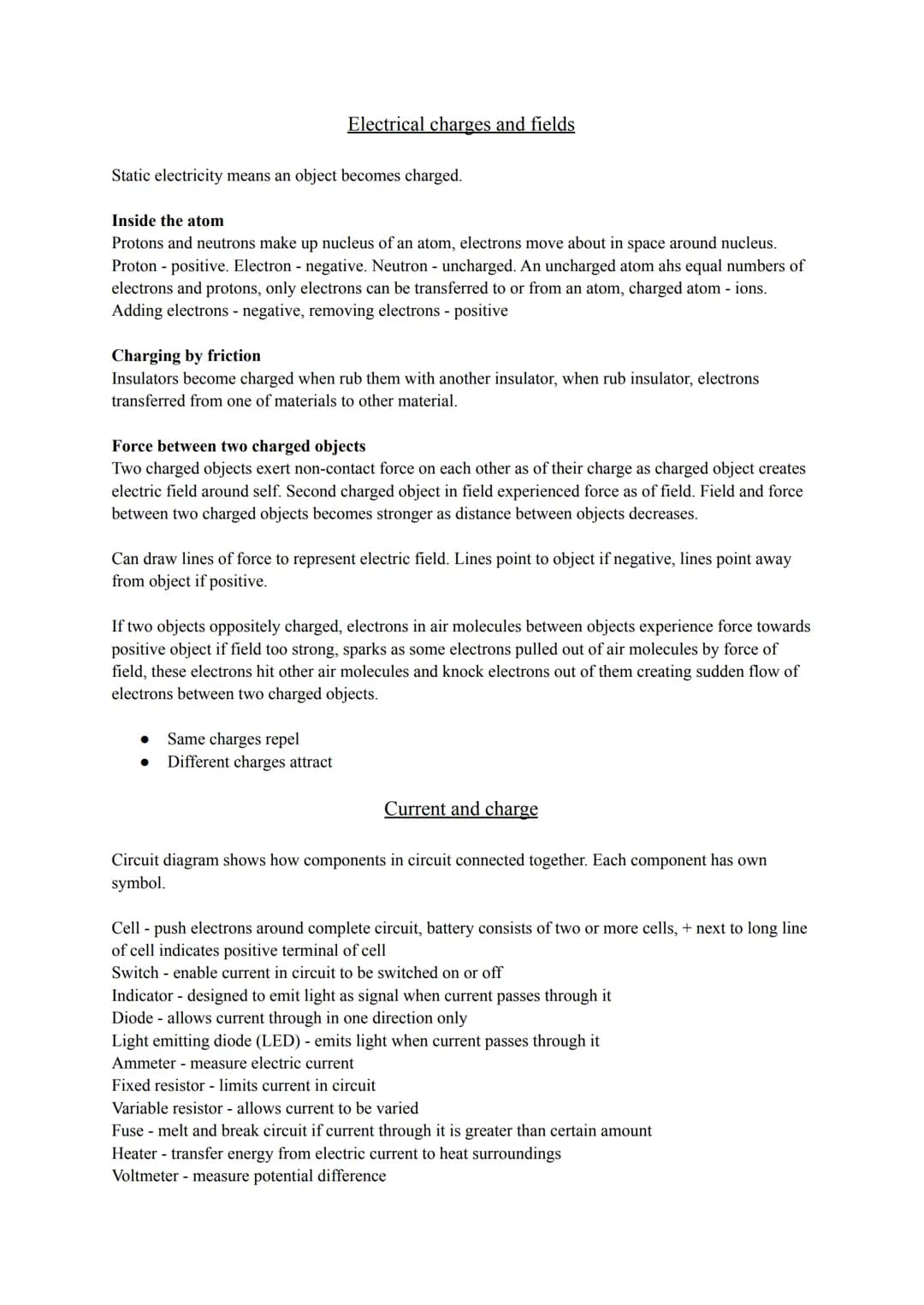

Electrical Charges and Fields

This page delves into the basics of electrical charges and static electricity, which are essential concepts in GCSE Physics Static Electricity.

Static electricity occurs when an object becomes charged. The page explains the structure of atoms, including protons, neutrons, and electrons, and their respective charges.

Definition: Static electricity is the accumulation of electrical charges on the surface of an object.

The process of charging by friction is described, where electrons are transferred between insulators when rubbed together. The page also covers the forces between charged objects and the concept of electric fields.

Example: Rubbing a balloon on your hair can cause the balloon to become negatively charged and attract small pieces of paper.

The page concludes with an introduction to circuit diagrams and symbols for various components such as cells, switches, resistors, and meters.

Vocabulary:

• Cell: A device that pushes electrons around a complete circuit
• Ammeter: An instrument used to measure electric current
• Voltmeter: An instrument used to measure potential difference

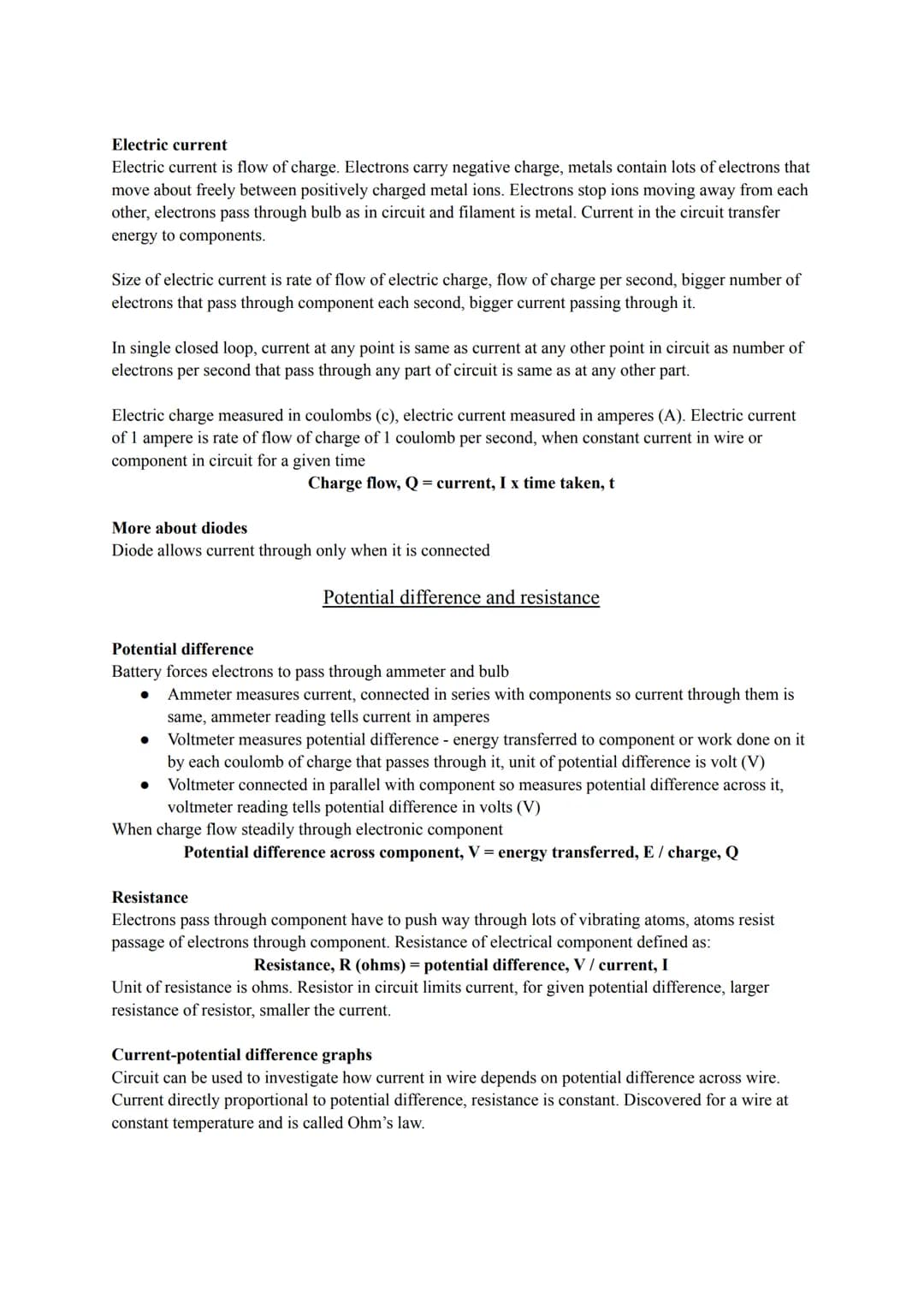

Electric Current

This page focuses on electric current, a key concept in P4 Physics AQA and GCSE Physics Electricity revision.

Electric current is defined as the flow of charge, typically carried by electrons in metals. The page explains how current transfers energy to components in a circuit.

Definition: Electric current is the rate of flow of electric charge, measured in amperes (A).

The relationship between charge flow, current, and time is presented:

Charge flow, Q = current, I × time taken, t

The page also introduces the concept of potential difference and resistance.

Highlight: In a single closed loop, the current is the same at any point in the circuit.

Potential difference is explained as the energy transferred to a component per unit charge, measured in volts (V). The relationship between potential difference, energy transferred, and charge is given:

Potential difference, V = energy transferred, E / charge, Q

Resistance is introduced as the opposition to the flow of current in a component, measured in ohms (Ω).

Vocabulary:

• Coulomb (C): The unit of electric charge
• Ampere (A): The unit of electric current
• Volt (V): The unit of potential difference
• Ohm (Ω): The unit of electrical resistance

Current-Potential Difference Graphs

This page explores the relationship between current and potential difference, which is crucial for understanding GCSE Physics electricity exam questions and answers.

The page introduces Ohm's law, which states that for an ohmic conductor at constant temperature, the current is directly proportional to the potential difference.

Quote: "Current through a resistor at constant temperature is directly proportional to potential difference across the resistor."

The page explains how to investigate this relationship using a circuit and plot current-potential difference graphs.

Highlight: Ohm's law is a fundamental principle in electrical circuits and is often tested in GCSE Physics electricity exam questions.

The concept of ohmic conductors is introduced, where resistance remains constant as potential difference changes.

Vocabulary:

• Ohmic conductor: A conductor that obeys Ohm's law, maintaining a constant resistance as potential difference varies

This page provides essential information for students preparing for AQA Physics P4 Electric circuits exam style questions and answers.

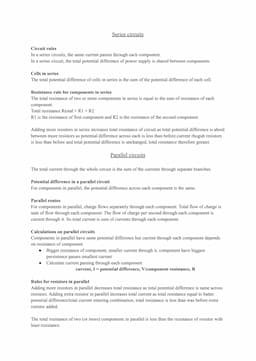

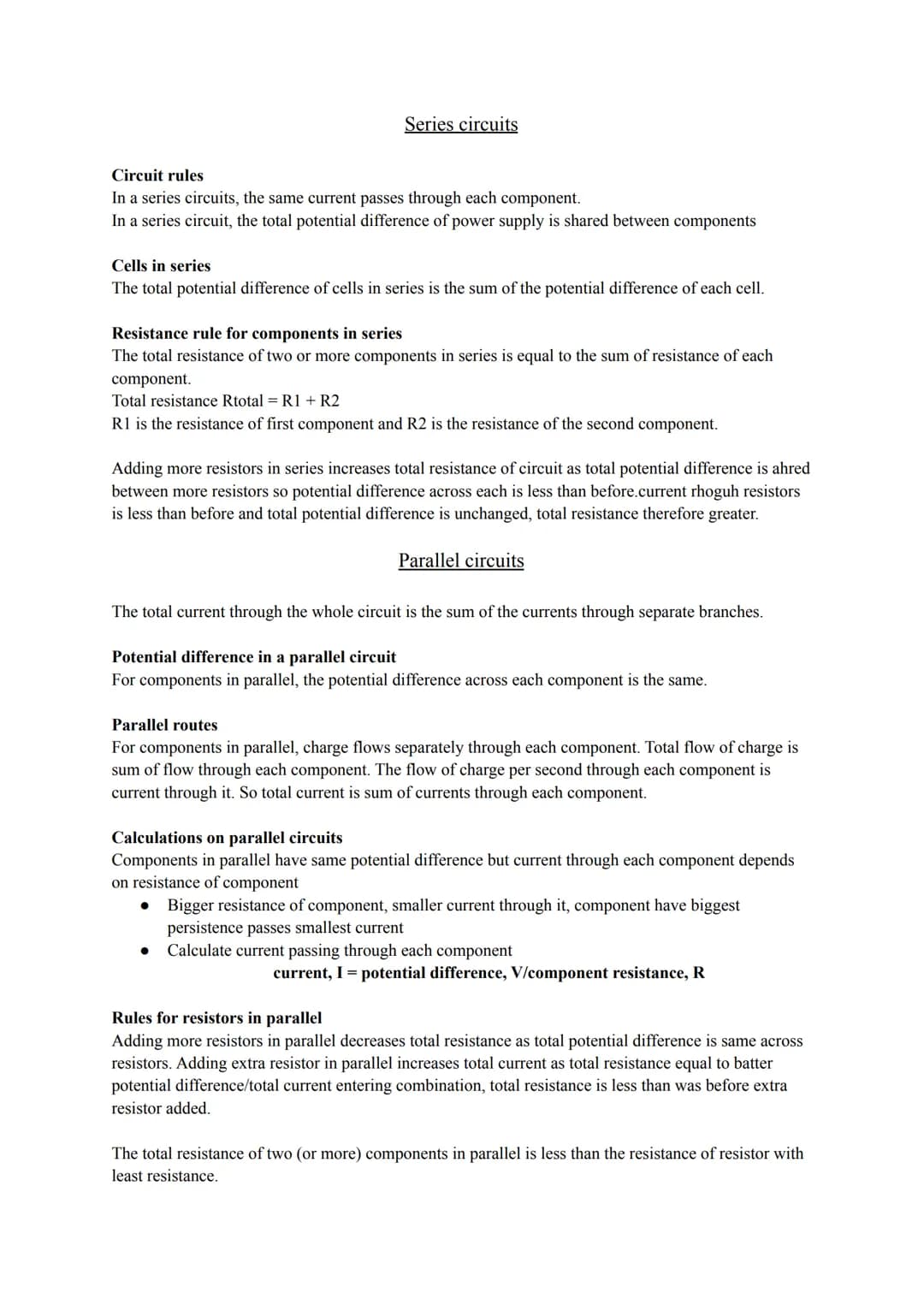

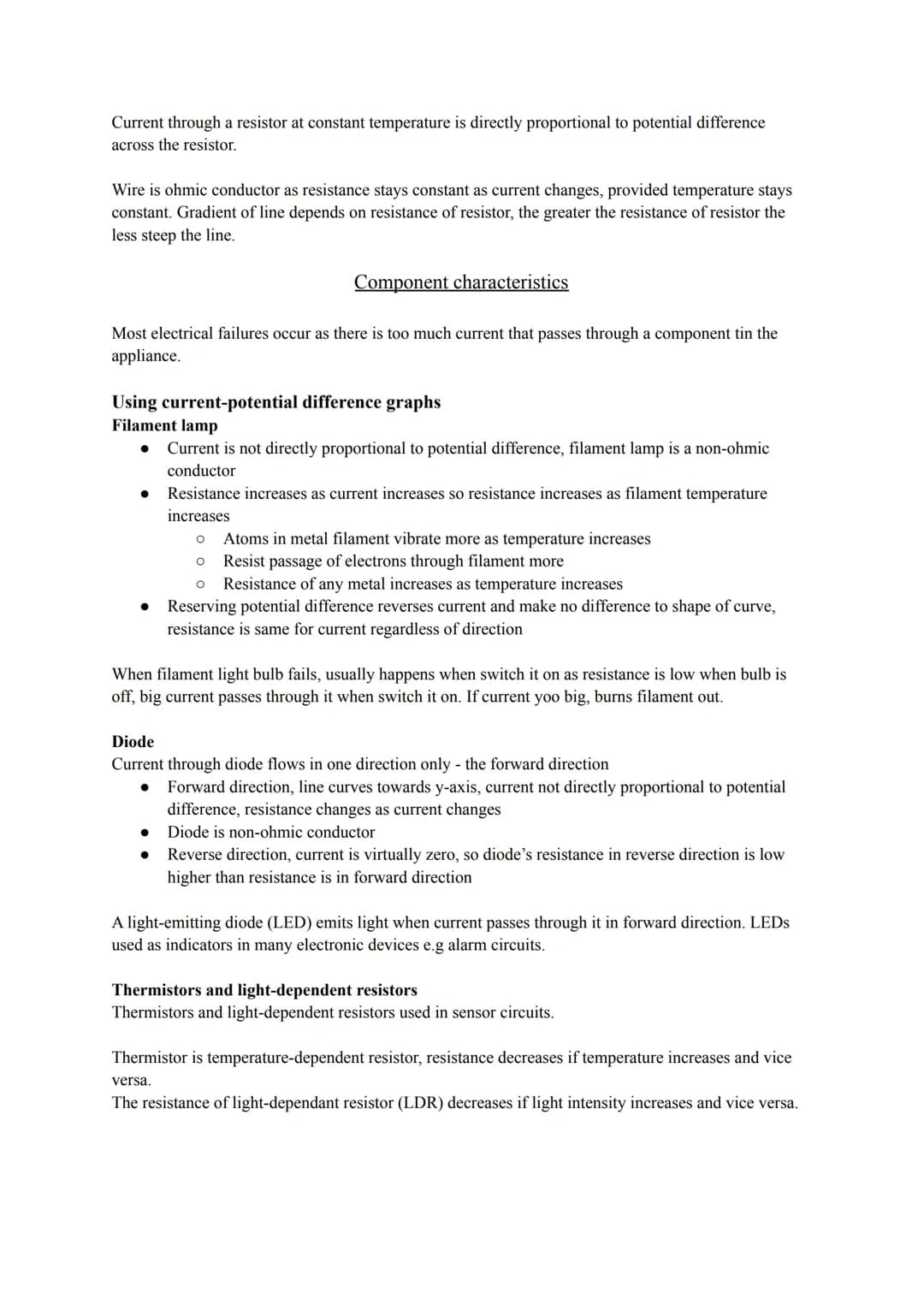

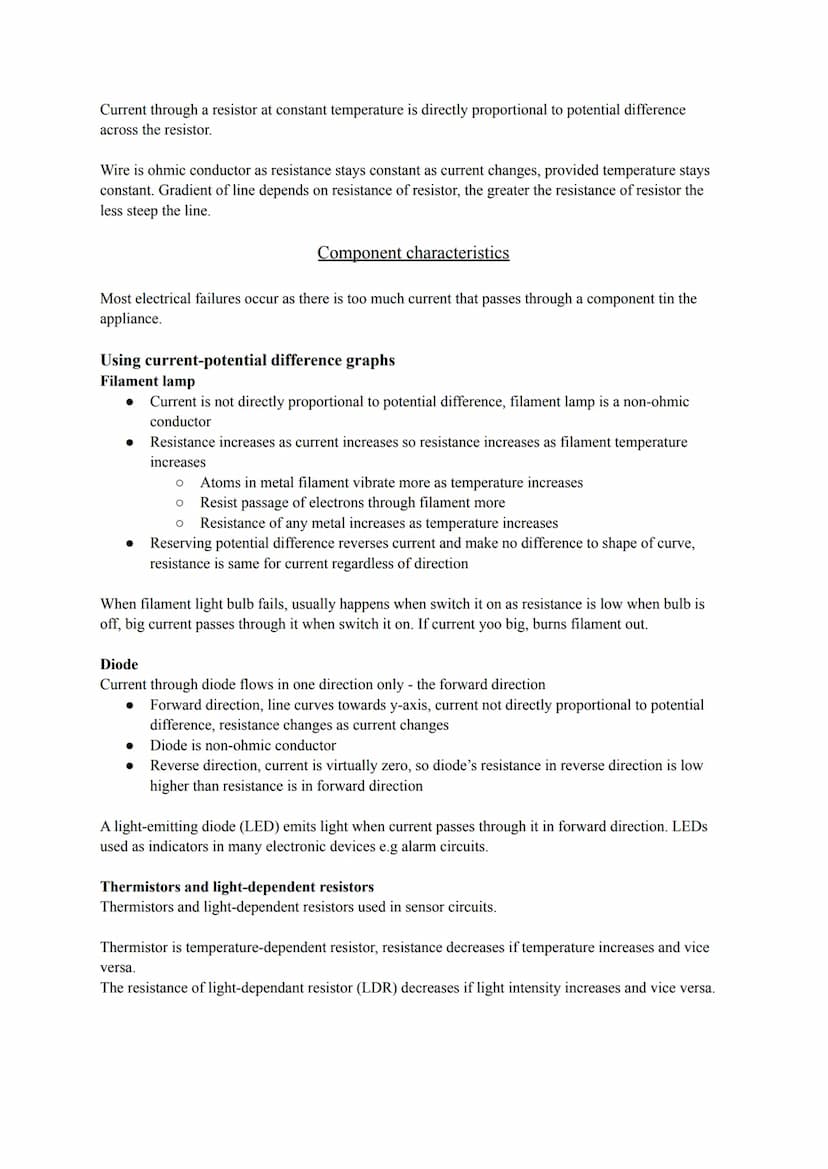

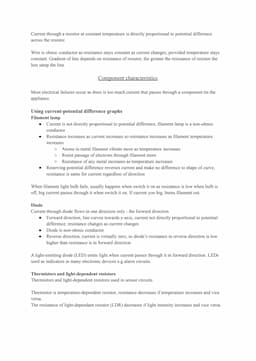

Page 4: Current-Voltage Relationships

This section explores the relationship between current and potential difference in various circuit components, particularly focusing on resistors and filament lamps.

Definition: An ohmic conductor maintains constant resistance as current changes at constant temperature.

Example: A filament lamp is a non-ohmic conductor because its resistance increases with temperature.

Highlight: Most electrical failures occur due to excessive current through components.

P4 - Electric Circuits

This page introduces the topic of electric circuits, which is a fundamental concept in GCSE Physics electricity. Electric circuits are the backbone of modern electronics and power systems, making them a crucial area of study for students pursuing physics at the GCSE level.

Highlight: Electric circuits form the foundation for understanding how electrical energy is transferred and utilized in various applications.
