Complete AQA GCSE Physics P2 Study Notes

Energy Transfer by Heating

Energy transfer by heating is a fundamental process that affects everything around us. When objects of different temperatures come into contact, energy moves from the warmer object to the cooler one.

This transfer can happen through three main methods: conduction, convection, and radiation. Each process works differently but all achieve the same result - moving thermal energy from one place to another.

Understanding these processes helps explain everyday phenomena, from why metal feels cold when you touch it to how the Earth maintains its temperature.

Remember this! Energy always transfers from hotter objects to cooler ones, never the other way around. This is a fundamental law of thermodynamics that you'll see in action throughout this topic.

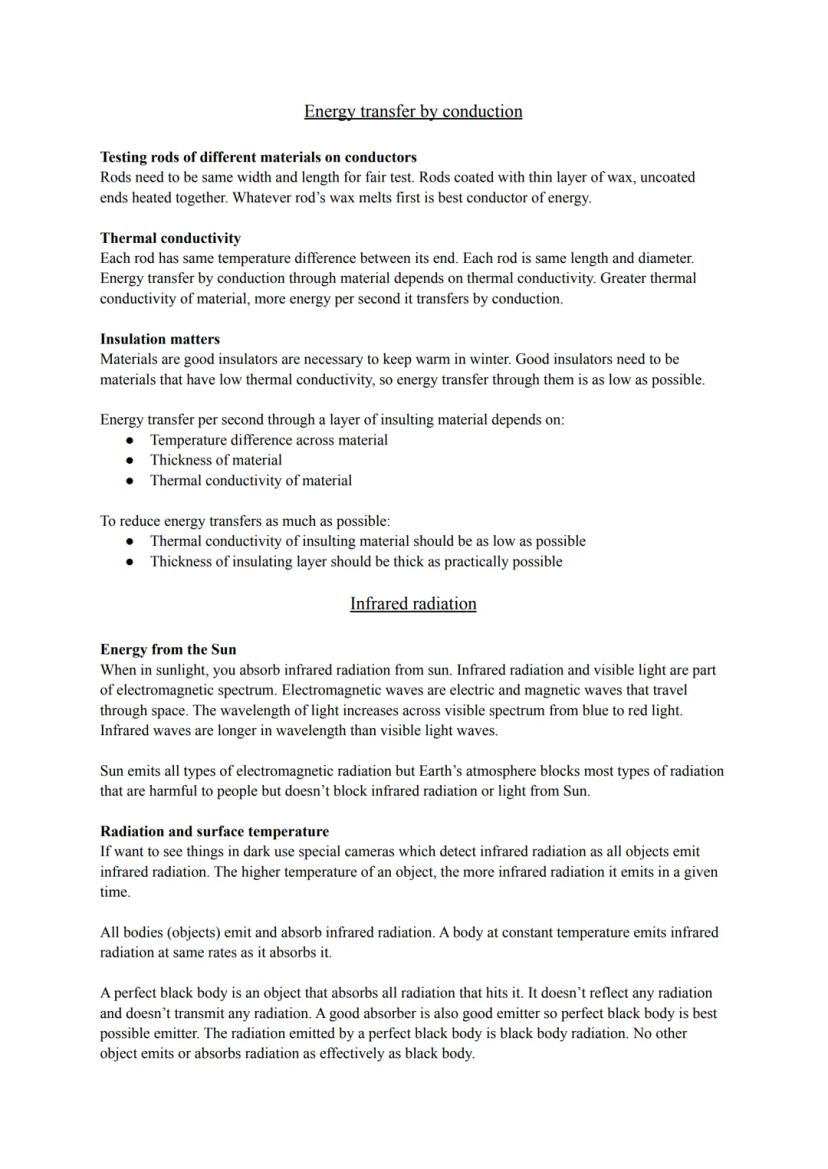

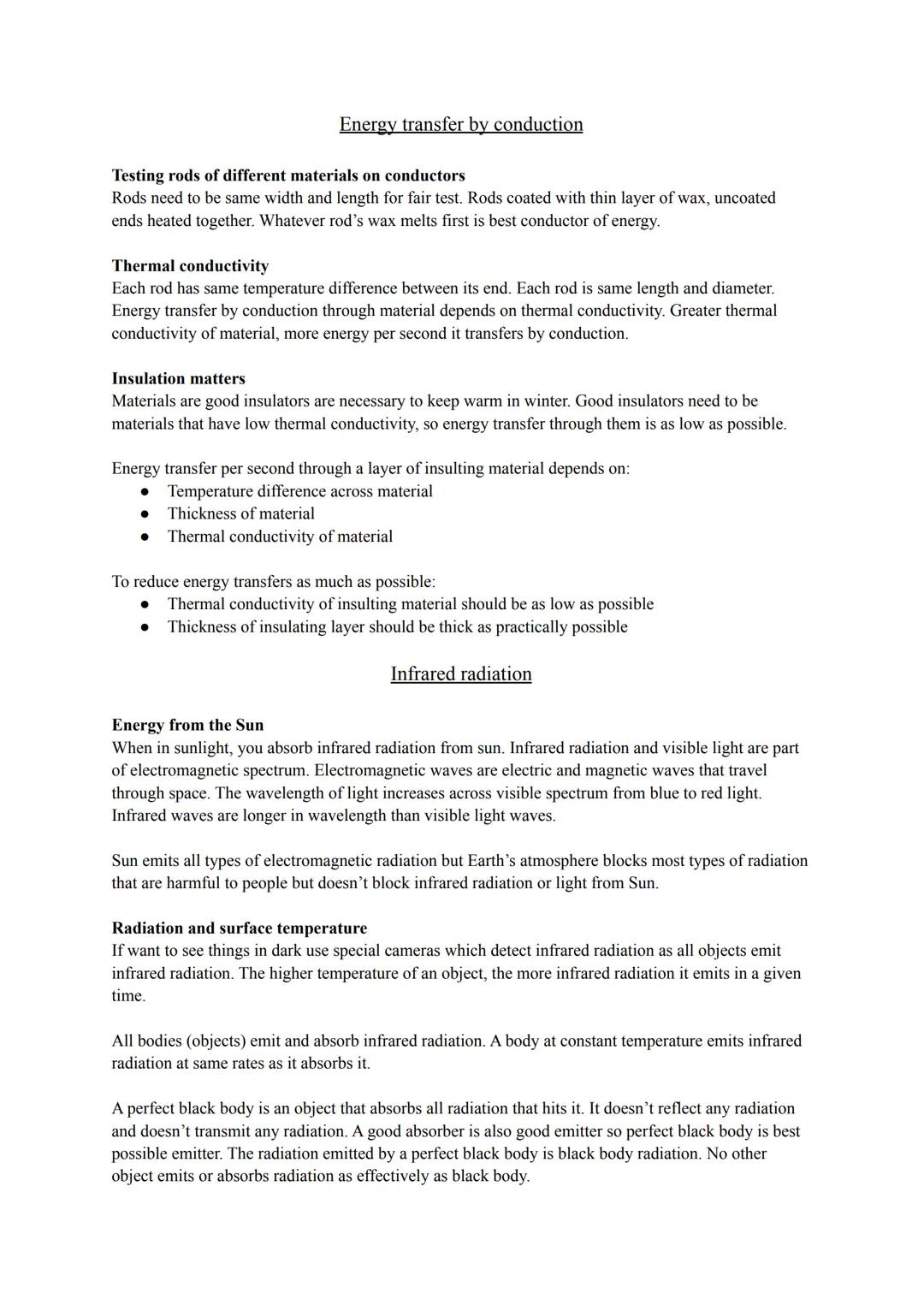

Energy Transfer by Conduction

Conduction is how thermal energy moves through solid materials. You can test which materials conduct heat best with a simple experiment - coat rods of different materials with wax, heat one end, and see which wax melts first. The winner is the best conductor!

Thermal conductivity measures how well a material conducts heat. Higher thermal conductivity means energy transfers more quickly through the material. This property varies greatly between materials - metals typically have high conductivity while air and plastic have low conductivity.

Good insulators have low thermal conductivity, making them excellent for keeping homes warm. The effectiveness of insulation depends on three key factors: the temperature difference across the material, the thickness of the insulation layer, and the material's thermal conductivity. For maximum insulation, use a thick layer of material with very low thermal conductivity.

Infrared Radiation

The Sun transfers energy to Earth through infrared radiation, which travels as electromagnetic waves through space. These waves are longer in wavelength than visible light but still pass through Earth's atmosphere (unlike many harmful types of radiation that get blocked).

All objects emit infrared radiation, with hotter objects emitting more radiation per second than cooler ones. Special cameras can detect this radiation, allowing us to "see" heat. When an object maintains a constant temperature, it's emitting and absorbing infrared radiation at the same rate.

Fascinating fact: A "perfect black body" is a theoretical object that absorbs all radiation that hits it. It's also the best possible emitter of radiation. While perfect black bodies don't exist in reality, this concept helps physicists understand how radiation works.

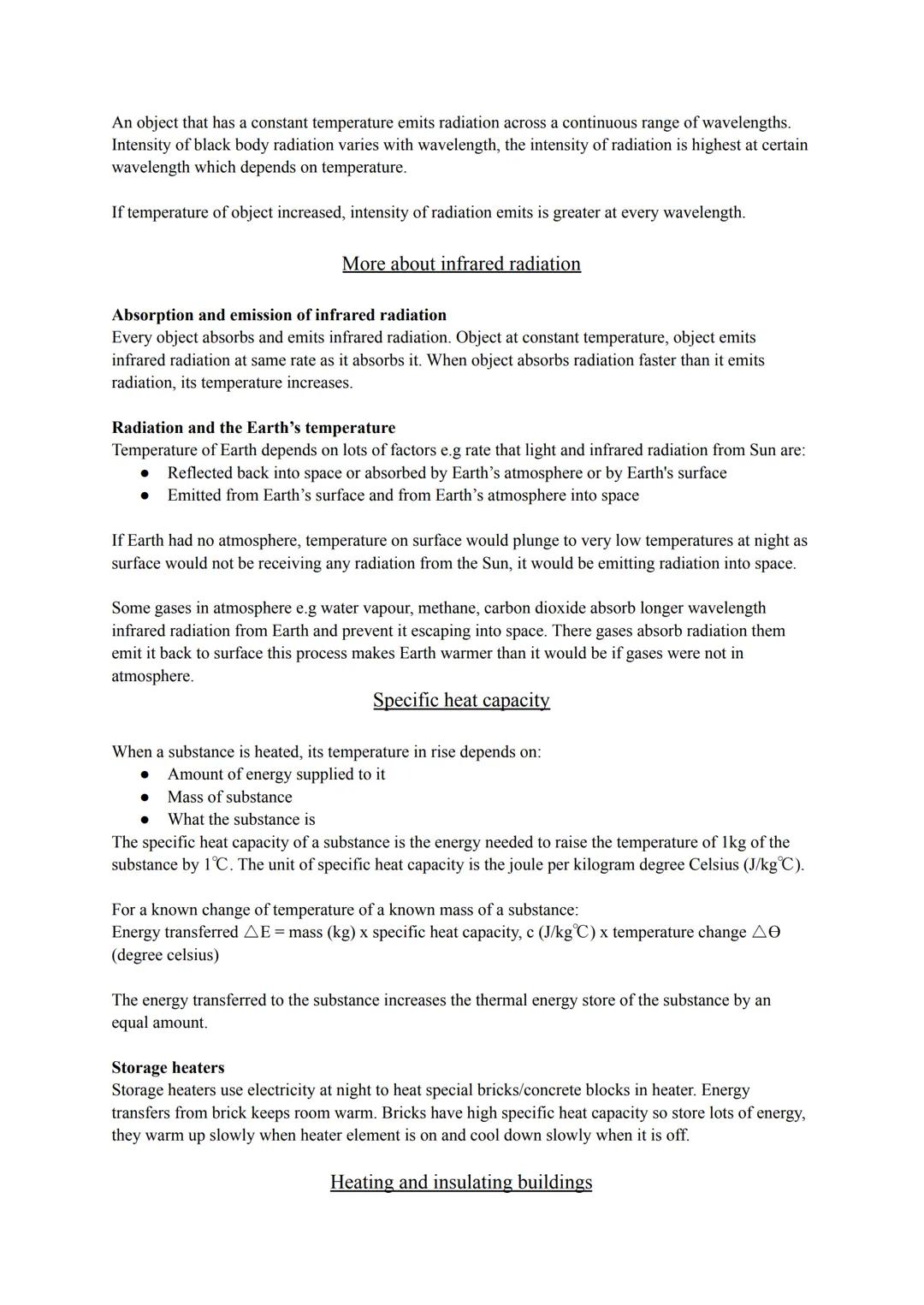

More About Infrared Radiation

Objects emit radiation across a range of wavelengths, with the intensity peaking at a specific wavelength that depends on temperature. As an object gets hotter, it emits more radiation at every wavelength, and the peak intensity shifts toward shorter wavelengths.

The Earth's temperature depends on a balance between absorbed and emitted radiation. Without our atmosphere, Earth would experience extreme temperature swings. Certain gases in the atmosphere—including water vapour, methane, and carbon dioxide—absorb infrared radiation emitted from Earth's surface and re-emit some back toward Earth, keeping our planet warmer than it would otherwise be.

Specific Heat Capacity

Specific heat capacity tells us how much energy is needed to raise the temperature of 1kg of a substance by 1°C. This property explains why some materials heat up quickly while others take longer, even with the same energy input.

We can calculate energy transferred using the formula: Energy transferred (ΔE) = mass × specific heat capacity × temperature change. Materials with high specific heat capacity, like water, can store large amounts of thermal energy with relatively small temperature increases.

Storage heaters work by using electricity to heat special bricks or concrete blocks with high specific heat capacity. These materials store thermal energy during off-peak hours and release it slowly throughout the day, providing a steady source of heat.

Exam tip: The specific heat capacity formula (ΔE = m × c × Δθ) frequently appears in exams. Make sure you know both what each symbol represents and the units for specific heat capacity $J/kg°C$.

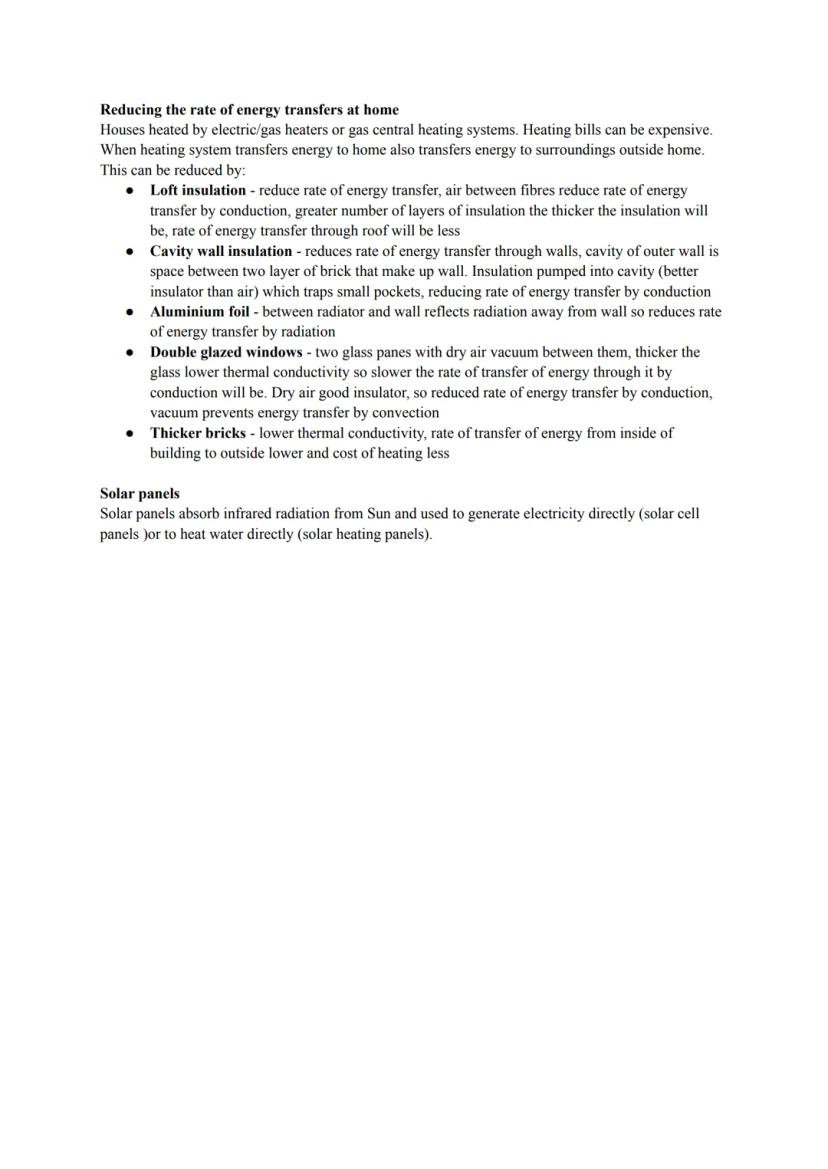

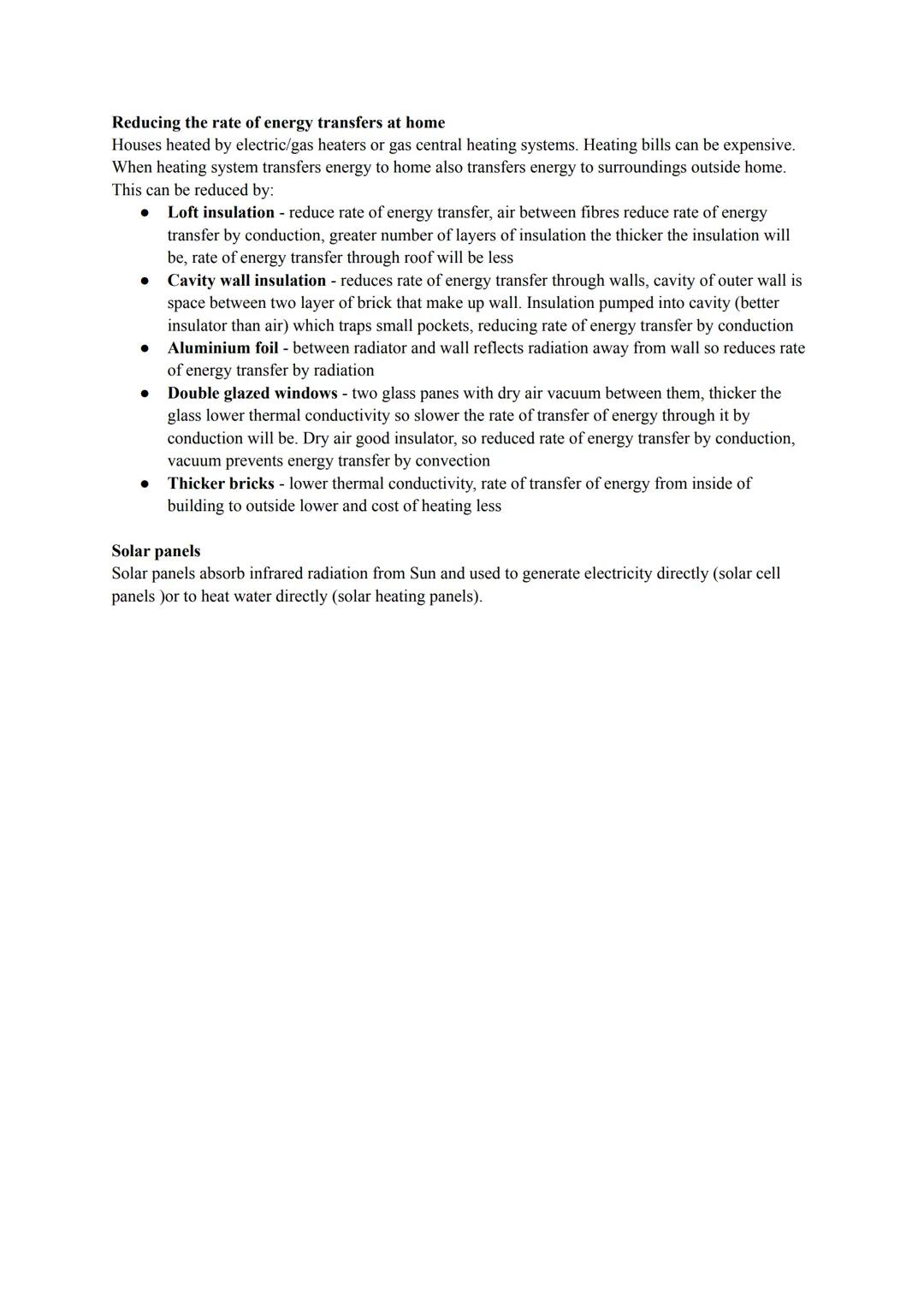

Heating and Insulating Buildings

Keeping homes warm efficiently requires minimising unwanted heat transfer to the outside. Several effective methods can reduce heating costs while maintaining comfort:

Loft insulation works by trapping air between fibres, reducing conduction. The thicker the insulation, the less heat escapes through your roof. Cavity wall insulation fills the gap between inner and outer walls with materials that trap small pockets of air, dramatically reducing heat loss through walls.

Double glazed windows use two panes of glass with either dry air or a vacuum between them. This design reduces heat transfer in three ways: the glass itself has low thermal conductivity, the air gap prevents conduction, and a vacuum eliminates convection entirely.

Other effective methods include placing aluminium foil behind radiators to reflect heat back into the room rather than allowing it to escape through external walls, and using thicker bricks with lower thermal conductivity for construction.

Solar Panels

Solar panels harness the sun's infrared radiation in two main ways. Solar cell panels (photovoltaic panels) convert solar radiation directly into electricity. Solar heating panels use the sun's energy to heat water, which can then be used for domestic hot water or to supplement heating systems.

Real-world application: Understanding energy transfer principles helps you make smarter choices about home insulation. Even simple changes like reflective foil behind radiators can significantly reduce your heating bills!
