Page 1: Introduction to Electromagnetism

This page introduces the topic of electromagnetism, which is a fundamental concept in GCSE Physics electromagnetism. Electromagnetism is the study of the relationship between electricity and magnetism, and how they interact with each other. This topic is crucial for understanding many modern technologies and applications in physics.

Highlight: Electromagnetism is a key area of study in GCSE Physics, combining the principles of electricity and magnetism.

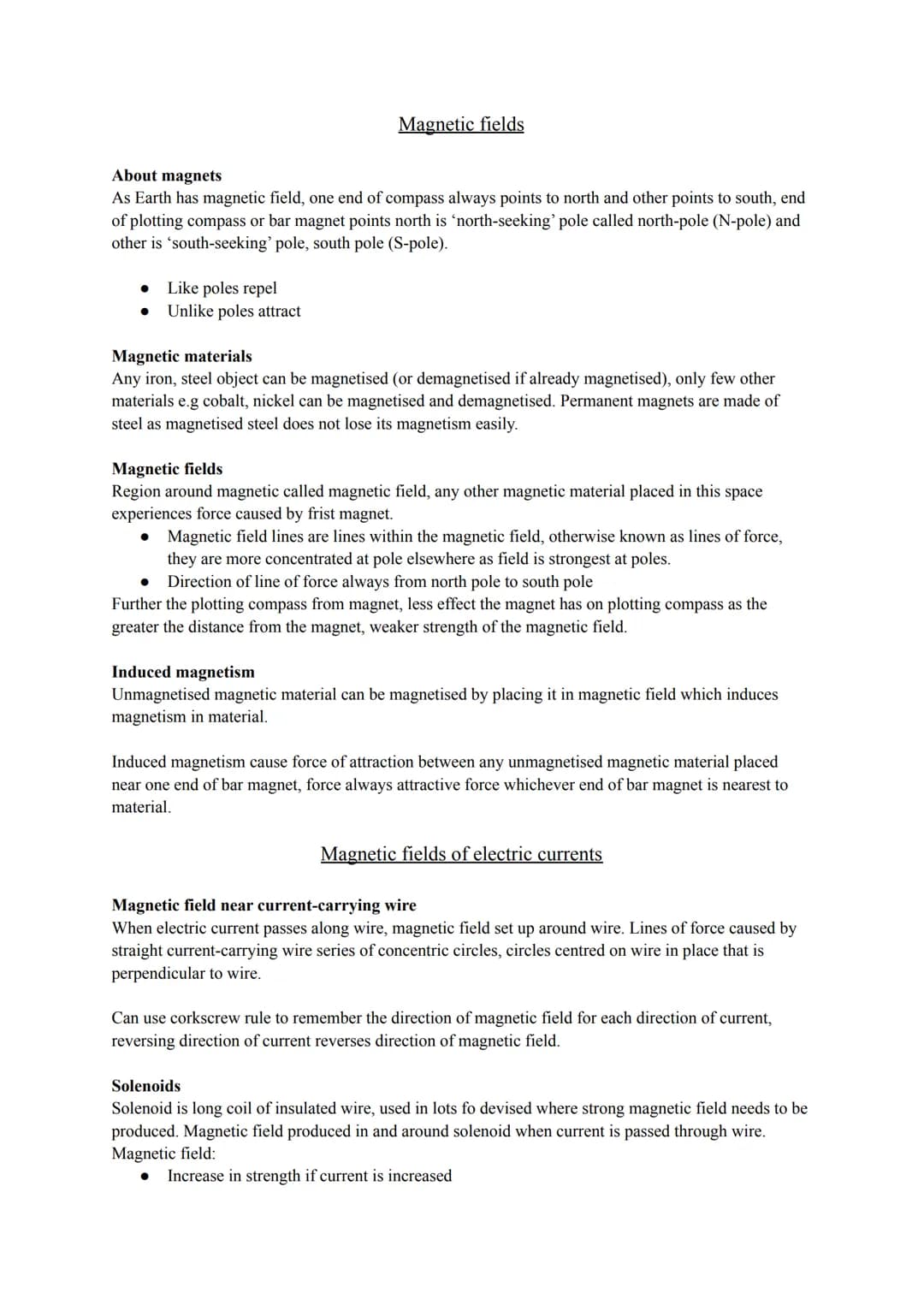

Page 2: Magnetic Fields and Their Properties

This page delves into the nature of magnetic fields and the properties of magnets, essential knowledge for Magnetism bbc Bitesize KS3 and GCSE Physics magnetism studies.

Magnets have two poles: north-seeking (N) and south-seeking (S). The Earth's magnetic field causes compass needles to align with these poles. Like poles repel each other, while unlike poles attract.

Magnetic materials, such as iron, steel, cobalt, and nickel, can be magnetized or demagnetized. Permanent magnets are typically made of steel due to its ability to retain magnetism.

Definition: A magnetic field is the region around a magnet where magnetic forces can be detected.

Magnetic field lines, also known as lines of force, represent the direction and strength of the magnetic field. These lines are more concentrated at the poles, indicating stronger field strength in these areas.

Vocabulary: Induced magnetism occurs when an unmagnetized magnetic material becomes temporarily magnetized when placed in a magnetic field.

The page also introduces the concept of magnetic fields generated by electric currents. When current flows through a wire, it creates a magnetic field around it. The direction of this field can be determined using the corkscrew rule.

Example: A solenoid, which is a long coil of insulated wire, produces a strong magnetic field when current flows through it. This principle is used in many electromagnetic devices.

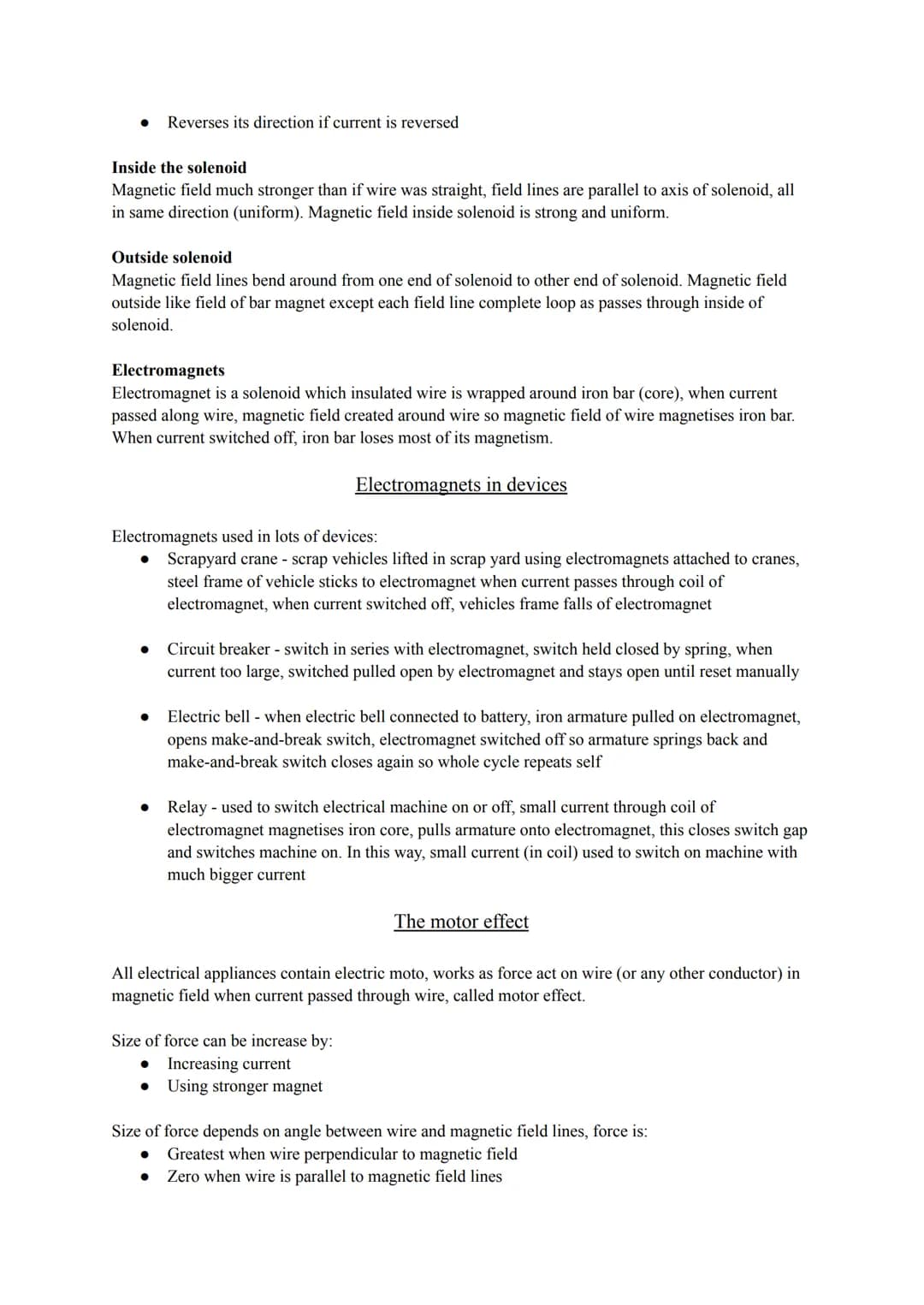

Page 3: Electromagnets and Their Applications

This page focuses on electromagnets and their various applications, providing essential information for Solenoids and electromagnets GCSE study questions and answers.

An electromagnet is a solenoid with an iron core. When current passes through the wire, it creates a magnetic field that magnetizes the iron core, significantly strengthening the overall magnetic field.

Definition: An electromagnet is a type of magnet in which the magnetic field is produced by an electric current.

The strength of an electromagnet can be increased by:

• Increasing the current through the coil
• Using a stronger magnet as the core

Electromagnets have numerous practical applications, including:

1. Scrapyard cranes: Used for lifting and moving metal objects in scrapyards.
2. Circuit breakers: Provide safety in electrical systems by quickly interrupting current flow when necessary.
3. Electric bells: Utilize the on-off cycle of an electromagnet to create sound.
4. Relays: Allow small currents to control larger currents, useful in various electrical systems.

Example: In a scrapyard crane, the electromagnet can be easily turned on to lift metal objects and turned off to release them, providing efficient control over the lifting process.

The page also introduces the motor effect, which is the force exerted on a current-carrying wire in a magnetic field. This principle is fundamental to the operation of electric motors.

Highlight: The force on a current-carrying wire in a magnetic field is greatest when the wire is perpendicular to the magnetic field lines and zero when it's parallel.

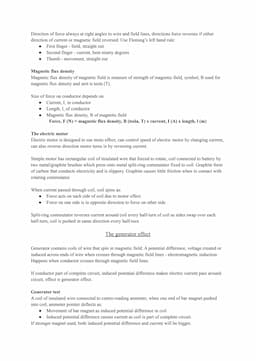

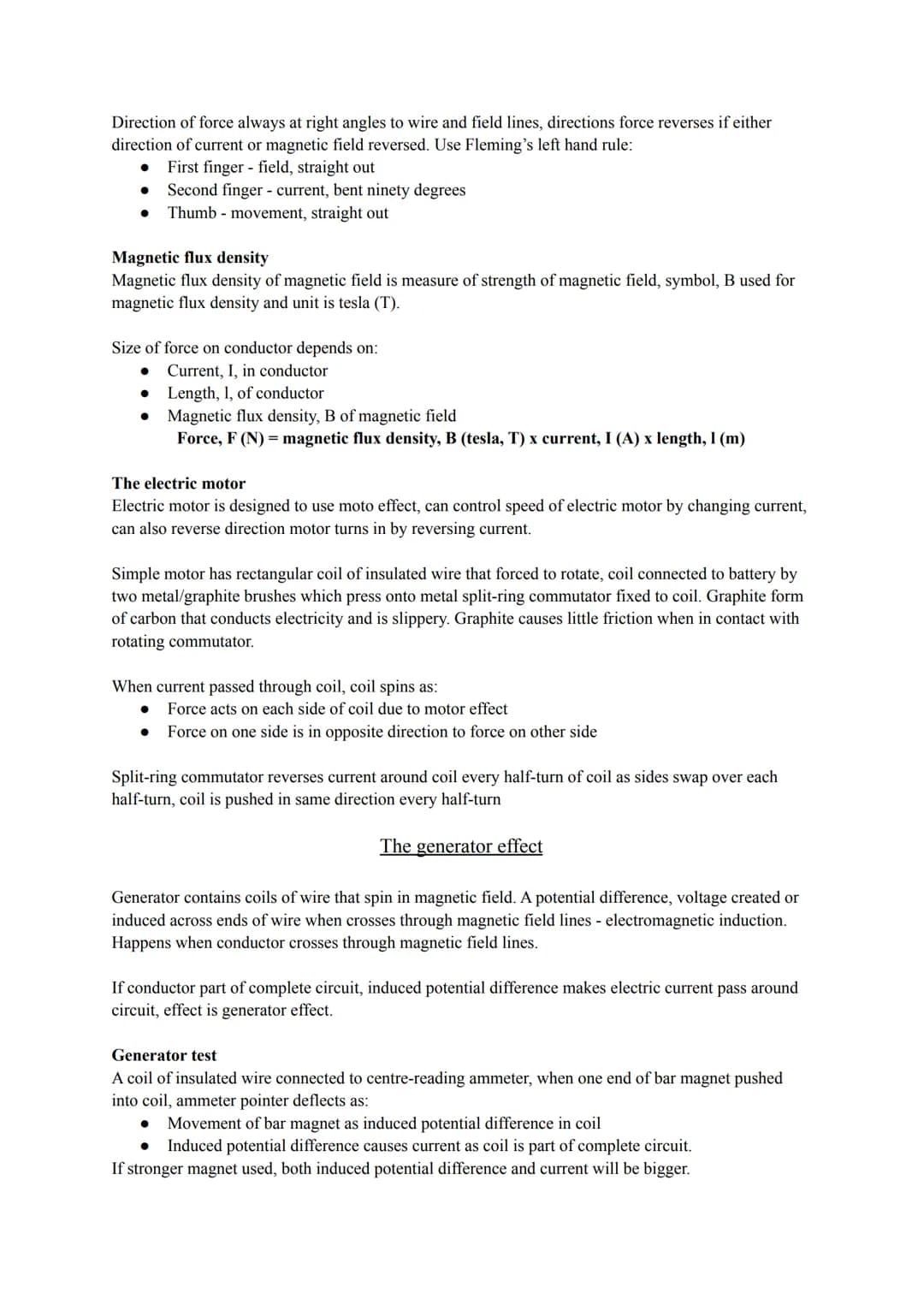

Page 4: The Motor Effect and Magnetic Flux Density

This page elaborates on the motor effect and introduces magnetic flux density, crucial concepts for AQA GCSE Physics Magnetism and electromagnetism exam questions.

The motor effect is the principle behind all electric motors found in various electrical appliances. It describes the force experienced by a current-carrying conductor in a magnetic field.

Definition: The motor effect is the force exerted on a current-carrying wire when it is placed in a magnetic field.

The direction and magnitude of this force depend on several factors:

• The direction of the current
• The direction of the magnetic field
• The angle between the wire and the magnetic field lines

Highlight: Fleming's Left Hand Rule is used to determine the direction of the force in the motor effect.

Fleming's Left Hand Rule states:

• First finger points in the direction of the magnetic Field
• Second finger points in the direction of the Current
• Thumb indicates the direction of Motion (force)

The page also introduces the concept of magnetic flux density, which is a measure of the strength of a magnetic field.

Vocabulary: Magnetic flux density is symbolized by B and measured in teslas (T).

Understanding these concepts is essential for mastering Solenoids and electromagnets GCSE study questions and performing well in GCSE Physics magnetism examinations.

Magnetic Flux Density

This section introduces magnetic flux density as a measure of magnetic field strength. The concept is crucial for understanding Electromagnetism bbc Bitesize edexcel principles.

Vocabulary: Magnetic flux density (B) is measured in tesla (T).

Definition: Magnetic flux density quantifies the strength of a magnetic field at any given point.

Additional Technical Details

This section would contain further technical specifications and measurements, but the provided transcript ends mid-sentence. The content would typically include more detailed information about magnetic flux density calculations and practical applications.

Highlight: Understanding magnetic flux density is essential for Magnetism GCSE Physics Edexcel examinations.

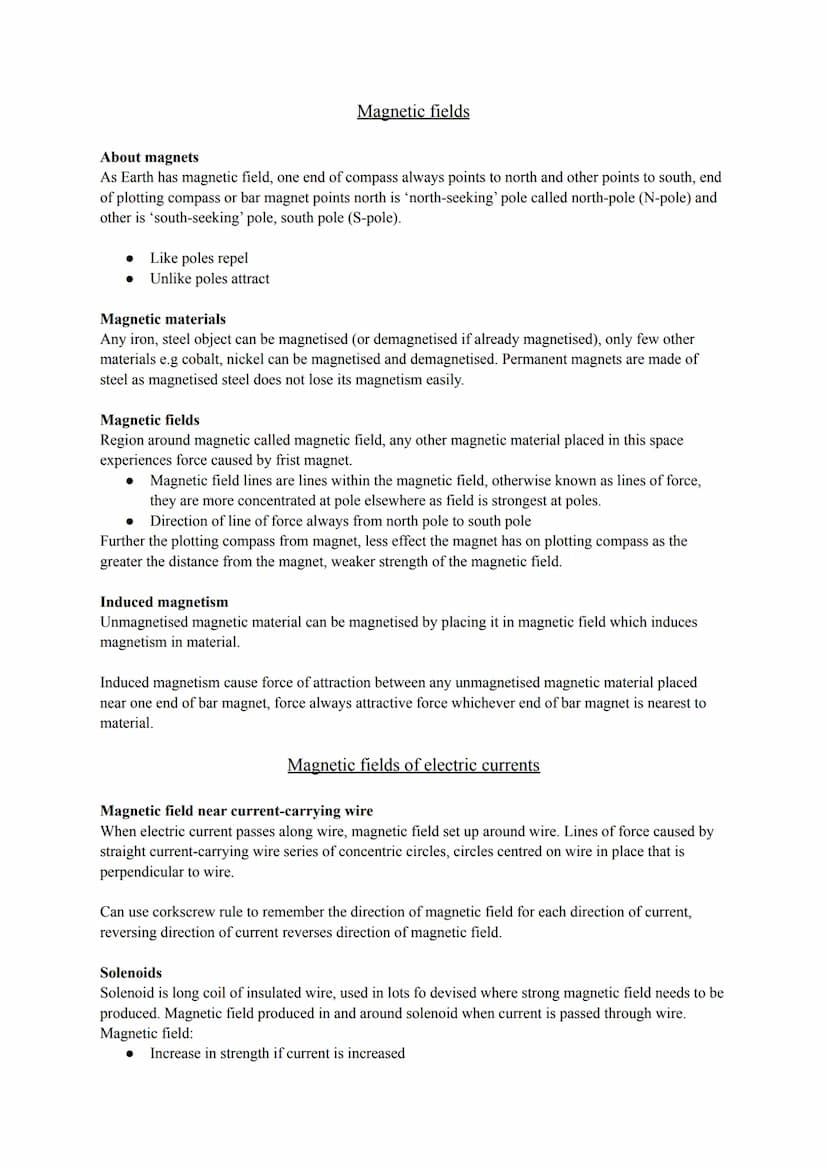

Magnetic Fields and Magnets

This section introduces the fundamental concepts of magnetism and magnetic fields, essential for understanding GCSE Physics electromagnetism.

Earth's magnetic field causes compass needles to align north-south. Magnets have north-seeking (N) and south-seeking (S) poles. Like poles repel, while unlike poles attract.

Definition: Magnetic materials are substances that can be magnetized, such as iron, steel, cobalt, and nickel.

Magnetic fields surround magnets, with field lines (or lines of force) indicating the direction and strength of the field. These lines always flow from north to south poles and are most concentrated at the poles where the field is strongest.

Highlight: The strength of a magnetic field decreases with distance from the magnet.

Induced magnetism occurs when an unmagnetized magnetic material is placed in a magnetic field, causing it to become temporarily magnetized.

Example: A paperclip becoming magnetized when placed near a strong magnet demonstrates induced magnetism.

Magnetic Fields of Electric Currents

This section explores the relationship between electricity and magnetism, a crucial topic in AQA GCSE Physics Magnetism and electromagnetism exam questions.

When an electric current flows through a wire, it generates a magnetic field around it. The field lines form concentric circles perpendicular to the wire.

Vocabulary: The corkscrew rule helps determine the direction of the magnetic field based on the direction of the current.

Solenoids, which are long coils of insulated wire, produce strong magnetic fields when current flows through them. The field inside a solenoid is uniform and parallel to its axis.

Definition: An electromagnet is a solenoid with an iron core, which significantly strengthens the magnetic field.

Electromagnets have various practical applications, including:

• Scrapyard cranes for lifting metal objects
• Circuit breakers for electrical safety
• Electric bells for signaling
• Relays for controlling high-current devices with low-current signals

The strength of an electromagnet can be increased by:

• Increasing the current
• Using a stronger magnet

The Motor Effect and Magnetic Flux Density

This section covers the motor effect and magnetic flux density, essential concepts for GCSE Physics magnetism and Magnetism and electromagnetism GCSE exam questions.

The motor effect describes the force exerted on a current-carrying wire in a magnetic field. This principle is the basis for electric motors in various appliances.

Highlight: The force is greatest when the wire is perpendicular to the magnetic field lines and zero when parallel.

Fleming's Left Hand Rule helps determine the direction of the force:

• First finger points in the direction of the magnetic Field
• Second finger points in the direction of the Current
• Thumb indicates the direction of Motion (force)

Definition: Magnetic flux density, symbolized by B and measured in teslas (T), quantifies the strength of a magnetic field.

Understanding these concepts is crucial for mastering Solenoids and electromagnets GCSE study questions and answers and excelling in AQA GCSE Physics revision.
