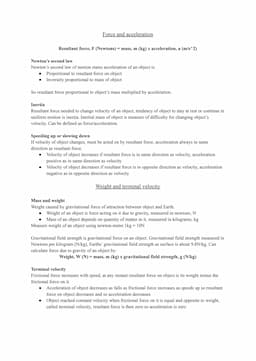

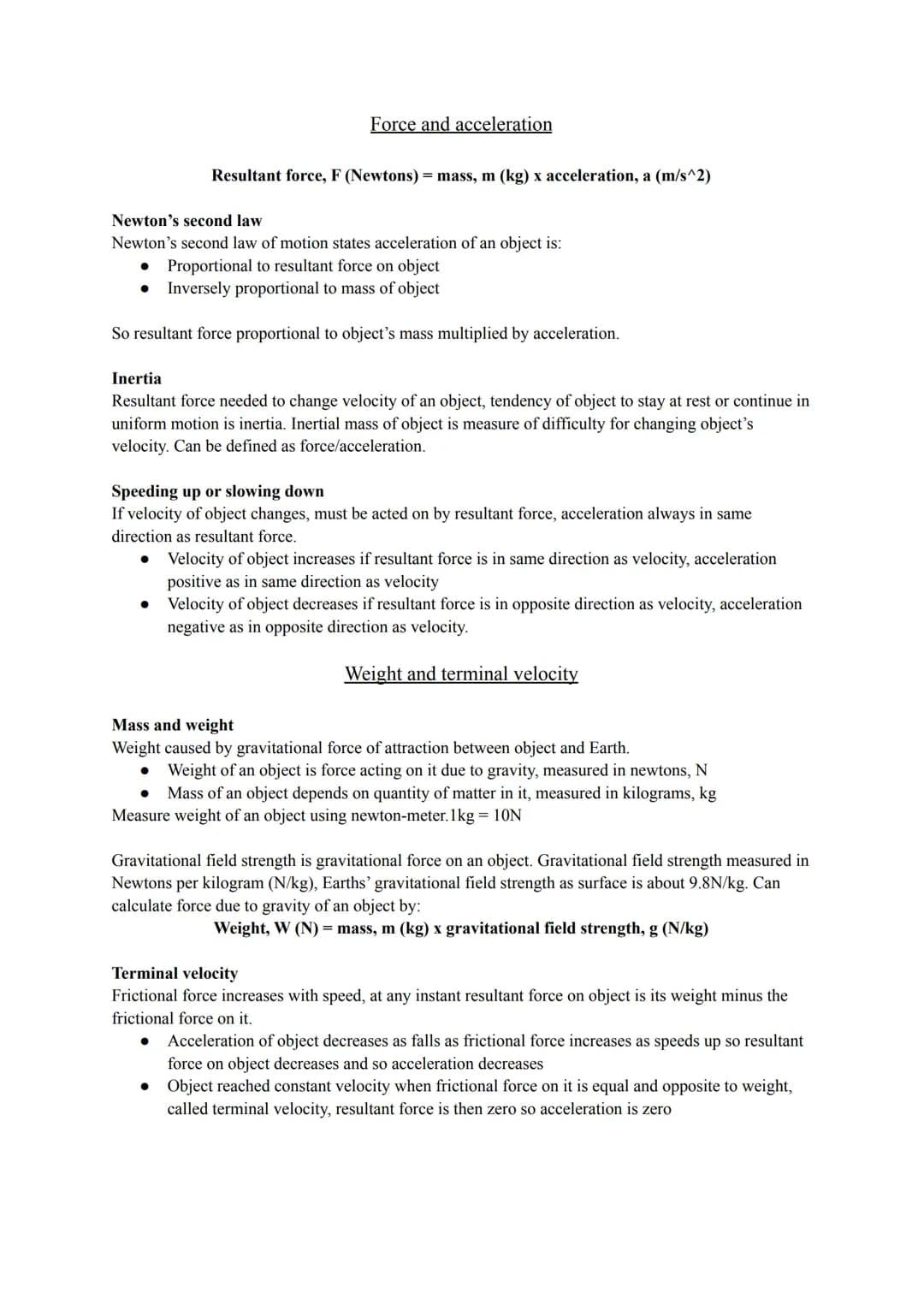

Force and Acceleration

This section delves into the relationship between force, mass, and acceleration, introducing Newton's Second Law and the concept of inertia.

Definition: Newton's Second Law of Motion states that the acceleration of an object is proportional to the resultant force acting on it and inversely proportional to its mass.

The formula for Newton's Second Law is presented:

Resultant force, F (Newtons) = mass, m (kg) x acceleration, a (m/s^2)

Vocabulary: Inertia is defined as the tendency of an object to resist changes in its state of motion.

The section also explains how velocity changes in relation to the direction of the resultant force:

• When the resultant force is in the same direction as velocity, the object speeds up.
• When the resultant force is in the opposite direction to velocity, the object slows down.

Weight and Terminal Velocity

This part of the document explores the concepts of weight, mass, and terminal velocity.

Definition: Weight is the force acting on an object due to gravity, measured in Newtons (N).

The relationship between mass and weight is explained, introducing the concept of gravitational field strength:

Weight, W (N) = mass, m (kg) x gravitational field strength, g (N/kg)

Highlight: Earth's gravitational field strength at the surface is approximately 9.8 N/kg.

The concept of terminal velocity is introduced, explaining how it occurs when the frictional force on a falling object equals its weight, resulting in zero acceleration.

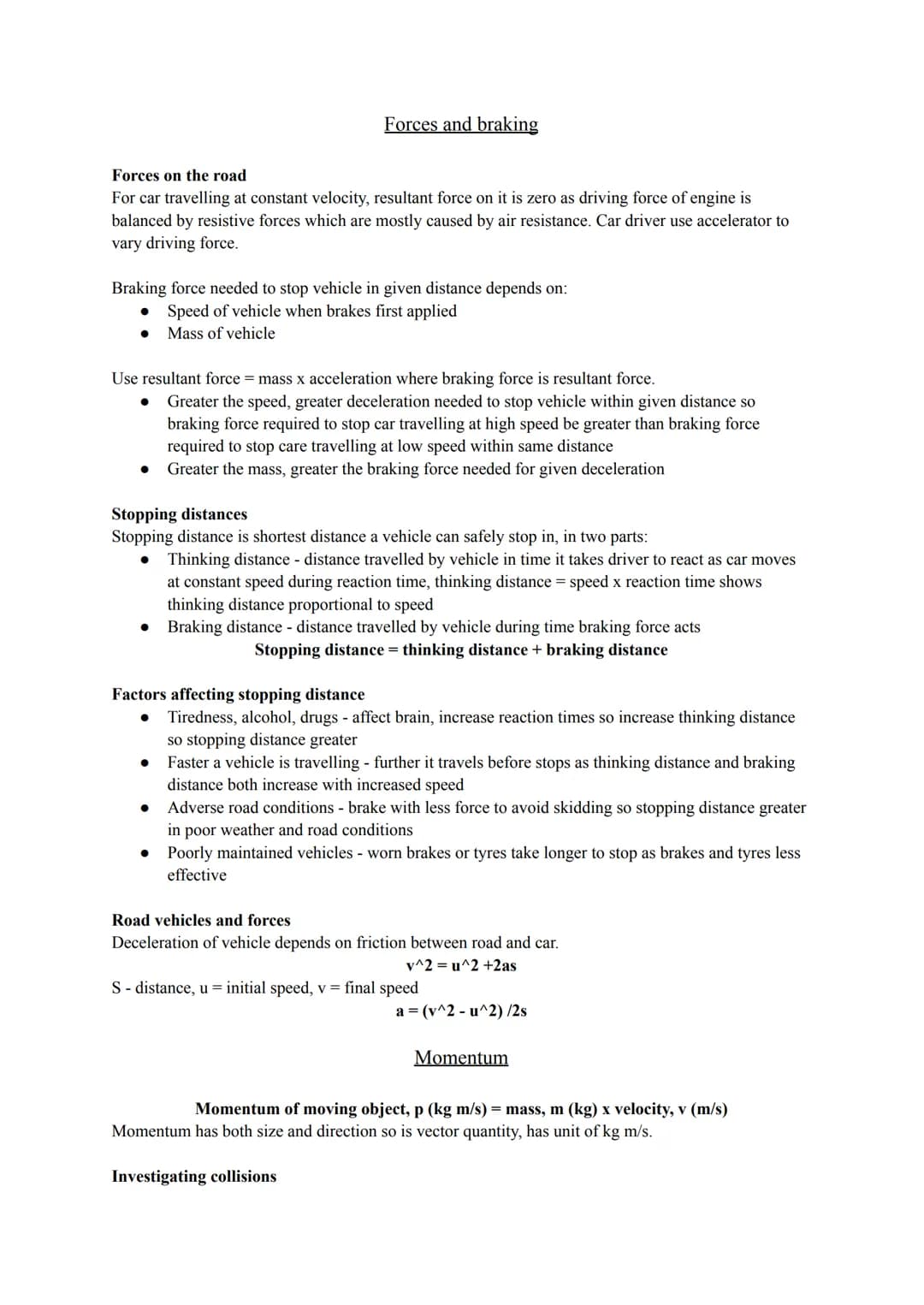

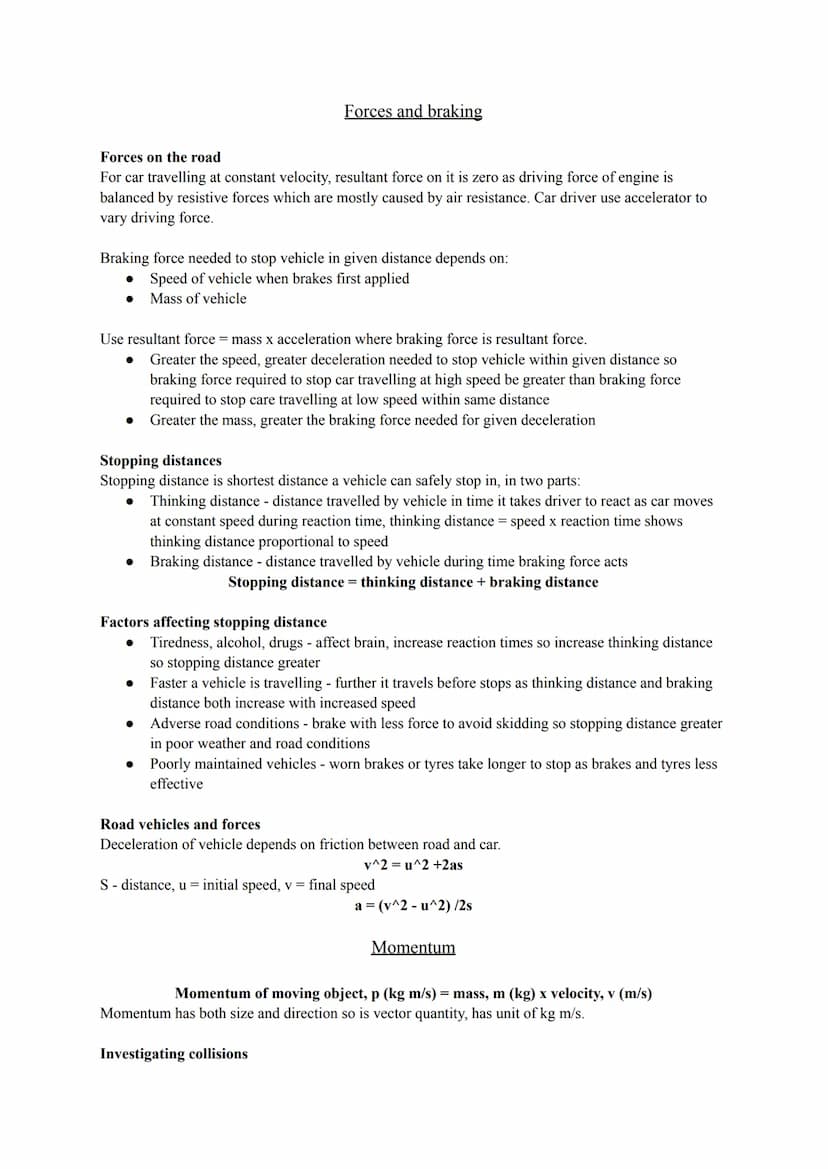

Forces and Braking

This section discusses the forces acting on vehicles and the factors affecting braking distances.

Example: For a car traveling at constant velocity, the driving force of the engine is balanced by resistive forces, primarily air resistance.

The document explains that the braking force required to stop a vehicle depends on:

1. The speed of the vehicle when brakes are first applied
2. The mass of the vehicle

The concept of stopping distance is introduced, which consists of:

1. Thinking distance
2. Braking distance

Highlight: Stopping distance = Thinking distance + Braking distance

Factors affecting stopping distance are discussed, including:

• Driver's condition (tiredness, alcohol, drugs)
• Vehicle speed
• Road conditions
• Vehicle maintenance

The section also introduces the equation for calculating deceleration:

v^2 = u^2 + 2as

Where: s = distance u = initial speed v = final speed a = acceleration (or deceleration)

Momentum

This part introduces the concept of momentum and its conservation in collisions.

Definition: Momentum of a moving object, p (kg m/s) = mass, m (kg) x velocity, v (m/s)

Highlight: Momentum is a vector quantity, having both magnitude and direction.

The law of conservation of momentum is explained:

Quote: "In a closed system, the total momentum before an event is equal to the total momentum after the event."

The document emphasizes that momentum is conserved in any collision as long as no external forces act on the objects involved.

This comprehensive overview of force and motion provides students with essential knowledge for AQA GCSE Physics exams, covering key topics such as Newton's laws, terminal velocity, and momentum conservation.

Forces and Braking

This page discusses the application of Newton's second law of motion to vehicles and braking, which is particularly relevant for understanding forces in everyday situations.

For a car traveling at constant velocity:

• The resultant force is zero.
• The driving force of the engine is balanced by resistive forces, mainly air resistance.
• The driver uses the accelerator to vary the driving force.

The braking force needed to stop a vehicle within a given distance depends on:

1. The speed of the vehicle when brakes are first applied.
2. The mass of the vehicle.

Highlight: The relationship between force and acceleration in braking can be understood using Newton's second law formula: F = ma, where the braking force is the resultant force.

Stopping distance consists of two parts:

1. Thinking distance: The distance traveled during the driver's reaction time.
2. Braking distance: The distance traveled while the braking force acts.

Definition: Stopping distance = Thinking distance + Braking distance

Factors affecting stopping distance include:

• Driver's condition (tiredness, alcohol, drugs)
• Vehicle speed
• Road conditions
• Vehicle maintenance

Example: A car traveling at 30 mph (13.4 m/s) on a dry road has a typical stopping distance of 23 meters, consisting of 9 meters thinking distance and 14 meters braking distance.

Understanding these concepts helps in applying Newton's second law of motion to real-world scenarios, particularly in road safety and vehicle design.

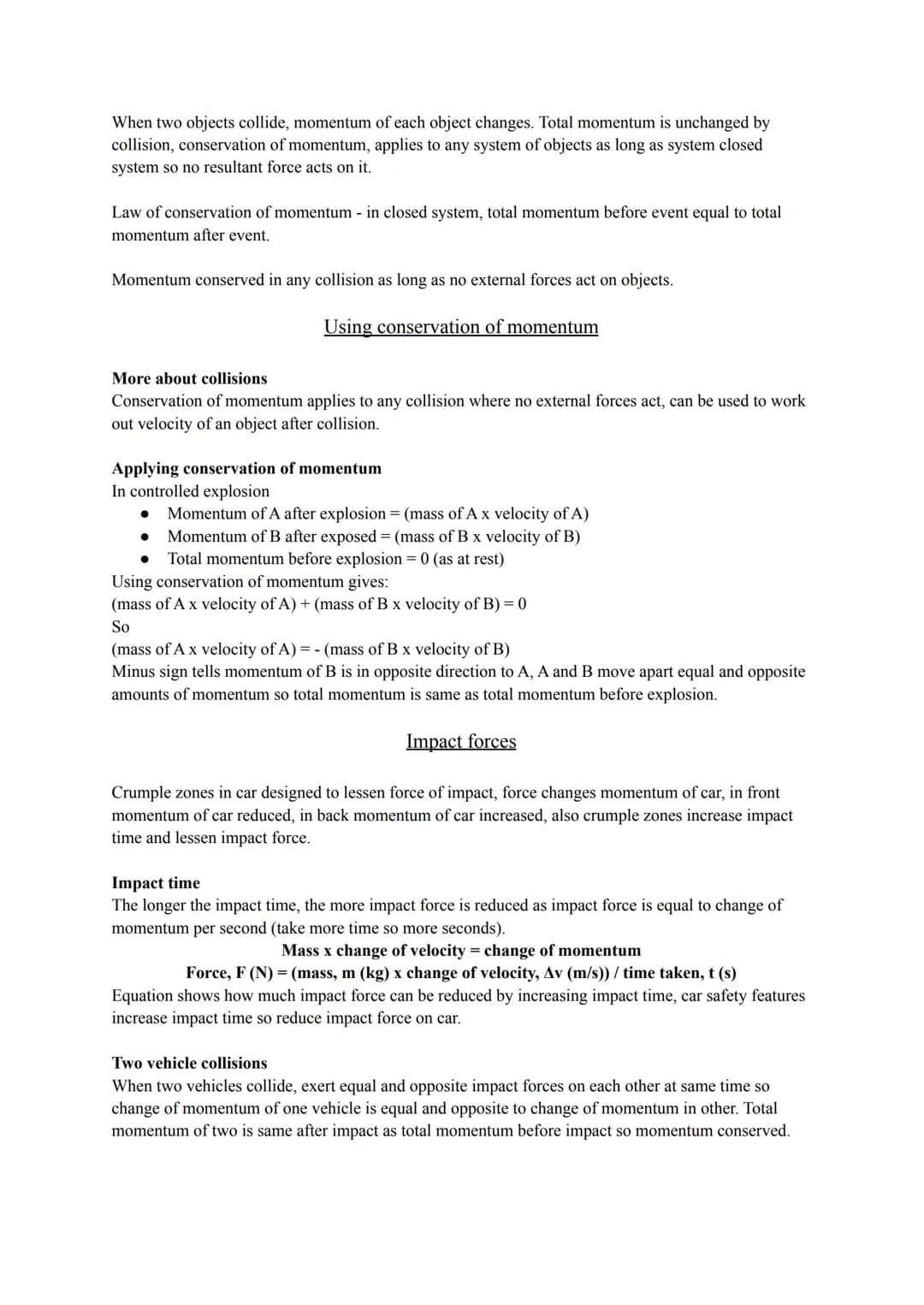

Momentum and Collisions

This page introduces the concept of momentum and its conservation, which is closely related to Newton's second law of motion and is crucial for understanding collisions and interactions between objects.

Definition: Momentum of a moving object, p (kg m/s) = mass, m (kg) × velocity, v (m/s)

Momentum is a vector quantity, having both magnitude and direction, measured in kg m/s.

Highlight: The law of conservation of momentum states that in a closed system, the total momentum before an event equals the total momentum after the event.

This law applies to any collision where no external forces act on the objects involved. It's a fundamental principle in physics, derived from Newton's second law of motion and Newton's third law of motion.

Example: In a head-on collision between two cars of masses m₁ and m₂, and initial velocities v₁ and v₂, the conservation of momentum can be expressed as: m₁v₁ + m₂v₂ = m₁u₁ + m₂u₂, where u₁ and u₂ are the final velocities.

Understanding momentum and its conservation is essential for:

• Analyzing collisions in physics problems
• Designing safety features in vehicles
• Explaining phenomena in particle physics

The concept of momentum conservation is a powerful tool that extends the application of Newton's second law of motion to systems of interacting objects, providing a deeper understanding of force and motion in complex scenarios.

P10 Force and Motion

This page introduces the topic of force and motion, which is a fundamental concept in AQA GCSE Physics P10. It sets the stage for the detailed exploration of various aspects of force and its effects on motion in the subsequent pages.
