Understanding the Motor Effect in GCSE Physics

The motor effect is a fundamental concept in GCSE Physics that explains how electrical and magnetic fields interact to create motion. When a current-carrying conductor is placed in a magnetic field, it experiences a force that causes movement. This principle forms the basis of many electrical devices we use daily.

Fleming's Left Hand Rule helps predict the direction of motion in the motor effect. This rule uses three fingers to represent different components: the thumb shows the direction of motion (Force), the first finger indicates the magnetic field direction, and the second finger represents conventional current flow. Understanding this rule is crucial for solving exam questions and practical applications.

The interaction between magnetic fields creates the force responsible for movement. When current flows through a wire, it generates its own magnetic field. This field interacts with the external magnetic field from permanent magnets, resulting in a force that moves the conductor. This principle is extensively used in electric motors and other electromagnetic devices.

Definition: The motor effect is the production of a force when an electric current flows through a conductor placed in a magnetic field.

Electric Motors and the Split-Ring Commutator

Electric motors demonstrate the practical application of the motor effect. A coil of wire carrying current in a magnetic field experiences a turning force that causes rotation. However, this rotation presents a challenge: the coil would naturally stop at 90 degrees without additional components.

The split-ring commutator solves this problem by reversing the current direction at specific points in the rotation. This clever mechanism consists of two semi-circular conducting segments that maintain continuous rotation. Conducting brushes make contact with the split-ring, allowing current to flow while the coil rotates.

Example: In an electric motor, when the coil reaches 90 degrees, the split-ring commutator switches the current direction. This reversal ensures the forces continue pushing in the correct direction for continuous rotation.

Understanding Distance-Time Graphs

Distance-time graphs provide visual representations of motion and help calculate speed. These graphs show the relationship between distance traveled and time taken, with different line shapes indicating different types of movement.

The slope of a distance-time graph reveals important information about speed. A horizontal line indicates the object is stationary, while a diagonal straight line shows constant speed. Steeper lines represent faster movement. The graph's shape helps identify changes in motion and calculate average speeds.

Highlight: To calculate speed from a distance-time graph, use the formula: Speed = Change in distance ÷ Change in time. For curved lines, this gives the average speed over that time period.

Forces: Scalar and Vector Quantities

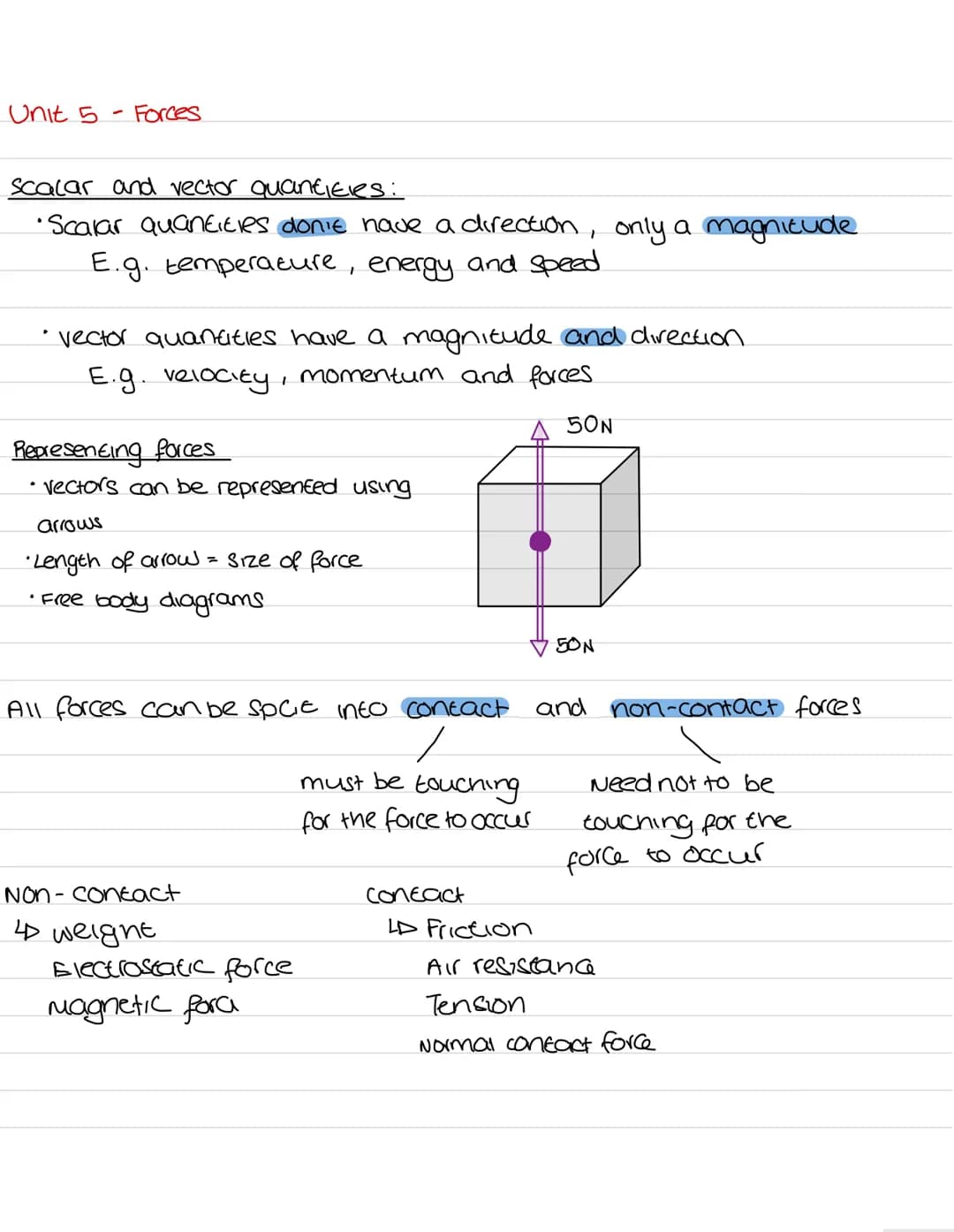

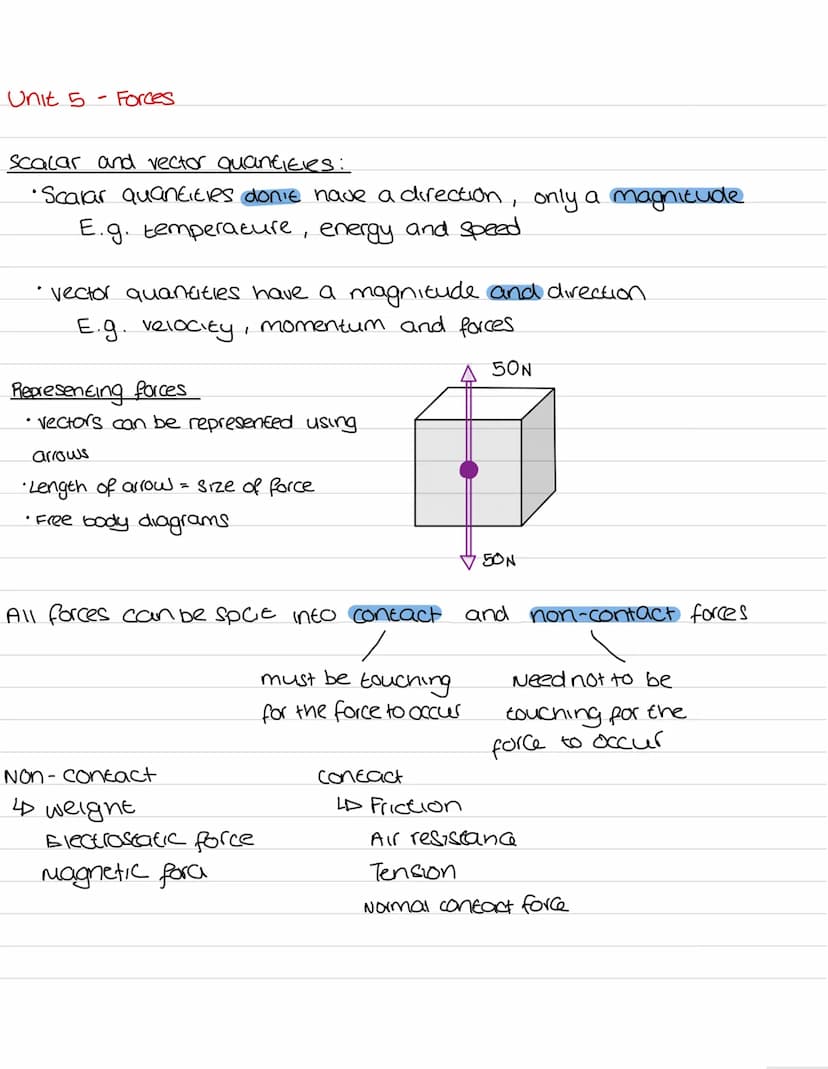

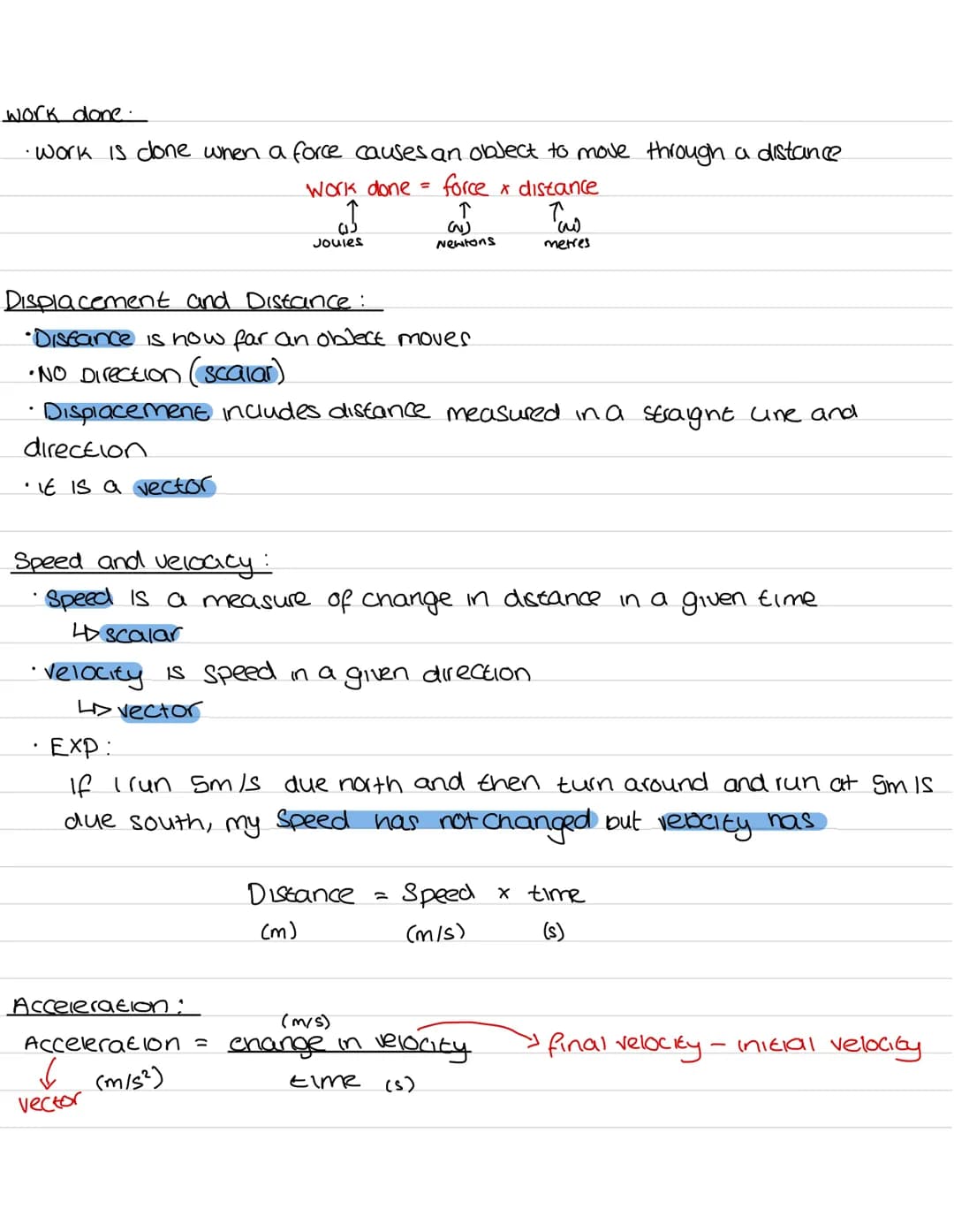

Understanding forces requires knowledge of scalar and vector quantities. Scalar quantities have magnitude only, while vector quantities have both magnitude and direction. This distinction is crucial for accurate force calculations and representations in physics.

Forces can be classified into contact and non-contact forces. Contact forces require physical touching between objects, such as friction and normal contact force. Non-contact forces work at a distance, including gravitational, electromagnetic, and electrostatic forces.

Vocabulary: Vector quantities (like forces) are represented by arrows, where the length indicates magnitude and the direction shows the force's action line.

Understanding Newton's Laws and Mass vs Weight in Physics

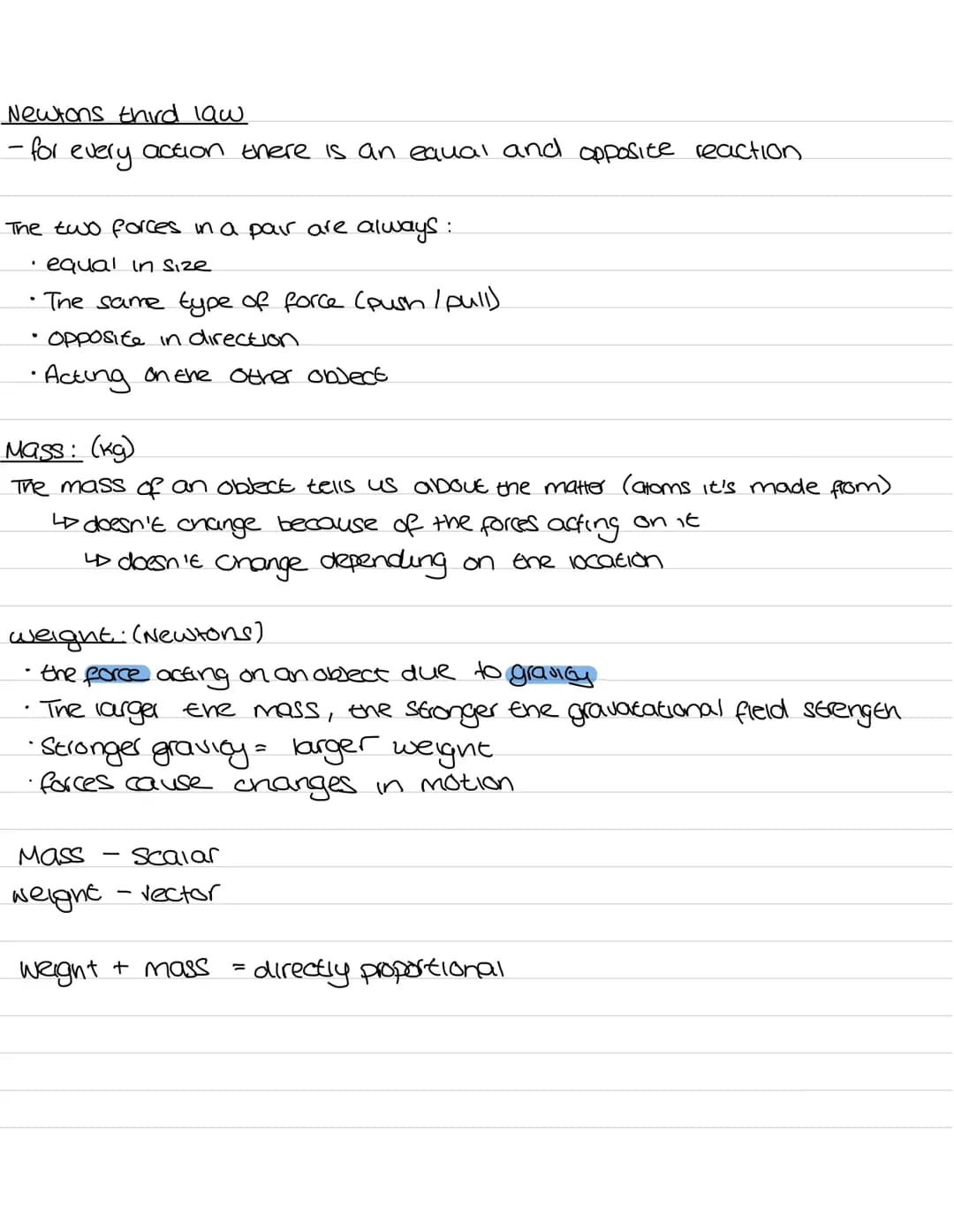

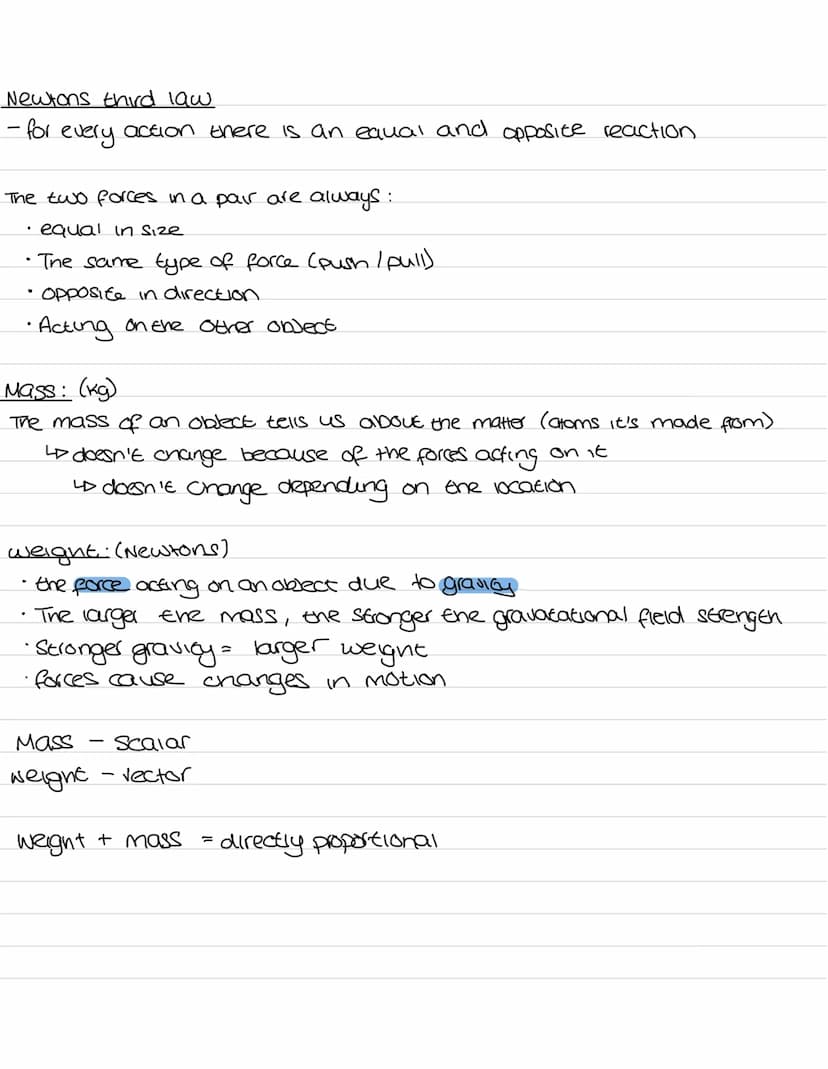

Newton's Third Law forms a fundamental principle in physics, stating that for every action there is an equal and opposite reaction. These force pairs exhibit specific characteristics that are crucial to understand. The forces are always equal in magnitude, operate as the same type (whether push or pull), move in opposite directions, and act upon different objects.

Definition: Mass is measured in kilograms (kg) and represents the amount of matter in an object. Unlike weight, mass remains constant regardless of location or applied forces.

Weight, measured in Newtons, represents the gravitational force acting on an object. The relationship between mass and weight is directly proportional - as mass increases, so does weight, influenced by the gravitational field strength. Understanding this distinction is crucial for How to get a 9 in GCSE Physics.

Highlight: Key differences between mass and weight:

• Mass is a scalar quantity (magnitude only)
• Weight is a vector quantity (magnitude and direction)
• Mass remains constant everywhere
• Weight varies with gravitational field strength

Understanding Electromagnetic Waves and Their Properties

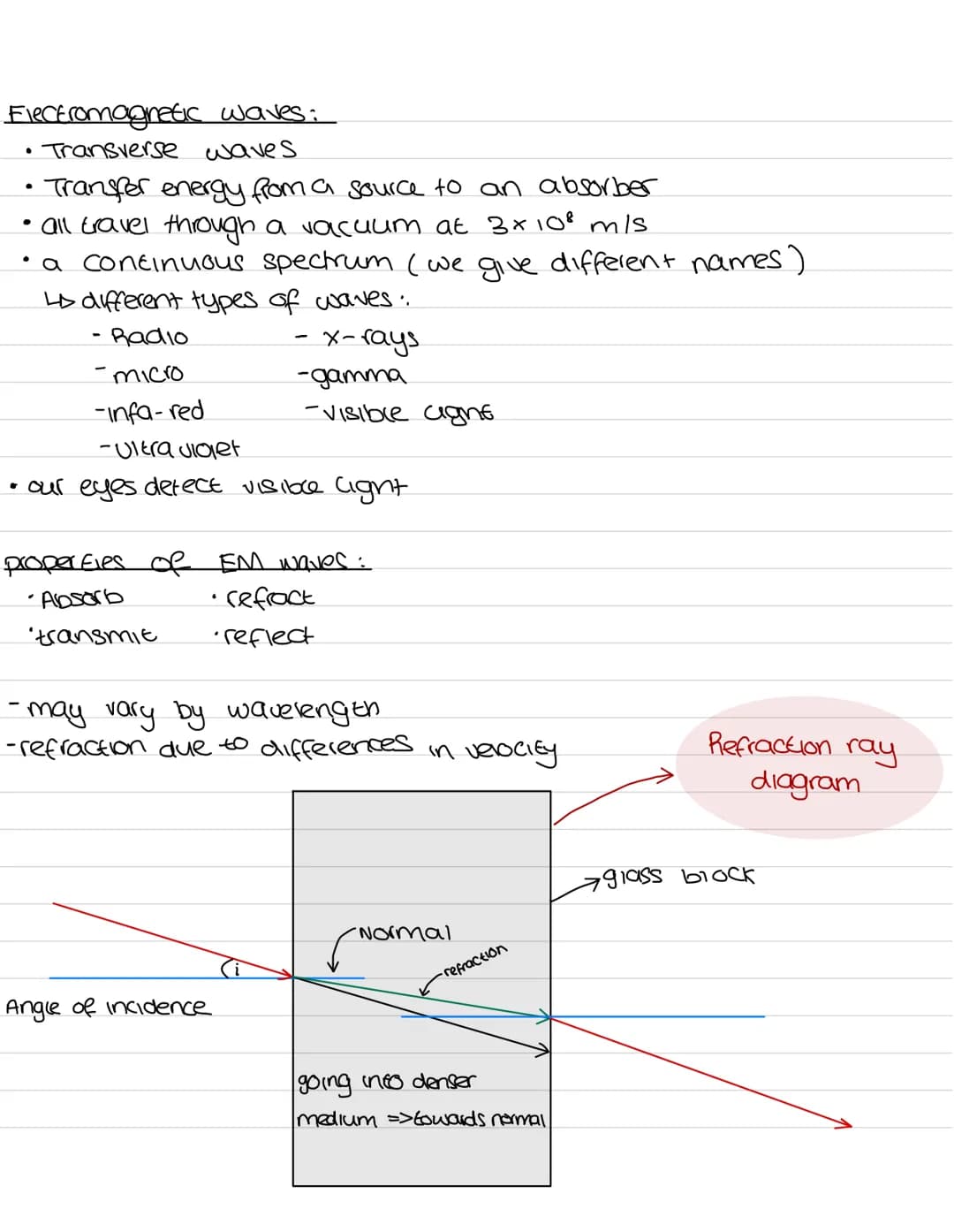

Electromagnetic waves exhibit various properties across the spectrum. Radio waves, produced by oscillations in electrical circuits, can induce alternating current (AC) when absorbed by an aerial. This AC matches the frequency of the original radio wave, demonstrating the wave-particle relationship.

The electromagnetic spectrum ranges from long-wavelength, low-frequency radio waves through microwaves, infrared, visible light, ultraviolet, X-rays, to short-wavelength, high-frequency gamma rays. Each type has specific applications and potential hazards.

Example: Common applications of EM waves:

• Radio waves: Television and radio communications
• Microwaves: Satellite communications and cooking
• Infrared: Heating and thermal imaging
• Visible light: Fiber optic communications
• UV: Energy-efficient lighting
• X-rays and gamma rays: Medical imaging and treatments

Understanding Resultant Forces and Vector Analysis

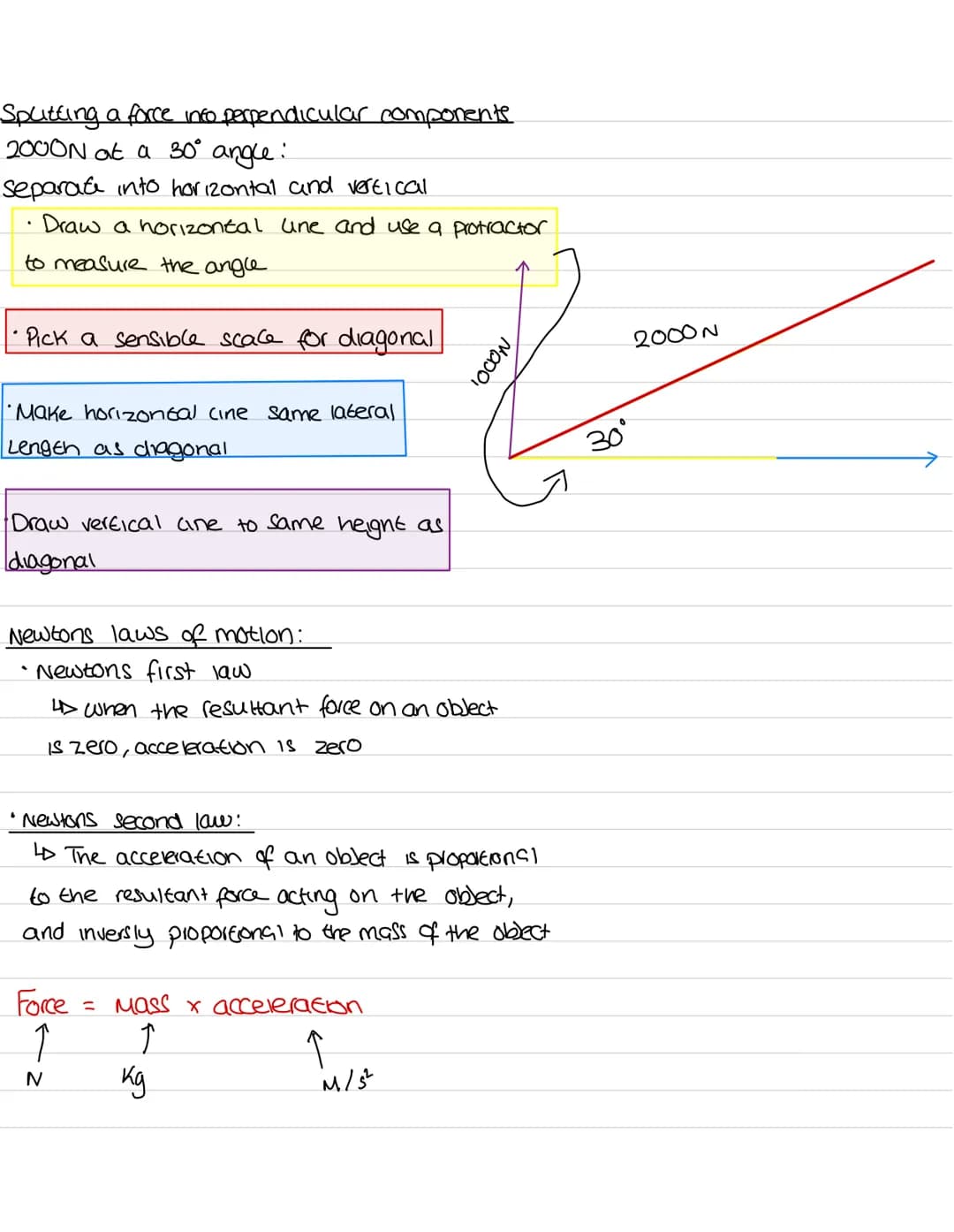

When analyzing forces, understanding how to resolve non-parallel forces is crucial. This involves breaking down forces into their component parts, particularly useful when dealing with forces acting at angles.

Vocabulary: Resultant force is the single force that has the same effect as all the individual forces combined.

For forces acting at angles, we can use various methods:

• Scale diagrams using parallelograms
• Trigonometric calculations
• Vector addition

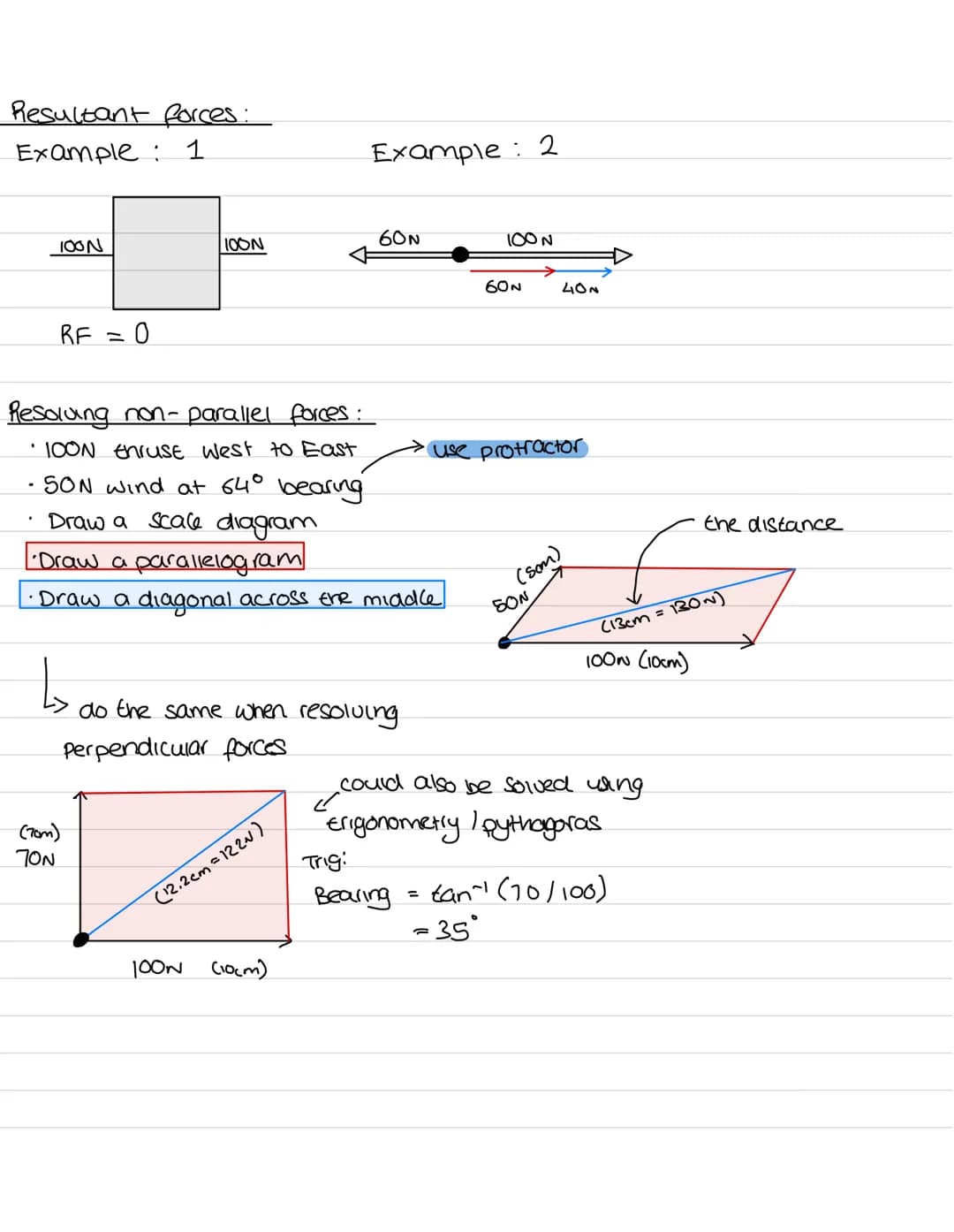

Example: When resolving a 100N force with a 50N force at 64°:

1. Draw forces to scale
2. Create a parallelogram
3. Measure the diagonal for resultant force
4. Use protractor for direction

Understanding Motion Graphs and Momentum

How to understand distance-time graph? Motion graphs provide crucial information about an object's movement. Velocity-time graphs particularly show important characteristics of motion.

Definition: Momentum is the product of mass and velocity $p = mv$, measured in kilogram meters per second (kgm/s).

Key points about momentum:

• Heavier objects have greater momentum
• Faster objects have greater momentum
• Stationary objects have zero momentum

The conservation of momentum principle states that in a closed system, total momentum before equals total momentum after any interaction. This principle helps predict outcomes of collisions and explosions.

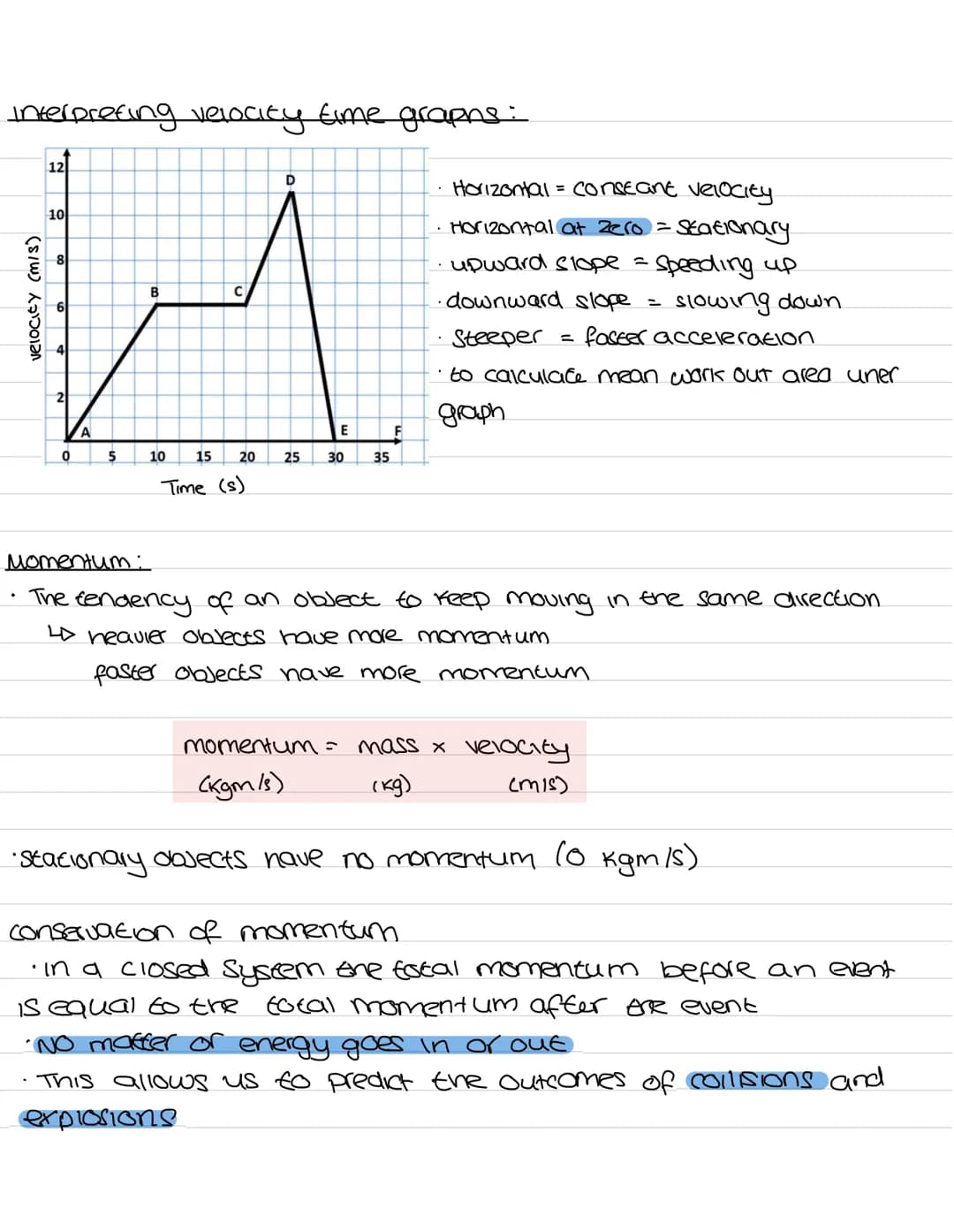

Highlight: Velocity-time graph interpretations:

• Horizontal line: Constant velocity
• Horizontal line at zero: Stationary
• Upward slope: Acceleration
• Downward slope: Deceleration
• Steeper slope: Greater acceleration/deceleration

Understanding Waves in Physics: Transverse and Longitudinal Waves Explained

Waves are fundamental phenomena in physics that transfer energy without transferring matter. Understanding the two main types of waves - transverse and longitudinal - is crucial for mastering How to get a 9 in GCSE Physics.

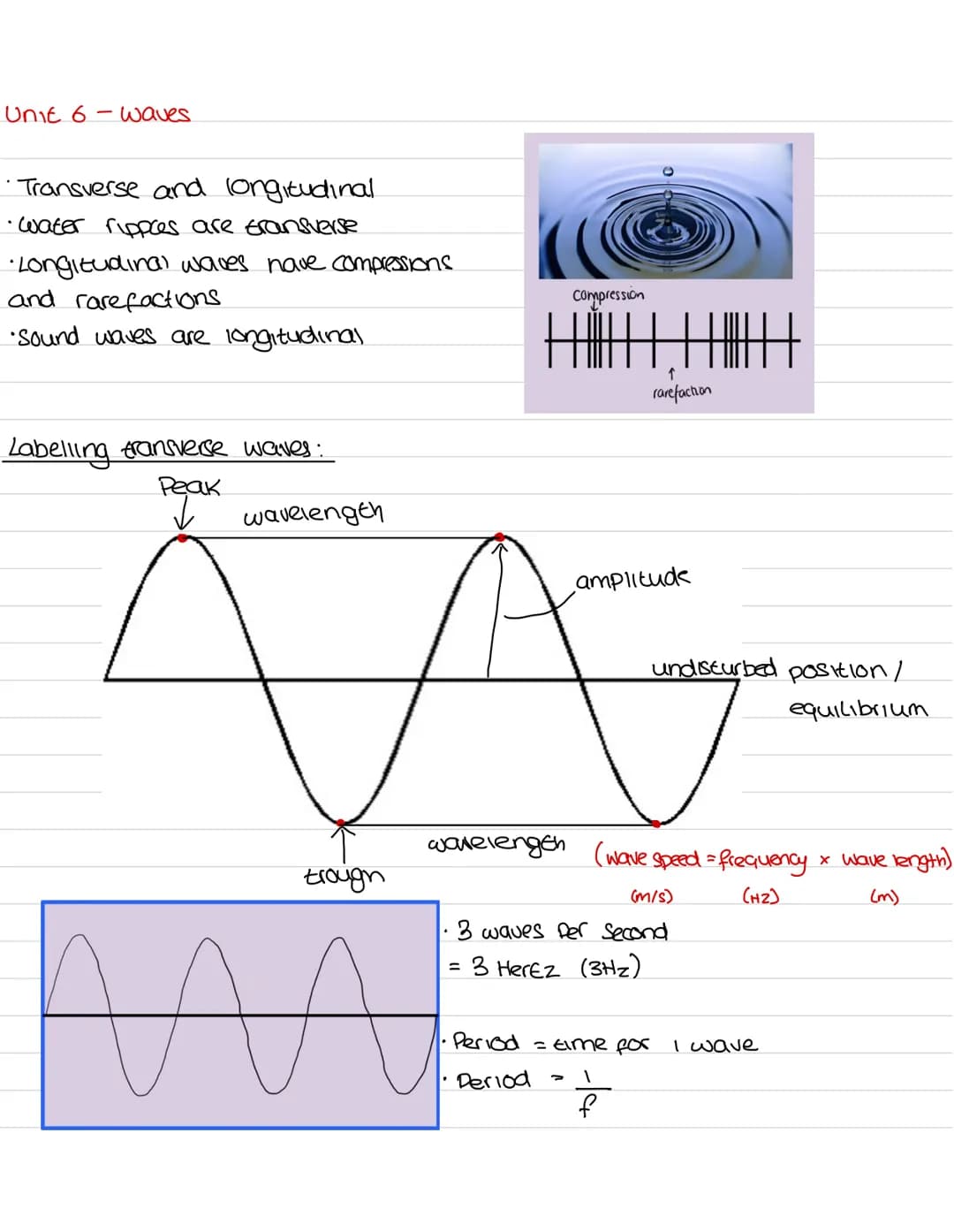

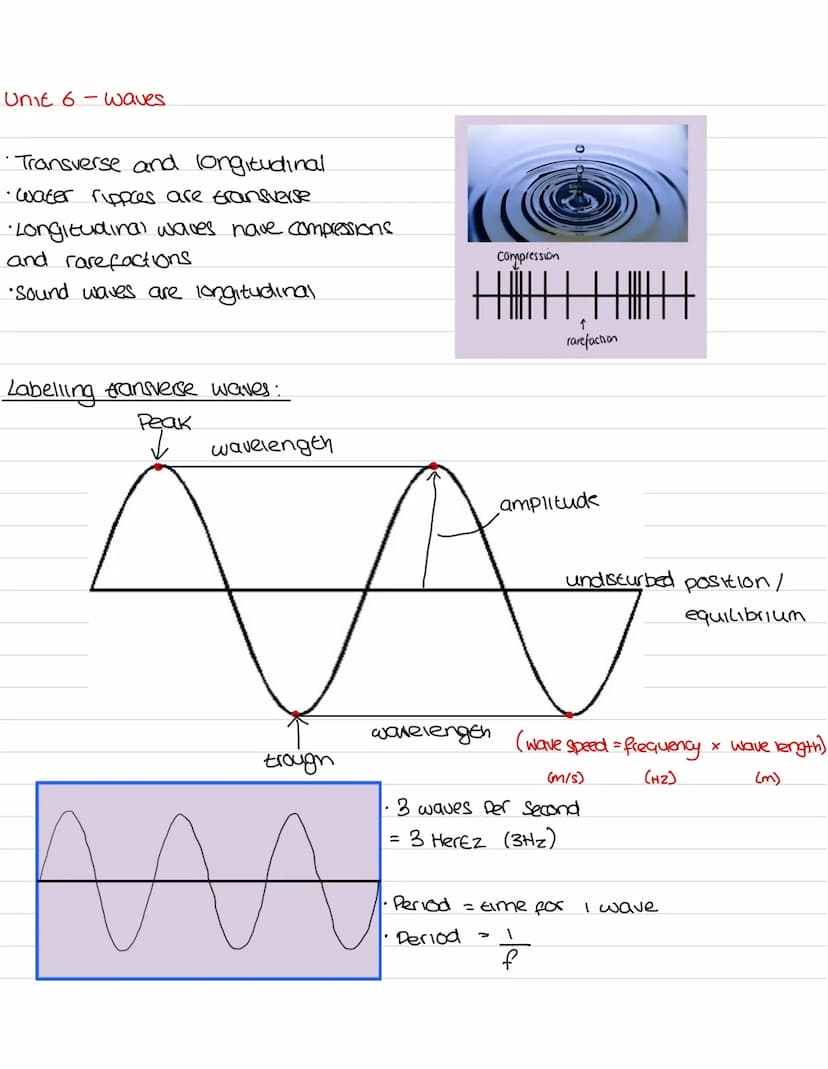

Transverse waves occur when the oscillation is perpendicular to the direction of wave travel. The most visible example is water ripples, where particles move up and down while the wave moves horizontally. These waves have distinct features including peaks (highest points), troughs (lowest points), and amplitude (distance from equilibrium to peak). The wavelength measures the distance between two consecutive peaks or troughs.

Definition: A wavelength is the distance between two consecutive peaks or troughs in a transverse wave, while amplitude measures the maximum displacement from the equilibrium position.

Longitudinal waves, like sound waves, involve particles moving parallel to the direction of wave propagation. These waves create regions of compression (where particles are closer together) and rarefaction (where particles are further apart). Understanding these wave characteristics is essential for Motor effect GCSE Physics and related topics.

Wave calculations involve several key relationships. The wave equation (wave speed = frequency × wavelength) is fundamental. Frequency is measured in Hertz (Hz), representing the number of complete waves passing a point per second. For instance, 3 Hz means three complete waves occur every second. The period of a wave (T) is the time taken for one complete oscillation, calculated as T = 1/frequency.

Example: If a wave has a frequency of 2 Hz and a wavelength of 3 meters, its speed would be: Wave speed = 2 Hz × 3 m = 6 meters per second

Distance-Time Graphs and Wave Motion Analysis

Understanding How to understand distance-time graph? is crucial for analyzing wave motion and general physics concepts. These graphs provide visual representations of movement, showing the relationship between distance traveled and time taken.

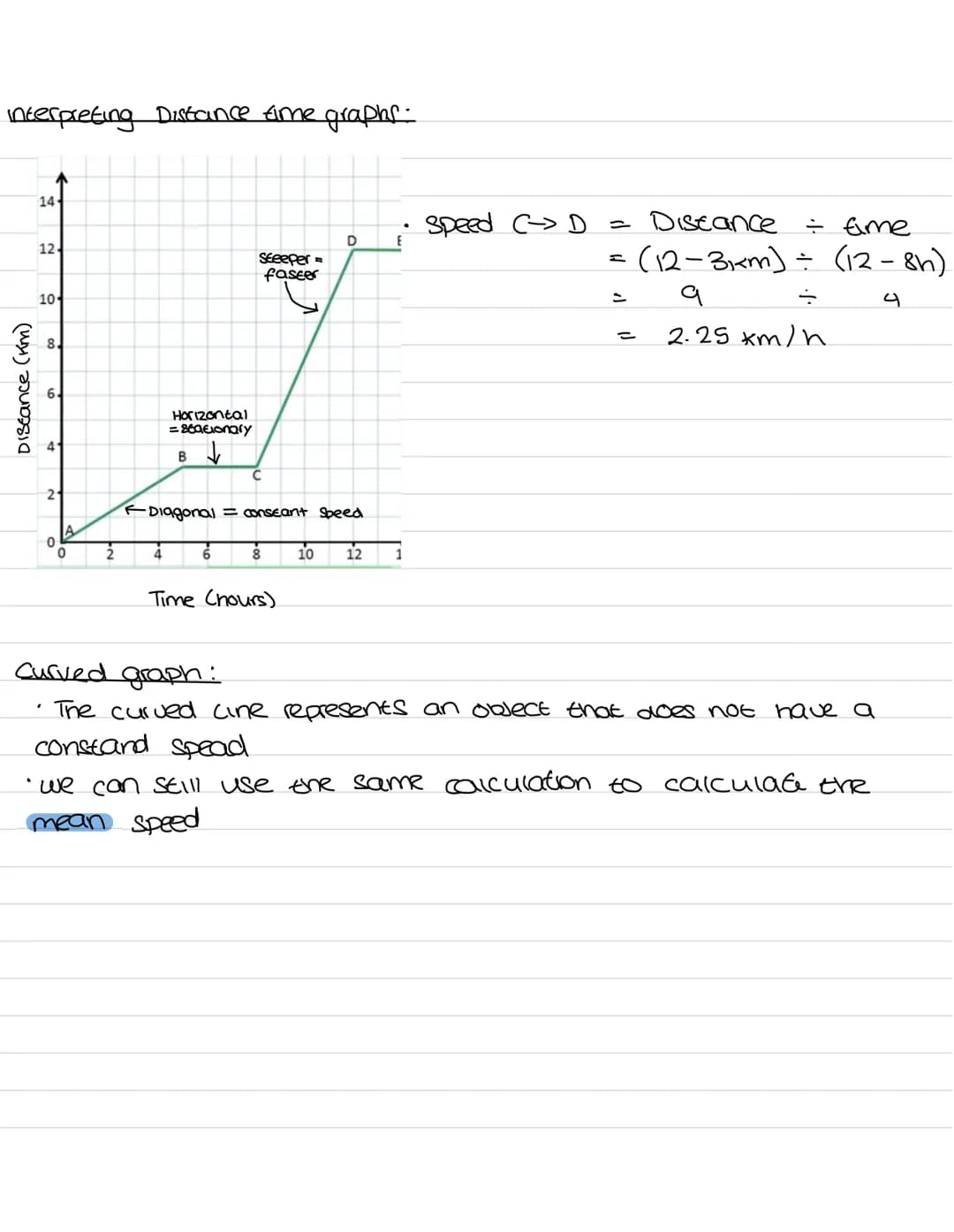

A distance-time graph consists of several key components. The vertical axis represents distance (usually in meters), while the horizontal axis shows time (typically in seconds). The slope of the line indicates speed - a steeper line means faster movement, while a horizontal line shows the object is stationary. This understanding is vital for achieving higher grades in AQA Combined Science grade boundaries 2024.

Highlight: The steepness (gradient) of a line on a distance-time graph represents speed. A straight line indicates constant speed, while a curved line shows changing speed.

When analyzing What is the representation of a journey on a distance-time graph?, different line patterns reveal different types of motion. A straight diagonal line represents constant speed, while a curved line indicates acceleration or deceleration. A horizontal line shows an object at rest, and a vertical line would be impossible as it would suggest infinite speed.

The average speed can be calculated from these graphs by finding the gradient between two points. This is done by dividing the change in distance by the change in time. This skill is particularly important for students aiming to understand How are Combined science grades calculated and achieving higher grades in their assessments.
