Understanding SUVAT Equations and Velocity-Time Graphs in A Level Physics Mechanics
The SUVAT equations form a fundamental cornerstone of mechanics in A Level Physics Mechanics questions and answers. These equations describe motion under constant acceleration, connecting five key variables: displacement s, initial velocity u, final velocity v, acceleration a, and time t. Understanding these relationships is crucial for mastering AQA A Level Physics Mechanics questions.
Definition: SUVAT equations are only valid under constant acceleration conditions, including zero acceleration a=0. These equations allow us to calculate unknown motion variables when given other variables.

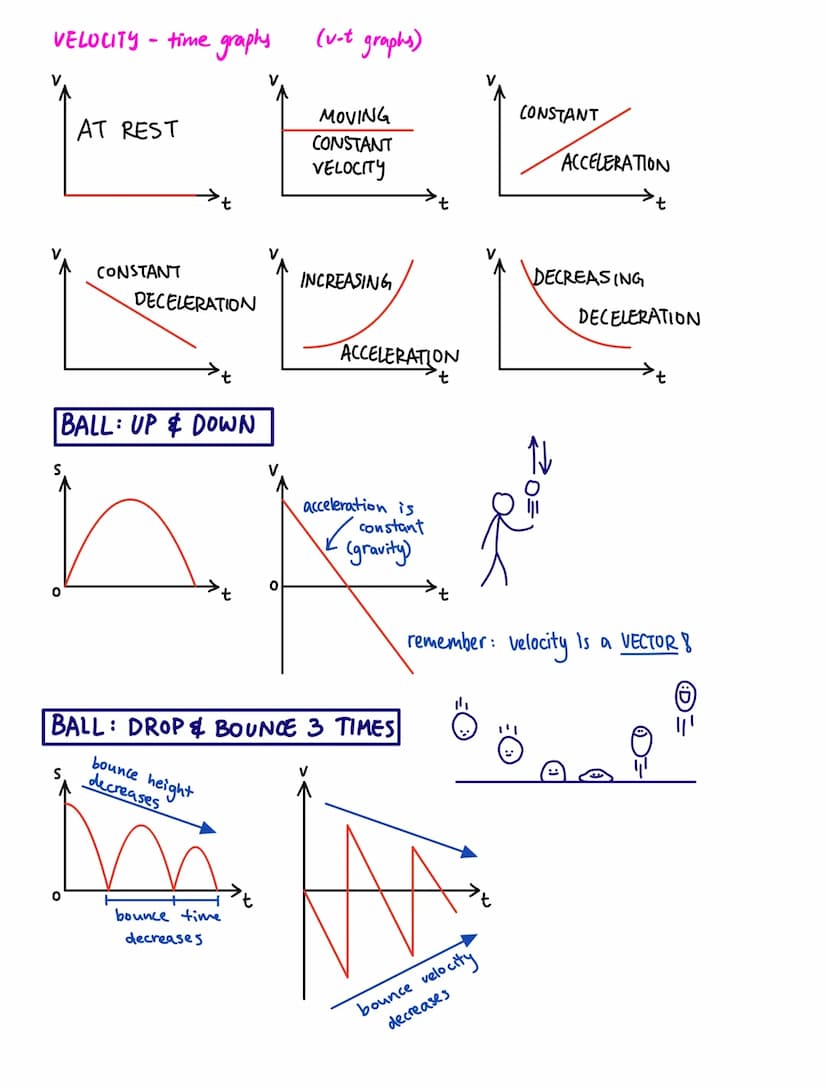

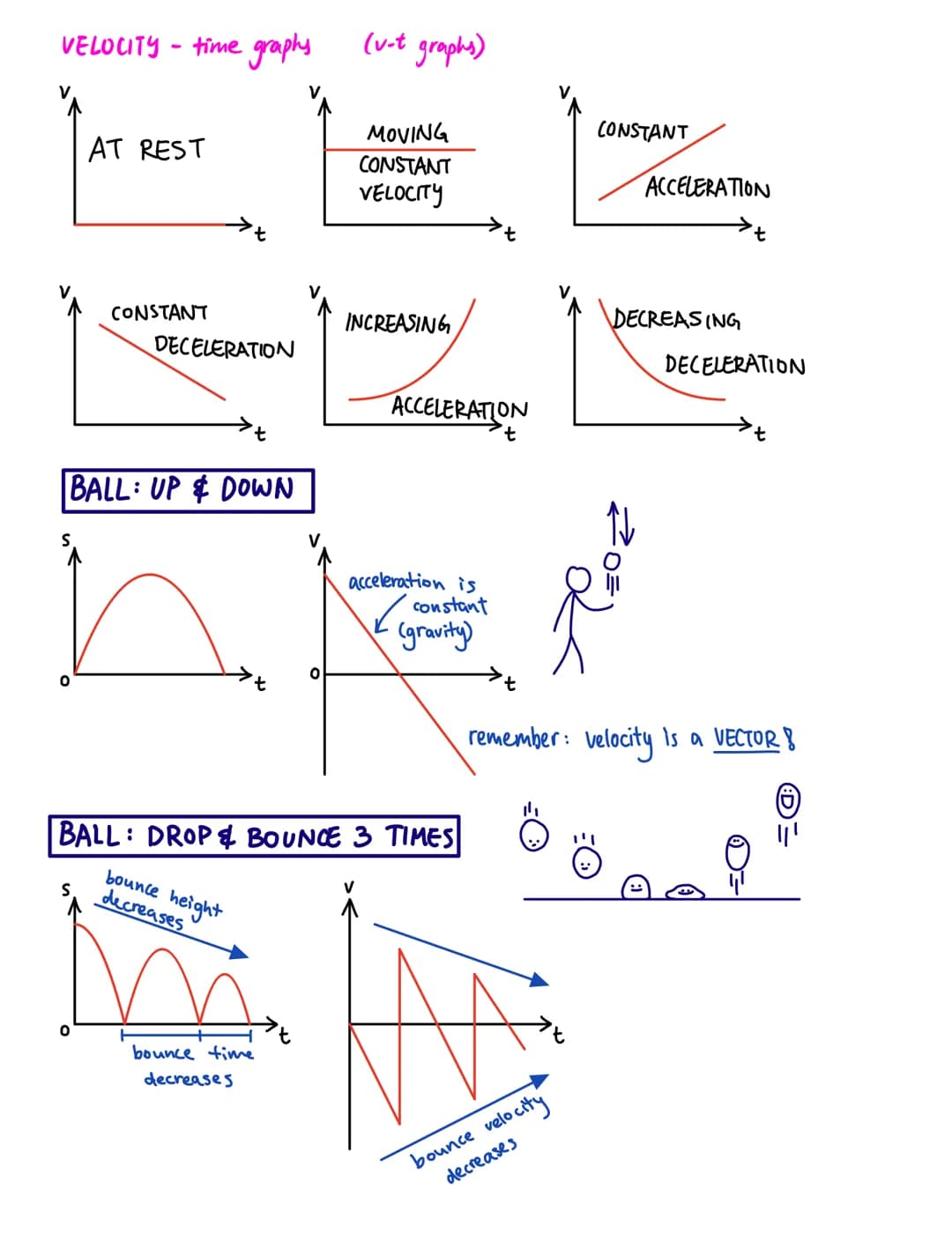

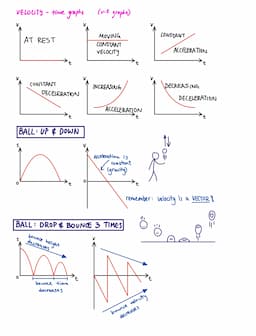

Velocity-time graphs provide a visual representation of motion and directly relate to SUVAT equations. The graph's slope represents acceleration, while the area under the curve equals displacement. This geometric interpretation helps students understand the mathematical relationships between motion variables. For instance, when analyzing a v-t graph, the change in velocity v−u divided by the change in time gives acceleration.

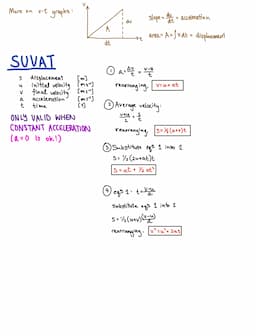

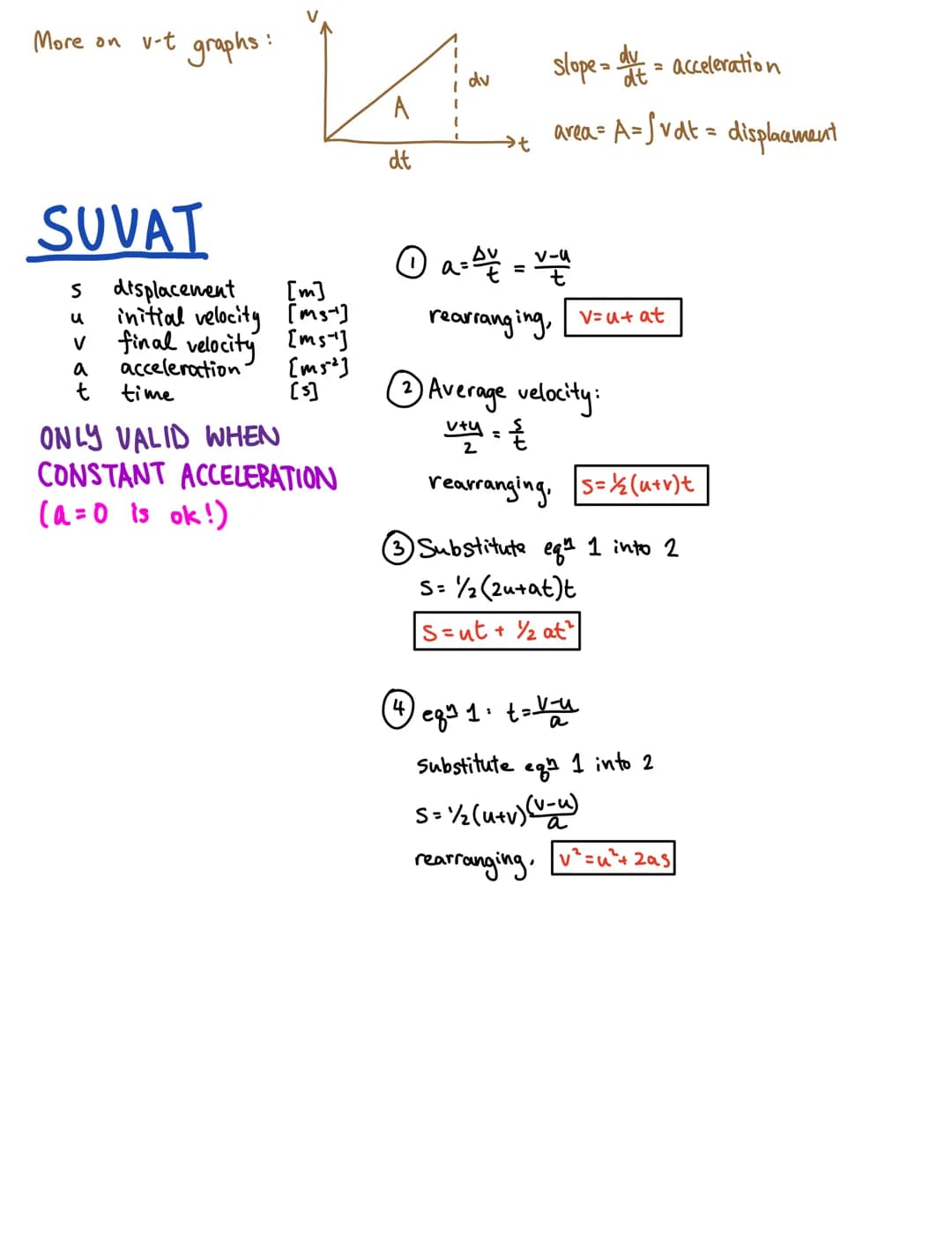

The derivation of SUVAT equations begins with the fundamental relationship v=u+at. From this, we can derive other essential equations through mathematical manipulation. The average velocity equation, u+v/2, leads to the displacement equation s=ut+½at². Similarly, by eliminating time from these equations, we arrive at v²=u²+2as, which is particularly useful when time isn't known.
Example: Consider a car accelerating from rest u=0 to 20 m/s over a distance of 100m. Using v²=u²+2as, we can find the acceleration:
- 20² = 0² + 2a100
- 400 = 200a
- a = 2 m/s²
